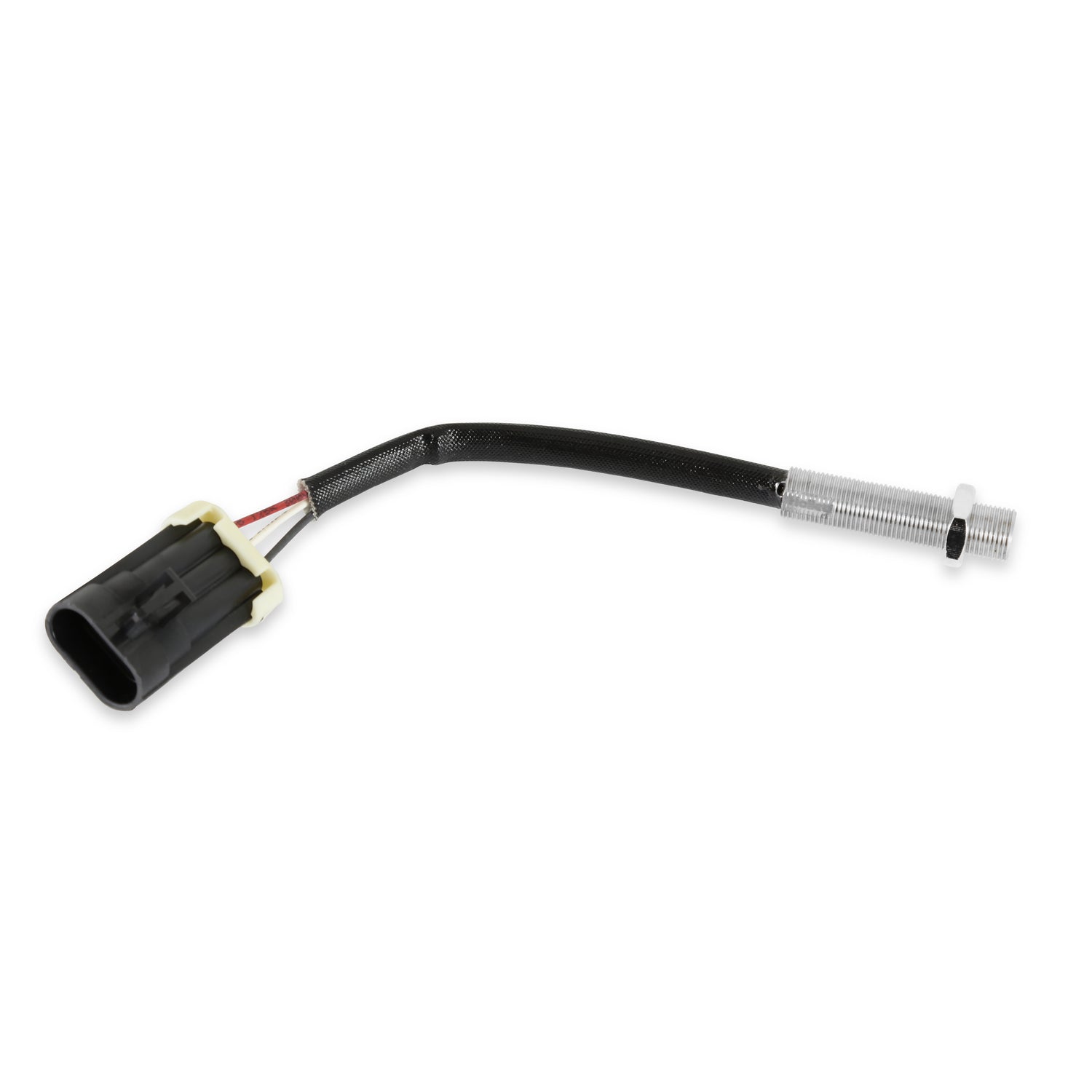

Holley 554-124 Hall Effect Ferrous Target Crankshaft Signal Sensor

Crank Sensor, Hall Effect, M12x1, For use with Ferrous Target

Part Number: 554-124

Every racer around is well aware that the crank sensor is an integral part of the fuel injection system. Holley's EFI Crankshaft Signal Sensor is designed to generate an RPM input signal to the ECU when used in ferrous target crank trigger setups. This sensor is a Hall Effect sensor, meaning it outputs a digital square wave signal, which is ideal for use with most Electronic Fuel Injection Systems.

Features and Benefits

• 3 wire hall-effect crankshaft sensor, generates digital
• For use w/ ferrous metal targets only (does not detect flying magnets)

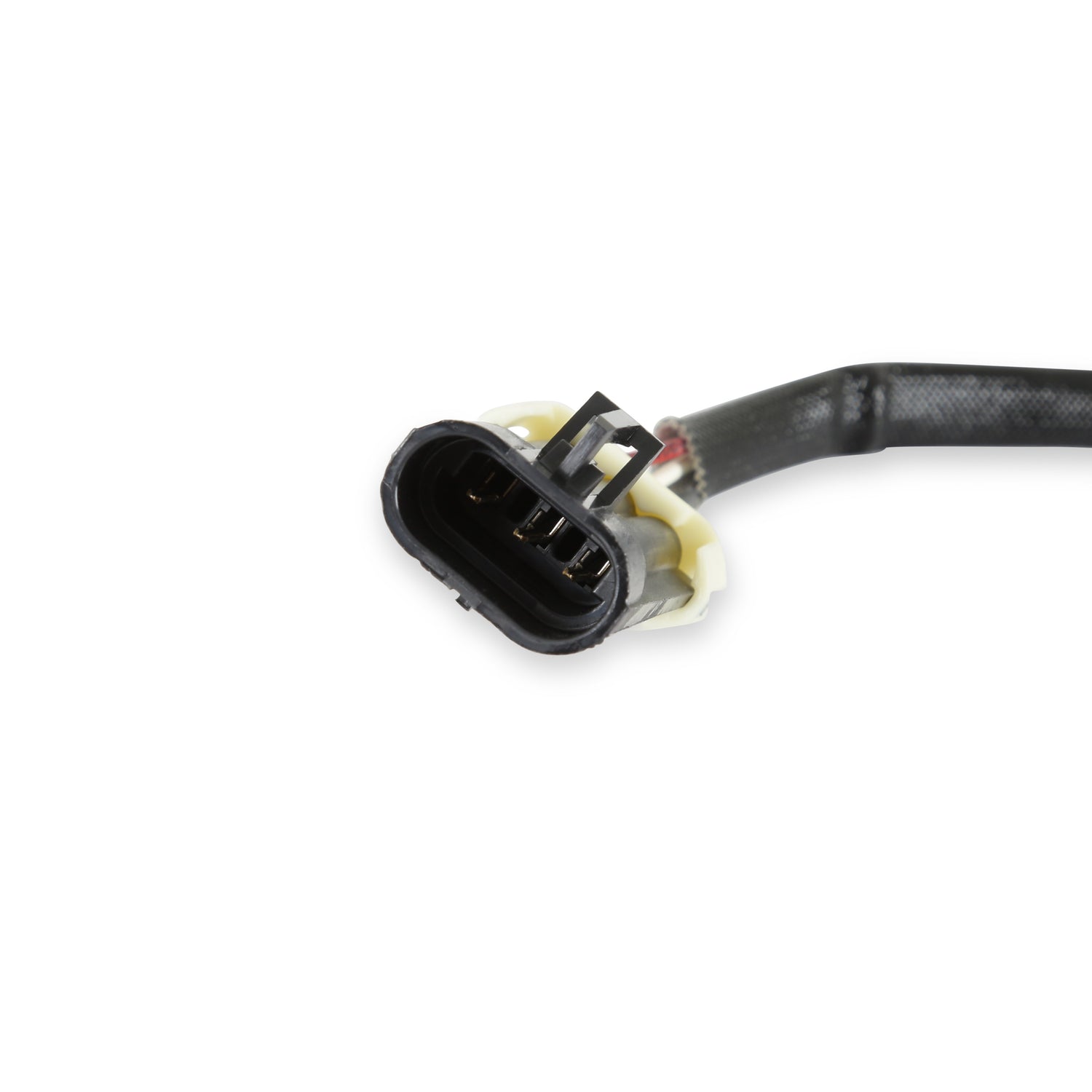

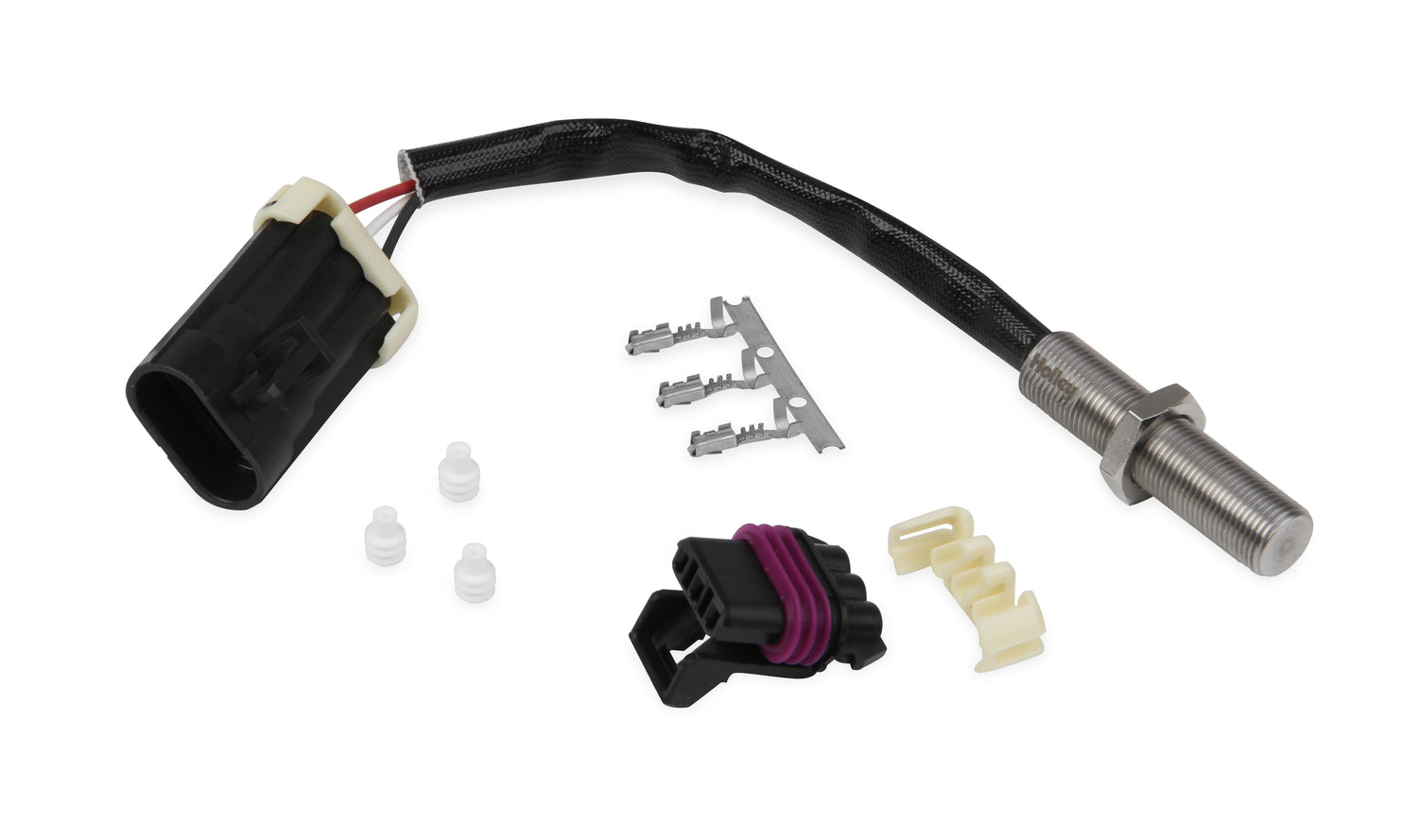

• Can operate from 8-20 volts, mating connector included

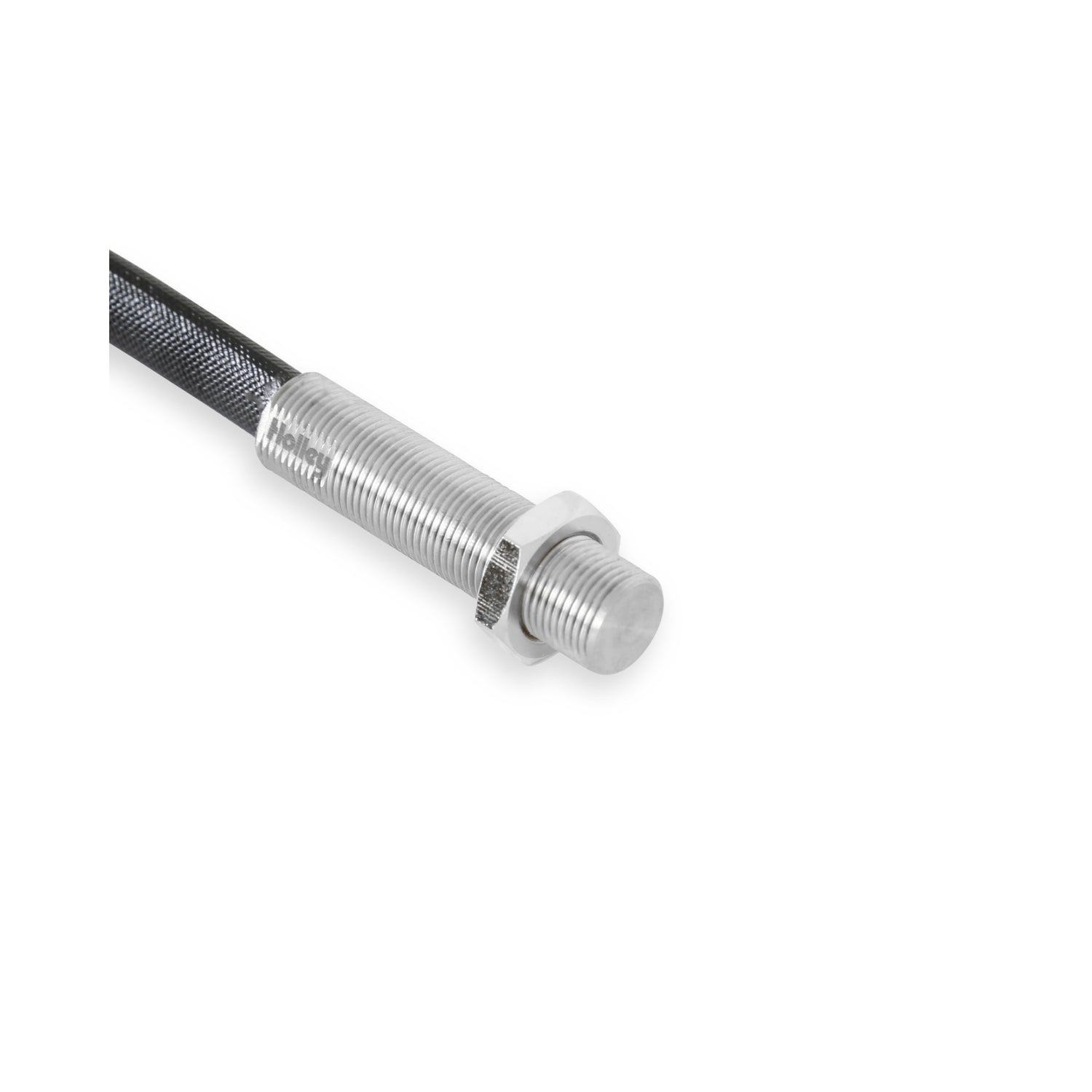

• M12x1 threads for finer gap adjustability, Approx. 2” length
• Will function as an auxiliary speed input (i.e. driveshaft)

This sensor is to be used with trigger wheels with ferrous steel targets or teeth. it does not detect "flying magnets".
