Holley EFI | SKU:
554-112

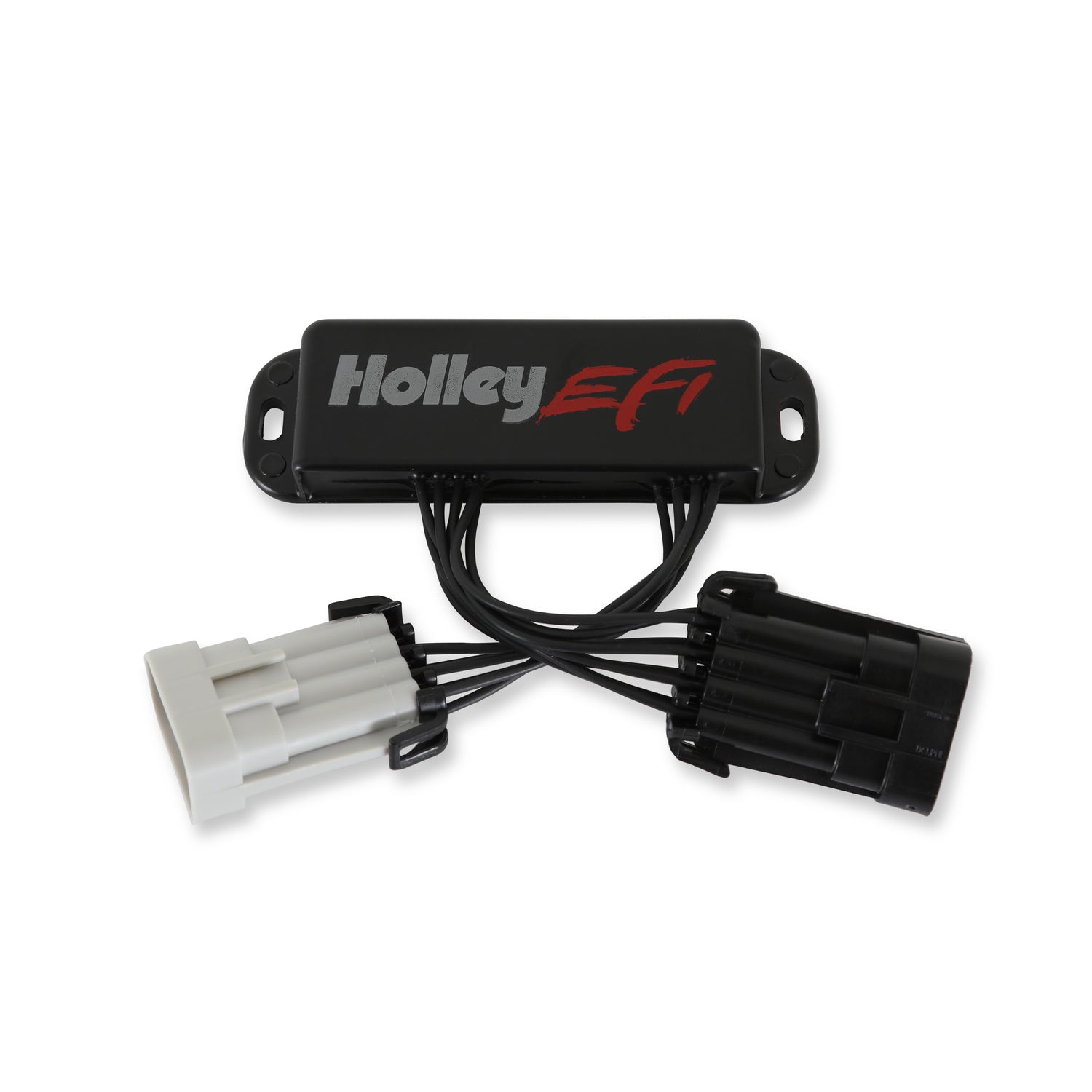

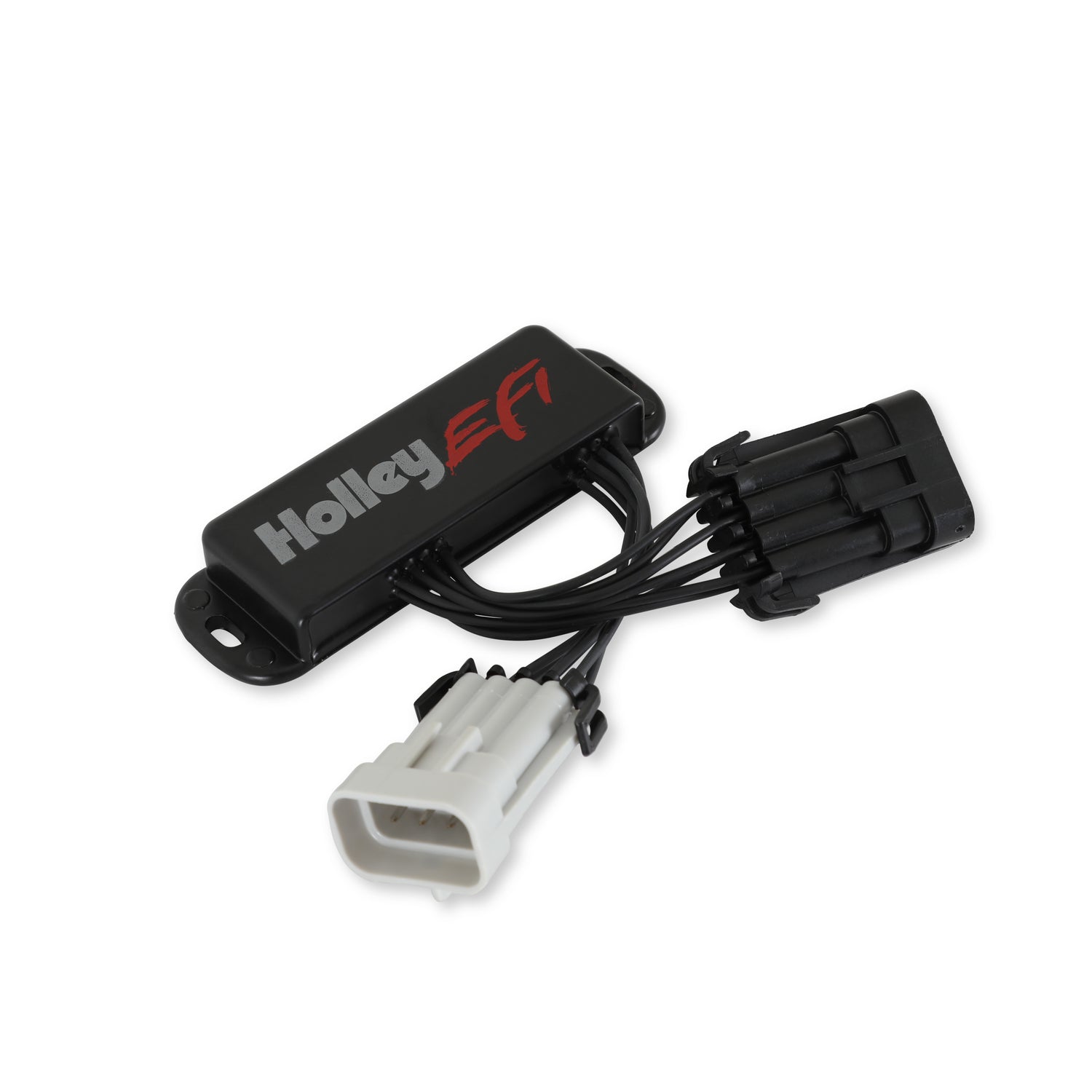

Holley 554-112 Four Channel Coil Driver Module
Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.
Regular price
$393.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 554-112 Four Channel Coil Driver Module is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.
Part Number: 554-112

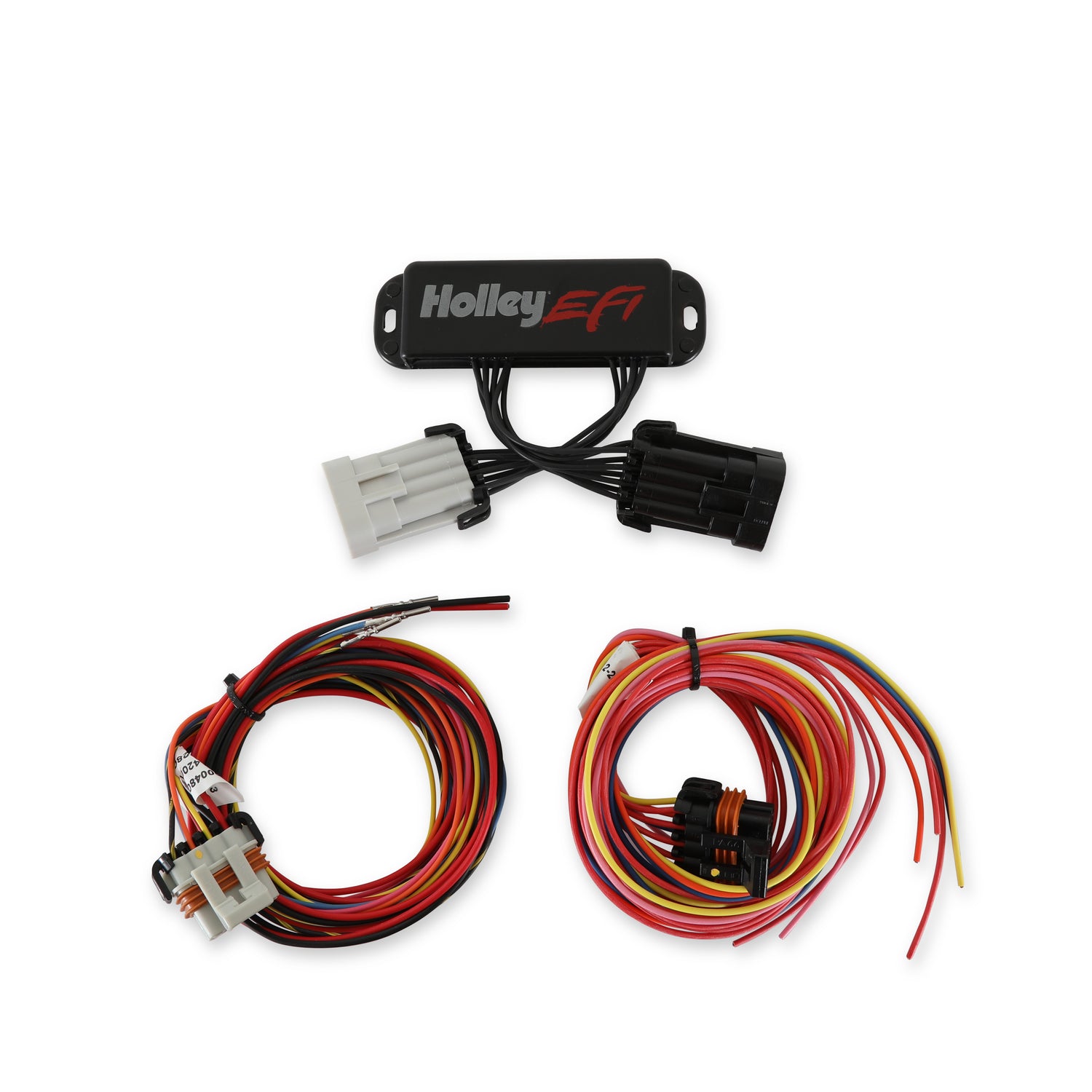

The four channel coil driver module is used to drive a two wire "dumb" ignition coil. Such coils are typically used on Ford Modular and late model Chrysler HEMI engines. Holley EFI ECUs require this coil driver module when running two wire "dumb" coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
Features and Benefits
• Includes mating pigtails
• Potted design allows installation in engine compartment
• Drives two wire “Dumb Coils”
• Four channel
Part Number: 554-112
The four channel coil driver module is used to drive a two wire "dumb" ignition coil. Such coils are typically used on Ford Modular and late model Chrysler HEMI engines. Holley EFI ECUs require this coil driver module when running two wire "dumb" coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
Features and Benefits
• Includes mating pigtails
• Potted design allows installation in engine compartment
• Drives two wire “Dumb Coils”
• Four channel
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Ignition Connector Gender Female Connector Quantity 2 Emission Code 5 Grade Type Performance Ignition Type Distributorless Mount Type Bolt-On Mounting Hardware Included No part type Ignition Control Module Product Type High Current Driver - Module Sub Category Control Modules Warning California Proposition 65 -
