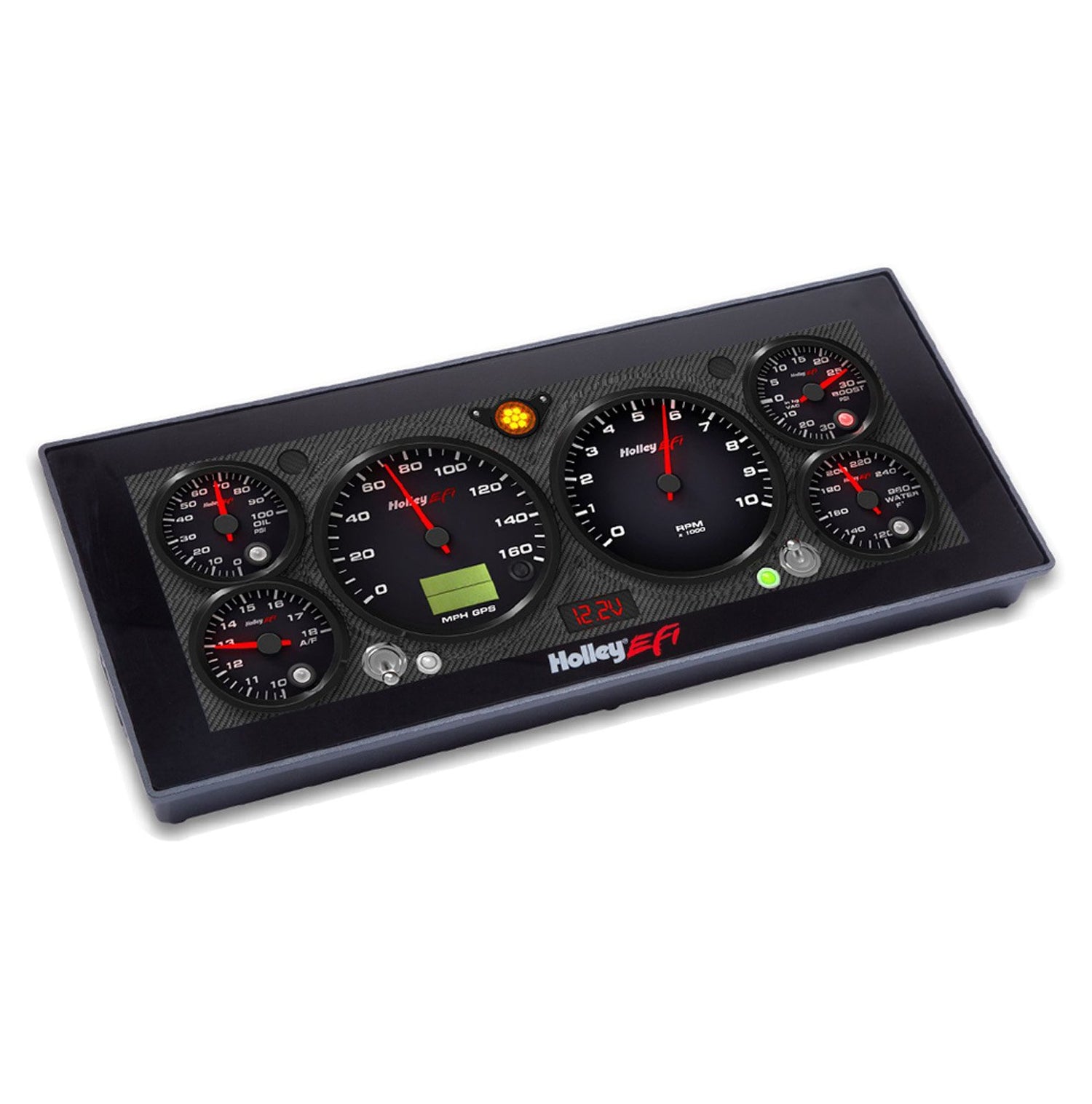

Holley 553-111X EFI 12.3" M8 Pro Dash

Introducing the next era of Sniper 2 EFI displays. The new 6.86-inch and 12.3-inch dashes offer unparalleled customization and visibility. Fully compatible with all Sniper 2 EFI installations.

Part Number: 553-111X

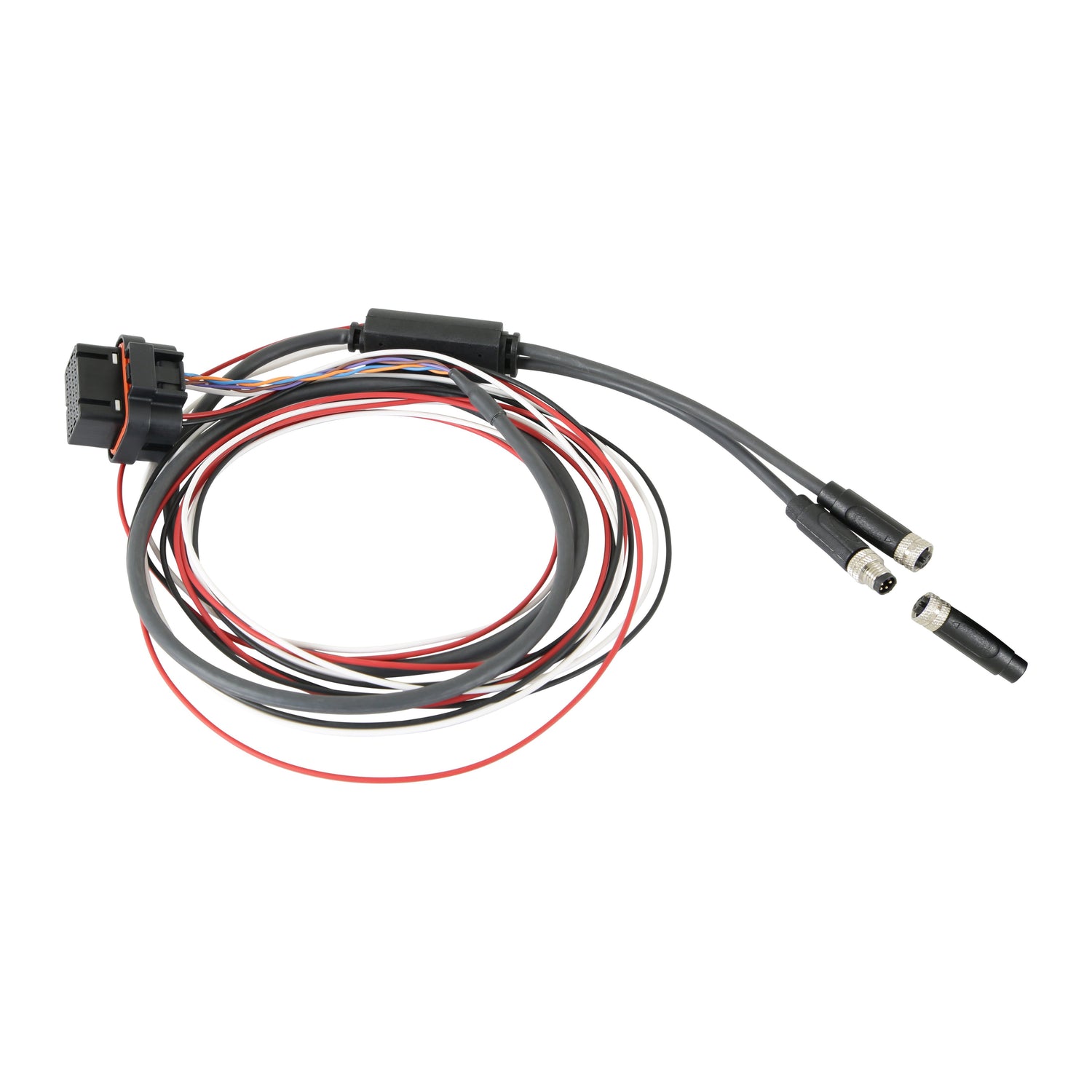

Trust is paramount in motorsports, where every component plays a crucial role in performance and safety. That's why the Sniper 2 EFI Pro Dash series is engineered to earn your trust, ensuring reliable engine monitoring when your engine, sponsorship, and reputation are on the line. Whether you choose the 6.86-inch or the 12.3-inch Pro Dash, you'll experience unparalleled customization for a variety of motorsports applications. Both feature high-resolution, high-brightness, full-color capacitive touch screens for easy viewing even in bright sunlight. With plug-and-play connectivity to all Sniper 2 EFI systems and weatherproof aluminum housings offering flexible mounting options, installation is seamless. Monitor the power of your Sniper 2 EFI system effortlessly with a plethora of inputs and outputs. The included 34-pin connector boasts 13 multi-configurable inputs for Holley EFI sensors, ensuring compatibility with pressure and temperature sensors. Even if you're not using Holley EFI sensors, these inputs are configurable, accommodating different sensor scaling calibrations. Additionally, both Pro Dash models feature dedicated speed inputs for RPM, driveshaft speed, or other Hall effect speed inputs, alongside ground-switched outputs for auxiliary accessories like a secondary fuel pump or electric water pump. The 6.86-inch Pro Dash contains an integrated LED programmable shift light and customizable warning indicators adding further functionality, making the options virtually endless. Engineered with trust in mind, the Sniper 2 EFI Pro Dash series is your dependable partner on the track, providing the confidence you need to push the limits while safeguarding your valuable investments.

Features and Benefits

• Plug and play Support for All Sniper 2 EFI Systems
• Dedicated M8 CAN connection for Sniper 2
• 16 default background skins pre-loaded with unlimited options for importing custom layouts
• Configurable virtual switch panel with 4 user defined ground switched outputs
• Quickly swipe between multiple active screens for warmup, race, or whatever you want to monitor!
• No stylus required, capacitive touch, just like your smart phone
• Weatherproof aluminum housing featuring flexible mounting options
• Manual or auto-brightness features for easy viewing day or night
• Built-in GPS with odometer function (Antenna included)
• Expandable storage via USB (16GB memory stick included)
• Threaded mounting holes for surface or flush mounting, with high quality hardware included

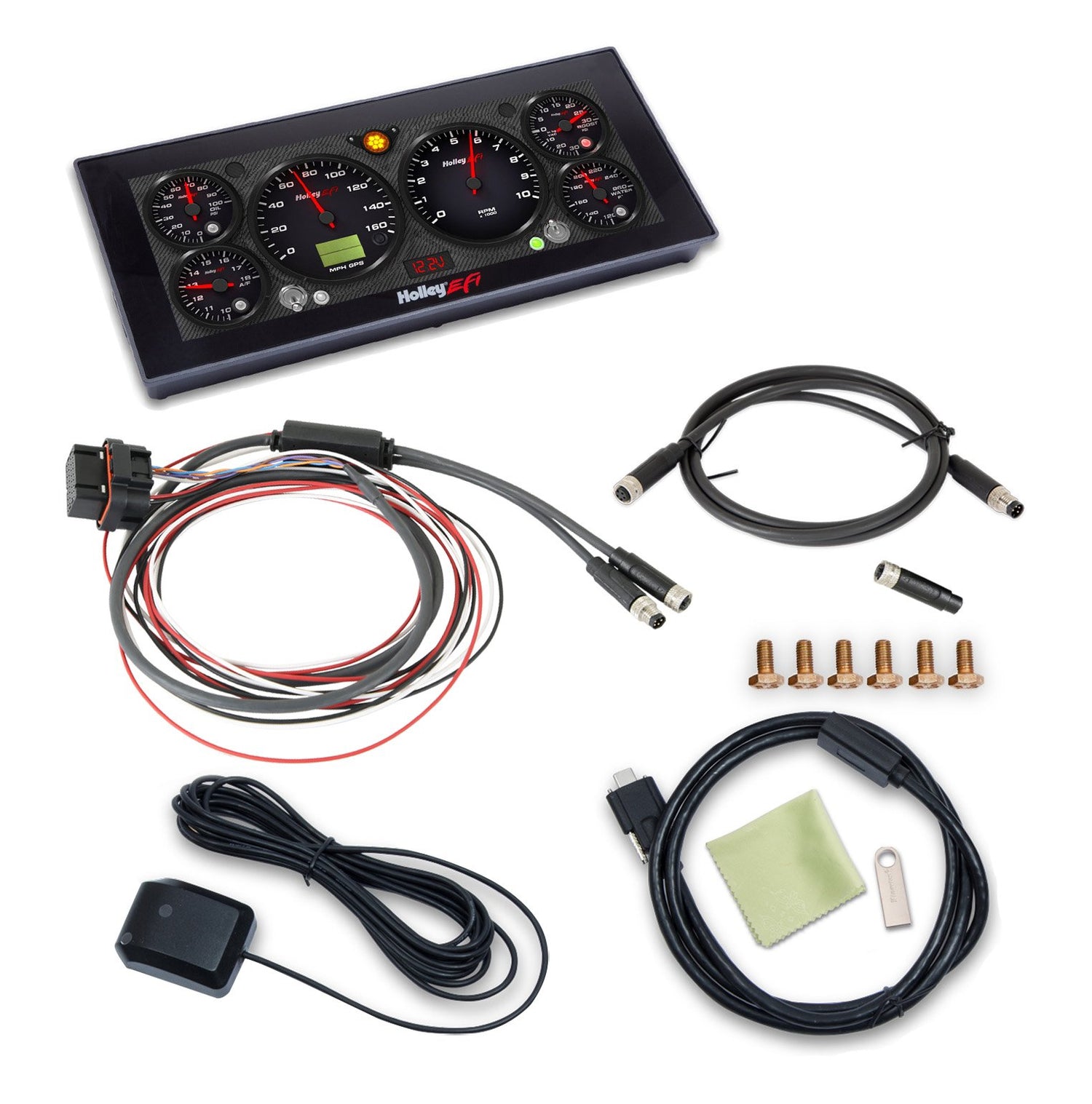

• Includes everything needed for installation
• USB Keyboard and Mouse functionality, makes it quick and easy to setup new layouts
• Upgradable with future software enhancements
• Wizard and tuning functions are not included within the Sniper 2 EFI Pro Dash Display

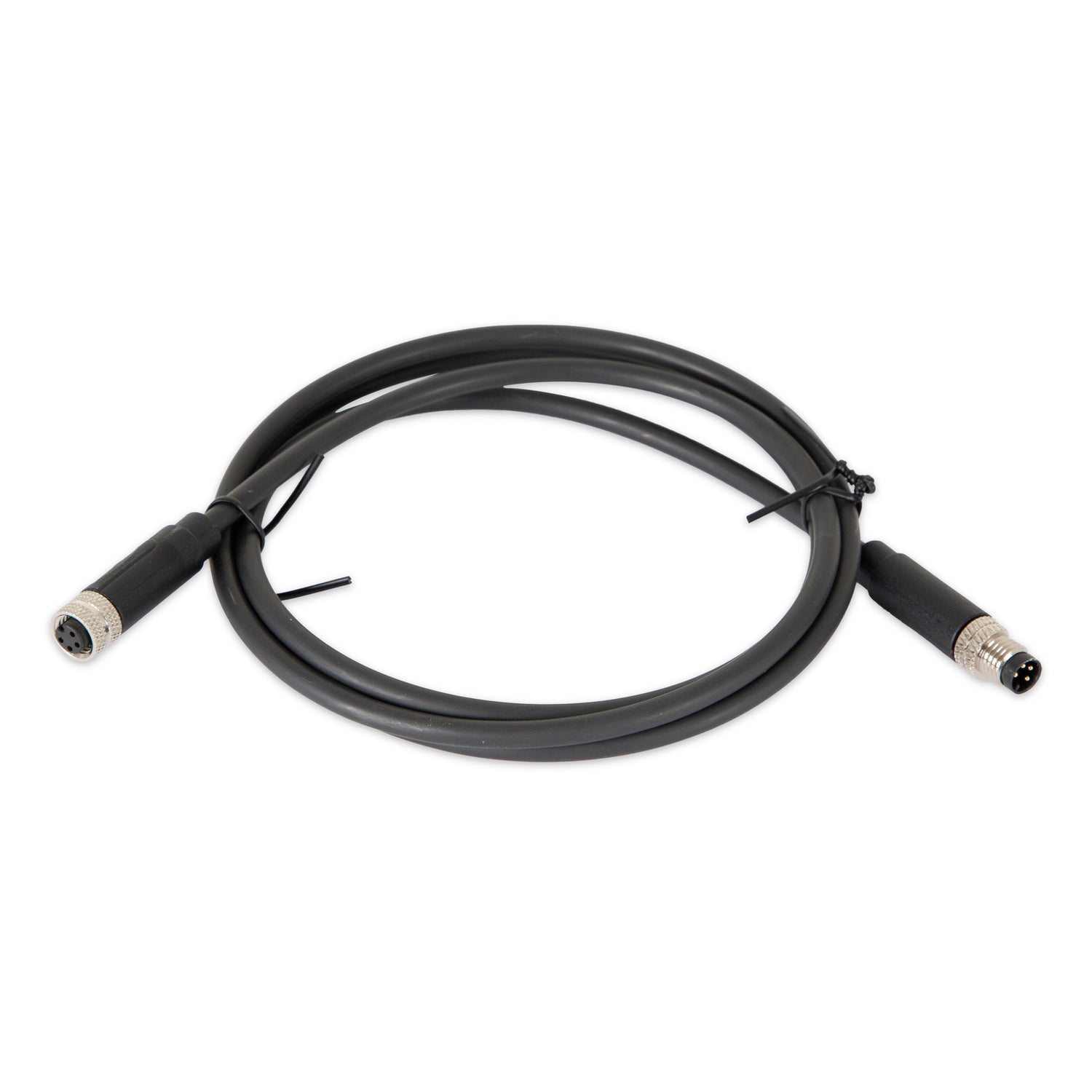

• 4ft M8 extension cable included
• Service harness part number 558-486 allows existing Pro Dash users to connect directly to the Sniper 2’s M8 CAN connection
