Holley 550-910T EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3

58x Crank - 4x Cam - EV1 Injectors - USB/CAN Tuning Cable

Part Number: 550-910T

Take control of your LS engine with Terminator X! Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. These Terminator X kits include a USB/CAN tuning cable instead of the 3.5" Handheld LCD, these kits require the use of the free Terminator X Software for initial setup. The Terminator X Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!

Features and Benefits

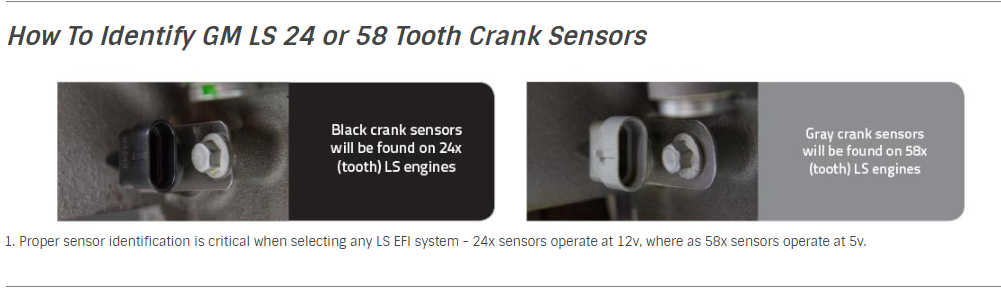

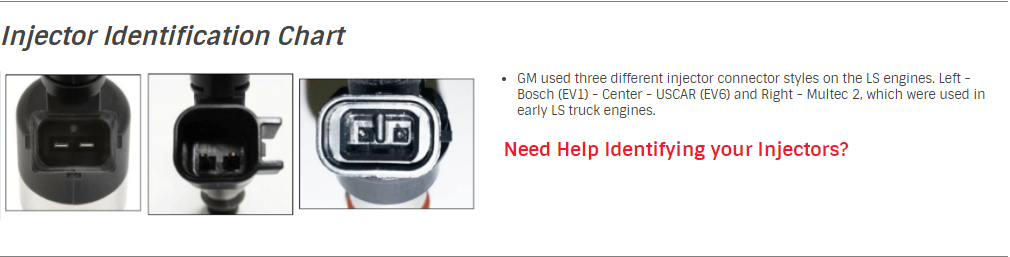

• Designed for GM LS Engines with 58x Crank, 4x Cam - and EV1 Injectors.
• Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
• High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

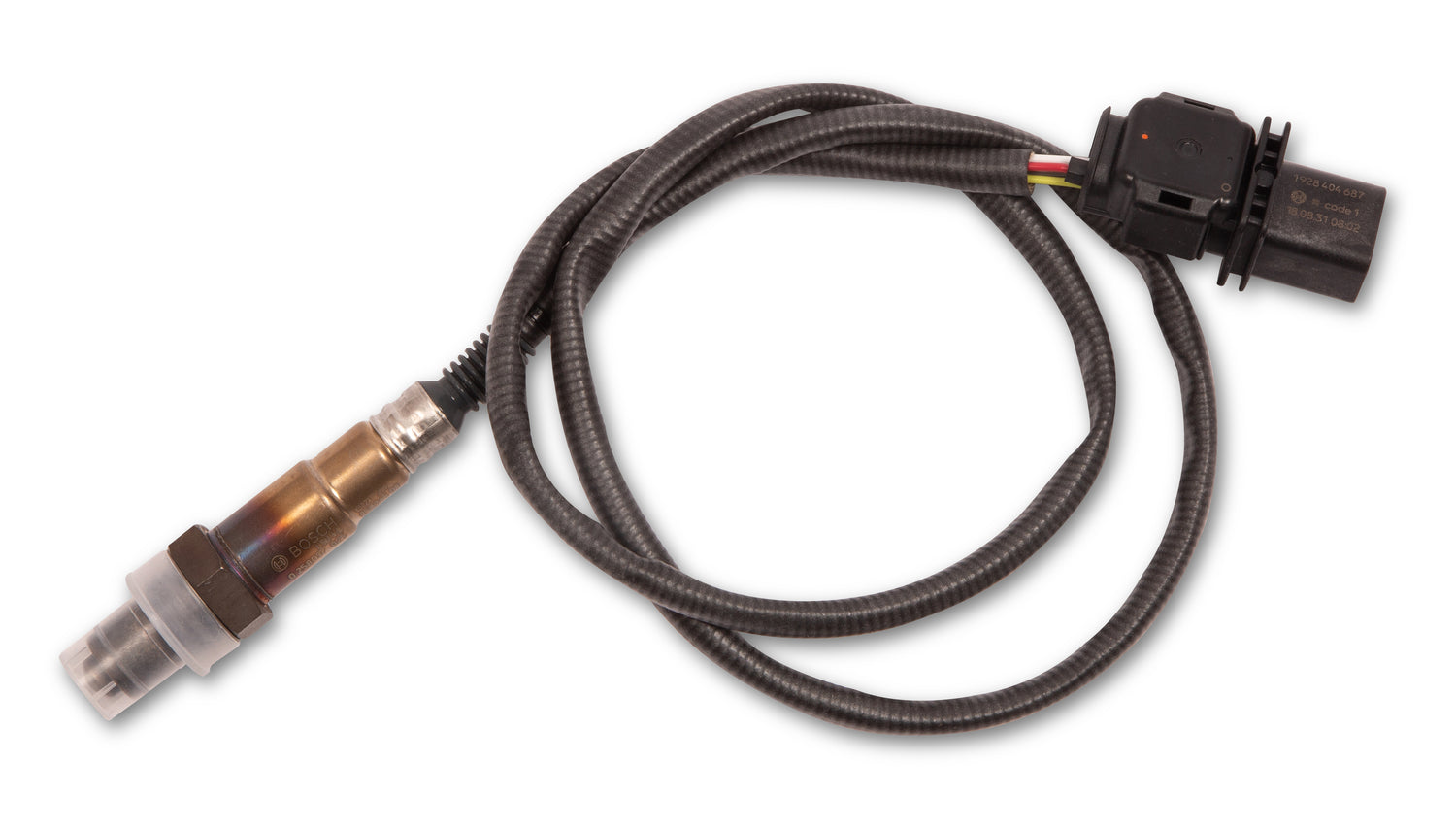

• All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

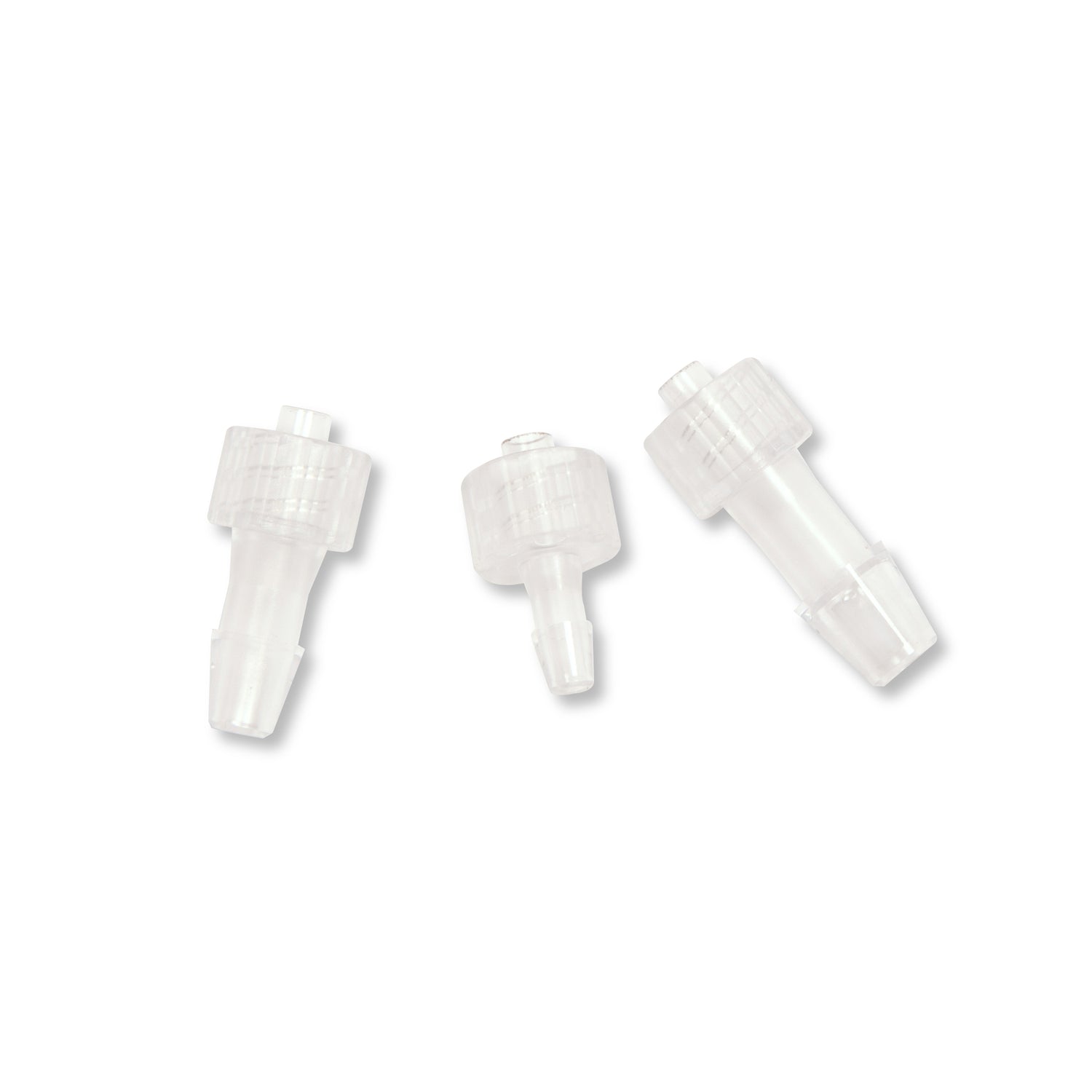

• MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
• 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
• 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
• Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
• Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
• On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
• Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
• Includes CAN/USB tuning cable allowing you to configure your ECU and Tuning the engine in real time.

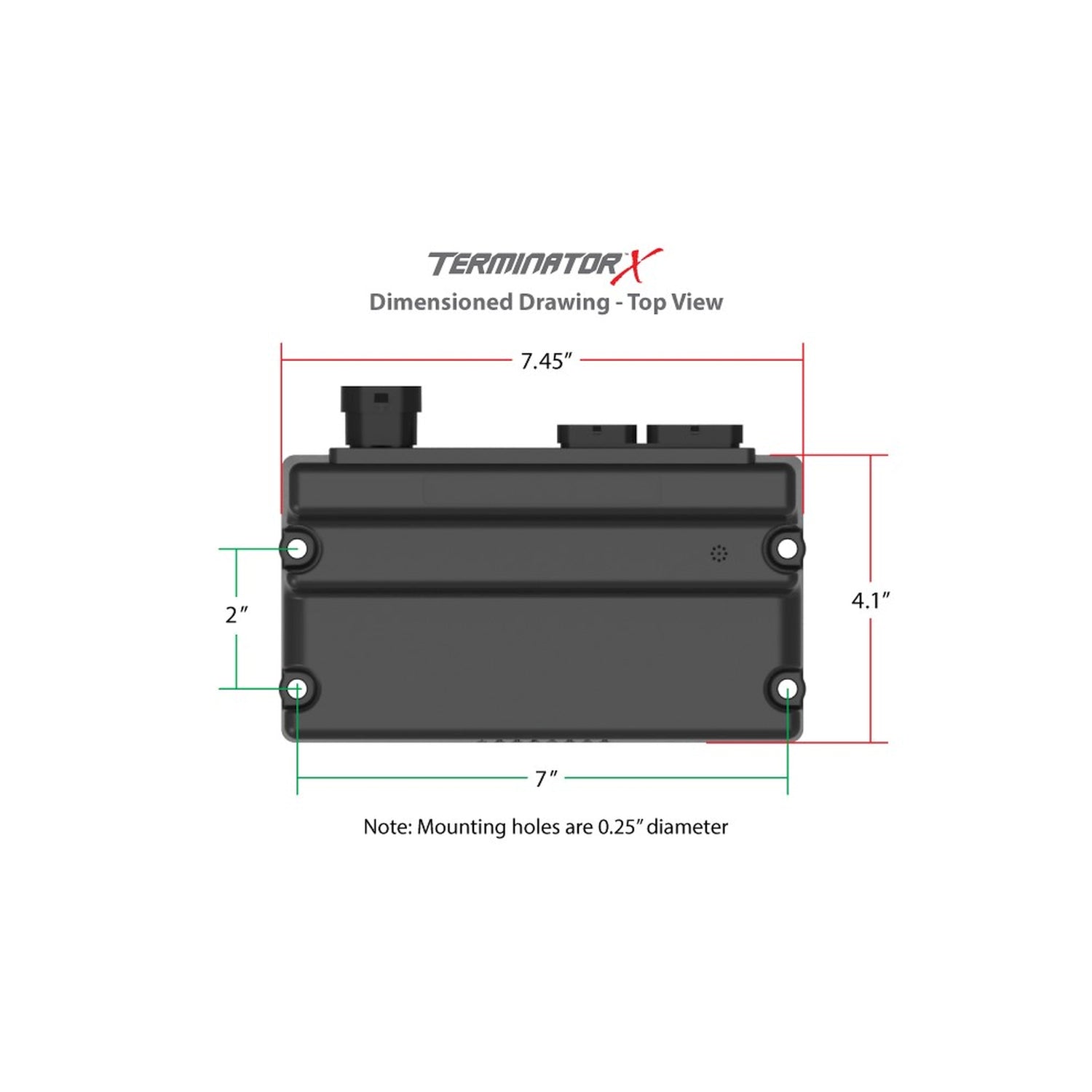

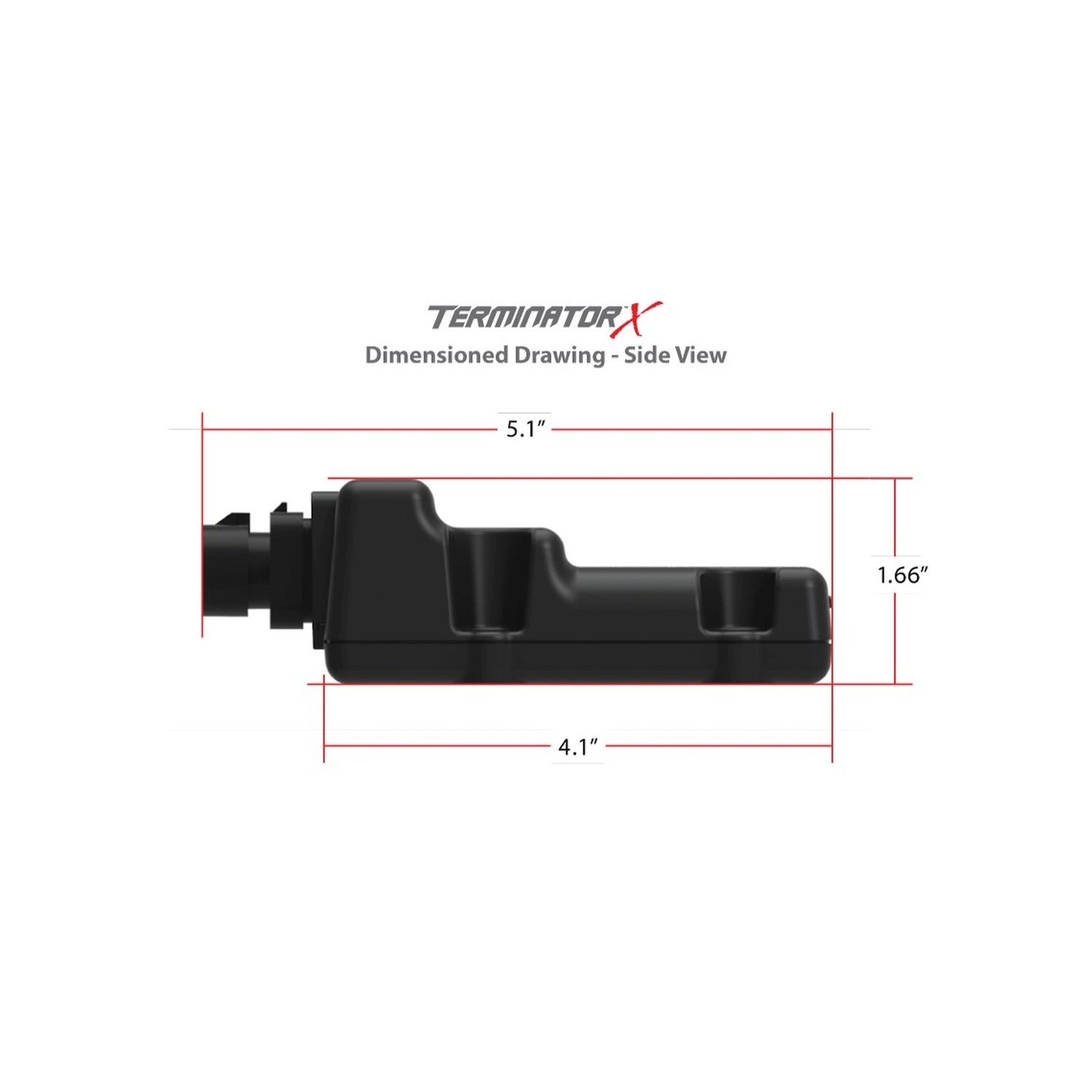

• The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
• Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112)
• Free EFI Tuning Software for complete control of your Terminator X power plant

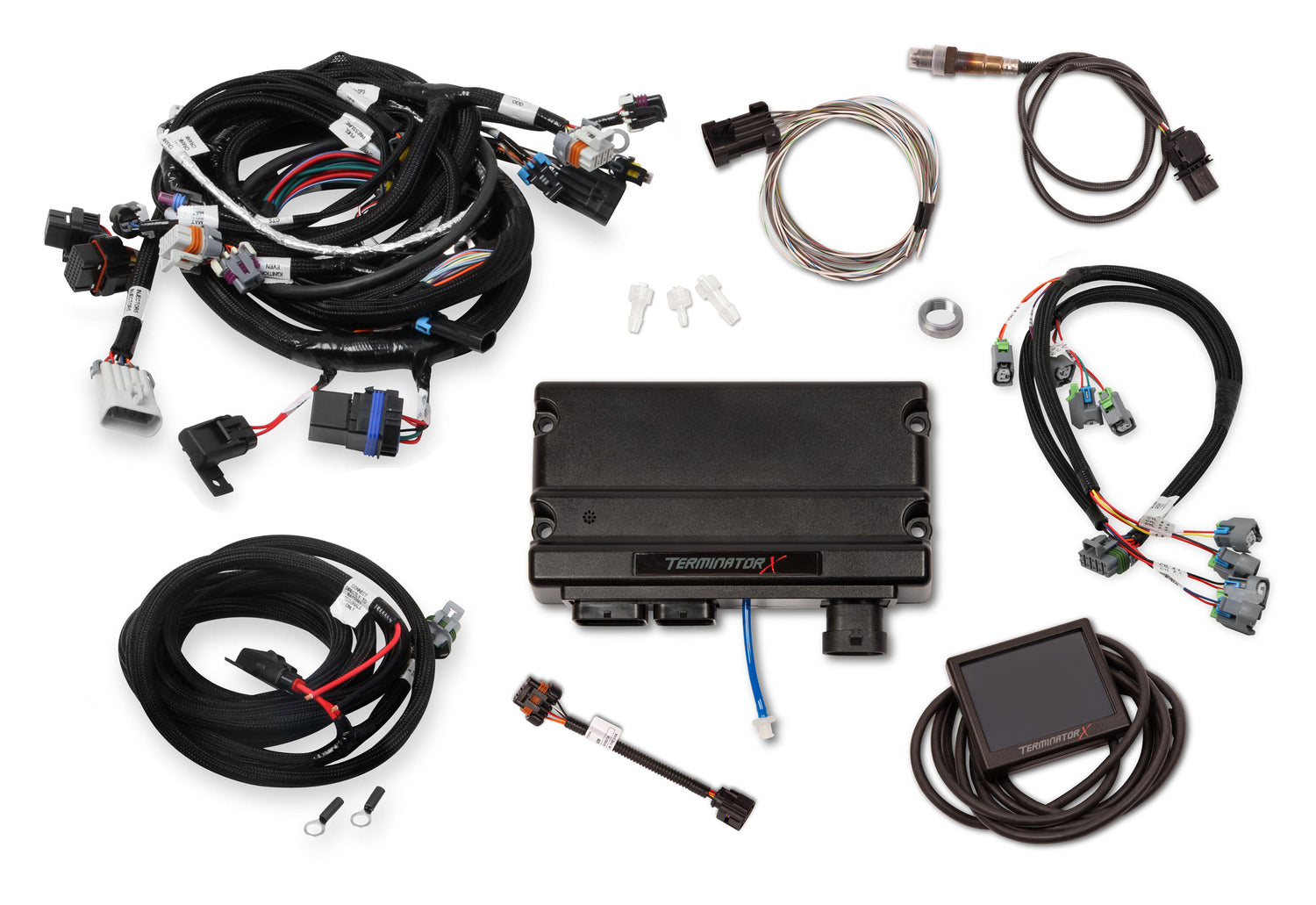

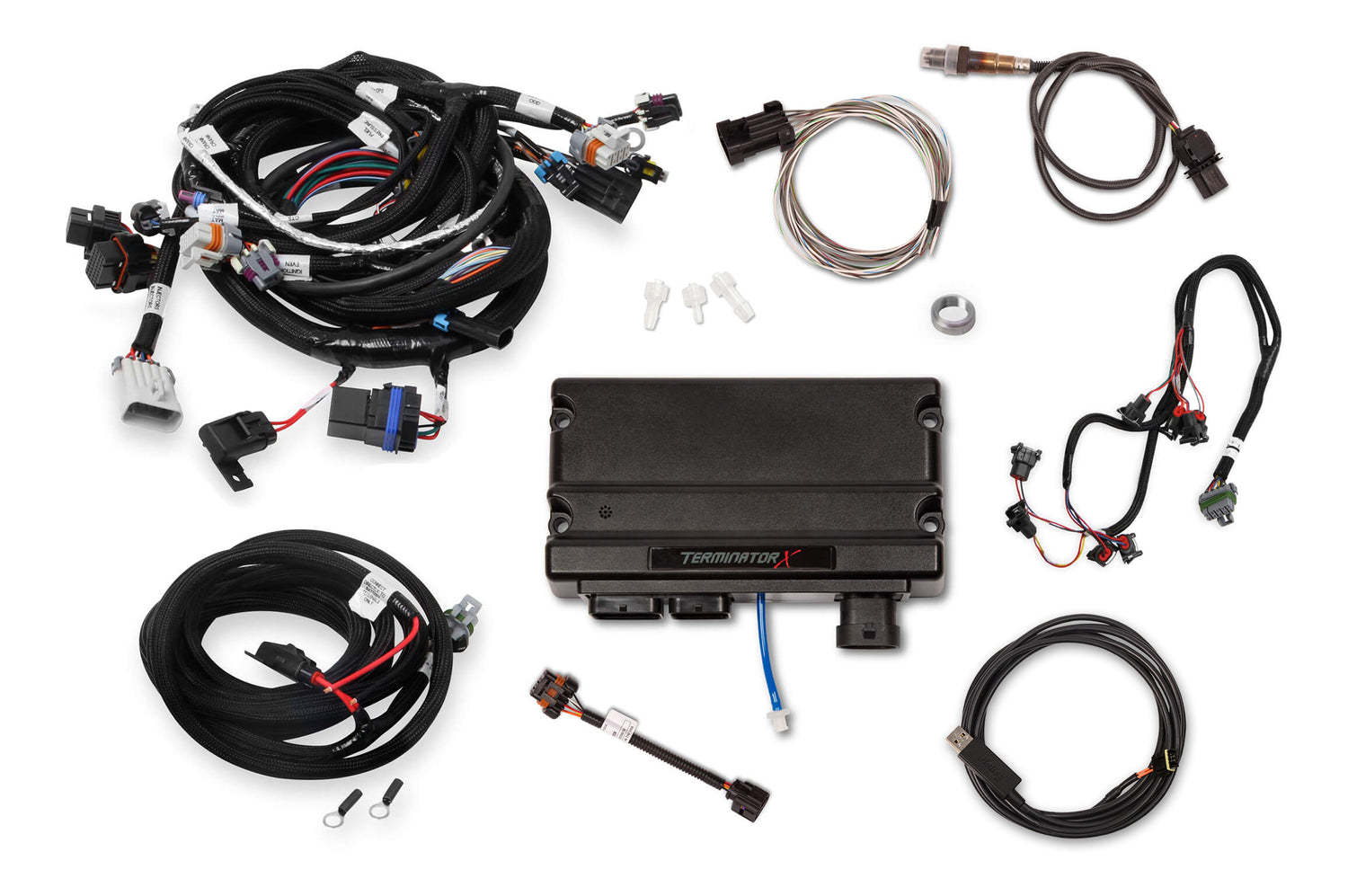

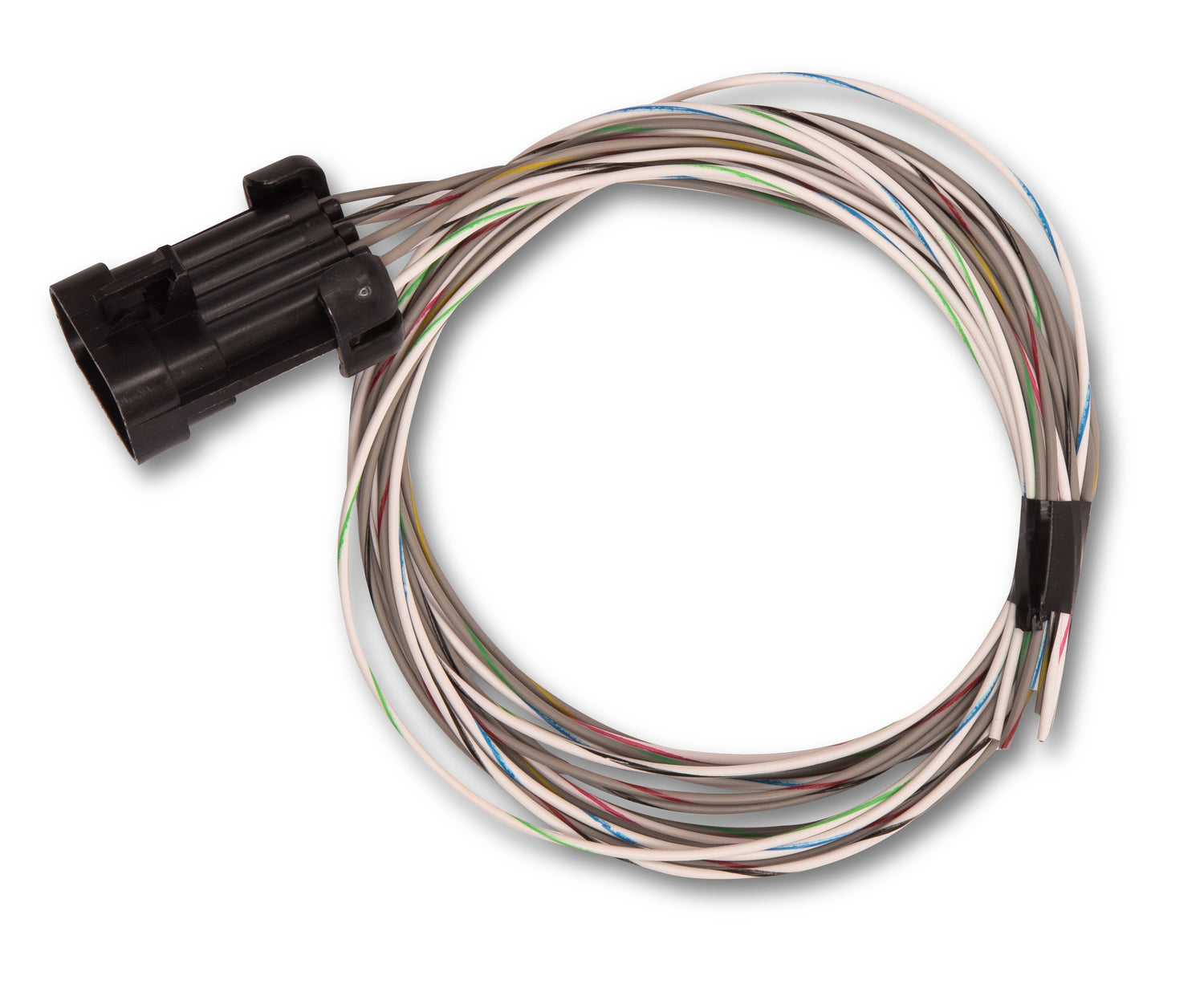

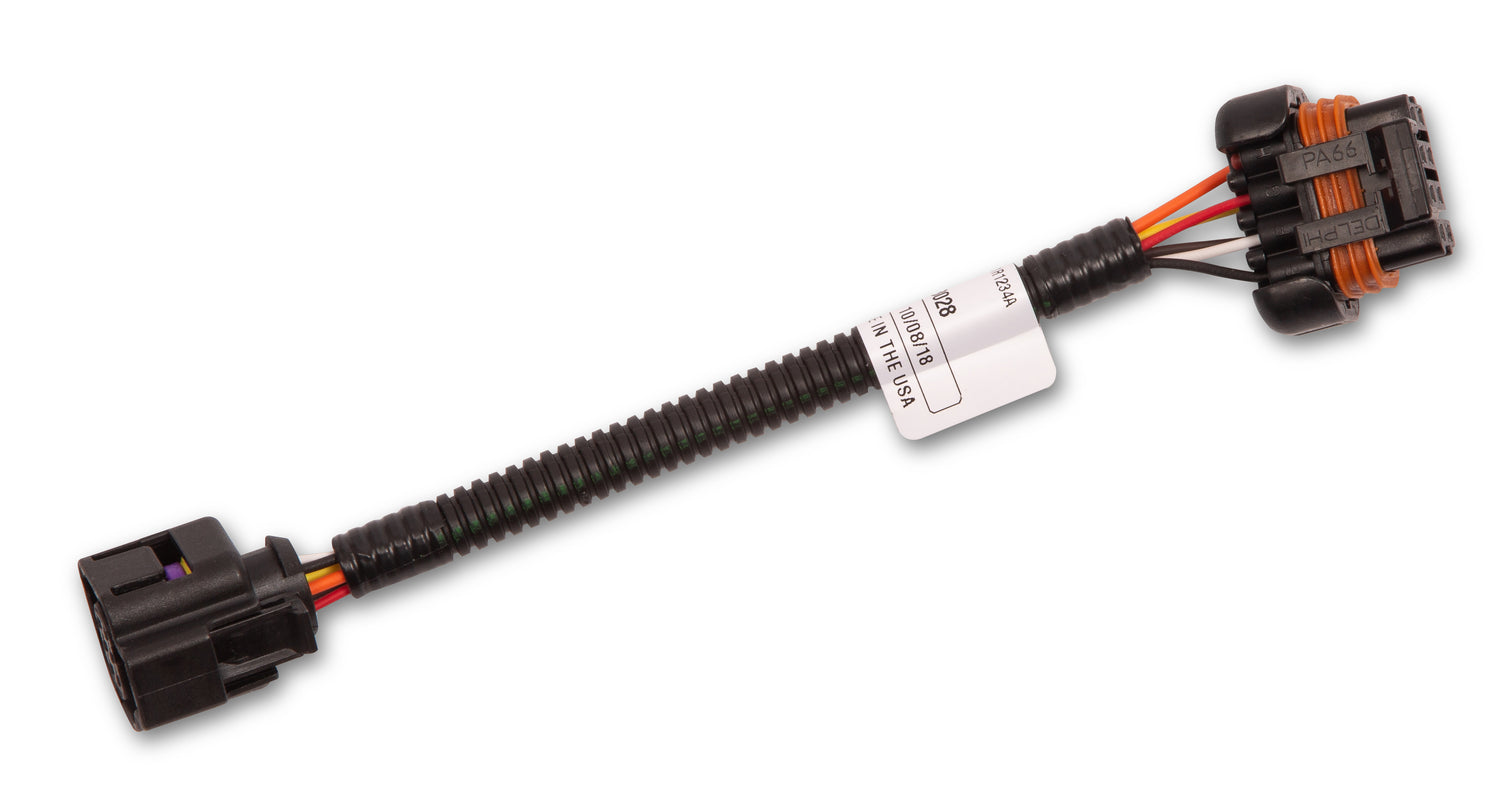

• Includes: 58x/4x LS Engine Main Harness - EV1 Injector Harness - Terminator X ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.

Terminator X ECU's are designed to be mounted with the LED's facing up.
