Holley 550-1220 EFI Terminator X - Ford Mod Motor 2V/4V Kit

Compatible w/ Smart coils and EV1 injectors

Part Number: 550-1220

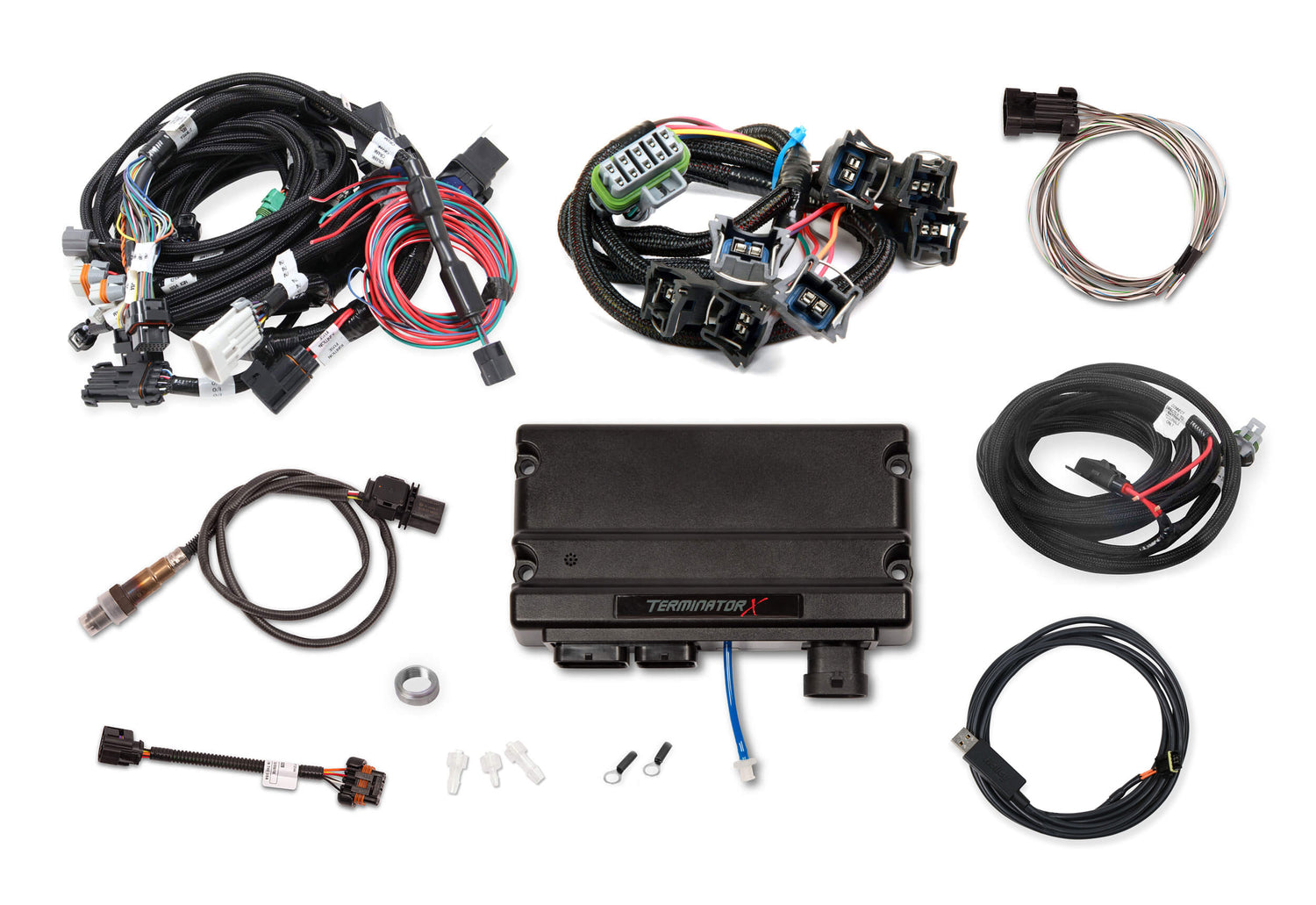

Introducing Terminator X and X Max Kits for the Modular Ford engine. These new kits will plug and play with either 2V or 4V Mod Motors commonly found in 1996-2004 Mustangs, 1995-2006 F150, or 2002-2005 Explorers. These kits will work with both 4.6 and 5.4L power plants, so no matter what your donor vehicle was, we have a standalone Terminator X EFI system for your combination. Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X PC Software is loaded with base calibrations to support the Ford 2V & 4V Modular engines along with many others. Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.

Features and Benefits

• Plug and play engine control (for Ford Modular Engines, 4.6L 2V and 4V, or 5.4L 2V or 4V)
• Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112)
• EV1 injector harness included
• High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
• Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
• Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)

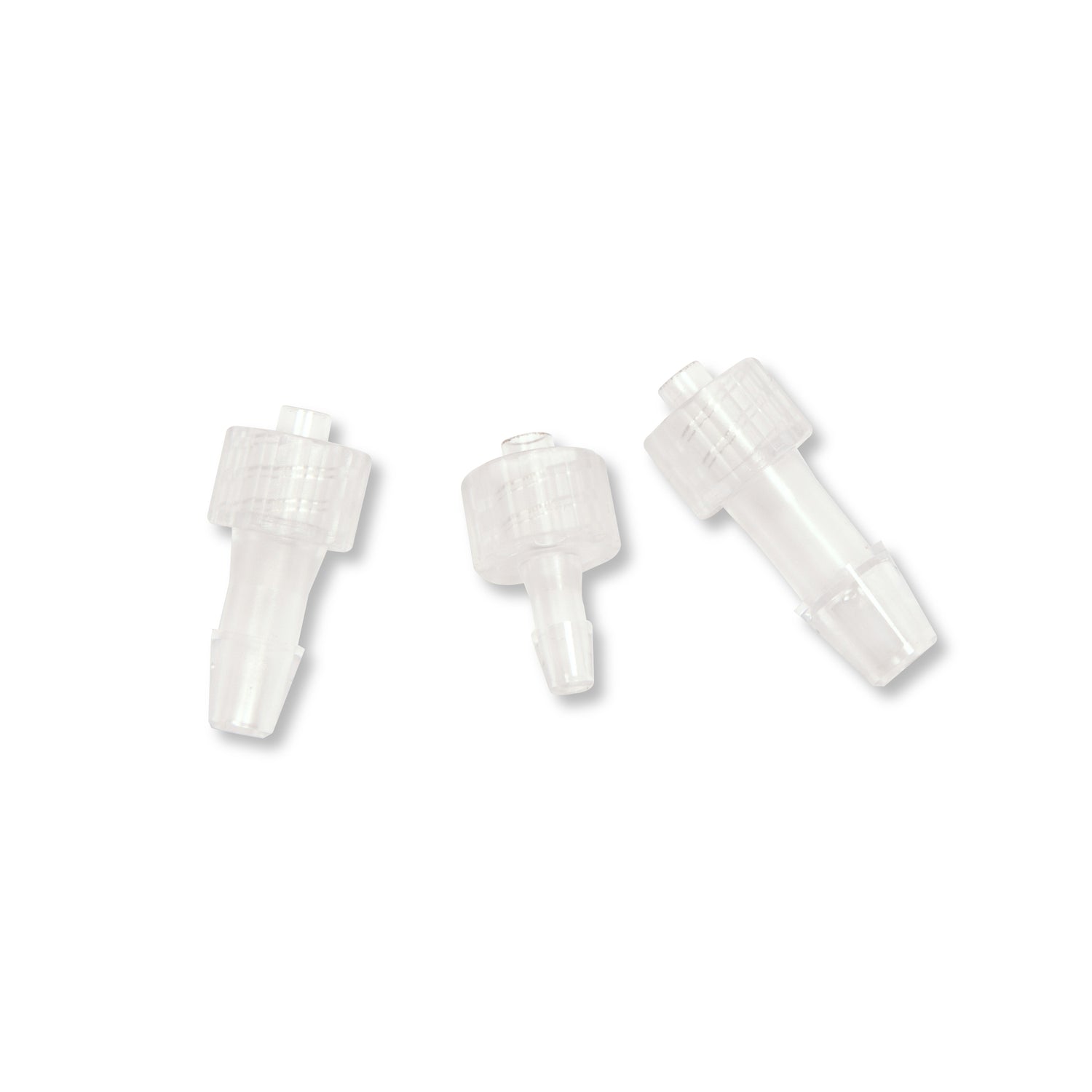

• Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
• 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
• Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
• Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
• Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
• On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance

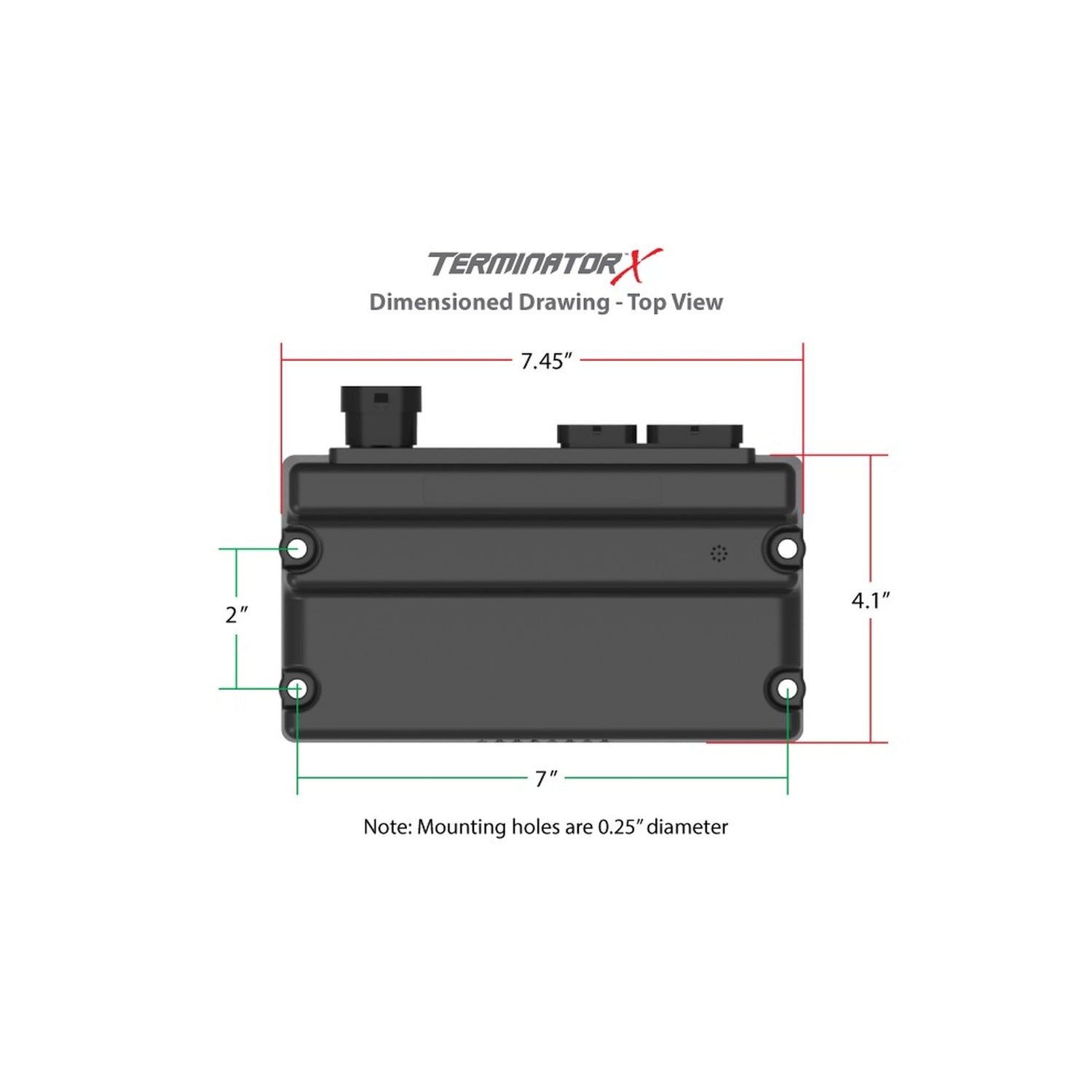

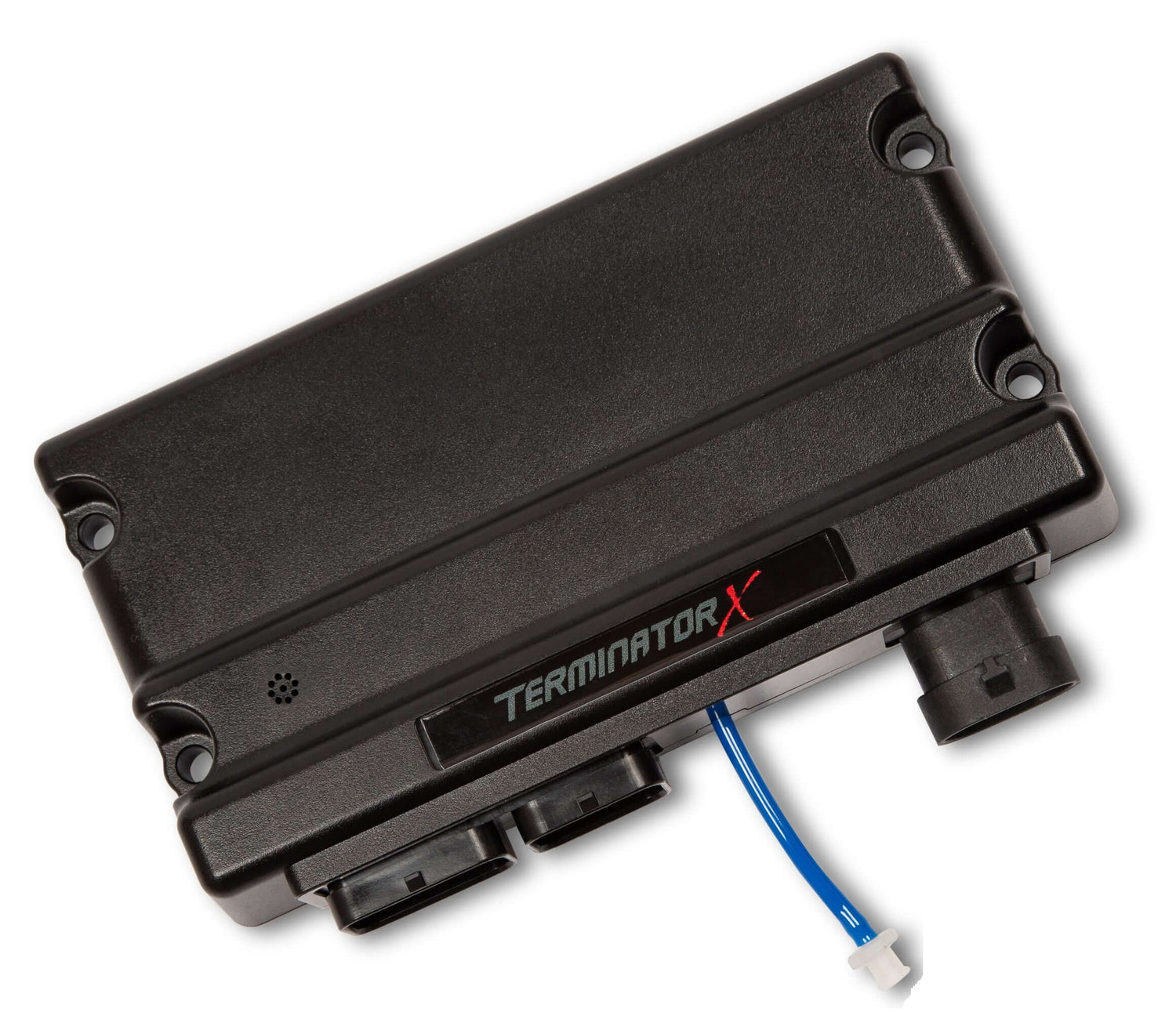

• Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
• FREE EFI Tuning software – For compete control of your Terminator X power plant
• USB dongle provided for Initial Laptop Setup
• Designed for Coil On Plug Applications - the included ignition components do not plug and play with coil banks found on 96-98 applications.

Terminator X ECU's are designed to be mounted with the LED's facing up. Does not include a 3.5" Touch Screen LCD, USB dongle provided for Initial Laptop Setup
