Holley EFI | SKU:
526-2
Holley 526-2 EFI Fuel System Kit
Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends
Sold out
Regular price
$2,646.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 526-2 EFI Fuel System Kit is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends
Part Number: 526-2
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Features and Benefits

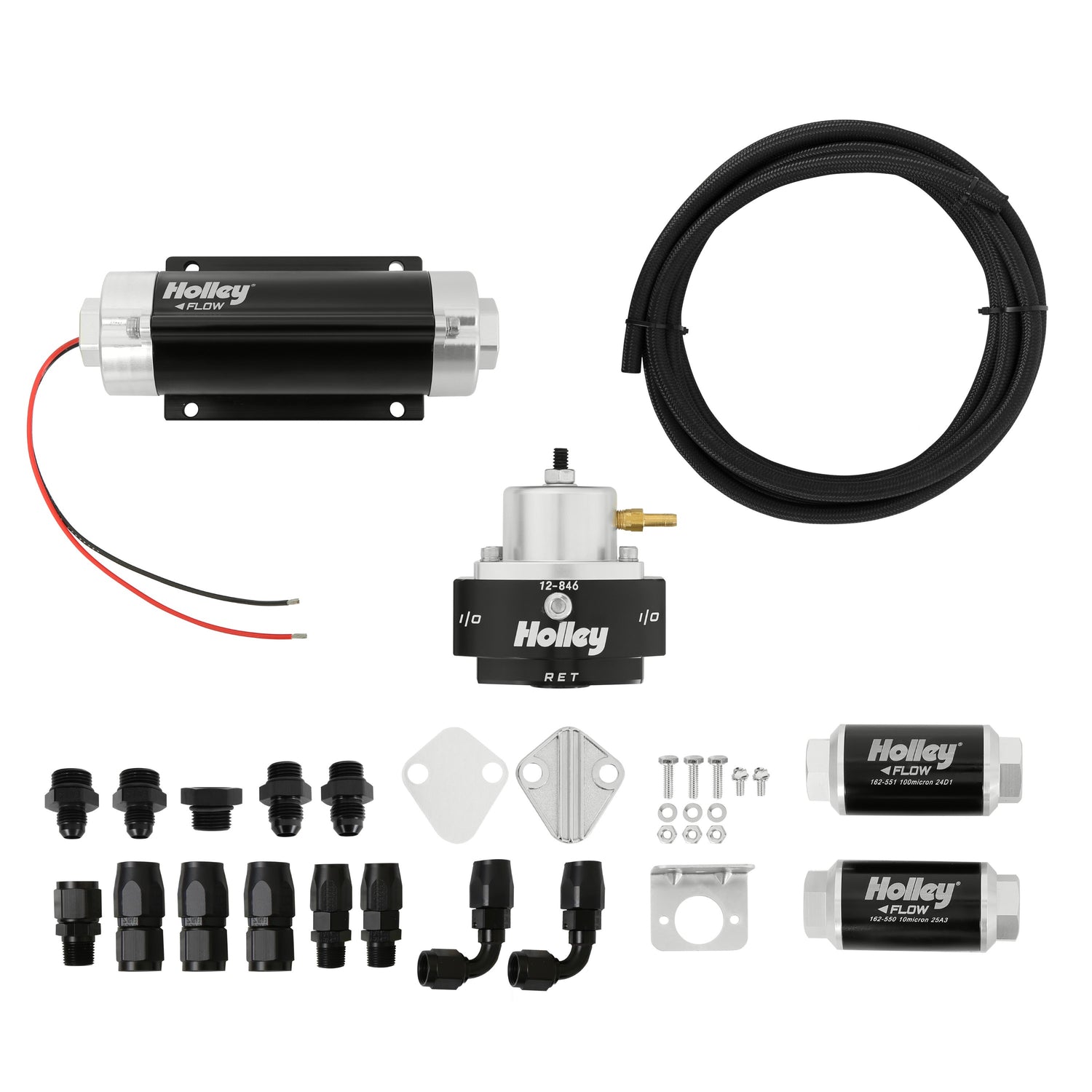

• Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:

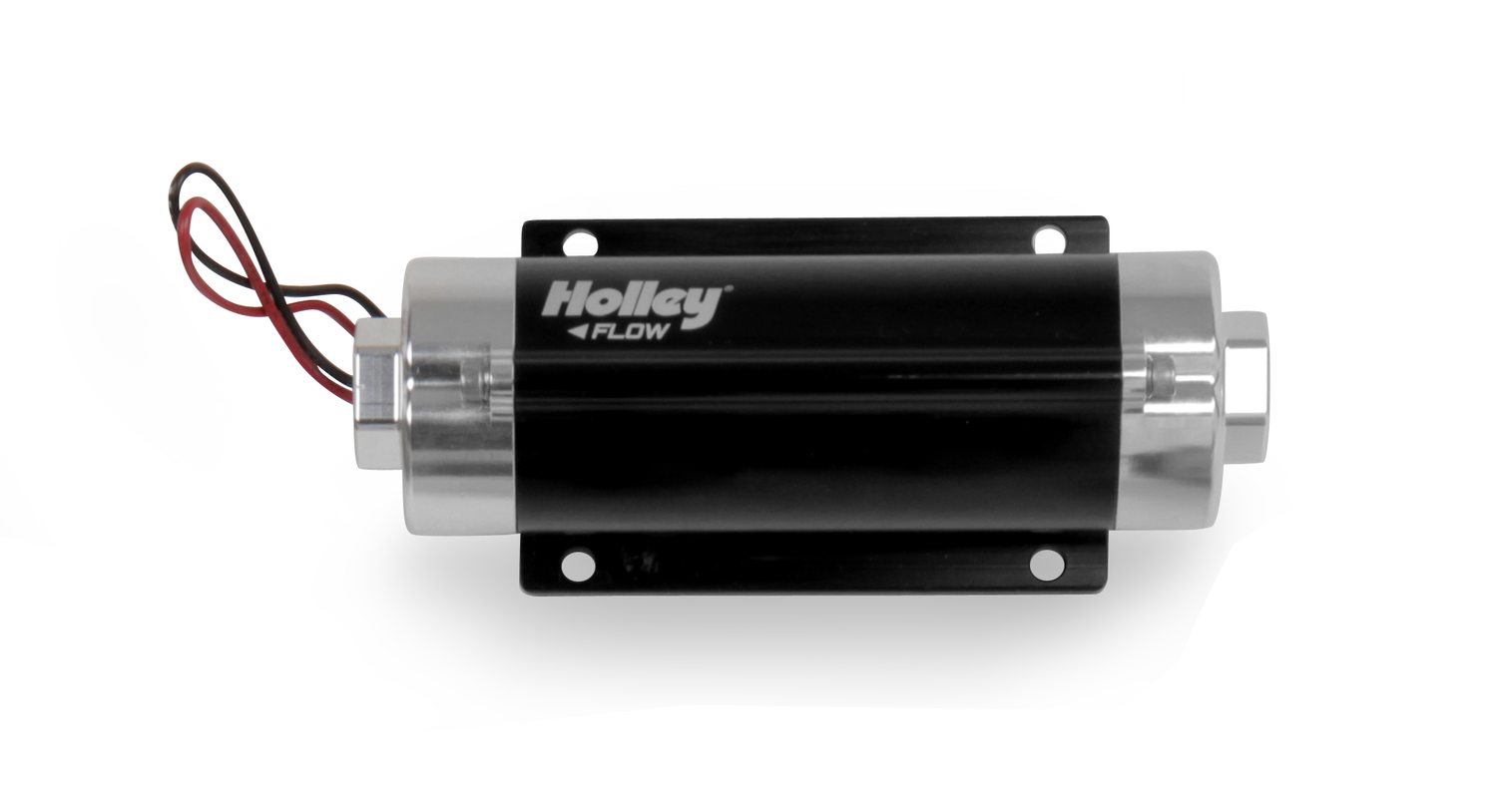

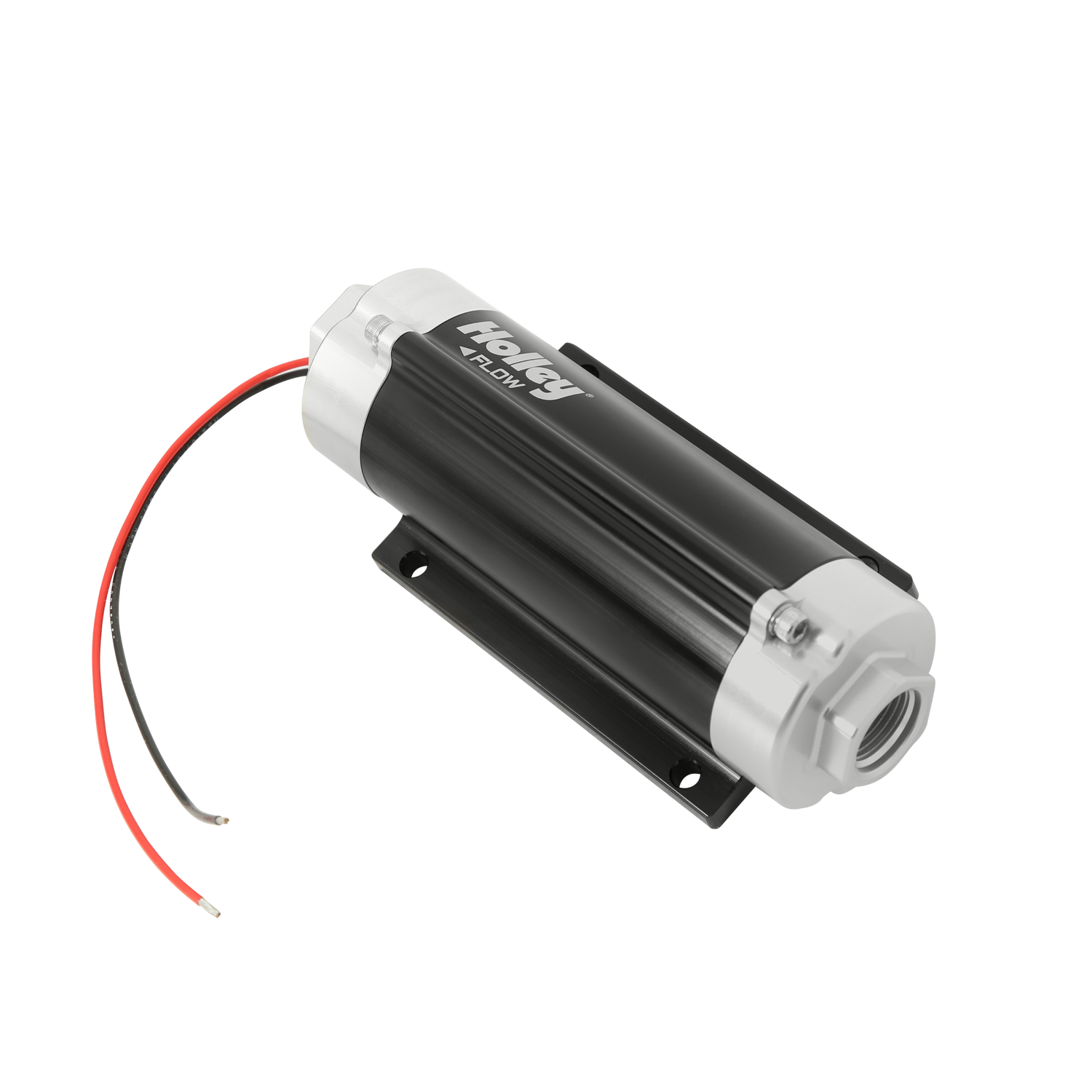

• Billet Fuel PumpP/N 12-600 65 GPH

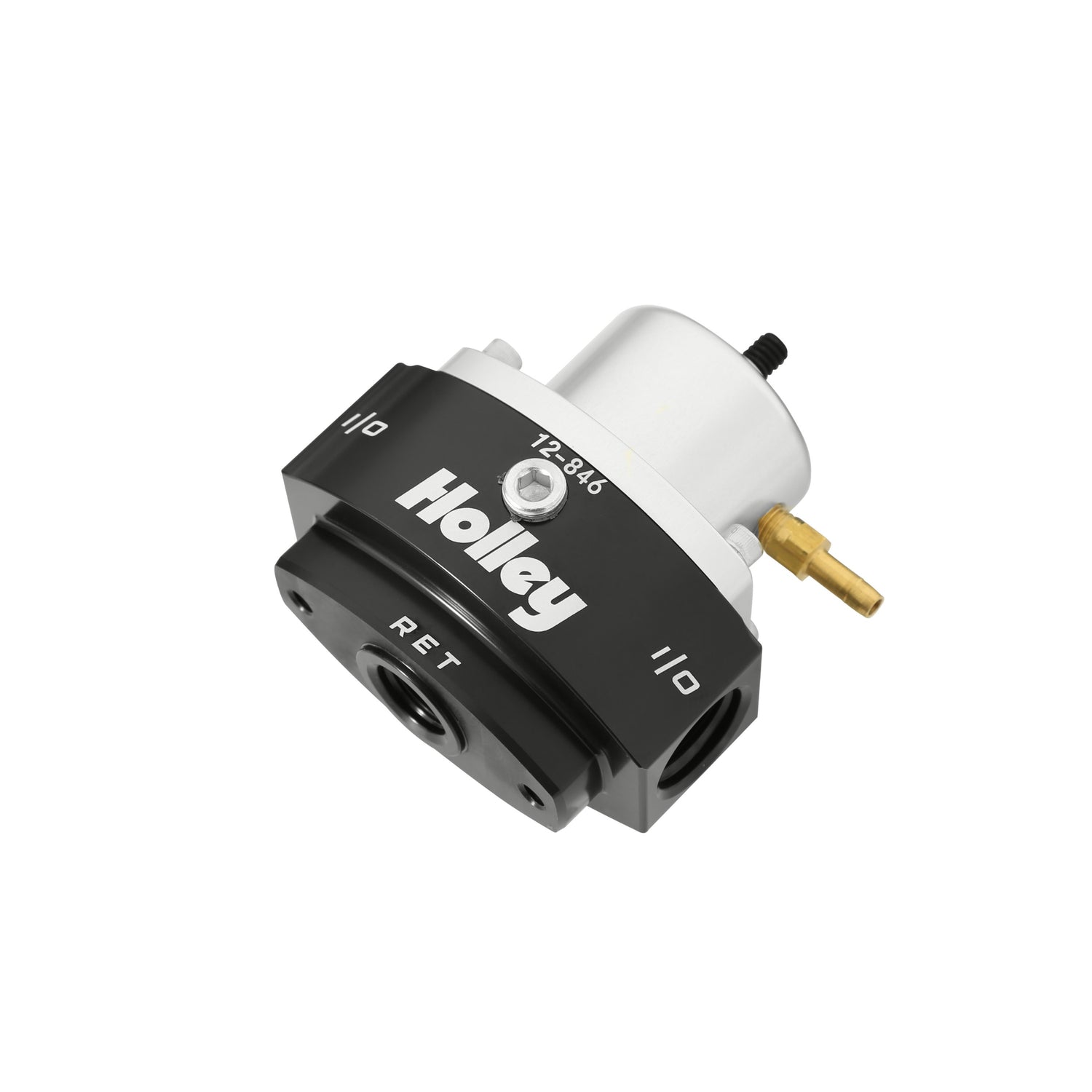

• Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference

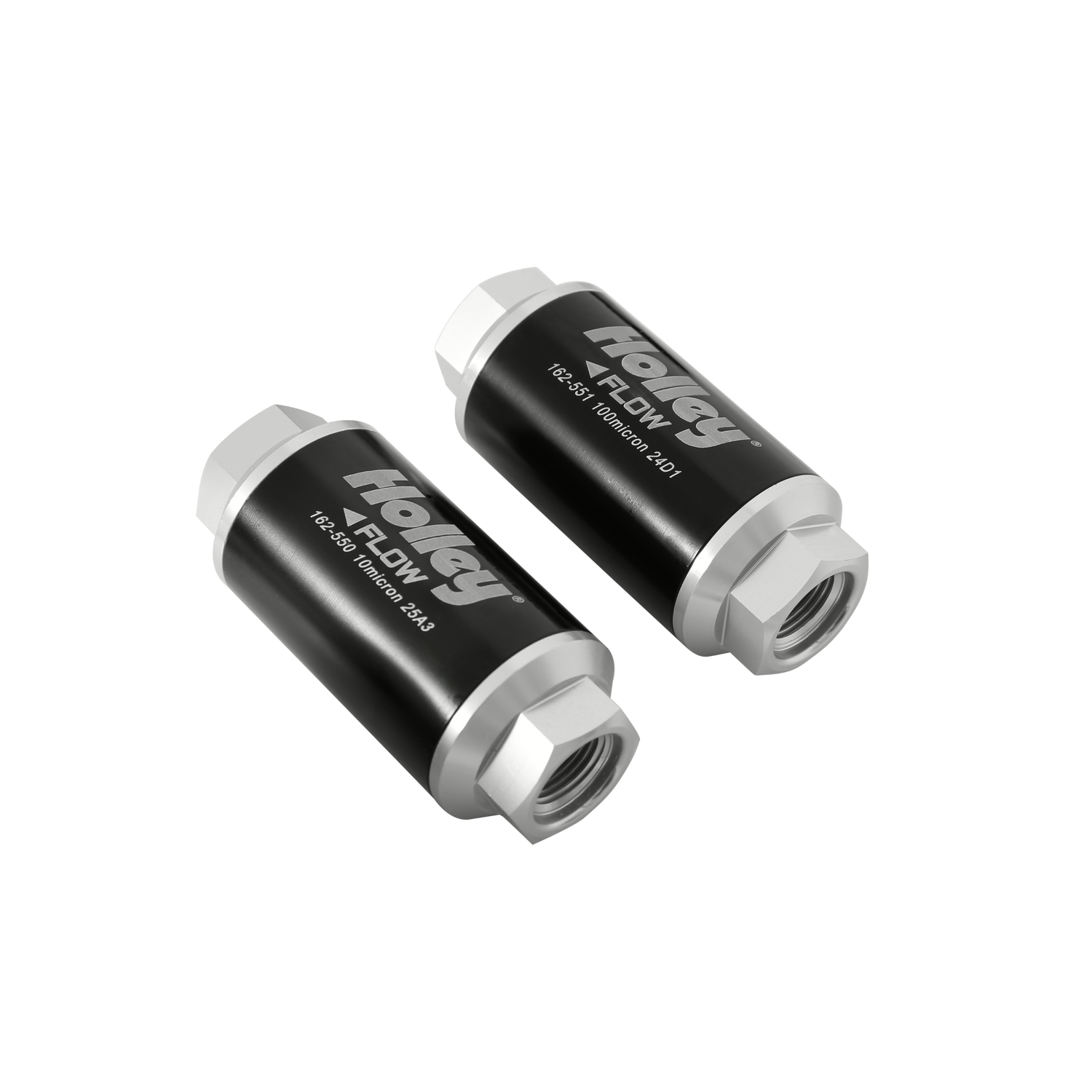

• Billet FiltersP/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)

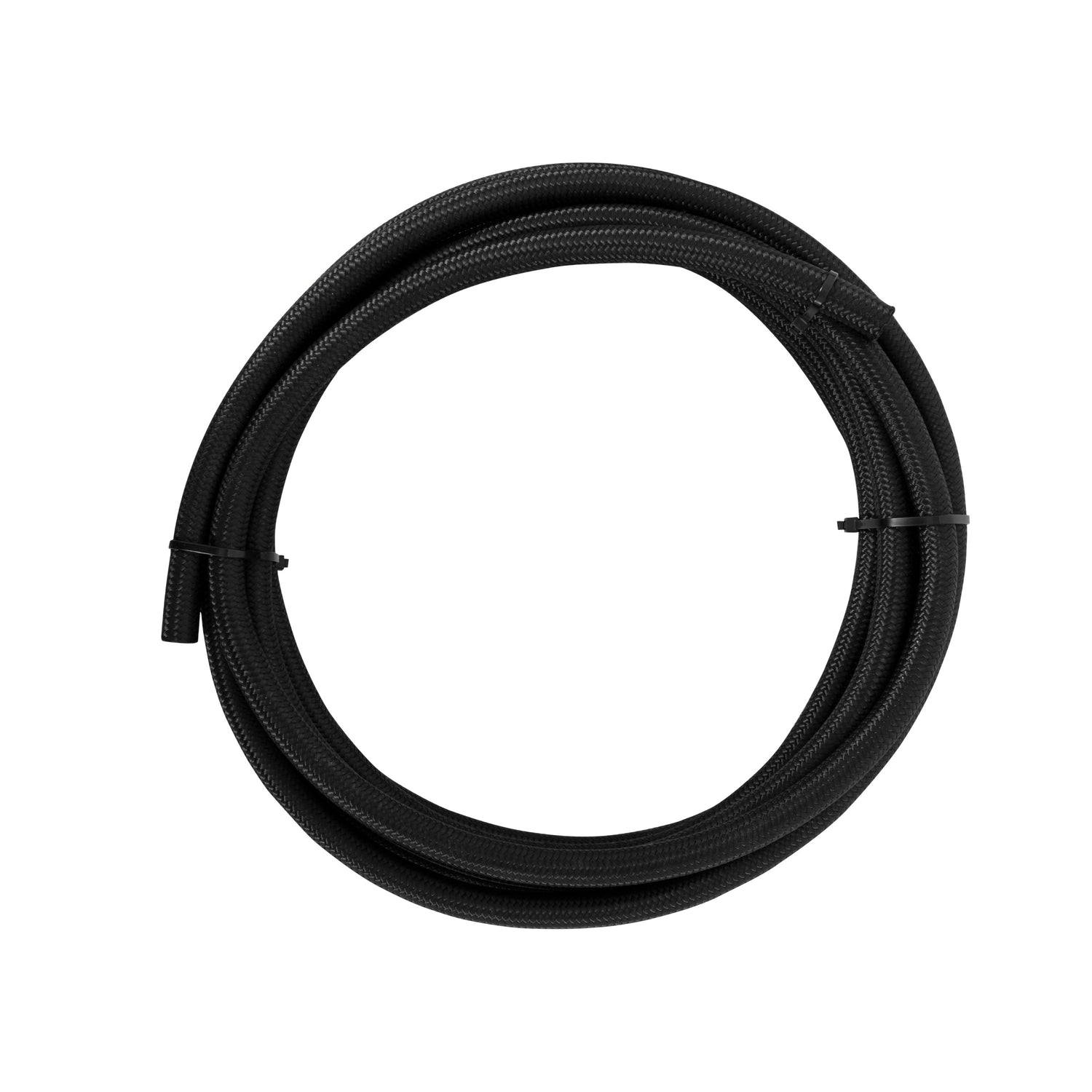

• Earl's Pro-Lite 350™ Black HoseP/N 350006ERL, 20 ft. of -6 hose

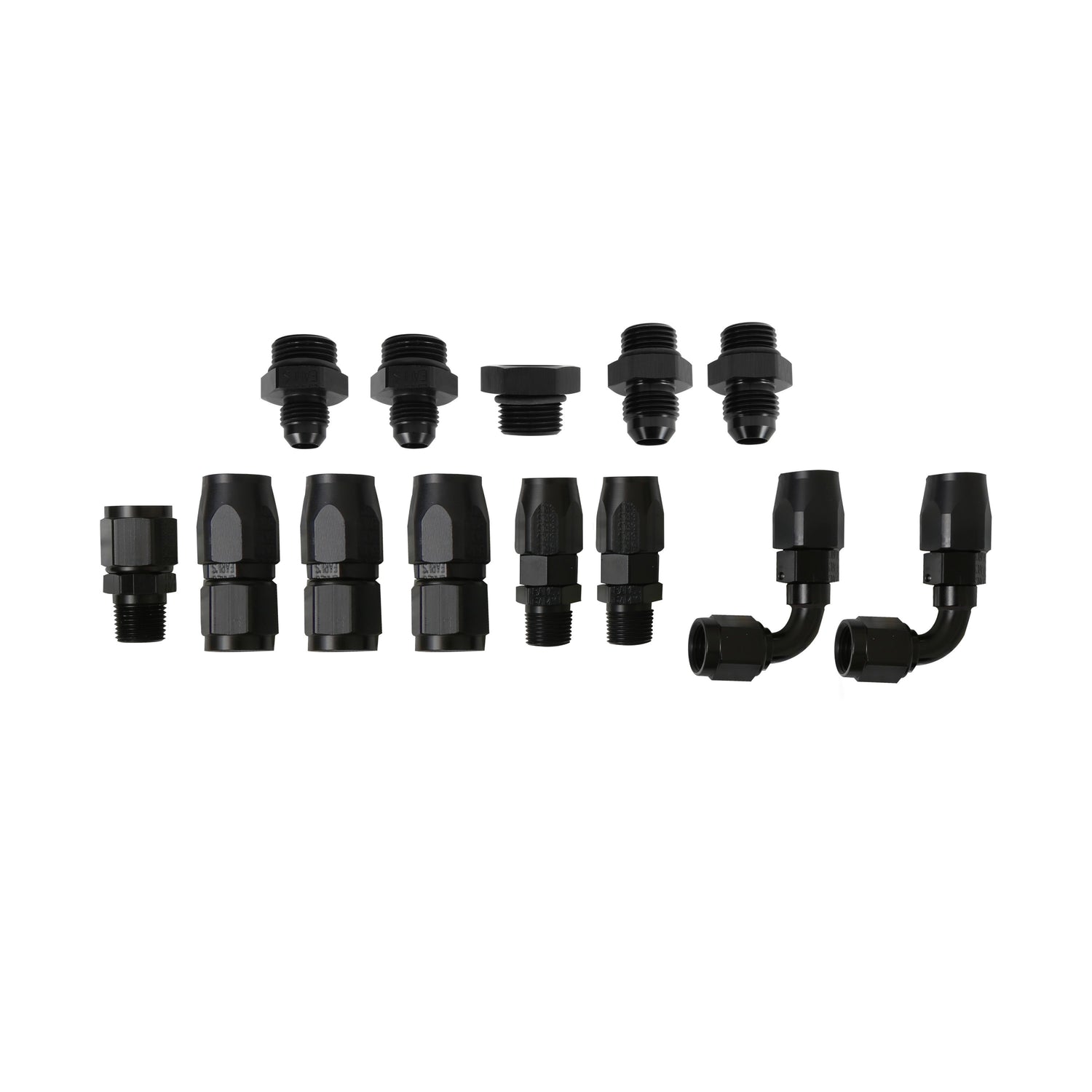

• Swivel-Seal™ Hose EndsView the instructions below for a list of all fittings included
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
Part Number: 526-2
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Features and Benefits
• Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:
• Billet Fuel PumpP/N 12-600 65 GPH
• Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference
• Billet FiltersP/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)
• Earl's Pro-Lite 350™ Black HoseP/N 350006ERL, 20 ft. of -6 hose
• Swivel-Seal™ Hose EndsView the instructions below for a list of all fittings included
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Air and Fuel Delivery CFM N/A Emission Code 4 Forced Induction HP@43PSI 450 Forced Induction HP@60PSI 380 Forced Induction HP@8PSI 560 Fuel Delivery Type Fuel Injection Fuel Sending Unit Included No Fuel Type Gasoline Gasket Or Seal Included No GPH@43PSI 48 GPH@60PSI 41 GPH@8PSI 65 Grade Type Performance Hose End Size 6 AN Hose Length 20' Hose Series Earl's Pro-Lite 350™ Black Internal Or External External LPH@43PSI 181 LPH@60PSI 155 LPH@8PSI 230 Mounting Bracket Included Yes Mounting Hardware Included Yes Naturally Aspirated HP@43PSI 600 Naturally Aspirated HP@60PSI 500 Naturally Aspirated HP@8PSI 730 Negative Ground Yes Outlet Type ORB part type Electric Fuel Pump Pressure Range 40-70 PSI Product Type EFI Fuel System Kit Regulator Included Yes Seal And Lock Ring Included No Strainer Included No Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wiring Harness Included No -
Instructions
