Holley EFI | SKU:
522-80

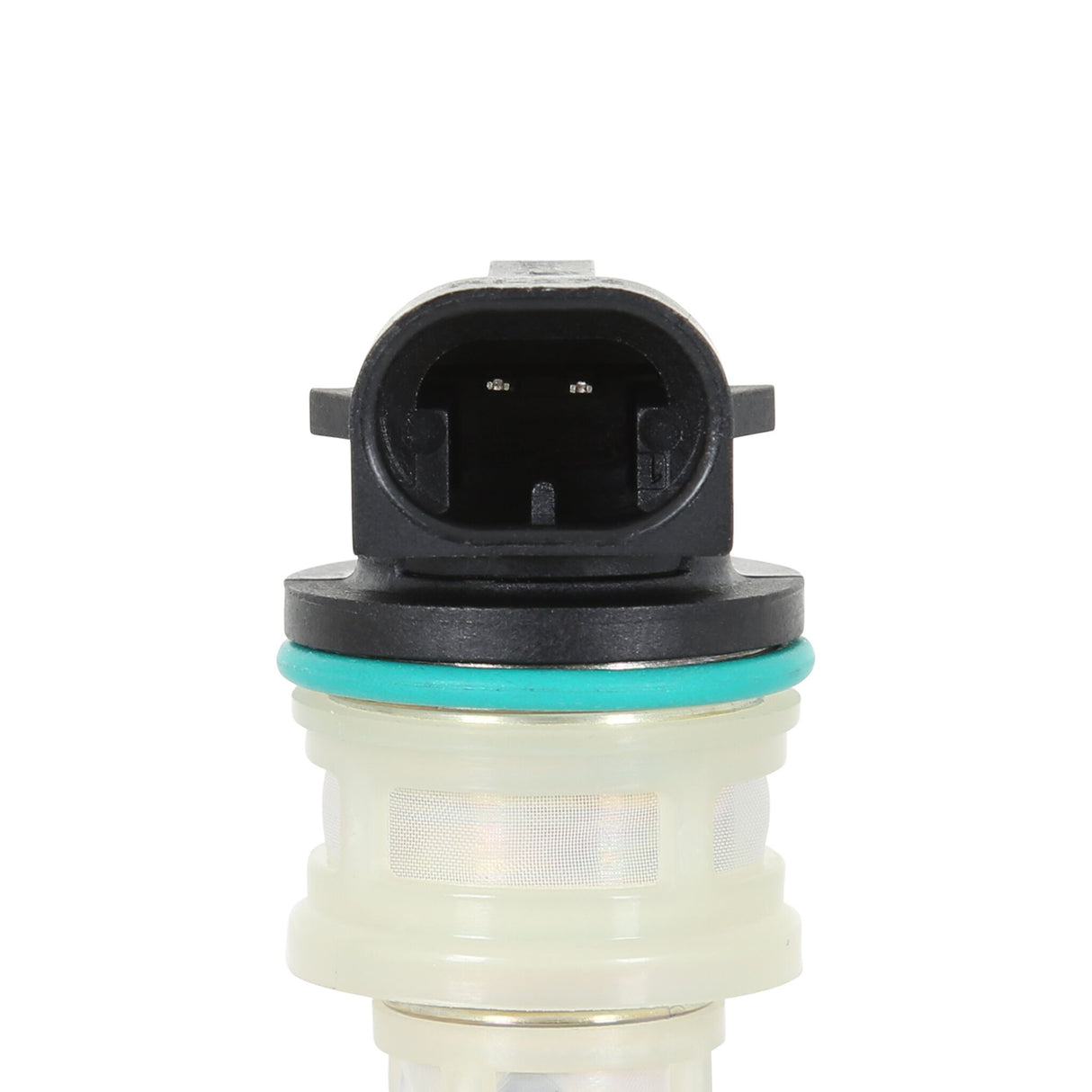

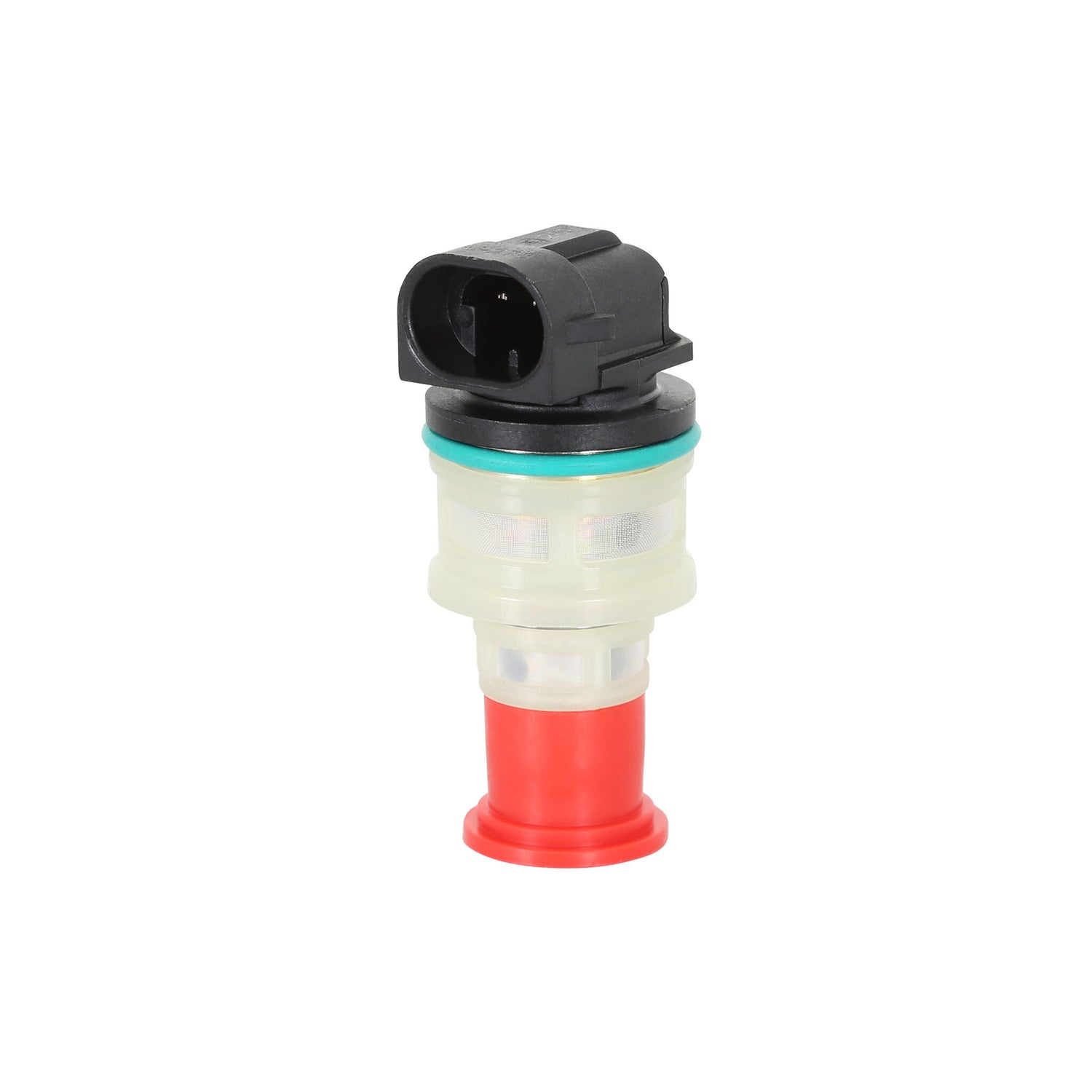

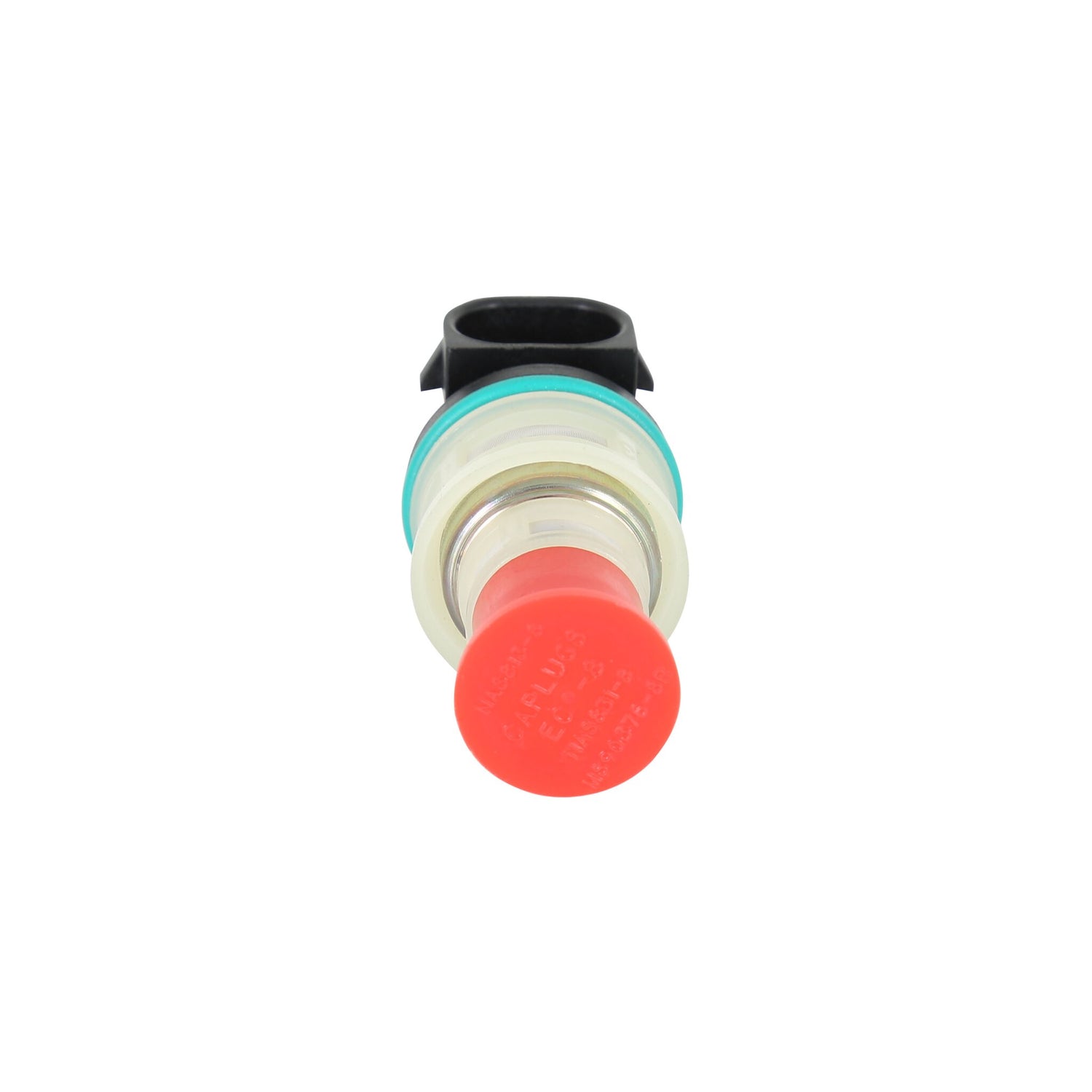

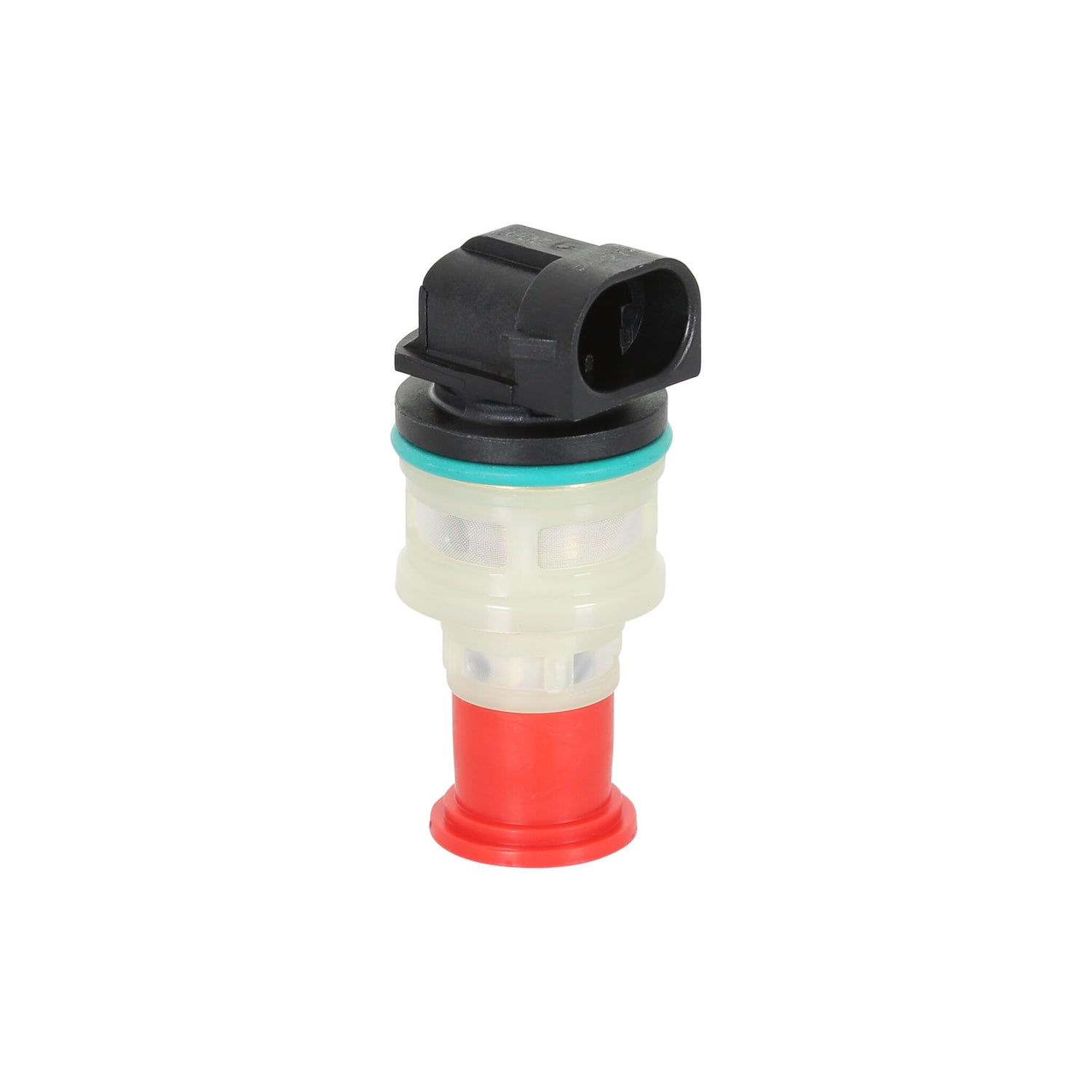

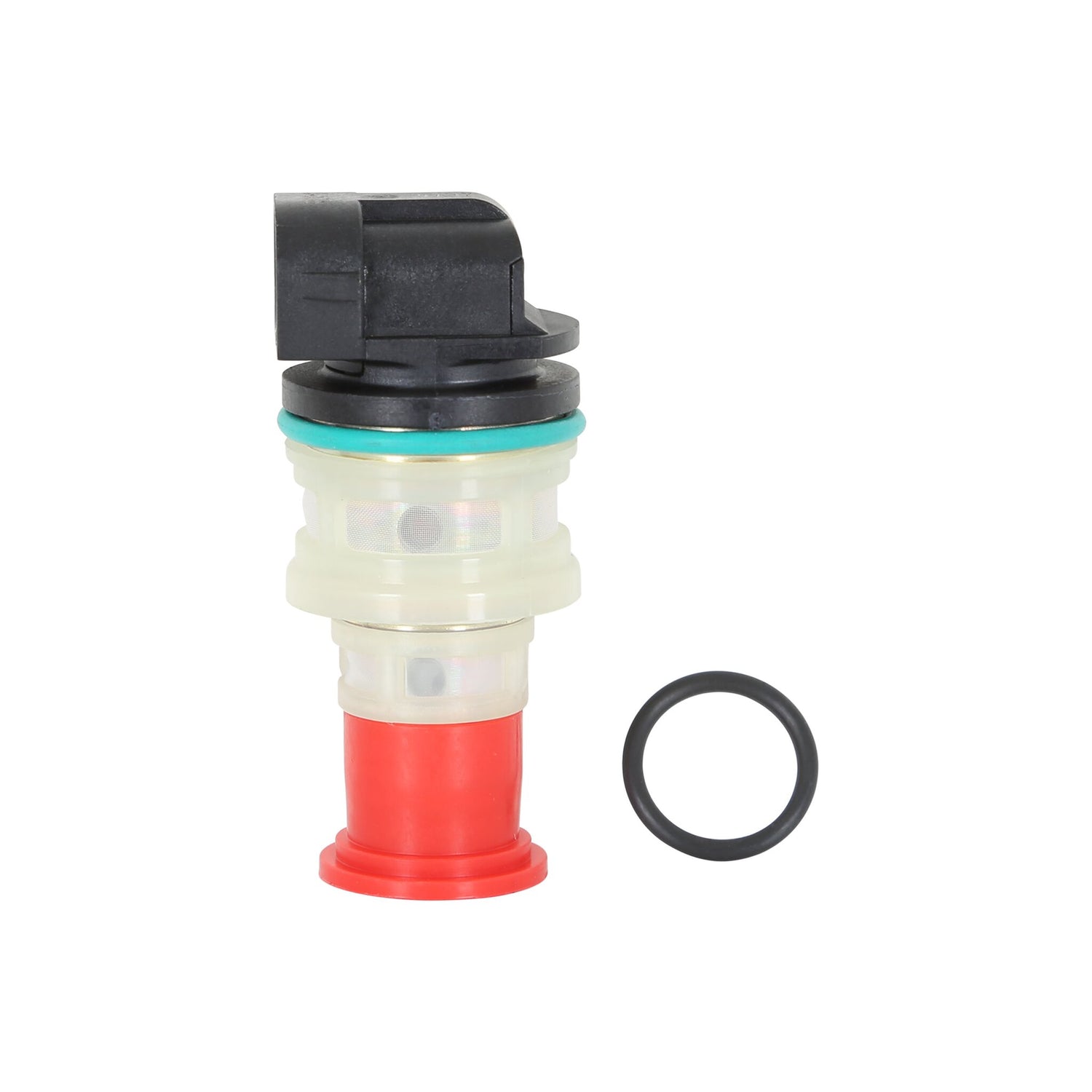

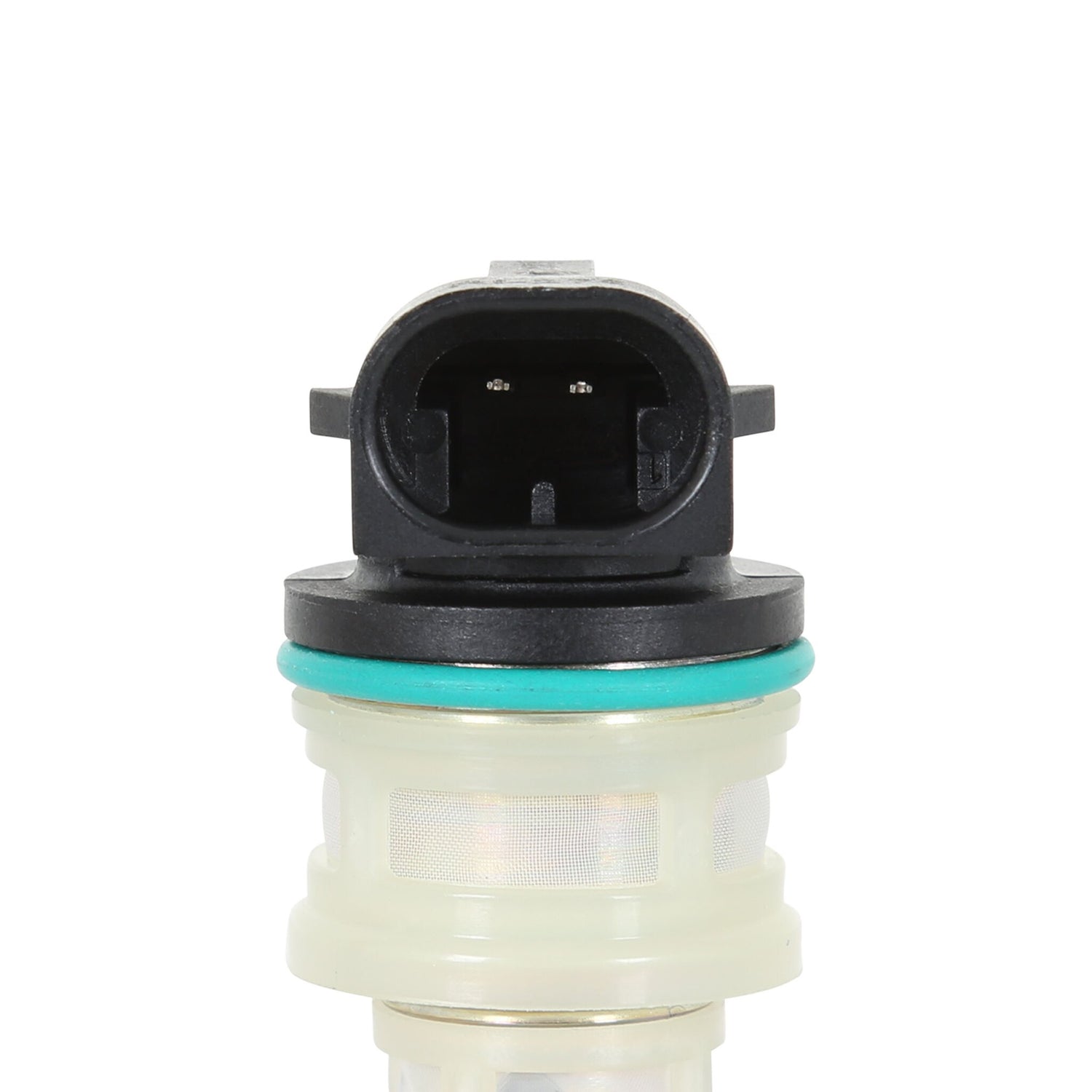

Holley 522-80 Bottom-Fed Fuel Injector
Typically used in TBI systems
Regular price
$429.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 522-80 Bottom-Fed Fuel Injector is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 522-80 Bottom-Fed Fuel Injector
Regular price
$429.30 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Typically used in TBI systems
Part Number: 522-80
This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
Features and Benefits
• Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
• TBI Flow @70kPa 6.35g/s
• Commander 950 Systems 50 PPH@12 PSI 72 PPH@21 PSI
• Silver color
• Sold individually
Typically used in TBI systems.
Part Number: 522-80
This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
Features and Benefits
• Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
• TBI Flow @70kPa 6.35g/s
• Commander 950 Systems 50 PPH@12 PSI 72 PPH@21 PSI
• Silver color
• Sold individually
Typically used in TBI systems.
Specifications
Specifications
-
Specifications
Body Diameter 0.97 Body Length N/A Body Style N/A Brand Holley EFI Category Air and Fuel Delivery Color Black Connector Series Early TBI Connector Shape Early TBI Emission Code 4 Flow Rate 72 4U Fuel Injection Type Port Fuel Type E-85, Gasoline Gasket Or Seal Included Yes Grade Type Performance Impedance Low (2.0 Ohm) Mounting Hardware Included No O-Ring Quantity 2 per injector O-Ring to O-Ring N/A part type Fuel Injector Product Type Fuel Injector Rated Injector Flow 72 lb/hr Retainer Clips Included No Sub Category Fuel Injection System and Related Components Terminal Gender Female Warning California Proposition 65 -
