Holley EFI | SKU:
522-368

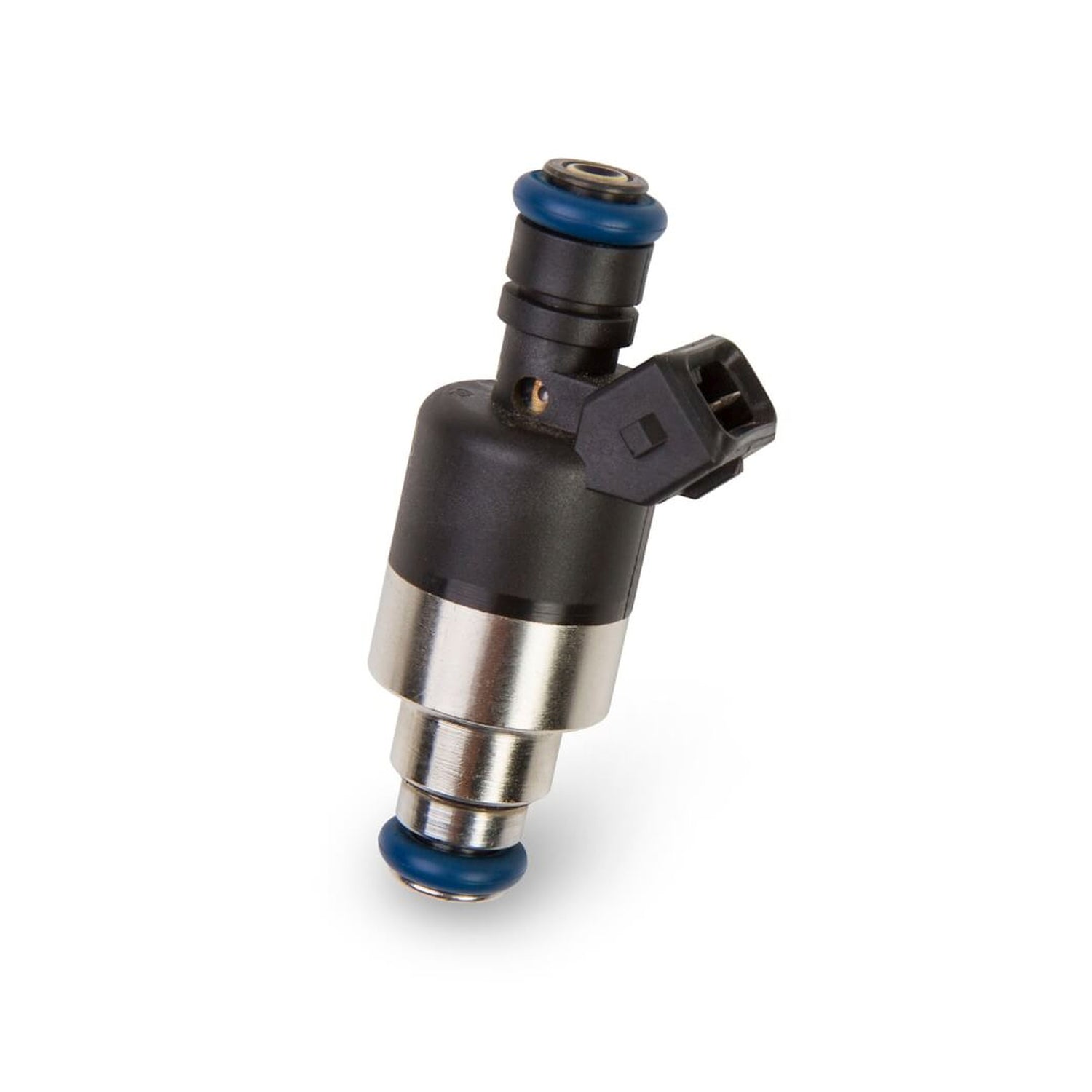

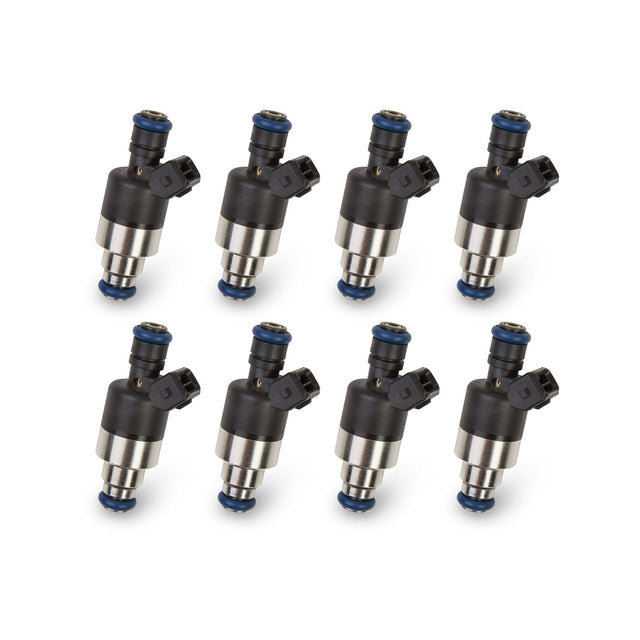

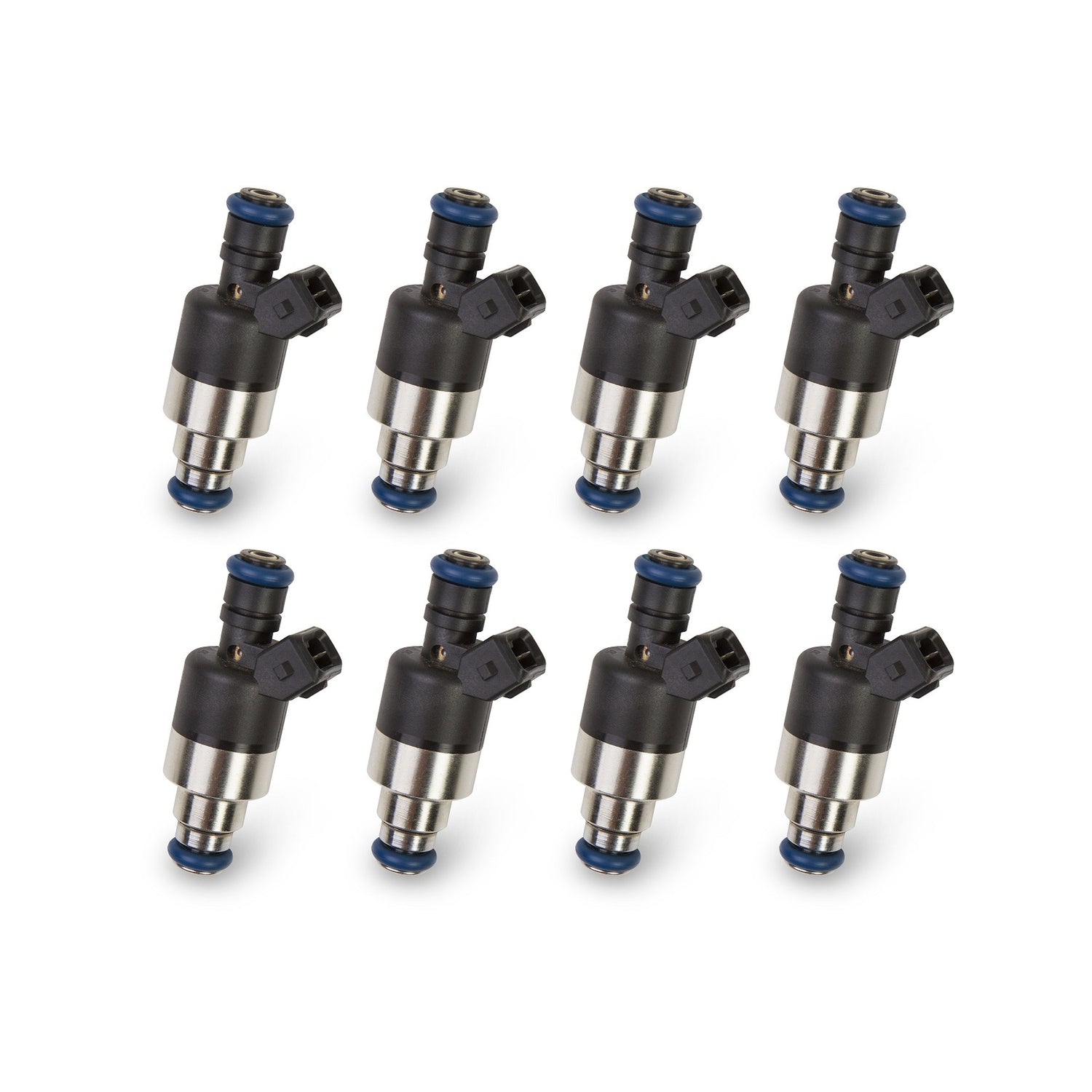

Holley 522-368 Terminator X Fuel Injectors - Set of Eight
Bosch/EV1 - 36 lb/hr - High Impedance
Regular price
$1,295.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 522-368 Terminator X Fuel Injectors - Set of Eight
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Bosch/EV1 - 36 lb/hr - High Impedance
Part Number: 522-368
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV1 style performance injectors - Set of 8
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 36 lb/hr @ 43 PSI
• Supports up to 575 horsepower
• Tri-cone spray pattern
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
Part Number: 522-368
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV1 style performance injectors - Set of 8
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 36 lb/hr @ 43 PSI
• Supports up to 575 horsepower
• Tri-cone spray pattern
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
Specifications
Specifications
-
Specifications

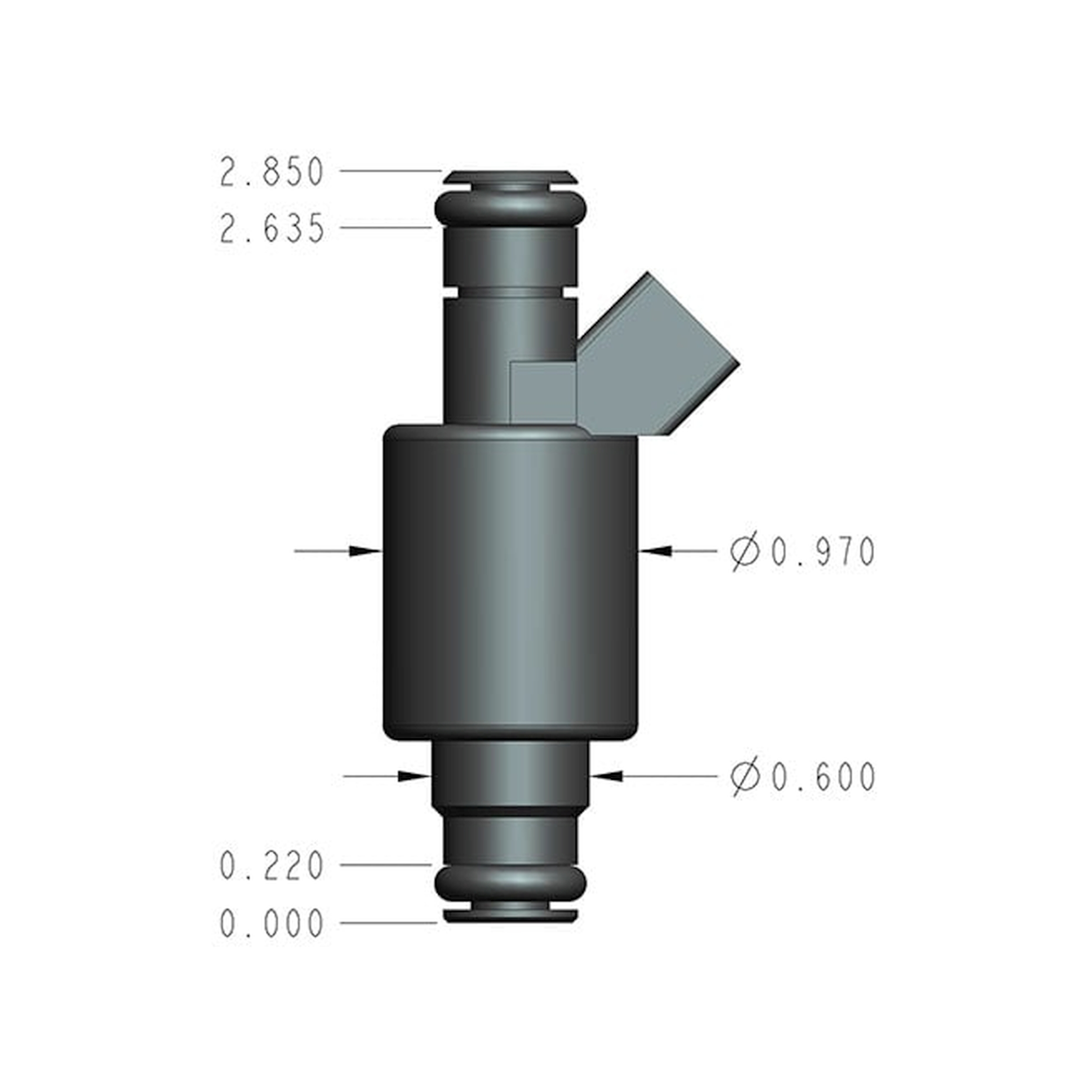

Body Diameter 0.97 Body Length 2.85" Body Style EV1 Brand Holley EFI Category Air and Fuel Delivery Color Black Connector Series EV1 - Jetronic - (Bosch Style) Connector Shape EV1 - Jetronic - (Bosch Style) Emission Code 3 Flow Rate 36 4U Fuel Injection Type Port Fuel Type E-85, Gasoline Gasket Or Seal Included Yes Grade Type Performance Impedance High (12.2 Ohm) Mounting Hardware Included No O-Ring Quantity 2 per injector O-Ring to O-Ring 2.415" part type Fuel Injector Product Type Fuel Injector Rated Injector Flow 36 lb/hr Retainer Clips Included No Sub Category Fuel Injection System and Related Components Terminal Gender Female Warning California Proposition 65 -
