Holley EFI | SKU:
522-361S

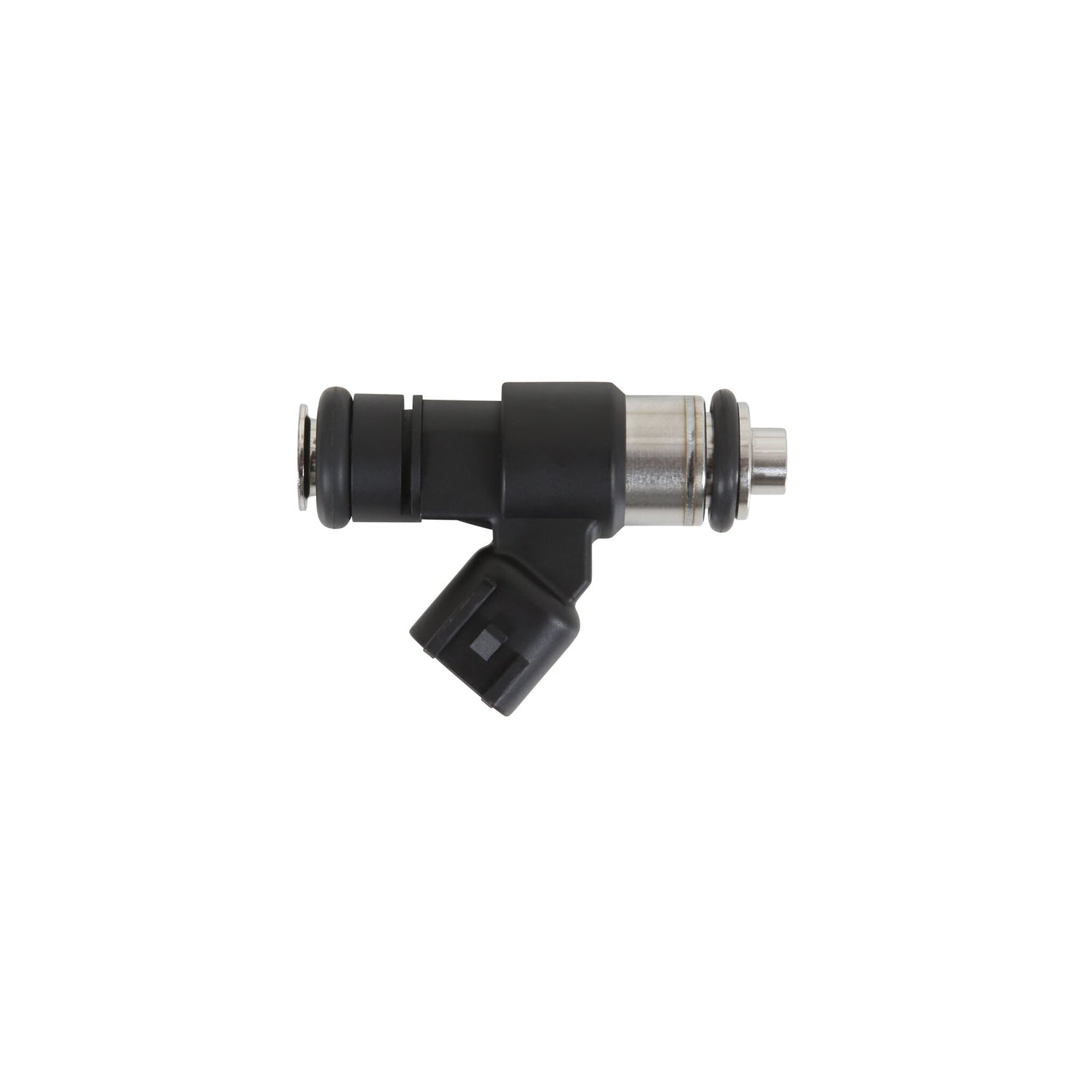

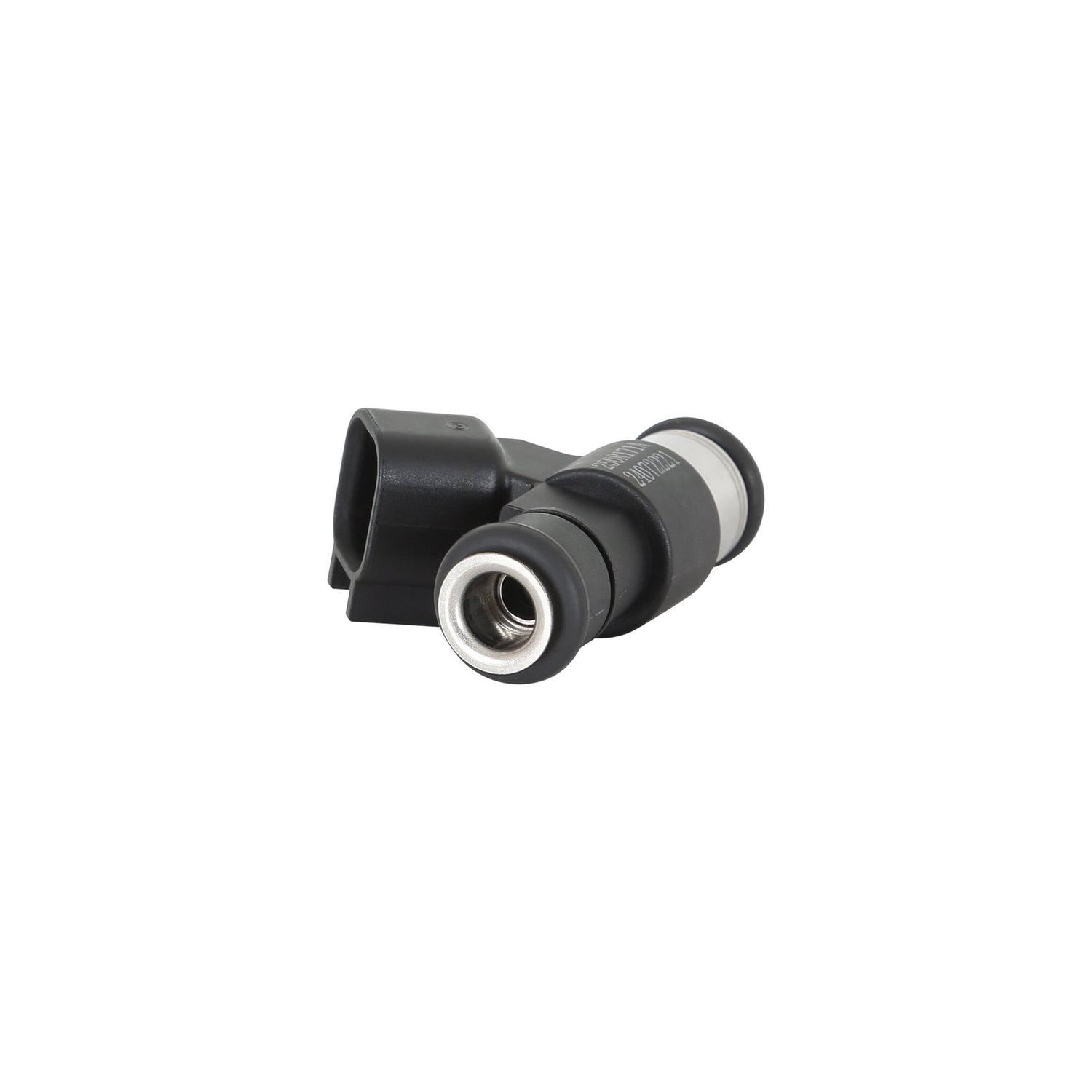

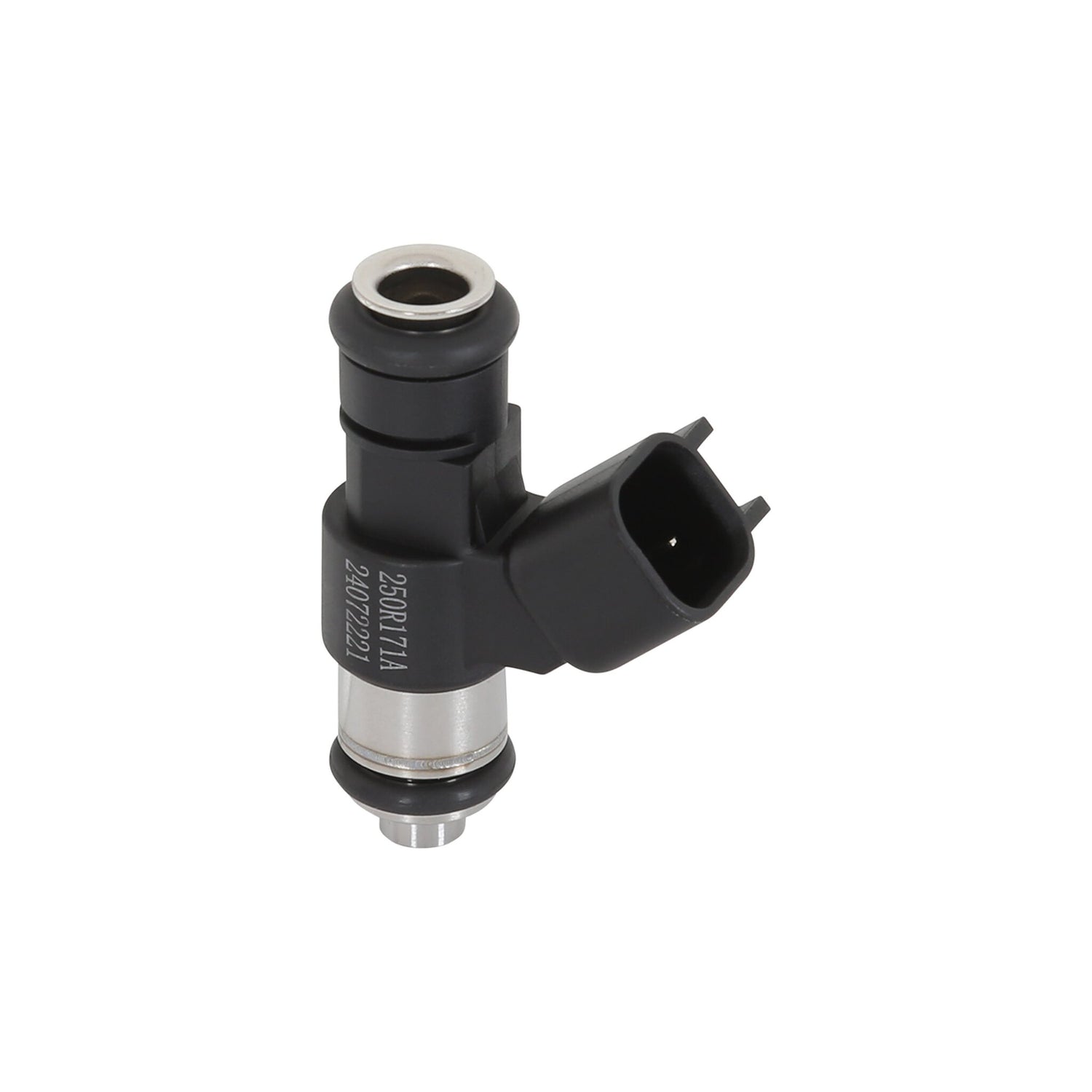

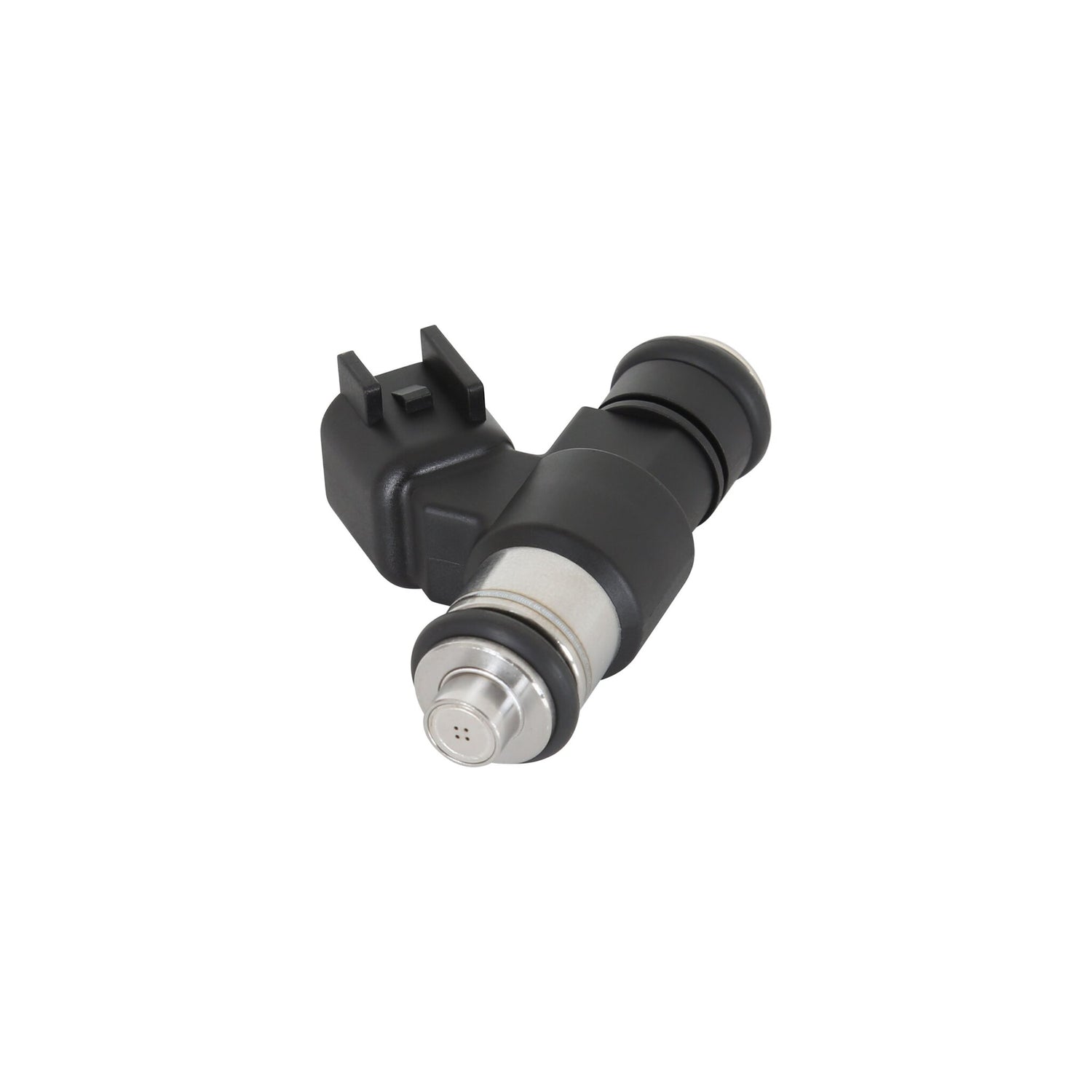

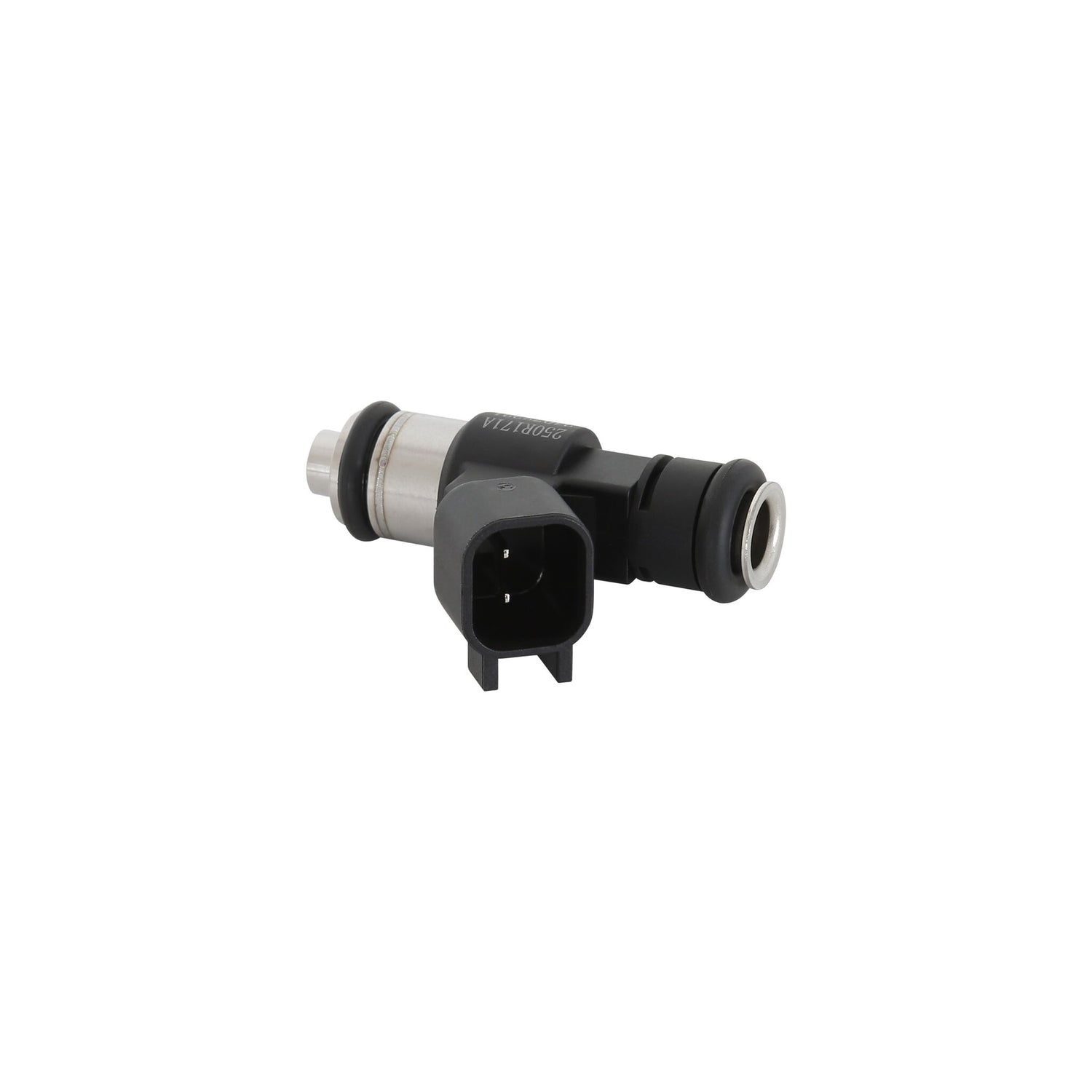

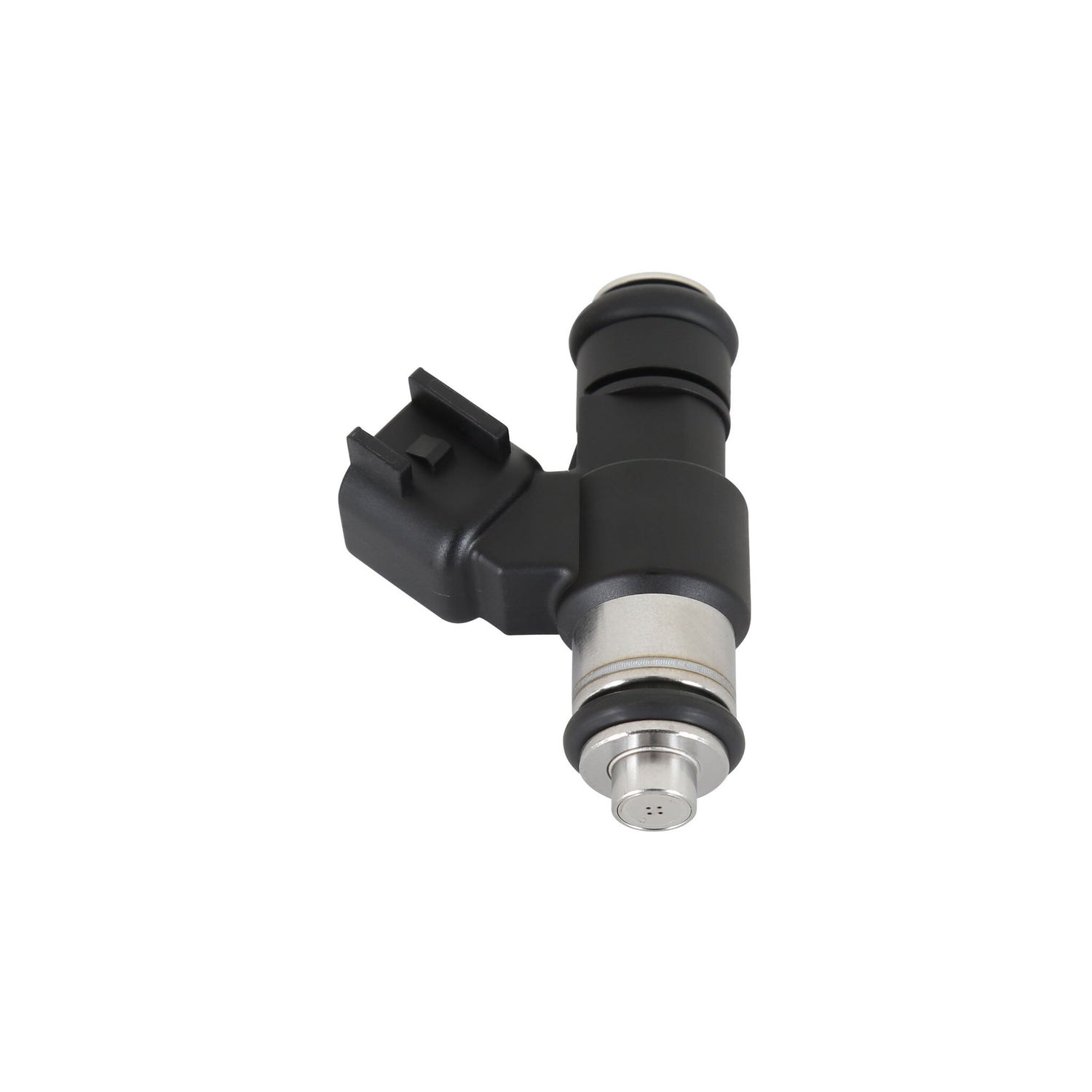

Holley 522-361S Terminator X Fuel Injector - Individual
PICO/EV6 - 36 lb/hr - High Impedance
Regular price
$197.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 522-361S Terminator X Fuel Injector - Individual
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
PICO/EV6 - 36 lb/hr - High Impedance
Part Number: 522-361S
Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.
Features and Benefits
• PICO/EV6 style performance injector
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 36 lb/hr @ 43 PSI
• Supports up to 575 horsepower (set of 8)
• Tri-cone spray pattern
These injectors are intended to be used with the 300-260 intake manifold. They are NOT a service injector for the Sniper EFI TBI Product Line. Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
Part Number: 522-361S
Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.
Features and Benefits
• PICO/EV6 style performance injector
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 36 lb/hr @ 43 PSI
• Supports up to 575 horsepower (set of 8)
• Tri-cone spray pattern
These injectors are intended to be used with the 300-260 intake manifold. They are NOT a service injector for the Sniper EFI TBI Product Line. Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
Specifications
Specifications
-
Specifications
Body Diameter 0.65 Body Length 1.85" Body Style EV6 Brand Holley EFI Category Air and Fuel Delivery Connector Series EV6 Emission Code 4 Flow Rate 36 Fuel Type E-85, Gasoline Gasket Or Seal Included Yes Grade Type Performance Impedance High (12.2 Ohm) O-Ring to O-Ring 1.421 part type Fuel Injector Product Type Fuel Injector Rated Injector Flow 36 lb/hr Sub Category Fuel Injection System and Related Components Terminal Gender Male Terminal Quantity 1 Terminal Type Blade Warning California Proposition 65 Wiring Harness Included No
