Holley EFI | SKU:
522-205

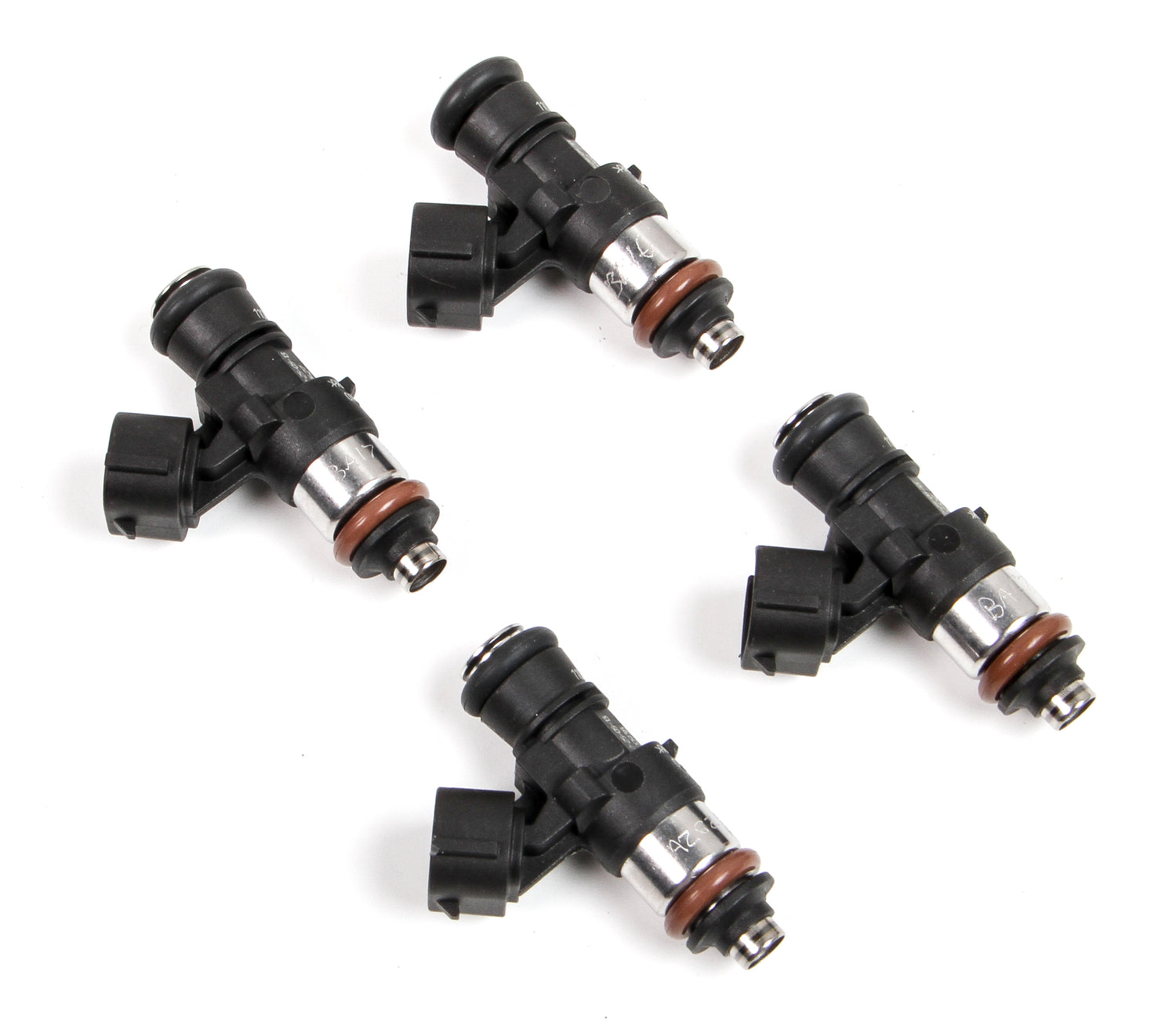

Holley EFI Holley Terminator X Fuel Injectors - Set of Four - 522-205
Bosch/EV14 - 205 lb/hr - High Impedance
Regular price
$2,908.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Holley Terminator X Fuel Injectors - Set of Four - 522-205
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Bosch/EV14 - 205 lb/hr - High Impedance
Part Number: 522-205
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 205 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV14 performance injectors - set of 4
• High impedance for use with saturated drivers
• Rated injector flow: 205 lb/hr @ 43 PSI
• Supports up to 2600 Horsepower (8 Injectors)
• Maximum recommended fuel pressure: 75 PSI
• Requires Terminator Throttle Body Harness Part # 558-439
Part Number: 522-205
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 205 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV14 performance injectors - set of 4
• High impedance for use with saturated drivers
• Rated injector flow: 205 lb/hr @ 43 PSI
• Supports up to 2600 Horsepower (8 Injectors)
• Maximum recommended fuel pressure: 75 PSI
• Requires Terminator Throttle Body Harness Part # 558-439
Specifications
Specifications
-
Specifications
Body Diameter 0.97 Body Length 2.85" Body Style EV14 Brand Holley EFI Category Air and Fuel Delivery CFM N/A Color Black Connector Series EV6 Connector Shape EV6 Emission Code 3 Flow Matched No Flow Rate 205 4U Fuel Injection Type Port Fuel Type Gasoline Fuel Type E-85, Gasoline Gasket Or Seal Included Yes Grade Type Performance Impedance High Length 40mm Mounting Hardware Included No O-Ring Quantity 2 per injector O-Ring to O-Ring 2.415" part type Fuel Injector Product Type Fuel Injector Qty 4 Rated Injector Flow 205 lb/hr Retainer Clips Included No Sub Category Fuel Injection System and Related Components Terminal Gender Female Warning California Proposition 65
