Holley EFI | SKU:
522-168

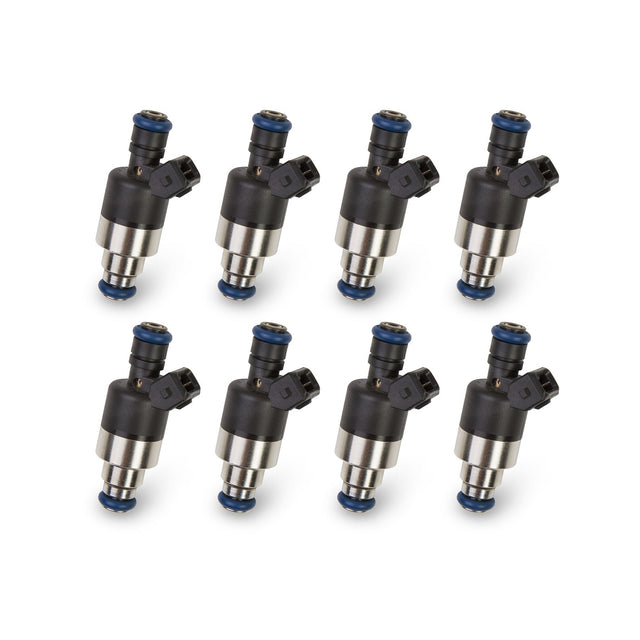

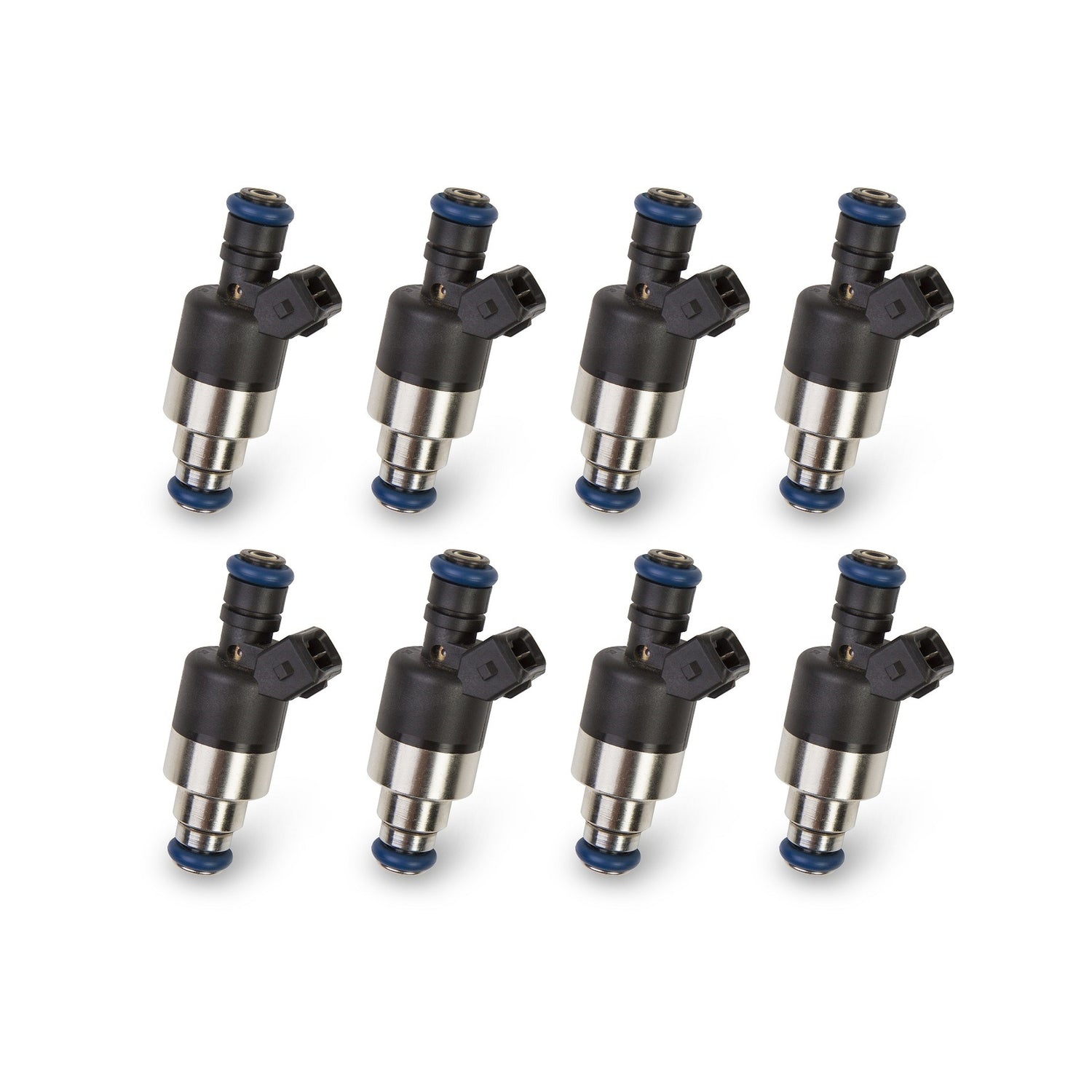

Holley EFI 160 lb/hr Performance Fuel Injectors - Set of 8 - 522-168
Bosch/EV1 Style, Low Impedance Fuel Injectors Maximum Horsepower: 2525
Regular price
$2,174.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI 160 lb/hr Performance Fuel Injectors - Set of 8 - 522-168
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Bosch/EV1 Style, Low Impedance Fuel Injectors Maximum Horsepower: 2525
Part Number: 522-168

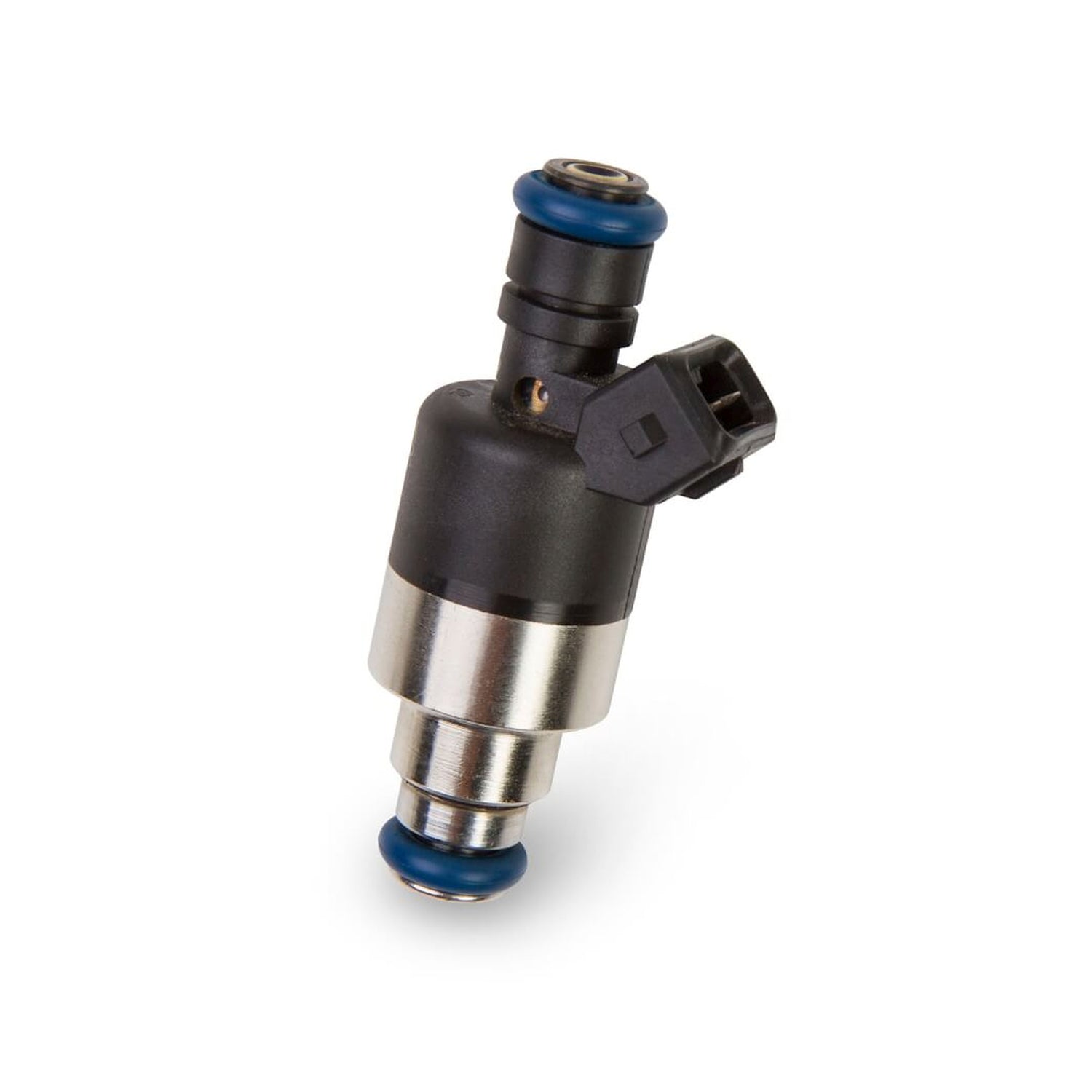

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV1 style performance injectors - Set of 8
• Low impedance (2.0 Ohms) for use with peak and hold drivers
• Rated injector flow: 160 lb/hr @ 43 PSI
• Supports up to 2525 horsepower
• Tri-cone spray pattern
• Maximum recommended fuel pressure: 75 PSI
Part Number: 522-168
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features and Benefits
• Bosch/EV1 style performance injectors - Set of 8
• Low impedance (2.0 Ohms) for use with peak and hold drivers
• Rated injector flow: 160 lb/hr @ 43 PSI
• Supports up to 2525 horsepower
• Tri-cone spray pattern
• Maximum recommended fuel pressure: 75 PSI
Specifications
Specifications
-
Specifications

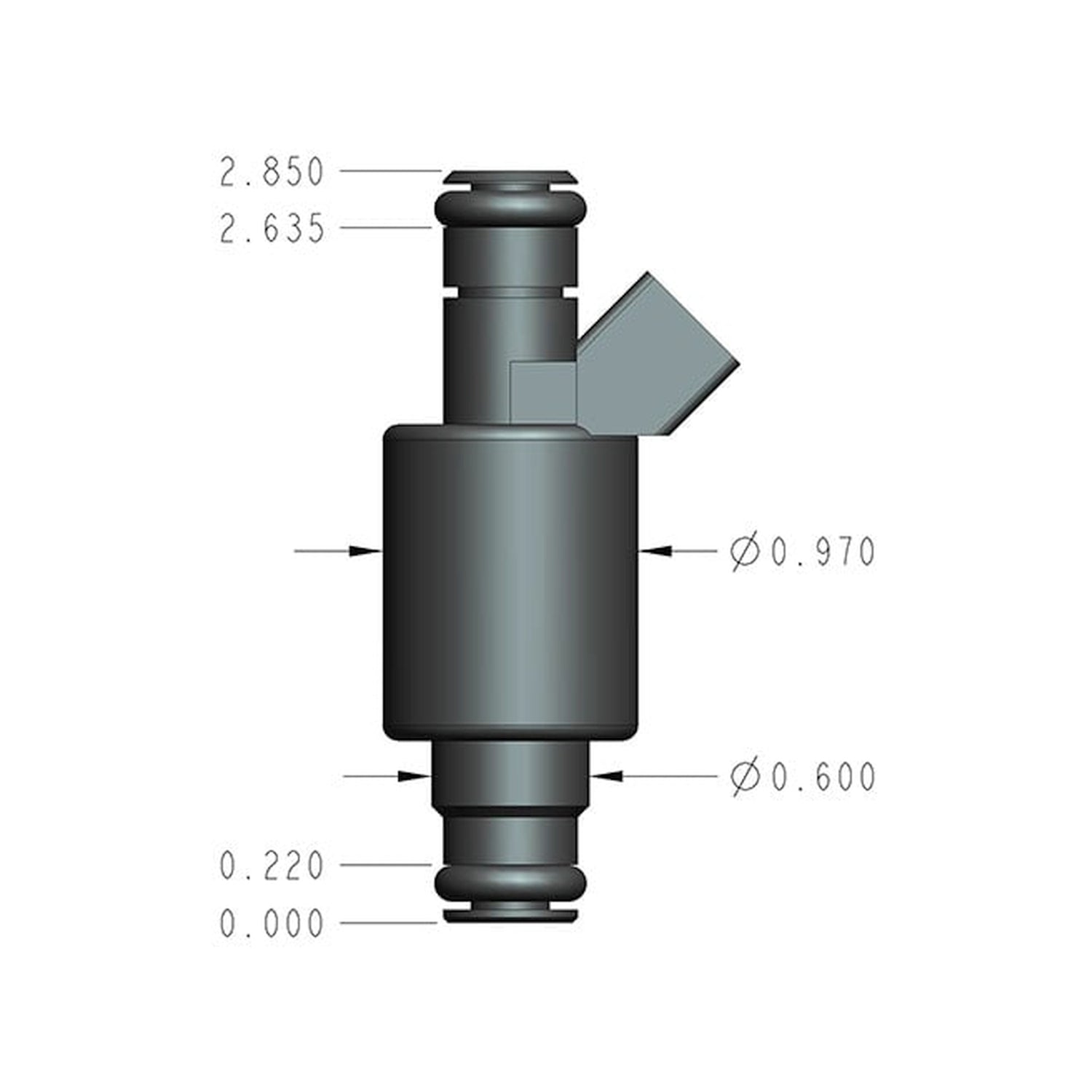

Body Diameter 0.97 Body Length 2.85" Body Style EV1 Brand Holley EFI Category Air and Fuel Delivery Color Black Connector Series EV1 - Jetronic - (Bosch Style) Connector Shape EV1 - Jetronic - (Bosch Style) Emission Code 3 Flow Matched No Flow Rate 160 4U Fuel Injection Type Port Fuel Type E-85, Gasoline Gasket Or Seal Included Yes Grade Type Performance Impedance Low (2.0 Ohm) Mounting Hardware Included No O-Ring Quantity 2 per injector O-Ring to O-Ring 2.415" part type Fuel Injector Product Type Fuel Injector Qty 8 Rated Injector Flow 160 lb/hr Retainer Clips Included No Sub Category Fuel Injection System and Related Components Terminal Gender Female Warning California Proposition 65 -
