Holley | SKU:
512-504-5

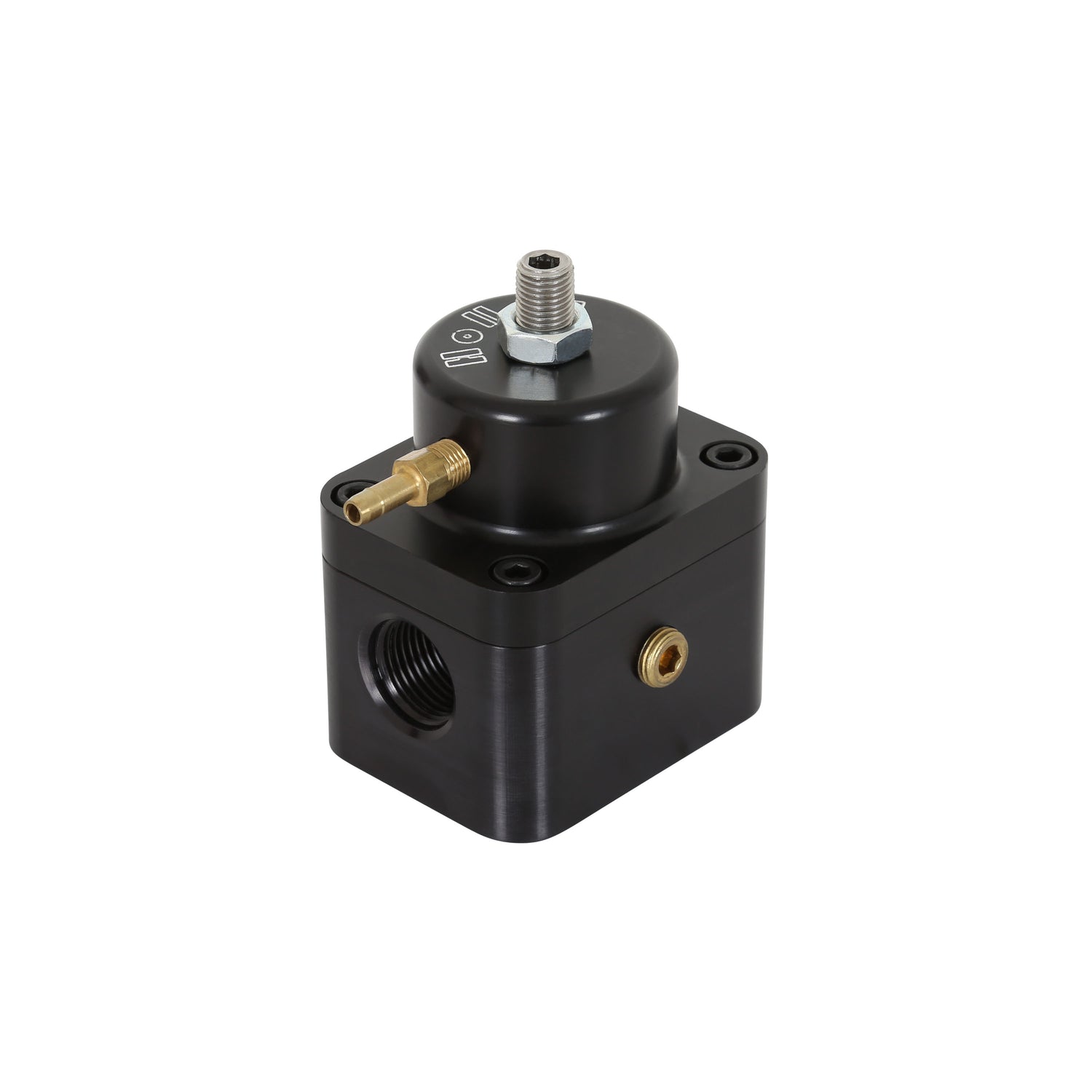

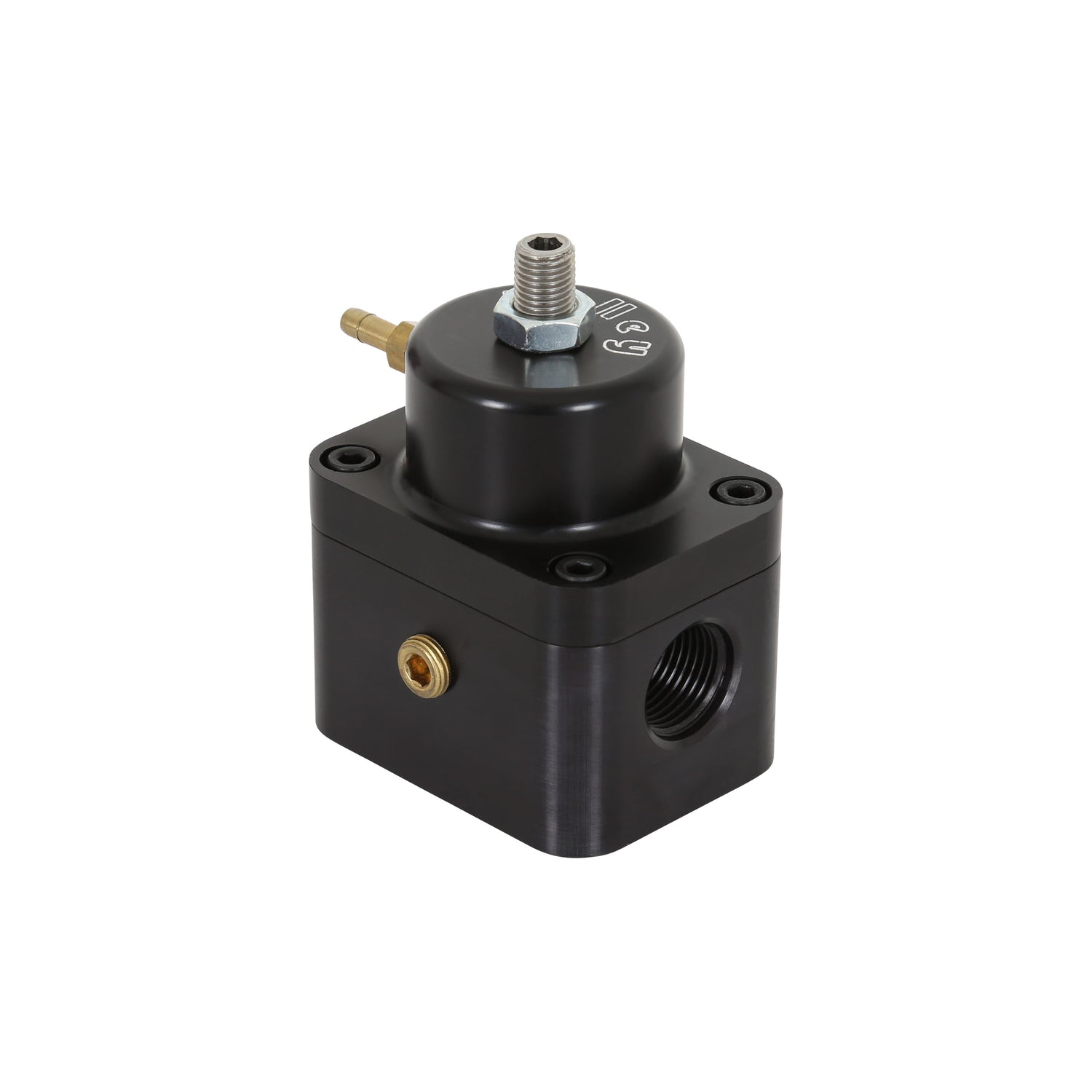

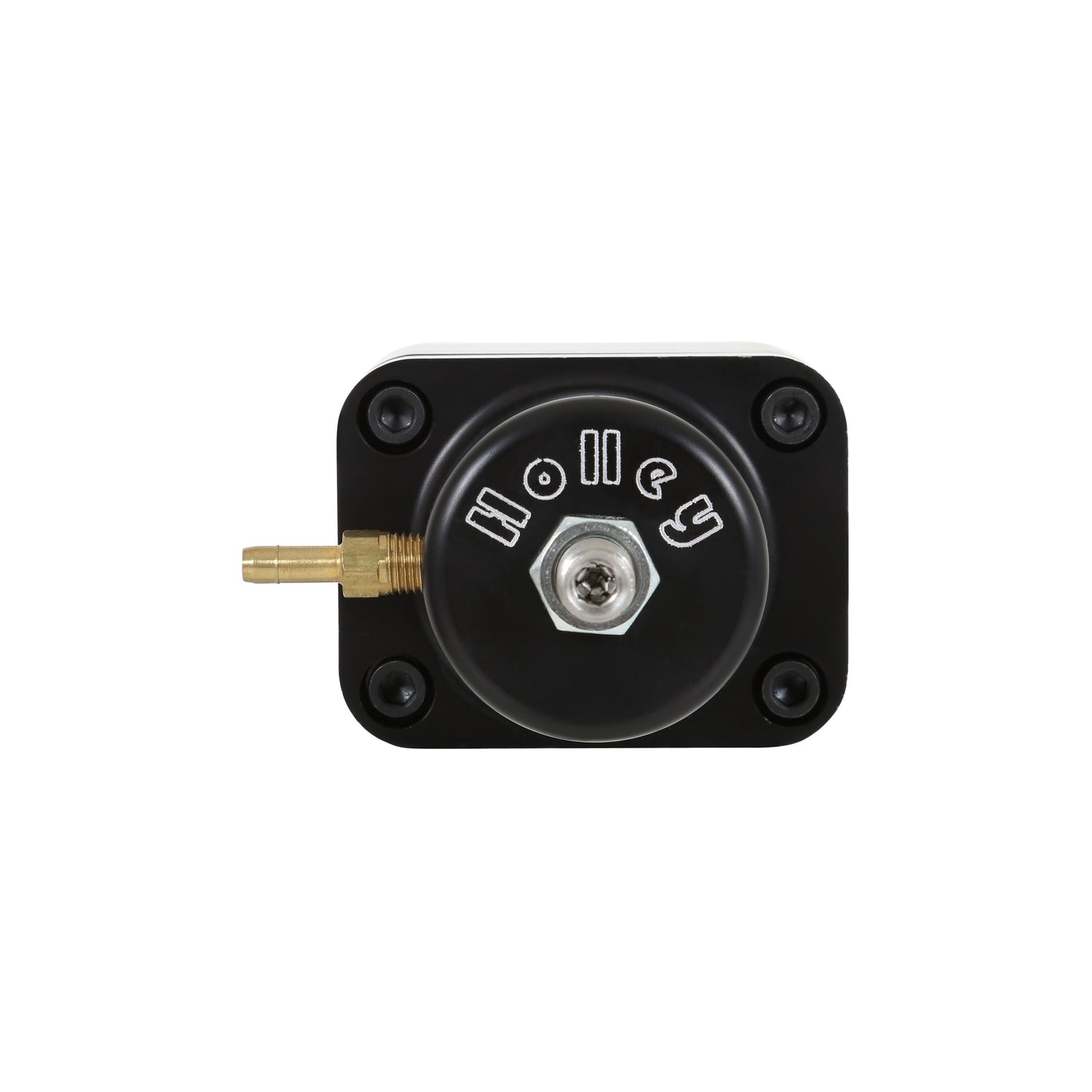

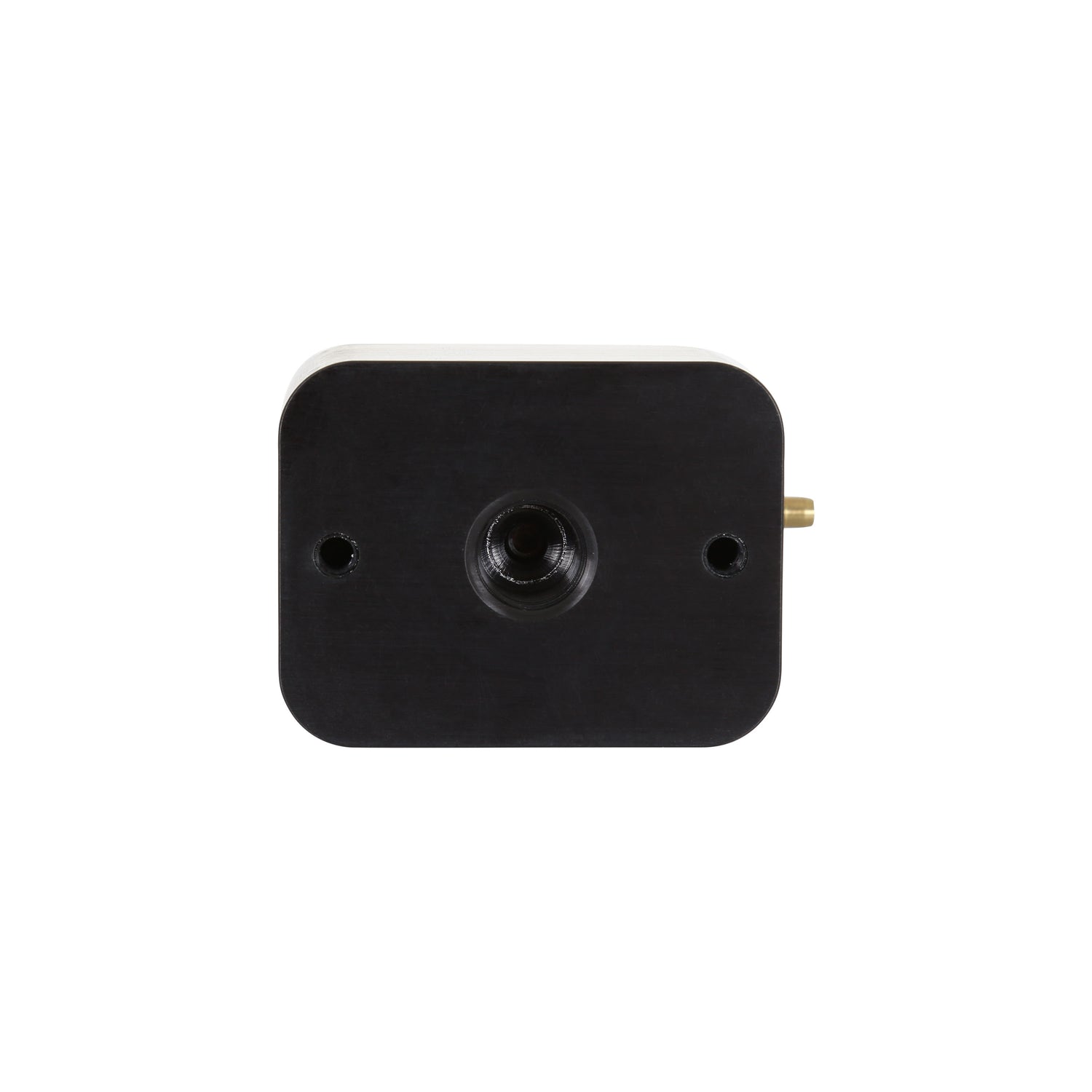

Holley 512-504-5 Boost Compensating Universal EFI Fuel Pressure Regulator
Hot Street/Race EFI Applications _x000D_Two Port_x000D_Adjustable from 15-65 PSI
Regular price
$826.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 512-504-5 Boost Compensating Universal EFI Fuel Pressure Regulator is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 512-504-5 Boost Compensating Universal EFI Fuel Pressure Reg...
Regular price
$826.50 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Hot Street/Race EFI Applications _x000D_
Two Port_x000D_
Adjustable from 15-65 PSI
Part Number: 512-504-5

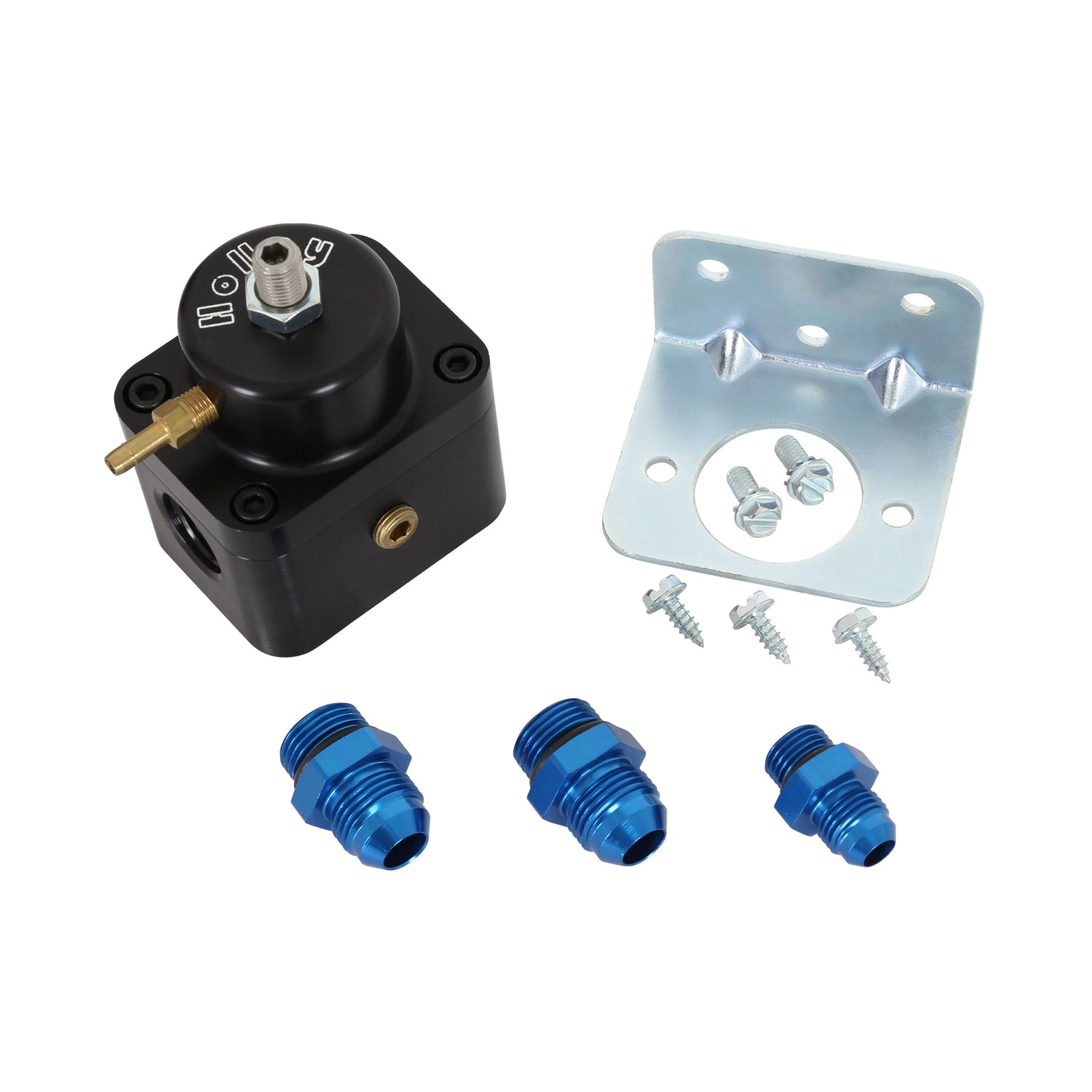

This precision adjustable fuel metering regulator is the ultimate fuel pressure control unit designed to work on all naturally aspirated EFI, turbo and supercharged applications like vehicles that run in the Pro Street, Pro Import and Outlaw classes. This is a 2 port 1:1 boost compensating return style regulator that is adjustable from 15-65 PSI + boost reference and is designed to be used in conjunction with any electric EFI fuel pump. Features built in gauge port, mounting bracket, two AN -8 O-ring fittings and a AN-6 O-ring return fitting. Black anodized.
Features and Benefits
• Black anodized
• Easy installation

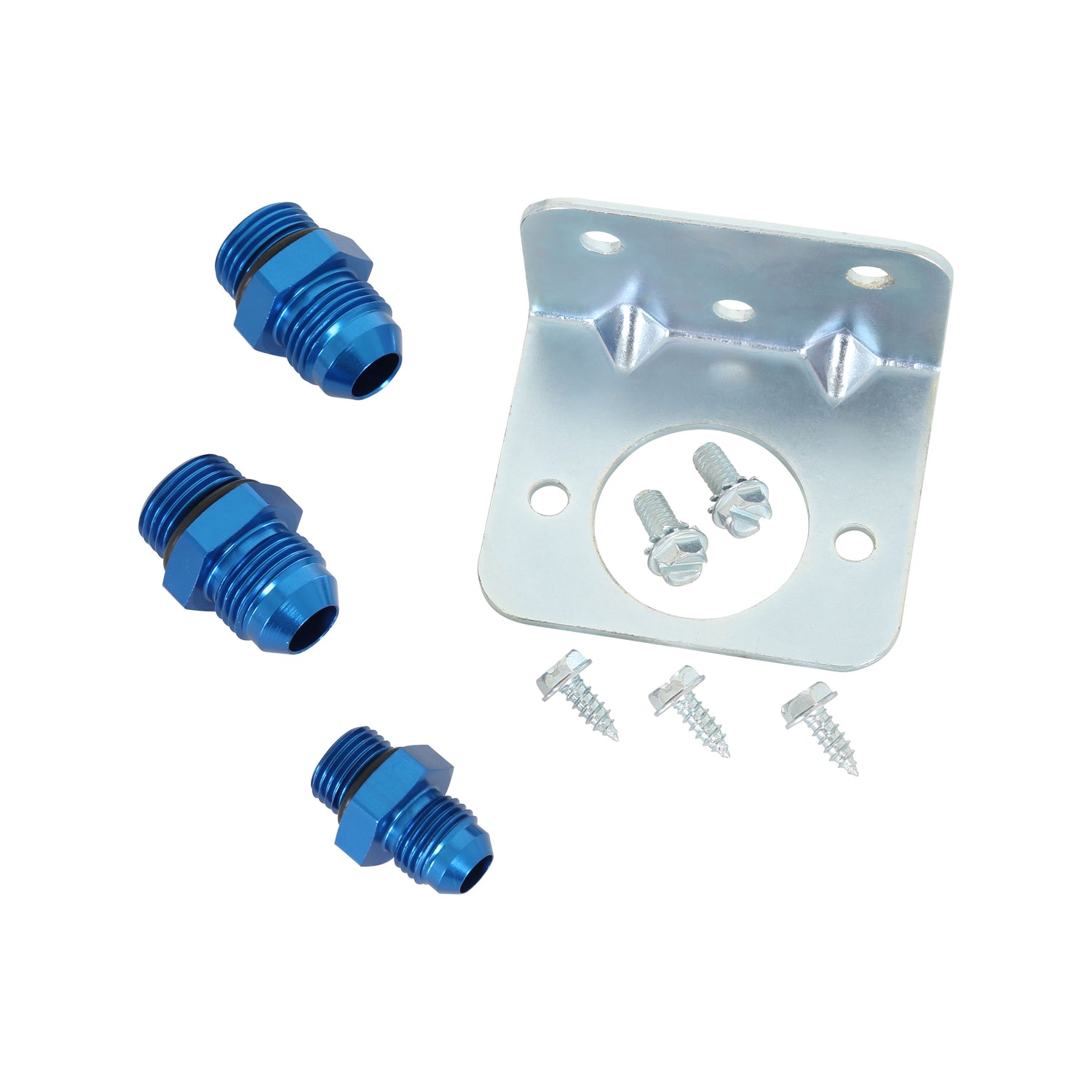

• -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
• Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
• Engineered to regulate extreme flow volumes generated by racing fuel systems
• CNC machined billet aluminum
• Allows adjustment from 15-65 psi + boost reference
Part Number: 512-504-5
This precision adjustable fuel metering regulator is the ultimate fuel pressure control unit designed to work on all naturally aspirated EFI, turbo and supercharged applications like vehicles that run in the Pro Street, Pro Import and Outlaw classes. This is a 2 port 1:1 boost compensating return style regulator that is adjustable from 15-65 PSI + boost reference and is designed to be used in conjunction with any electric EFI fuel pump. Features built in gauge port, mounting bracket, two AN -8 O-ring fittings and a AN-6 O-ring return fitting. Black anodized.
Features and Benefits
• Black anodized
• Easy installation
• -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
• Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
• Engineered to regulate extreme flow volumes generated by racing fuel systems
• CNC machined billet aluminum
• Allows adjustment from 15-65 psi + boost reference
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Hard Coat Anodized Emission Code 4 Fuel System Gasoline Fuel Type Gasoline Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 8 AN ORB Inlet Port Quantity 1 Inlet Size 8 AN O-Ring Inlet Type 8 AN ORB Material Aluminum Maximum Pressure 65 Minimum Pressure 15 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 8 AN ORB Outlet Port Diameter 6 AN ORB Outlet Port Quantity 2 Outlet Size 8 AN O-Ring Outlet Type 8 AN ORB Outlet Type 6 AN ORB part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 15-65 PSI Product Type Fuel Pressure Regulator Rebuildable Yes Return Size 6 AN O-Ring Style Bypass Vacuum Port Quantity 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
