Holley | SKU:
302-22

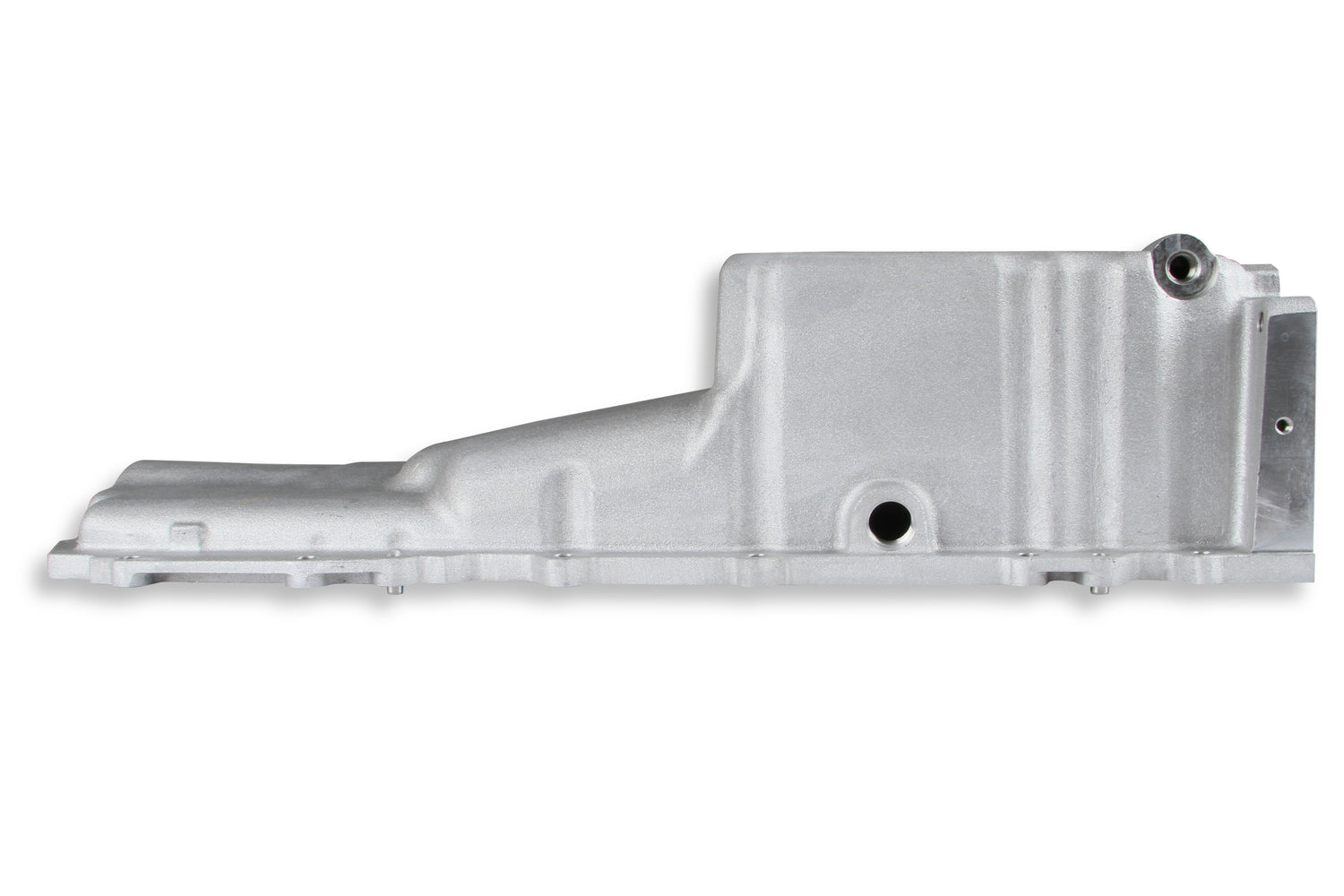

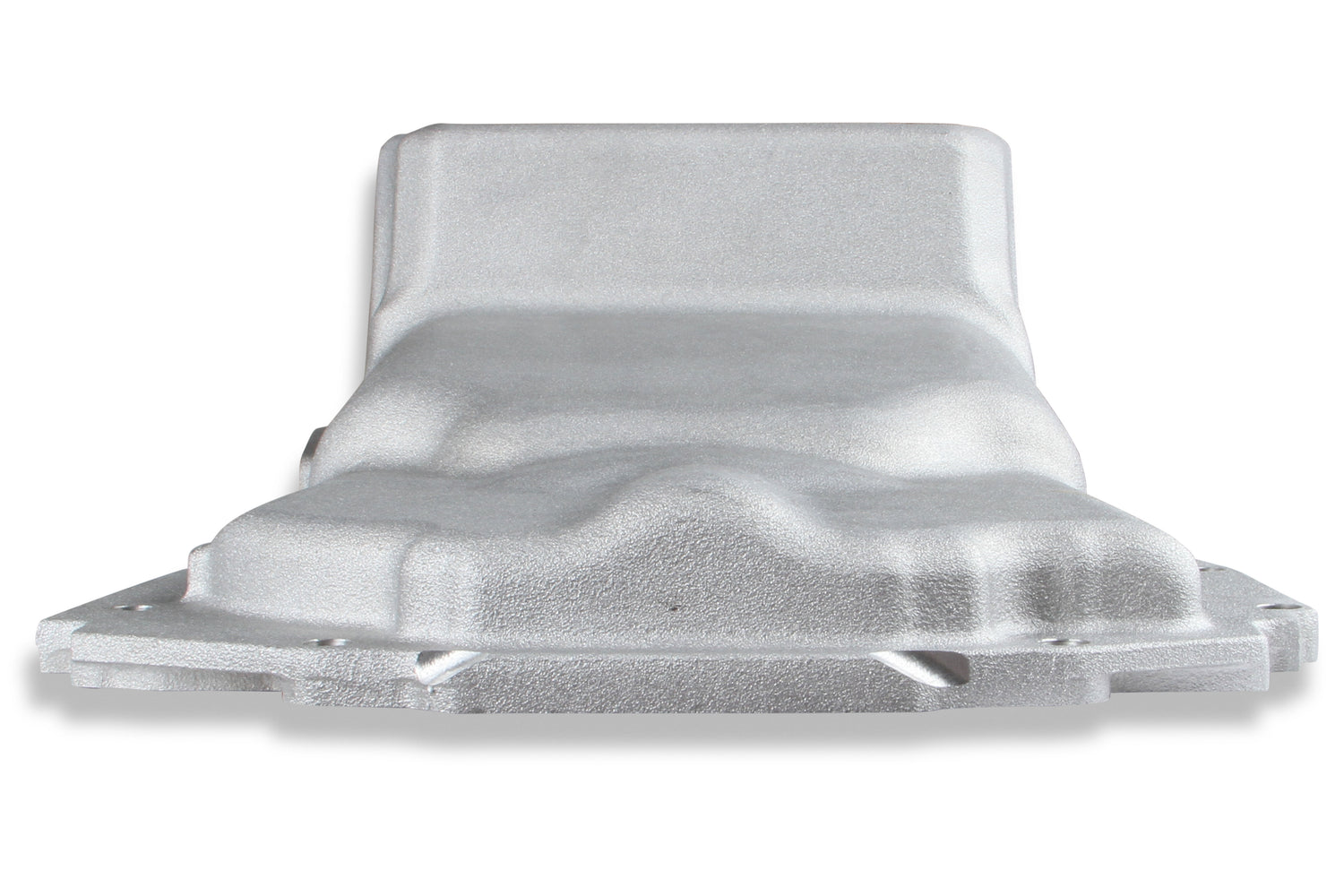

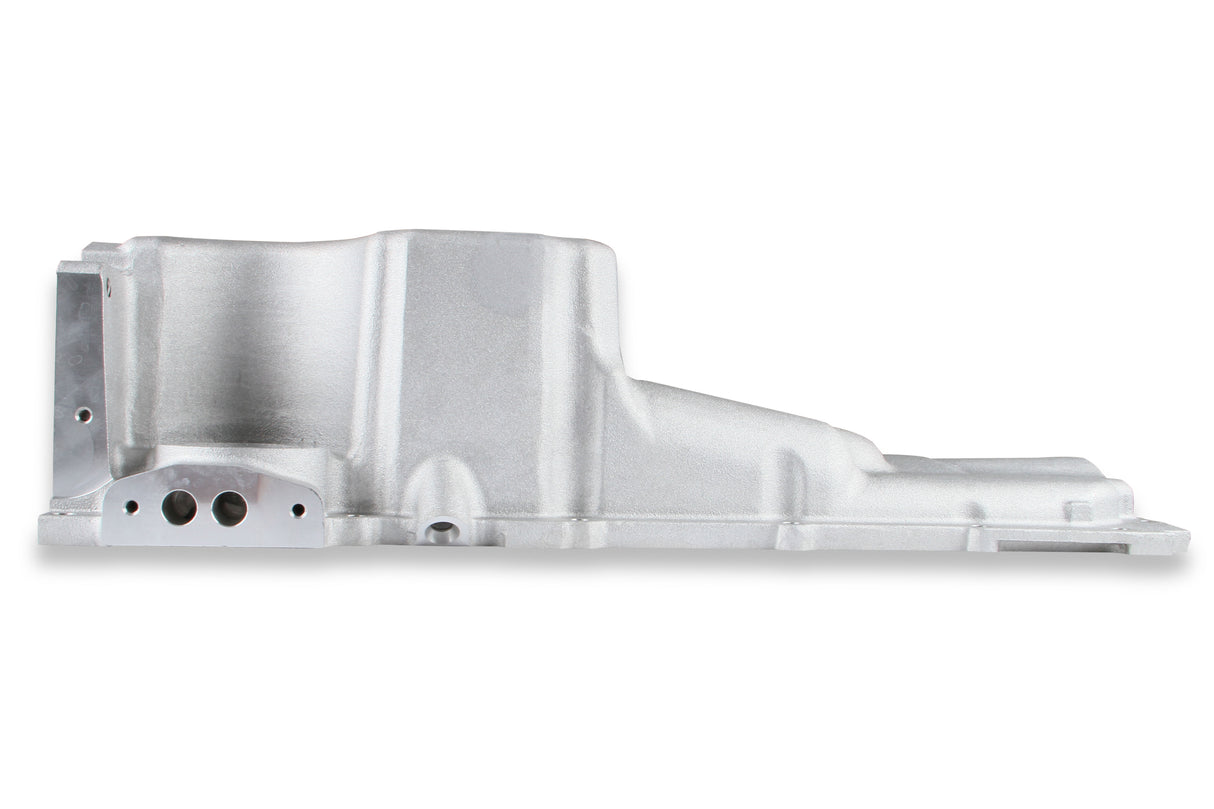

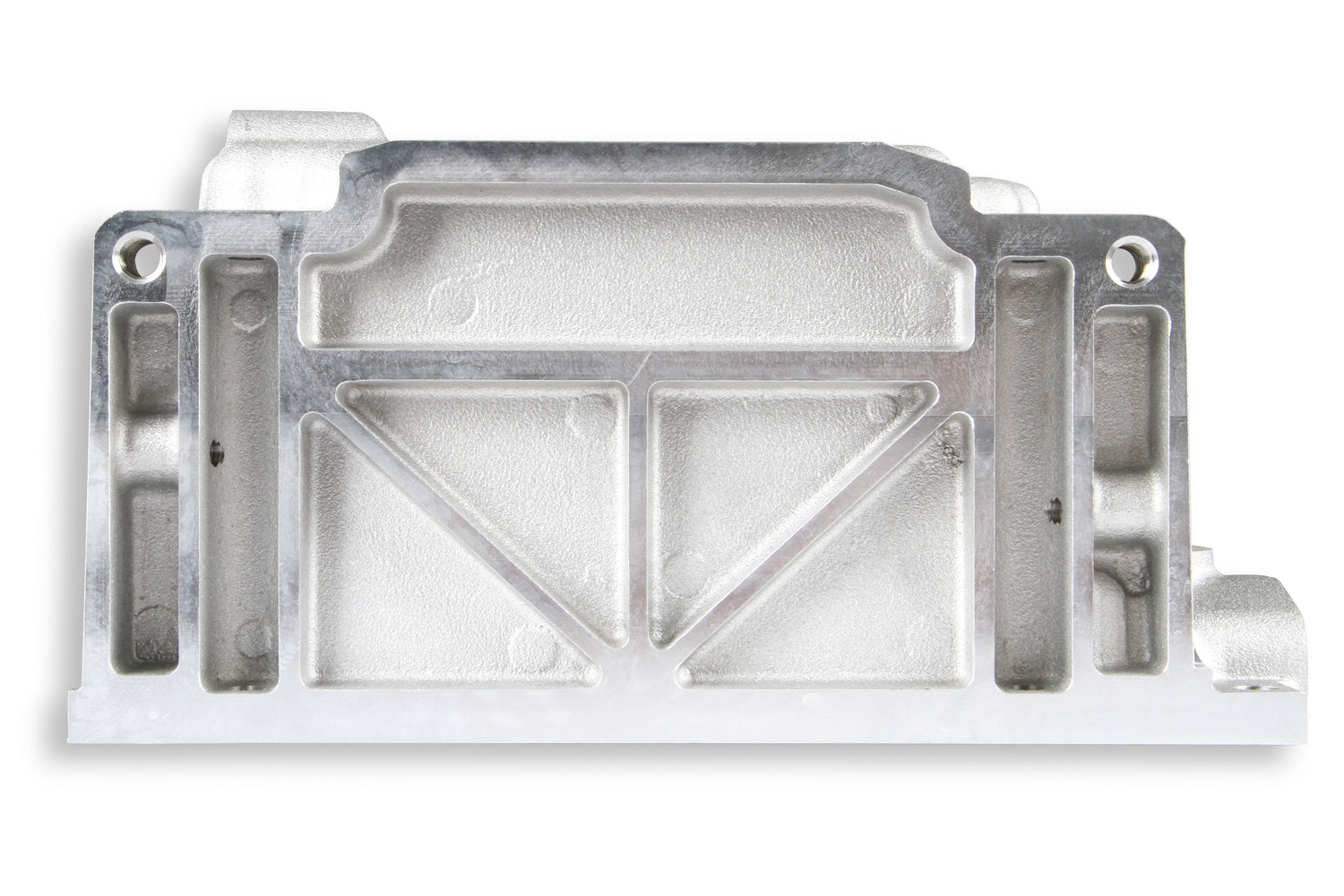

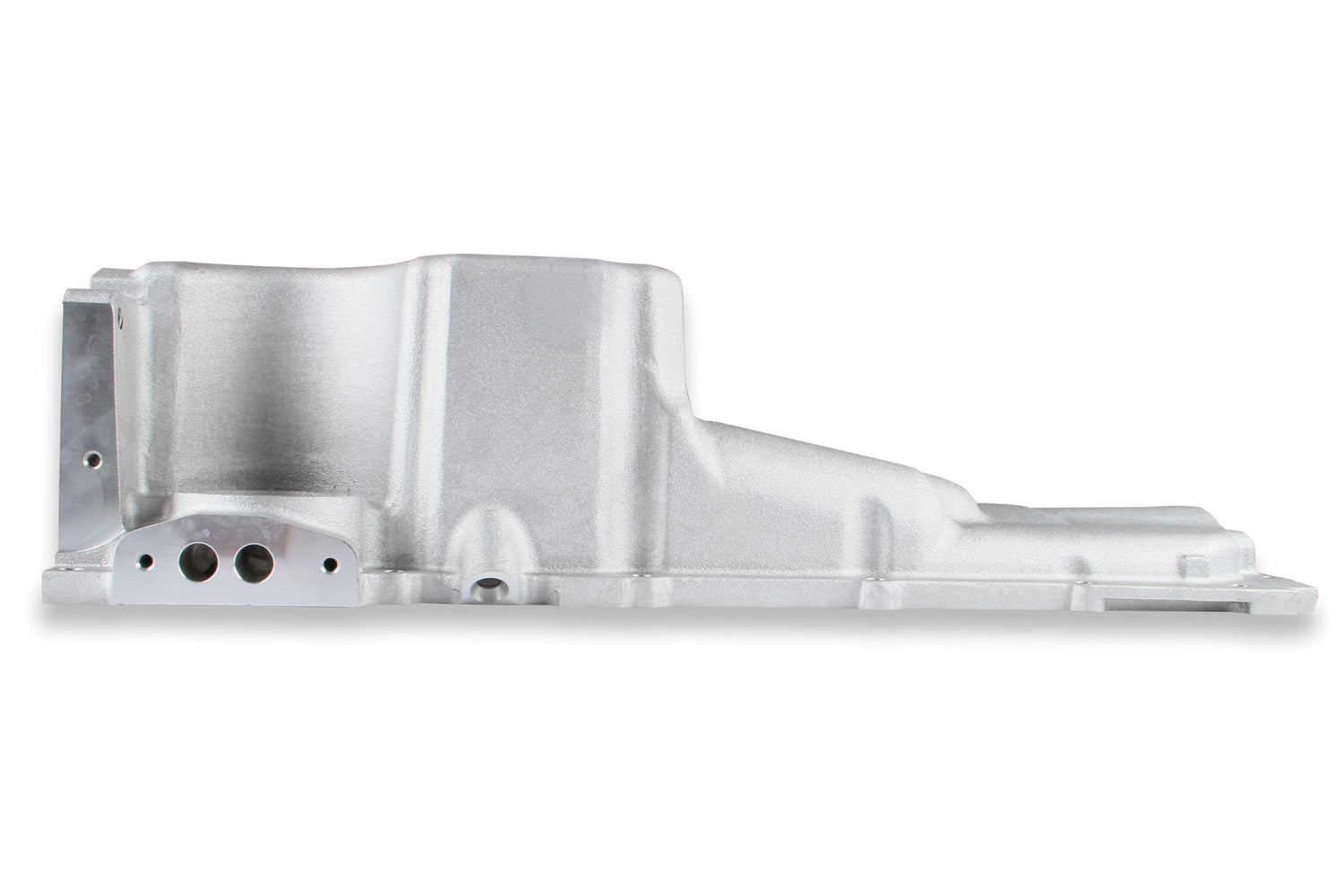

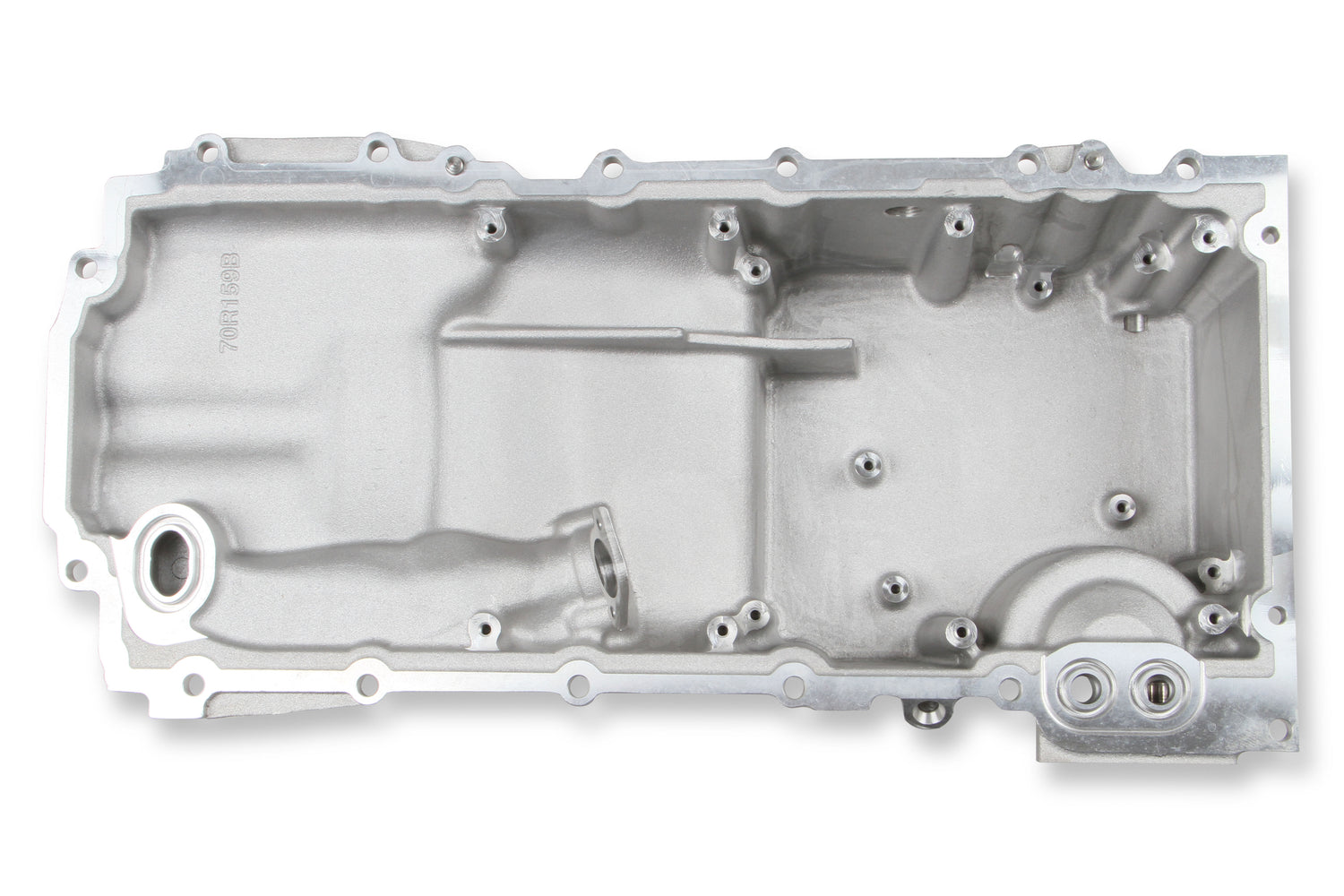

Holley 302-22 GM Gen V LT Swap Oil Pan - Drag Race - As Cast with Turbo Oil Return
GM Gen V LT Swap Oil Pan - Drag Race - As Cast - Includes special drag race hinged door baffles & pickup with Turbo Oil Return
Regular price
$1,256.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 302-22 GM Gen V LT Swap Oil Pan - Drag Race - As Cast with Turbo Oil Return is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 302-22 GM Gen V LT Swap Oil Pan - Drag Race - As Cast with T...
Regular price
$1,256.10 NZD
+ GST
Unit price
/
Unavailable
Description
Description
GM Gen V LT Swap Oil Pan - Drag Race - As Cast - Includes special drag race hinged door baffles & pickup with Turbo Oil Return
Part Number: 302-22

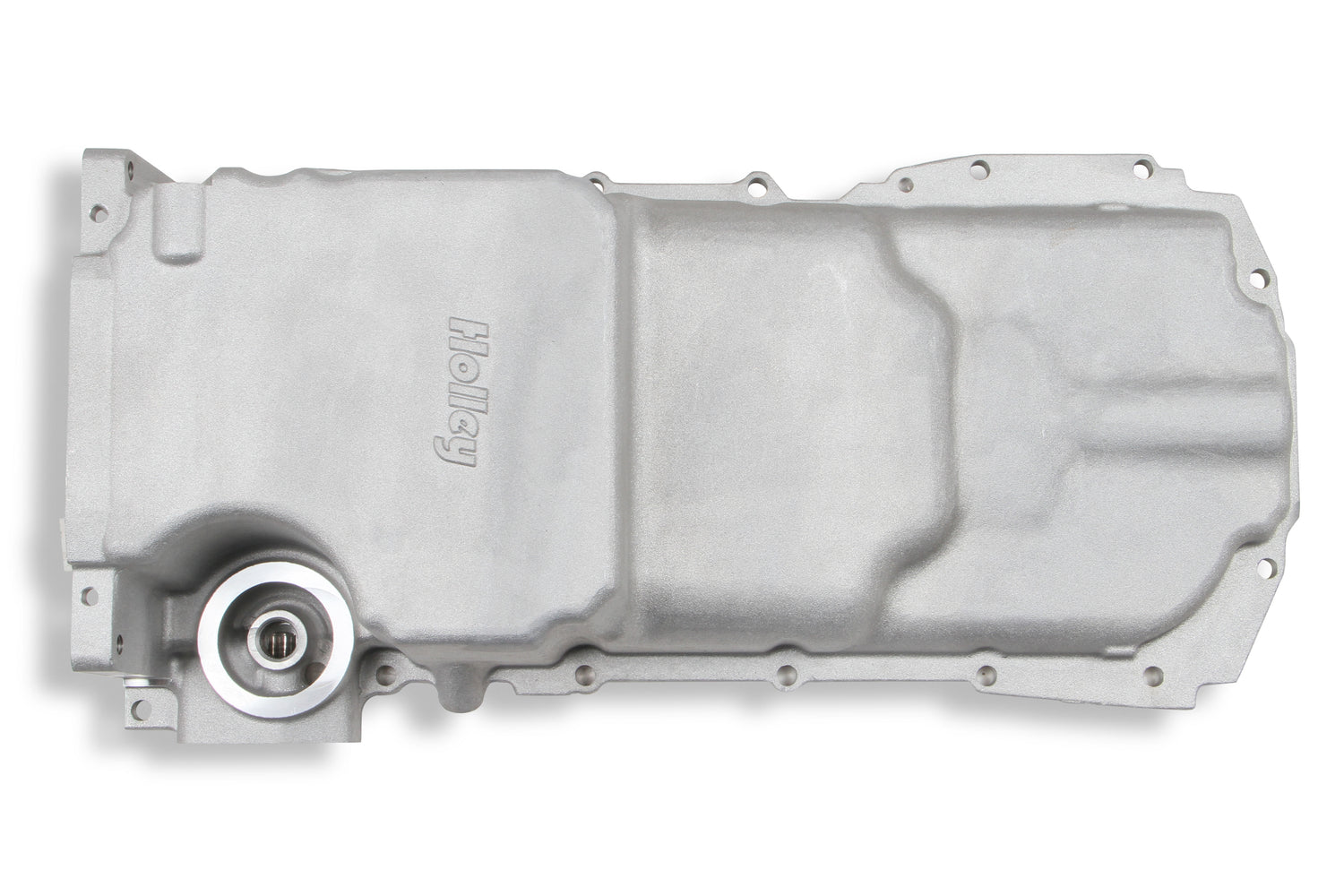

GM's new Gen V LT direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new LT Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. These oil pans are perfect for: 1967-1902 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.
Features and Benefits
• Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan
• Allows for up to 4.00” Crankshaft Stroke
• Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used

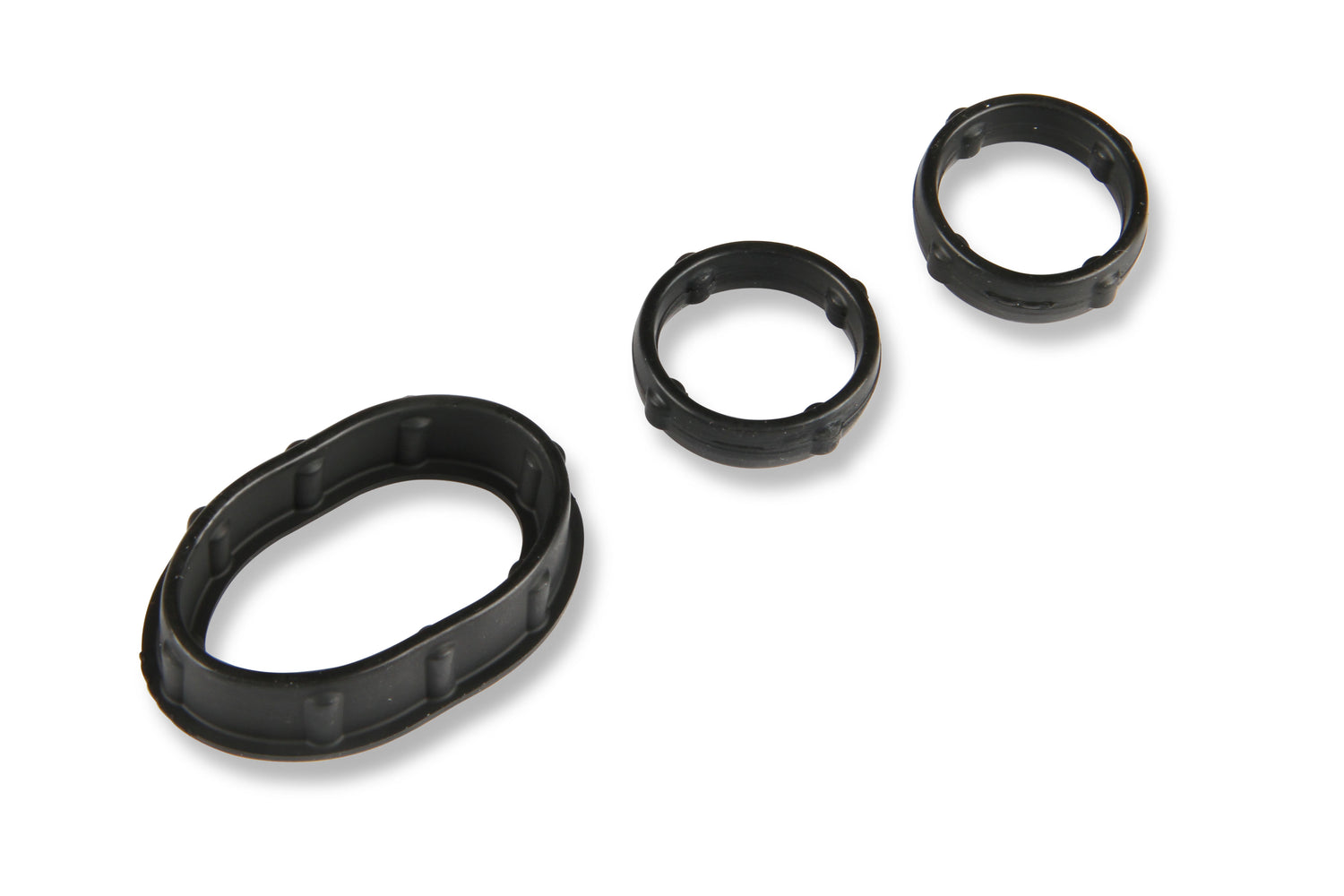

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments

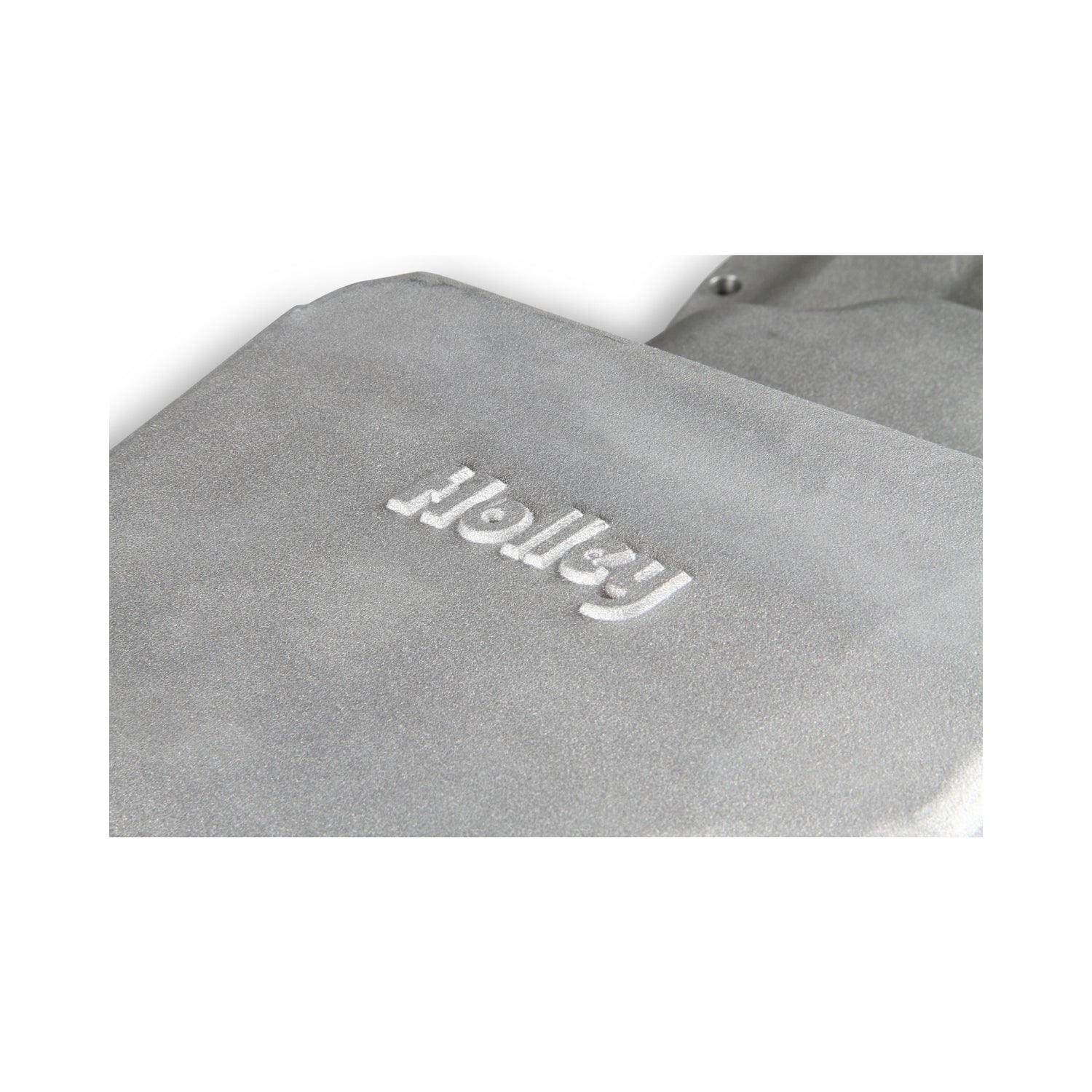

• Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling
• Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member
• Traditional high-quality cast aluminum appearance with clean exterior styling.
• Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
• Cast and machined aluminum
• Oil Cooler Port Provision
• 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return

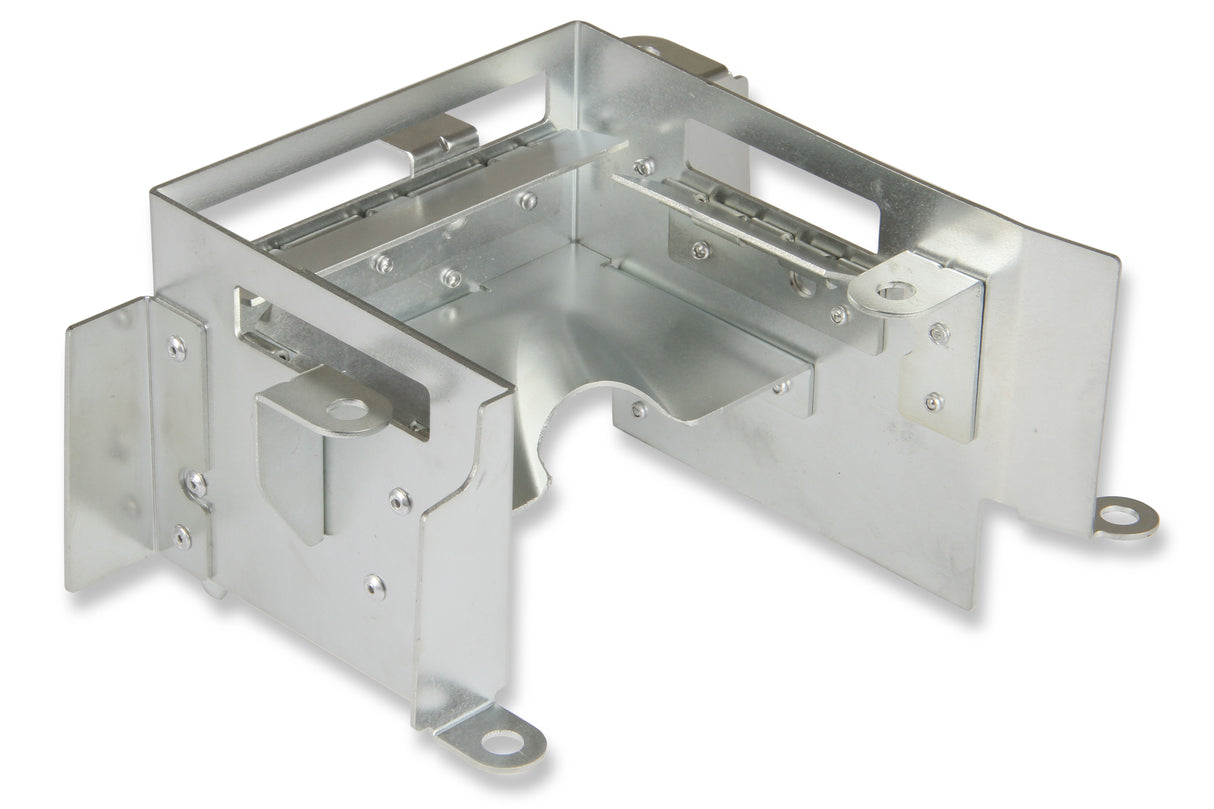

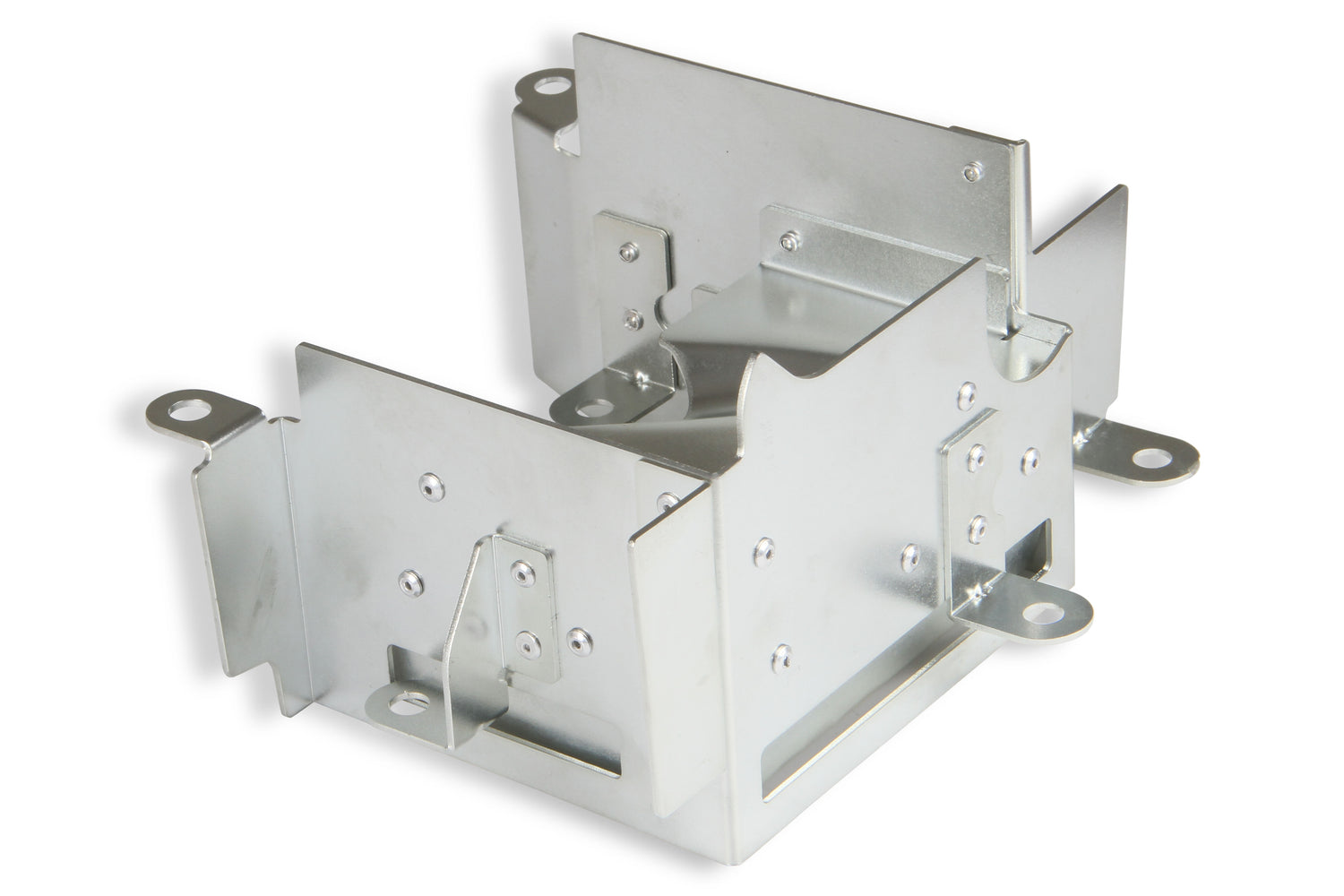

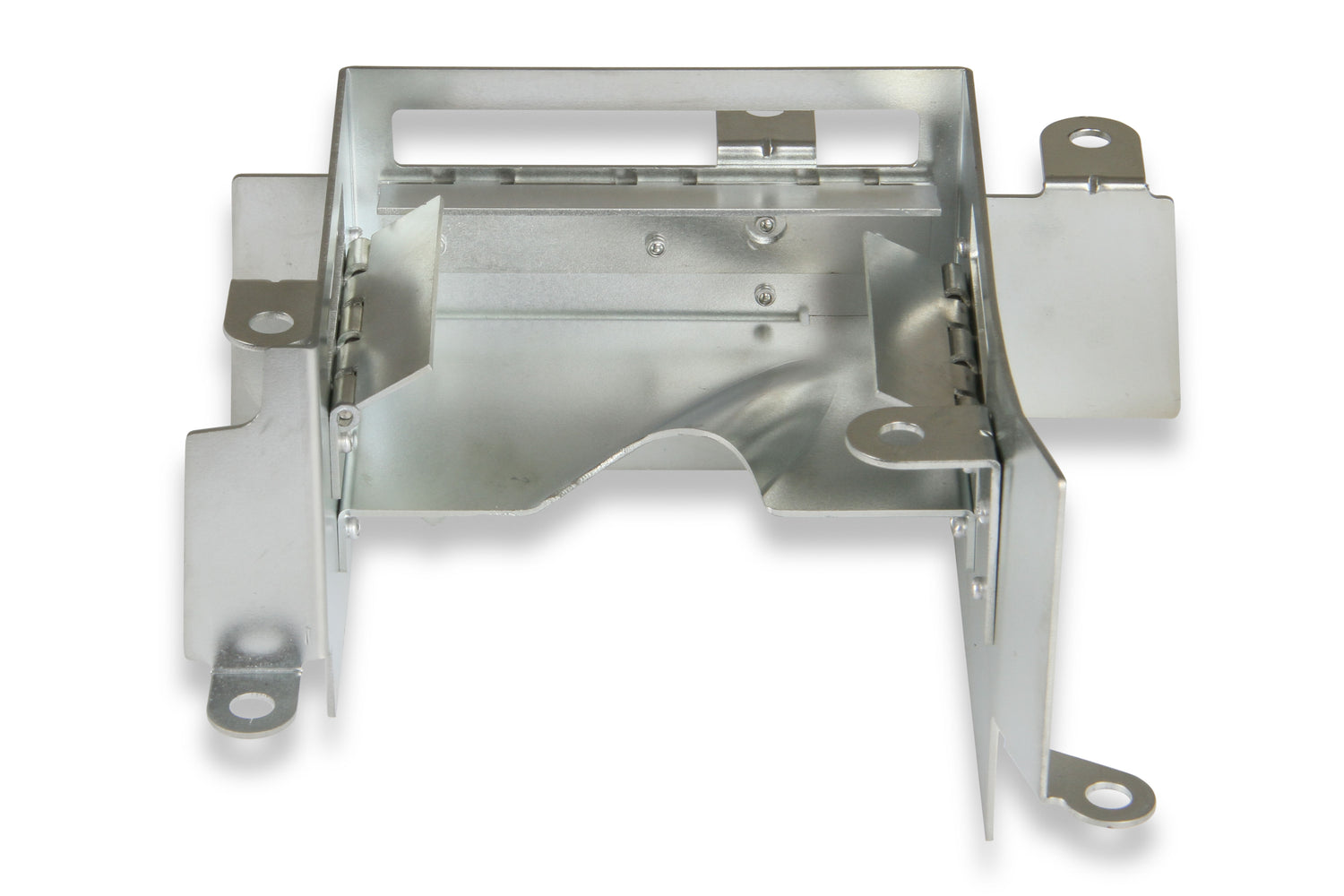

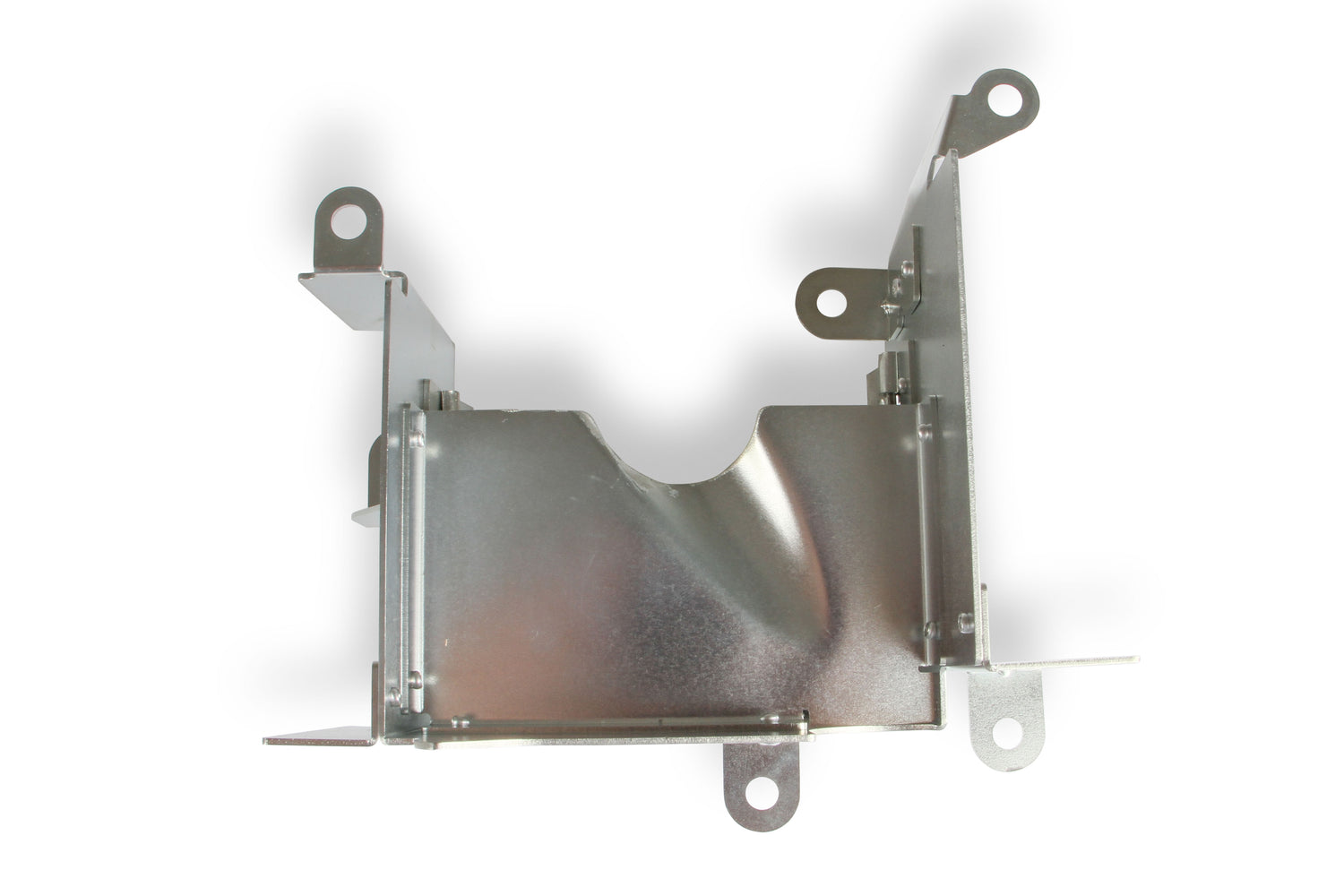

• Hinge Door Baffles Available

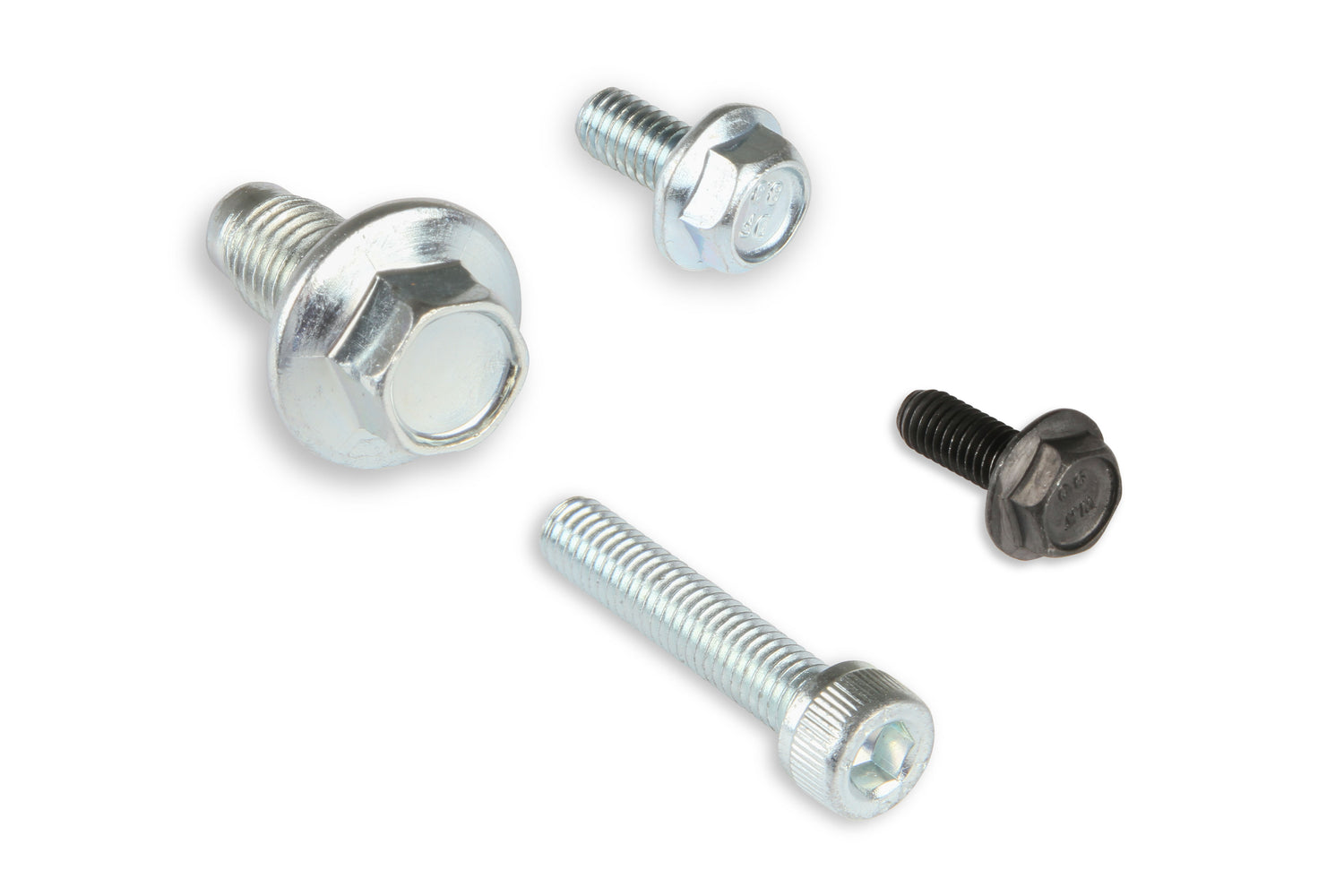

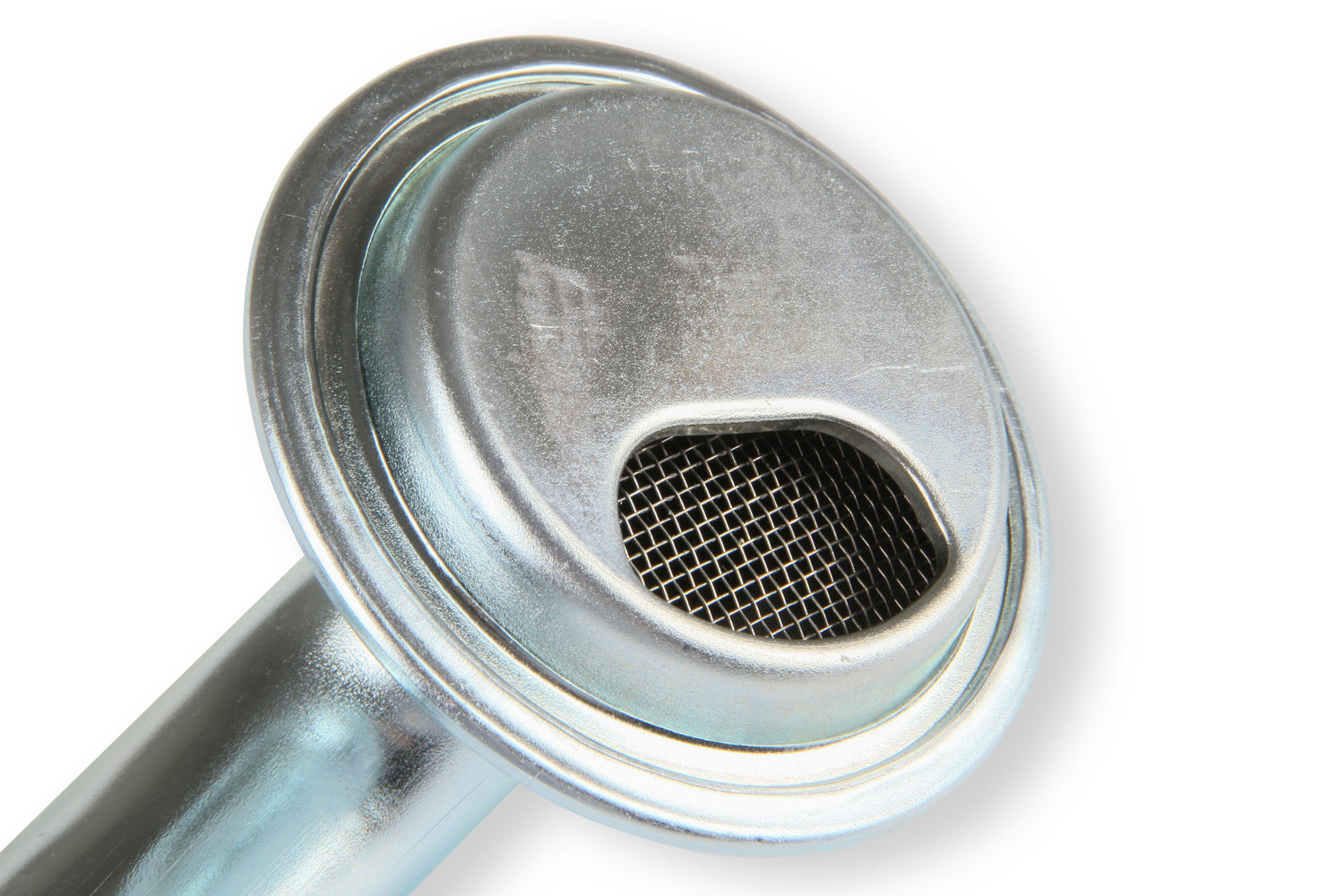

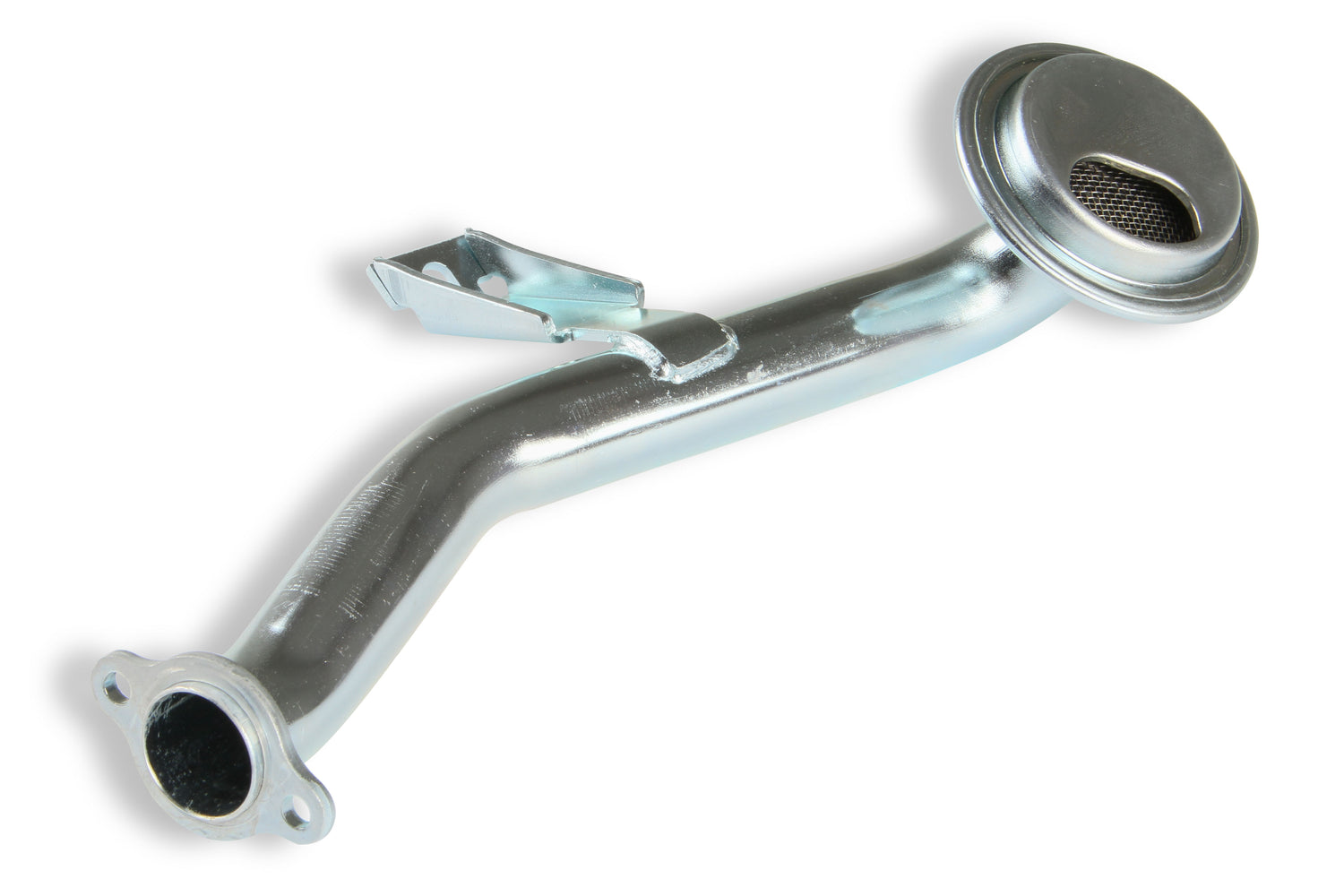

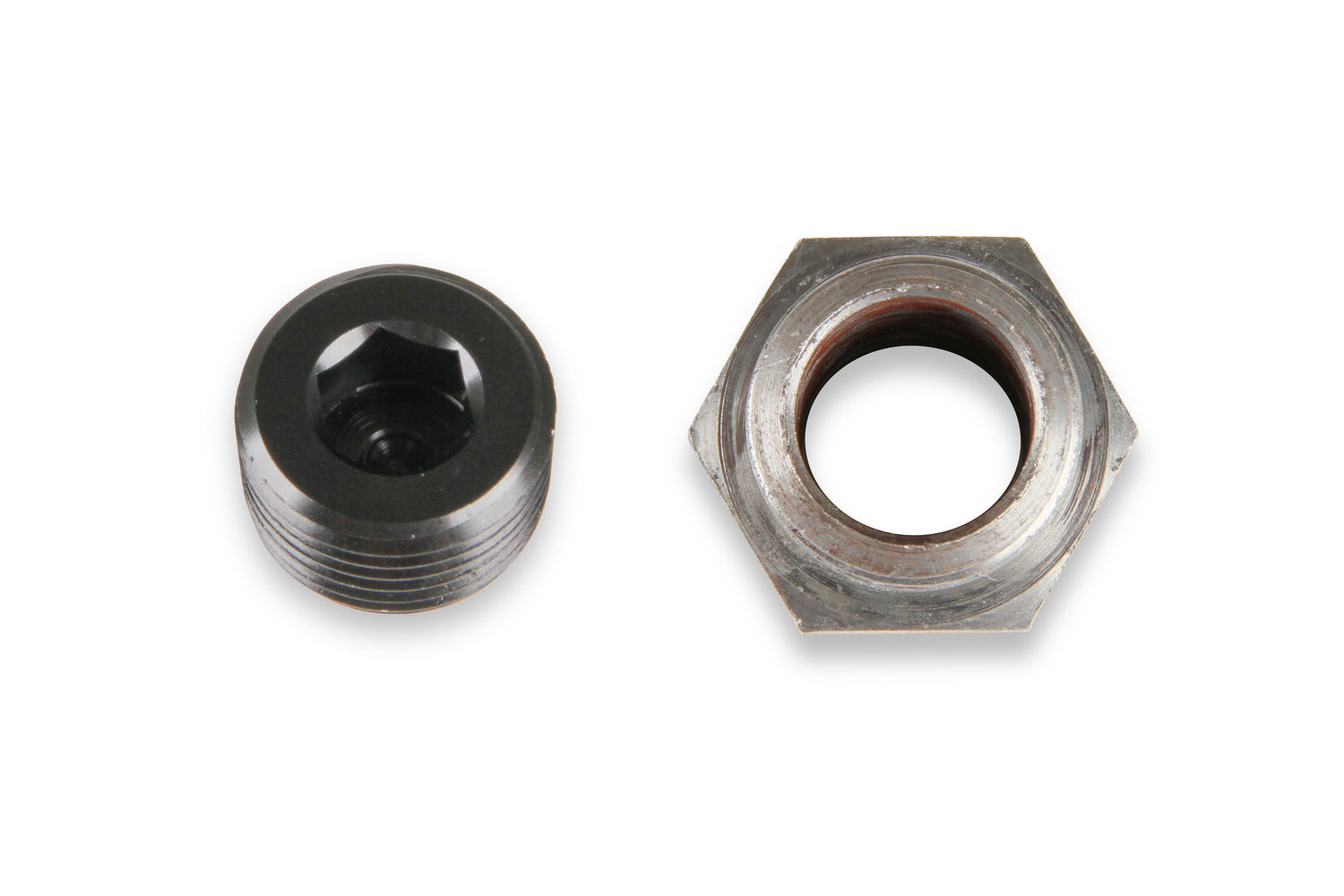

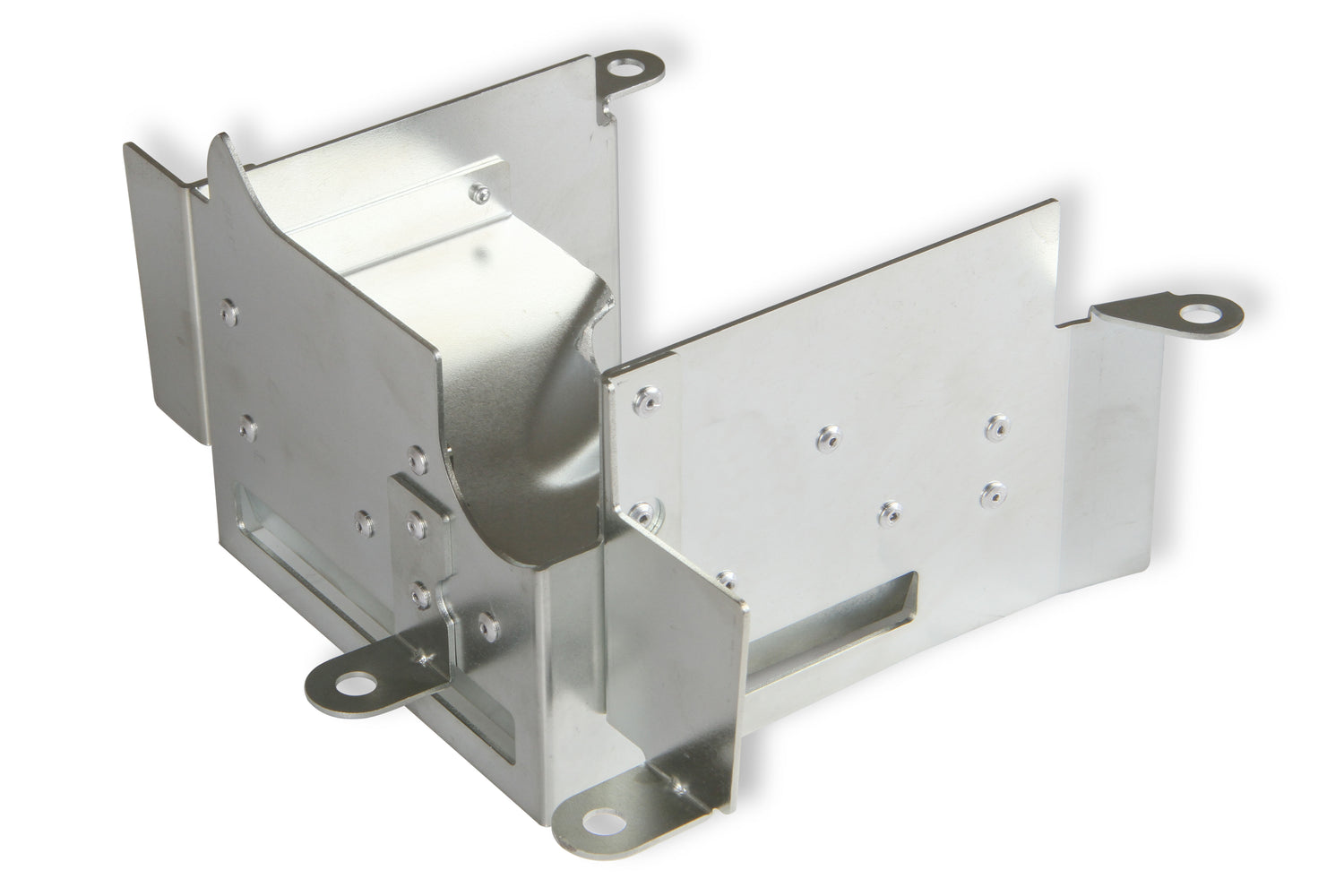

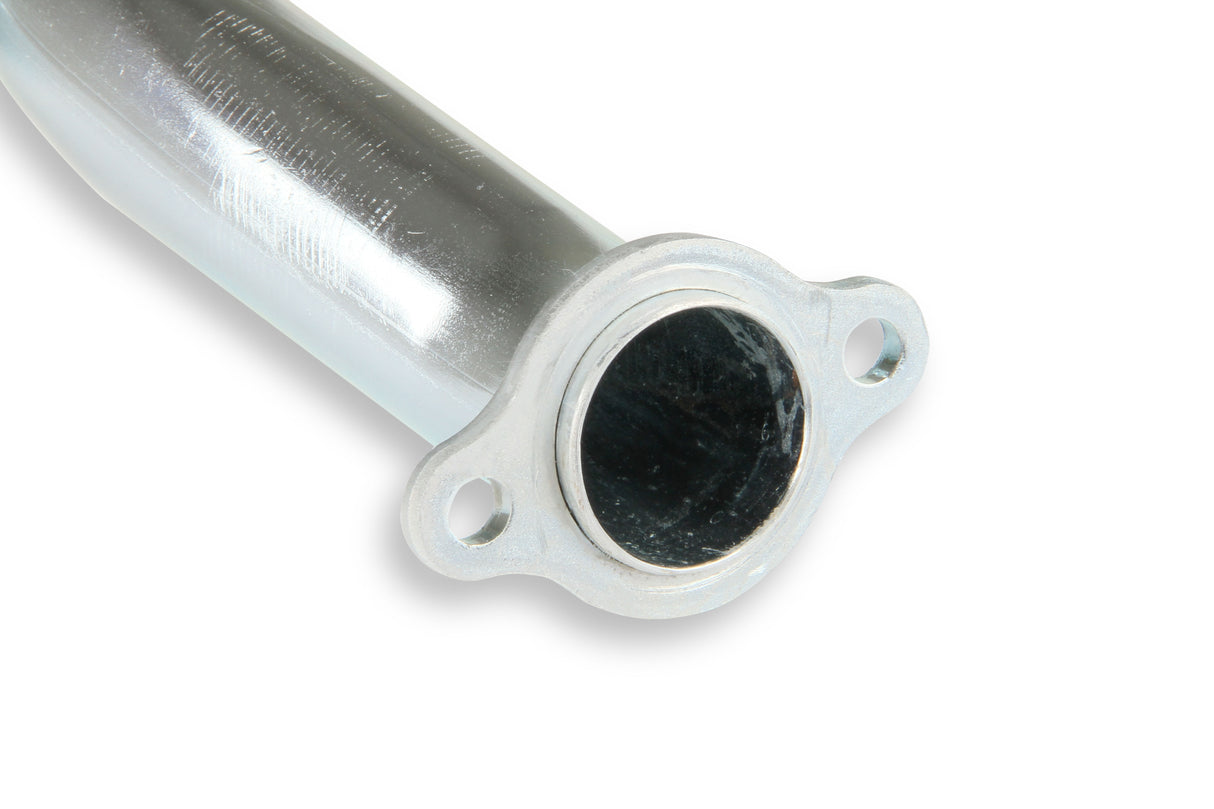

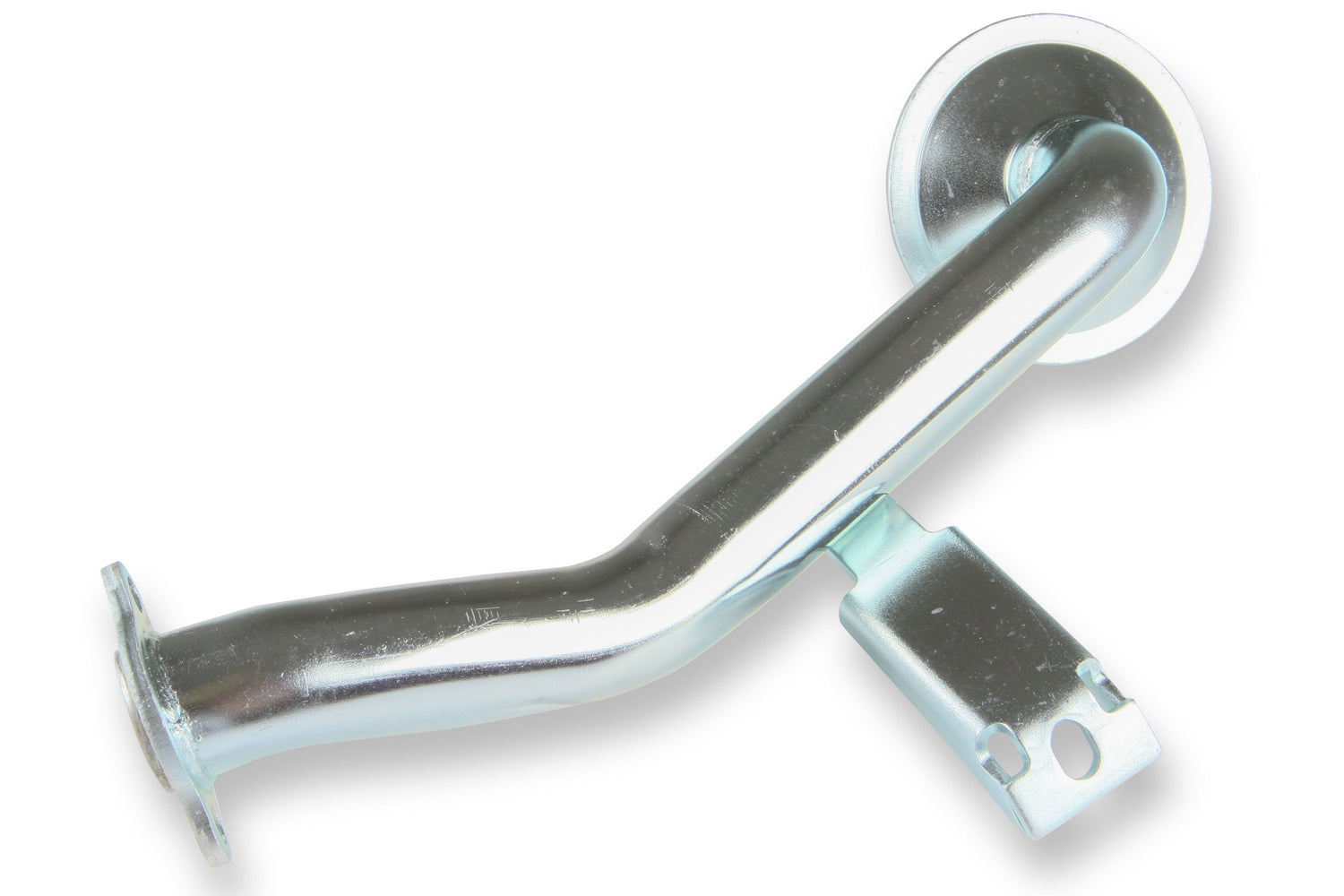

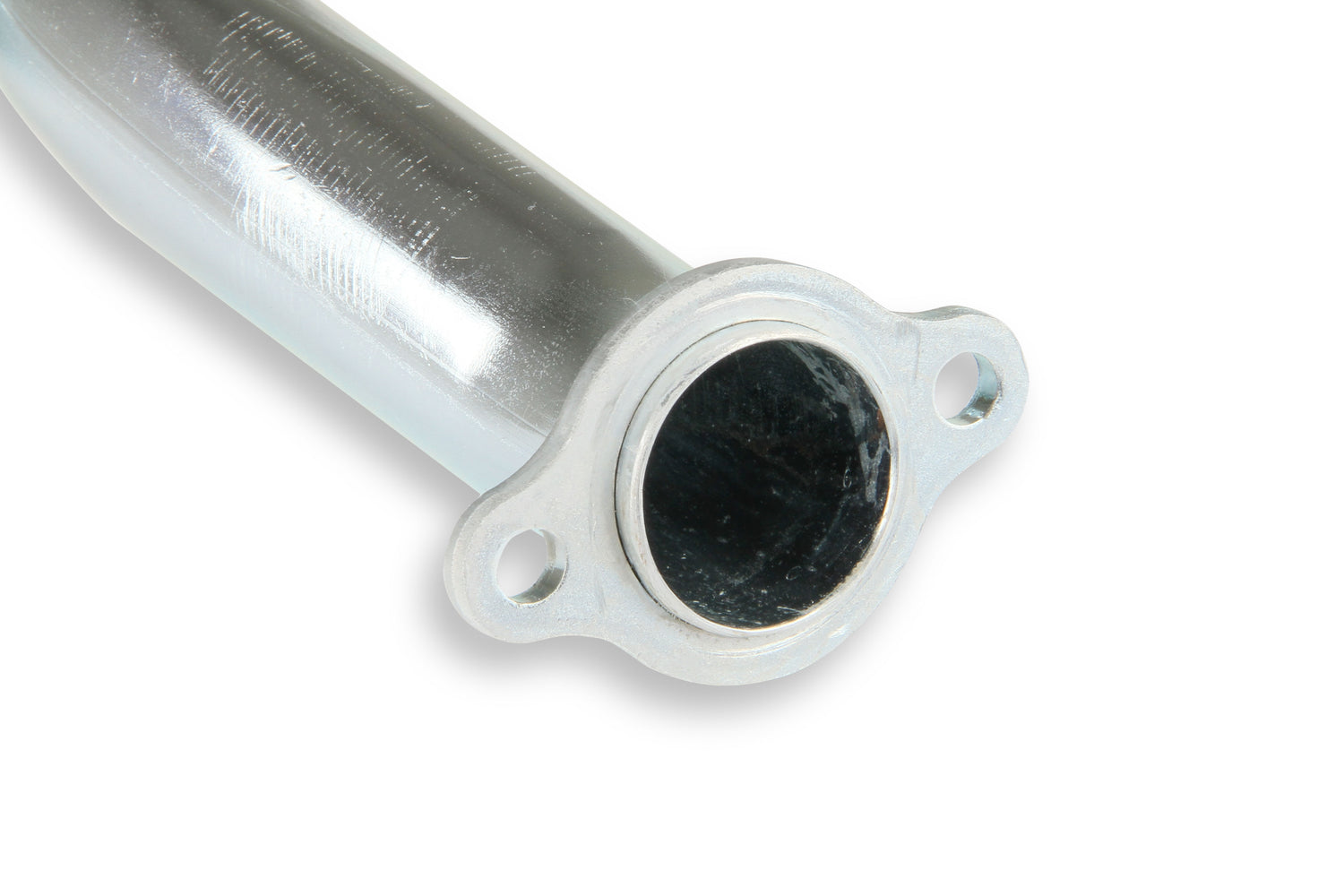

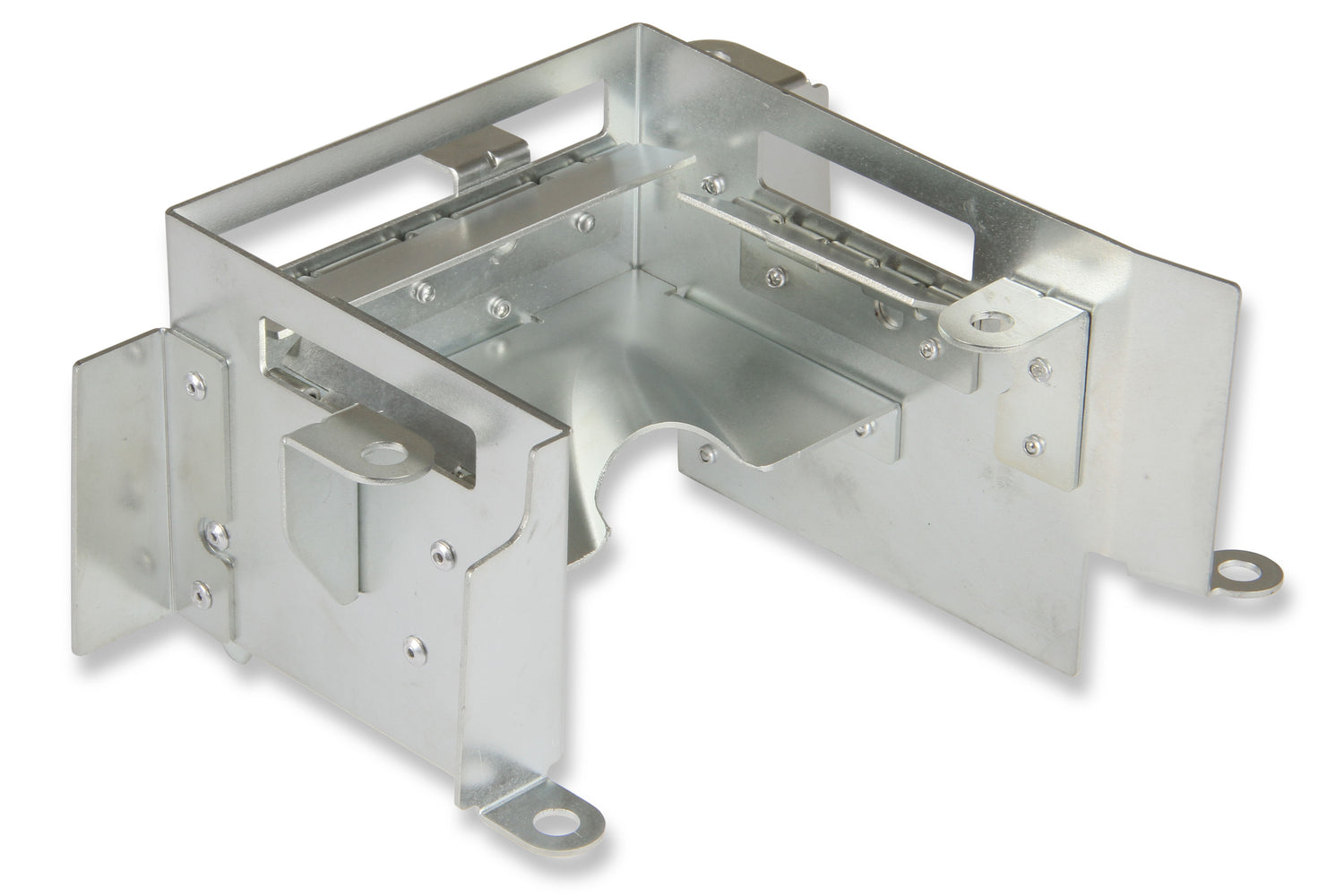

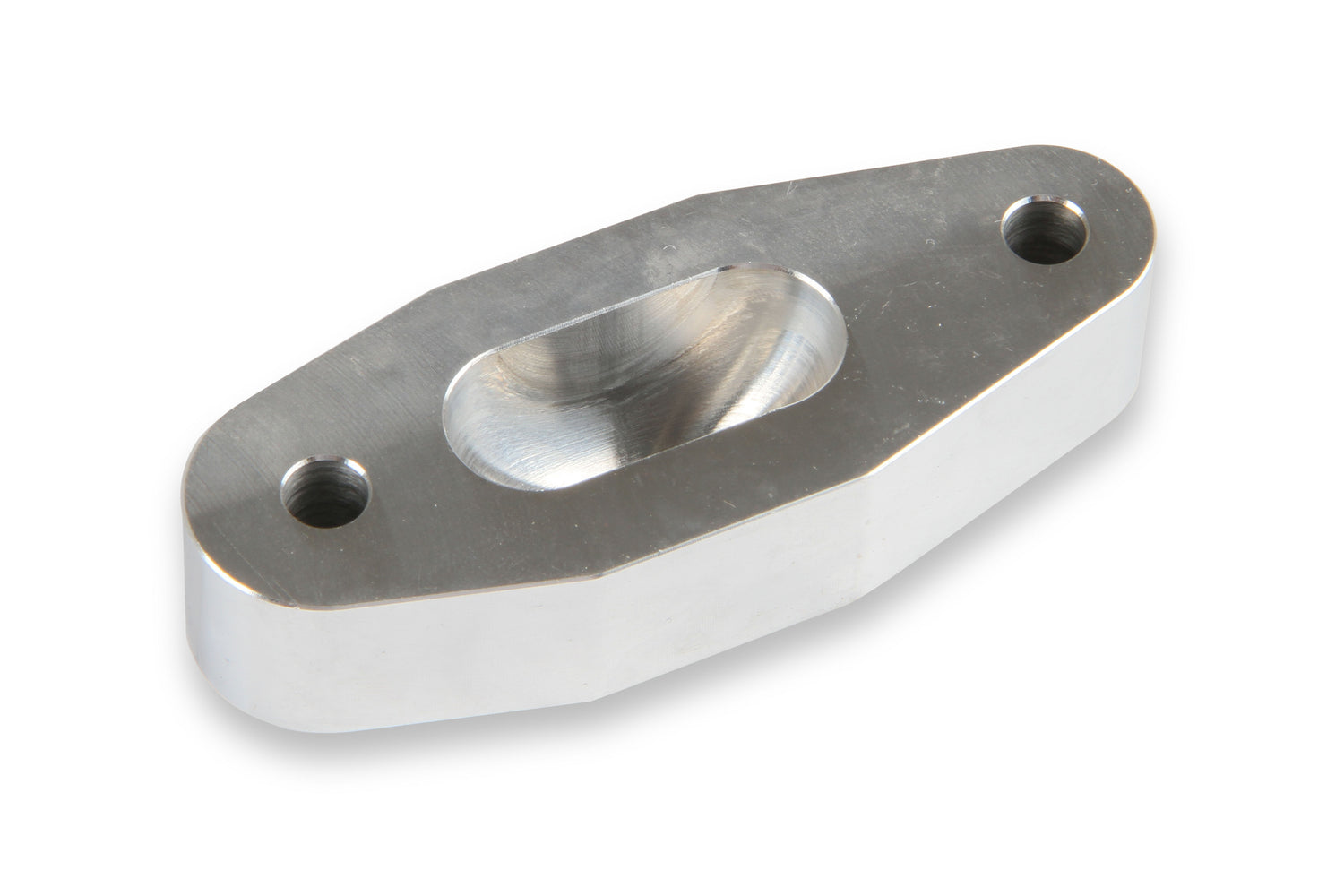

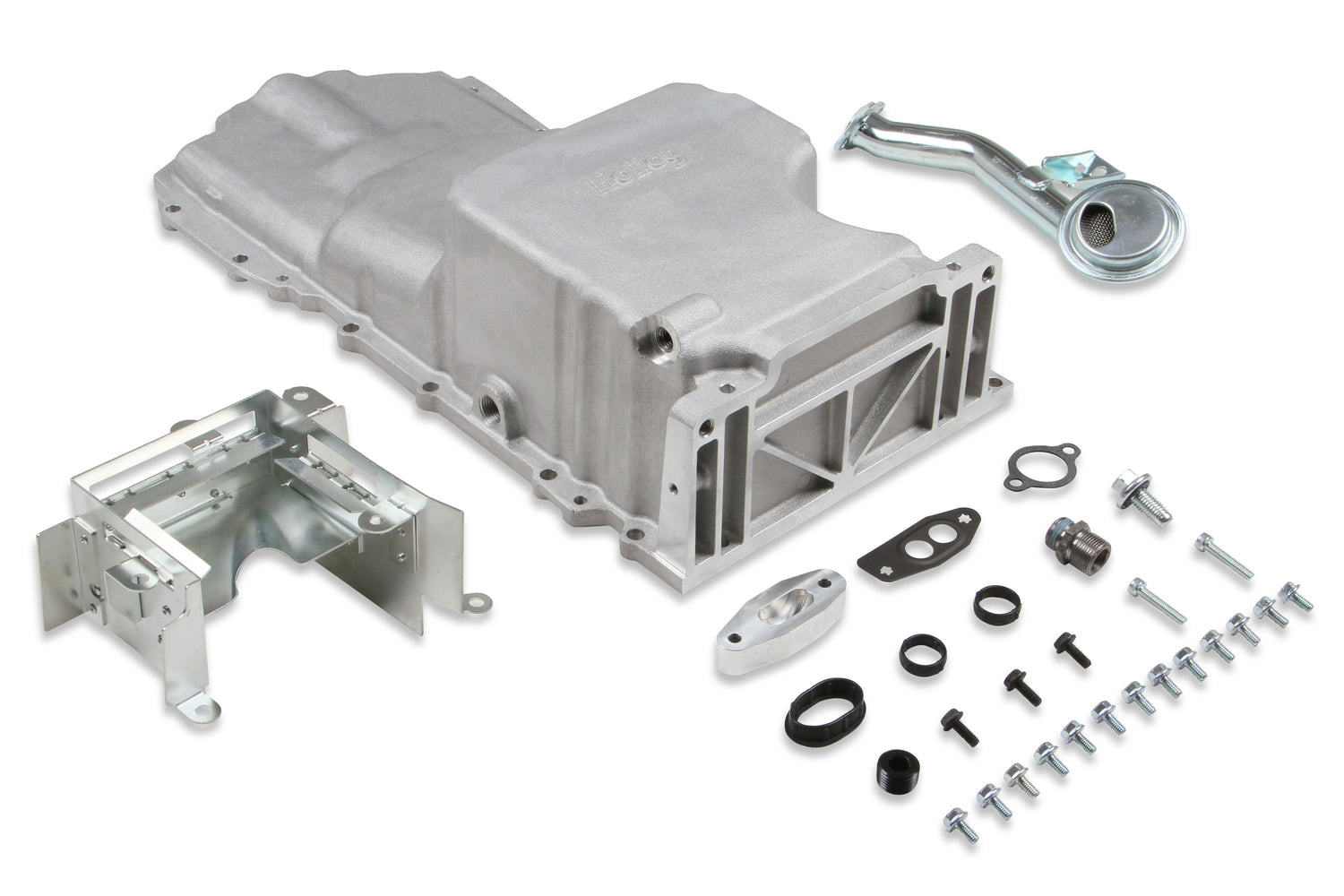

• Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.
Maximum Recommended Crankshaft Stroke 4.00"._x000D_ _x000D_ This oil pan is not for use on engines that originally used a dry sump oiling system._x000D_ _x000D_ Recommended LT Dipstick & Dipstick Tube - GM p/n's 12658475 & 12661062.
Part Number: 302-22
GM's new Gen V LT direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new LT Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. These oil pans are perfect for: 1967-1902 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.
Features and Benefits
• Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan
• Allows for up to 4.00” Crankshaft Stroke
• Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used
• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
• Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling
• Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member
• Traditional high-quality cast aluminum appearance with clean exterior styling.
• Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
• Cast and machined aluminum
• Oil Cooler Port Provision
• 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return
• Hinge Door Baffles Available
• Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.
Maximum Recommended Crankshaft Stroke 4.00"._x000D_ _x000D_ This oil pan is not for use on engines that originally used a dry sump oiling system._x000D_ _x000D_ Recommended LT Dipstick & Dipstick Tube - GM p/n's 12658475 & 12661062.
Specifications
Specifications
-
Specifications
Application GM Gen V LT Baffled No Brand Holley Capacity 6.1 Category Engine Color Silver Crank Shaft Wiper Included No Dipstick Port No Drain Plug Included Yes Emission Code 5 Engine GM Gen V (LT) Finish Natural Cast Grade Type Performance Material Aluminum Maximum Stroke 4.00" Oil Pan Capacity 6.1 Quarts Oil Pan Type Cast part type Engine Oil Pan Pickup Included Yes Product Type Oil Pan Kit Sub Category Cylinder Block Components Sump Location Rear Sump Type Wet Turbo Oil Drainback Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Windage Tray Included Yes -
