Holley EFI | SKU:
300-715

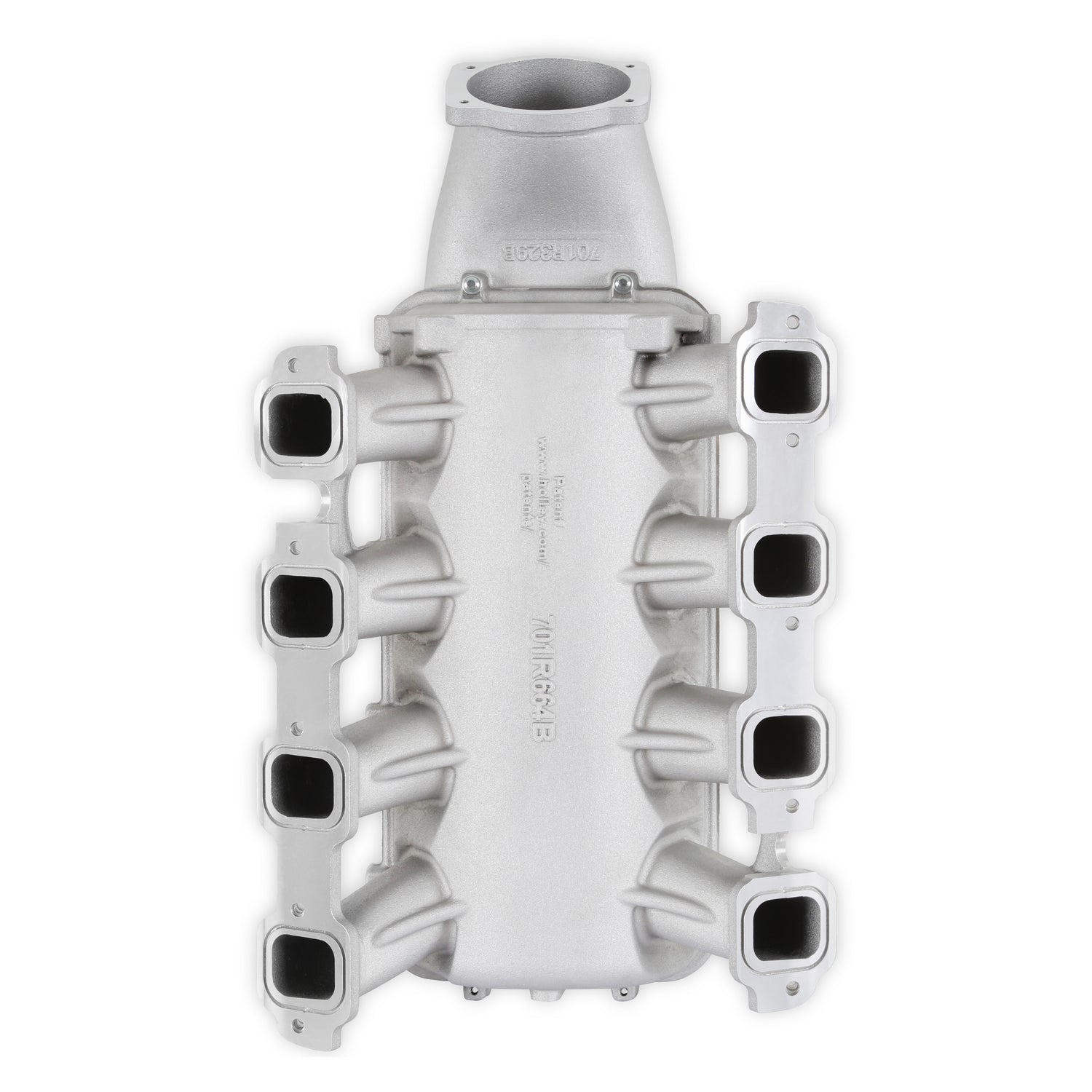

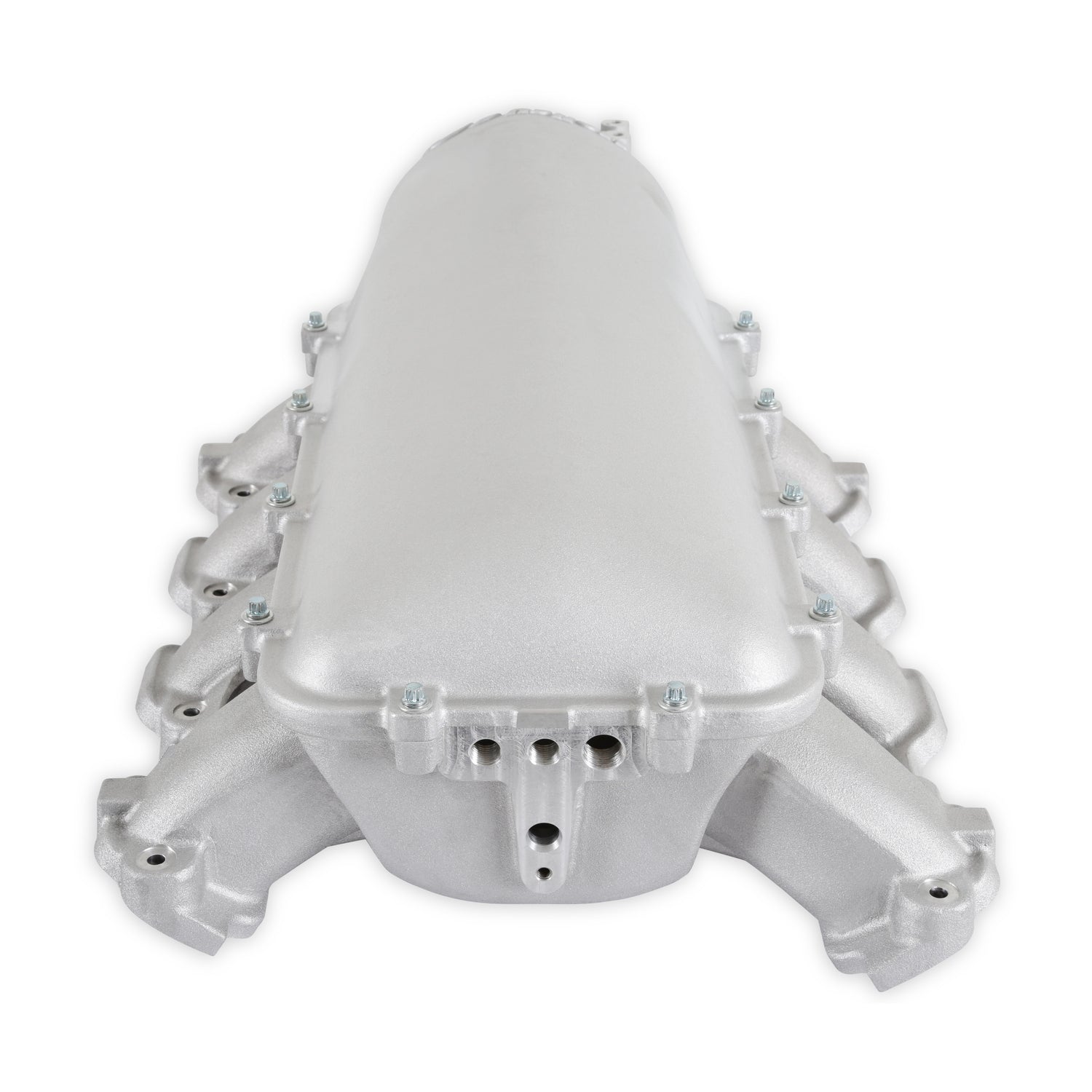

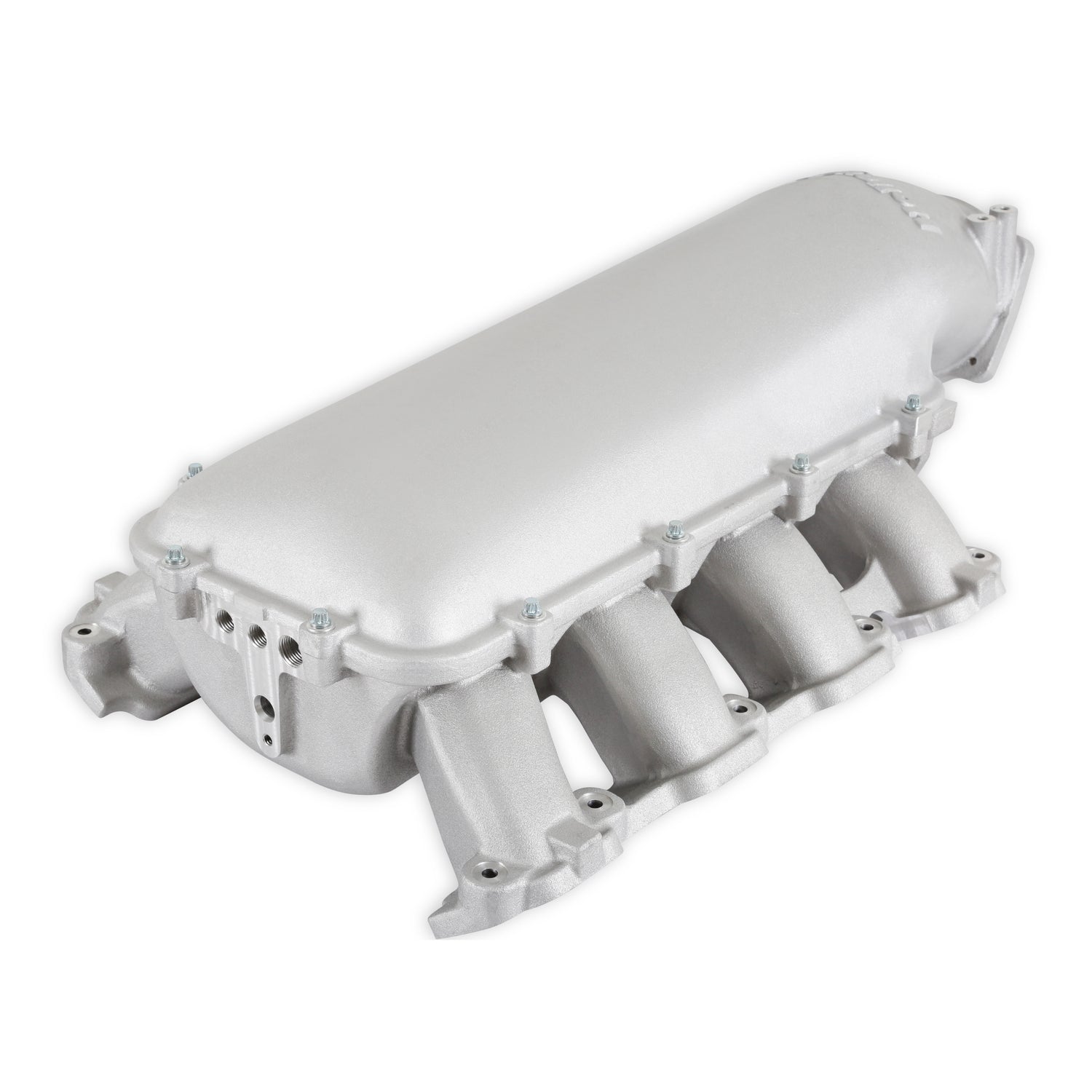

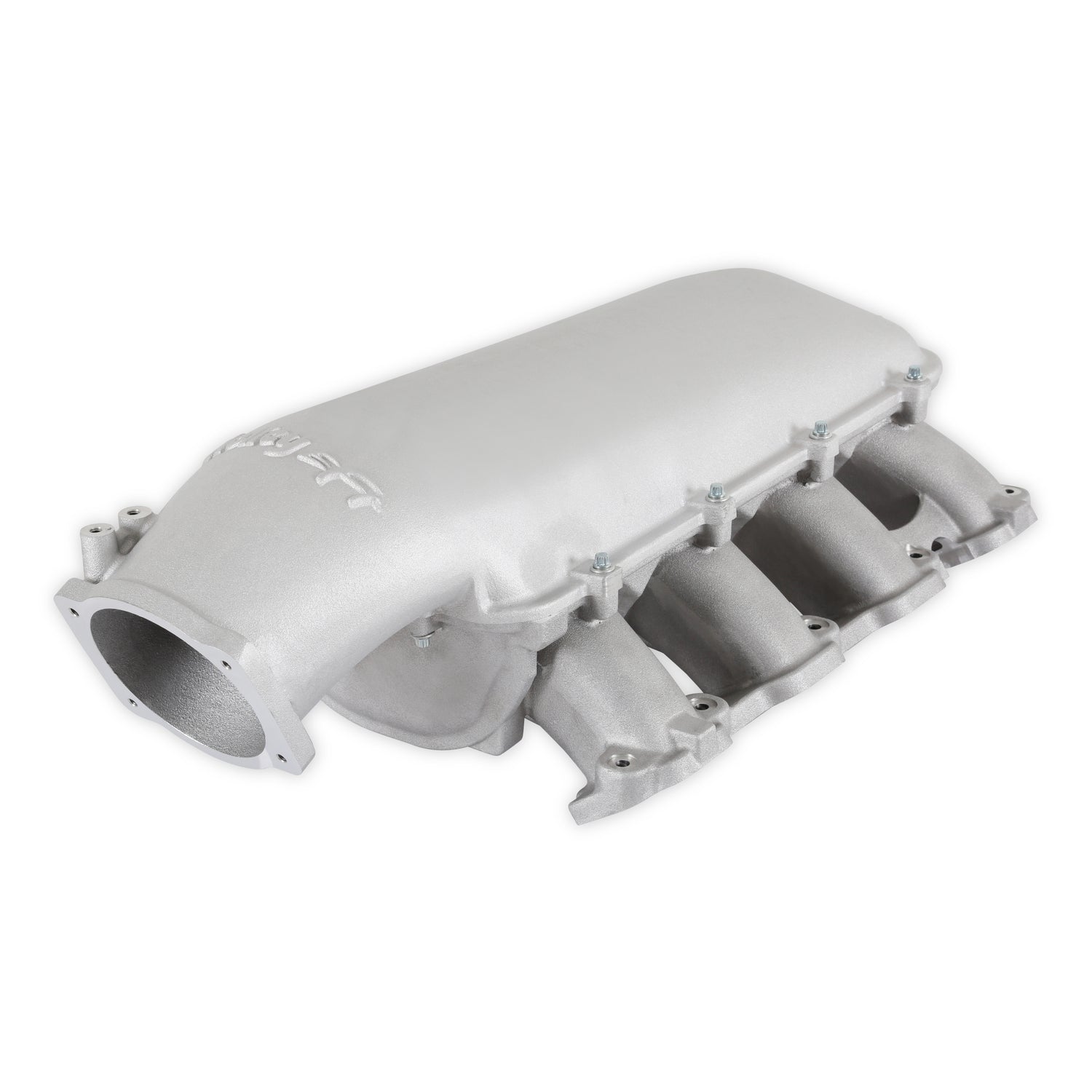

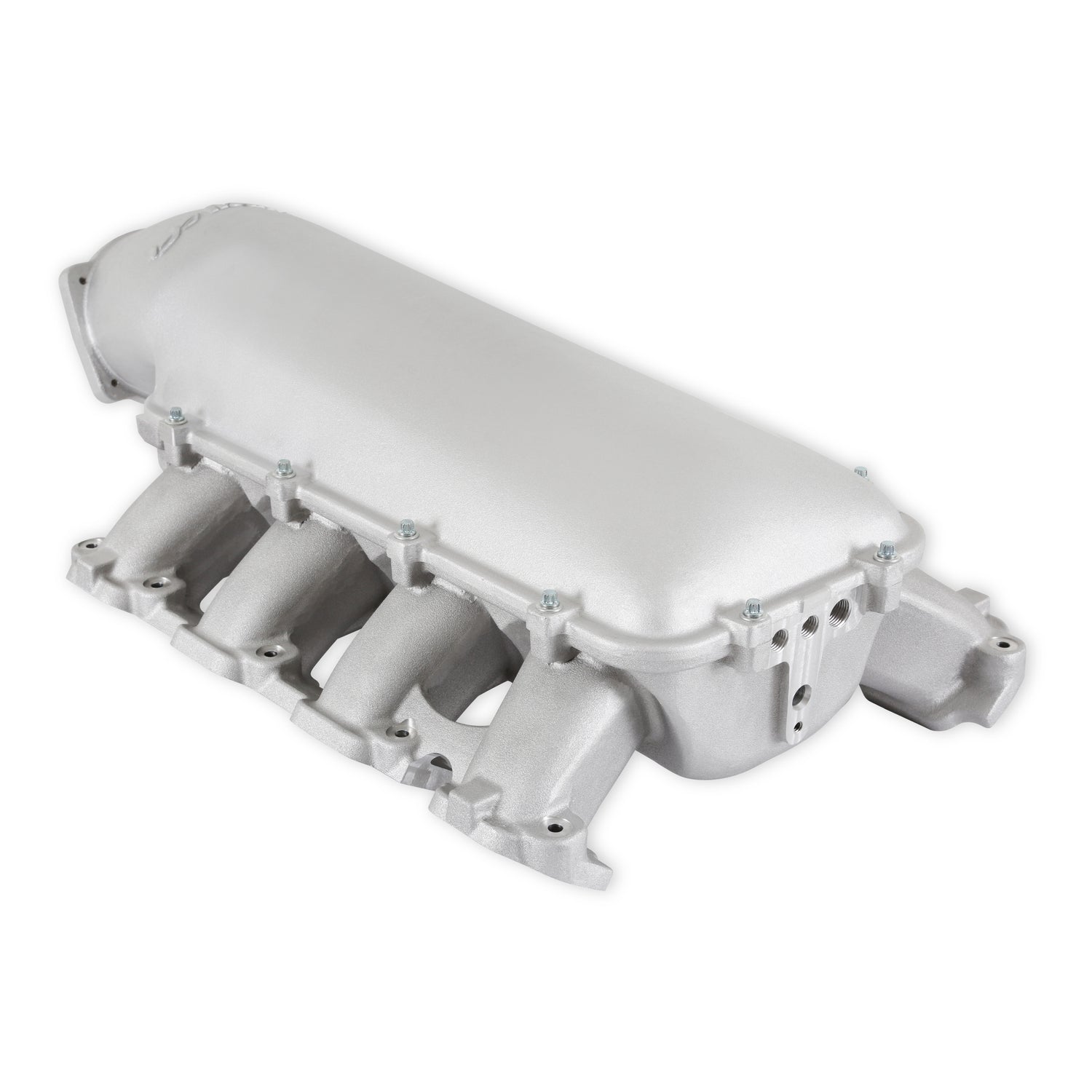

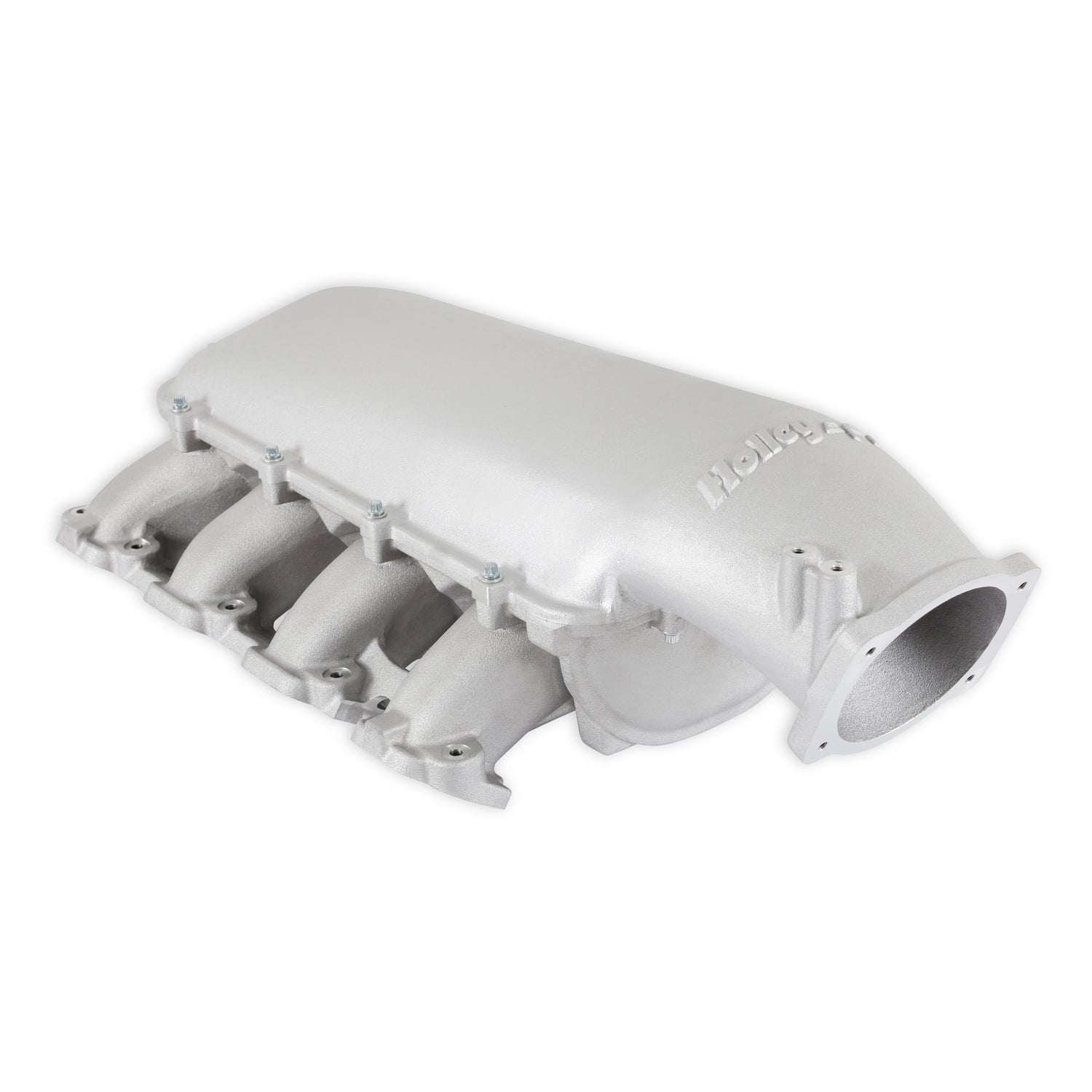

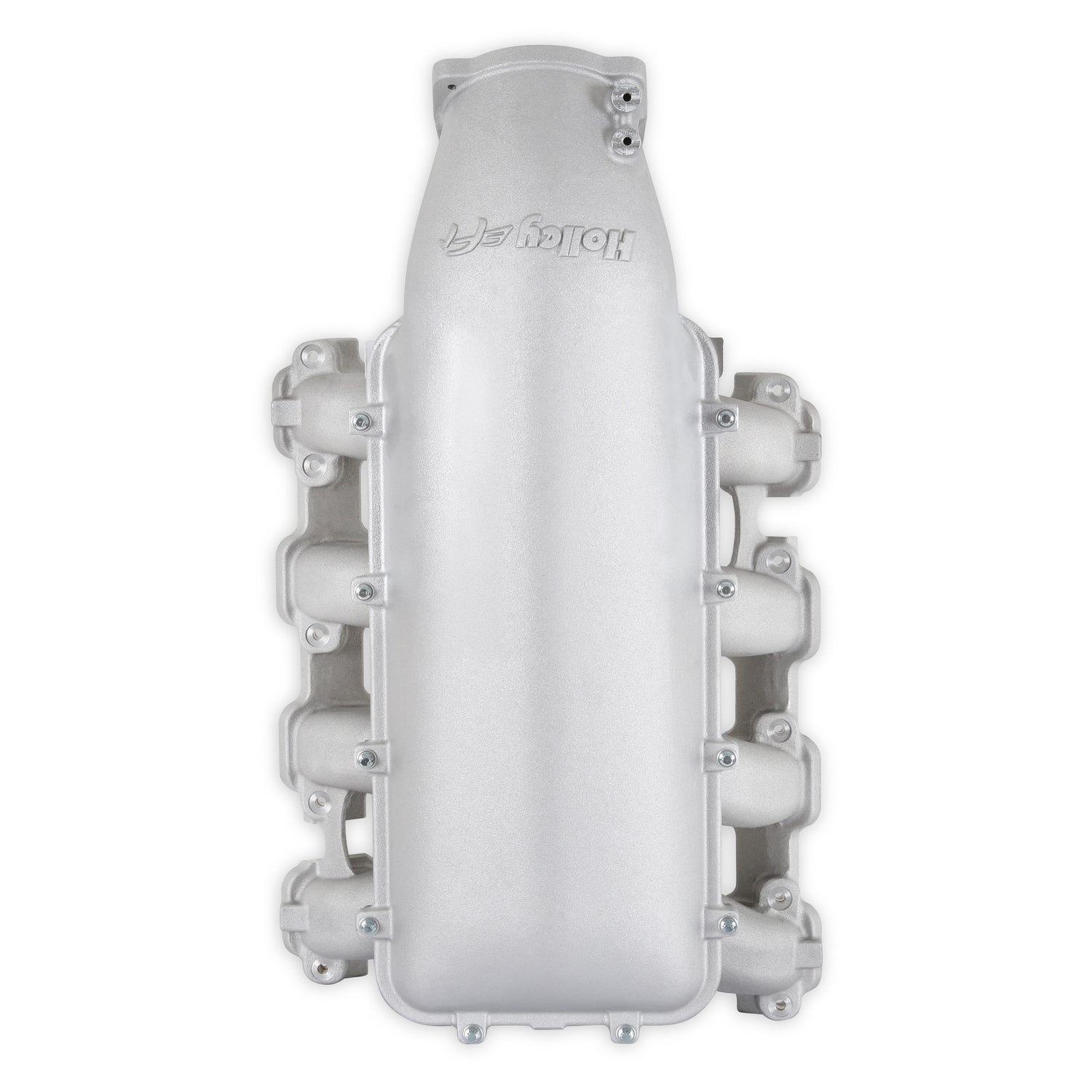

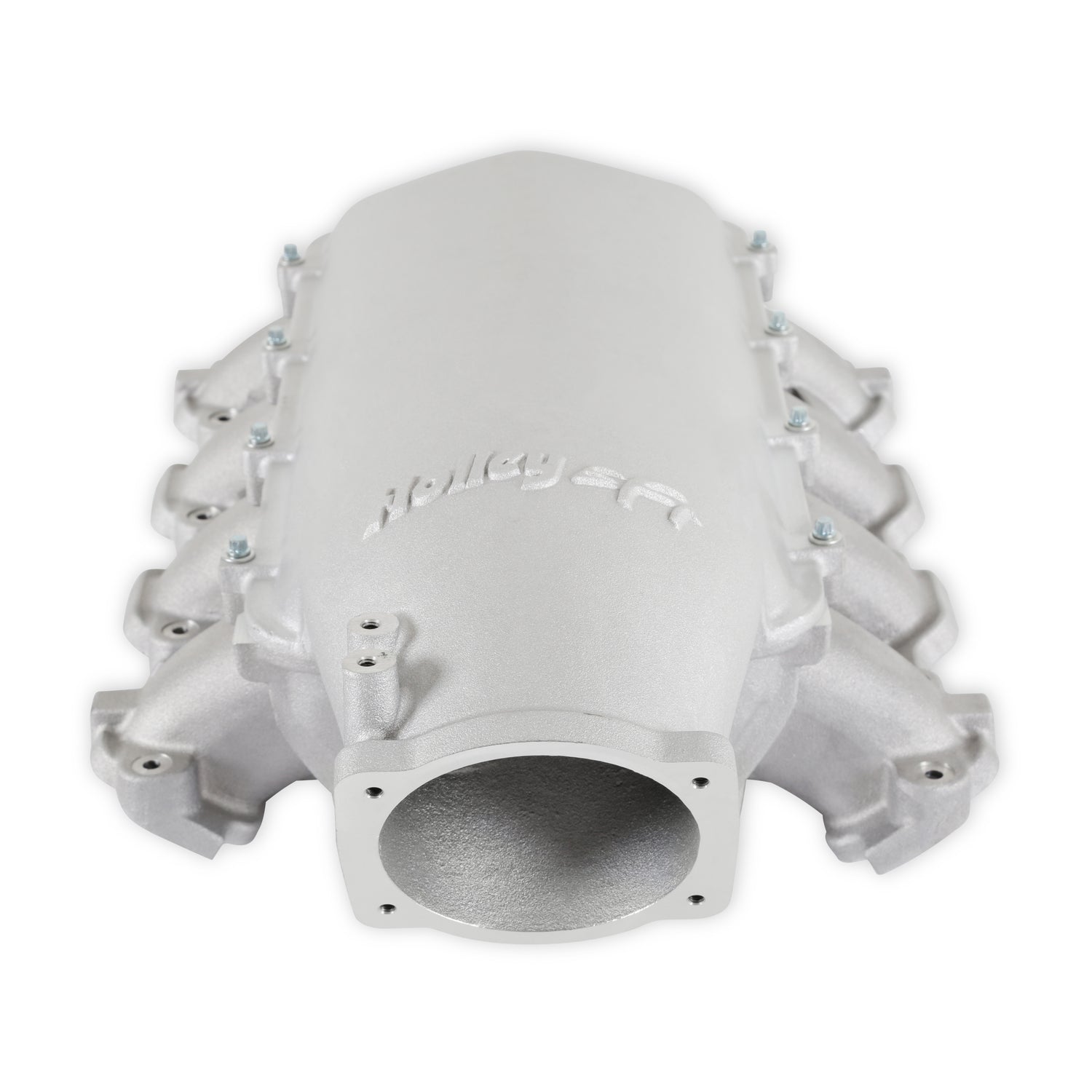

Holley 300-715 Lo-Ram Manifold Base - GM Gen V LT
Top-Feed - OE Direct Injection Only - Satin Finish
Regular price
$1,211.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-715 Lo-Ram Manifold Base - GM Gen V LT is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Top-Feed - OE Direct Injection Only - Satin Finish
Part Number: 300-715
The standard plenum top throttle body flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The top-feed plenum base intake manifold is designed with a reduced overall height to fit under a stock or mildly modified hood. The Lo-Ram provides a low profile modular intake manifold suitable for use with plenum mounted air-to-water intercoolers for boosted applications. Various Hi-Ram plenum top options are available to compliment the top-feed base intake manifold kits and fabrication flanges are offered to aid the fabrication of plenum tops for custom installations. Available for OE direct fuel injection only and with port fuel injection provisions. For the port fuel injection option, the high volume -8AN fuel rail kit includes hardware and brackets to accommodate long (usually standard length) fuel injectors or short (such as Pico, or LS7) fuel injectors. The Holley GM Gen V LT Lo-Ram intake manifold kits are designed for GM Gen V LT engines equipped with GM LT cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application.
Features and Benefits
• Designed for the accommodation of plenum mounted air-to-water intercoolers for boosted applications

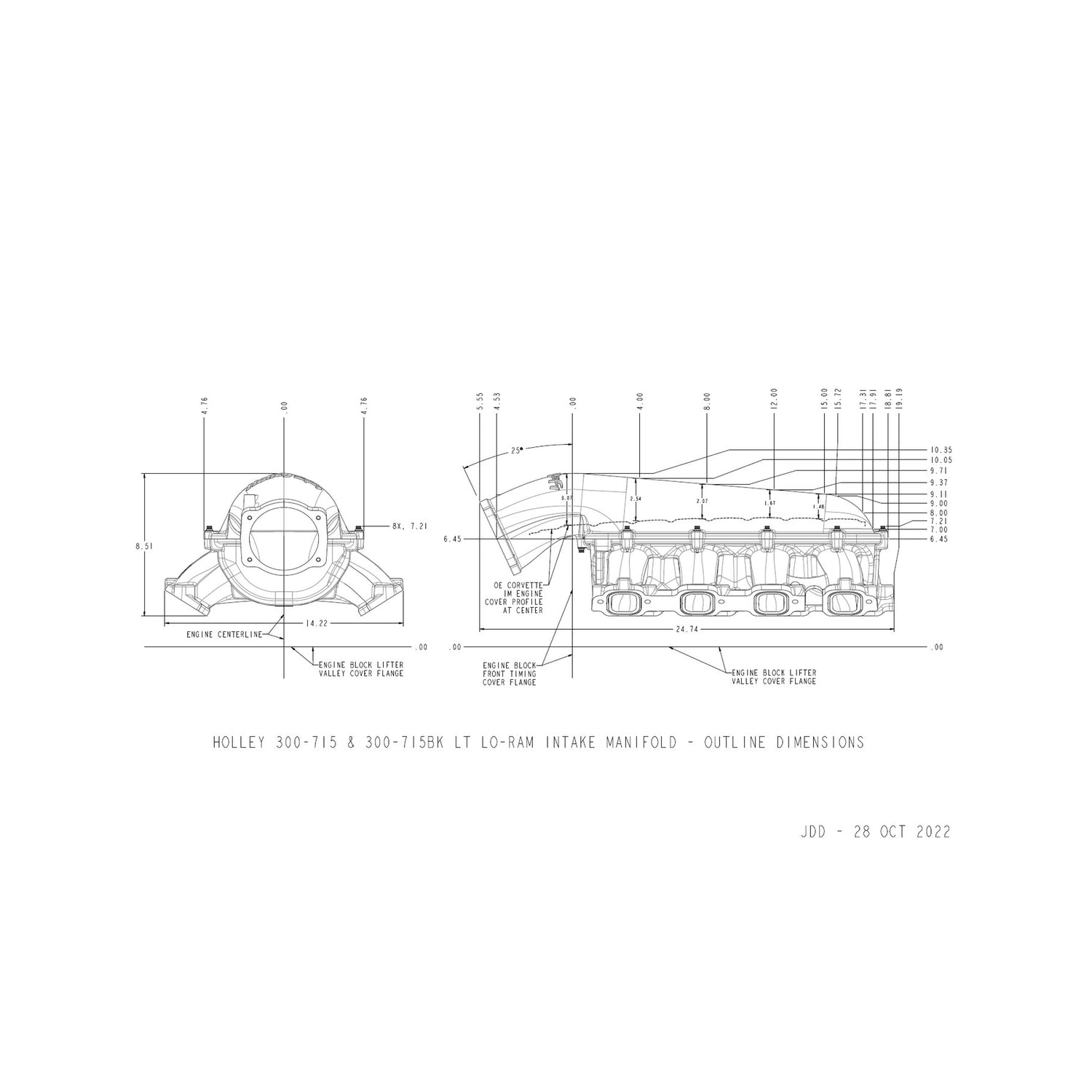

• 3.18-inches taller than a factory LT1 manifold
• Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application
• Modular design & top entry plenum flange allows the use of popular Holley Hi-Ram plenum tops as well as facilitating custom fabricated plenum tops. Base manifold, plenum tops, and fabrication flanges available as separate kits
• Low-height top-feed plenum profile to fit under a stock or mildly modified hood
• Designed for GM Gen V engines equipped with GM LT type cylinder heads
• 105mm diameter throttle body opening accepts OEM 4-bolt LS/LT DBW or Holley LS/LT throttle bodies
• Kits with port injection provide high volume fuel rails with 3/4-16 O-ring ports (8 AN). Mounting hardware is included
• As-cast aluminum (Satin) and black powder coat finishes available
Part Number: 300-715
The standard plenum top throttle body flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The top-feed plenum base intake manifold is designed with a reduced overall height to fit under a stock or mildly modified hood. The Lo-Ram provides a low profile modular intake manifold suitable for use with plenum mounted air-to-water intercoolers for boosted applications. Various Hi-Ram plenum top options are available to compliment the top-feed base intake manifold kits and fabrication flanges are offered to aid the fabrication of plenum tops for custom installations. Available for OE direct fuel injection only and with port fuel injection provisions. For the port fuel injection option, the high volume -8AN fuel rail kit includes hardware and brackets to accommodate long (usually standard length) fuel injectors or short (such as Pico, or LS7) fuel injectors. The Holley GM Gen V LT Lo-Ram intake manifold kits are designed for GM Gen V LT engines equipped with GM LT cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application.
Features and Benefits
• Designed for the accommodation of plenum mounted air-to-water intercoolers for boosted applications
• 3.18-inches taller than a factory LT1 manifold
• Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application
• Modular design & top entry plenum flange allows the use of popular Holley Hi-Ram plenum tops as well as facilitating custom fabricated plenum tops. Base manifold, plenum tops, and fabrication flanges available as separate kits
• Low-height top-feed plenum profile to fit under a stock or mildly modified hood
• Designed for GM Gen V engines equipped with GM LT type cylinder heads
• 105mm diameter throttle body opening accepts OEM 4-bolt LS/LT DBW or Holley LS/LT throttle bodies
• Kits with port injection provide high volume fuel rails with 3/4-16 O-ring ports (8 AN). Mounting hardware is included
• As-cast aluminum (Satin) and black powder coat finishes available
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3500-8000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 3 Engine GM Gen V LT1 Flange Style EFI Fuel Injectors Included No Fuel Rail(s) Included No Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 MM Throttle Body Gasket Included Yes Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
