Holley EFI | SKU:
300-679

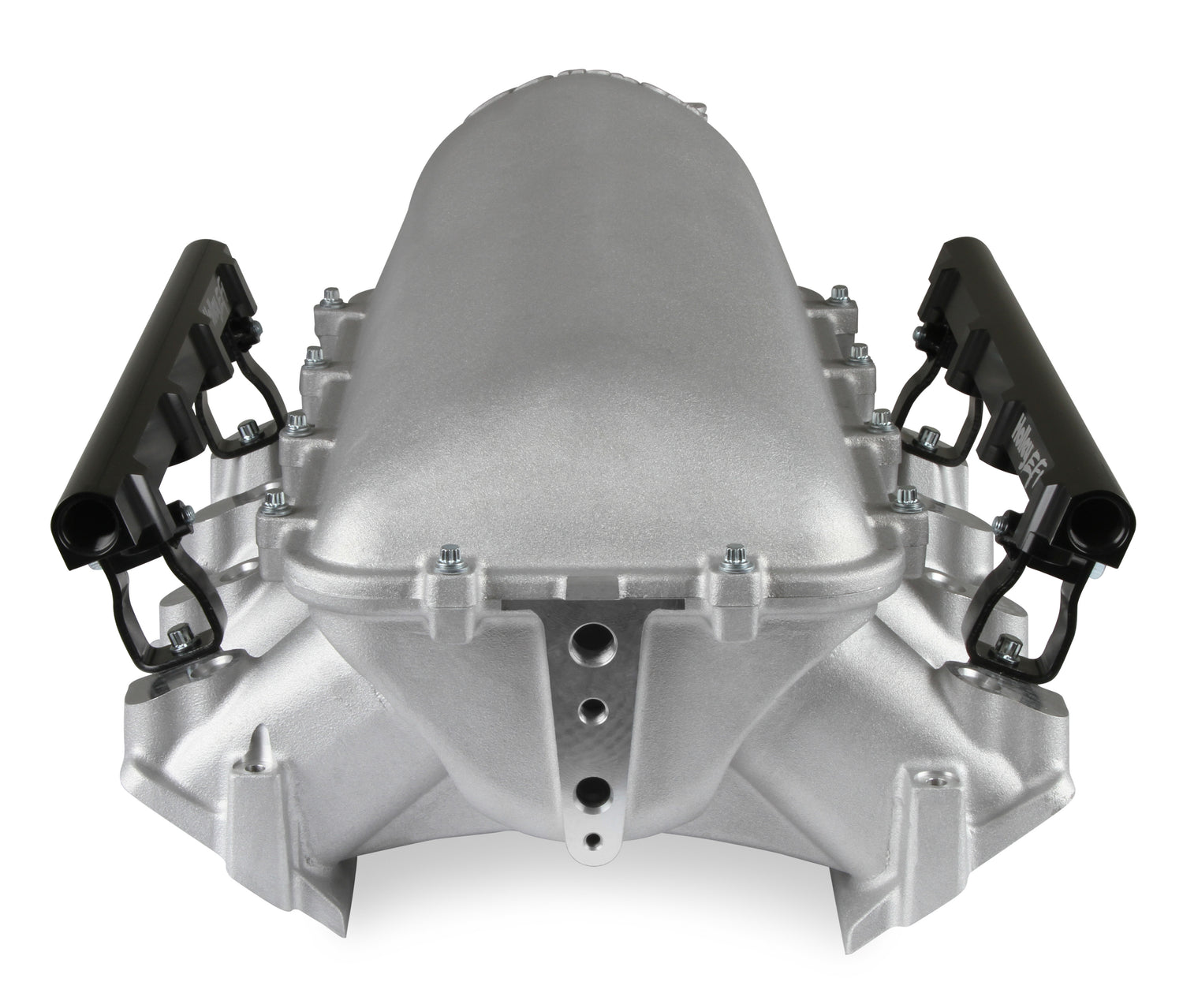

Holley 300-679 Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92
Lo-Ram Manifold Kit - LS3 Top-Feed Single Injector Satin
Regular price
$2,126.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-679 Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Lo-Ram Manifold Kit - LS3 Top-Feed Single Injector Satin
Part Number: 300-679
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring intercooler in a top-feed configuration. Additional manifold designs include both single and dual with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel ports (8 AN) manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water applications and the 105 mm throttle body part number 112-581 or similar models. The base intake
Features and Benefits
• Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
• Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
• Modular design allowing the use of the included plenum entry

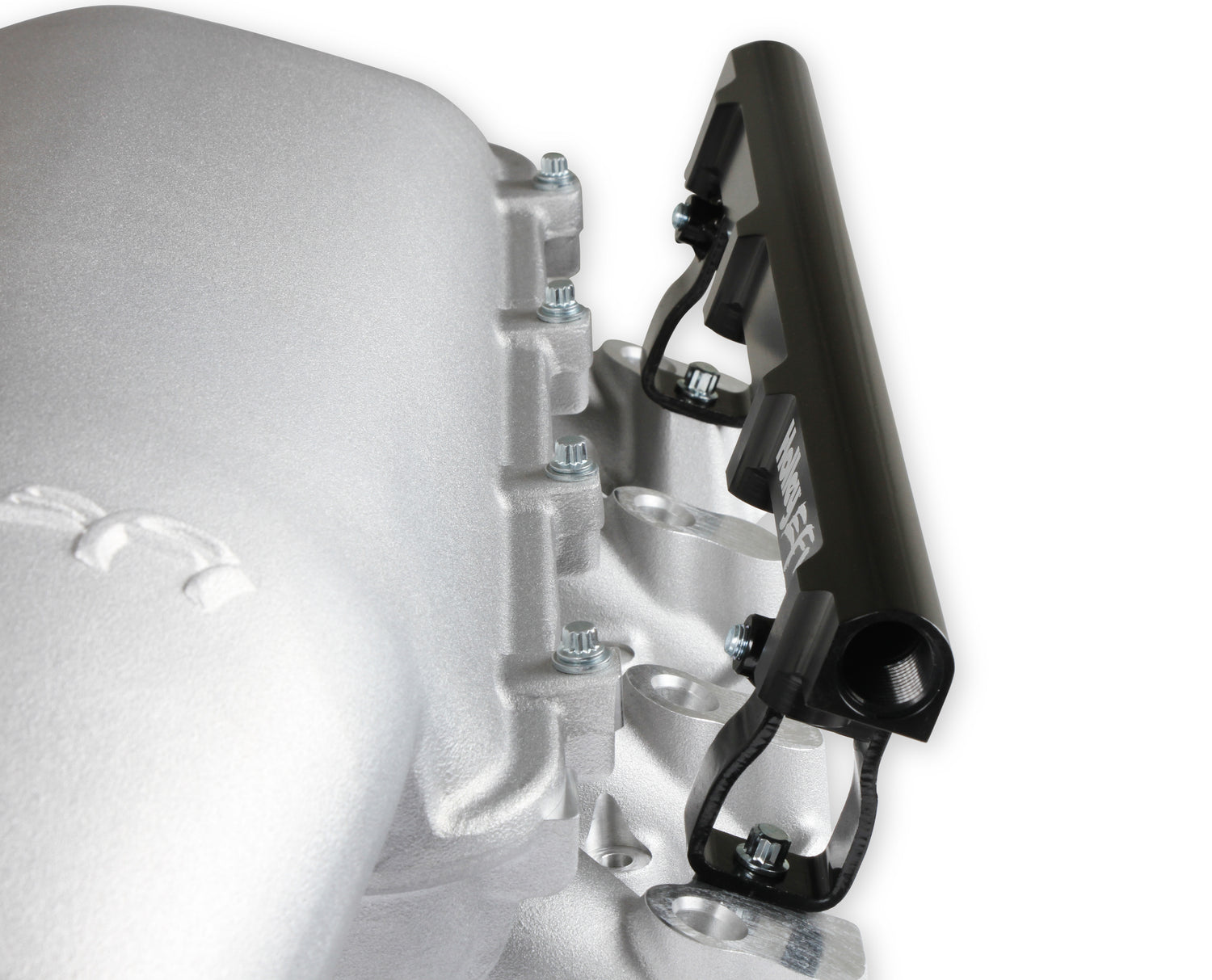

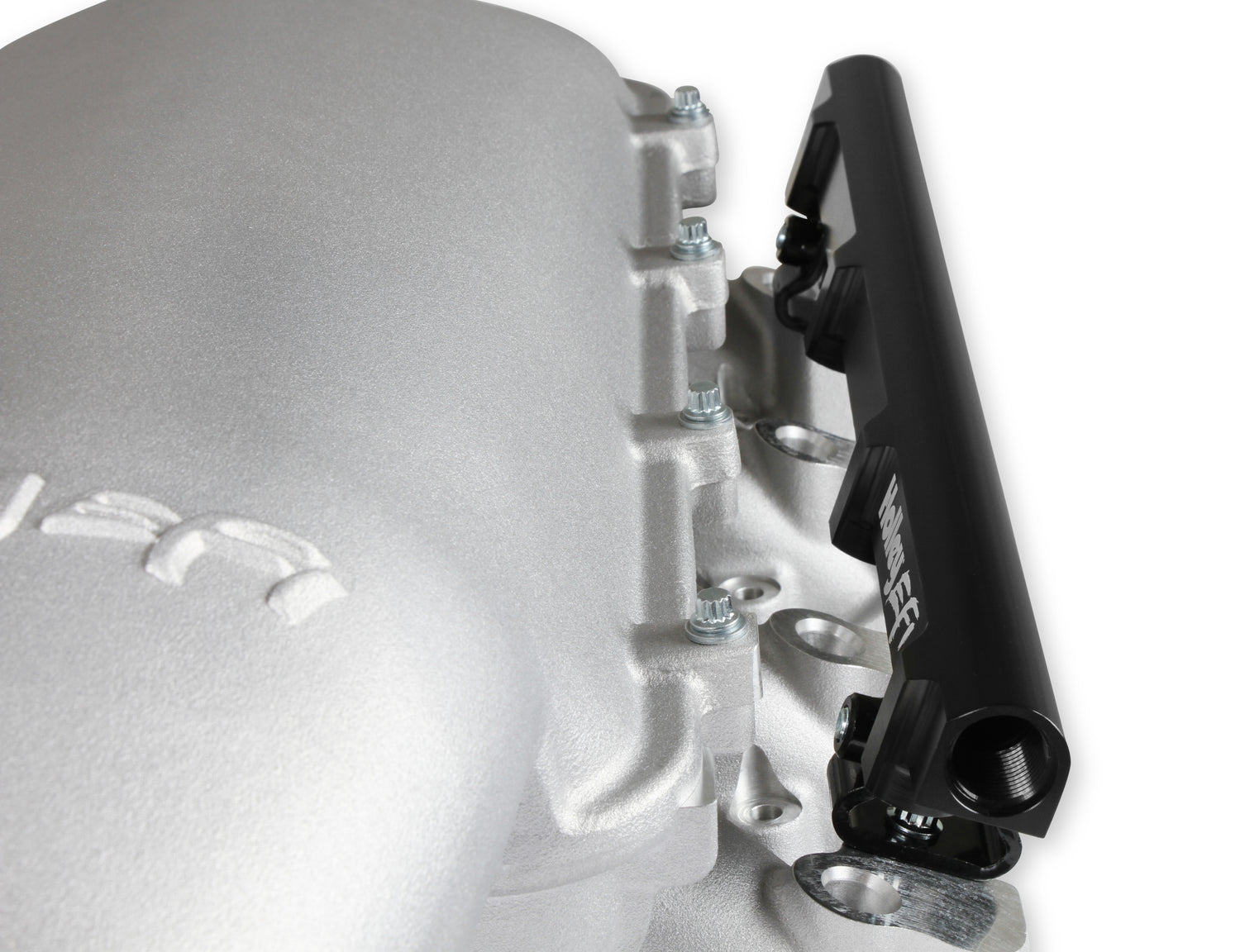

• High volume fuel rails for eight and sixteen injector configurations.
• Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm

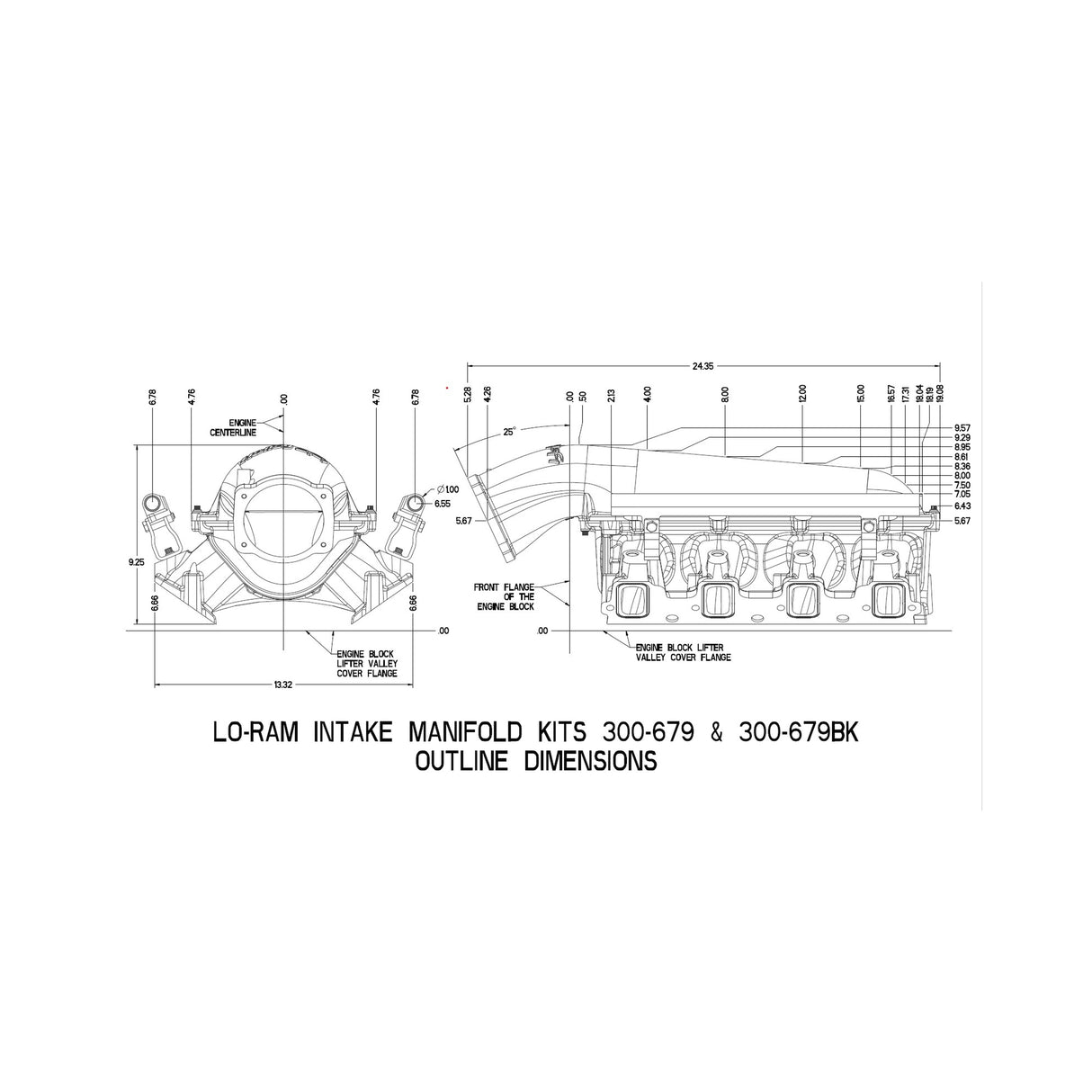

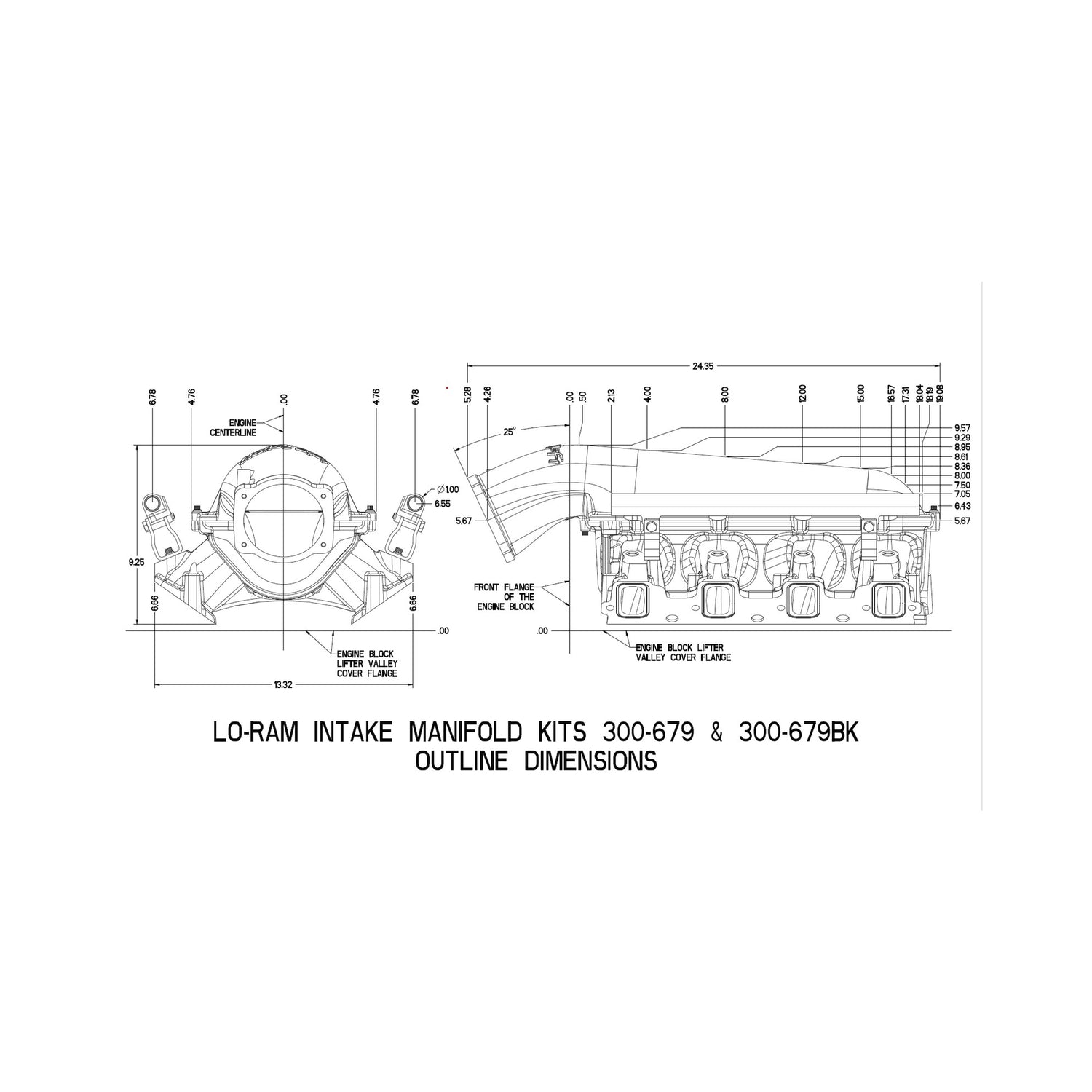

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
Part Number: 300-679
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring intercooler in a top-feed configuration. Additional manifold designs include both single and dual with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel ports (8 AN) manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water applications and the 105 mm throttle body part number 112-581 or similar models. The base intake
Features and Benefits
• Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
• Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
• Modular design allowing the use of the included plenum entry
• High volume fuel rails for eight and sixteen injector configurations.
• Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm
Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3500-8000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Silver Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 3 Engine GM LS3/L92 Flange Style EFI Front Maximum Height 9.25" without Intercooler Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Quantity Single Inlet Location Top Intake Port Gasket(s) Included No Manifold Type Lo-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Recommended Use Forced Induction Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 MM Throttle Body Gasket Included Yes Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
