Holley EFI | SKU:
300-658

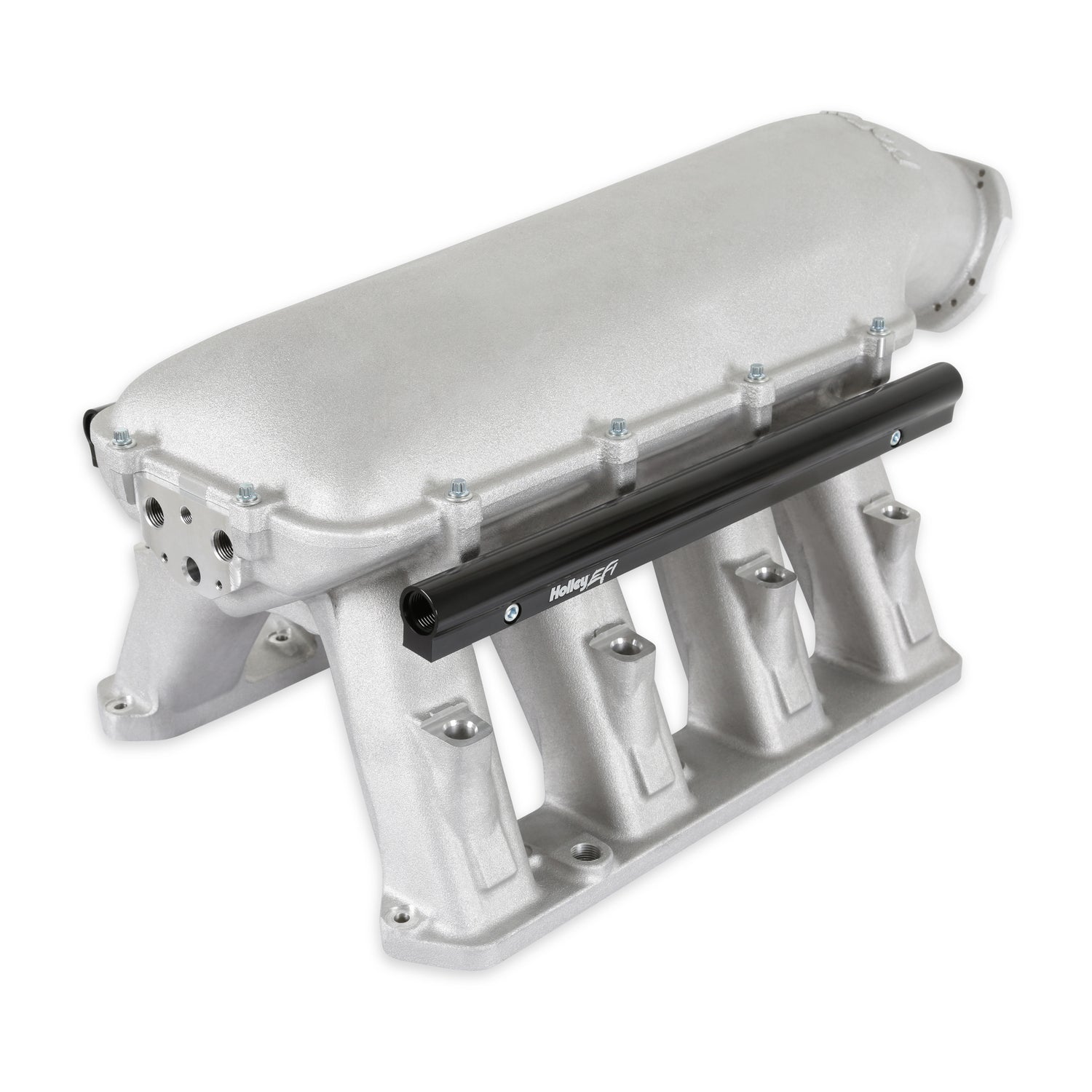

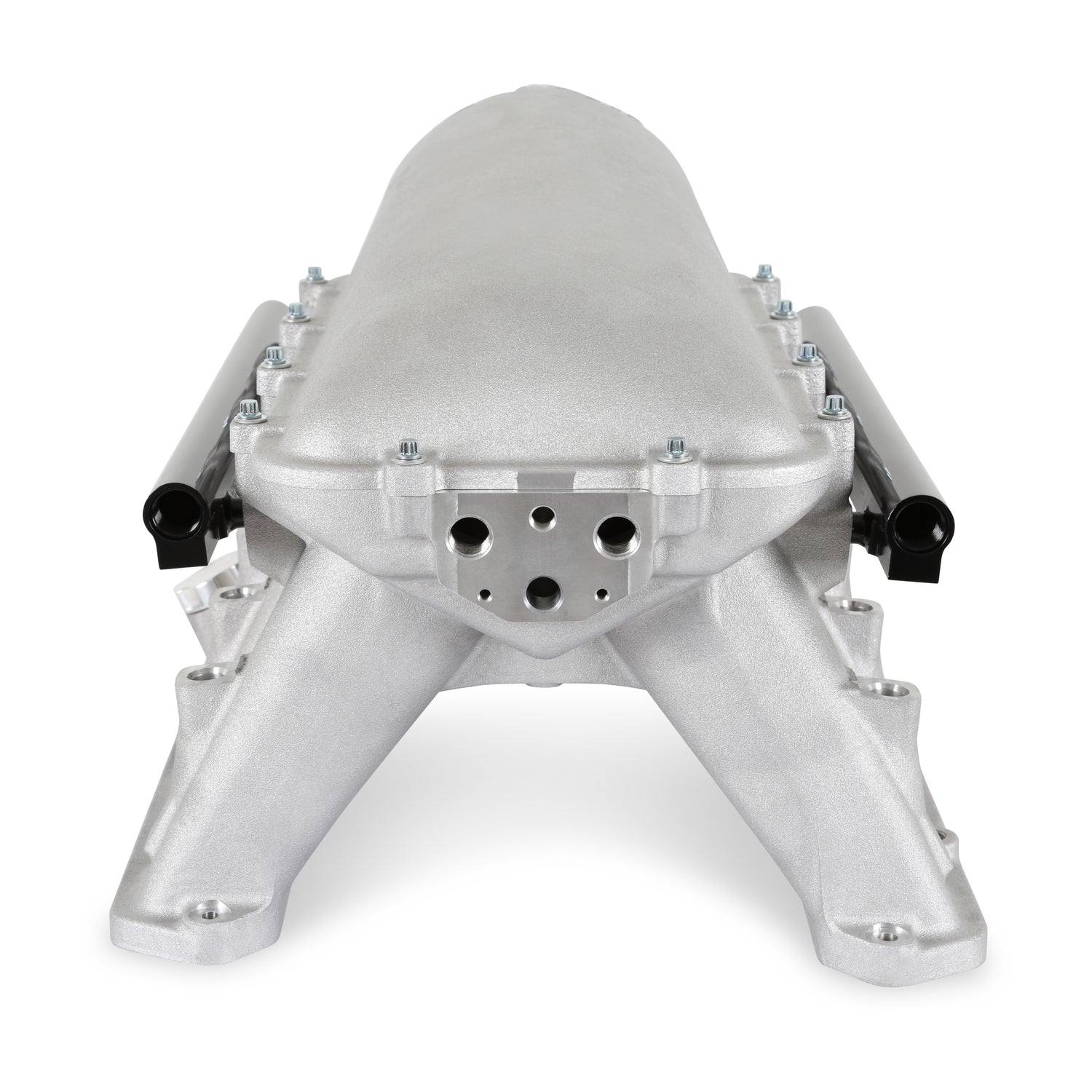

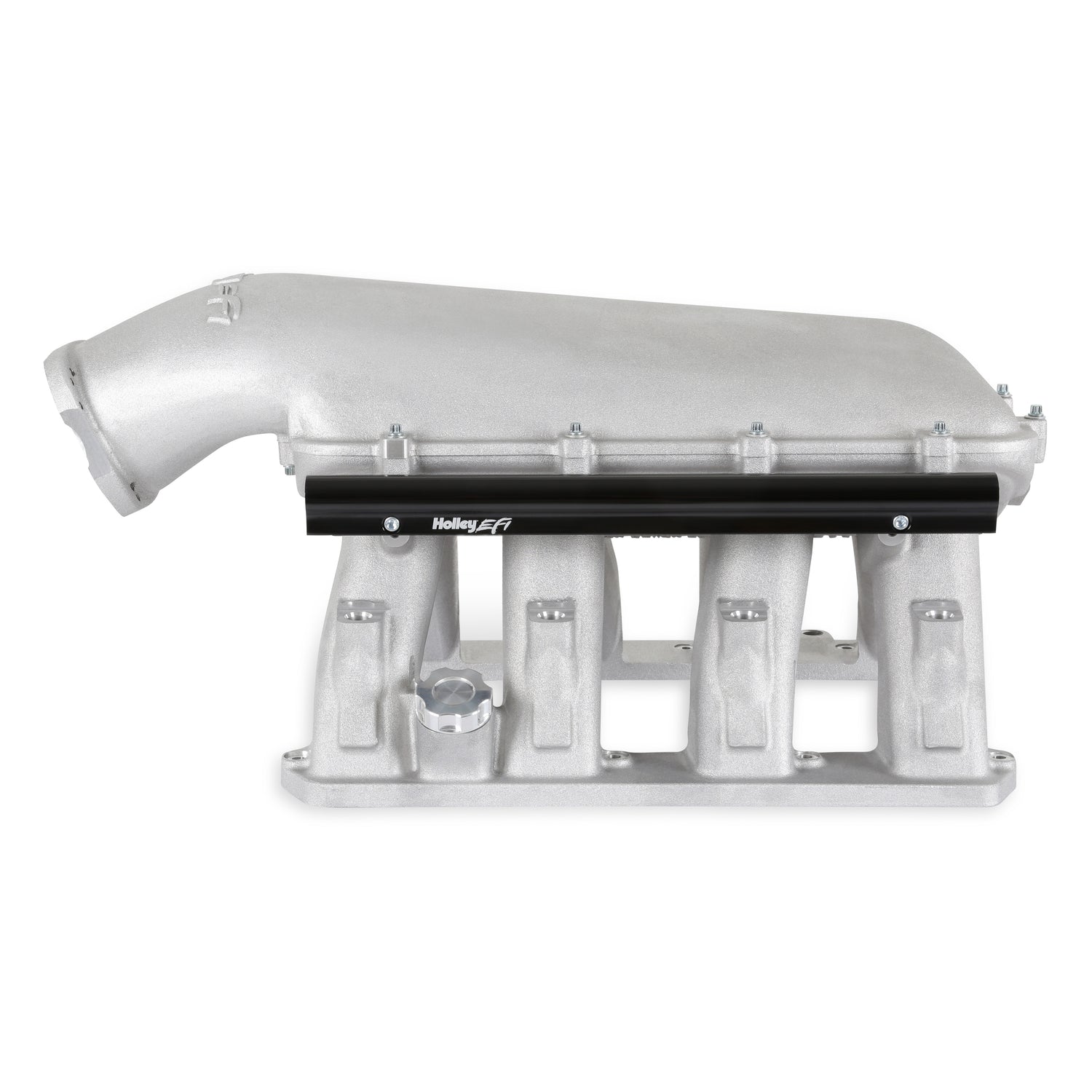

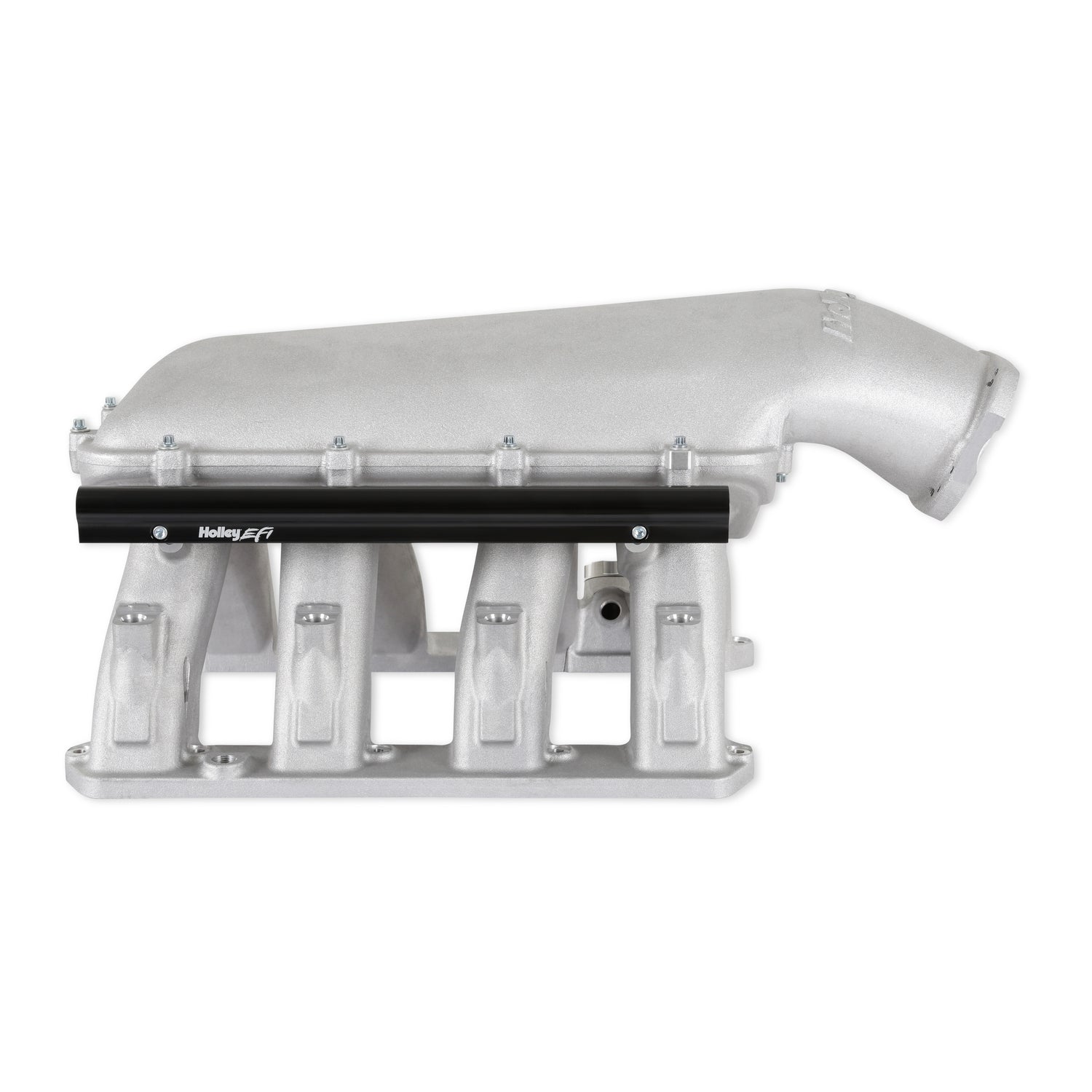

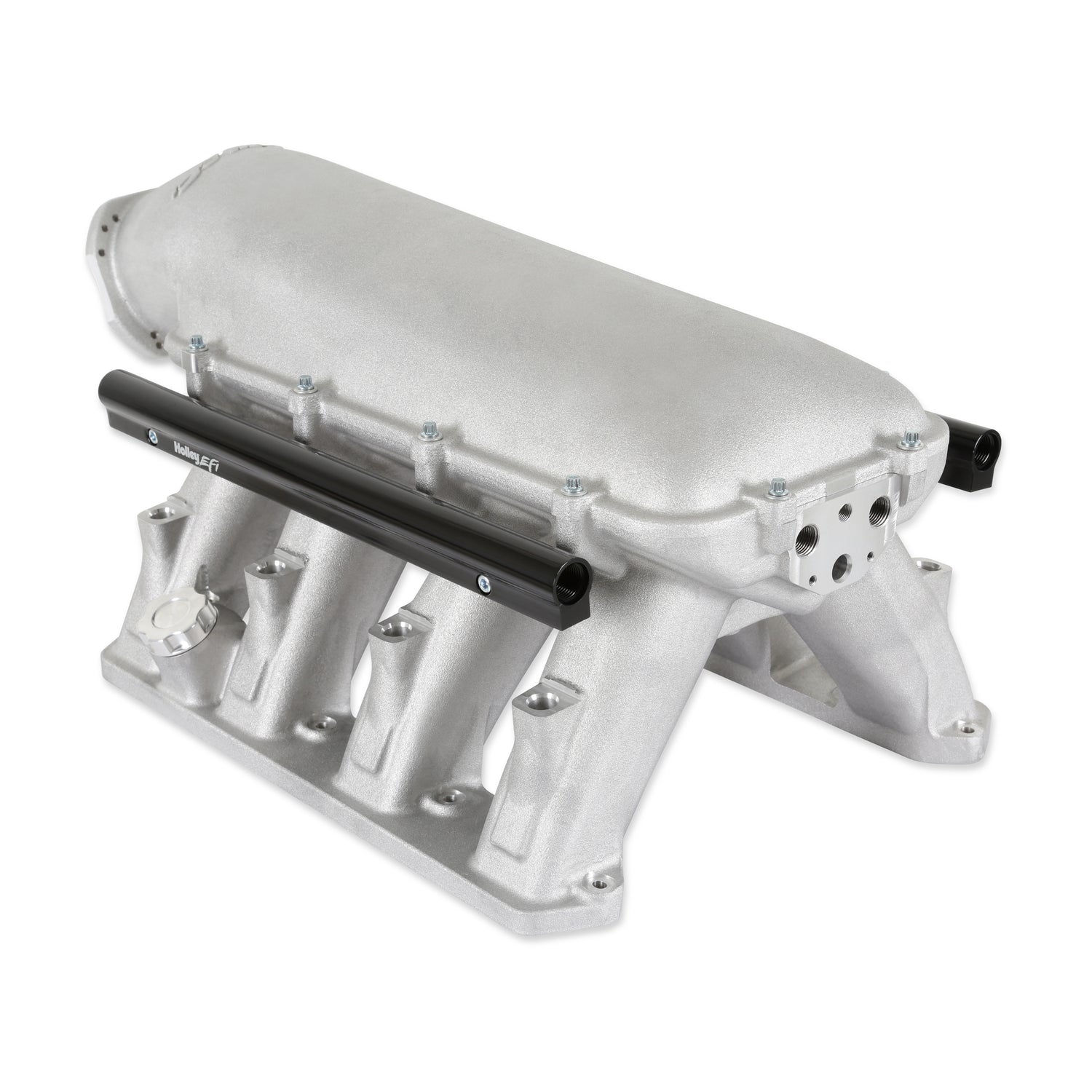

Holley 300-658 Gen III Hemi Hi-Ram EFI Manifold
Gen III Hemi EFI for use with 80 and 92mm Mopar Style Throttle Body - As Cast Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L
Regular price
$2,702.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-658 Gen III Hemi Hi-Ram EFI Manifold is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Gen III Hemi EFI for use with 80 and 92mm Mopar Style Throttle Body - As Cast Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L
Part Number: 300-658
Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L & 2011-up 6.4L engines. The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM. The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated & forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations.
Features and Benefits
• Cast Aluminum Construction w/ Natural Satin or Black Finish
• Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold

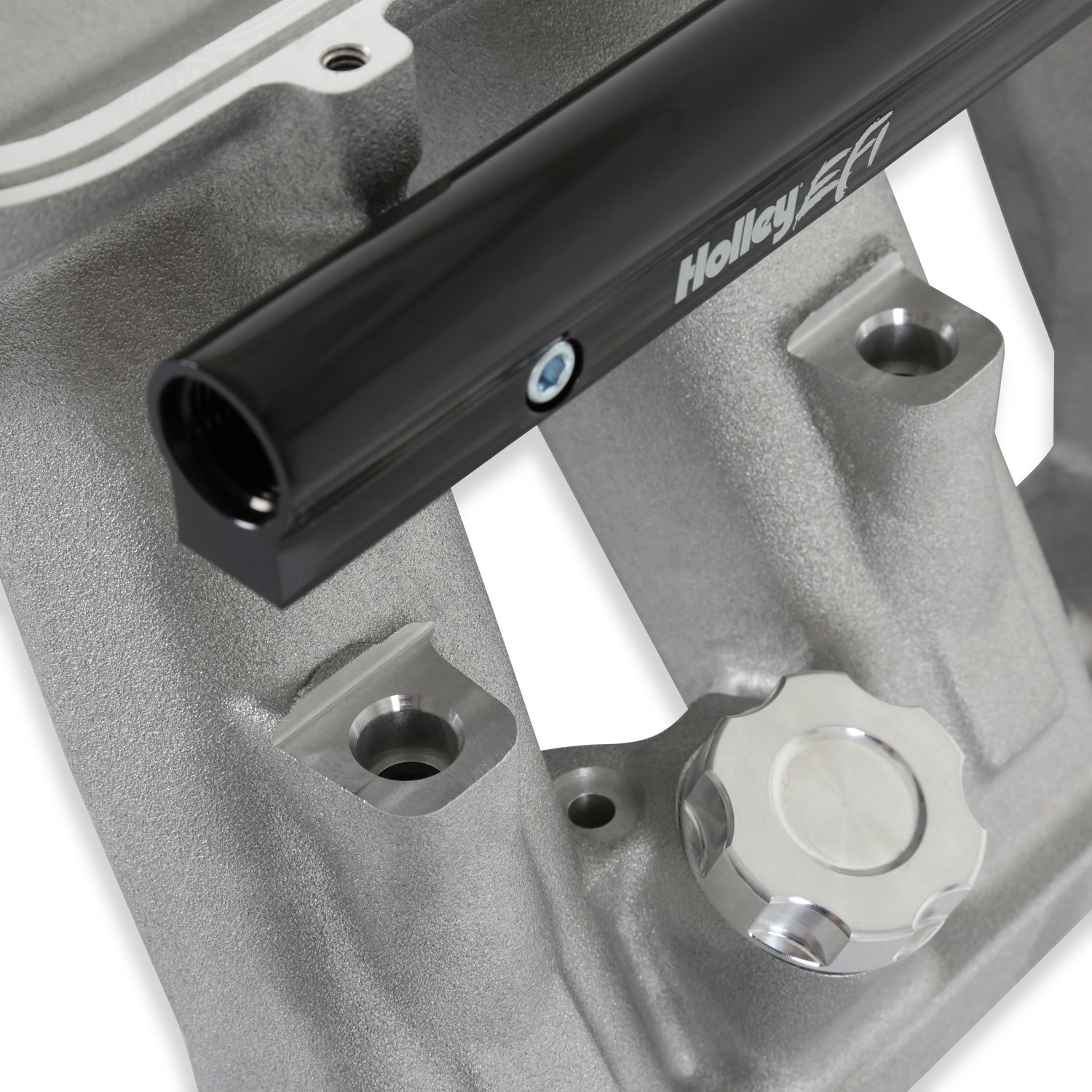

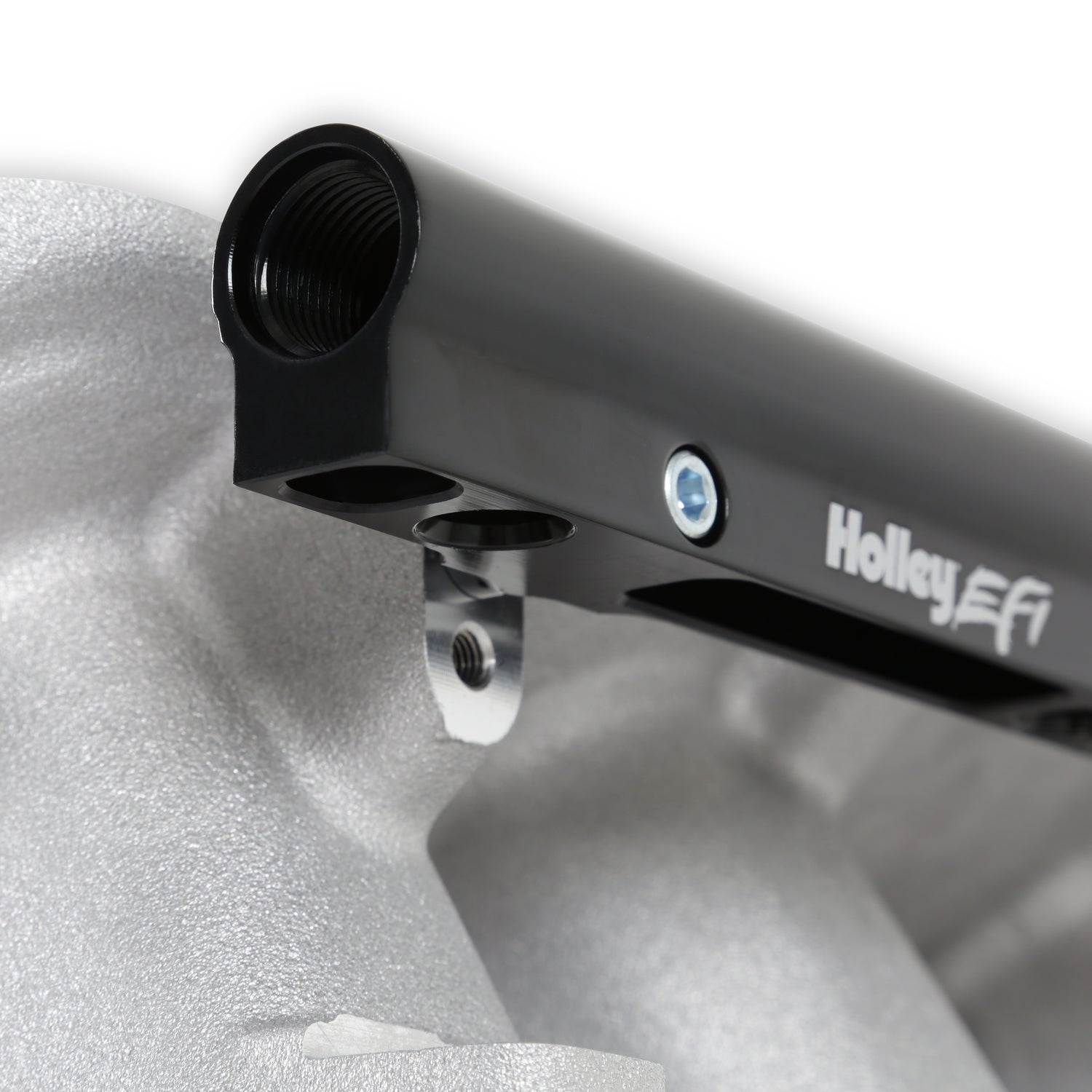

• Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
• Overall Height: 11.59”
• Cast-In Pads for Adding Nitrous Nozzles

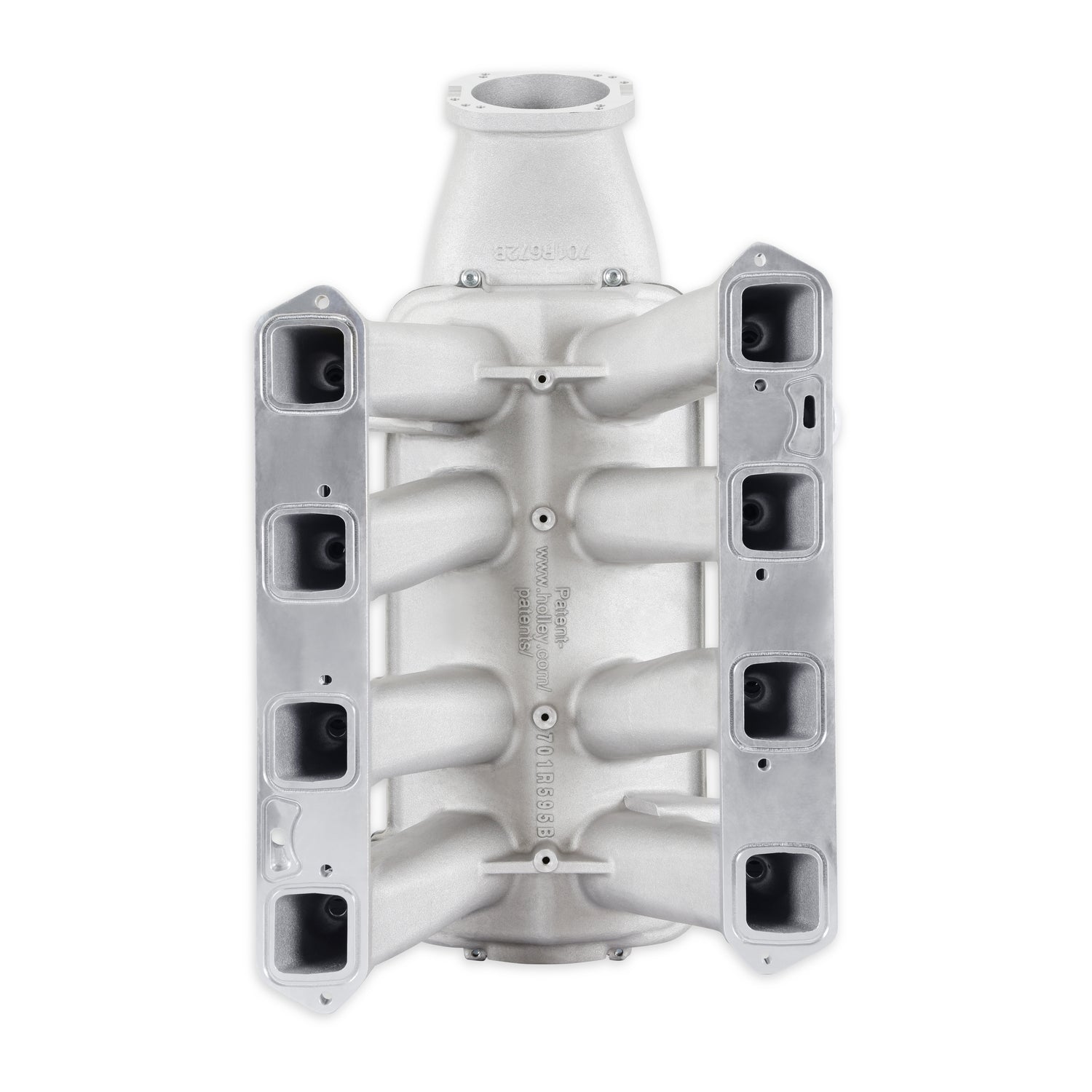

• Fits Gen III Hemi Engines w/ Large Intake Ports (1.70” Height x 1.88” Wide) – fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
• Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors

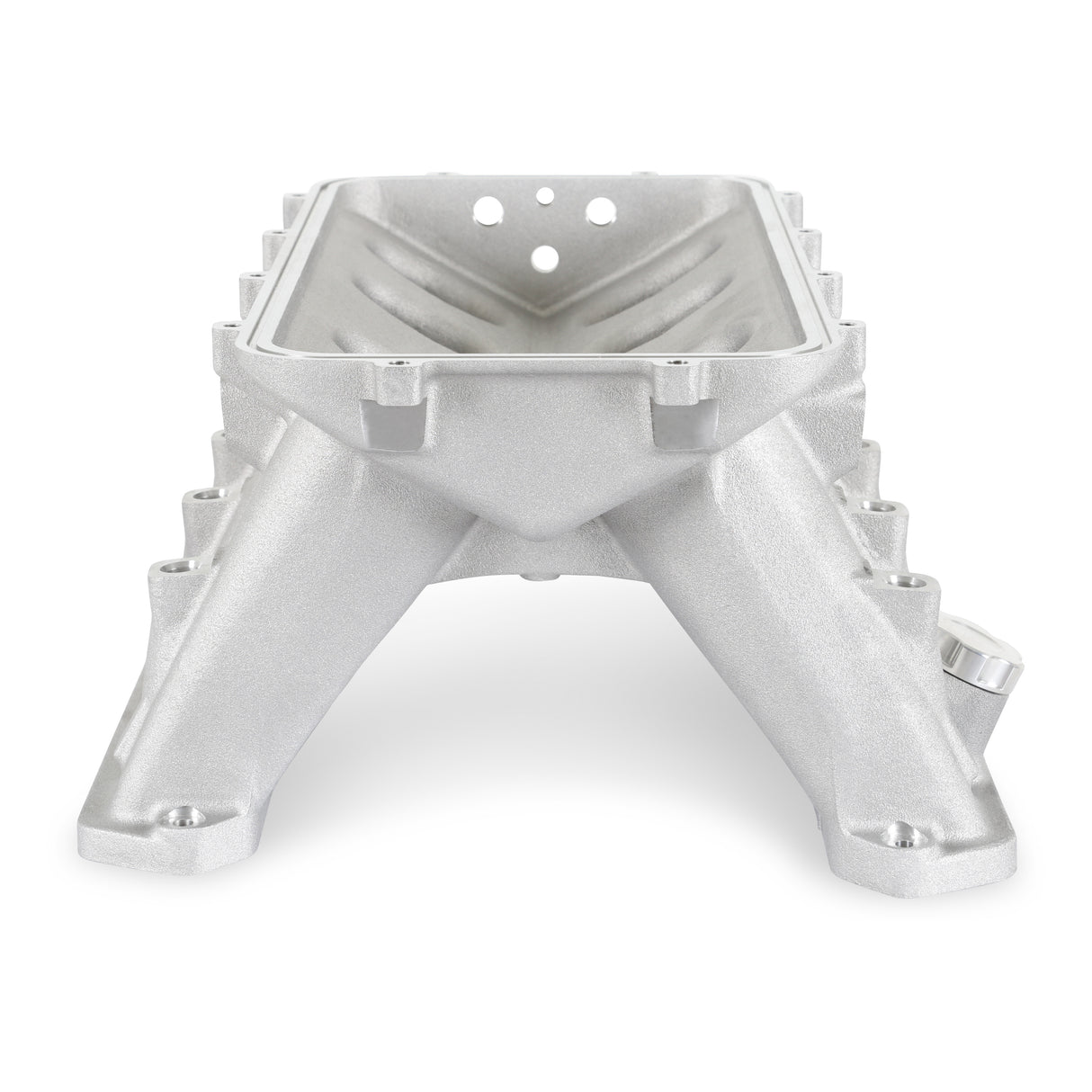

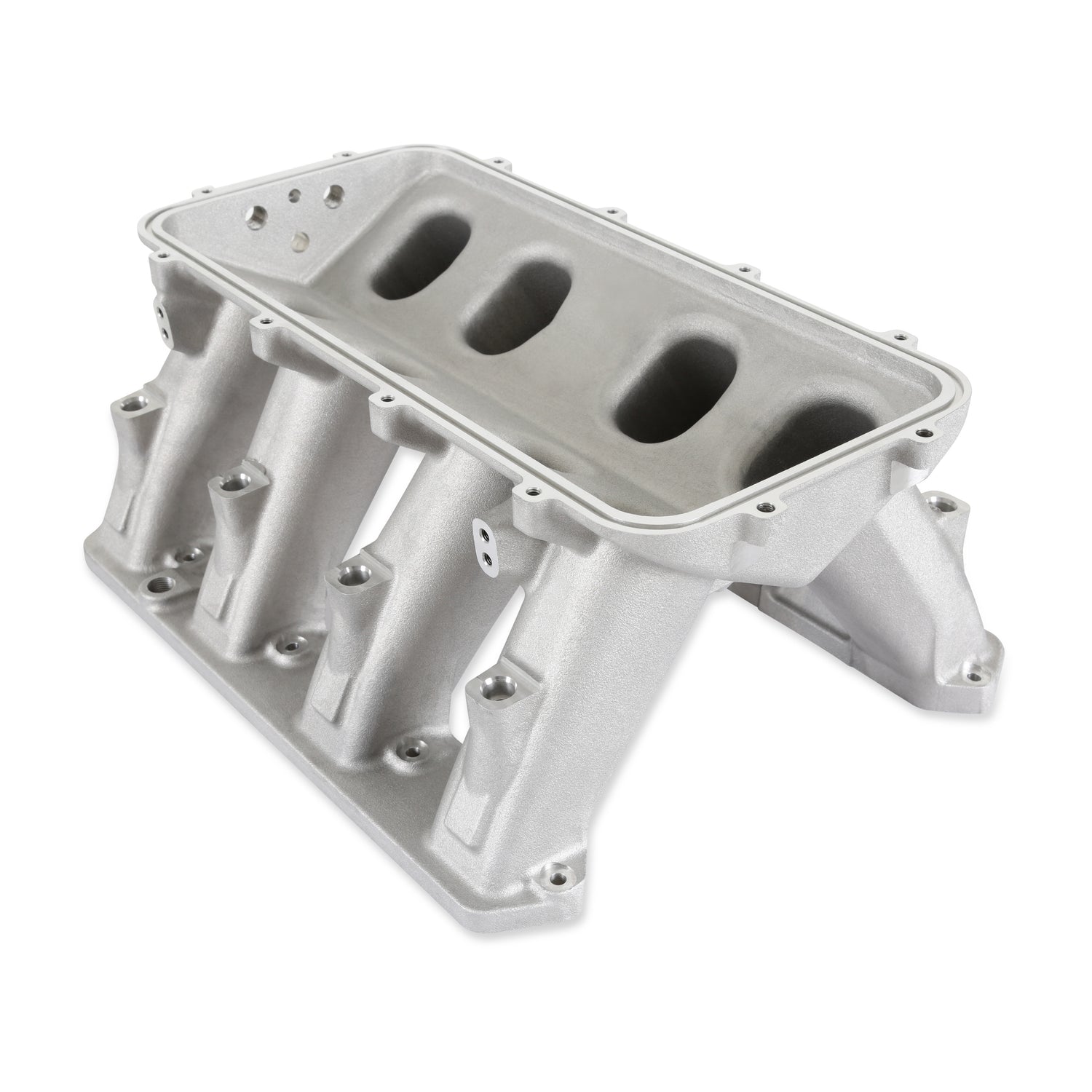

• Manifold Base – Available Separately for Custom Induction Systems
• Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings
• Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
• Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations
• Billet Oil Fill Cap – Attractive Low Profile Design
• O-Ring Seal to Head – Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace

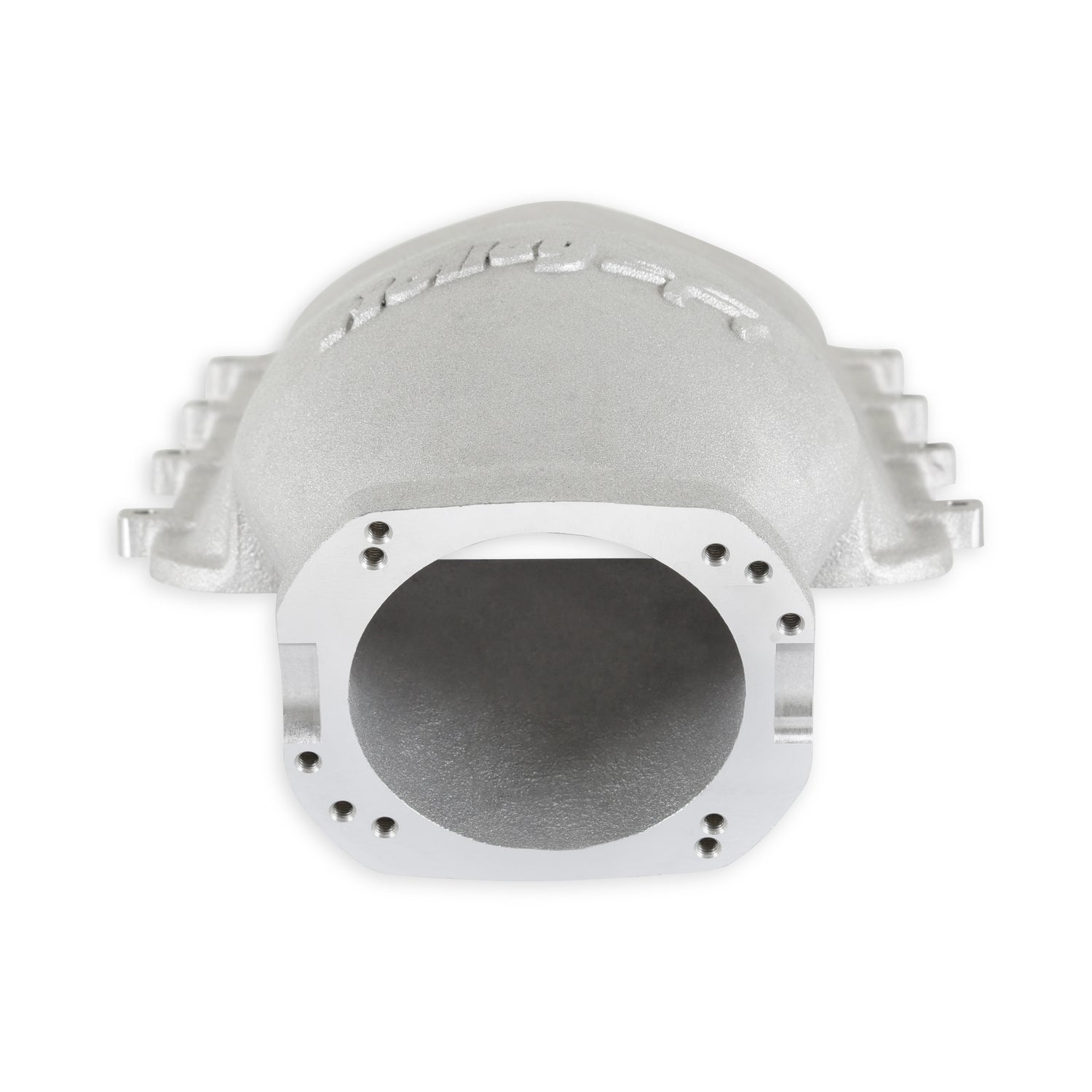

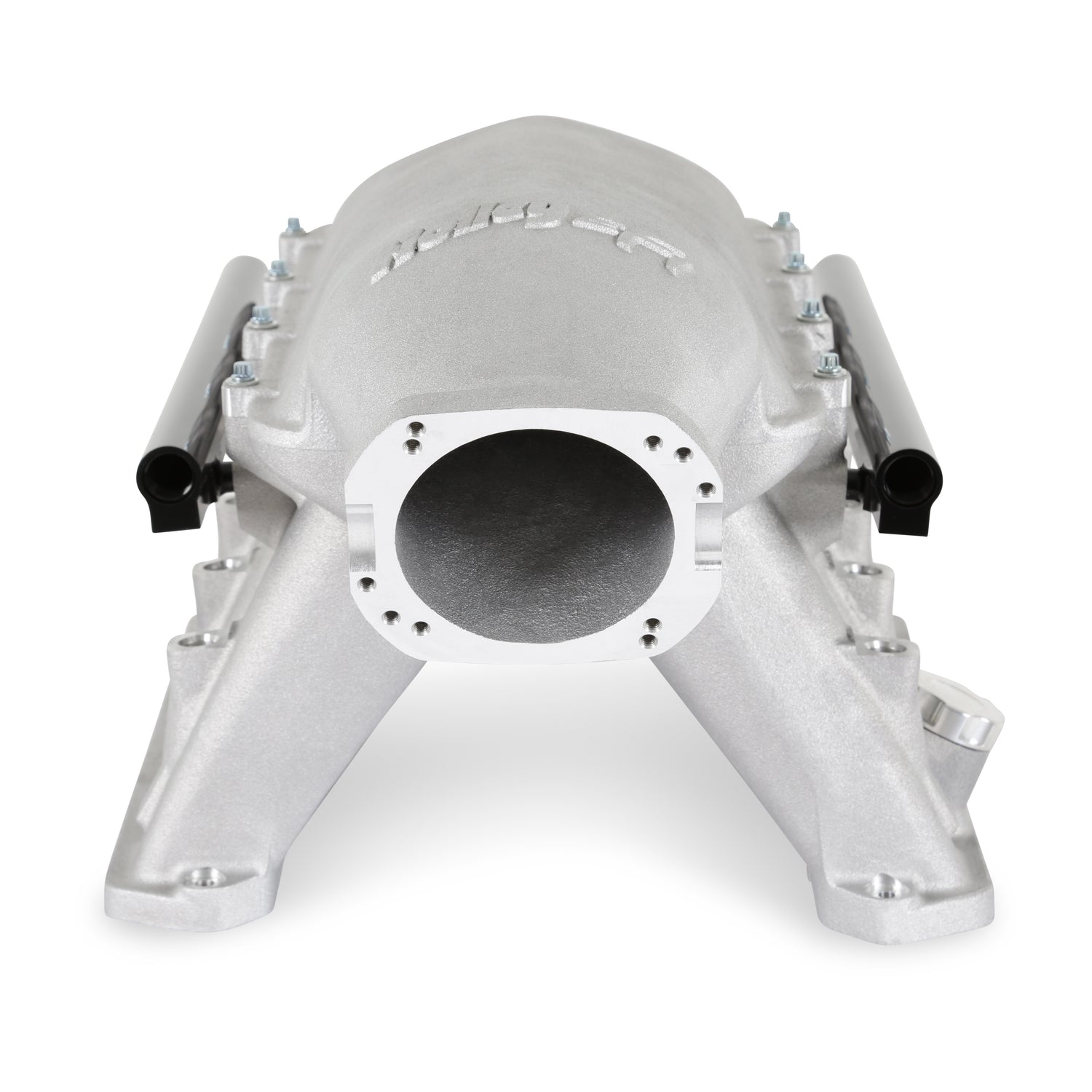

Early 2003-2008 5.7L Engines Can Use 300-652 adapters to Match the Smaller Intake Ports on these Engines. _x000D_ _x000D_ The lid on this intake manifold is machined to fit an 80 and 92mm Mopar style throttle body since this allows the use a cable operated throttle body (at a reasonable cost).
Part Number: 300-658
Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L & 2011-up 6.4L engines. The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM. The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated & forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations.
Features and Benefits
• Cast Aluminum Construction w/ Natural Satin or Black Finish
• Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
• Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
• Overall Height: 11.59”
• Cast-In Pads for Adding Nitrous Nozzles
• Fits Gen III Hemi Engines w/ Large Intake Ports (1.70” Height x 1.88” Wide) – fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
• Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
• Manifold Base – Available Separately for Custom Induction Systems
• Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings
• Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
• Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations
• Billet Oil Fill Cap – Attractive Low Profile Design
• O-Ring Seal to Head – Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
Early 2003-2008 5.7L Engines Can Use 300-652 adapters to Match the Smaller Intake Ports on these Engines. _x000D_ _x000D_ The lid on this intake manifold is machined to fit an 80 and 92mm Mopar style throttle body since this allows the use a cable operated throttle body (at a reasonable cost).
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-7000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Square Deck Height 9.25 EGR Port No Emission Code 3 Engine GEN 3 HEMI Flange Style EFI Front Maximum Height 11.59 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV-1, Gen III Hemi Inlet Size 95mm Intake Port Gasket(s) Included No Manifold Type Hi-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Port Size 1.70" x 1.88" Product Type Intake Manifold Rear Maximum Height 10.35 Removable Runners No Removable Top/Lid Yes Runner Length 6.65 inch Single Or Dual Plane Type Single Plane Style EFI Sub Category Cylinder Block Components Throttle Body Bore Diameter 95 MM Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 95mm Type of Component Intake Manifold Vacuum Ports (2) 3/8" NPT & (1) 1/4" NPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
