Holley EFI | SKU:
300-624BK
Holley 300-624BK Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6
Black Finish
Regular price
$2,574.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-624BK Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Black Finish
Part Number: 300-624BK
The 300-624(satin) & 300-624BK(black) intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The short runner, low-profile base intake manifold was conceived to package plenum-mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit. Available in satin and black finishes.
Features and Benefits

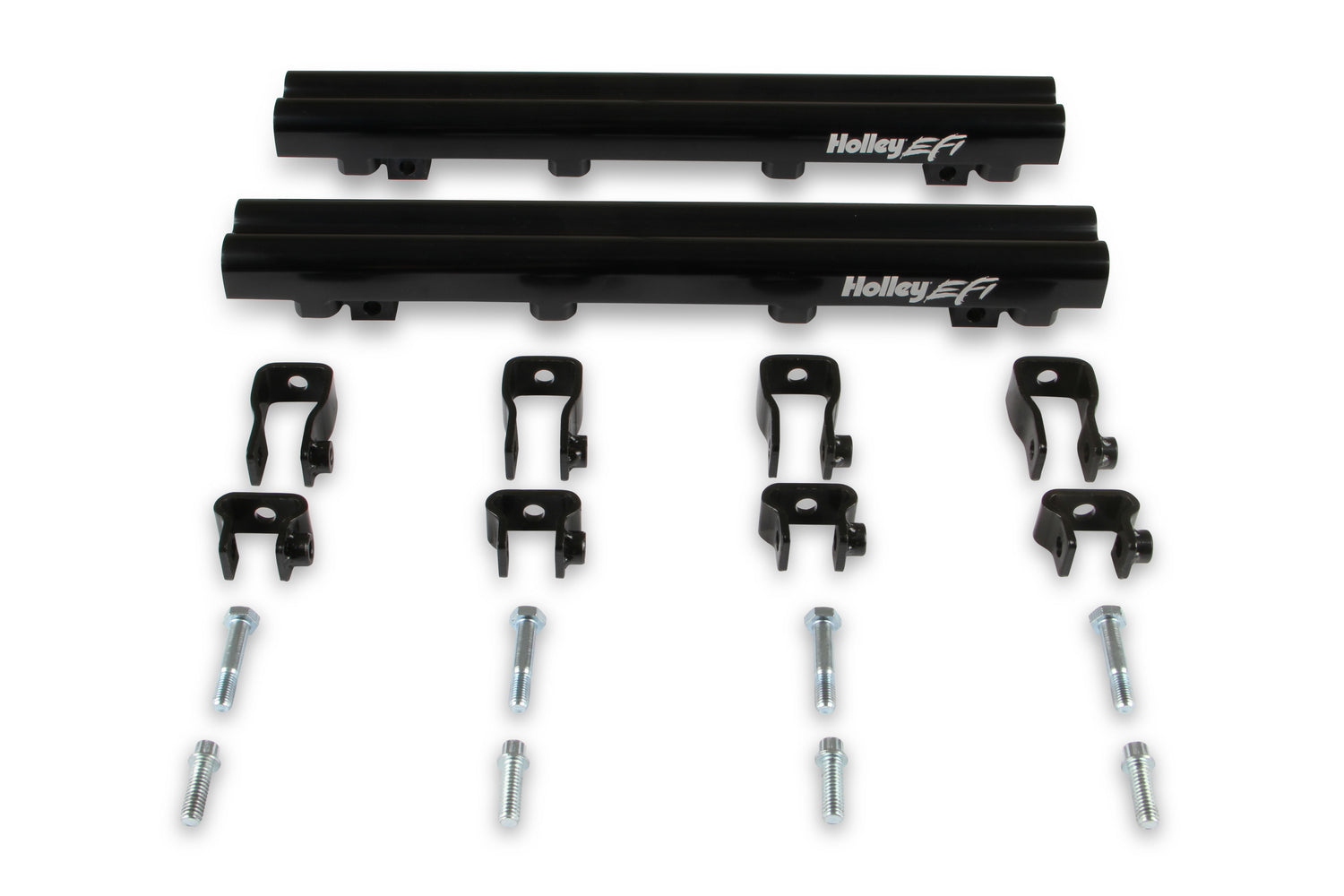

• Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
• Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
• Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
• Available with both as-cast satin and black power-coat finishes
Part Number: 300-624BK
The 300-624(satin) & 300-624BK(black) intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The short runner, low-profile base intake manifold was conceived to package plenum-mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit. Available in satin and black finishes.
Features and Benefits
• Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
• Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
• Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
• Available with both as-cast satin and black power-coat finishes
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3500-8000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Black Construction Cast Cylinder Head Port Shape Cathedral Deck Height 9.24 EGR Port No Emission Code 3 Engine GM LS1/LS2/LS6 Flange Style EFI Front Maximum Height 9.07" without Intercooler Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Quantity Dual Inlet Location Top Intake Port Gasket(s) Included No Manifold Type Lo-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Recommended Use Forced Induction Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 MM Throttle Body Gasket Included Yes Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
