Holley | SKU:
300-522SA

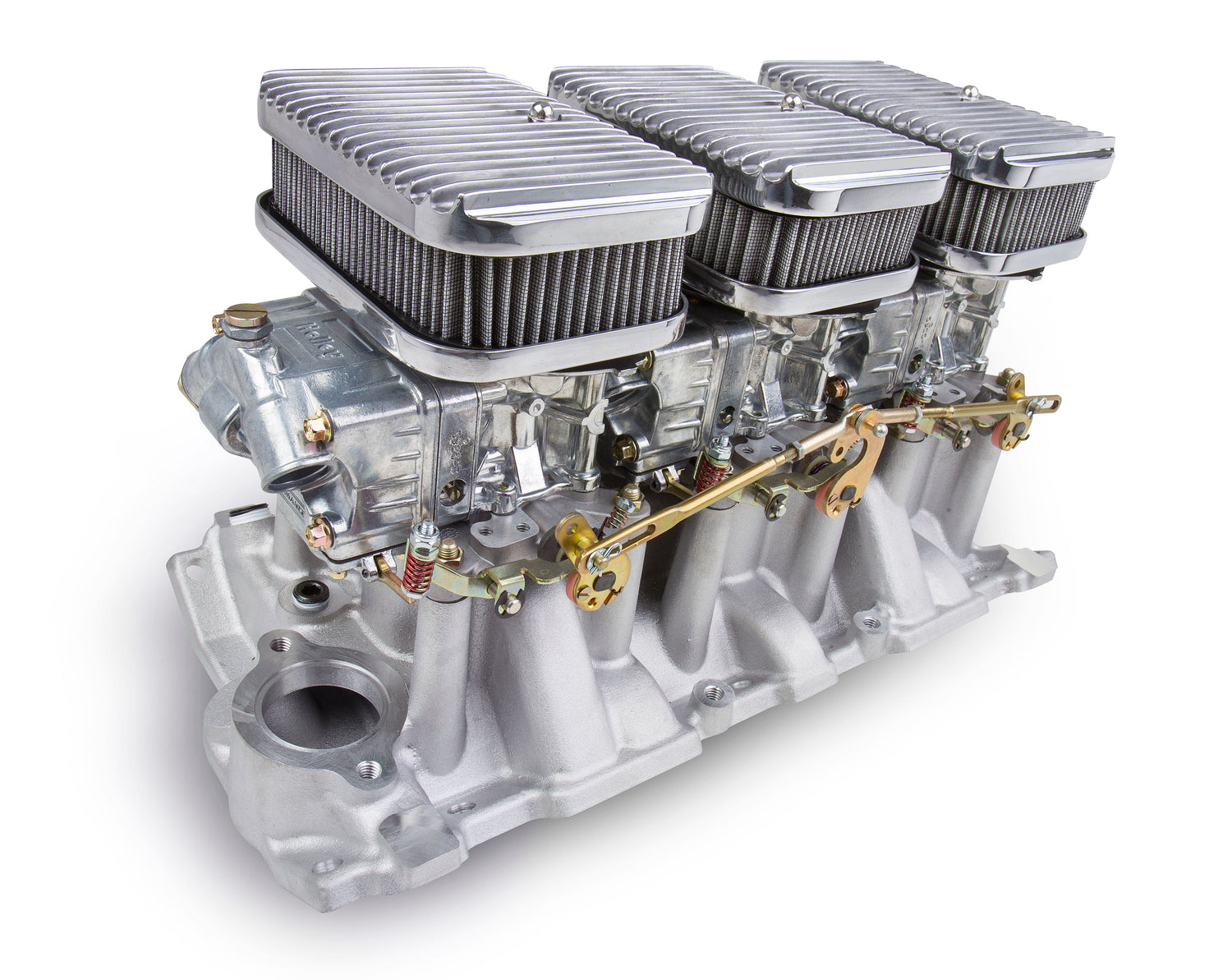

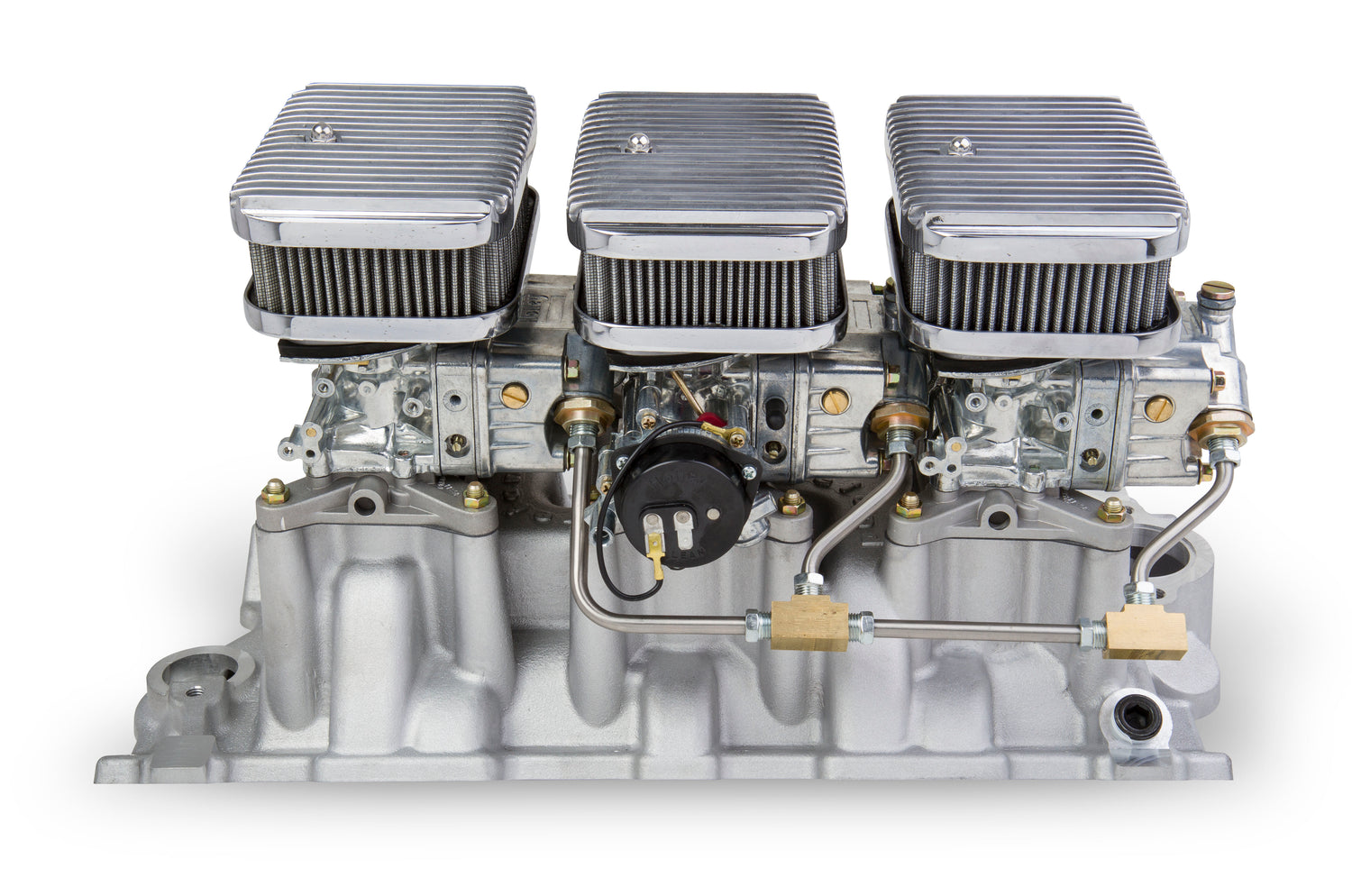

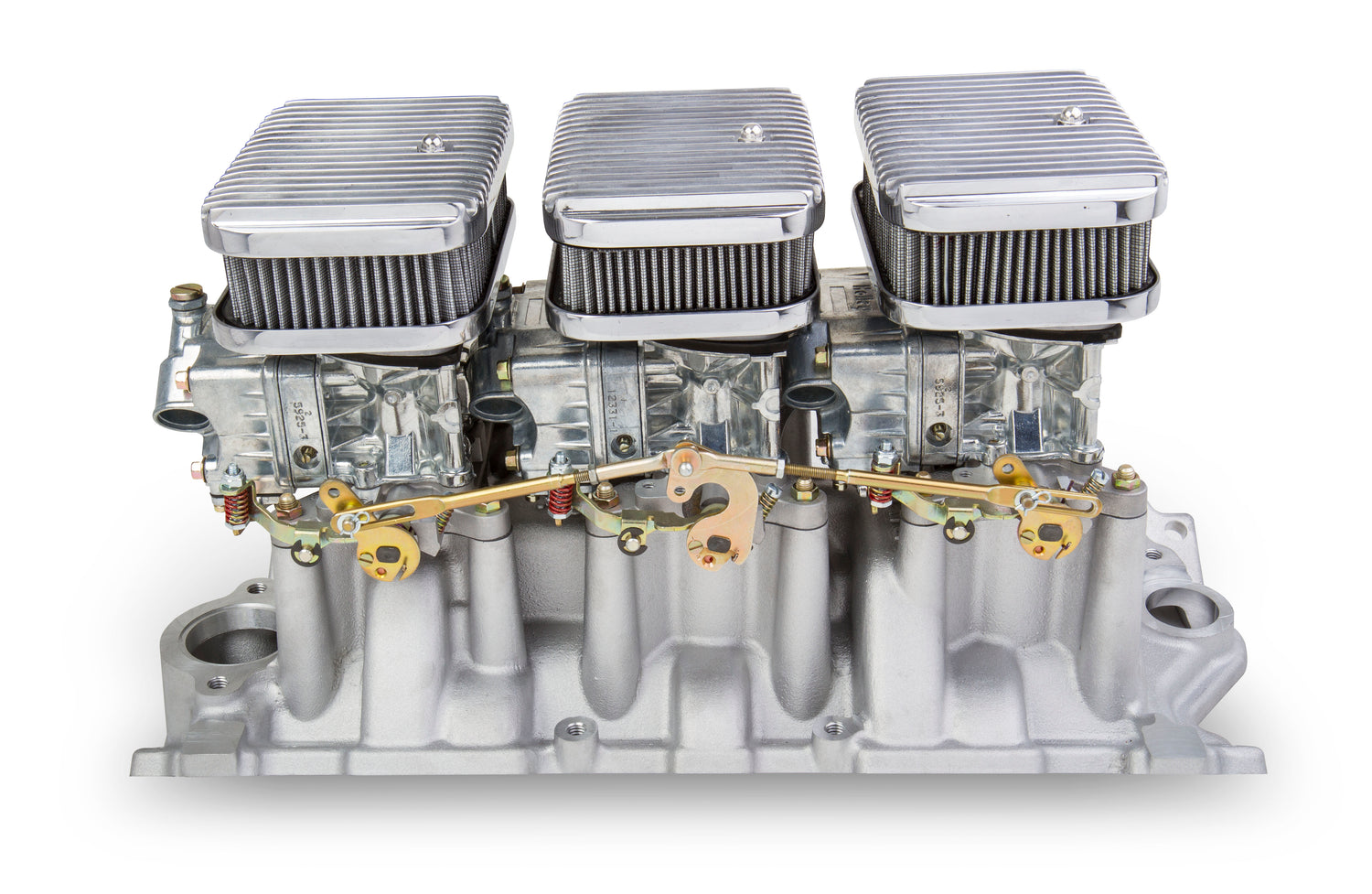

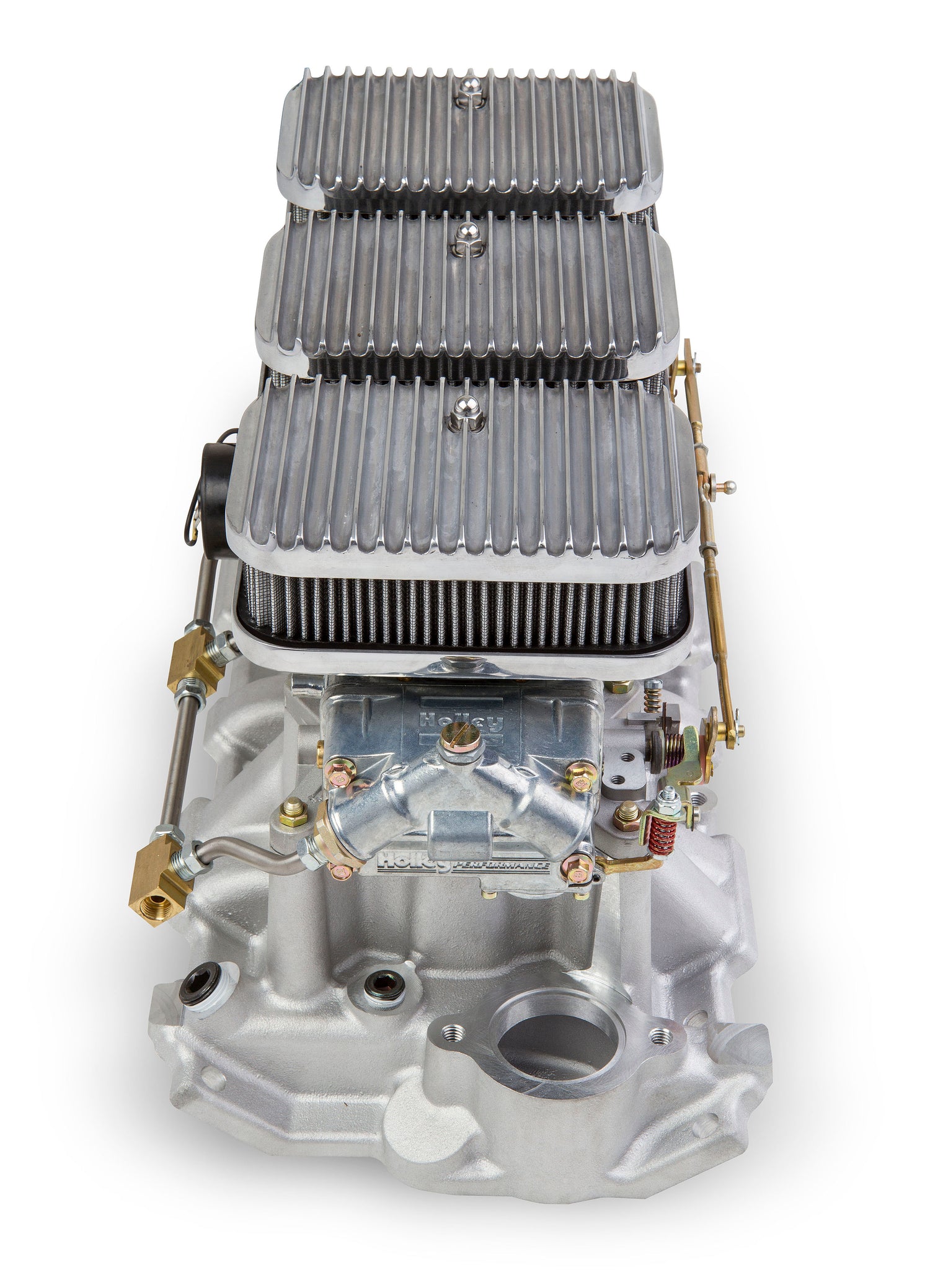

Holley 300-522SA 350 CFM Tri-Power 3x2 SBC Intake and Carburetor Kit
350 CFM - 2300 - Shiny - Gasoline
Sold out
Regular price
$5,378.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-522SA 350 CFM Tri-Power 3x2 SBC Intake and Carburetor Kit
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
350 CFM - 2300 - Shiny - Gasoline
Part Number: 300-522SA
The world famous Holley Tri-Power Carburetor system is legendary in Chevrolet circles! They were the ultimate power statement when they came factory on cars like the 1967 427 Corvette.
And, NOW you can have the same look on your SB Chevy! Perfect for muscle cars, street rods, classic hot rods, rat rods, trucks and more!
ECONOMY AND BIG HORSEPOWER!
Cruise around economically on the 325 CFM center carb, and when you decide to step on it, the two 350 CFM outboard carbs kick in for head-snapping performance!
Systems Include:
• Weiand Dual plane medium rise 3x2 intake manifold
• (3) Holley 2-bbl carbs (two 350 CFM outboard carbs, one 325 CFM center carb w/ electric choke)
• High-quality steel fuel lines
• Progressive throttle linkage
• Reusable air filters with polished housings
• Carburetors available in Dichromate or Shiny Finish
Features and Benefits
• Weiand dual plane medium rise 3x2 intake manifold
• (3) Holley 2-bbl carbs
• High quality steel fuel lines
• Progressive throttle linkage
• Reusable air filters with polished housings
• Shiny Carburetor Finish
• Height (Front) 11.5" from the front sealing surface to the top of the air cleaner nut
• Height (Rear) 12.5" from the front sealing surface to the top of the air cleaner nut
Requires small cap distributor (up to 5-1/8" Diameter), or MSD 8361. HEI style distributor is too large and will not fit. ***There is currently no kick down linkage adaptation for automatic transmission application. Replacement filter Height- 2.5", Length- 6.5", Width- 4.3". Use Weiand 90633 or comparable filter.
Part Number: 300-522SA
The world famous Holley Tri-Power Carburetor system is legendary in Chevrolet circles! They were the ultimate power statement when they came factory on cars like the 1967 427 Corvette.
And, NOW you can have the same look on your SB Chevy! Perfect for muscle cars, street rods, classic hot rods, rat rods, trucks and more!
ECONOMY AND BIG HORSEPOWER!
Cruise around economically on the 325 CFM center carb, and when you decide to step on it, the two 350 CFM outboard carbs kick in for head-snapping performance!
Systems Include:
• Weiand Dual plane medium rise 3x2 intake manifold
• (3) Holley 2-bbl carbs (two 350 CFM outboard carbs, one 325 CFM center carb w/ electric choke)
• High-quality steel fuel lines
• Progressive throttle linkage
• Reusable air filters with polished housings
• Carburetors available in Dichromate or Shiny Finish
Features and Benefits
• Weiand dual plane medium rise 3x2 intake manifold
• (3) Holley 2-bbl carbs
• High quality steel fuel lines
• Progressive throttle linkage
• Reusable air filters with polished housings
• Shiny Carburetor Finish
• Height (Front) 11.5" from the front sealing surface to the top of the air cleaner nut
• Height (Rear) 12.5" from the front sealing surface to the top of the air cleaner nut
Requires small cap distributor (up to 5-1/8" Diameter), or MSD 8361. HEI style distributor is too large and will not fit. ***There is currently no kick down linkage adaptation for automatic transmission application. Replacement filter Height- 2.5", Length- 6.5", Width- 4.3". Use Weiand 90633 or comparable filter.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds No Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Application Small Block Chevy Barrel Quantity 2 Barrels 2 Barrels Quantity 2 Body Color Polished Body Finish Polished Body Material Aluminum Booster Design Straight Brand Holley Carburetor Material Aluminum Carburetor Use Performance and Race Category Air and Fuel Delivery CFM 350 CFM Rating 350 Choke Electric Choke Type Electric Circuit Count 2 Color Polished Aluminum Cubic Feet Per Minute Rating 350 Emission Code 3 Finish Polished Flange Shape Rectangular Flange Type 2300 2-BBL Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Count Single Fuel Inlet Type 1/2-20 Inverted Flare Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Tri-power Linkage Attached Yes Manifold Material Aluminum Manifold Type Weiand 3X2 Dual Plane Marine Approved No Marine Use No Material Aluminum Meter Block Material Billet Aluminum Metering Block Color Shiny Model 2300 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Throttle Bore Diameter 1.498 Primary Venturii Diameter 1.187 Product Type Tri-Power Carburetor Secondaries None Secondary Barrel Type None Secondary Float Type Center Hung Nitrophyl Secondary Jet Extensions No Series Tri-Power Spacer Included No Supercharged Application No Vacuum Ports 1 Timed (spark) Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
