Holley | SKU:
300-5

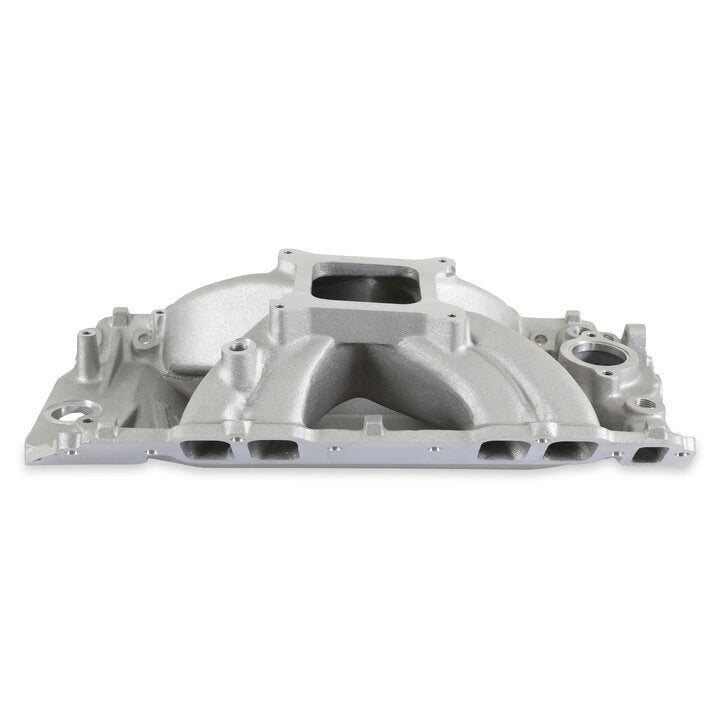

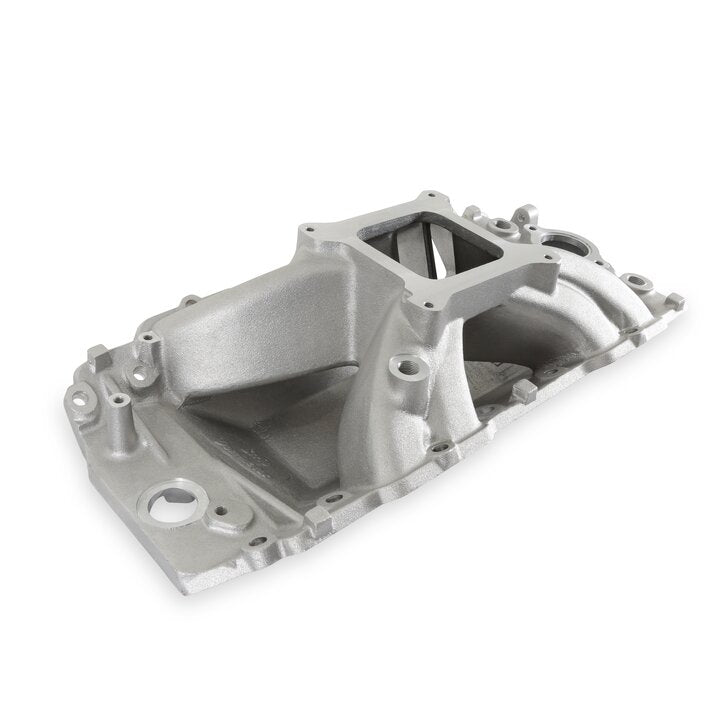

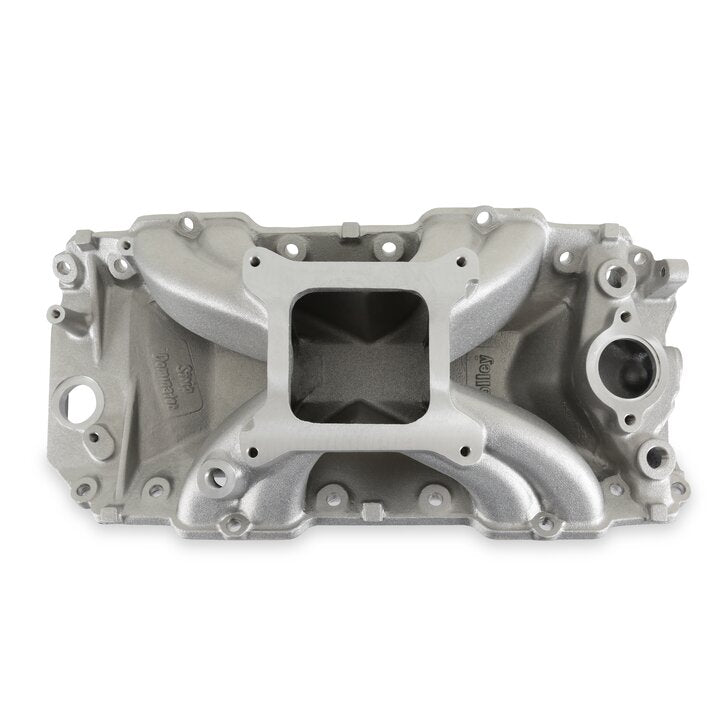

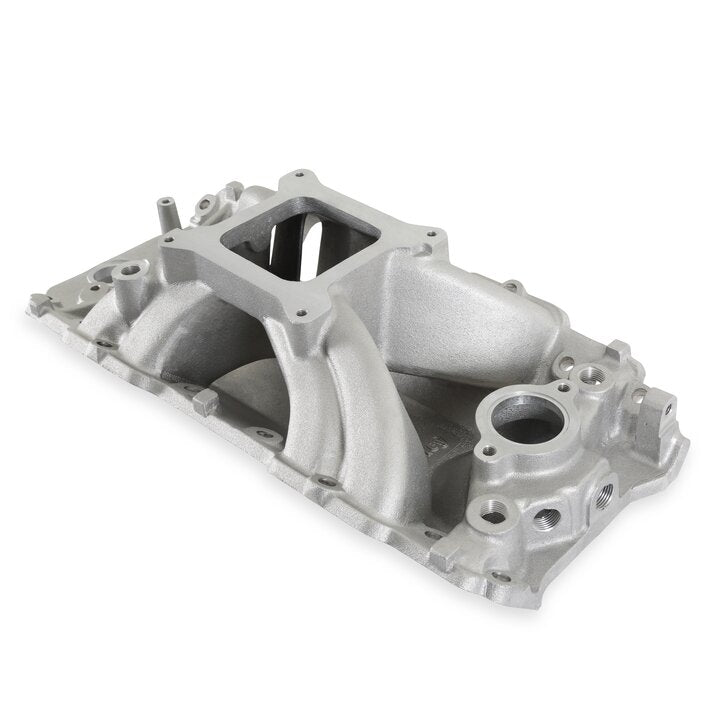

Holley 300-5 Strip Dominator Intake - Big Block Chevy V8
Carburetor Intake Manifold 396ci-502ci - Rectangular Port Heads
Regular price
$877.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-5 Strip Dominator Intake - Big Block Chevy V8 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Carburetor Intake Manifold 396ci-502ci - Rectangular Port Heads
Part Number: 300-5
Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads
Features and Benefits
• Power band: 4500-8500 RPM
• Deep Plenum Design with Isolated Runners
• 4150 Square Bore Carburetor Mounting Flange
• Height: Front 4.77", Rear 6.16"
• Single Plane/Open Plenum Design
• Port Size: 2.30” height 1.60" width
Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.
Part Number: 300-5
Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads
Features and Benefits
• Power band: 4500-8500 RPM
• Deep Plenum Design with Isolated Runners
• 4150 Square Bore Carburetor Mounting Flange
• Height: Front 4.77", Rear 6.16"
• Single Plane/Open Plenum Design
• Port Size: 2.30” height 1.60" width
Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 4500-8500 Brand Holley Carburetor Flange Square/4150 Carburetor Quantity 1 Carburetor Studs Included No Category Intake Manifolds CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.8 EGR Port No Emission Code 3 Engine Chevrolet Big Block - Rectangle Port Flange Style 4150 Square Bore Front Maximum Height 4.77 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Rear Maximum Height 6.16 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports No Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
