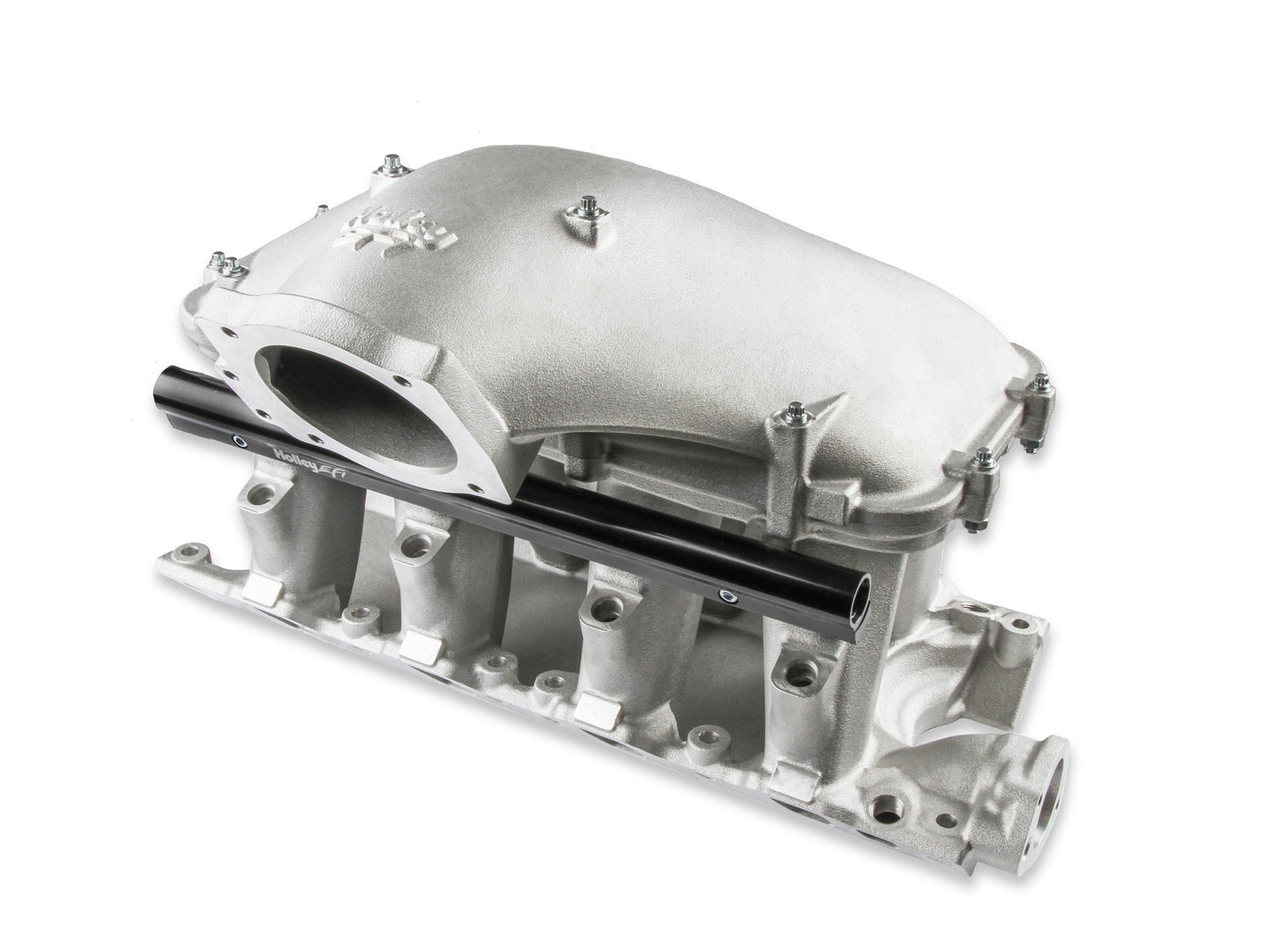

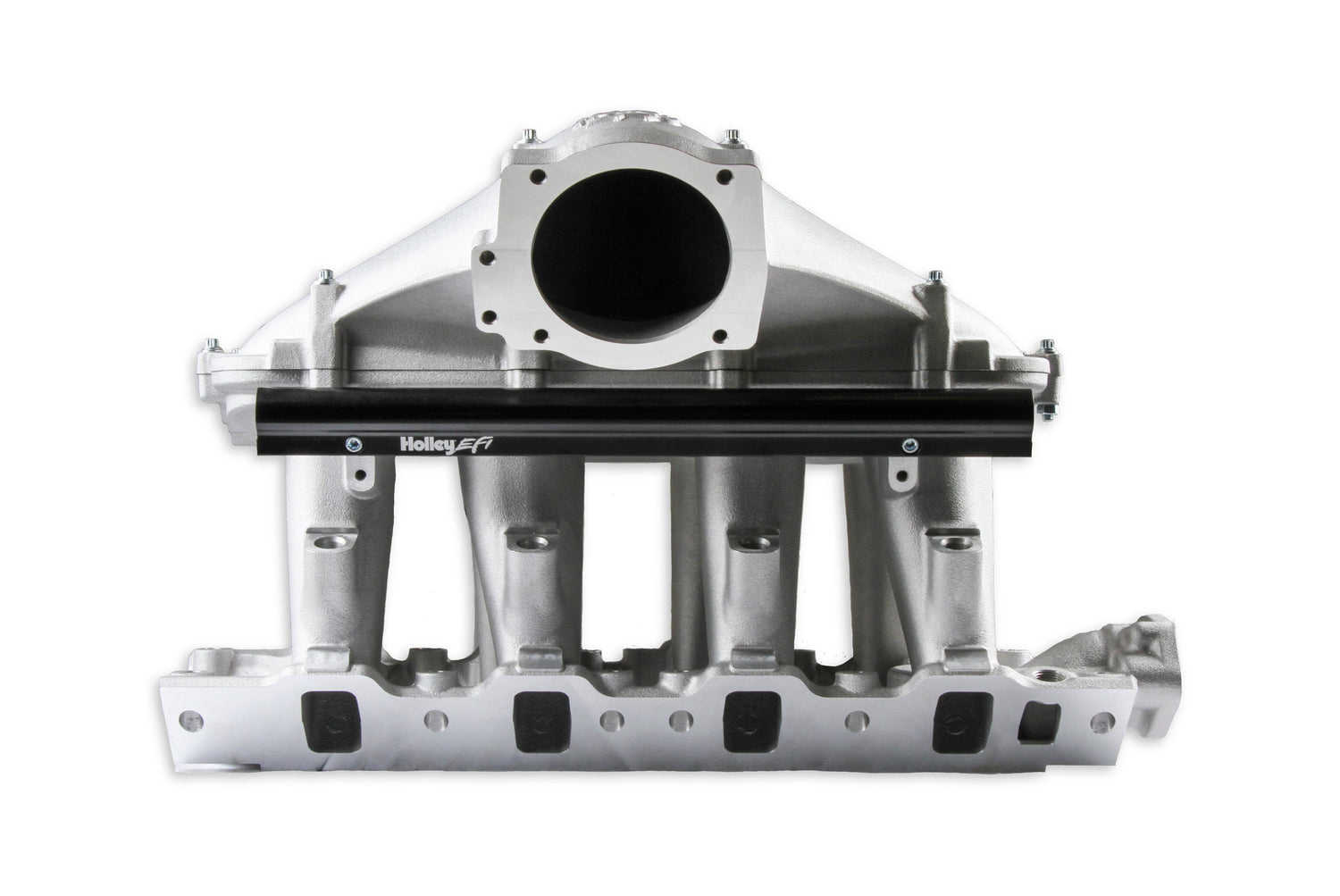

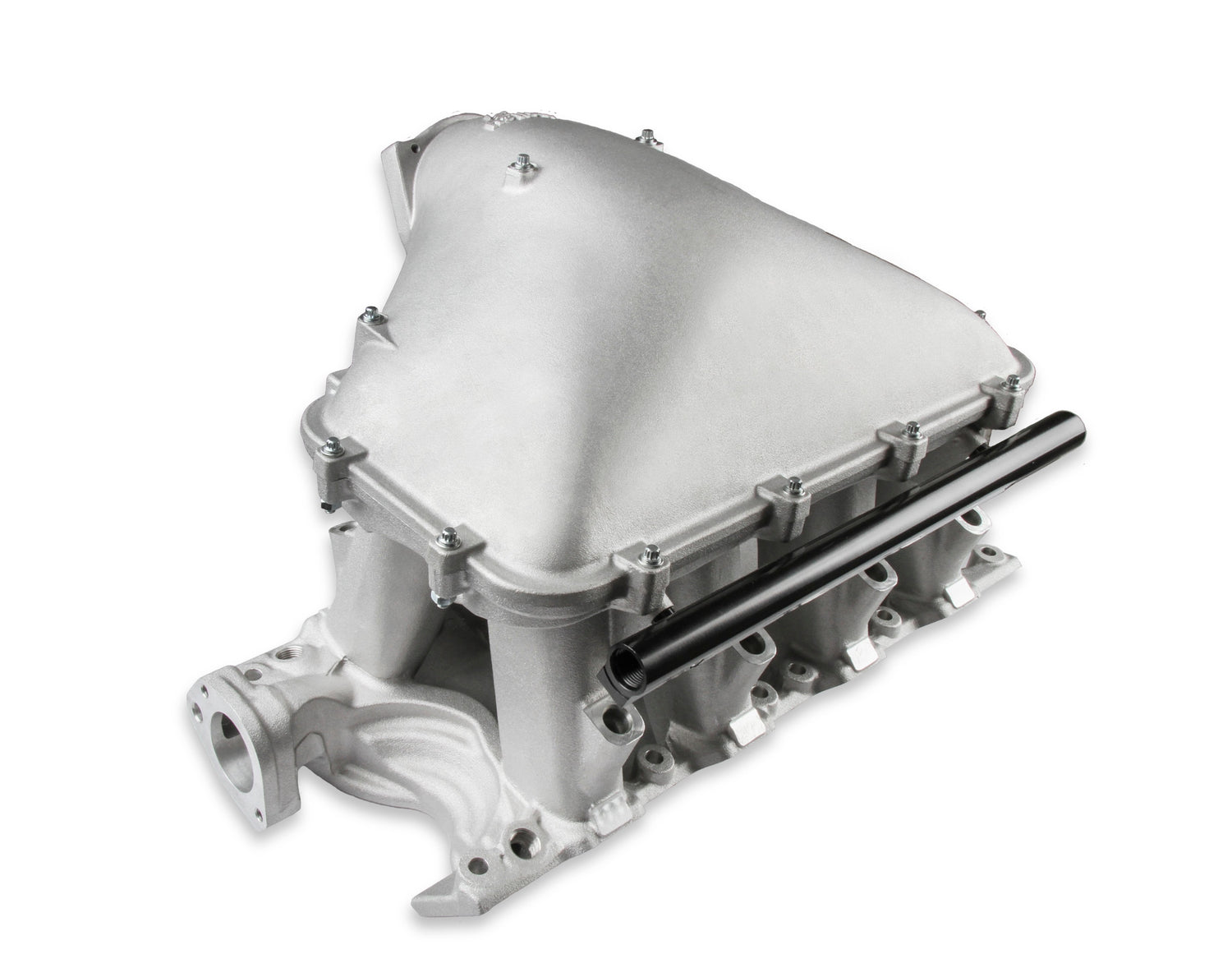

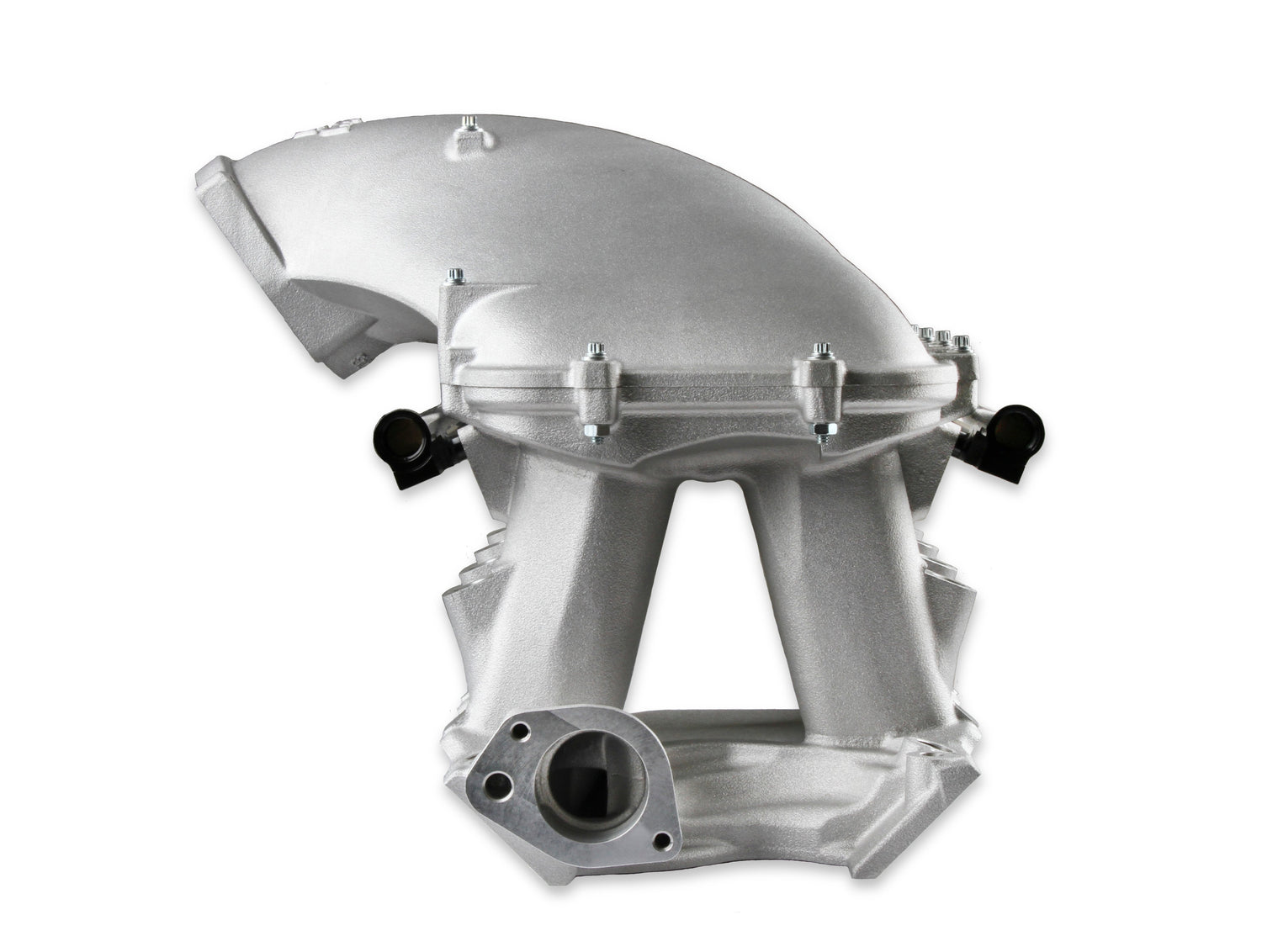

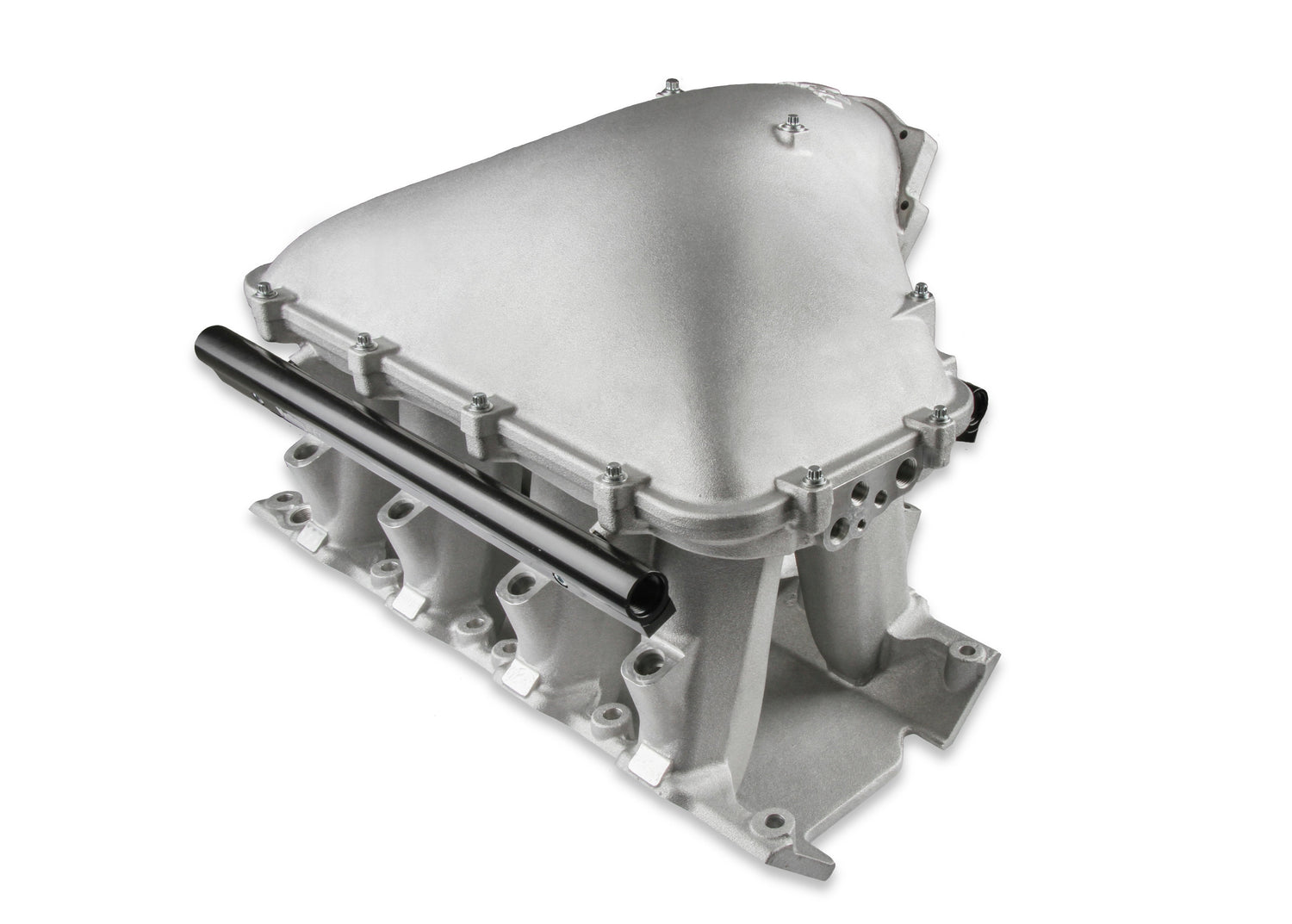

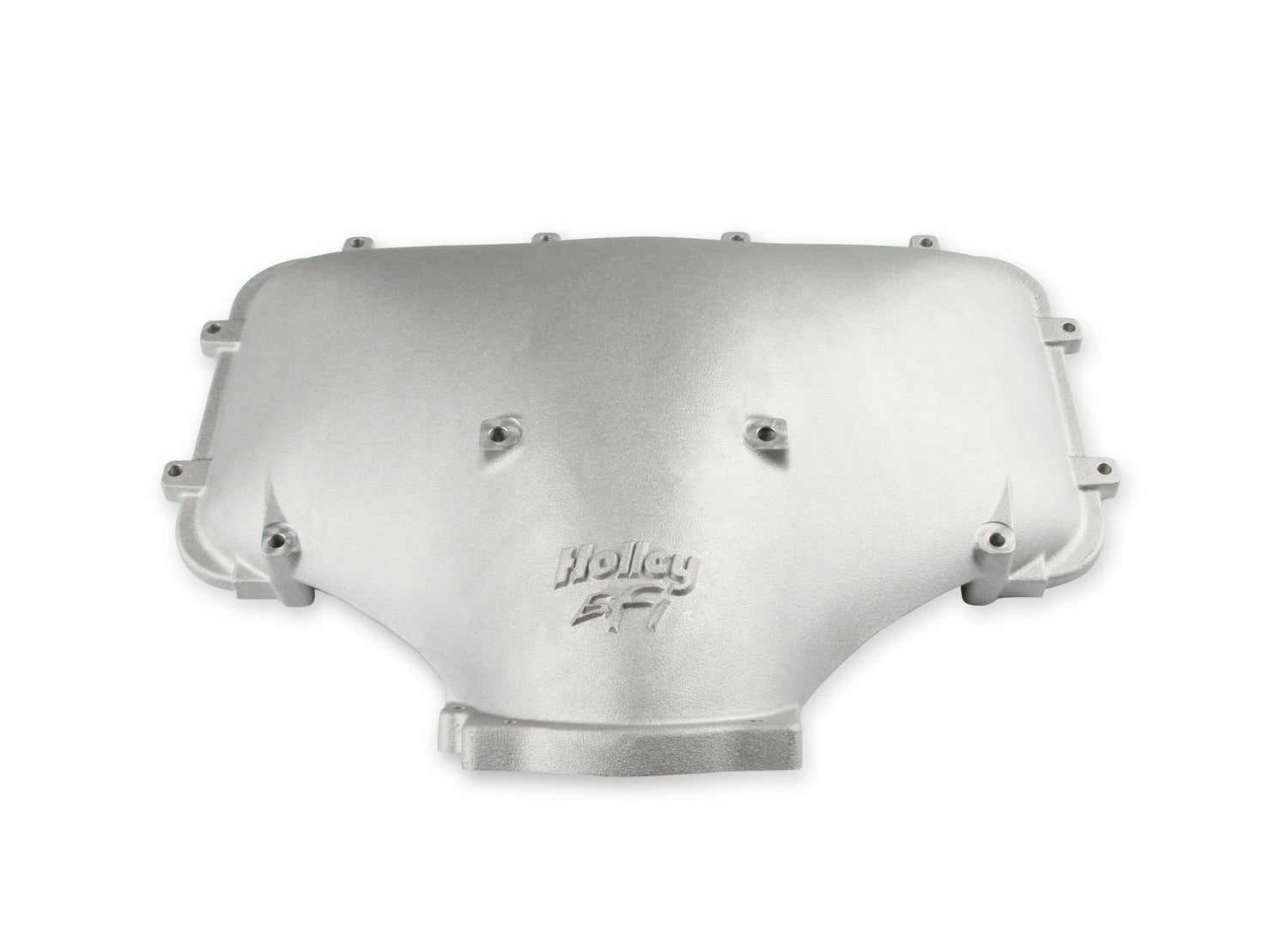

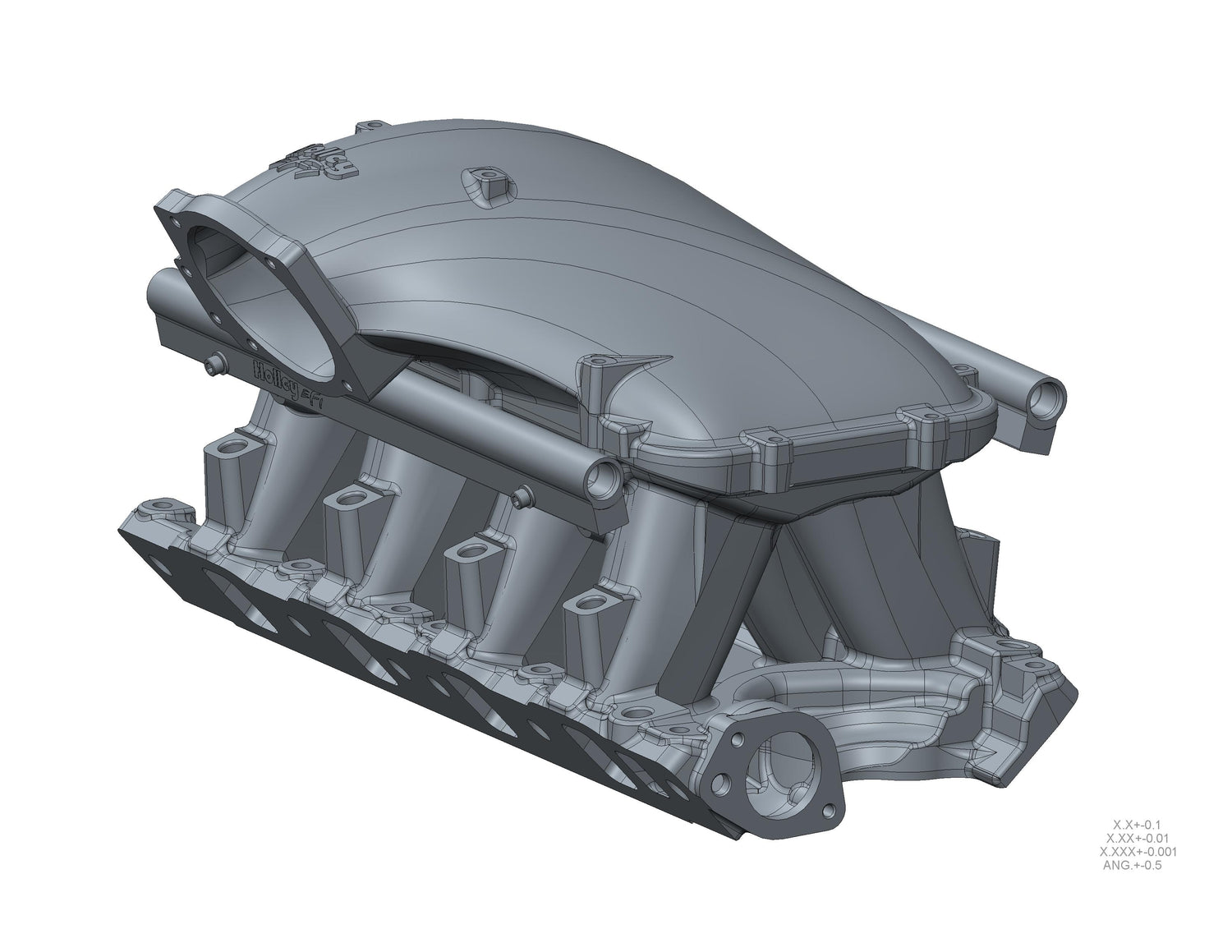

Holley 300-310 351W Ford Hi-Ram EFI Manifold with Side Mount Top
351W Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
Regular price
$2,580.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-310 351W Ford Hi-Ram EFI Manifold with Side Mount Top is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
351W Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
Part Number: 300-310
*** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. This EFI 351W Hi-Ram manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Manifold is designed for a 9.5" deck height.
Features and Benefits

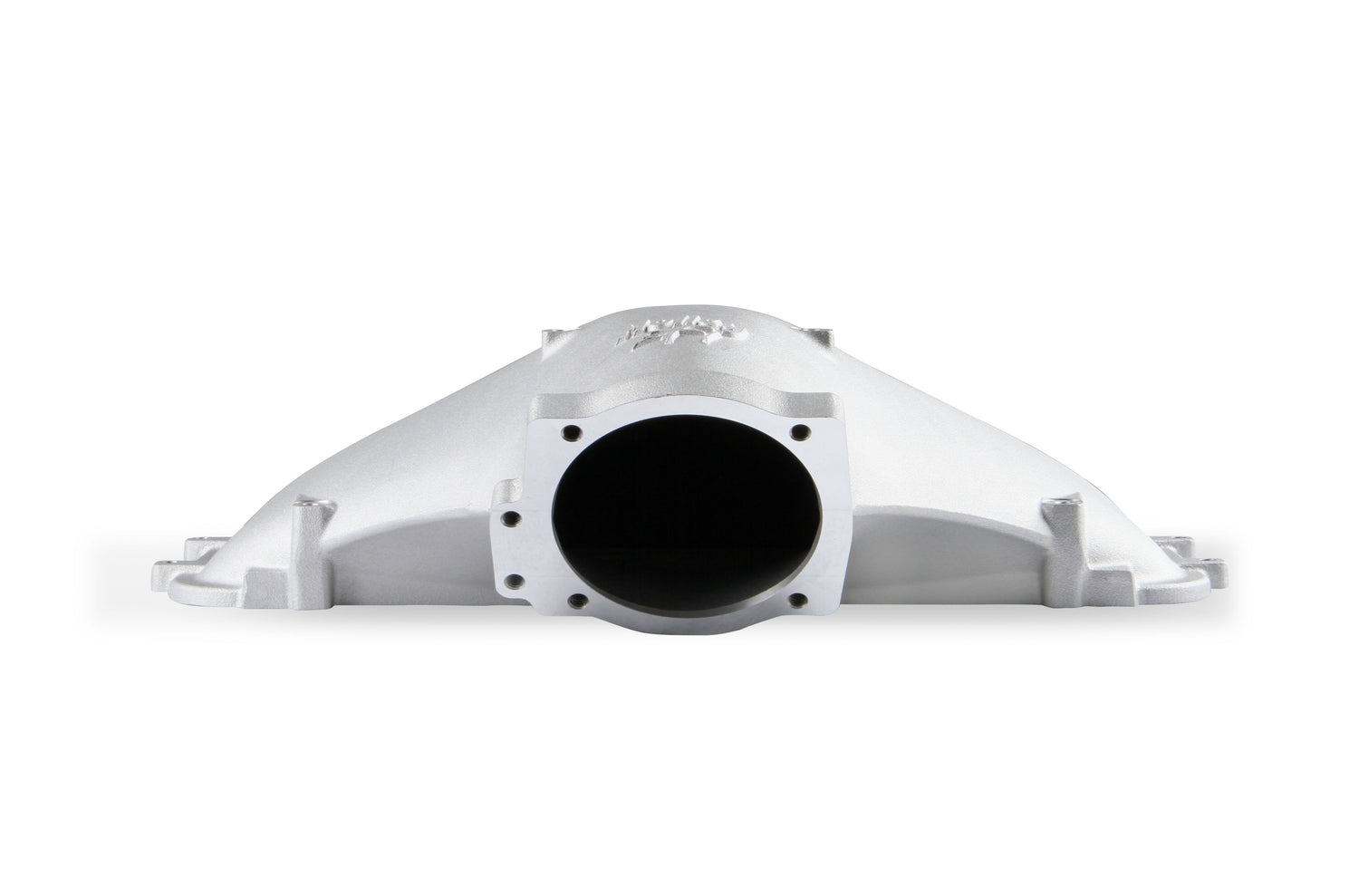

• Designed for side mounted throttle bodies
• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Manifold is designed for a 9.5" deck height.

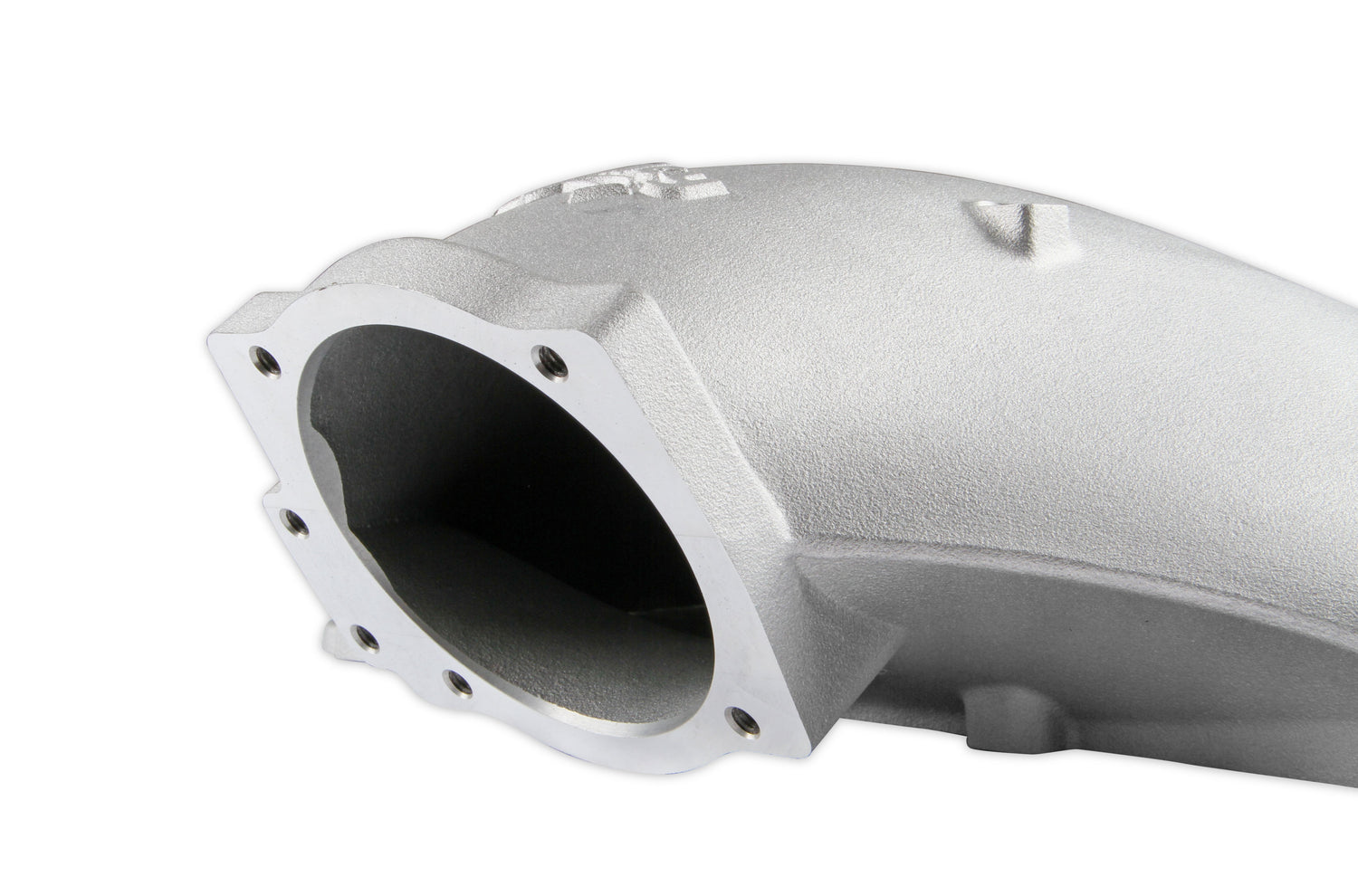

• The 351W manifold is available to work with 105MM throttle bodies
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111
• Ford 5.0 throttle body fitment
• Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.

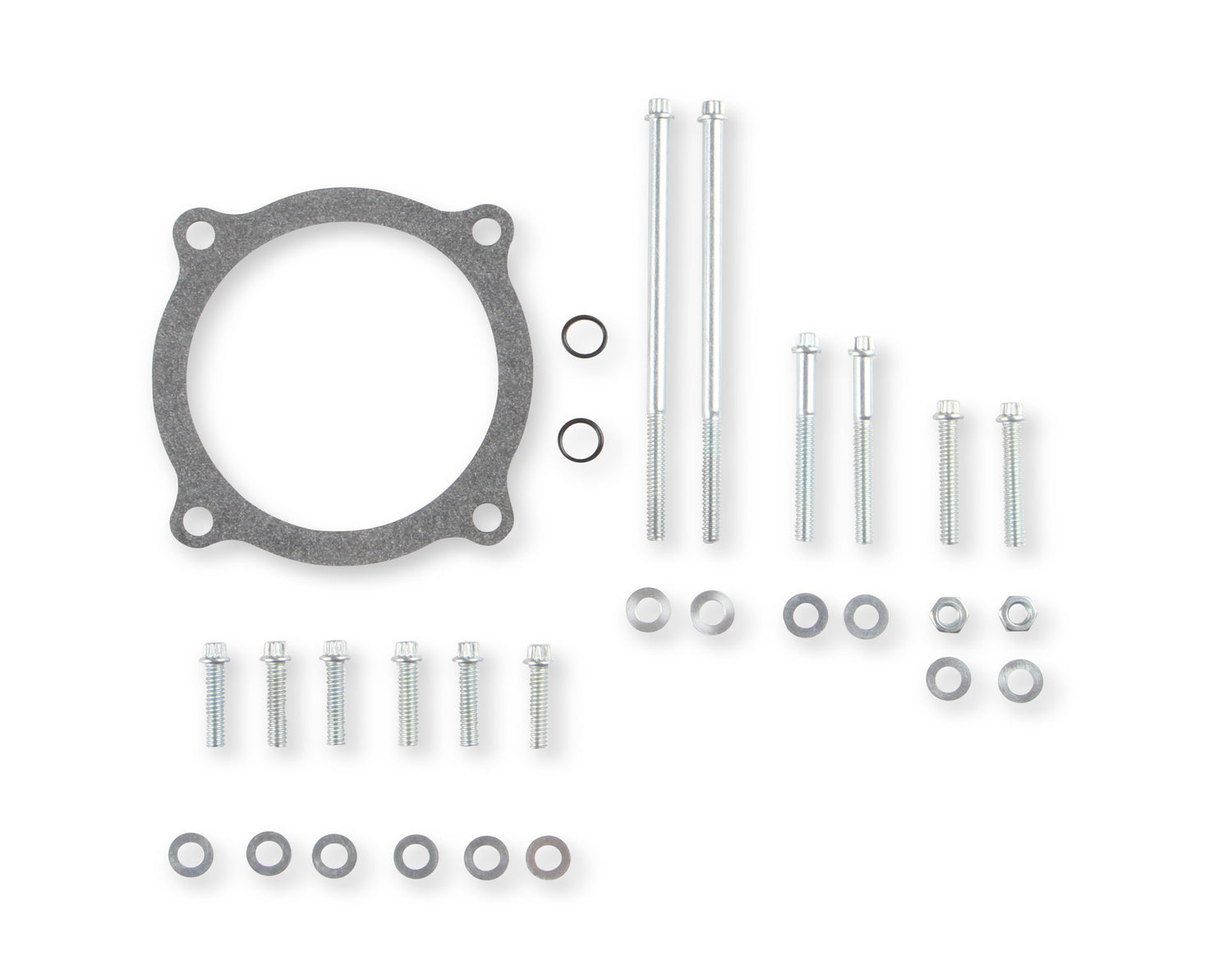

• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Allows room for designing boosted applications

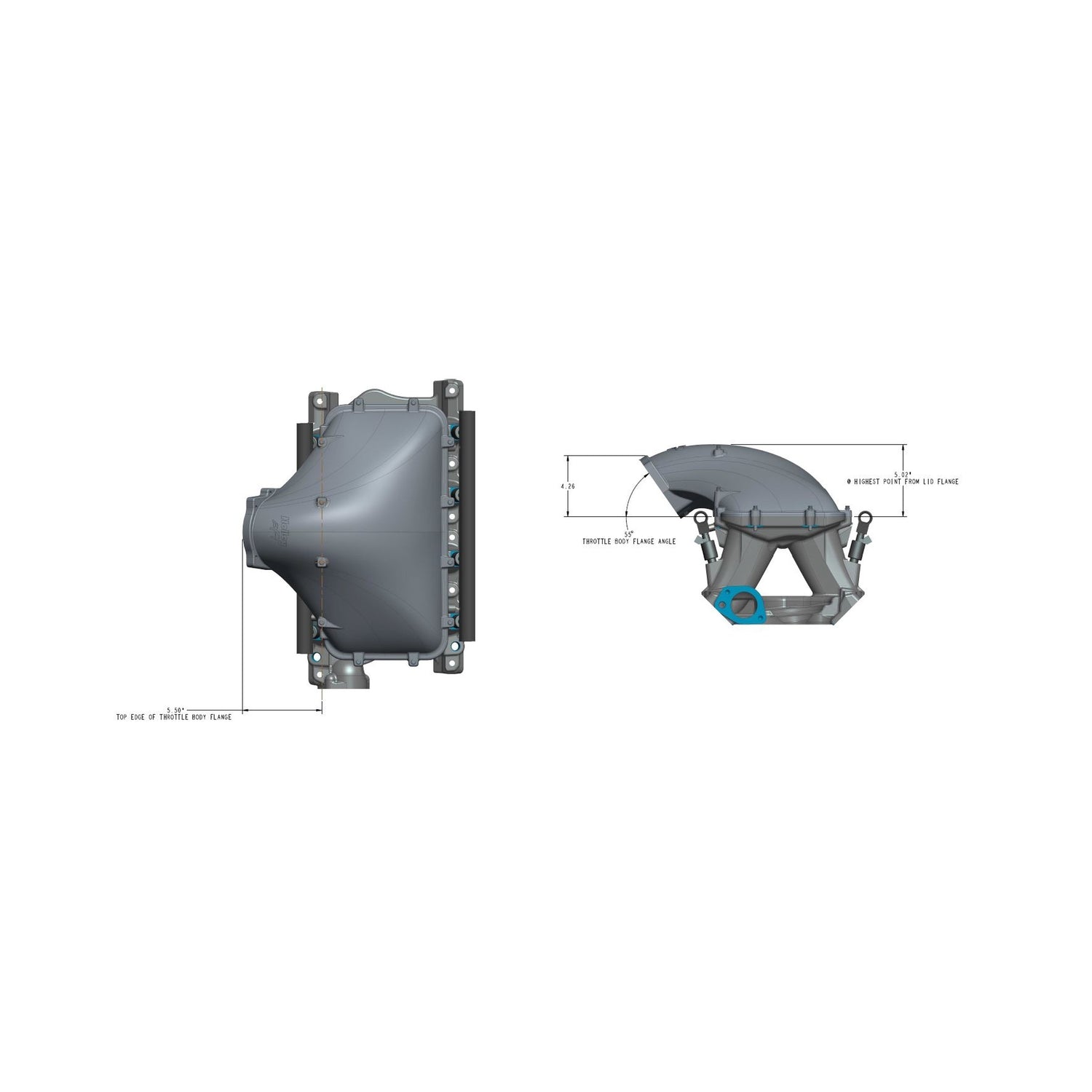

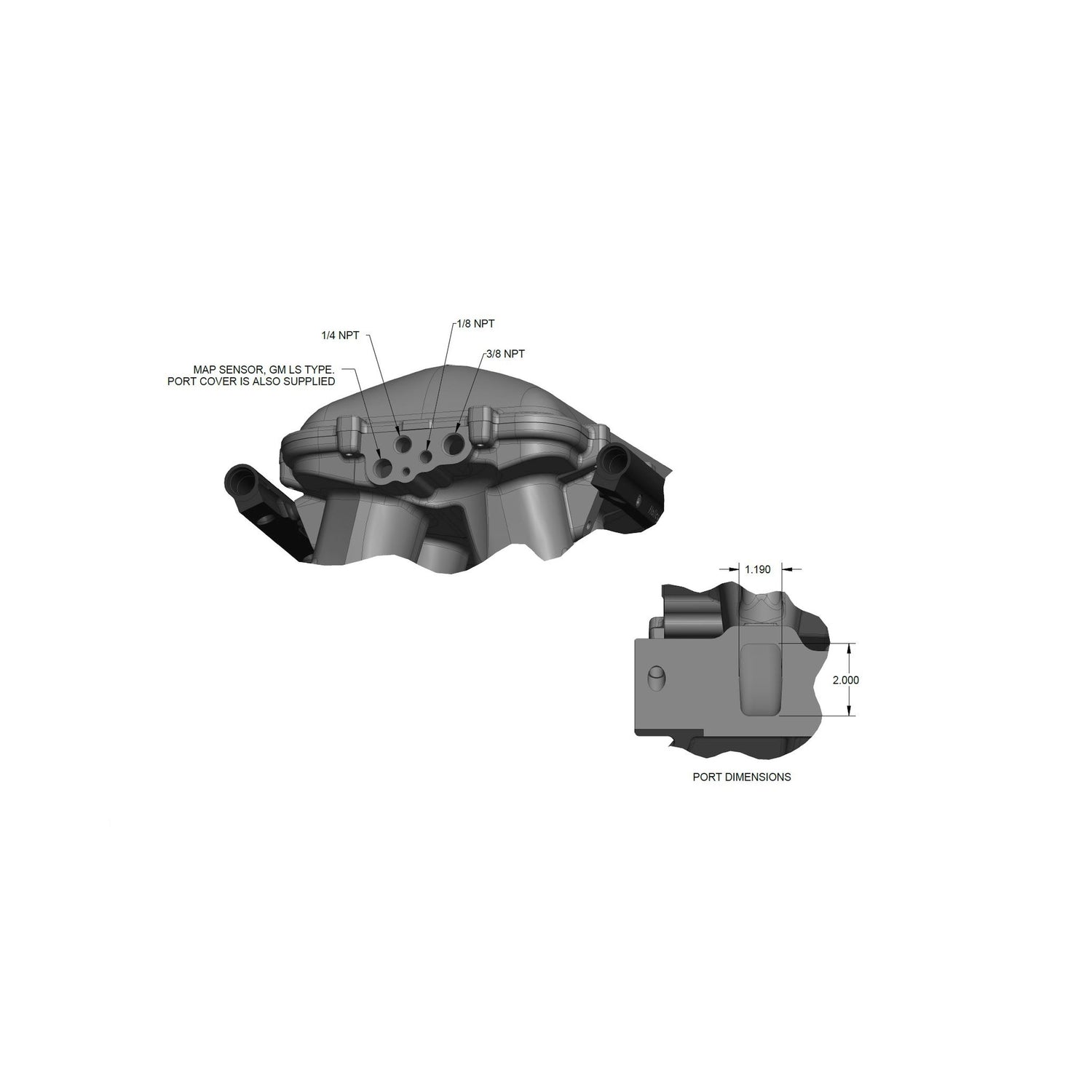

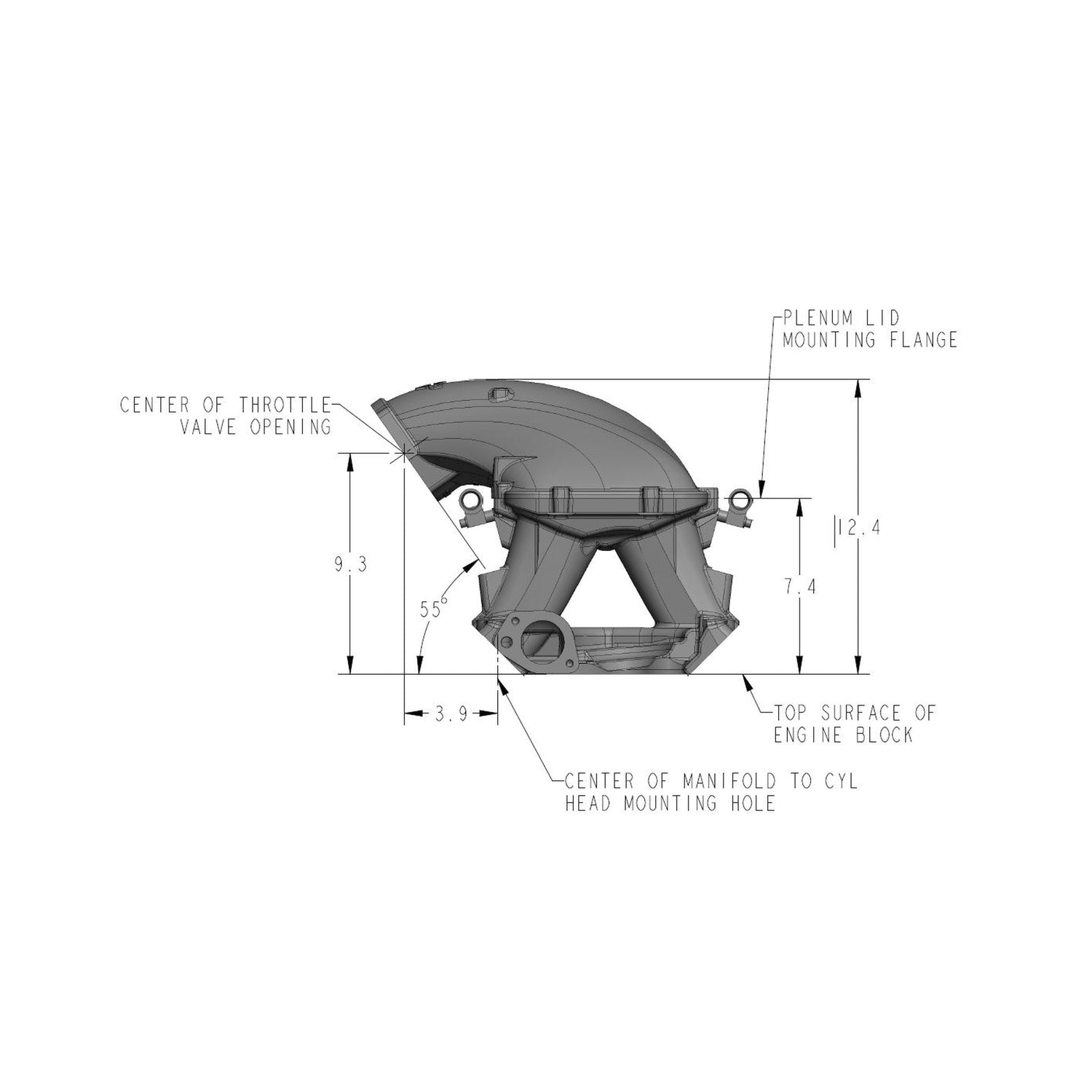

*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. *** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Part Number: 300-310
*** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. This EFI 351W Hi-Ram manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Manifold is designed for a 9.5" deck height.
Features and Benefits
• Designed for side mounted throttle bodies
• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Manifold is designed for a 9.5" deck height.
• The 351W manifold is available to work with 105MM throttle bodies
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111
• Ford 5.0 throttle body fitment
• Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Allows room for designing boosted applications
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. *** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-7000 RPM Brand Holley Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.5 IN EGR Port No Emission Code 3 Engine Ford 351W Flange Style EFI Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Hi-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Port Size 2.00" x 1.190" Product Type Intake Manifold Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 Throttle Body Gasket Included No Throttle Body Included No Throttle Bore 105mm Vacuum Ports Yes Warranty Manufacturer's Limited 90 Day Warranty
