Holley | SKU:
300-261

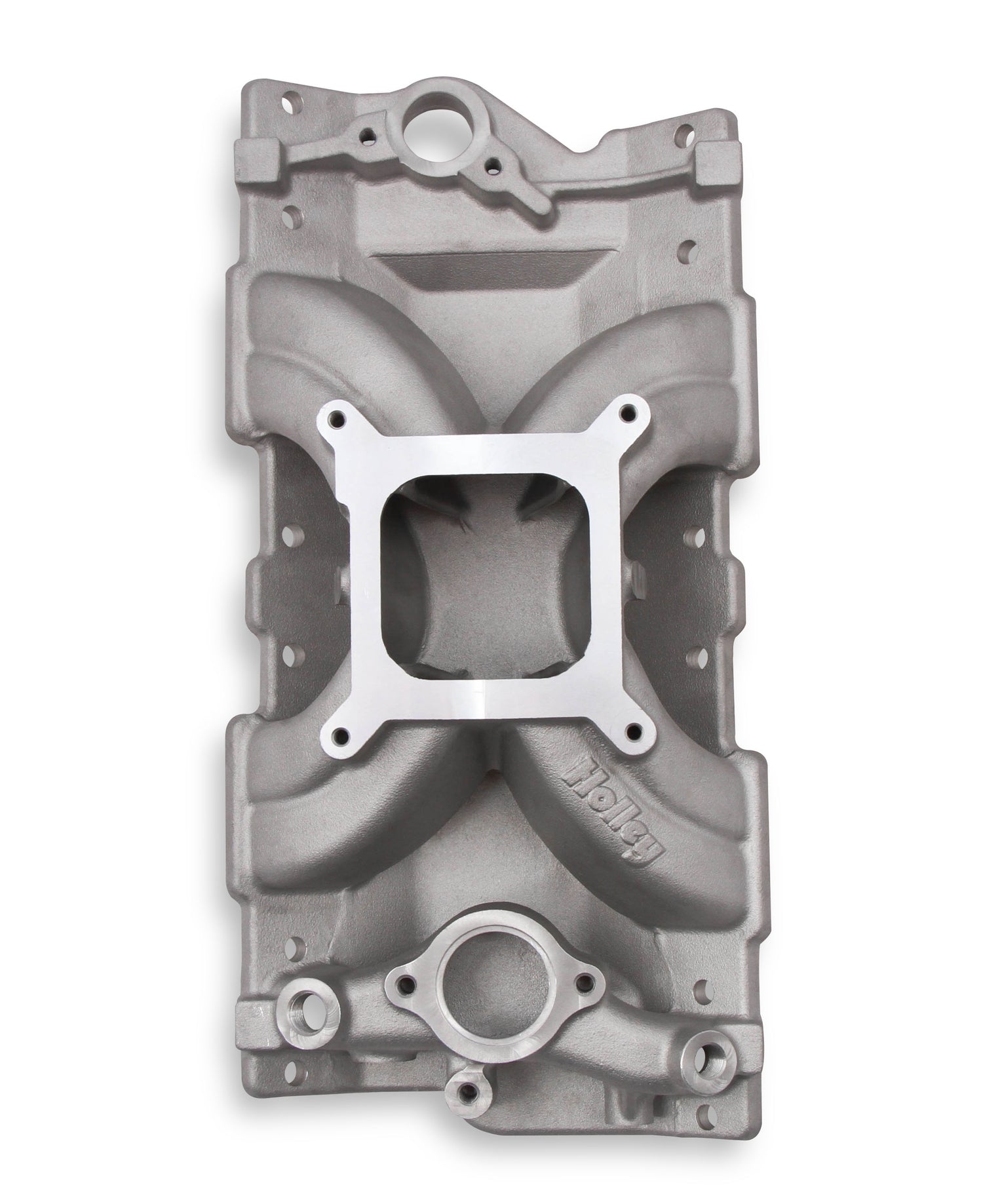

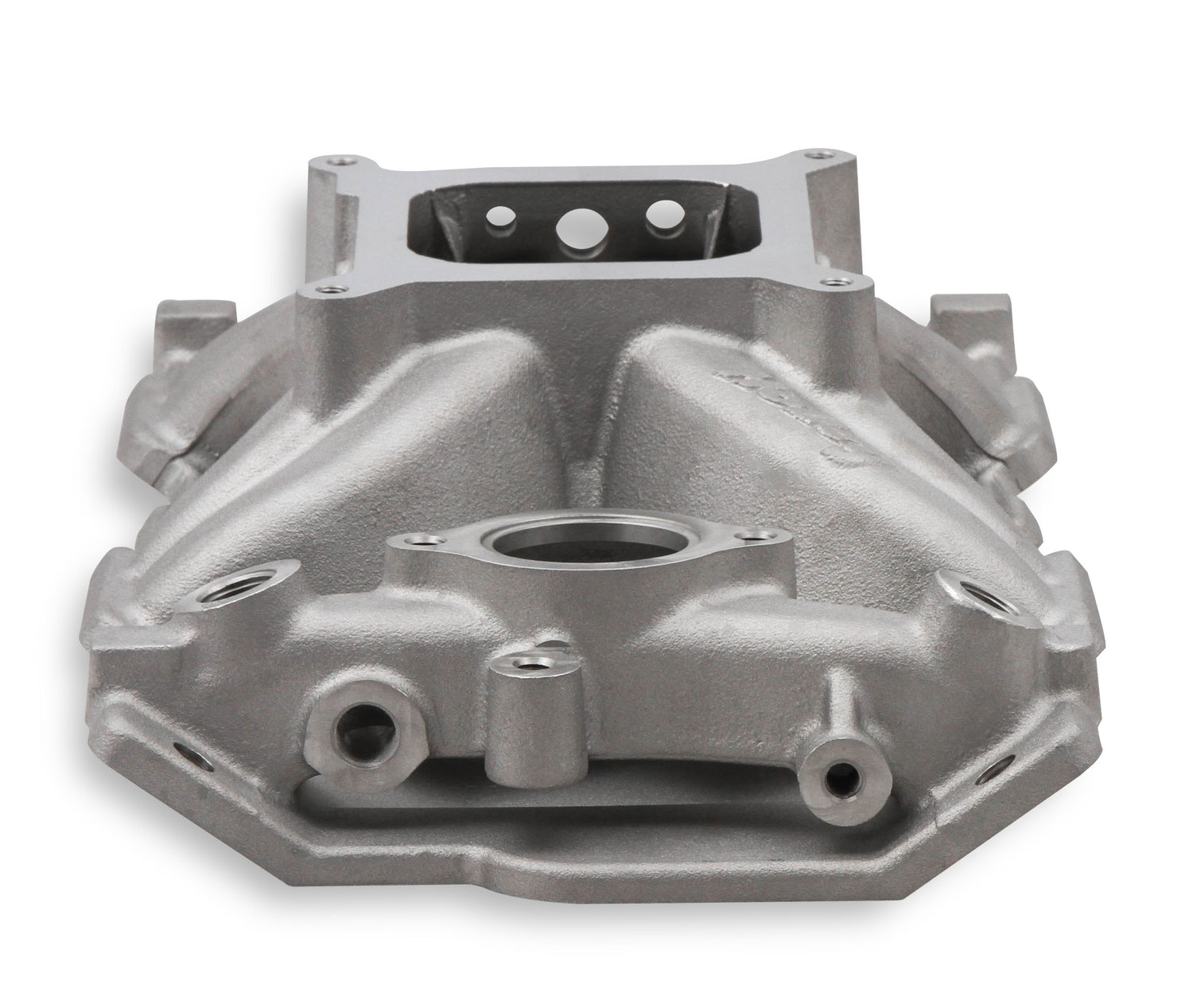

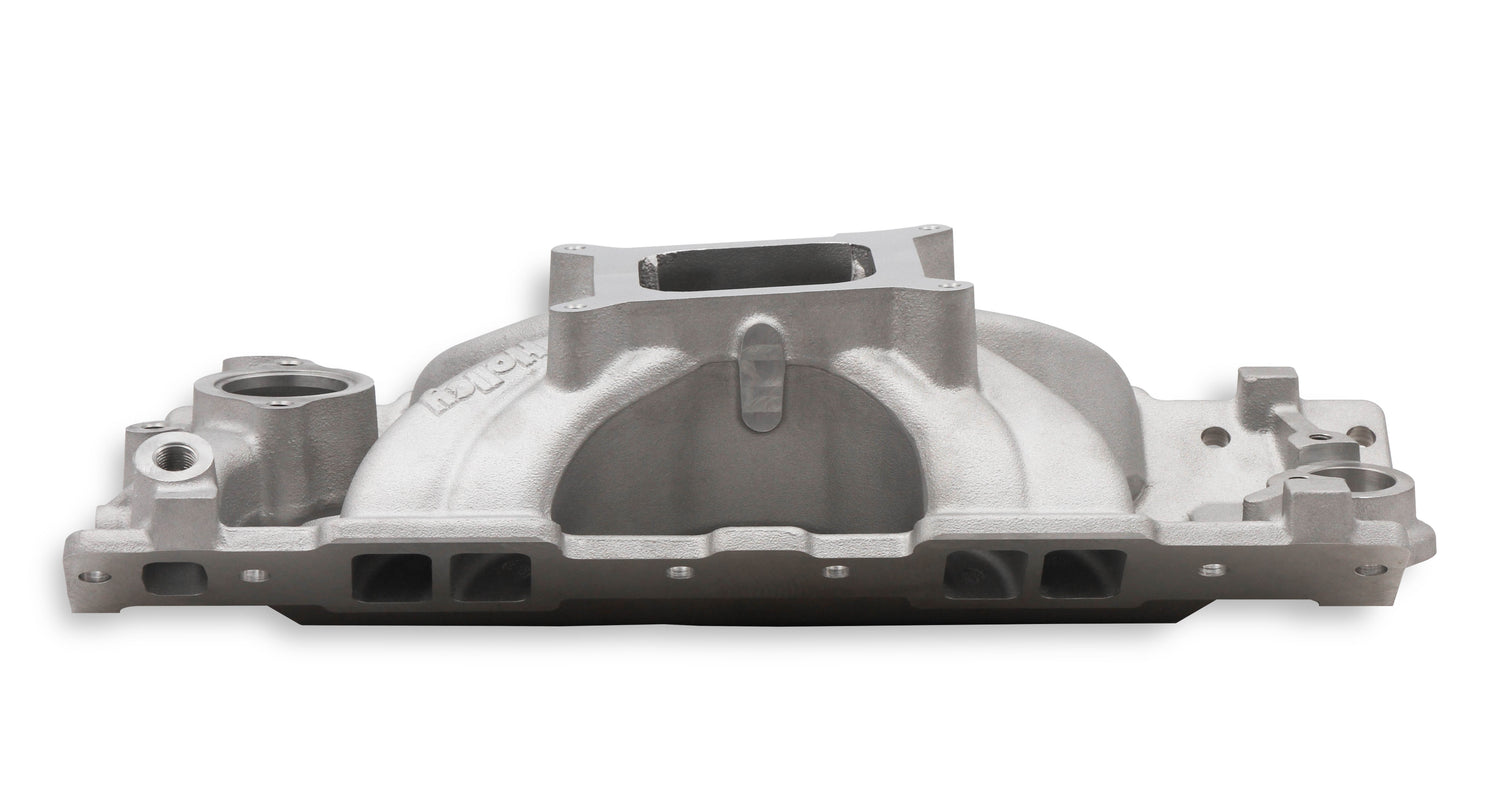

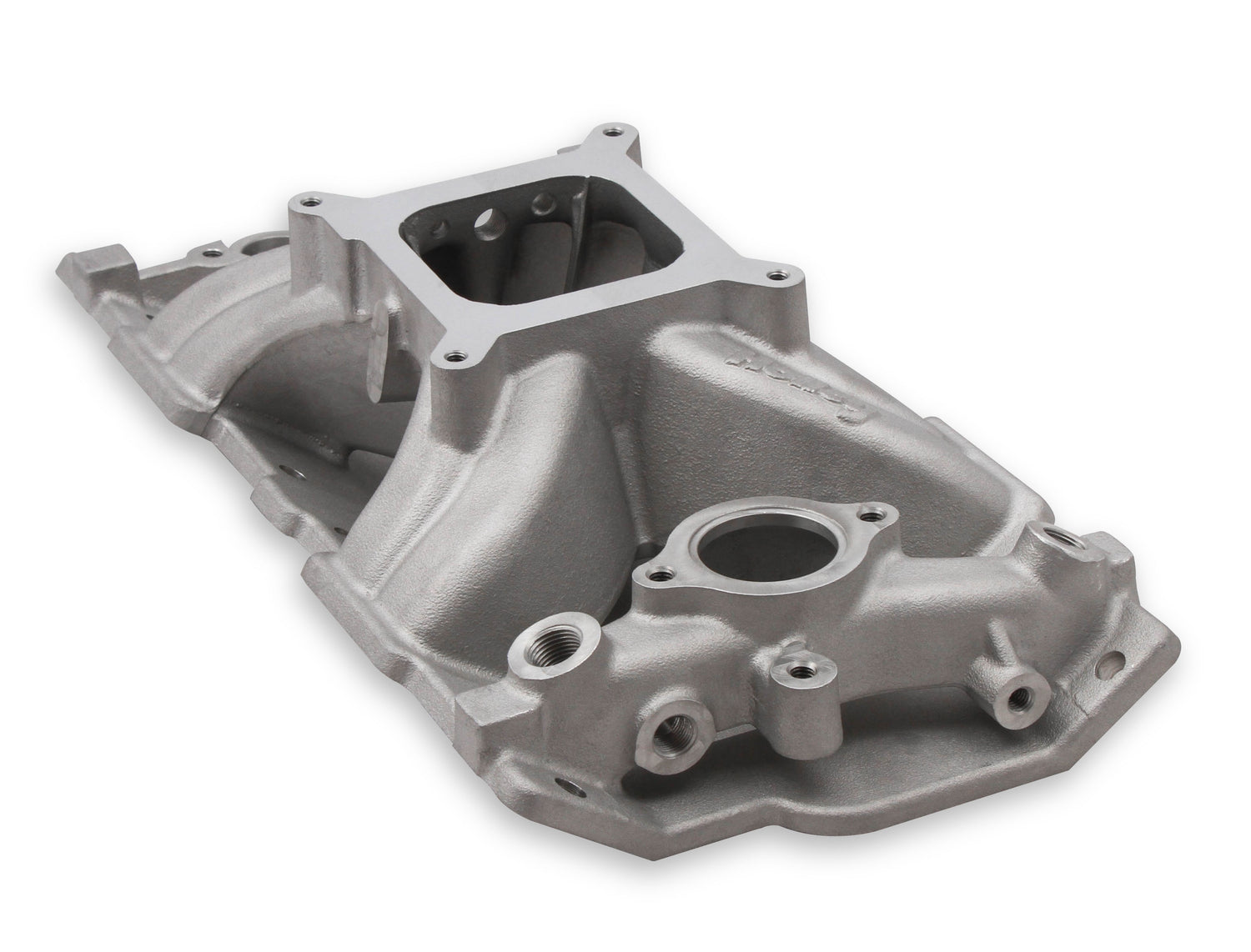

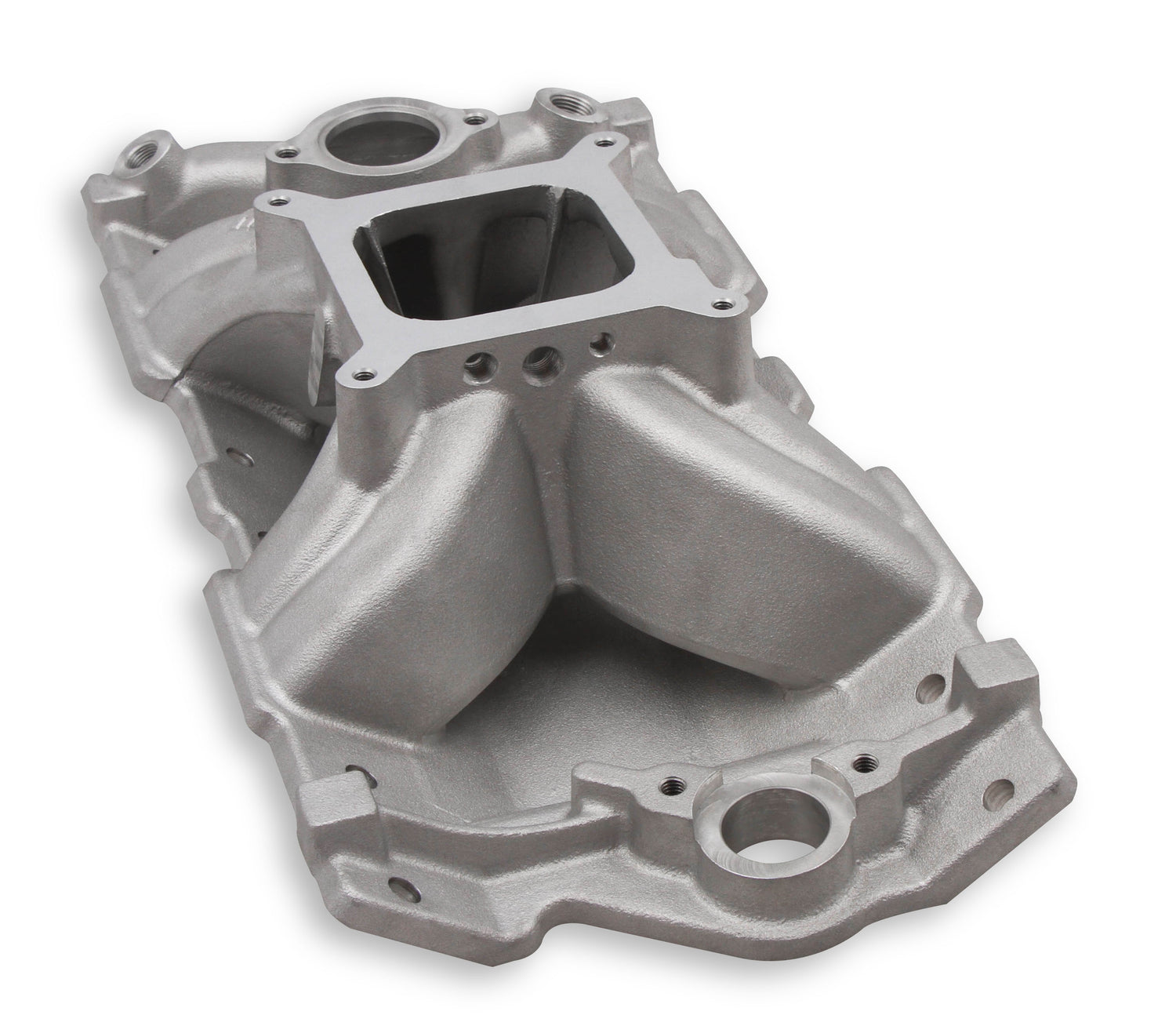

Holley 300-261 Single Plane Intake Manifold- Chevy Small Block V8
Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
Regular price
$902.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-261 Single Plane Intake Manifold- Chevy Small Block V8 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
Part Number: 300-261

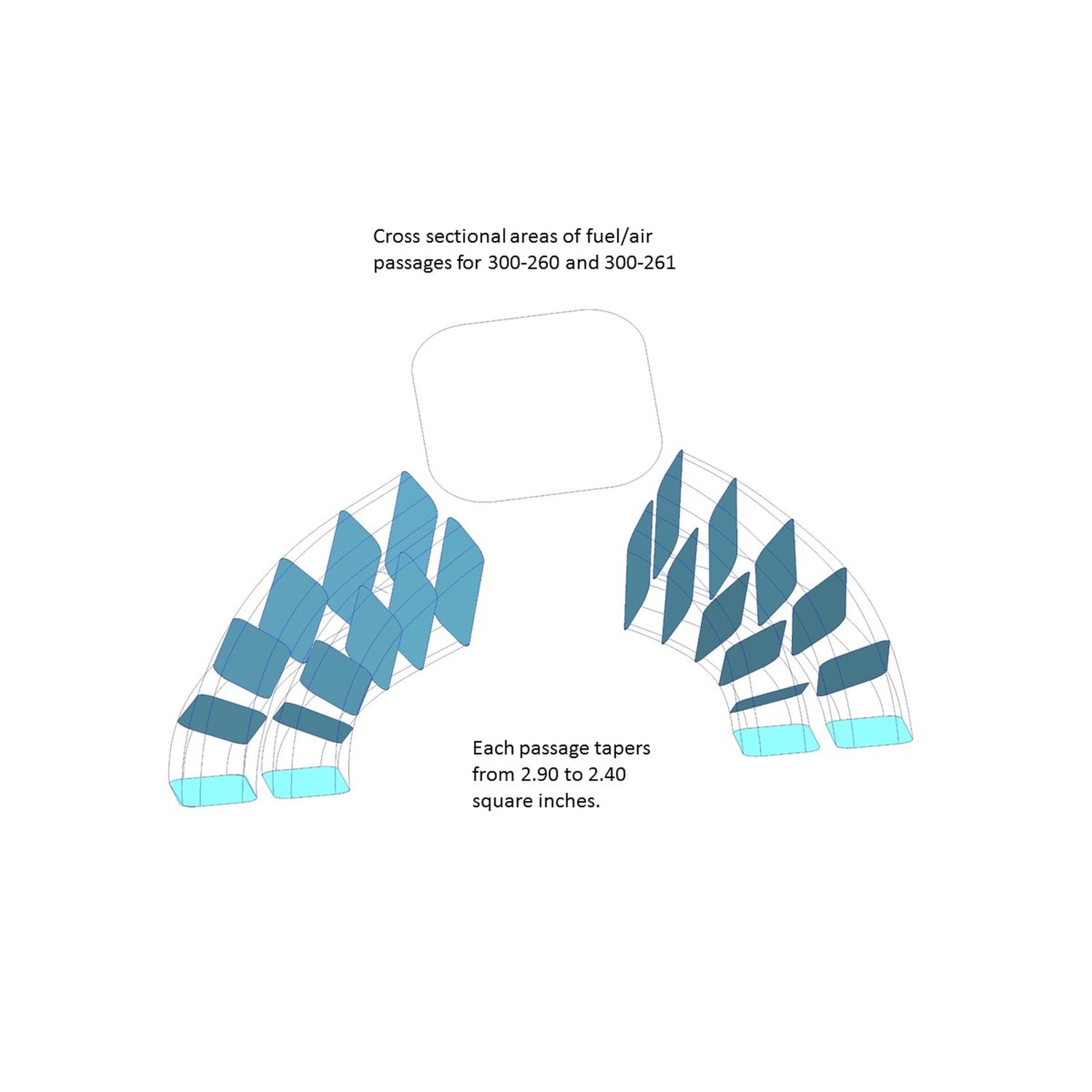

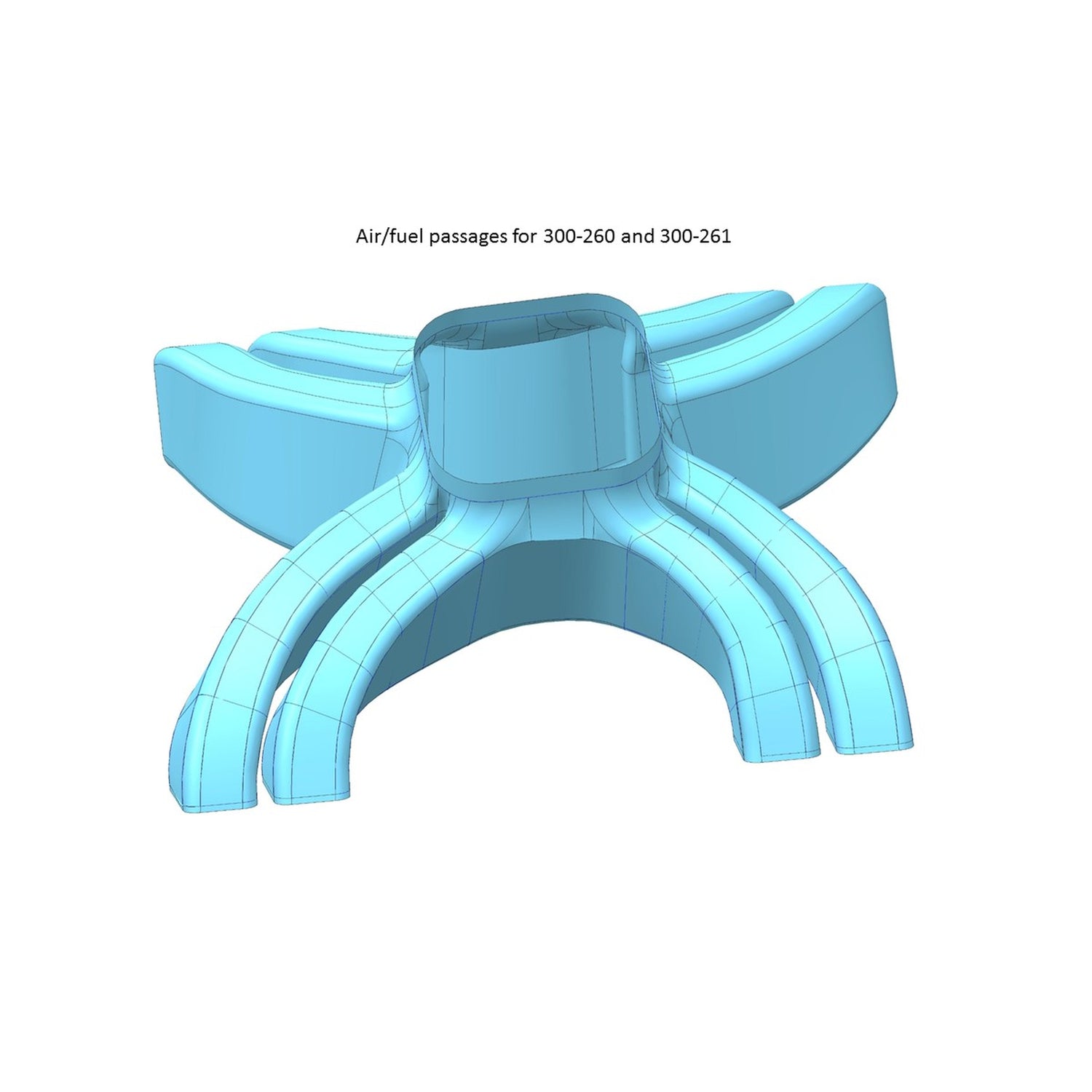

The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features, like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance.
Features and Benefits
• Power band: 2500-7500 RPM
• Square Bore Carburetor Mounting Flange
• Isolated Water cross-over
• Port Size: 1.92” height 1.20" width

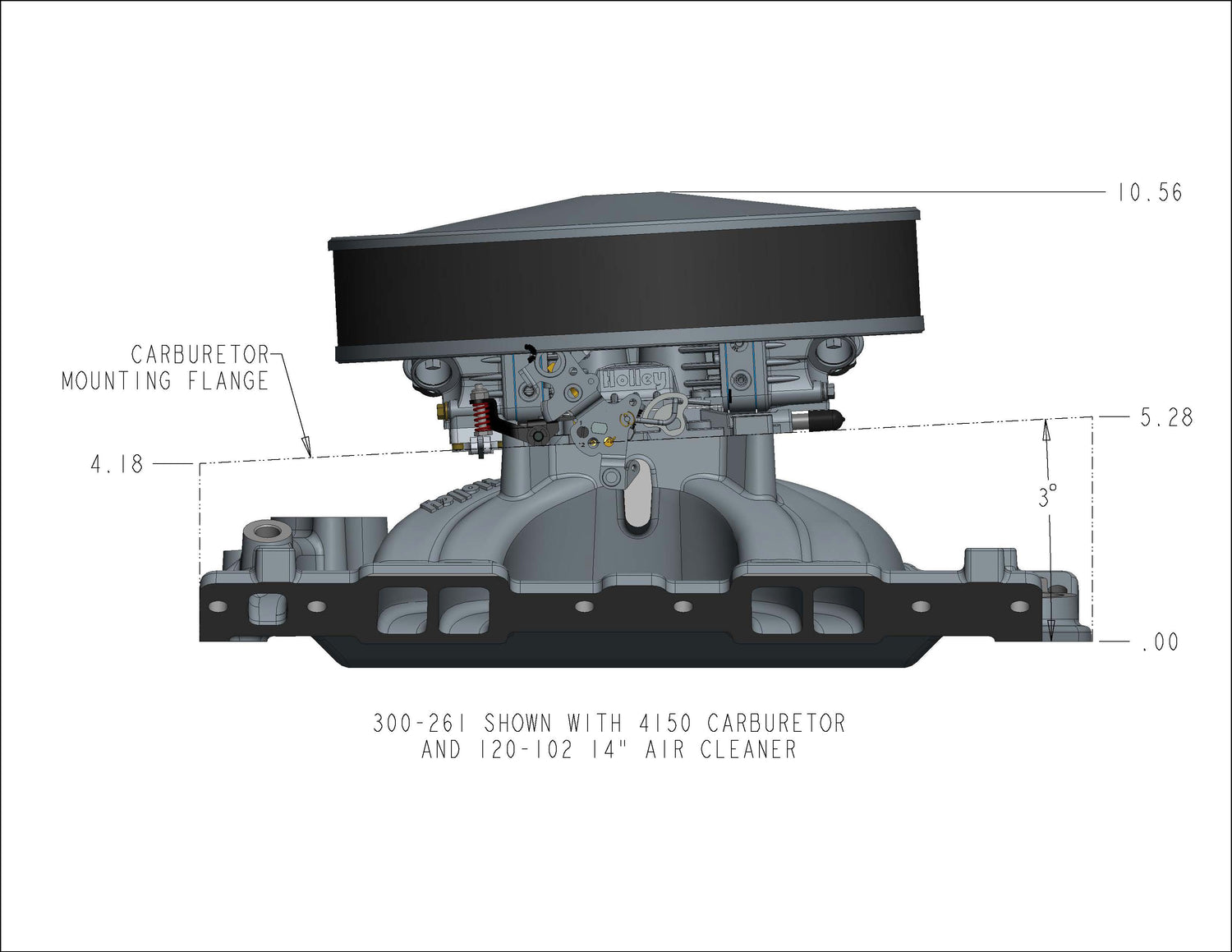

• Height: Front 4.18", Rear 5.28"

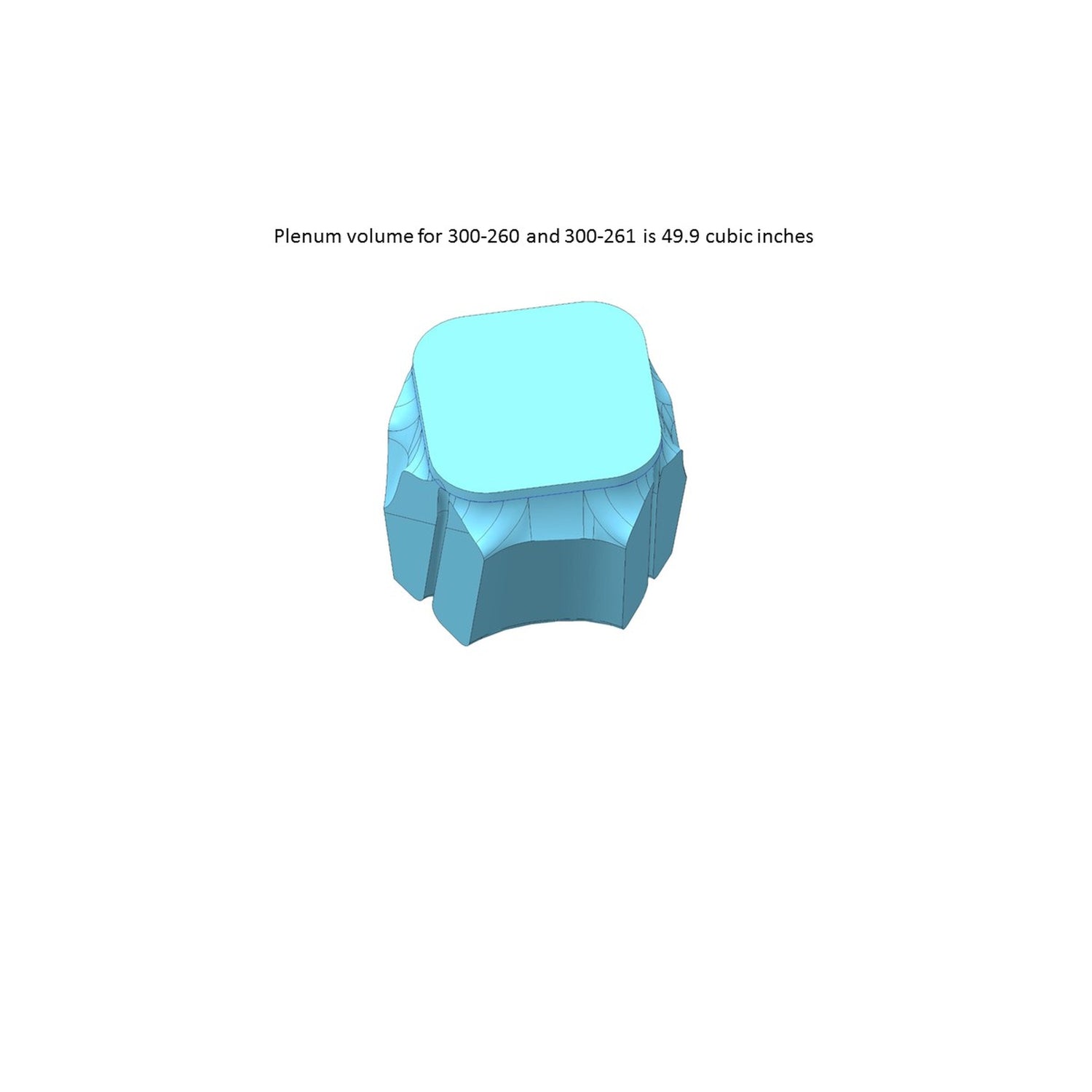

• Single Plane with Isolated Plenum
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads.
Part Number: 300-261
The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features, like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance.
Features and Benefits
• Power band: 2500-7500 RPM
• Square Bore Carburetor Mounting Flange
• Isolated Water cross-over
• Port Size: 1.92” height 1.20" width
• Height: Front 4.18", Rear 5.28"
• Single Plane with Isolated Plenum
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range 2500-7500 Brand Holley Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block - 87+ Aluminum Heads Flange Style 4150 Square Bore Front Maximum Height 4.18 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Rear Maximum Height 5.28 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
