Holley EFI | SKU:
300-260

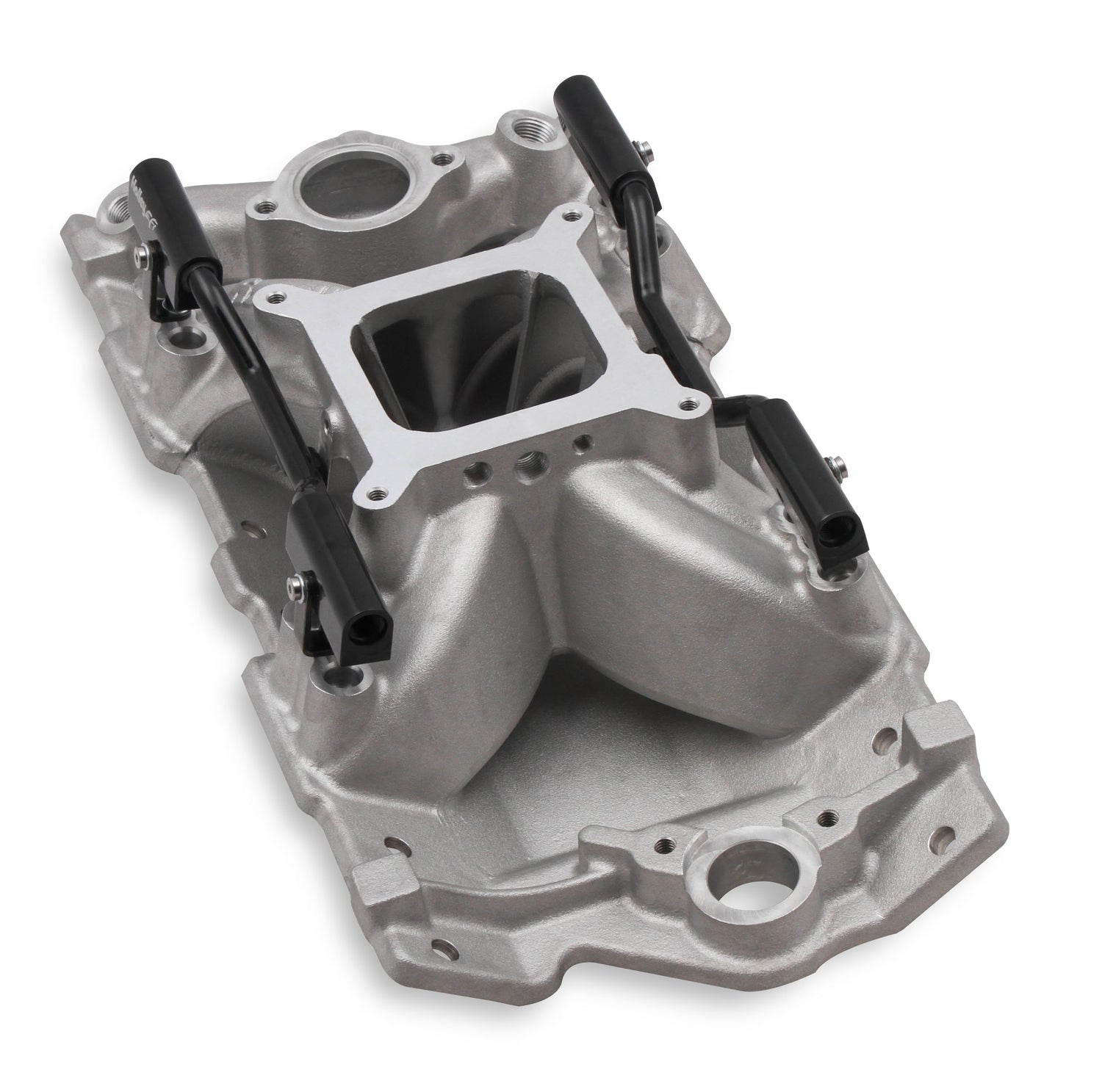

Holley 300-260 EFI SBC 4150 Single Plane EFI Intake Manifold - Chevy Small Block V8
EFI Single Plane Manifold 1962-1986 262ci-400ci, 1987-later with Aluminum Heads
Regular price
$1,189.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-260 EFI SBC 4150 Single Plane EFI Intake Manifold - Chevy Small Block V8 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
EFI Single Plane Manifold 1962-1986 262ci-400ci, 1987-later with Aluminum Heads
Part Number: 300-260

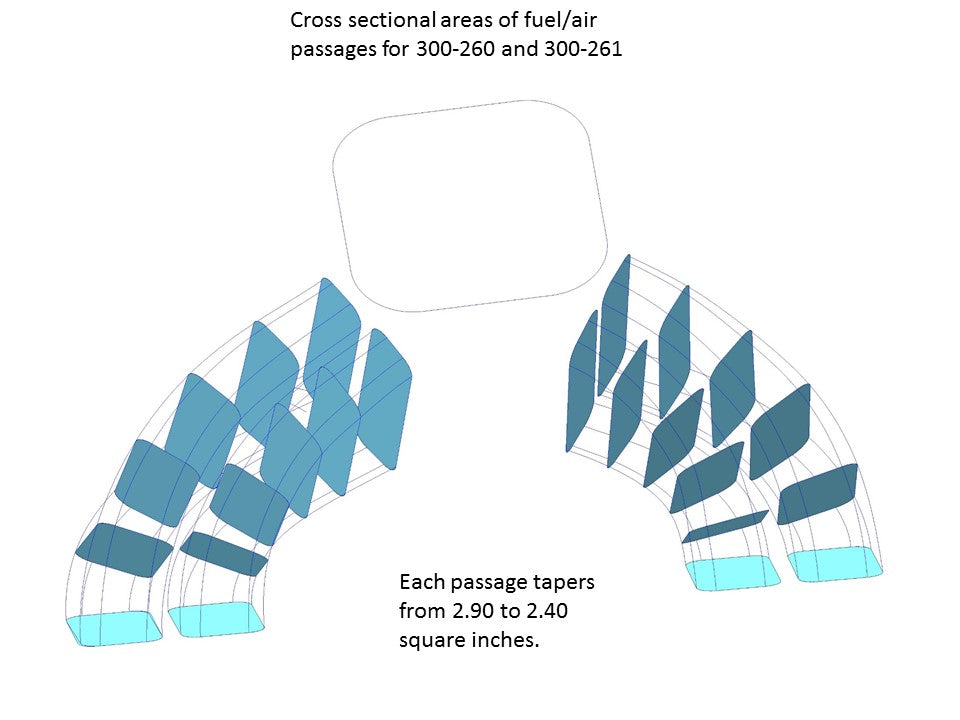

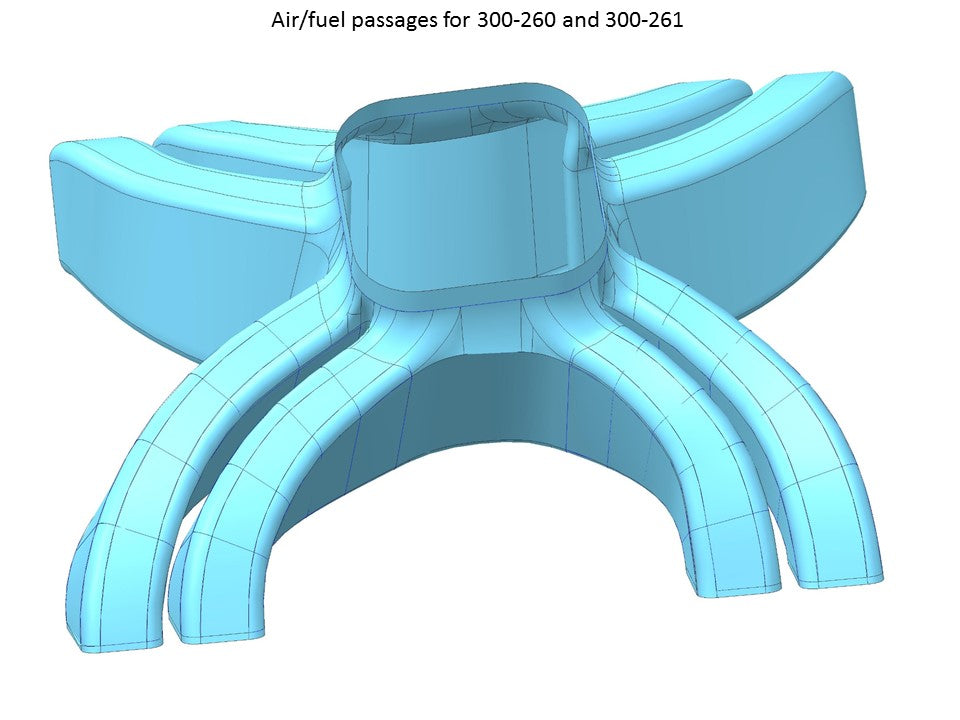

The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. (Injectors are not included) Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance.
Features and Benefits

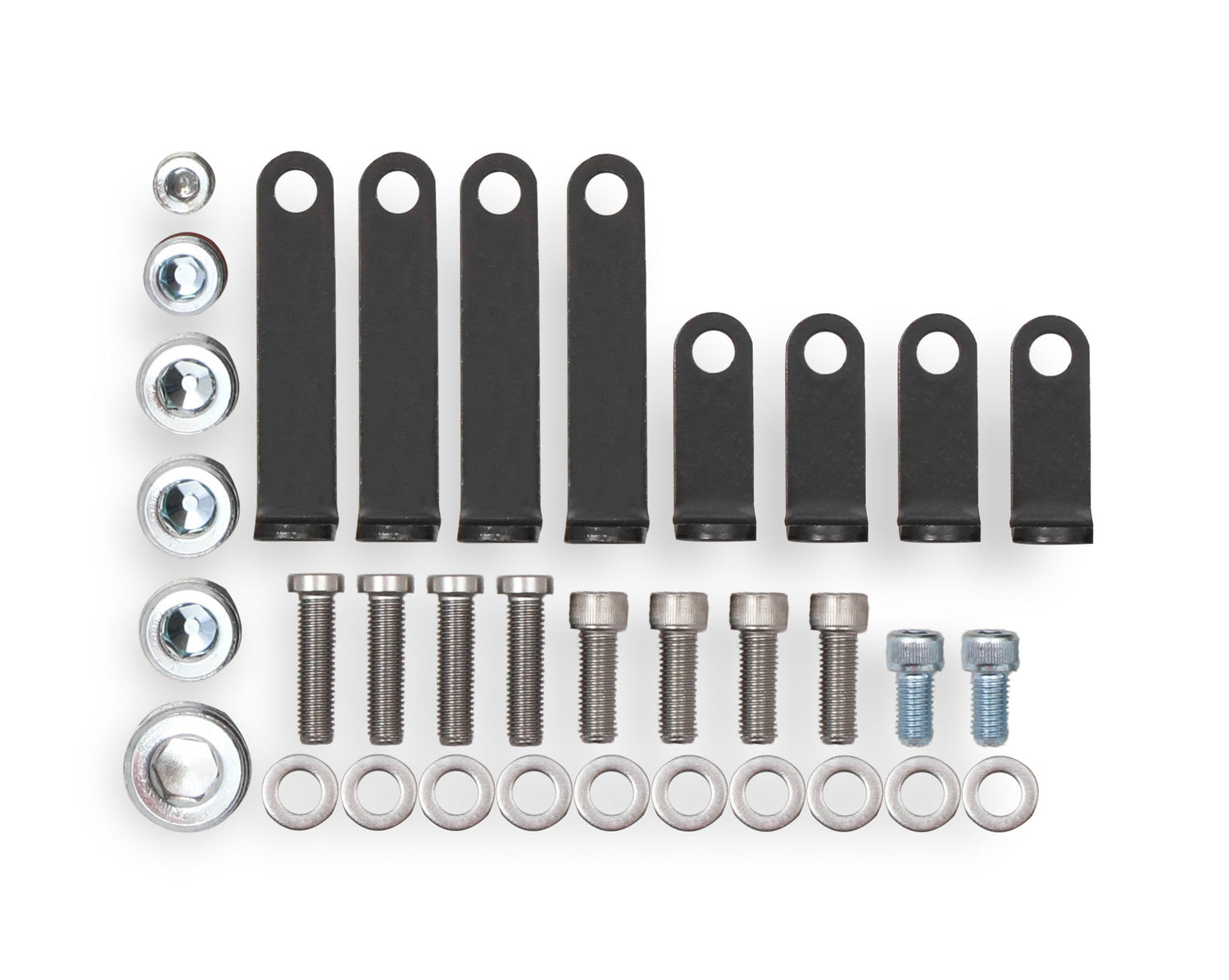

• Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
• Power band: 2500-7500 RPM
• Fuel injectors are not included
• Lower Throttle Body Mounting height to help with hood clearance.

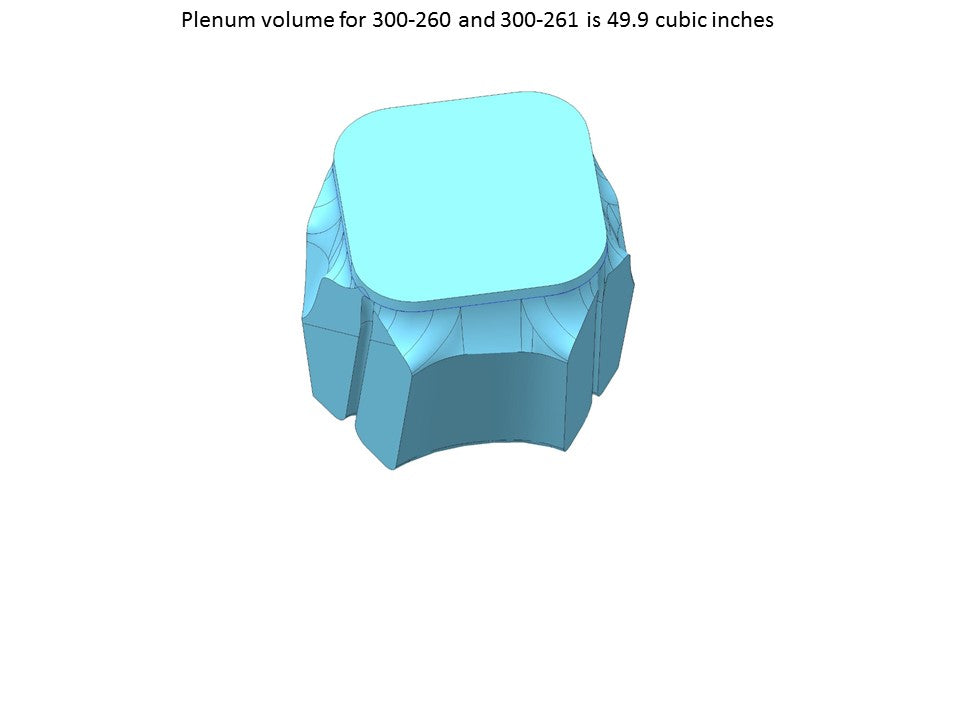

• Single Plane Design with isolated Plenum
• 4150 Square Bore Mounting Flange
• Port Size: 1.92” height 1.20" width
• Fuel rail designed for maximum throttle lever clearance.

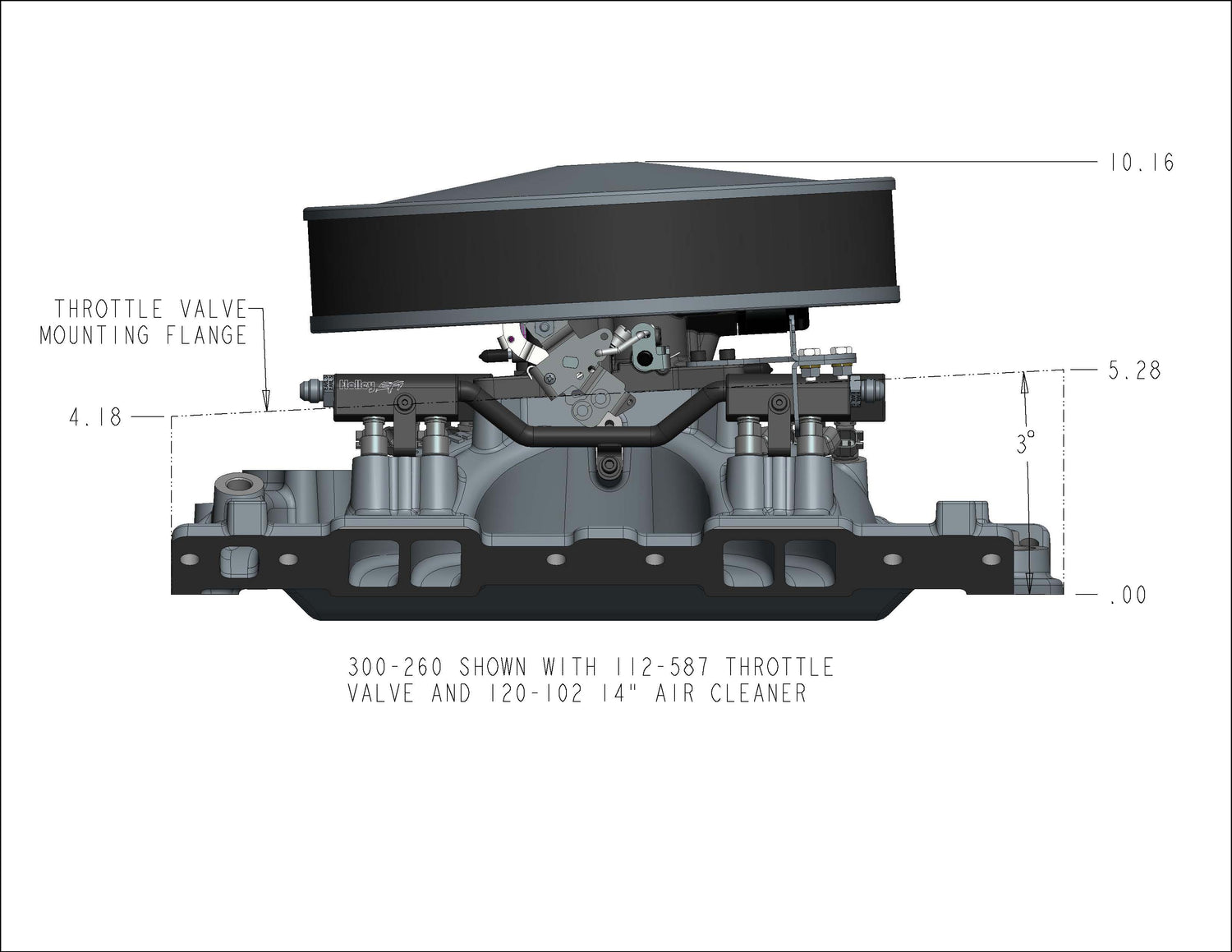

• Height: Front 4.18", Rear 5.28"
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads._x000D_ The fuel rail inlet threads are 9/16-18 for a -6 port.
Part Number: 300-260
The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. (Injectors are not included) Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance.
Features and Benefits
• Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
• Power band: 2500-7500 RPM
• Fuel injectors are not included
• Lower Throttle Body Mounting height to help with hood clearance.
• Single Plane Design with isolated Plenum
• 4150 Square Bore Mounting Flange
• Port Size: 1.92” height 1.20" width
• Fuel rail designed for maximum throttle lever clearance.
• Height: Front 4.18", Rear 5.28"
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads._x000D_ The fuel rail inlet threads are 9/16-18 for a -6 port.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2500-7500 Brand Holley EFI Carburetor Flange Square/4150 Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Silver Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Gen I Flange Style 4150 Square Bore Front Maximum Height 4.18 Fuel Injectors Included No Fuel Inlet 9/16-18" Fuel Rail(s) Included No Fuel System Type EFI Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type EFI Intake Manifold Rear Maximum Height 5.28 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
