Holley EFI | SKU:
300-242BK

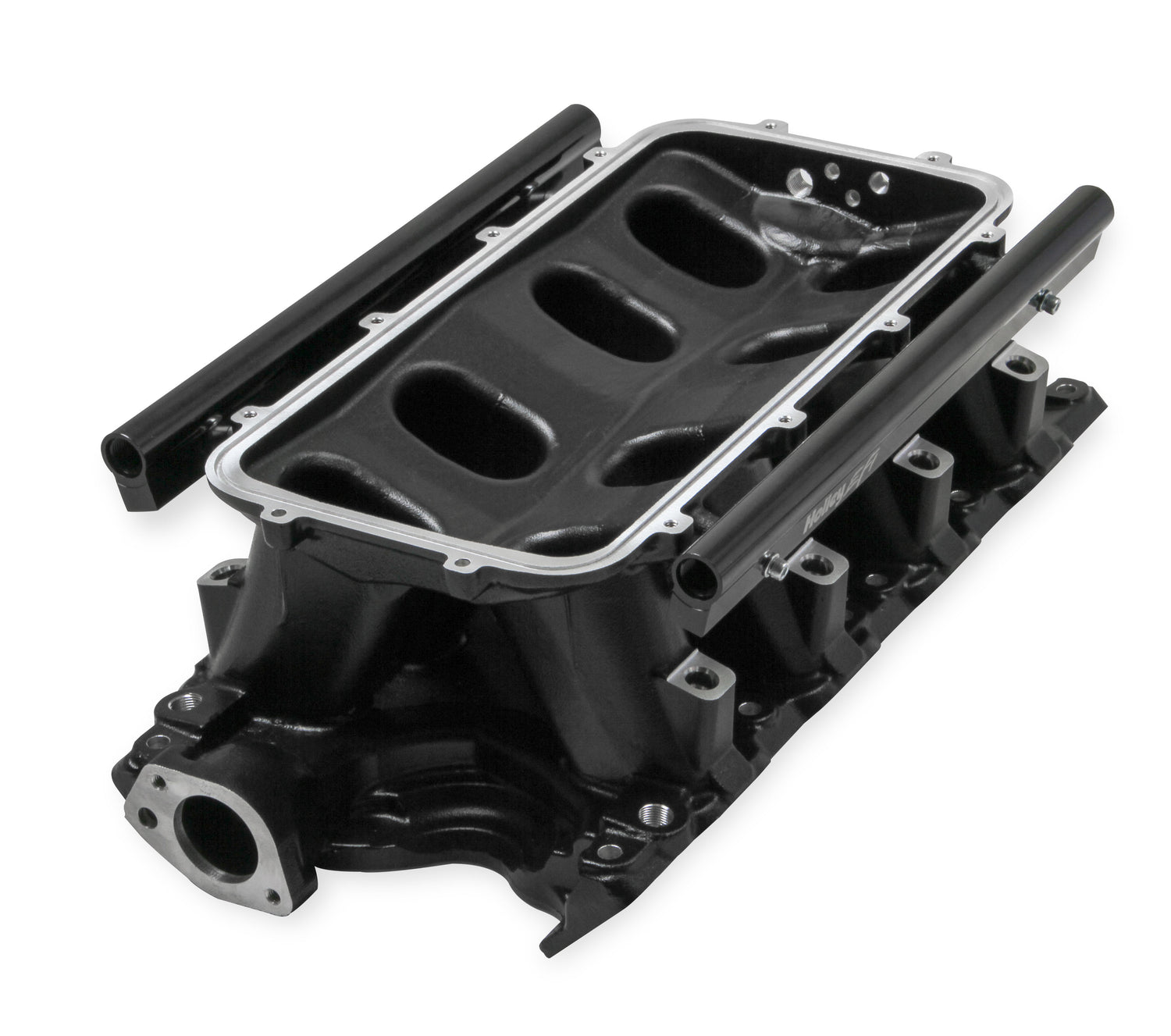

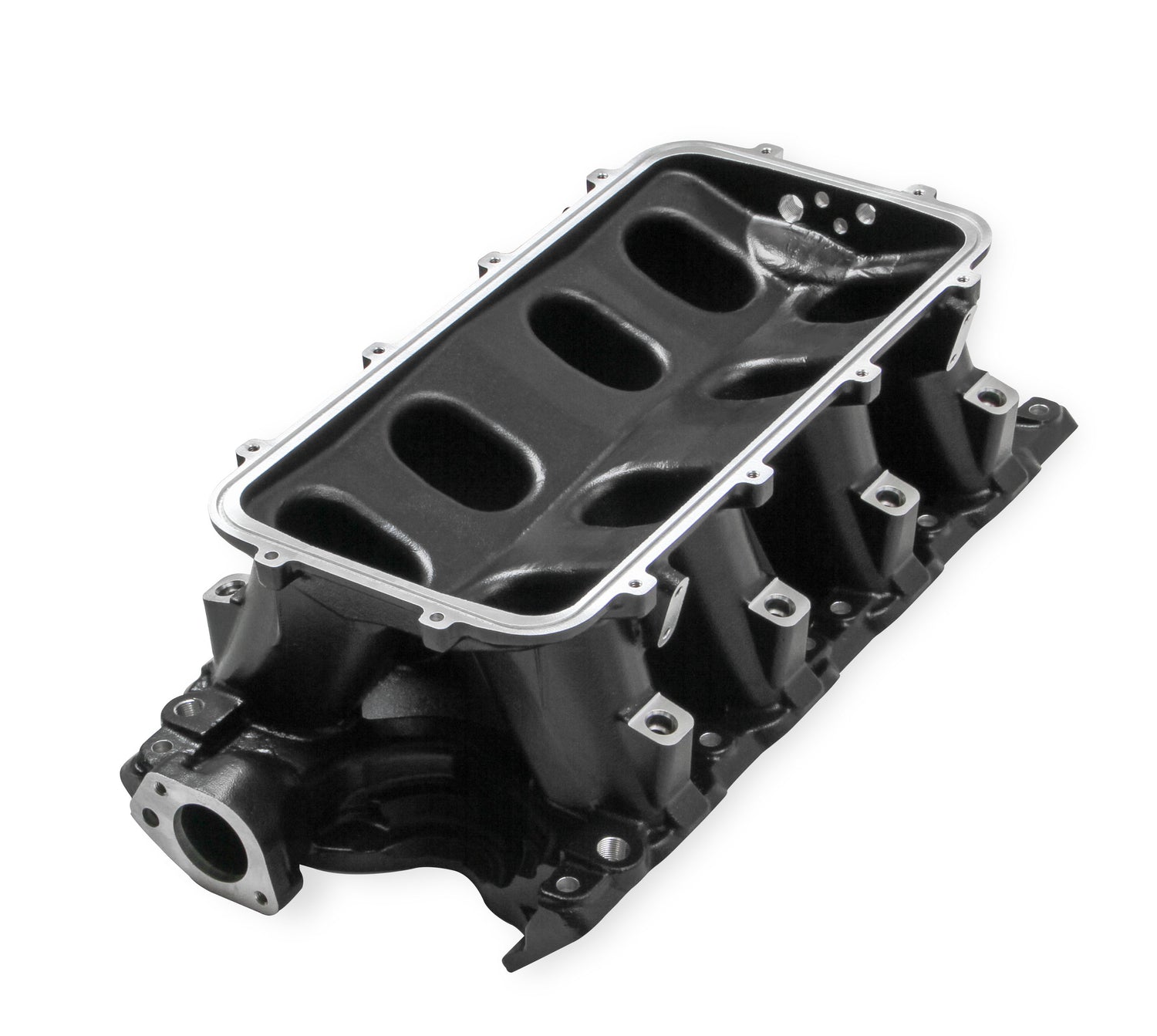

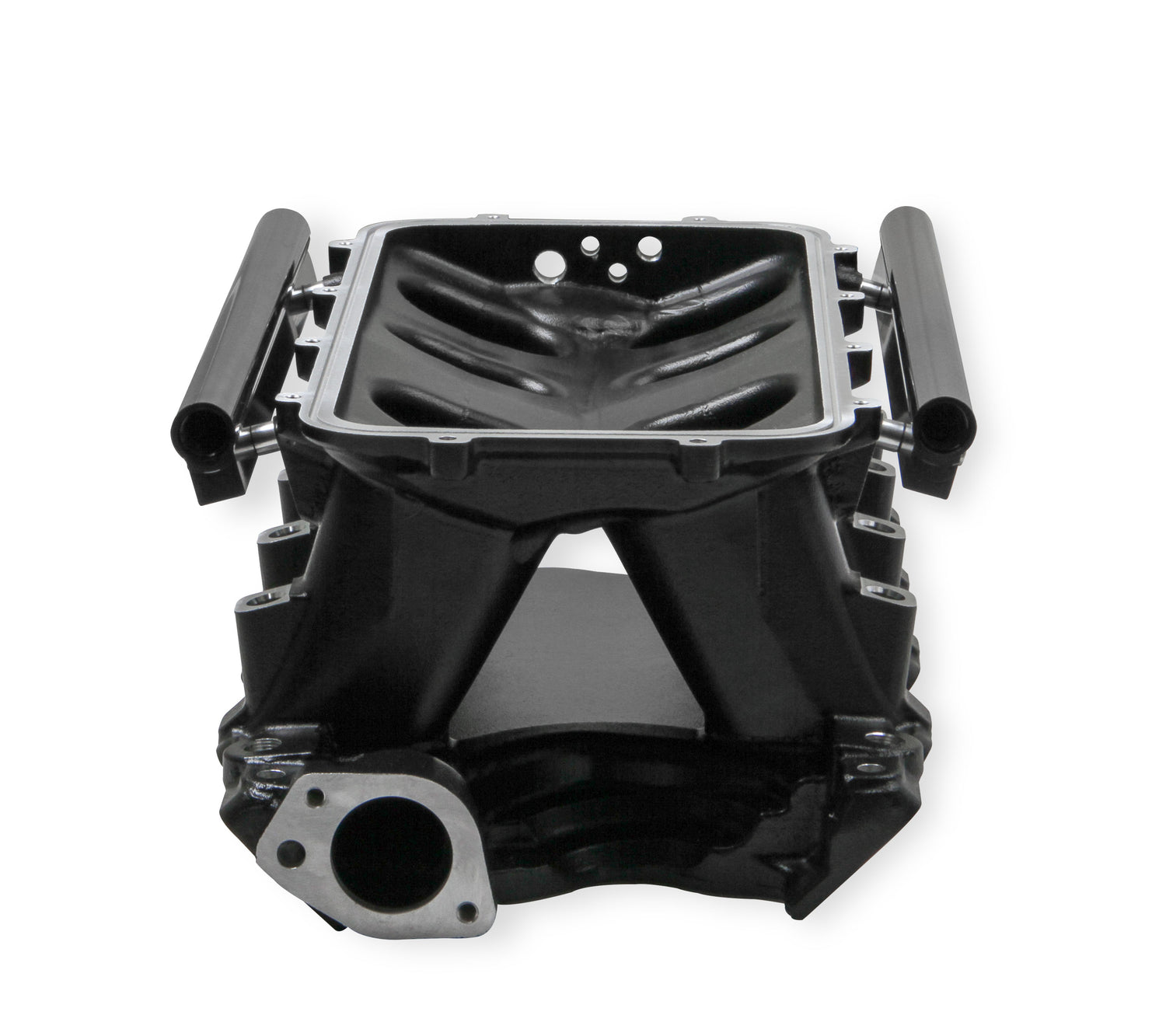

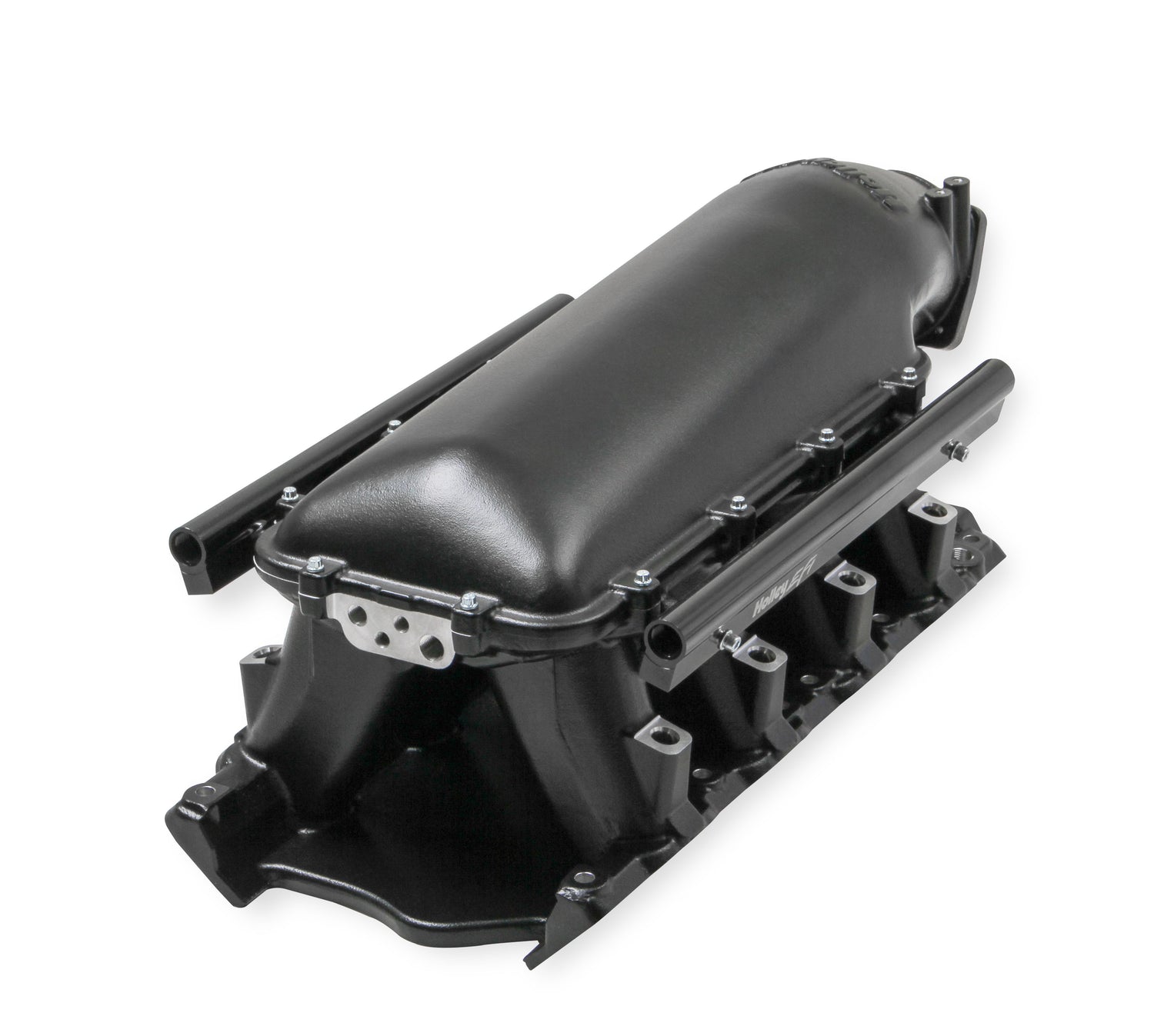

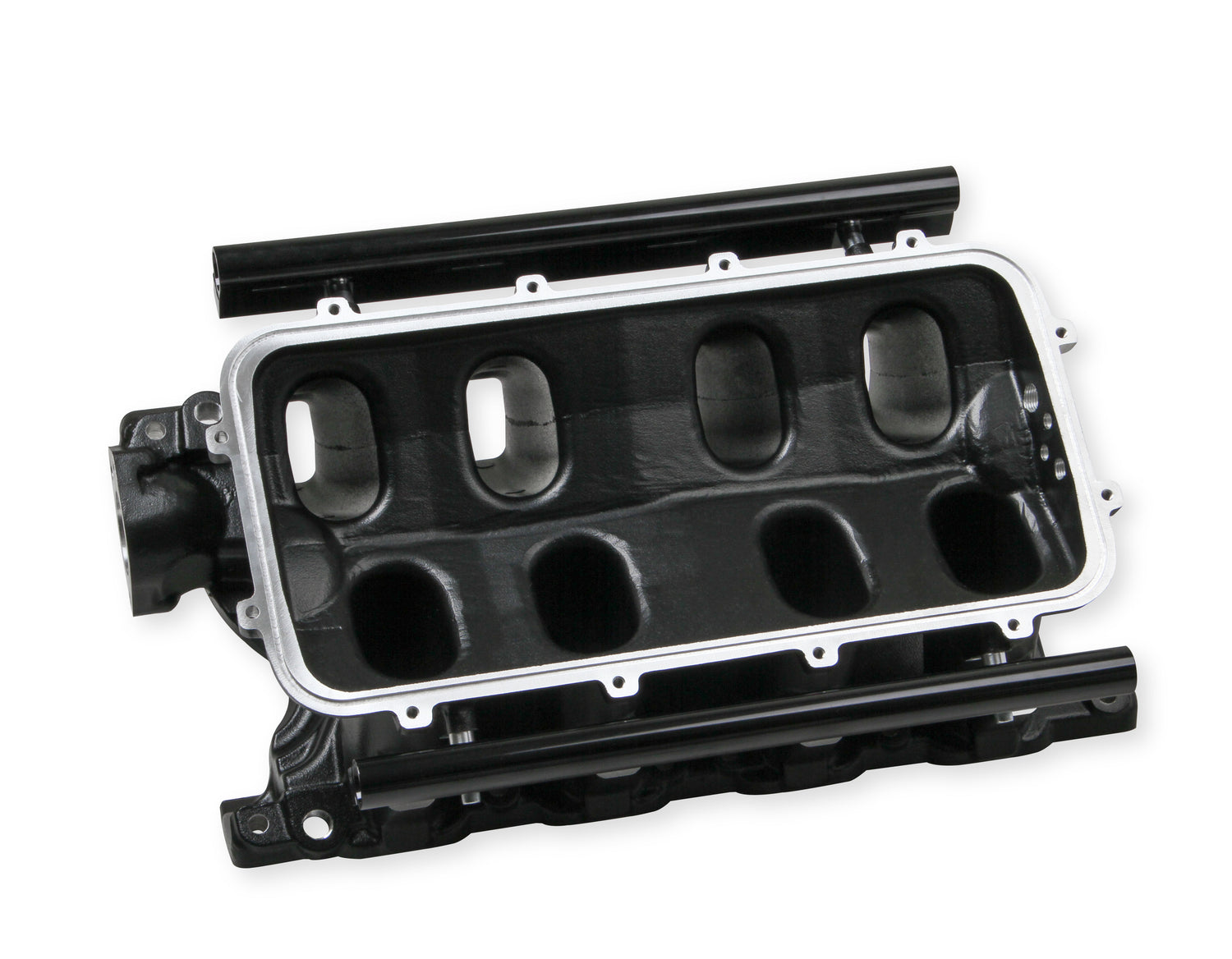

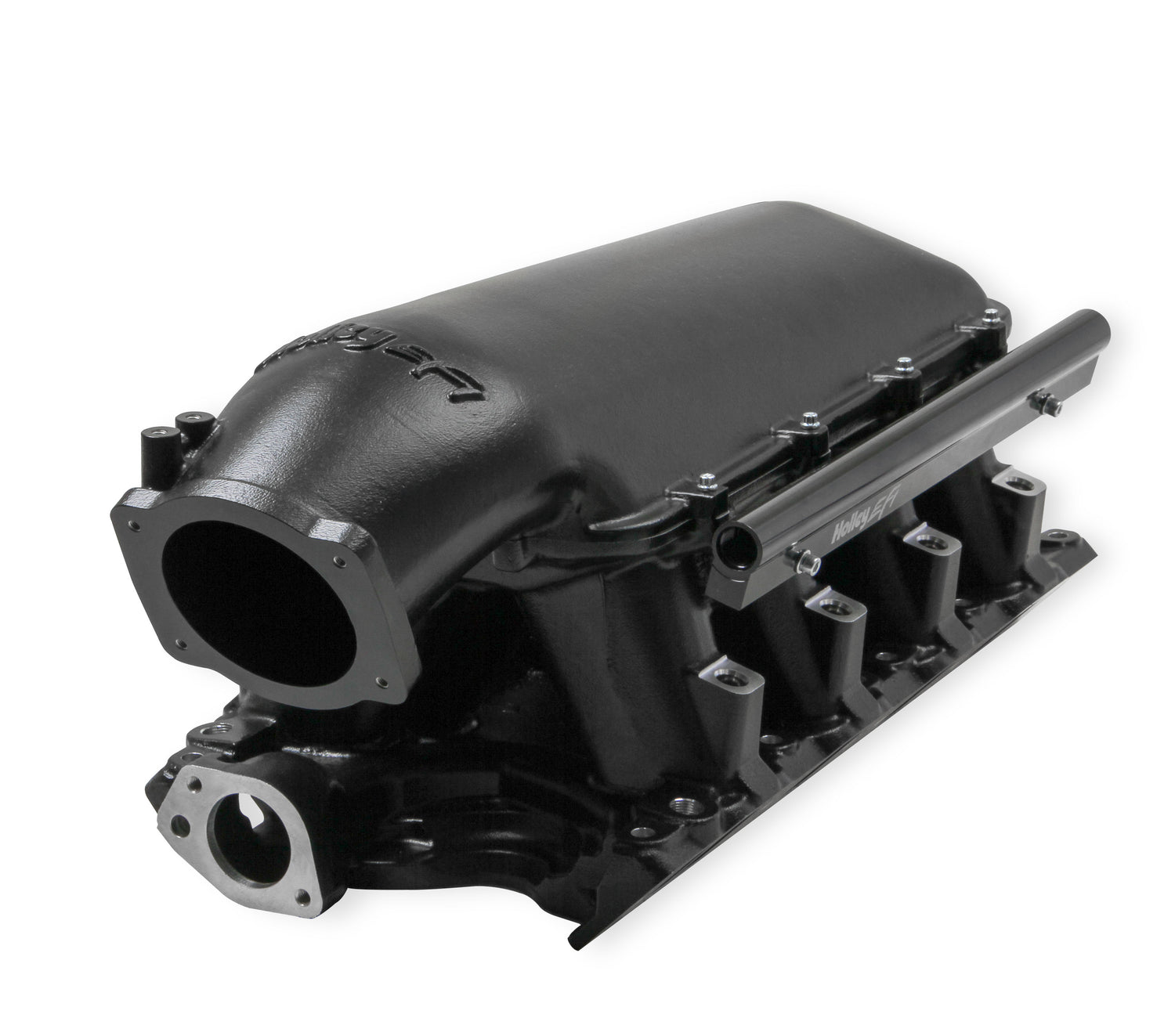

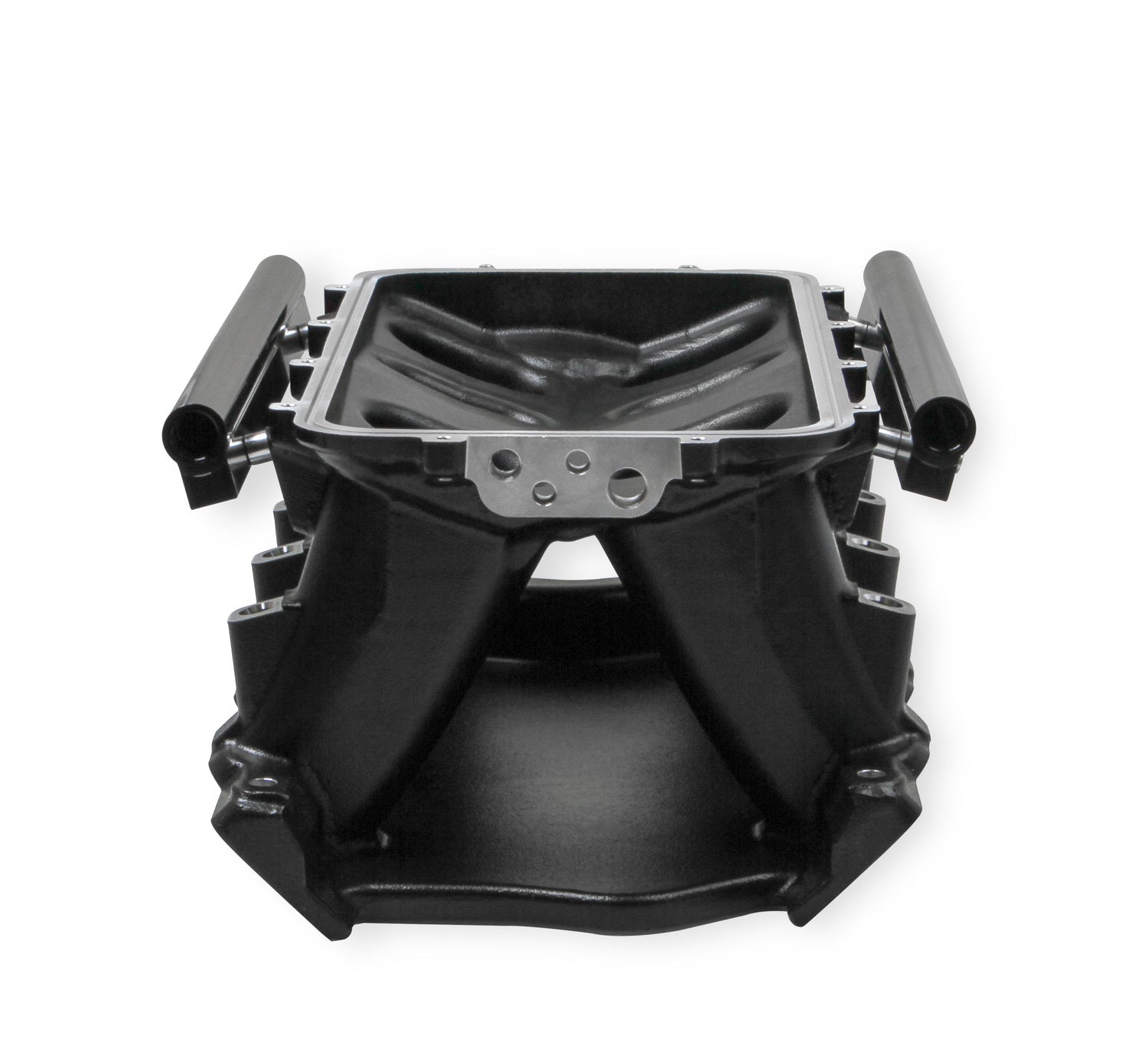

Holley 300-242BK Black 351W Ford Hi-Ram EFI Manifold
Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.
Sold out
Regular price
$2,712.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-242BK Black 351W Ford Hi-Ram EFI Manifold is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.
Part Number: 300-242BK
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction with black finish. The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold Width is 11.32". • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Features and Benefits

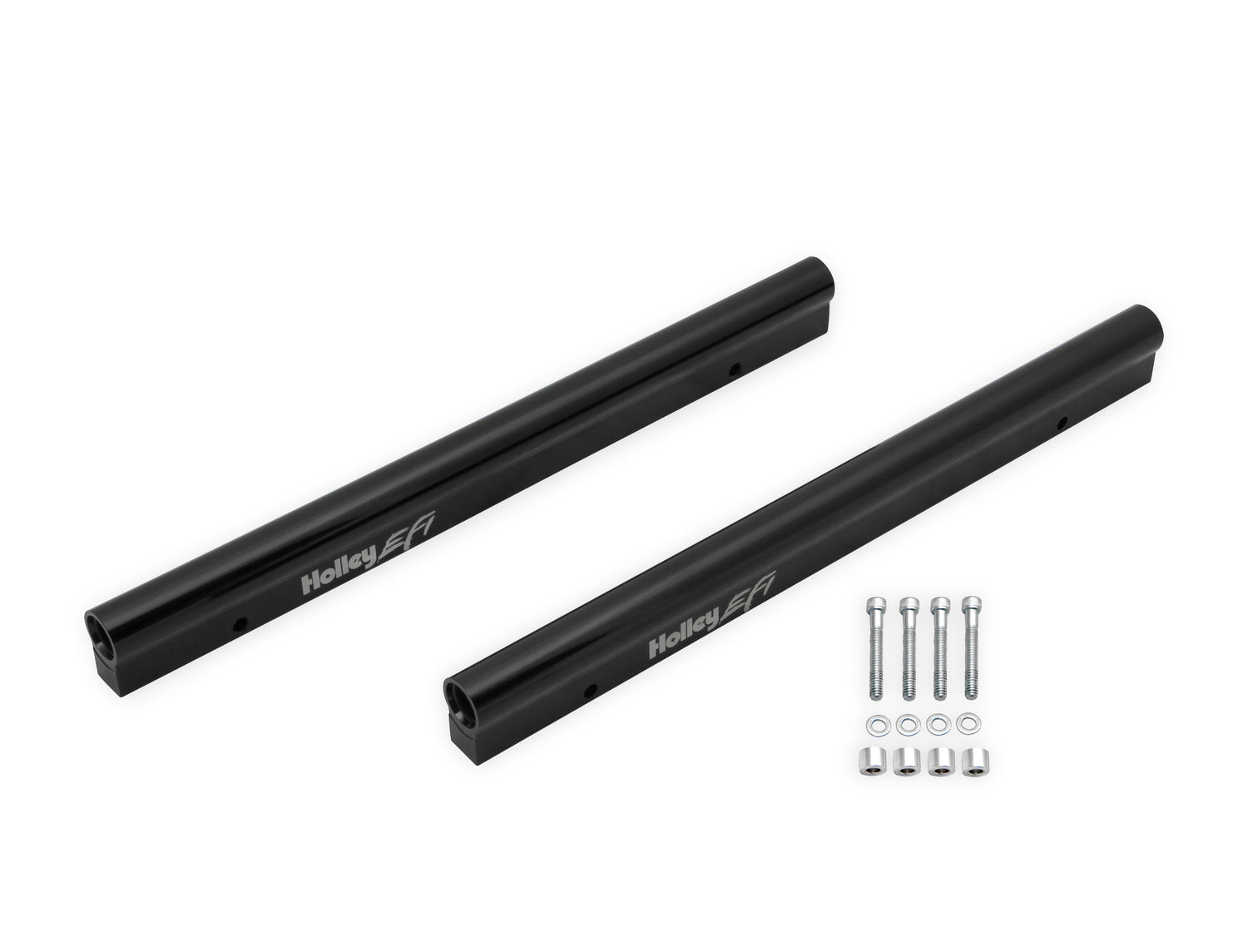

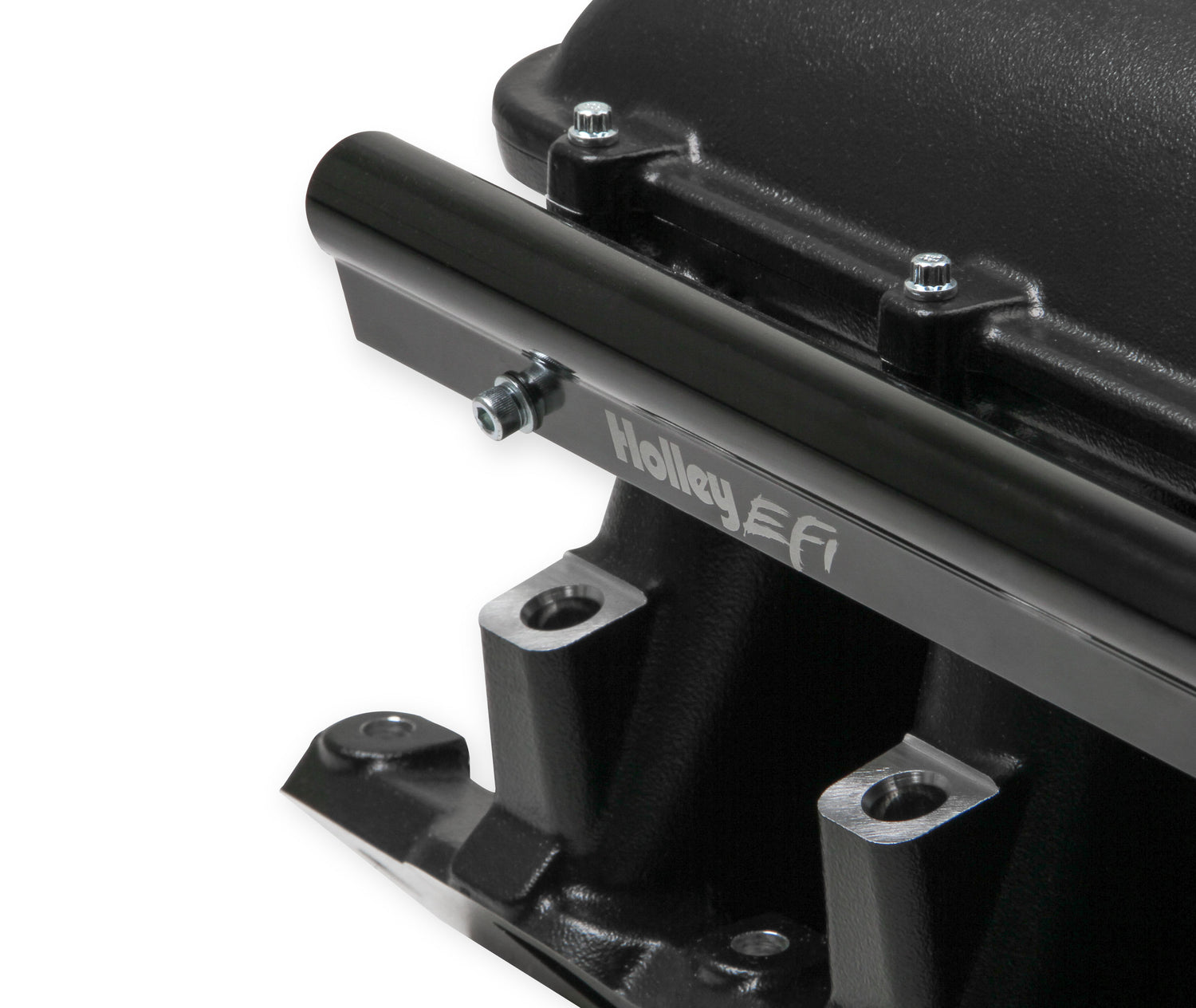

• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Manifold is designed for a 9.5" deck height.

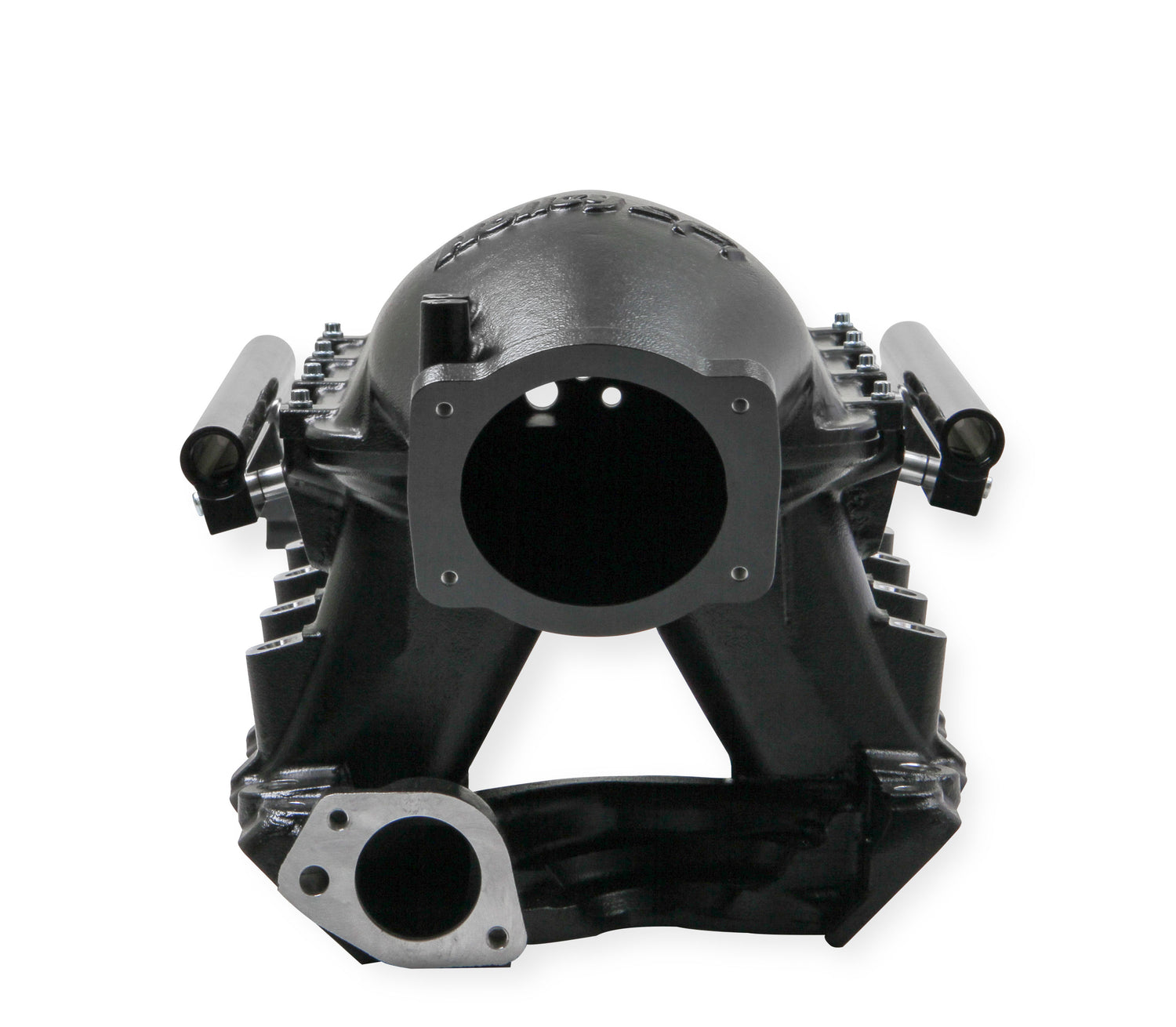

• The 351W manifold is available to work with 105MM GM LS throttle bodies
• Black Finish
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111

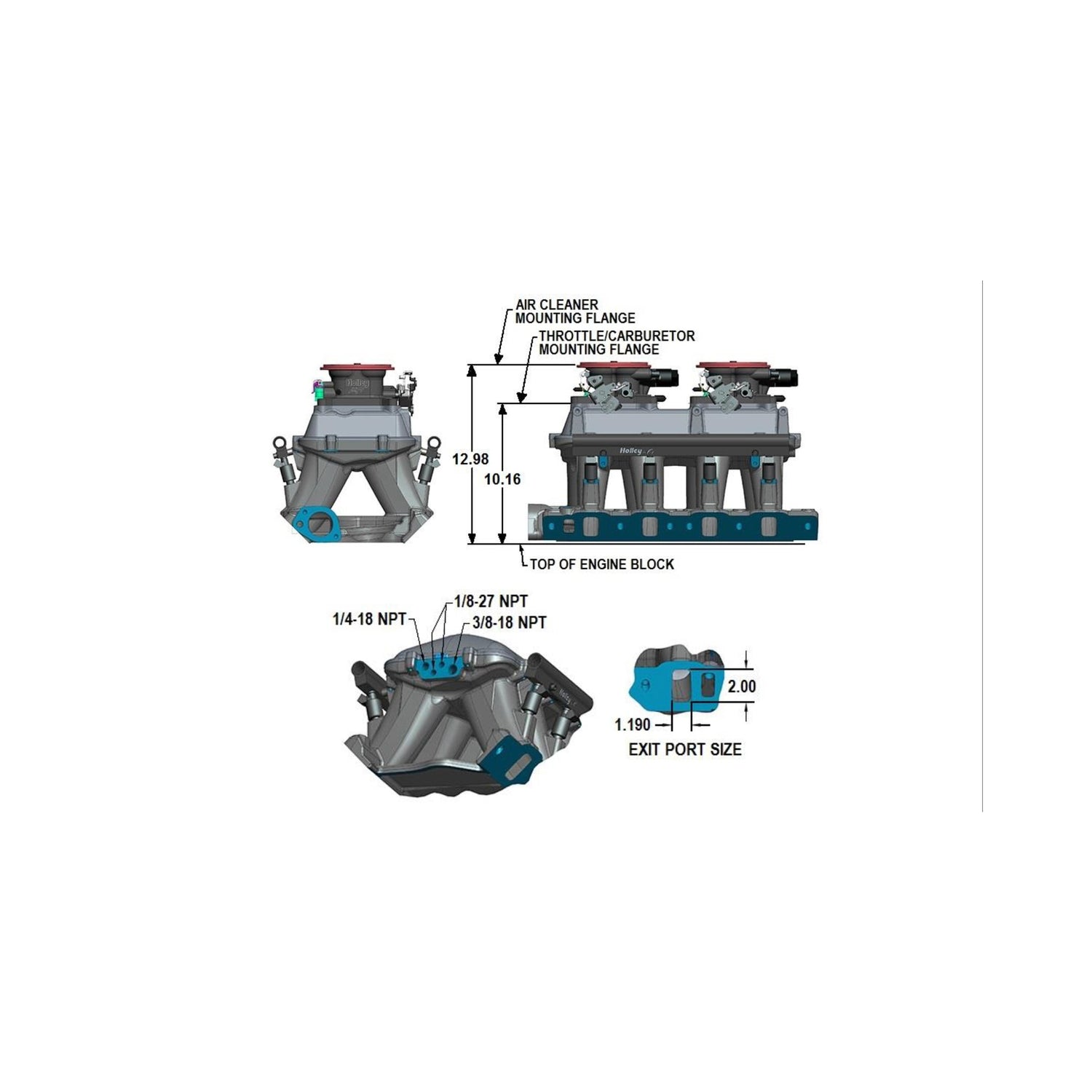

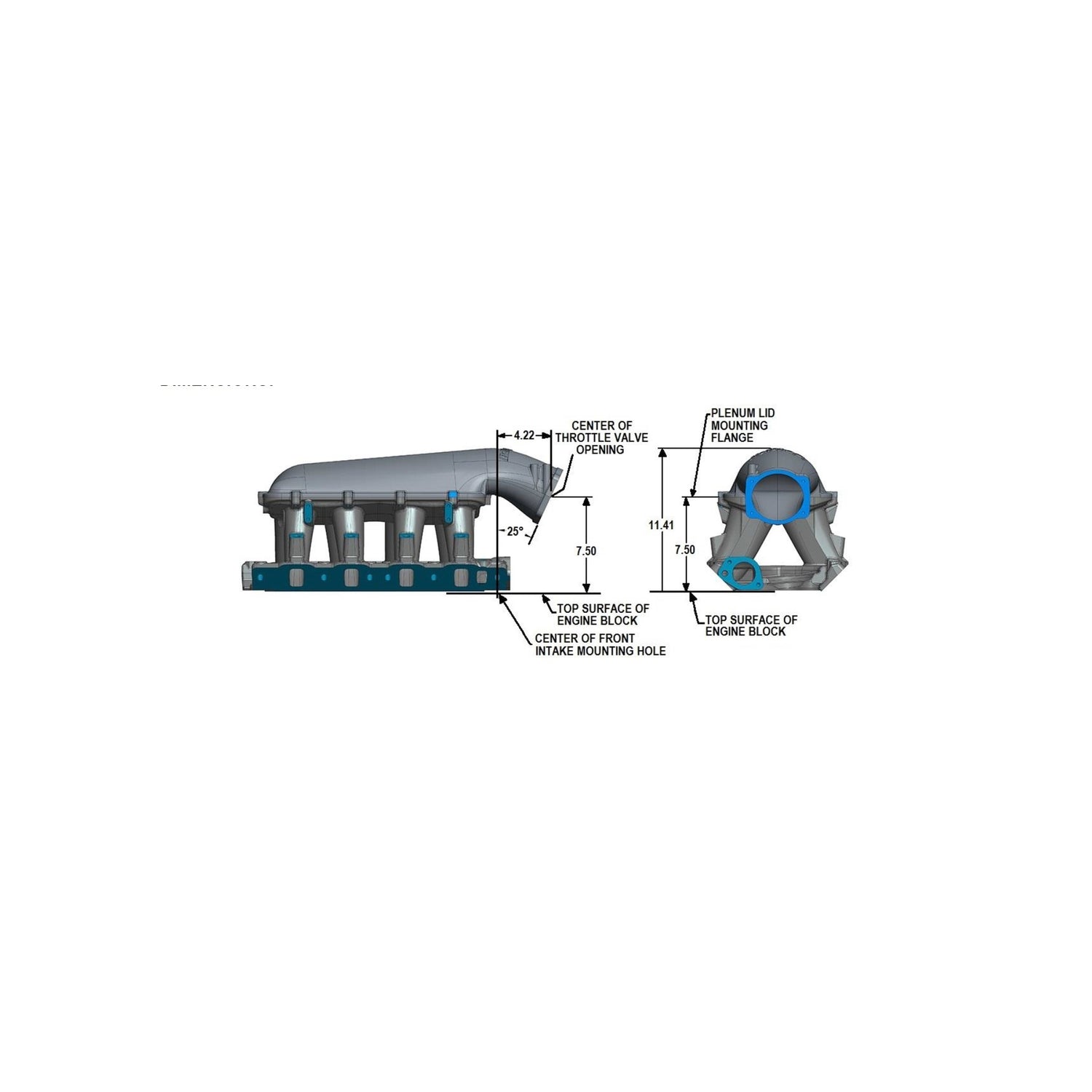

*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Part Number: 300-242BK
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction with black finish. The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold Width is 11.32". • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Features and Benefits
• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Manifold is designed for a 9.5" deck height.
• The 351W manifold is available to work with 105MM GM LS throttle bodies
• Black Finish
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111
*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-7000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Black Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.5 EGR Port No Emission Code 4 Engine Ford 351W Flange Style EFI Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Hi-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Port Size 2.00" x 1.190" Product Type Intake Manifold Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 MM Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 105mm Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
