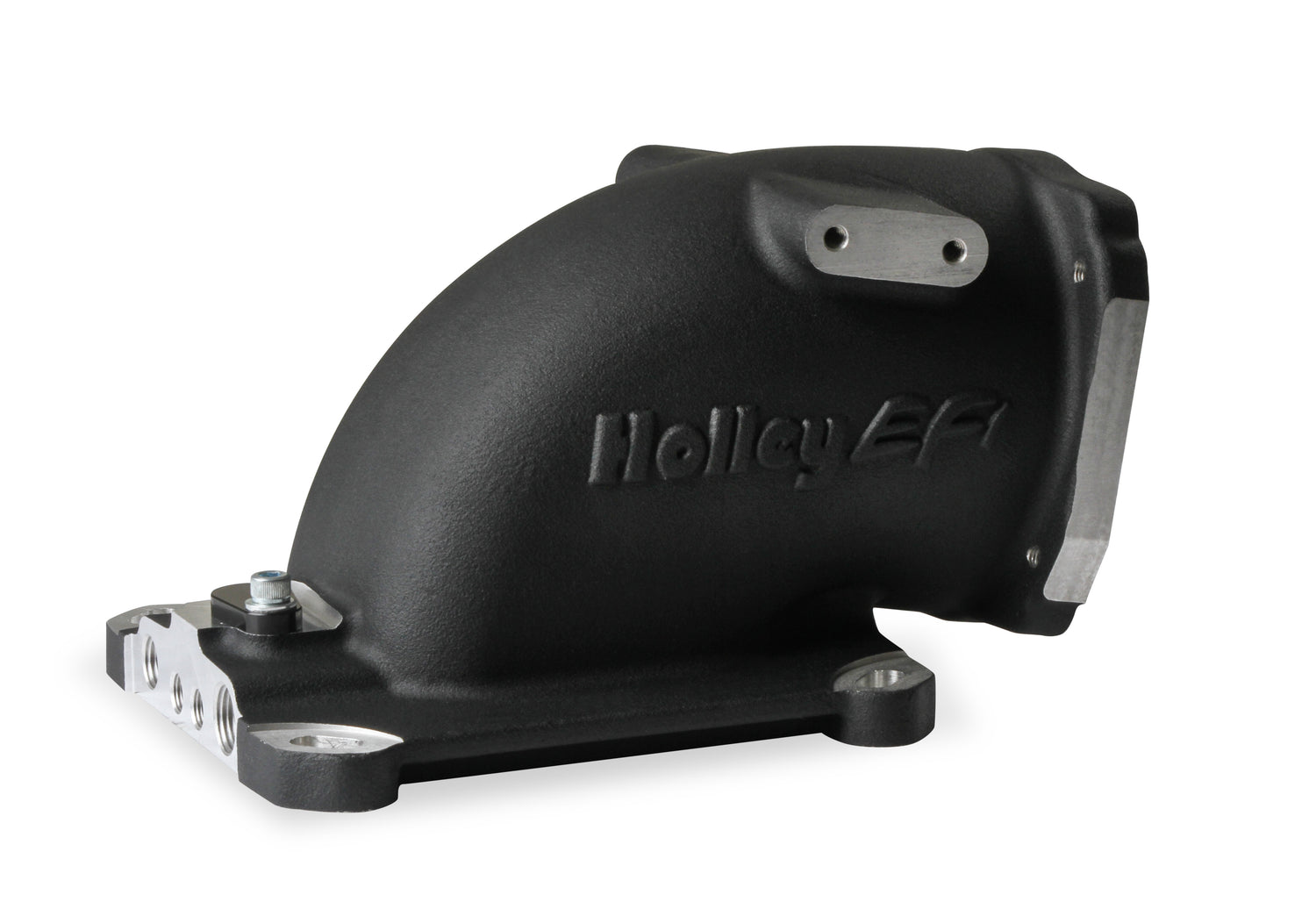

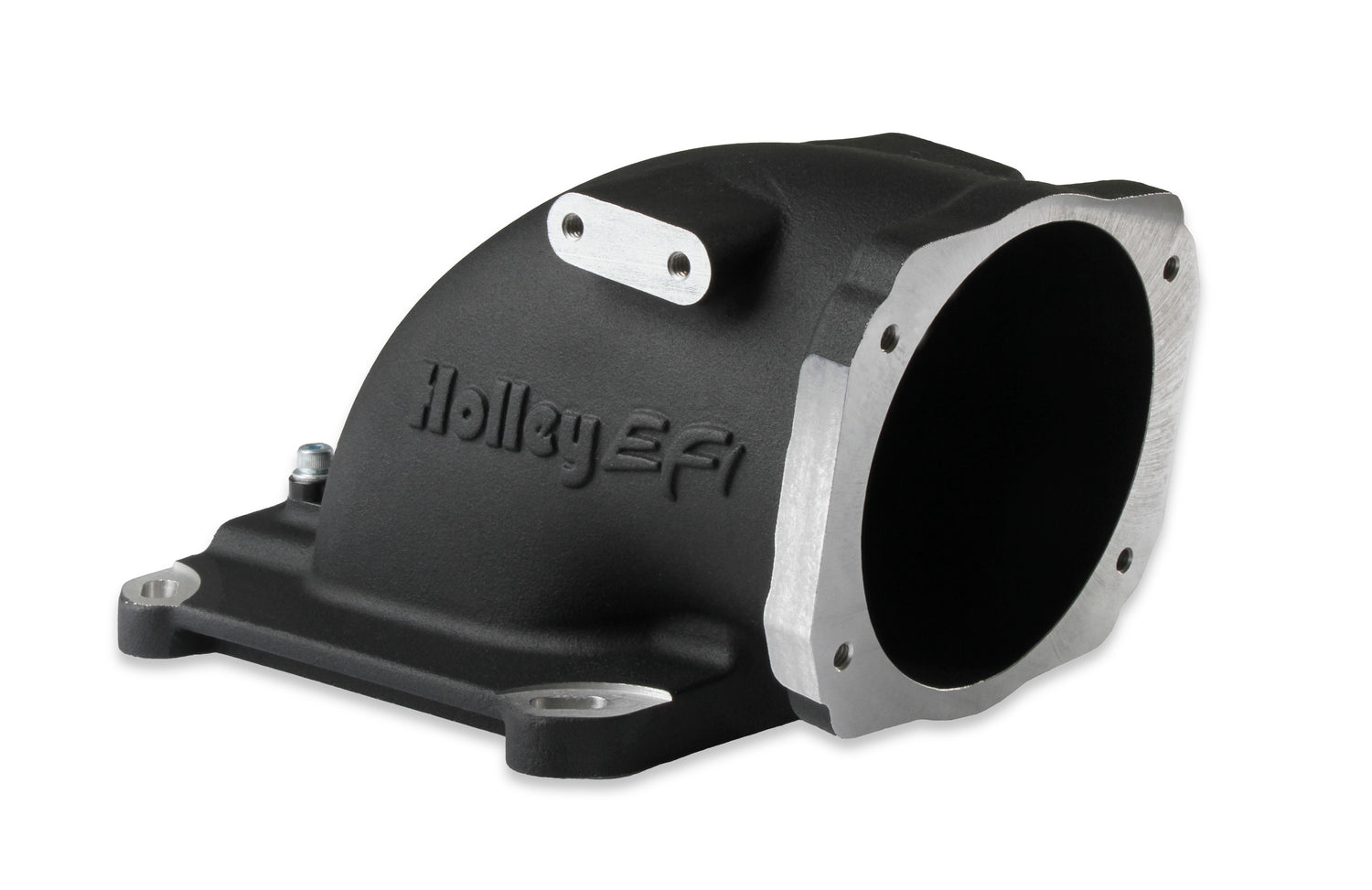

Holley 300-240BK EFI Throttle Body Intake Elbow-Black Finish

EFI Throttle Body Intake Elbow 4150 - Fits GM LS Throttle Bodies-Black Finish

Part Number: 300-240BK

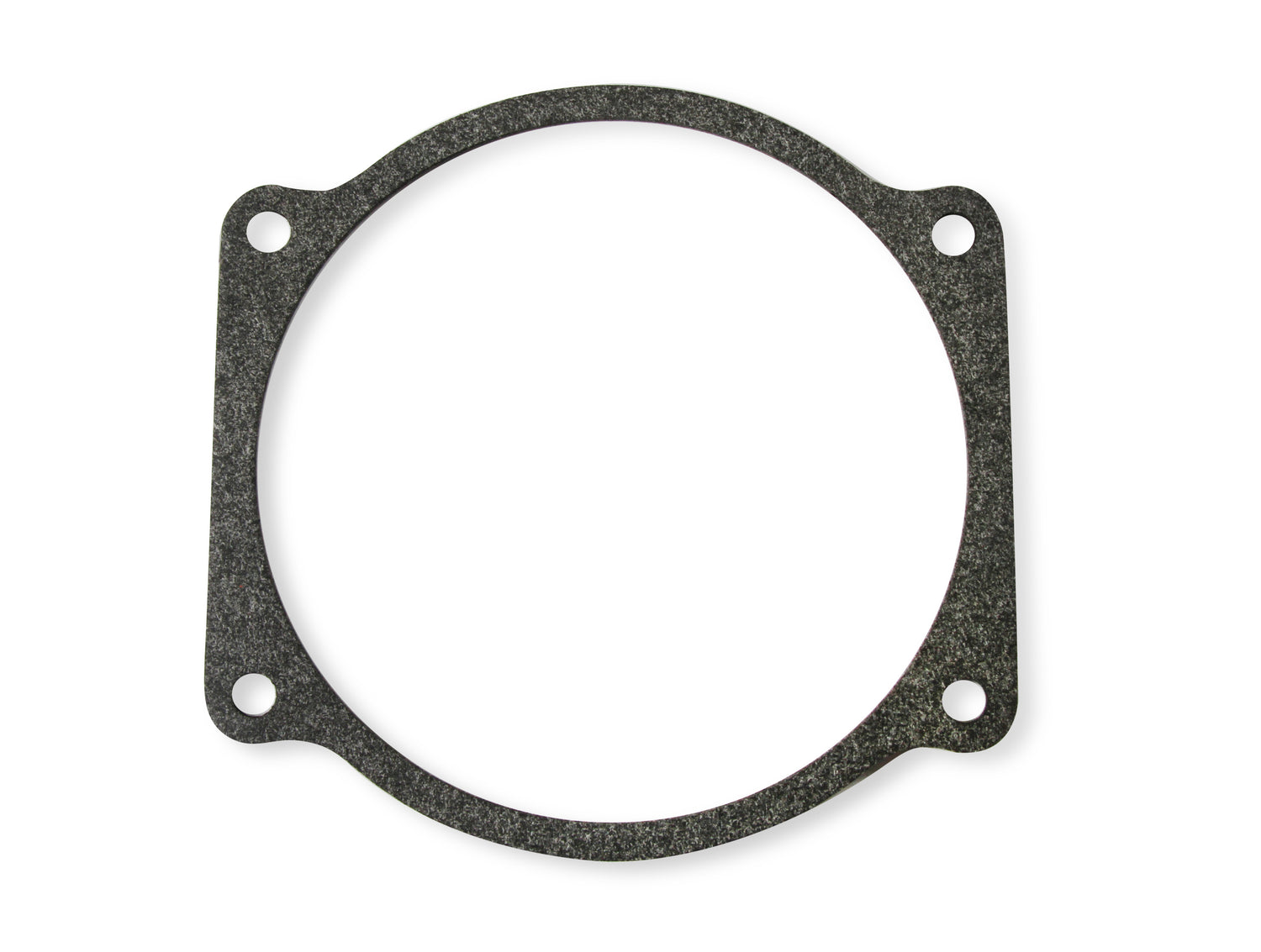

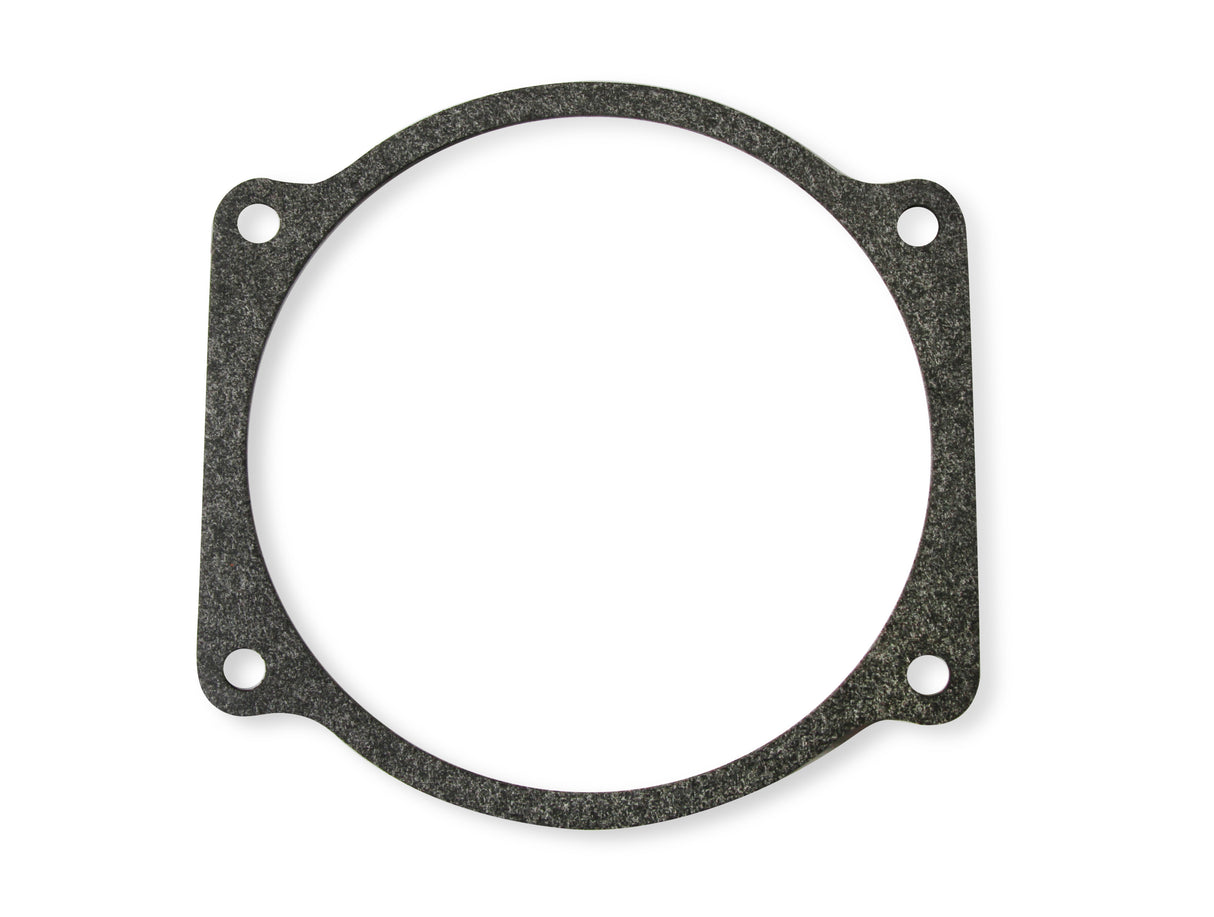

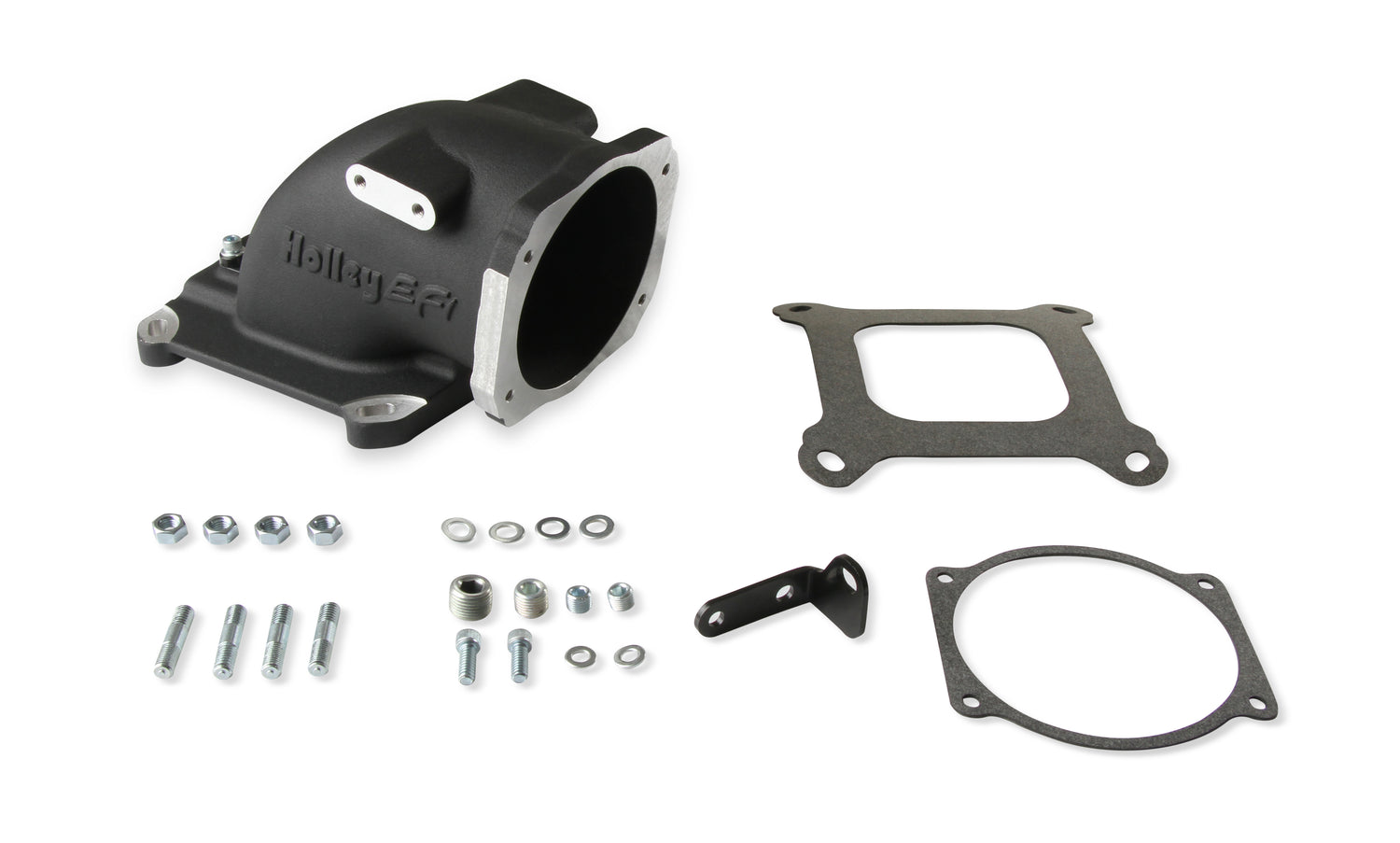

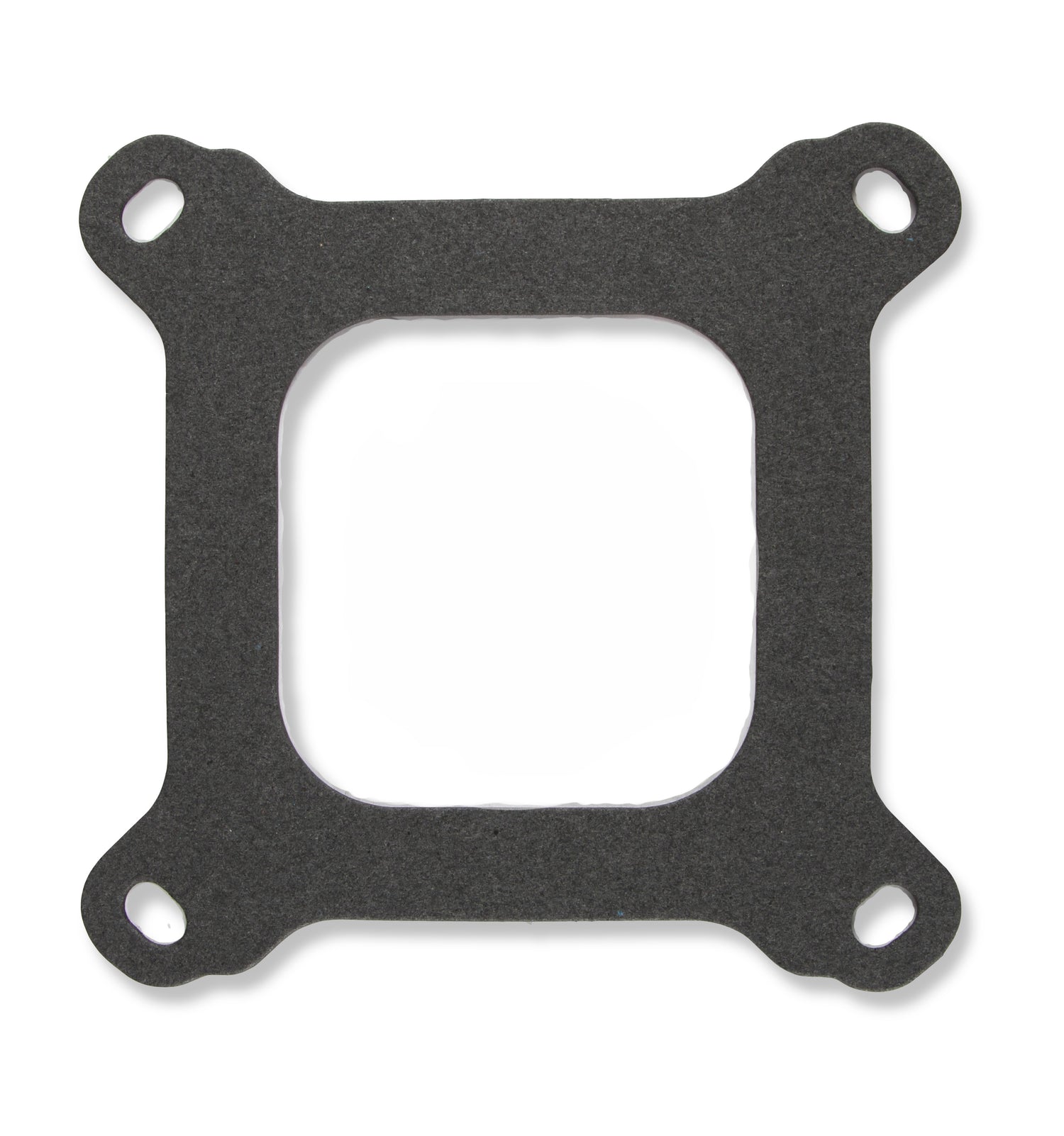

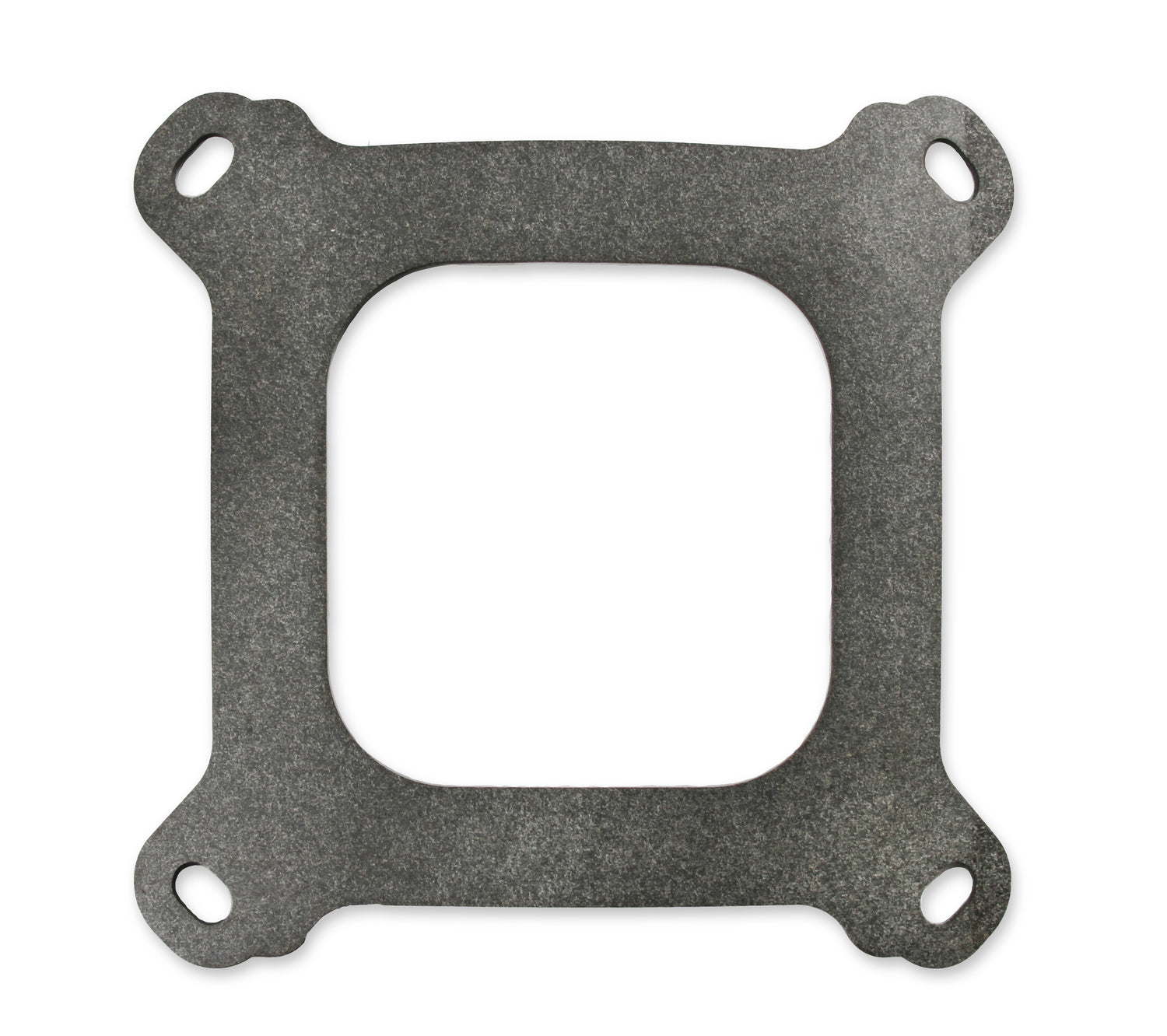

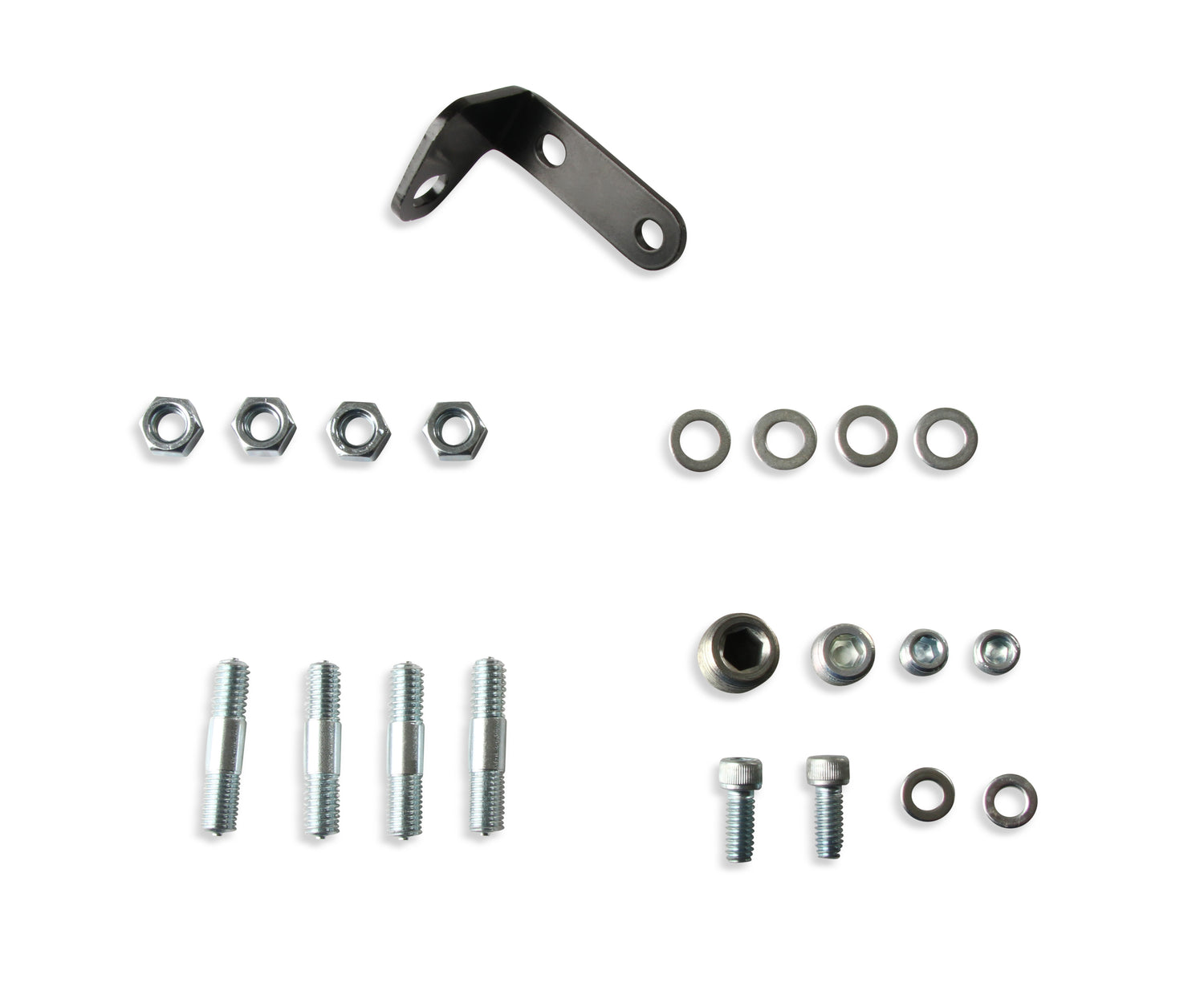

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.

Features and Benefits

• Fits GM LS Throttle Bodies

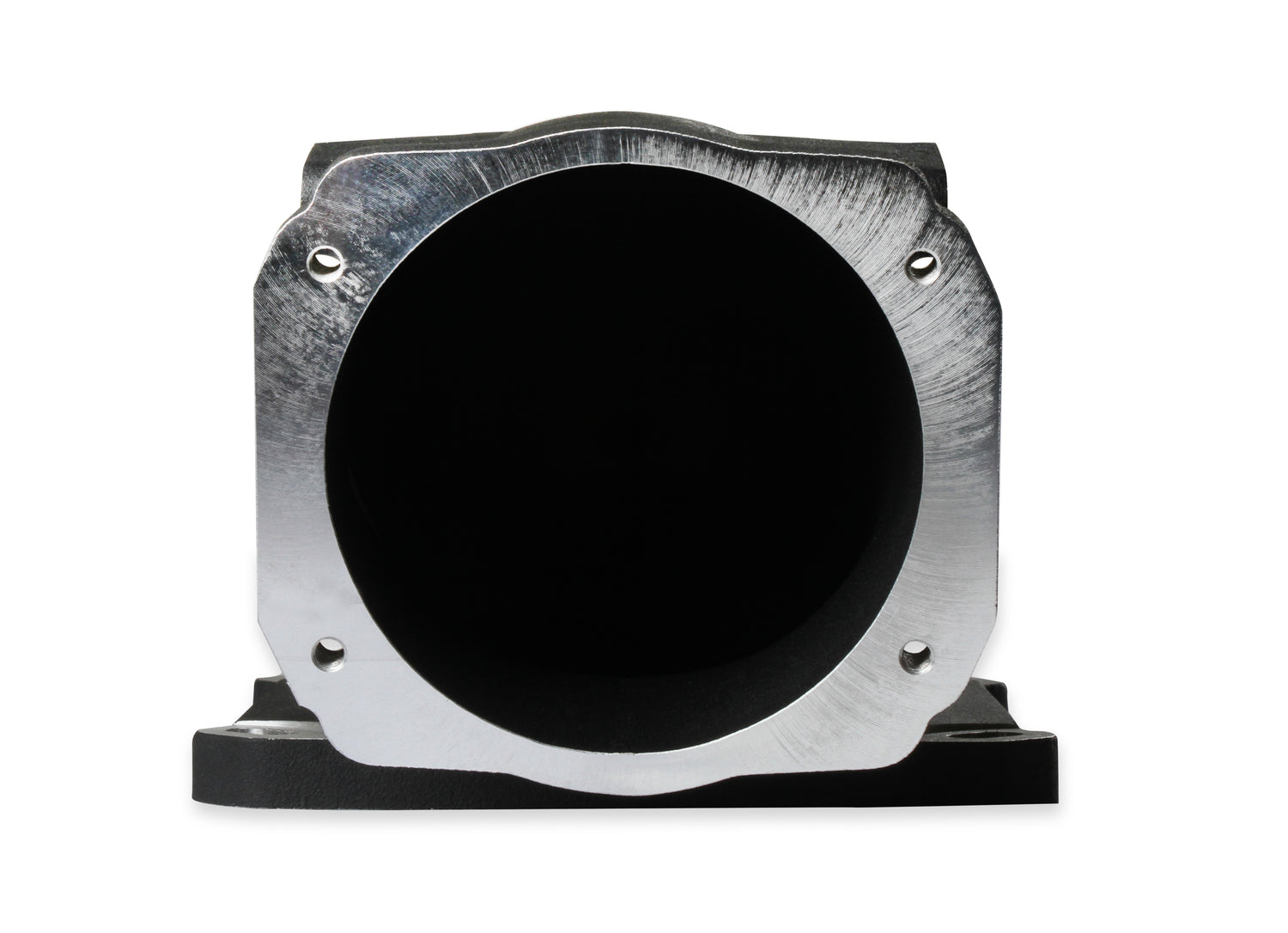

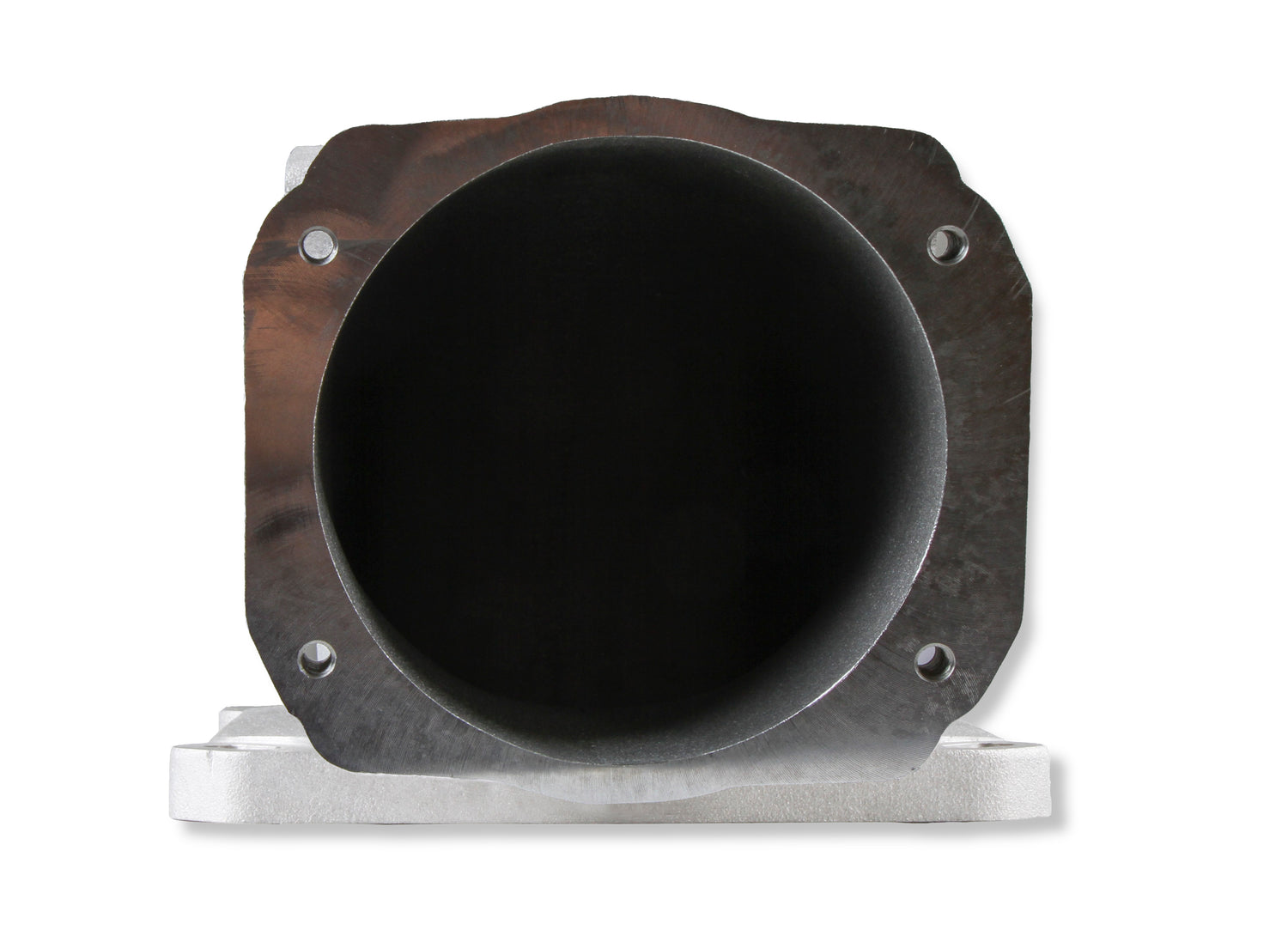

• 105mm Throttle Body Opening - 100° Mounting Angle

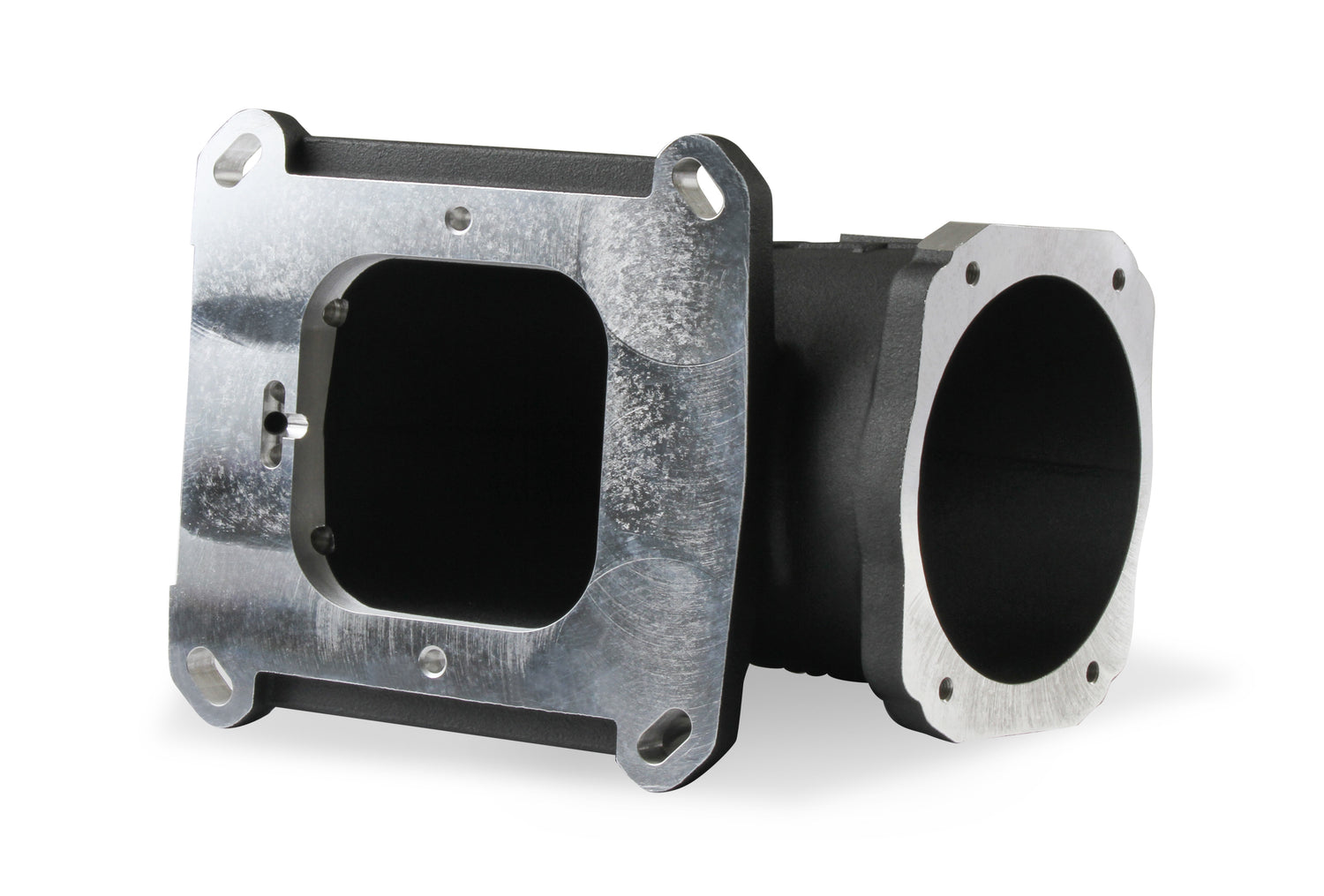

• Fits Intakes w/ 4150 Flange
• Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting

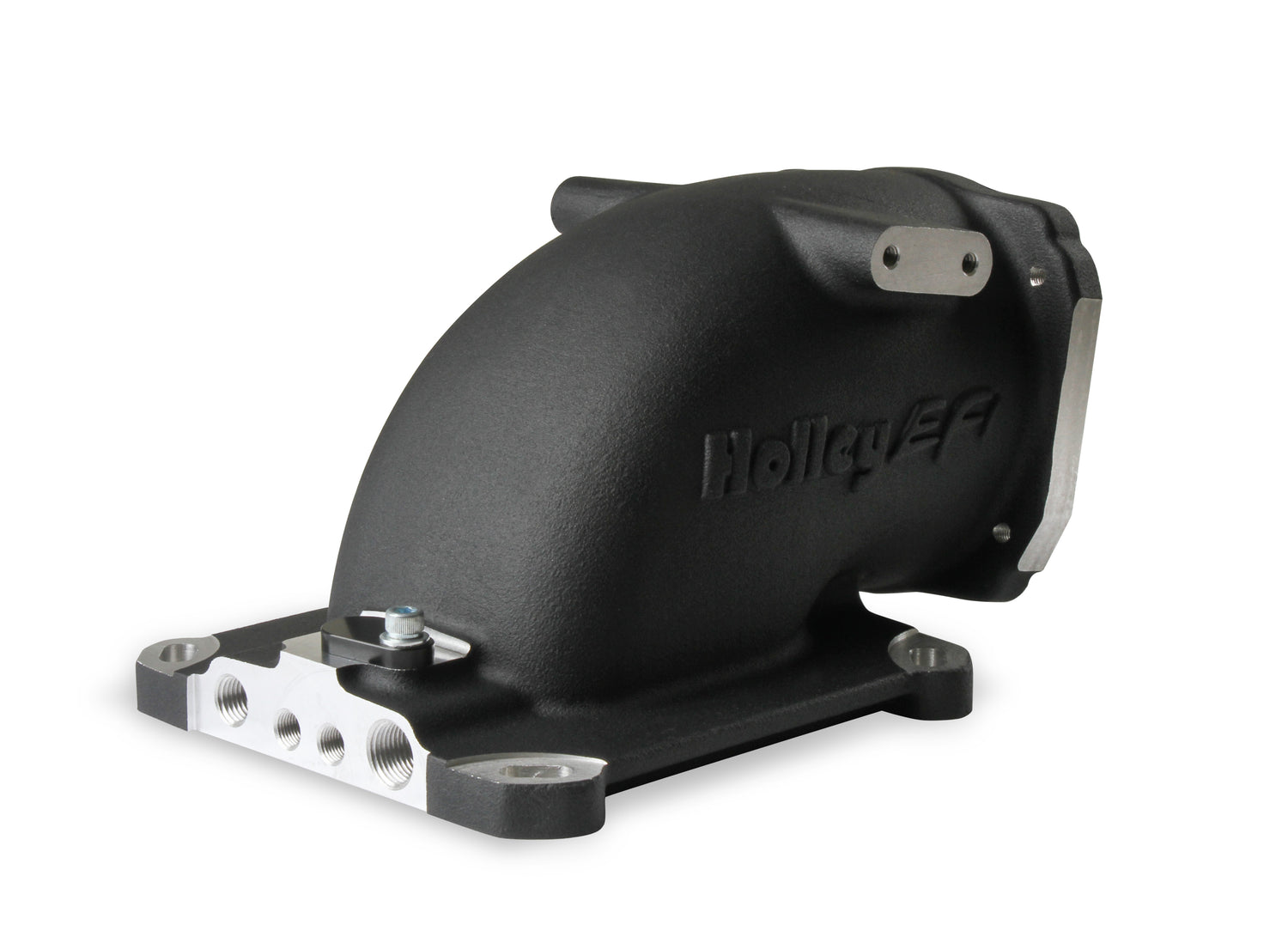

• (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
• (2) Throttle Linkage Mounting Bosses
• Sand Cast w/ Black Finish
• Overall Height 5.12”
