Holley EFI | SKU:
300-240
Holley 300-240 EFI Throttle Body Intake Elbow
EFI Throttle Body Intake Elbow 4150 - Fits GM LS Throttle Bodies
Regular price
$447.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-240 EFI Throttle Body Intake Elbow is not in stock at Fast Lane Spares and will ship direct from supplier
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
EFI Throttle Body Intake Elbow 4150 - Fits GM LS Throttle Bodies
Part Number: 300-240

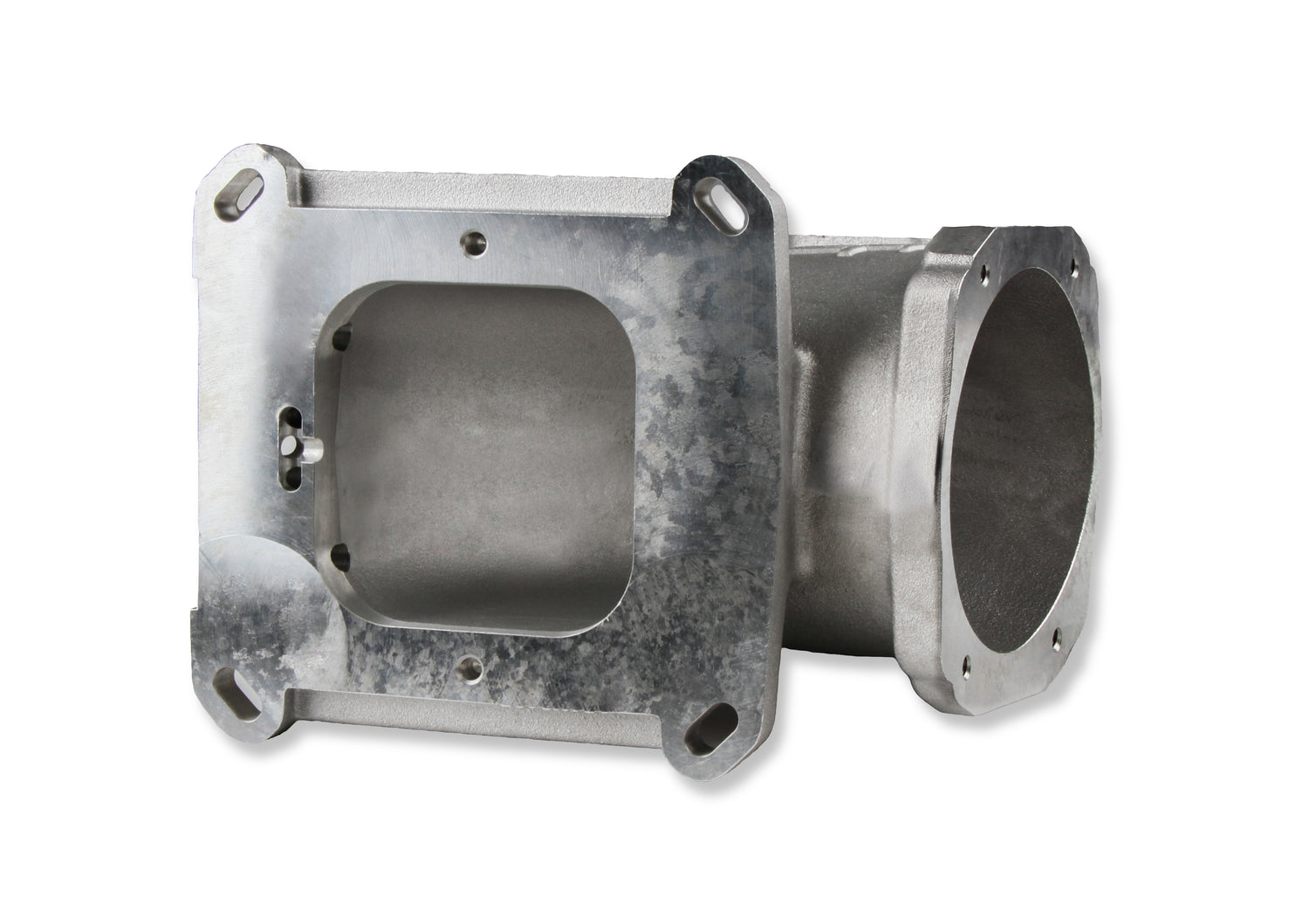

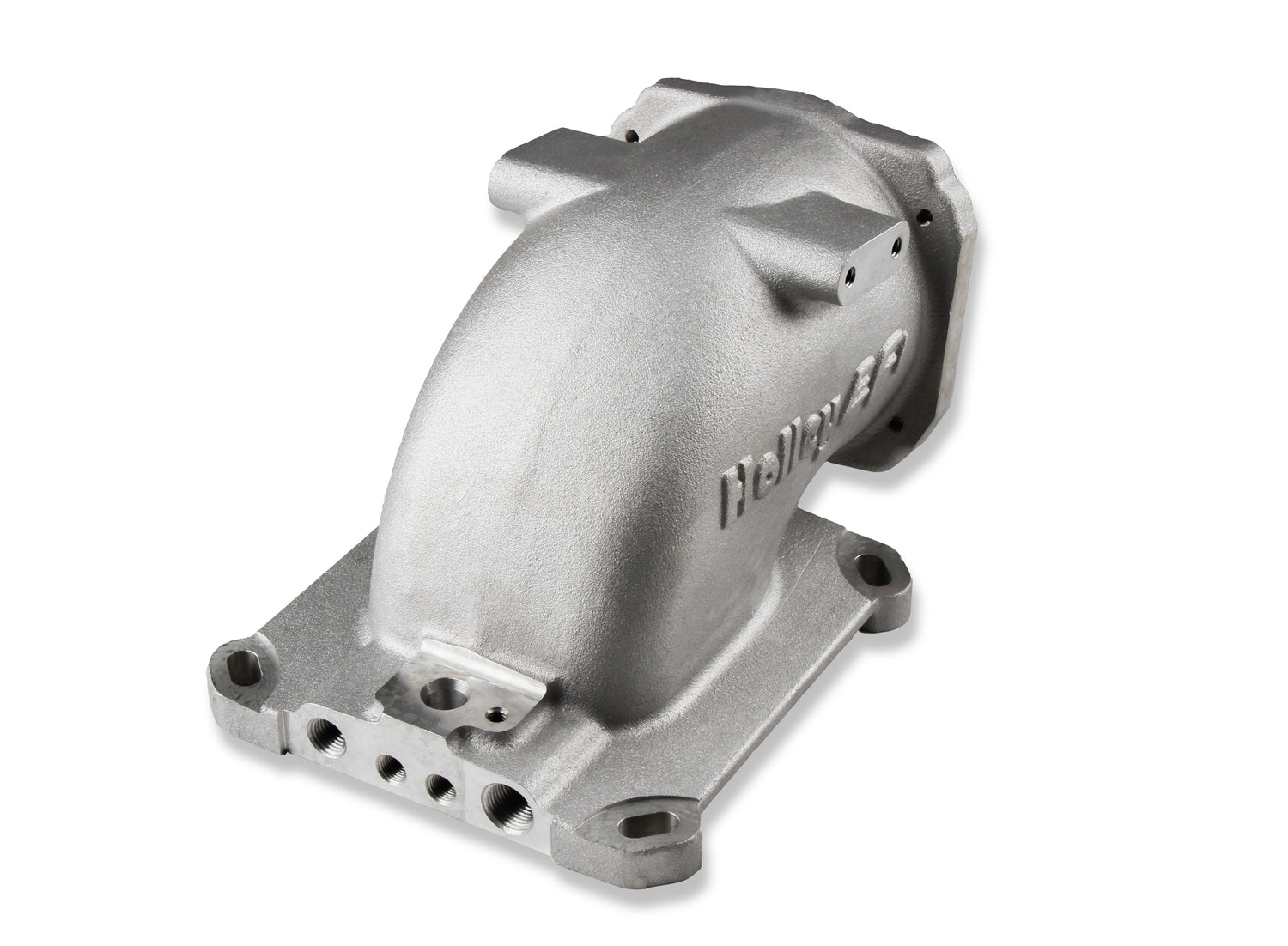

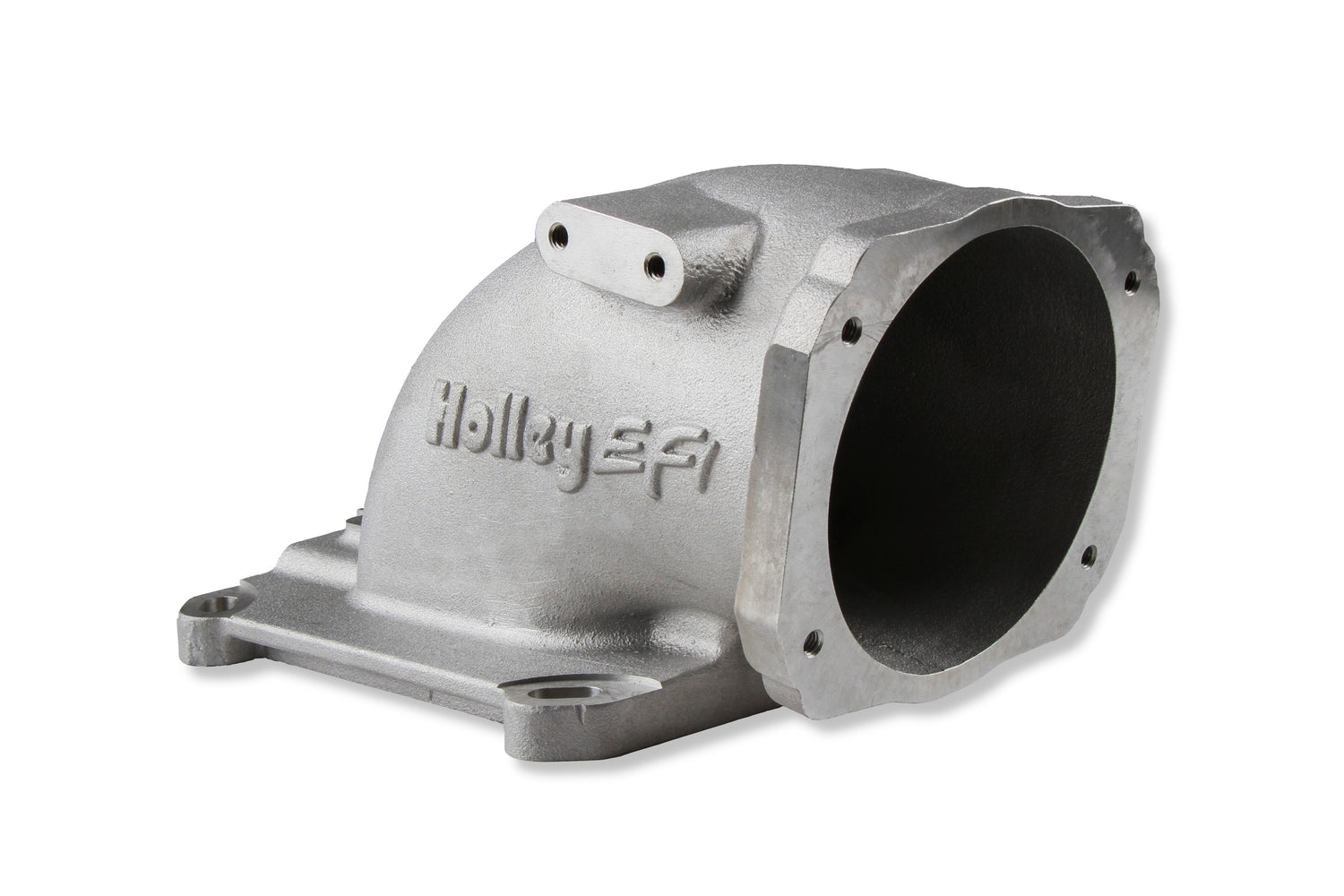

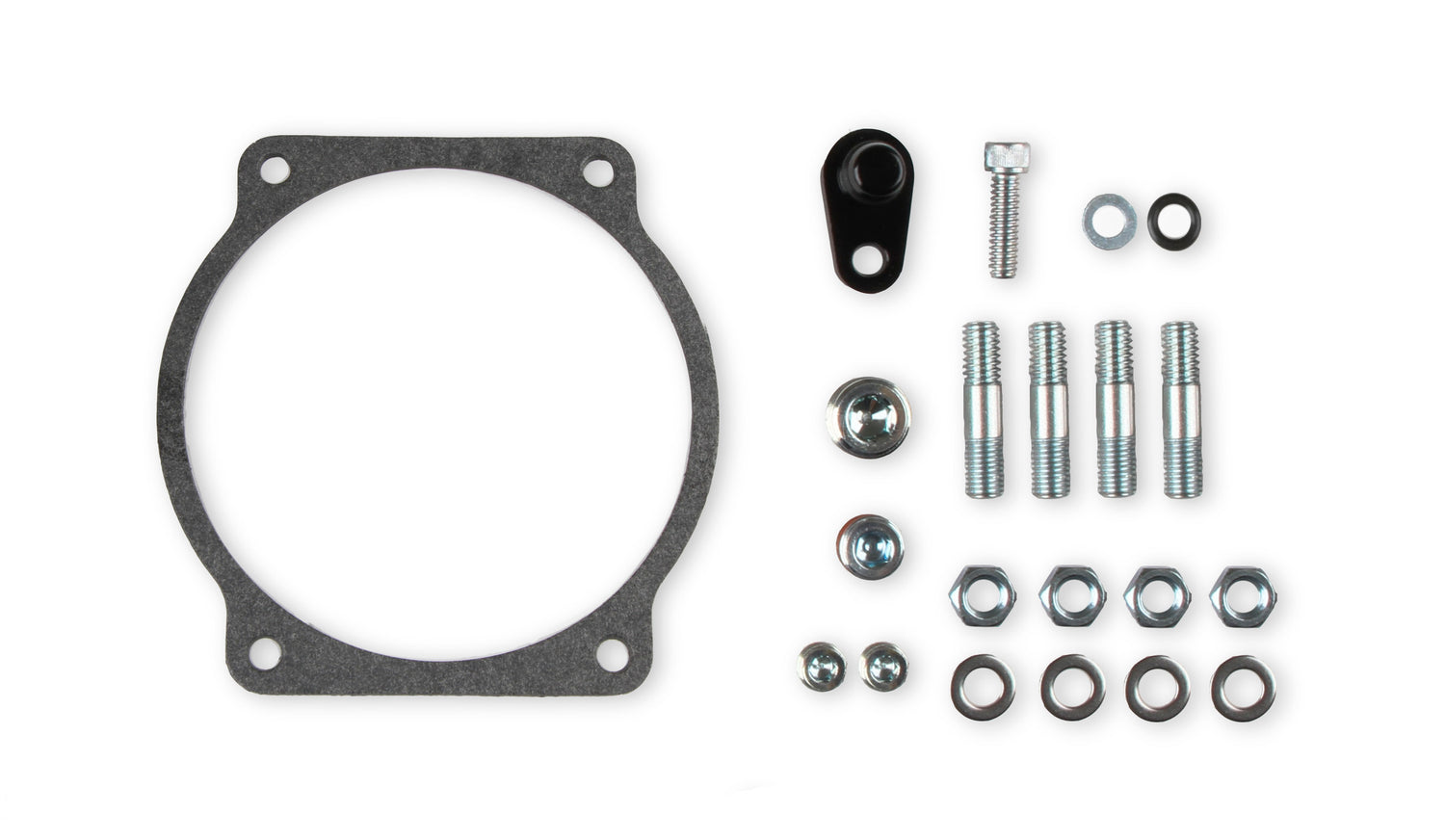

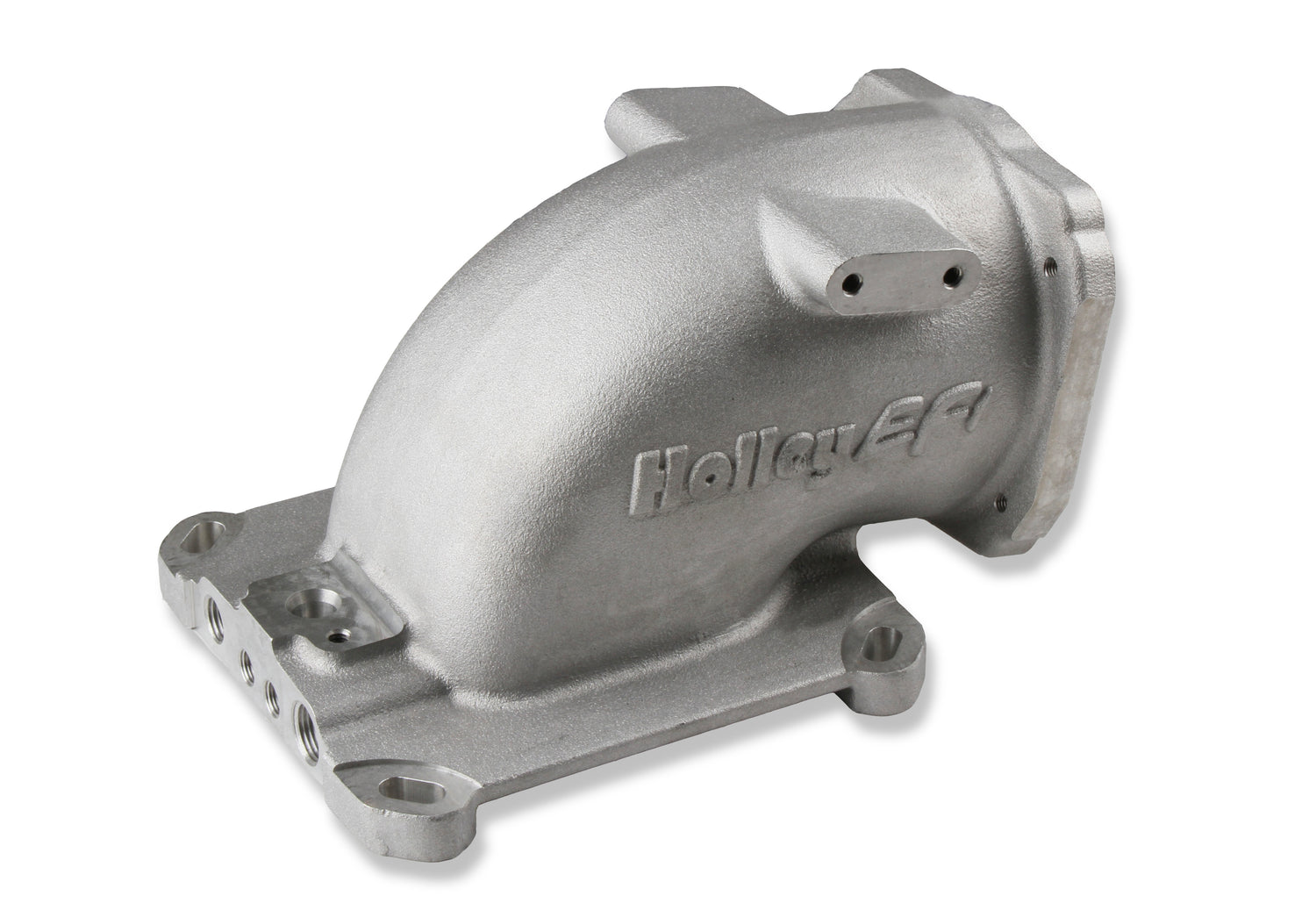

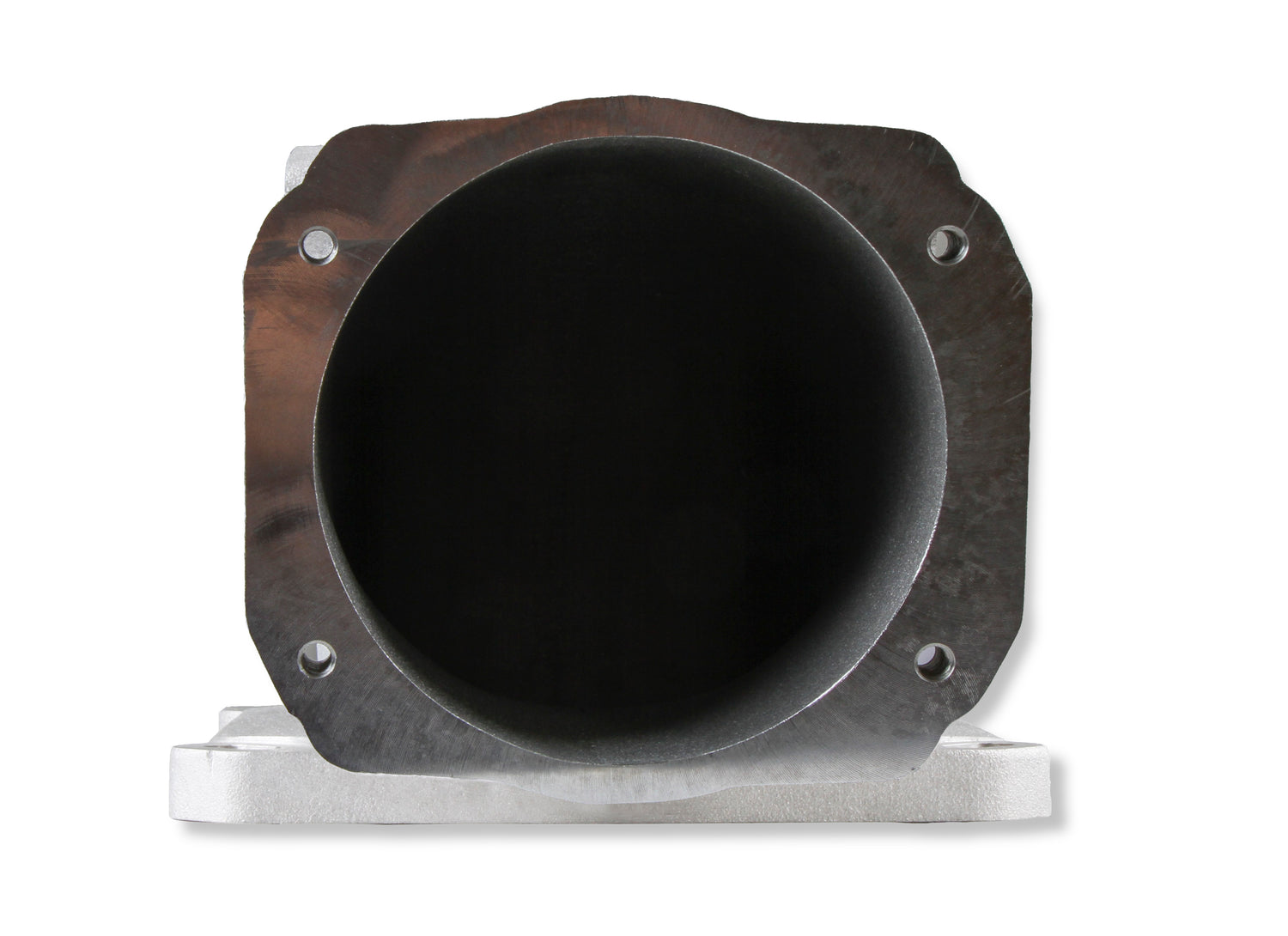

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100Ā° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Features and Benefits
ā¢ Fits GM LS Throttle Bodies
ā¢ 105mm Throttle Body Opening - 100Ā° Mounting Angle
ā¢ Fits Intakes w/ 4150 Flange
ā¢ Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
ā¢ LS3 Style MAP Sensor Mounting
ā¢ (4) Vacuum Ports ā (1) Each 1/4ā NPT & 3/8ā NPT & (2) 1/8ā NPT w/ Indirect Baffled Signal
ā¢ (2) Throttle Linkage Mounting Bosses
ā¢ Sand Cast w/ Satin Finish
ā¢ Overall Height 5.12ā
Part Number: 300-240
This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100Ā° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Features and Benefits
ā¢ Fits GM LS Throttle Bodies
ā¢ 105mm Throttle Body Opening - 100Ā° Mounting Angle
ā¢ Fits Intakes w/ 4150 Flange
ā¢ Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
ā¢ LS3 Style MAP Sensor Mounting
ā¢ (4) Vacuum Ports ā (1) Each 1/4ā NPT & 3/8ā NPT & (2) 1/8ā NPT w/ Indirect Baffled Signal
ā¢ (2) Throttle Linkage Mounting Bosses
ā¢ Sand Cast w/ Satin Finish
ā¢ Overall Height 5.12ā
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Air and Fuel Delivery Color Silver Construction Cast Emission Code 3 Engine GM LS1/LS2/LS6 Finish Silver Flange Style EFI Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Height 5.12" part type Fuel Injection Throttle Body Adapter Product Type Intake Elbow Sub Category Hardware, Fasteners and Fittings Throttle Bore 105mm Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
