Holley | SKU:
300-213

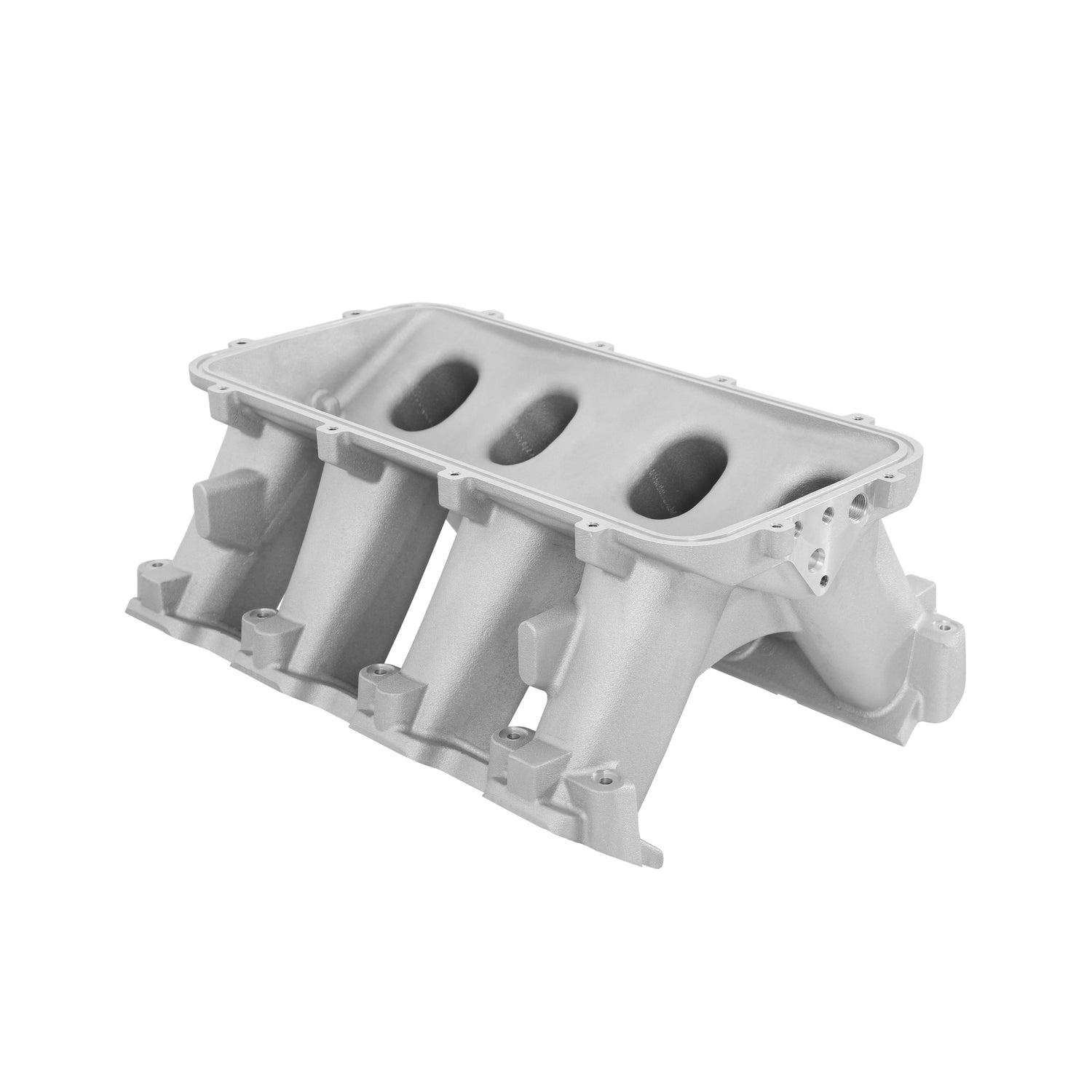

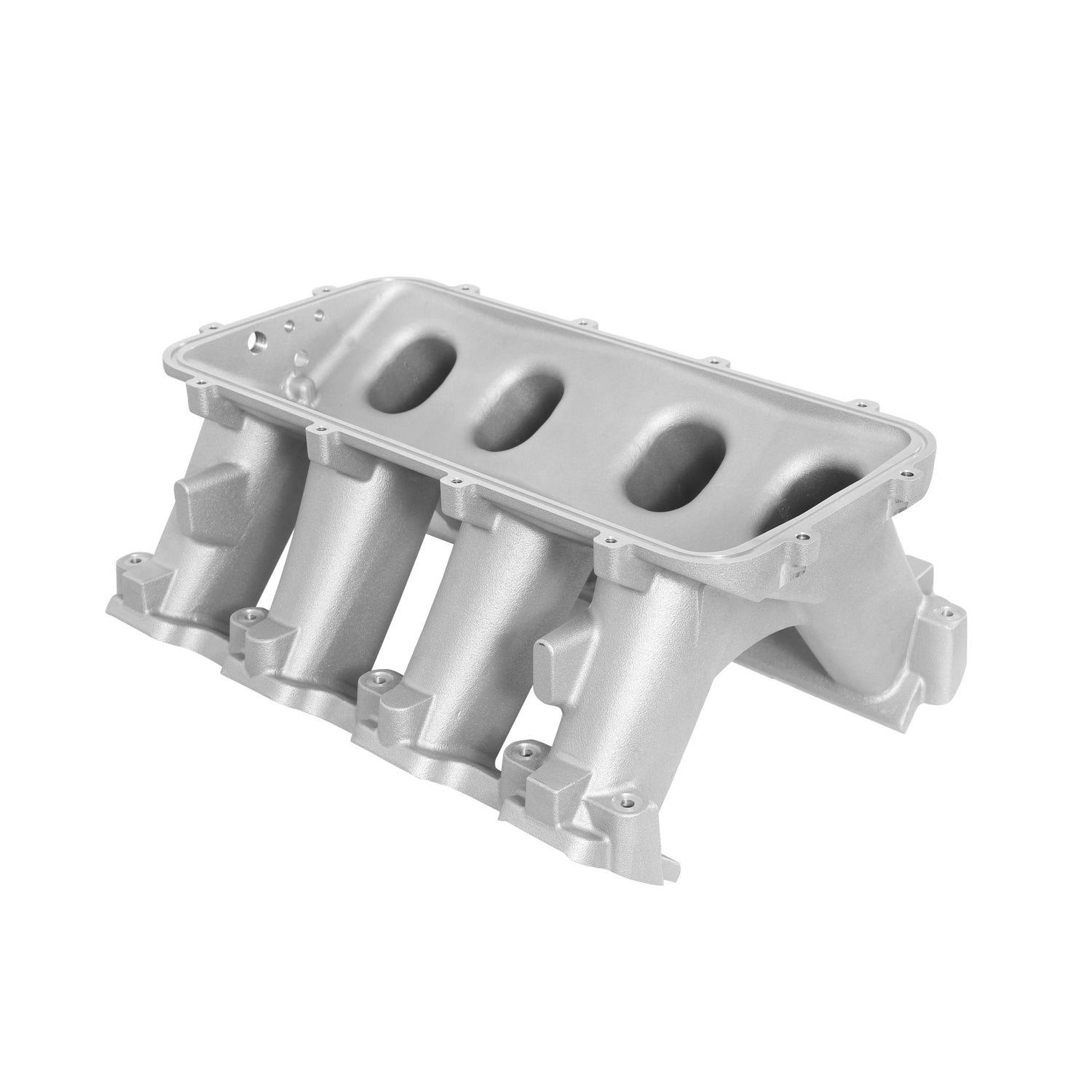

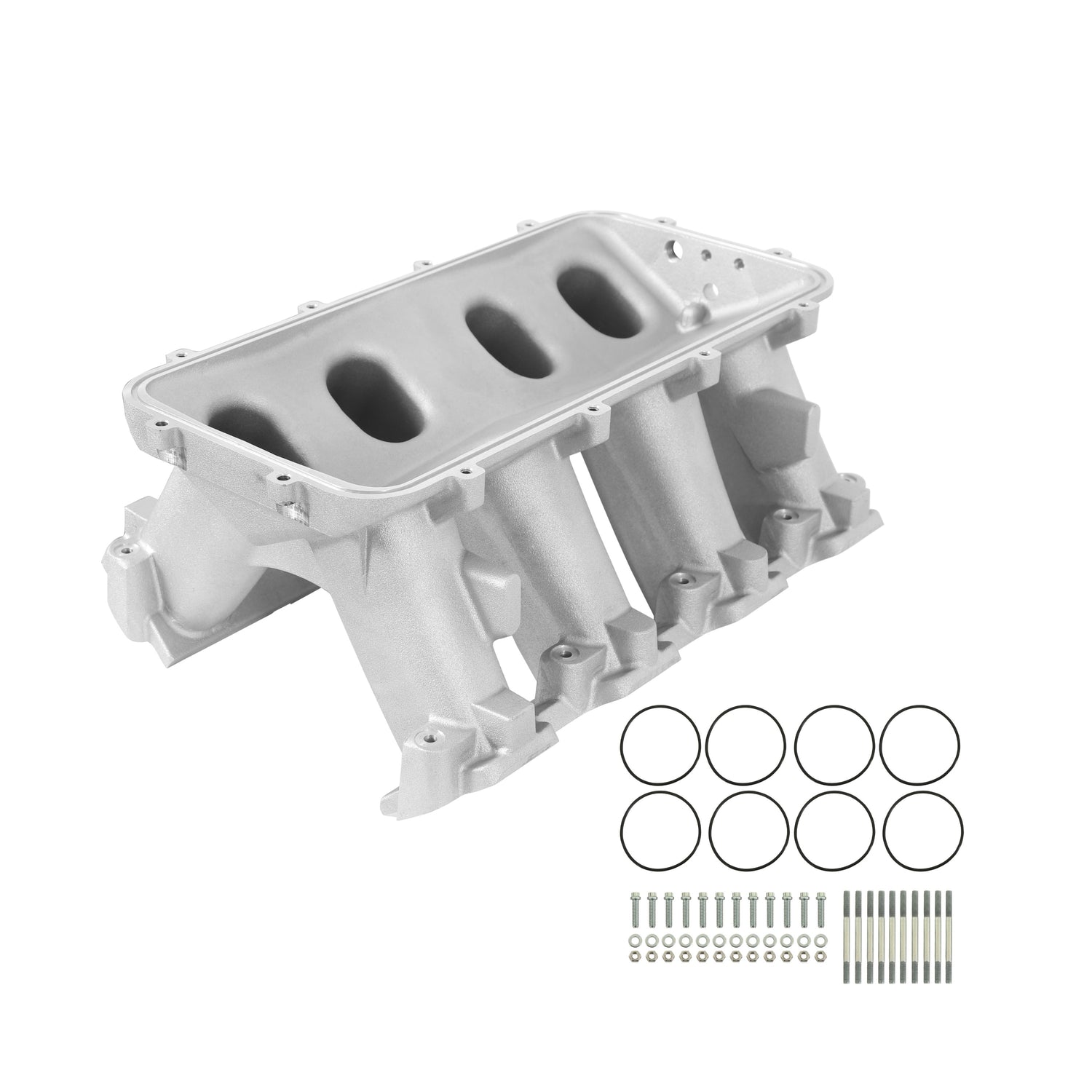

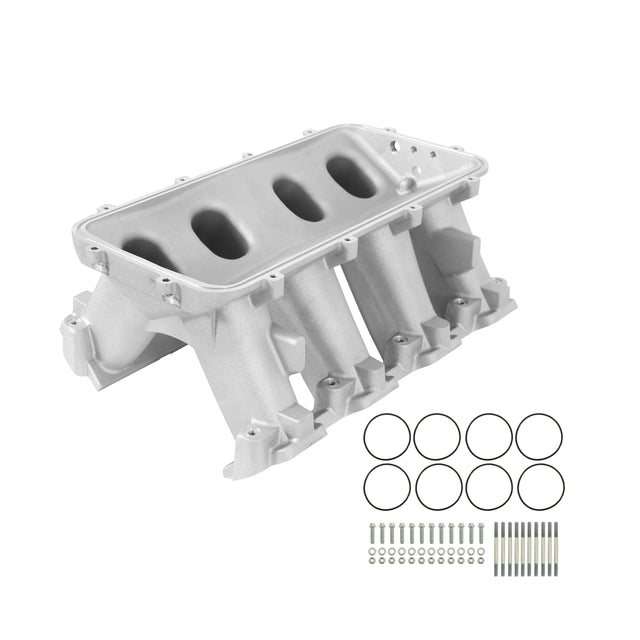

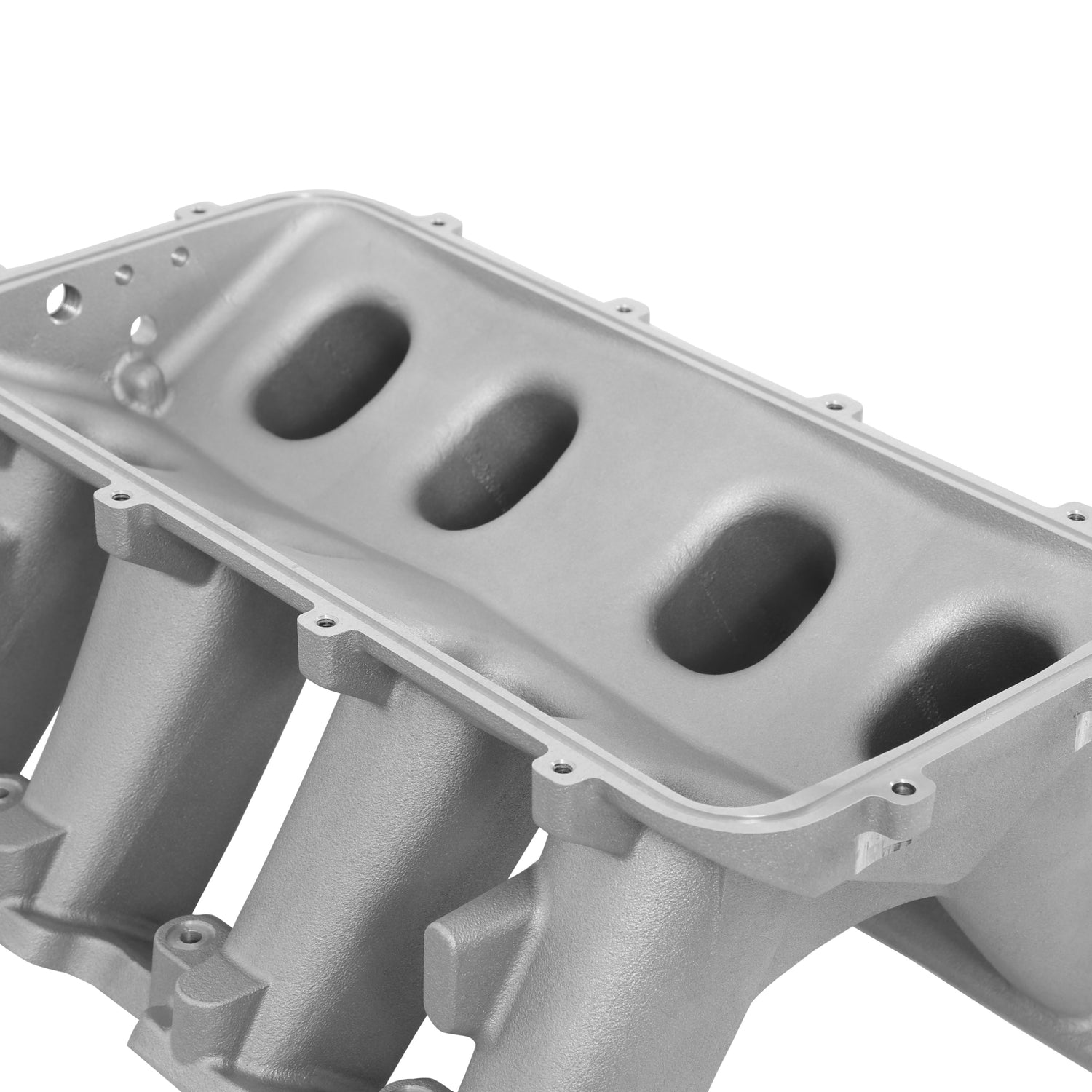

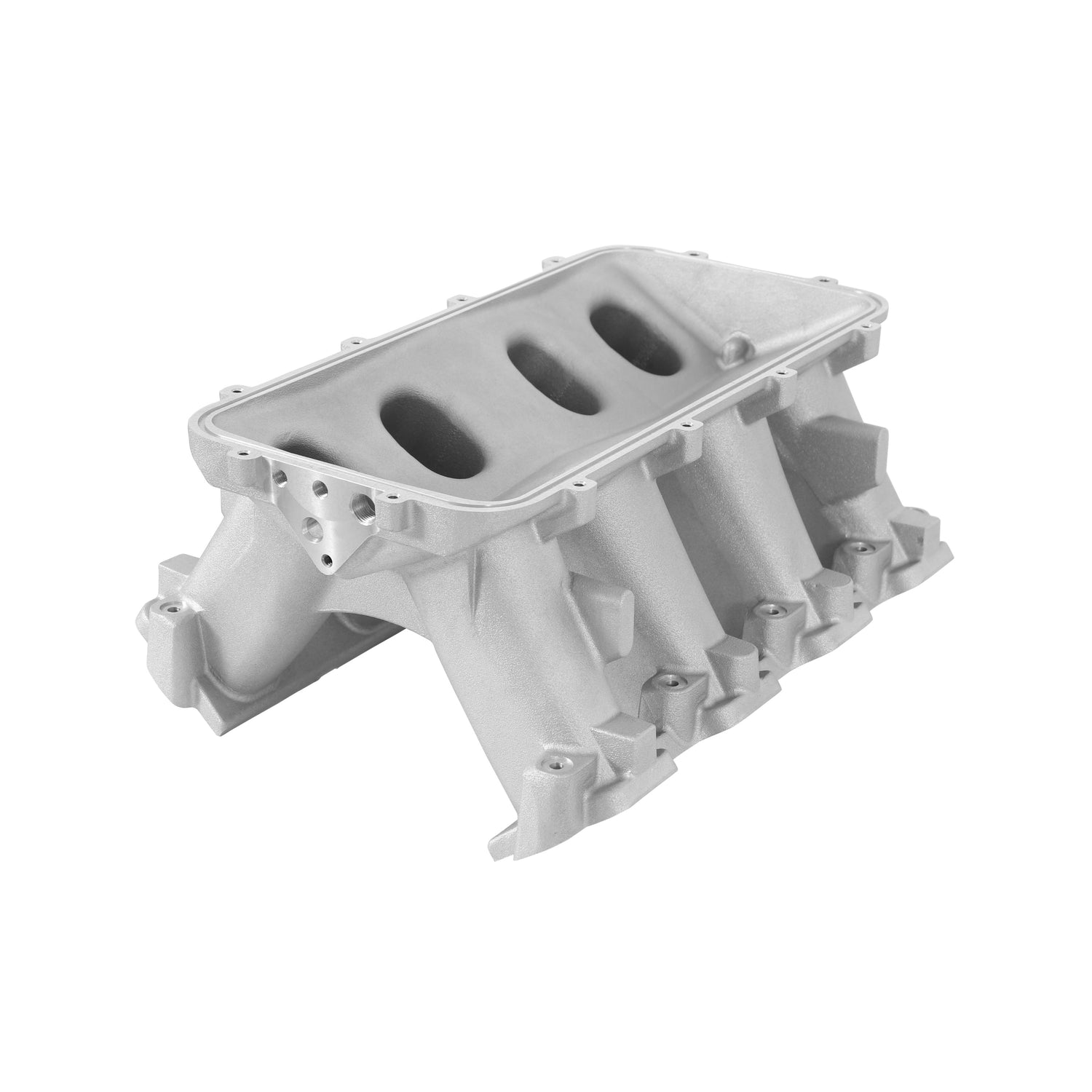

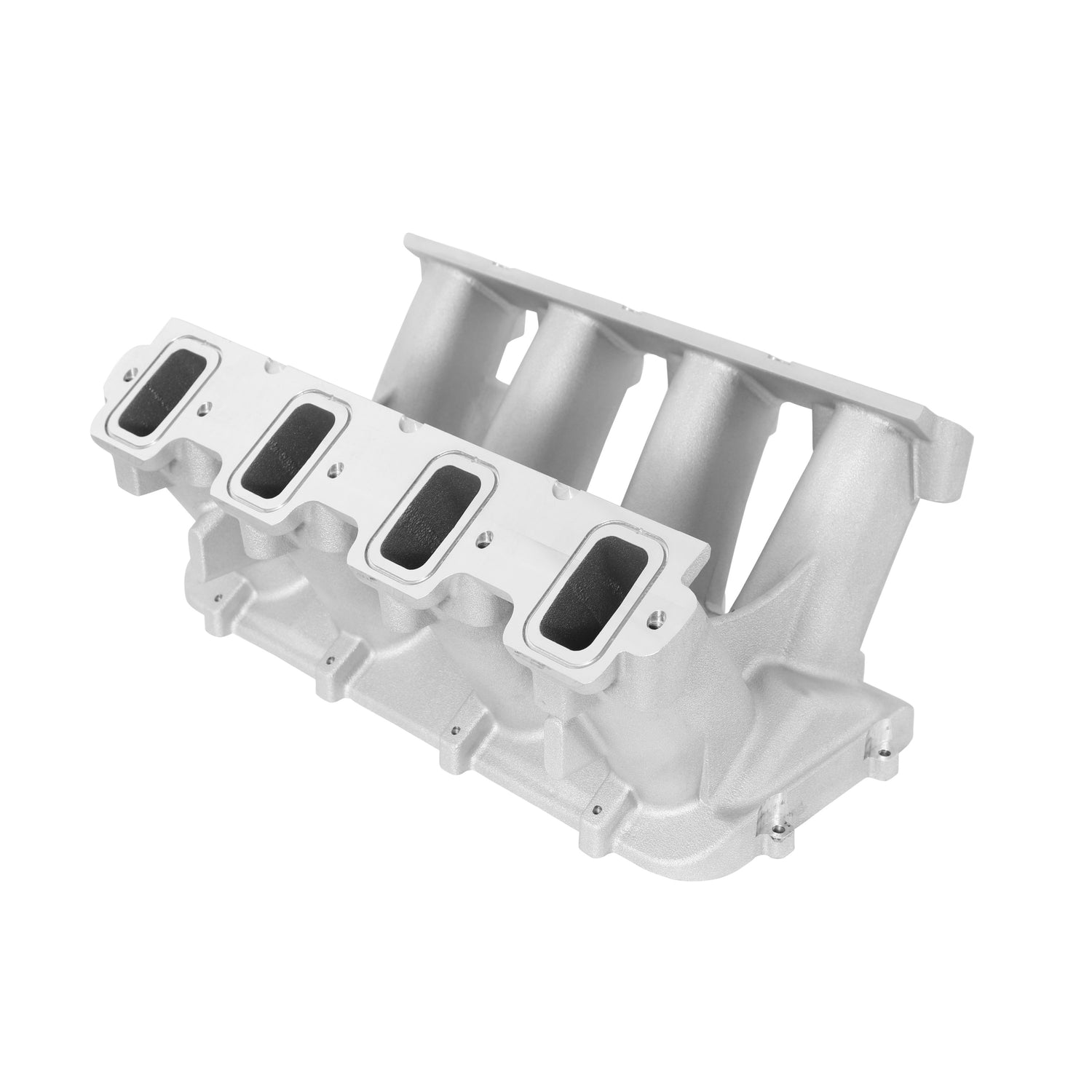

Holley 300-213 Hi-Ram Lower Manifold - GM LS3/L92
Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)
Regular price
$1,704.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-213 Hi-Ram Lower Manifold - GM LS3/L92 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)
Part Number: 300-213
Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)
Features and Benefits
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Port Size – 2.49” Height x 1.21” Wide
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²
These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration.
Part Number: 300-213
Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)
Features and Benefits
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Port Size – 2.49” Height x 1.21” Wide
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²
These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3500-8000 Brand Holley Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style N/A Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Base Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter N/A Throttle Body Gasket Included No Throttle Body Included No Type of Component Lower Manifold Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
