Holley EFI | SKU:
300-135BK
Holley 300-135BK Mid-Rise Intake - GM LS3/L92 w/ 95mm Top - Black
All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit Black Ceramic Coated. 1500-6500RPM Power Band.
Regular price
$2,362.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-135BK Mid-Rise Intake - GM LS3/L92 w/ 95mm Top - Black is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit Black Ceramic Coated. 1500-6500RPM Power Band.
Part Number: 300-135BK

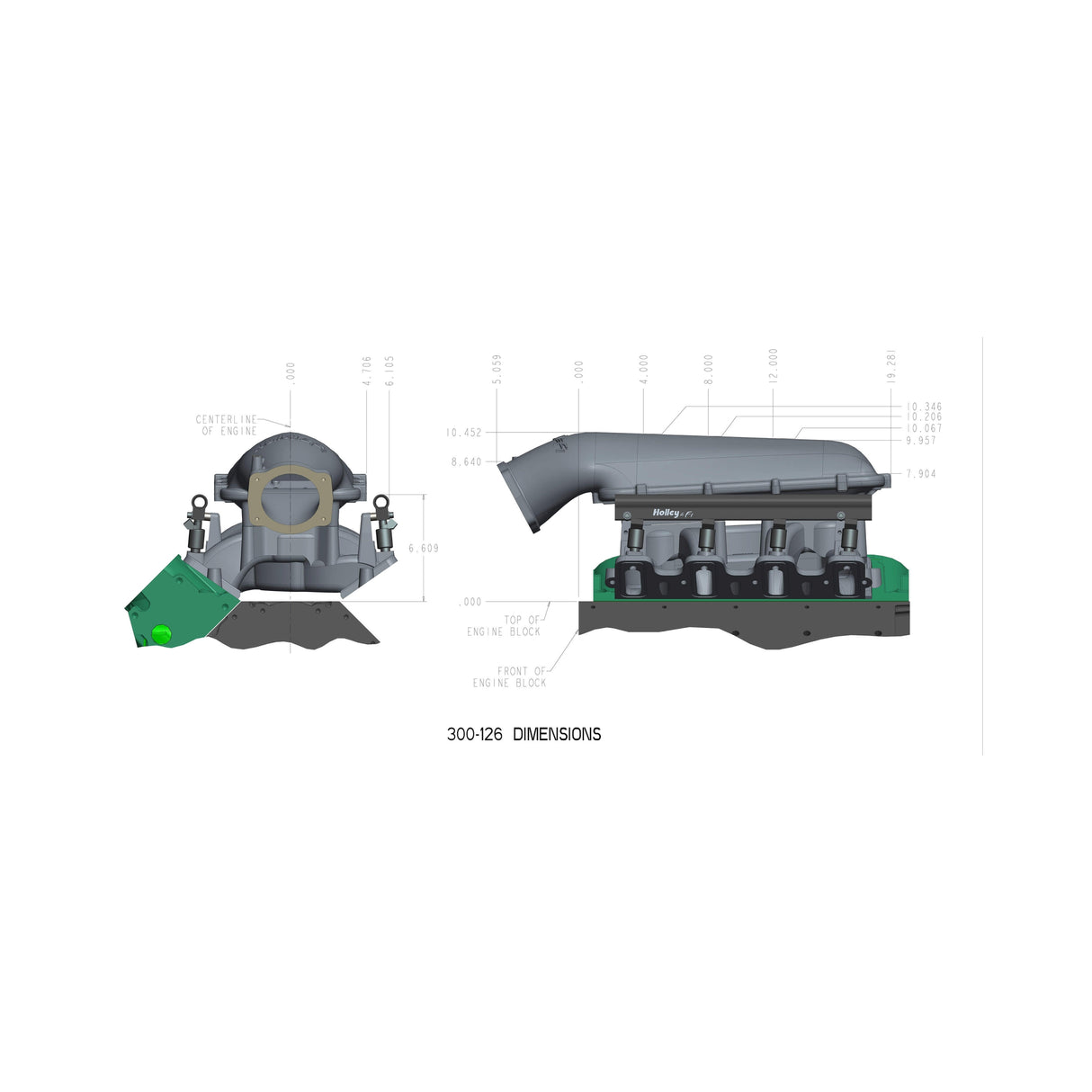

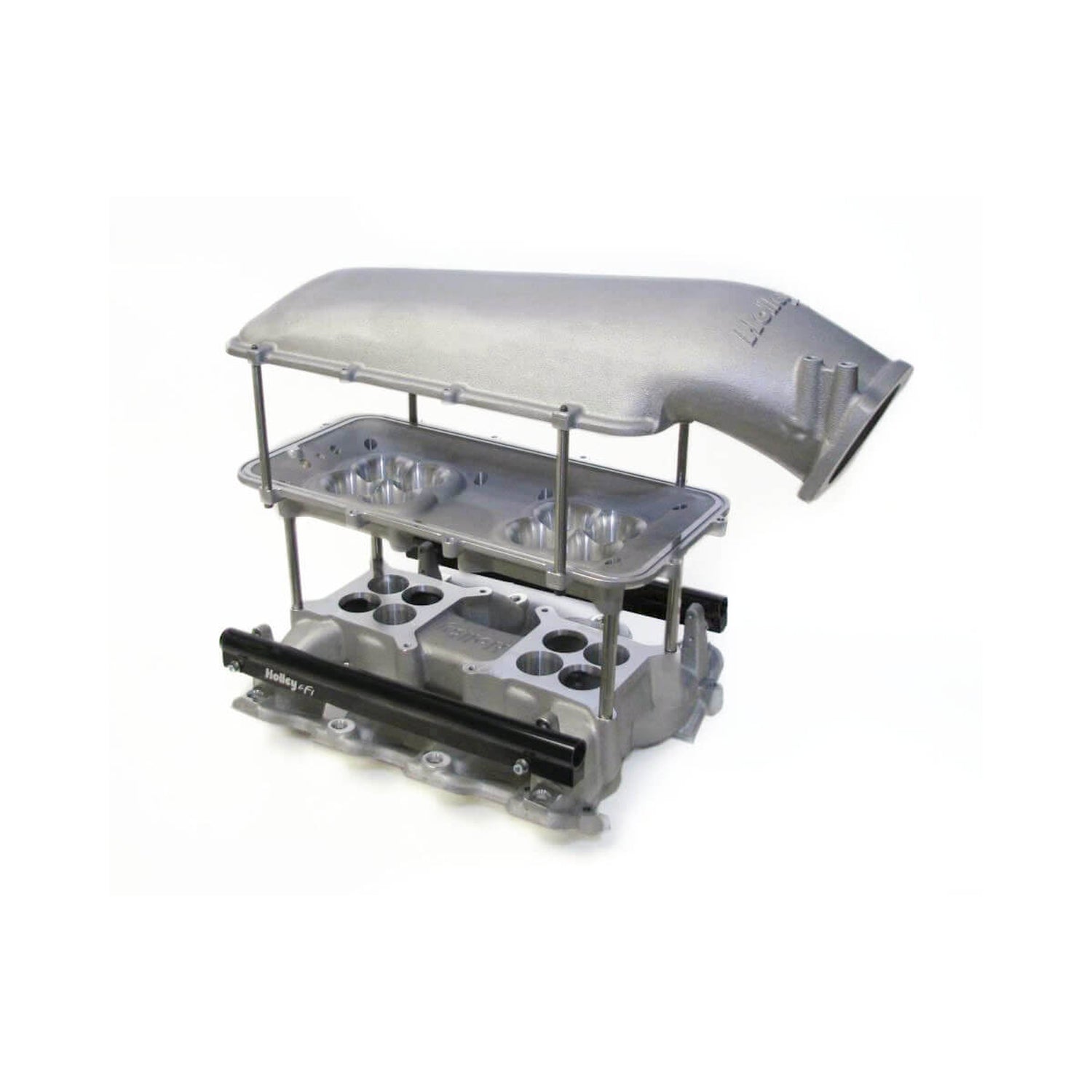

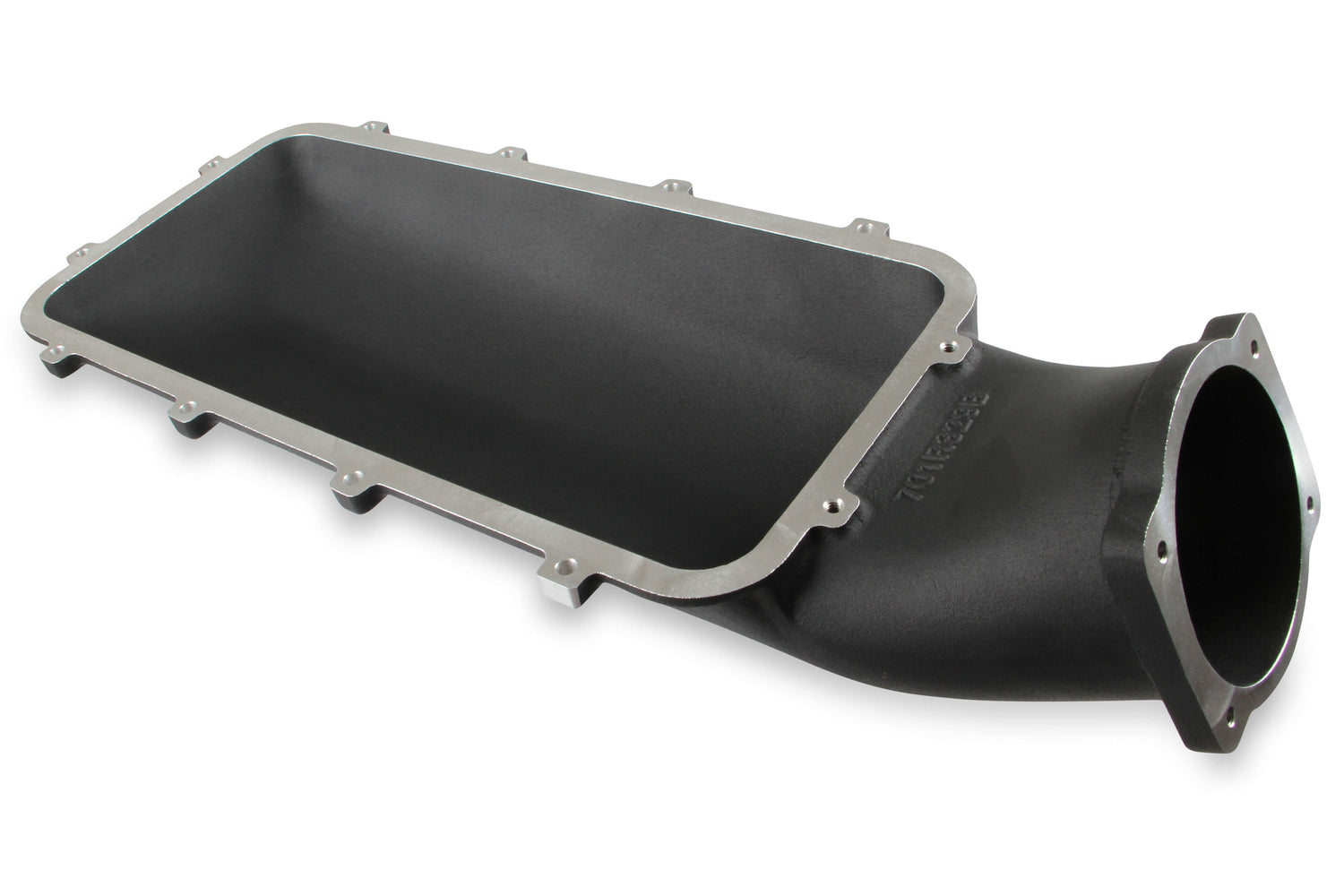

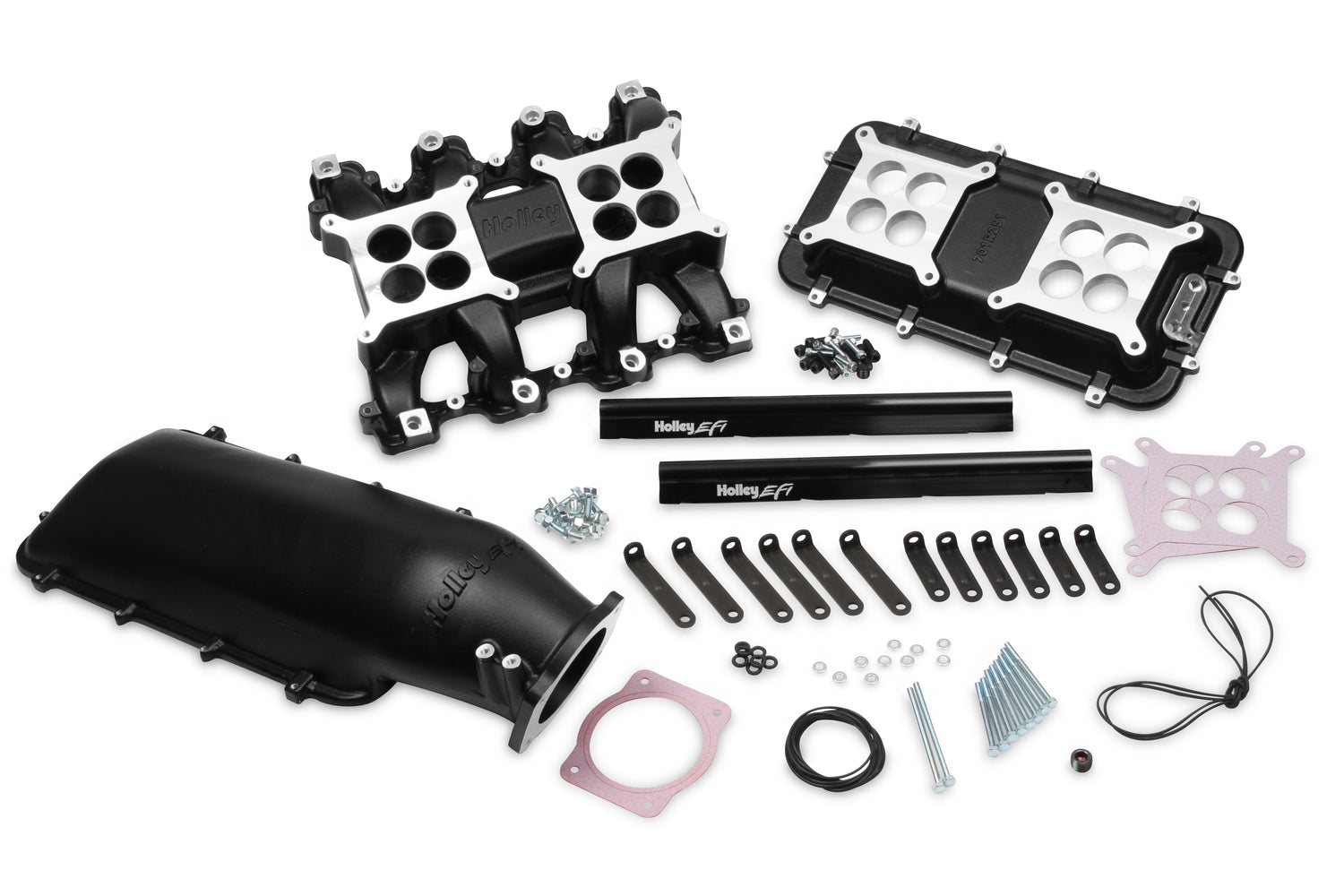

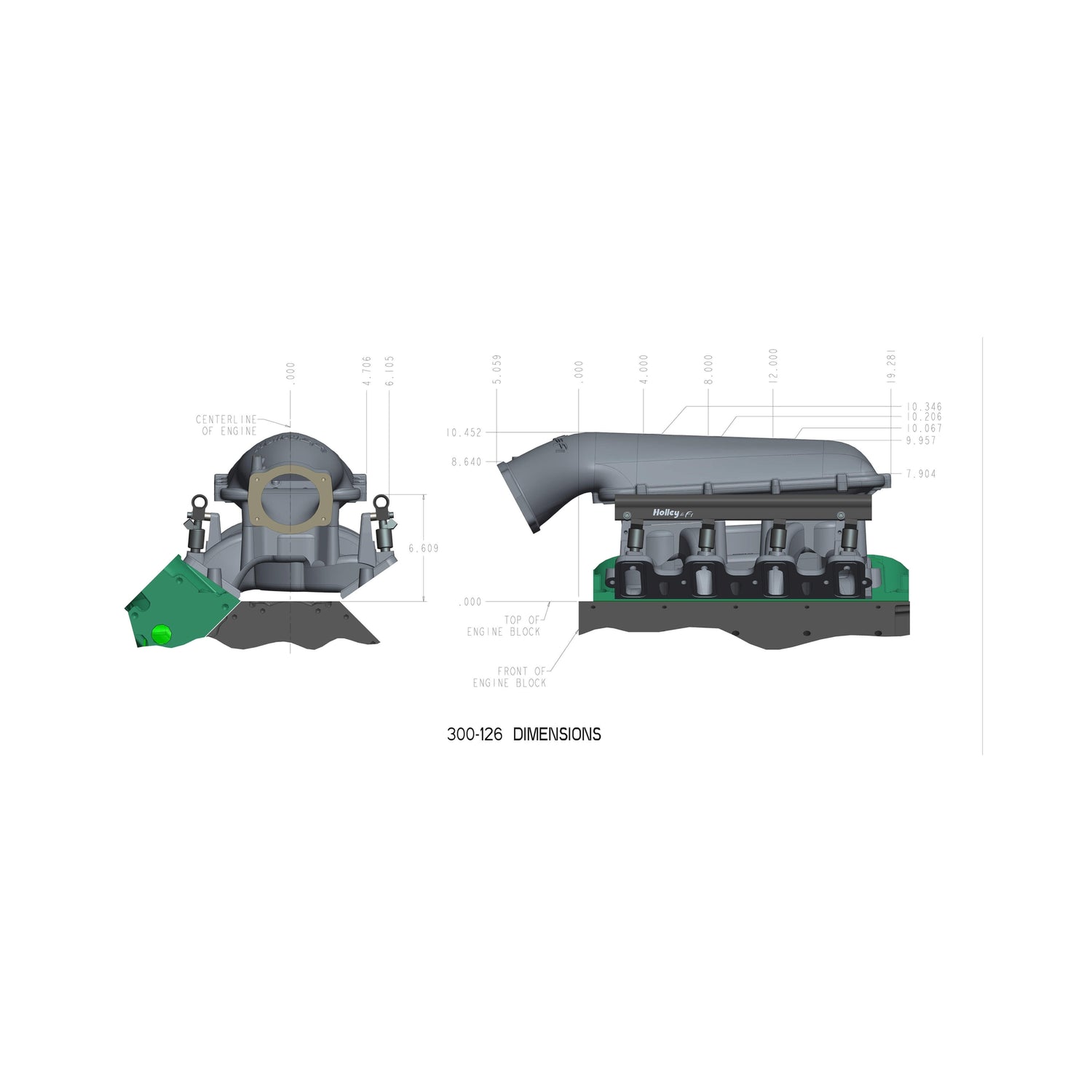

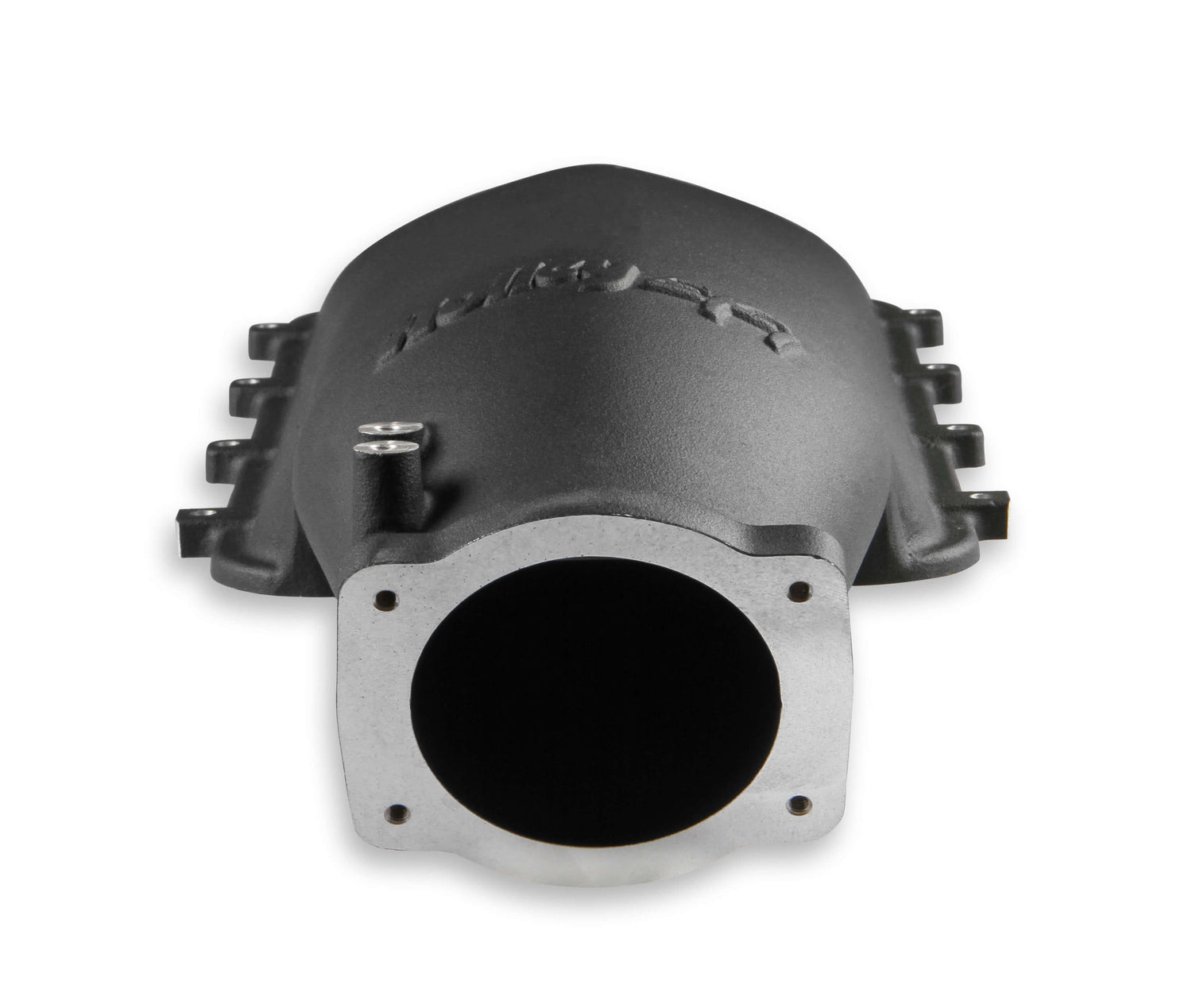

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features and Benefits
• 1500-6500RPM Power Band
• Overall Height of 10.44 inches
• 92MM EFI Plenum
• Mid-Rise manifold for excellent street/strip performance
• Black Ceramic Coating for an aggresive look in your engine compartment
• Fits GM LS3/L92 engines

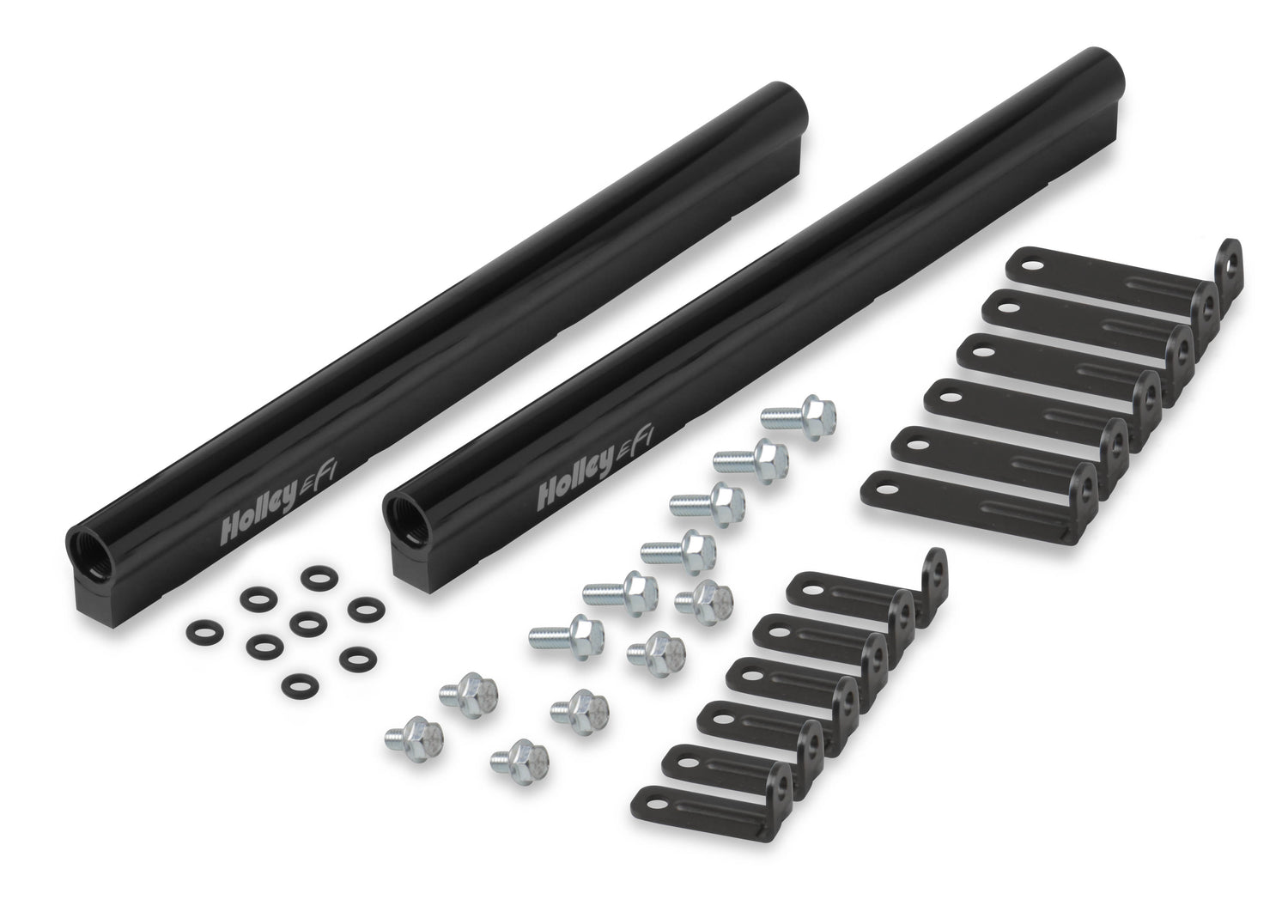

Recalibration of the ECU may be required when using this intake manifold design with OE ECU. _x000D_ Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold. NOTE: these manifolds & fuel rails are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors (OE LS fuel injectors may not fit properly in the intake manifold & fuel rail assembly). _x000D_ _x000D_ *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Part Number: 300-135BK
The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features and Benefits
• 1500-6500RPM Power Band
• Overall Height of 10.44 inches
• 92MM EFI Plenum
• Mid-Rise manifold for excellent street/strip performance
• Black Ceramic Coating for an aggresive look in your engine compartment
• Fits GM LS3/L92 engines
Recalibration of the ECU may be required when using this intake manifold design with OE ECU. _x000D_ Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold. NOTE: these manifolds & fuel rails are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors (OE LS fuel injectors may not fit properly in the intake manifold & fuel rail assembly). _x000D_ _x000D_ *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Specifications
Specifications
-
Specifications

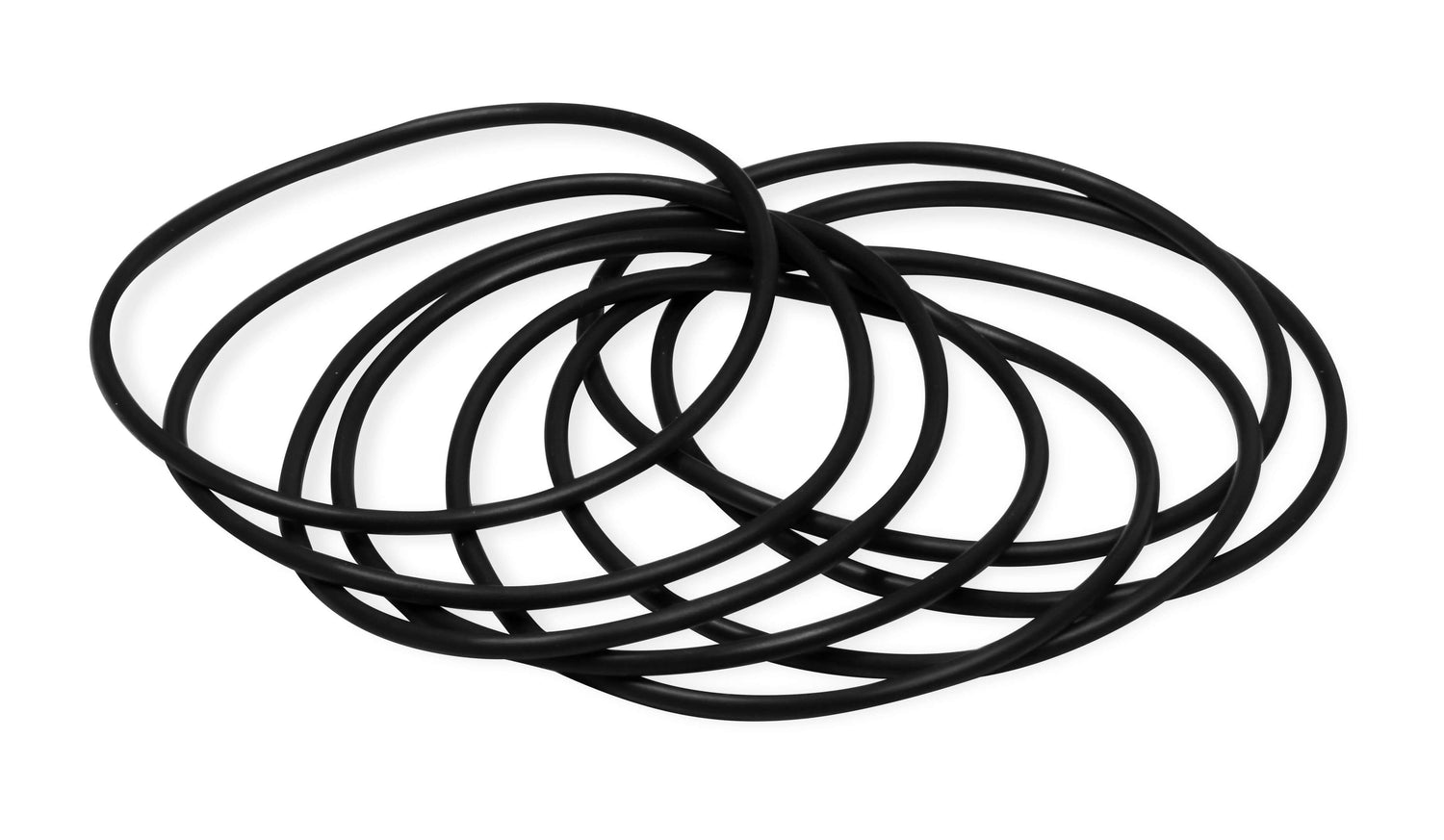

Basic Operating RPM Range 2500-7000 Brand Holley EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Black Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style EFI Front Maximum Height 10.44 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Intake Port Gasket(s) Included Yes Manifold Type Mid Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Rear Maximum Height 9.99 Recommended Use Forced Induction Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 95 Throttle Body Gasket Included Yes Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
