Holley | SKU:
300-132BK
Holley 300-132BK Single Plane Intake - GM LS1/LS2/LS6 - Black

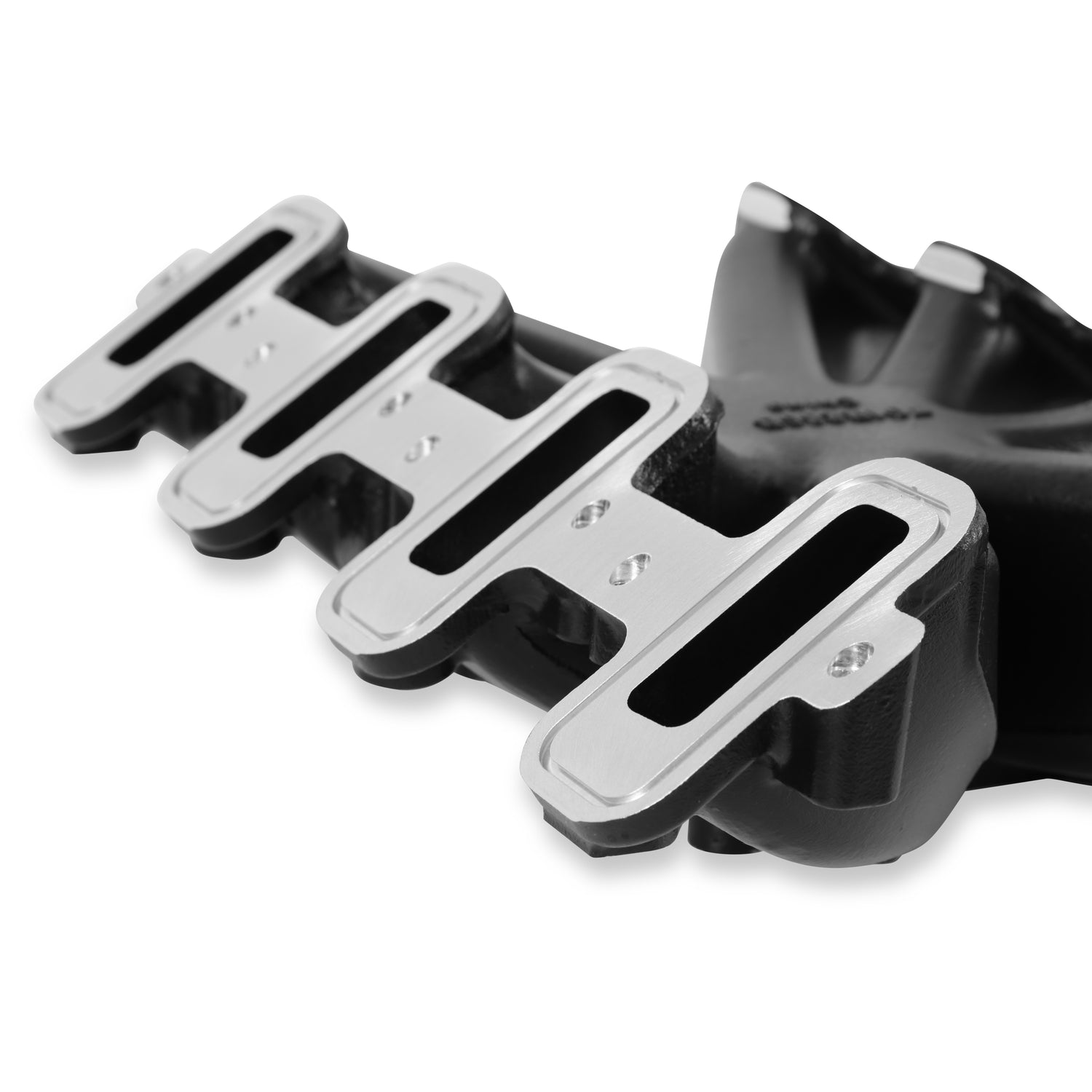

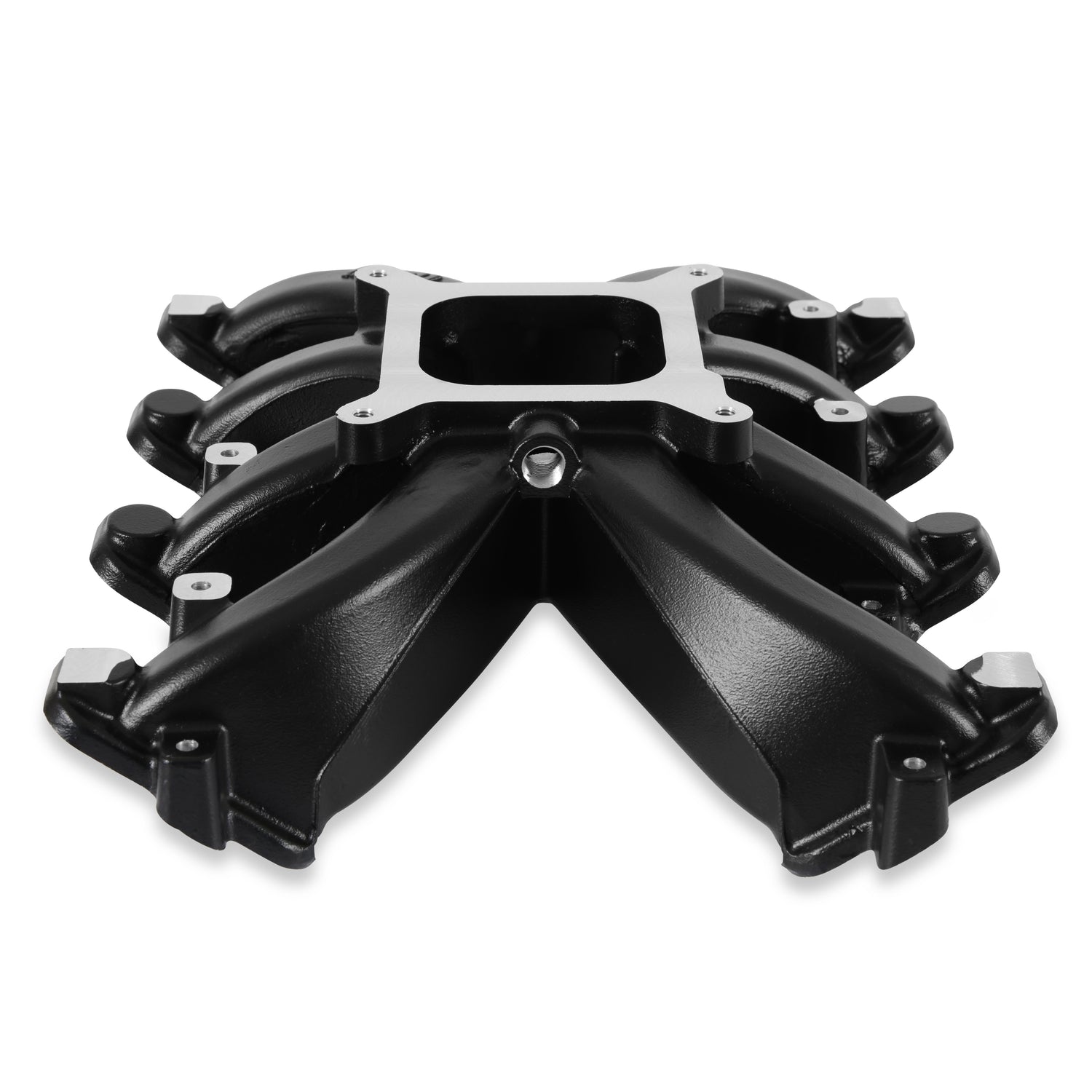

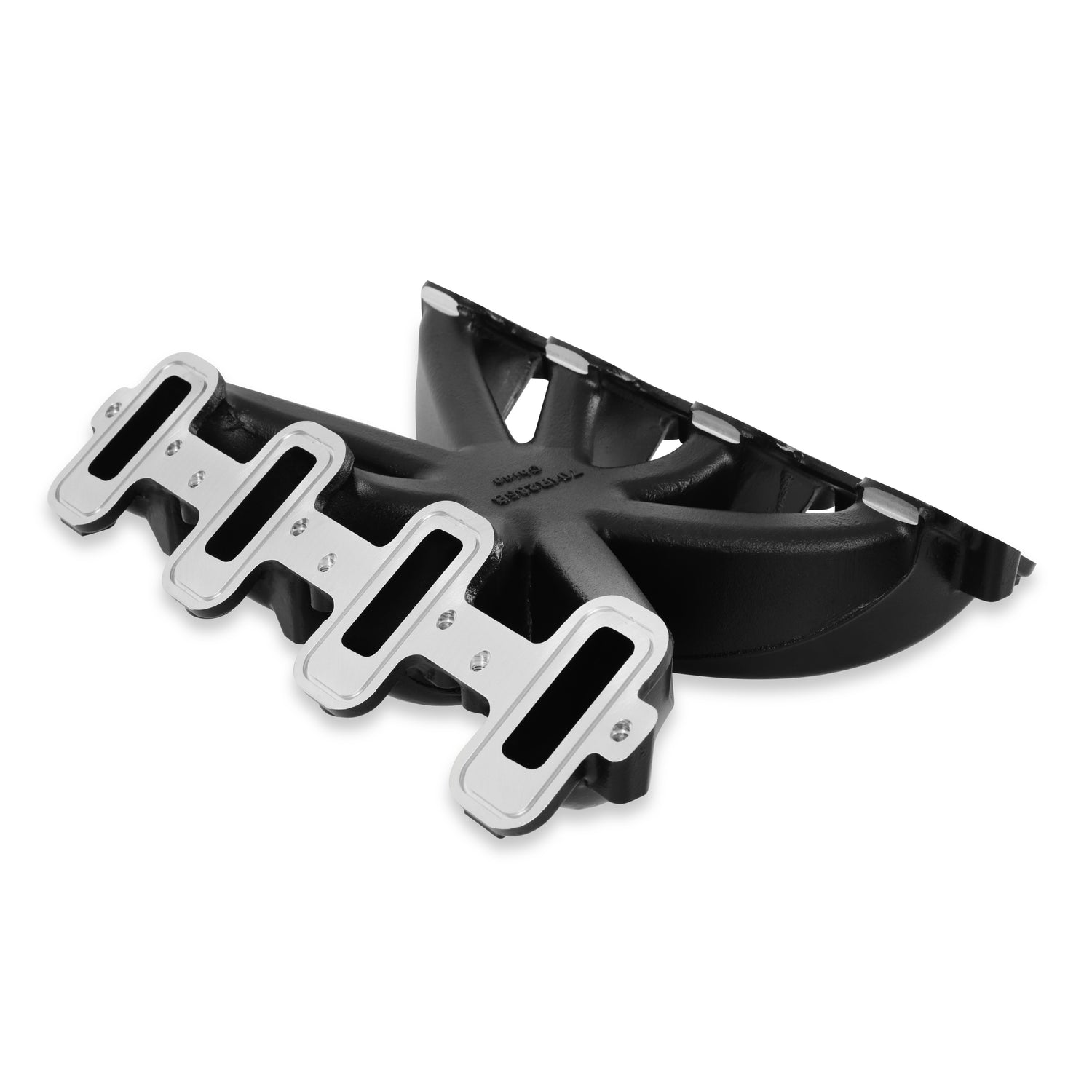

Black Ceramic Coated, Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Regular price
$1,070.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-132BK Single Plane Intake - GM LS1/LS2/LS6 - Black is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Black Ceramic Coated, Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Part Number: 300-132BK
Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Features and Benefits
• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Port size - 2.659" height x .918" wide
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

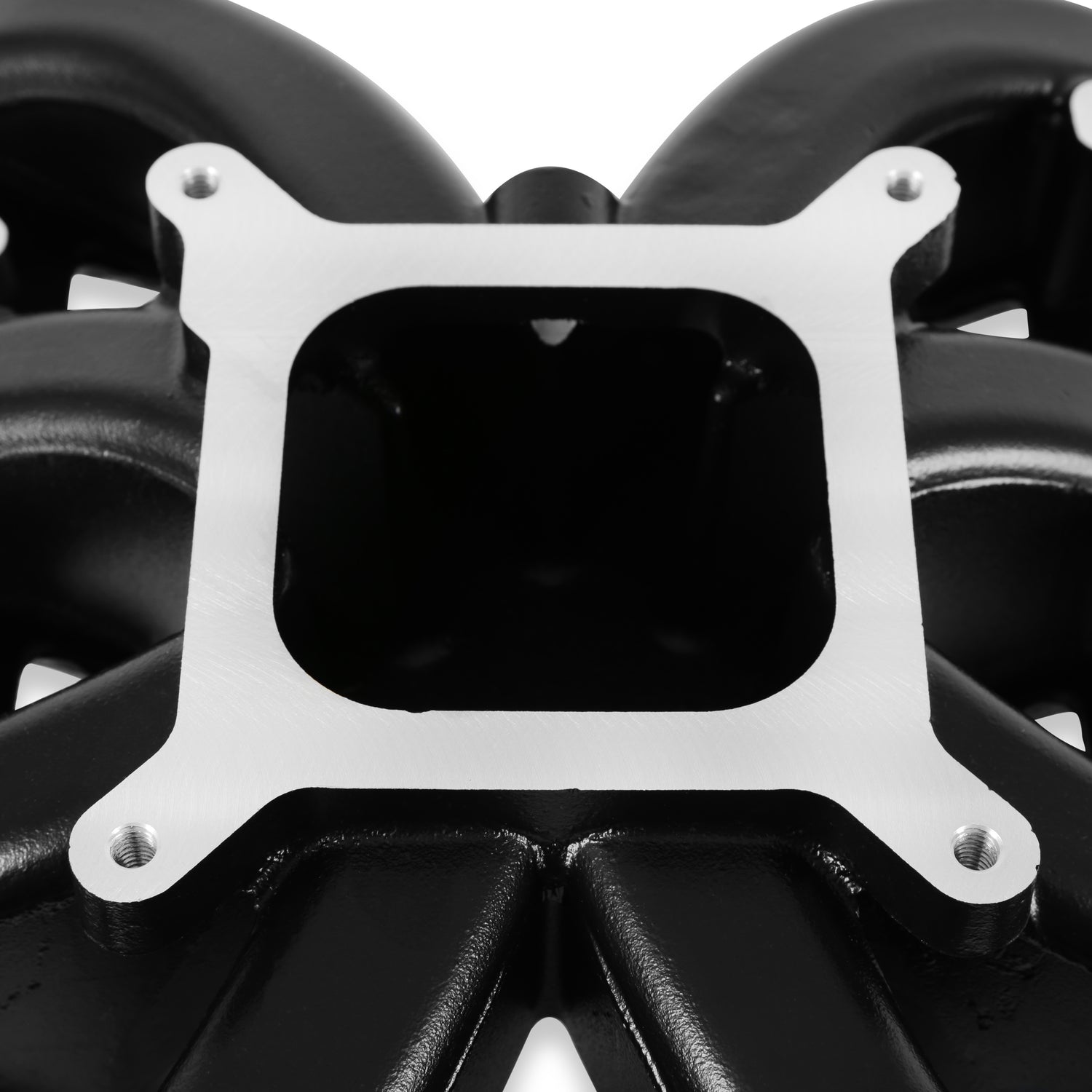

• 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
• Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
• 2500-7000 RPM power band
• Weight - 11.5 lbs.
• Minimum carb flange height - fits in vehicles with minimum hood modifications
• Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange

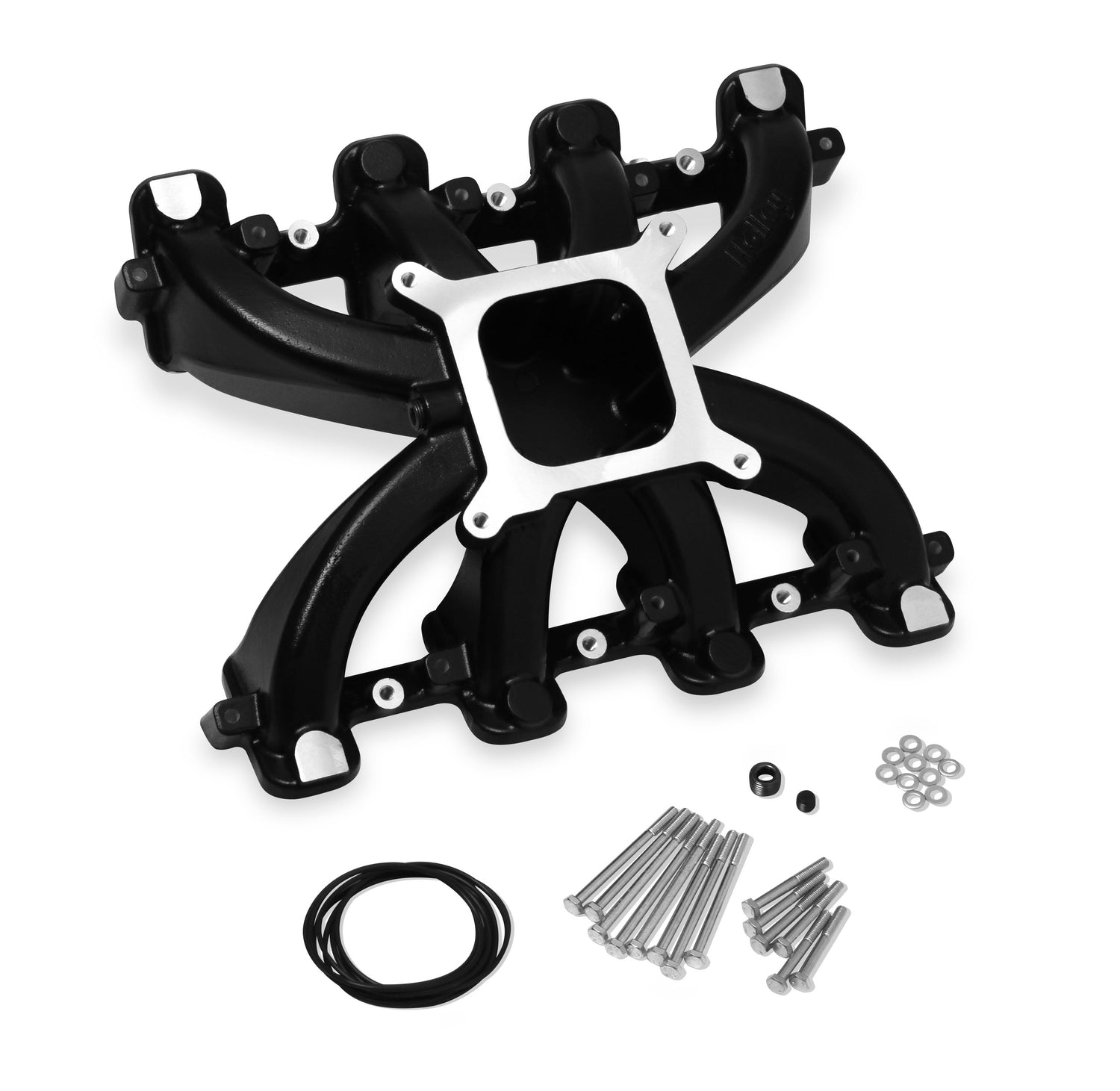

Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Part Number: 300-132BK
Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Features and Benefits
• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Port size - 2.659" height x .918" wide
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
• 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
• Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
• 2500-7000 RPM power band
• Weight - 11.5 lbs.
• Minimum carb flange height - fits in vehicles with minimum hood modifications
• Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range 2500-7000 Brand Holley Carburetor Flange Square/4150 Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Black Construction Cast Cylinder Head Port Shape Cathedral Deck Height 9.24 EGR Port No Emission Code 3 Engine GM LS1/LS2/LS6 Flange Style 4150 Square Bore Front Maximum Height 4.95 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Single Plane Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Rear Maximum Height 4.95 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
