Holley | SKU:
300-131

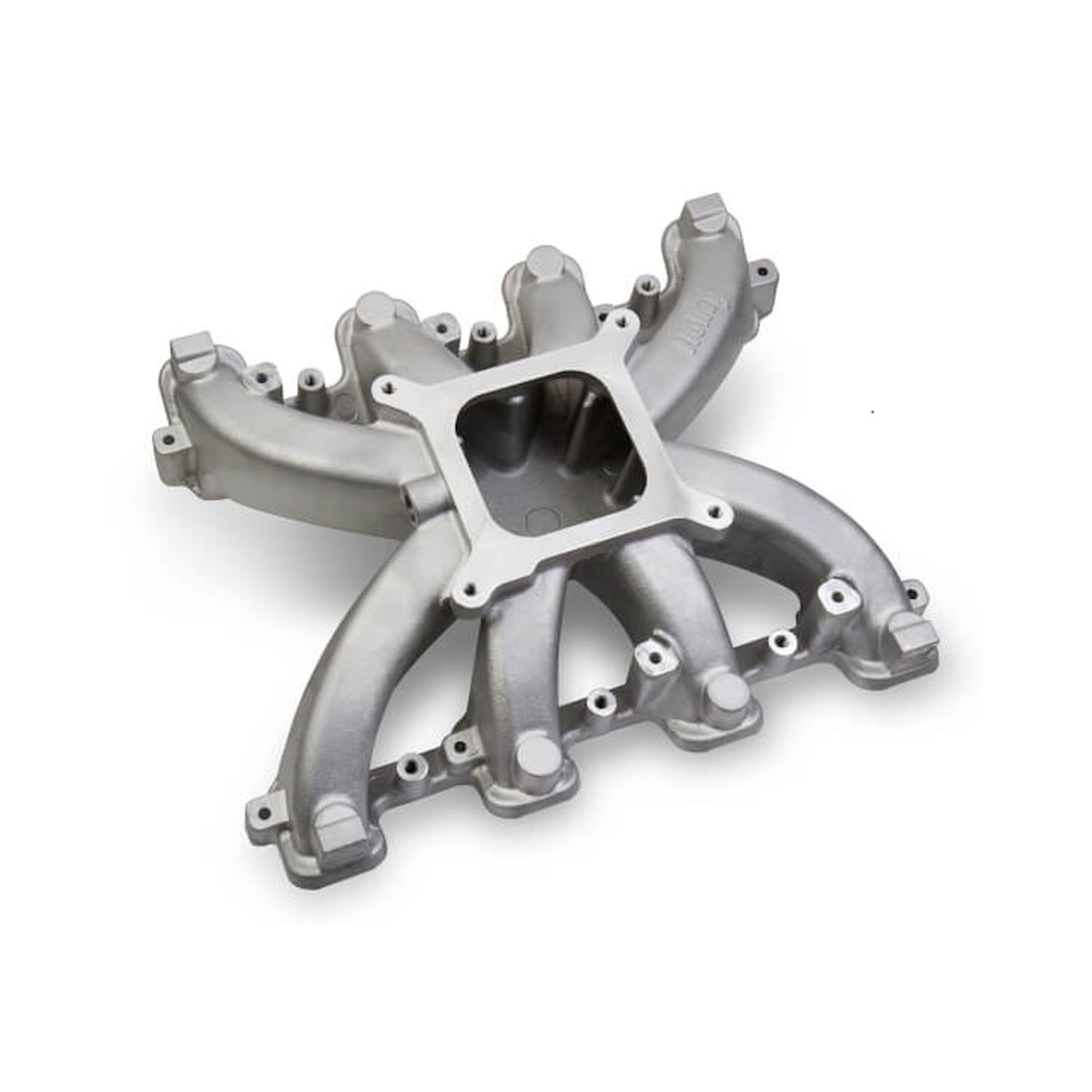

Holley 300-131 Single Plane Carbureted Intake - GM LS3/L92
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Regular price
$950.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-131 Single Plane Carbureted Intake - GM LS3/L92 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 300-131 Single Plane Carbureted Intake - GM LS3/L92
Regular price
$950.90 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Part Number: 300-131
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Features and Benefits
• Minimum carb flange height - fit in vehicles with minimum hood modifications
• Weight - 11.5 lbs.
• Port size - 2.50" height x 1.15" wide
• 2500-7000 RPM power band
• Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
• 4150 Square bore flange (accepts up to 1.75" diameter throttle bores)
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality

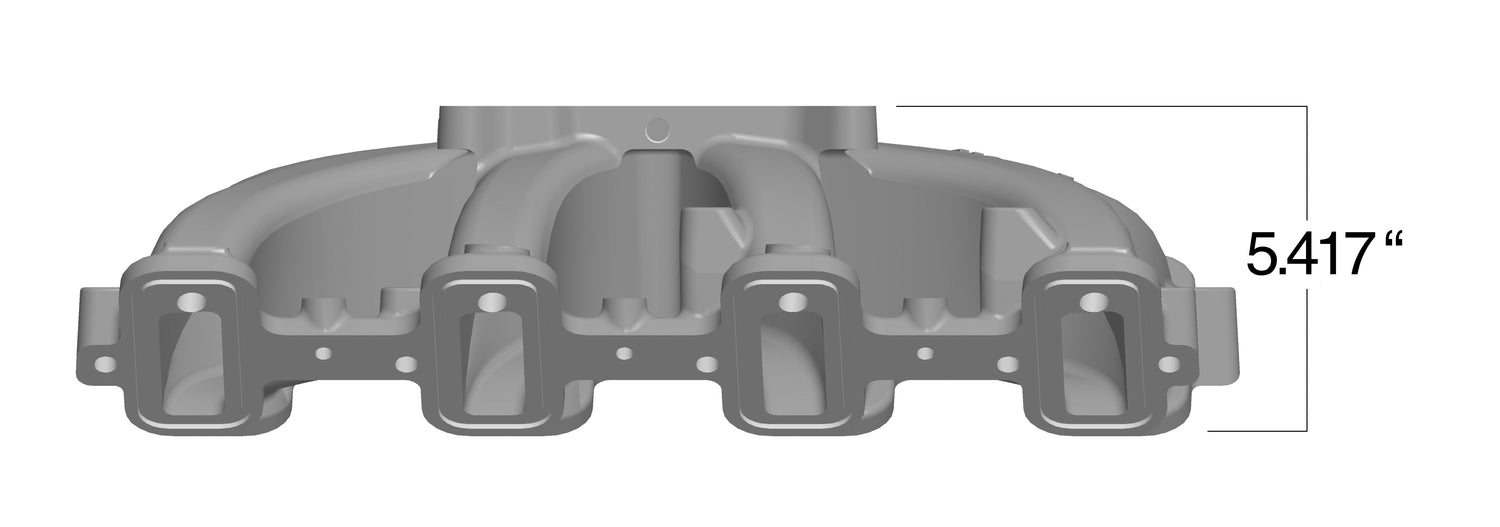

• Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Part Number: 300-131
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Features and Benefits
• Minimum carb flange height - fit in vehicles with minimum hood modifications
• Weight - 11.5 lbs.
• Port size - 2.50" height x 1.15" wide
• 2500-7000 RPM power band
• Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
• 4150 Square bore flange (accepts up to 1.75" diameter throttle bores)
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
• Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2500-7000 Brand Holley Carburetor Flange Square/4150 Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 3 Engine GM LS3/L92 Flange Style 4150 Square Bore Front Maximum Height 5.417 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Single Plane Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Rear Maximum Height 5.417 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
