Holley | SKU:
300-113
Holley 300-113 Hi-Ram Intake - GM LS3/L92
Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)
Regular price
$1,963.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-113 Hi-Ram Intake - GM LS3/L92 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 300-113 Hi-Ram Intake - GM LS3/L92
Regular price
$1,963.30 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)
Part Number: 300-113

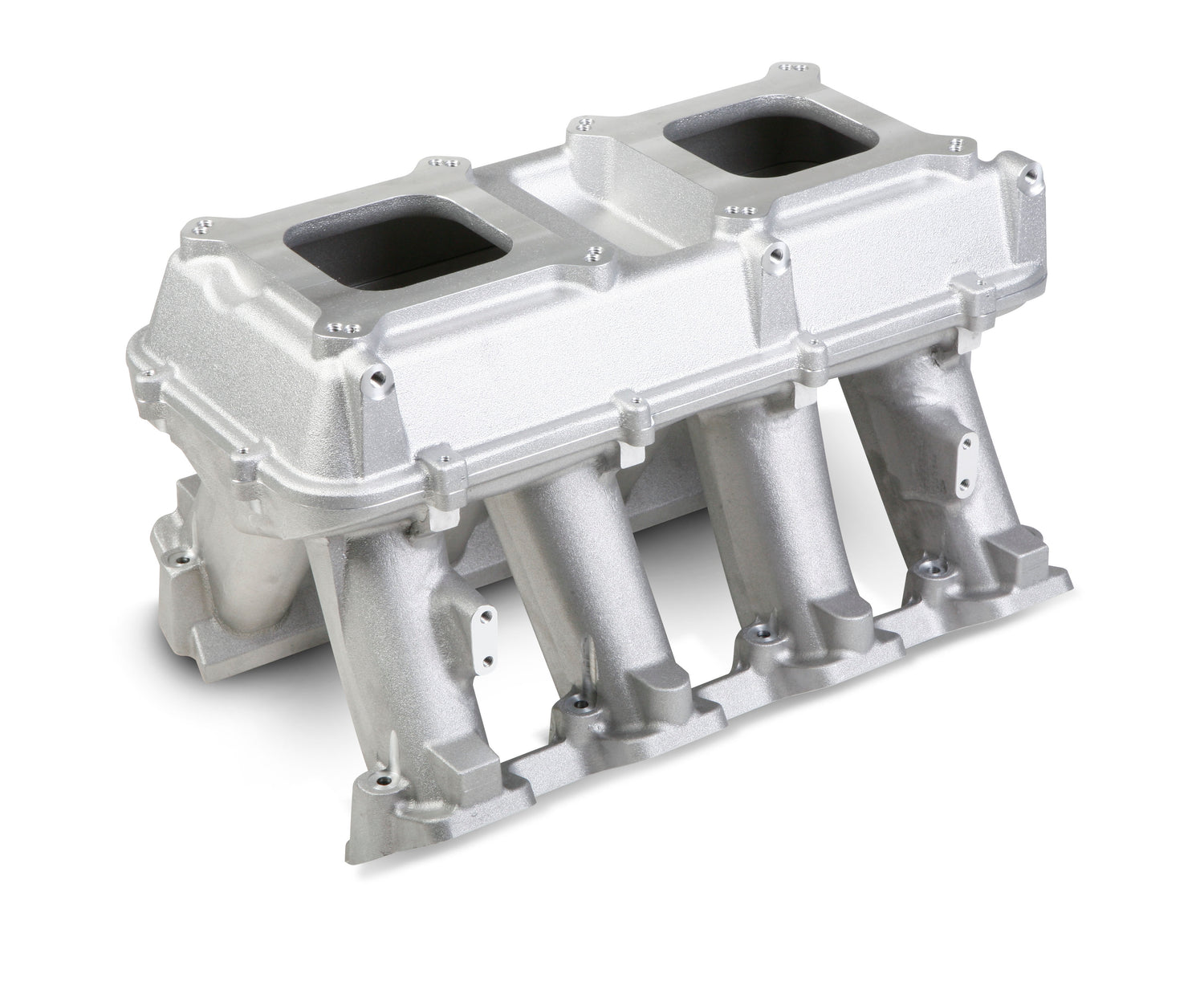

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. • Cast aluminum construction. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Features and Benefits
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
• Port Size – 2.49” Height x 1.21” Wide
• Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
• Plenum Top Gasket Type – 3/32” Round O-ring Cord

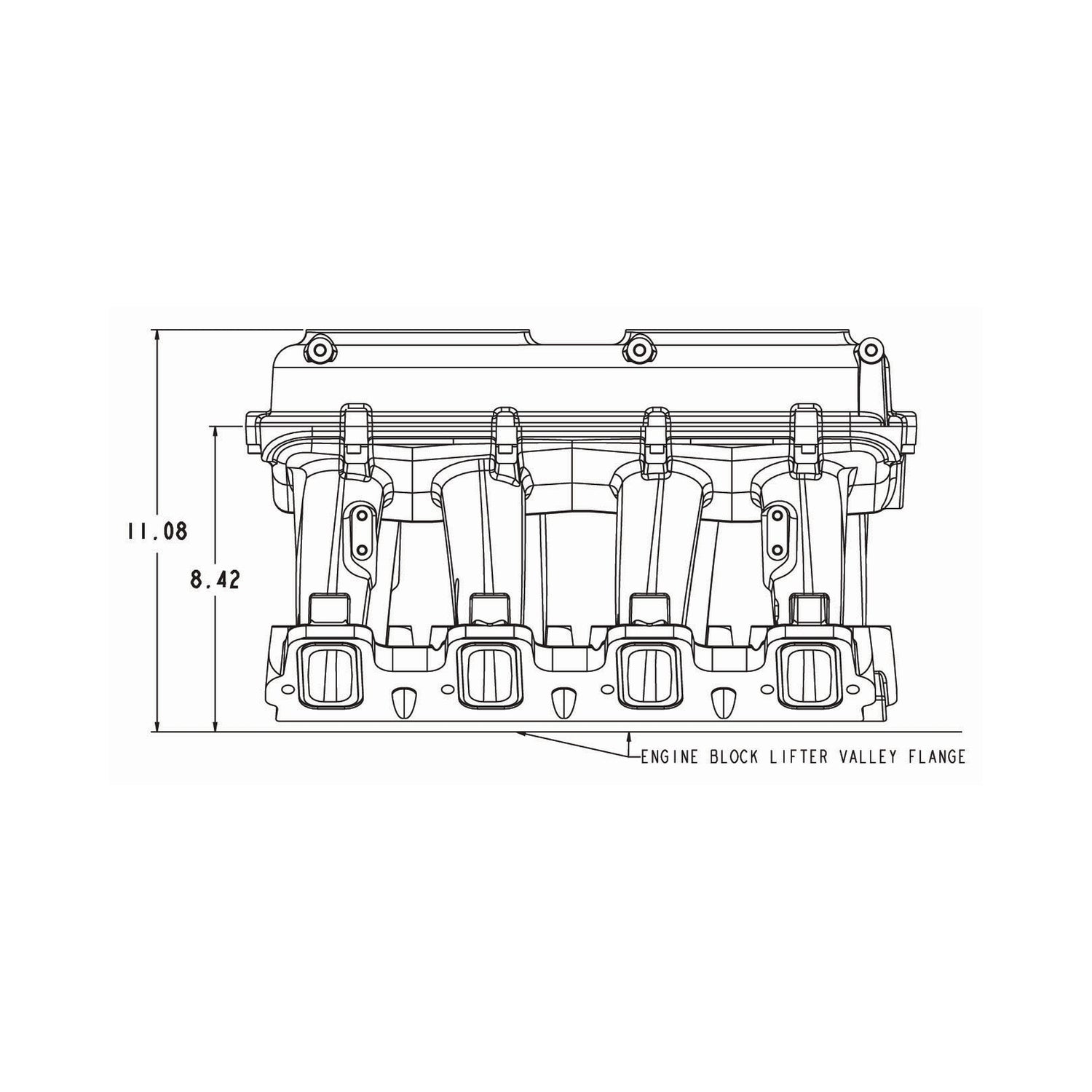

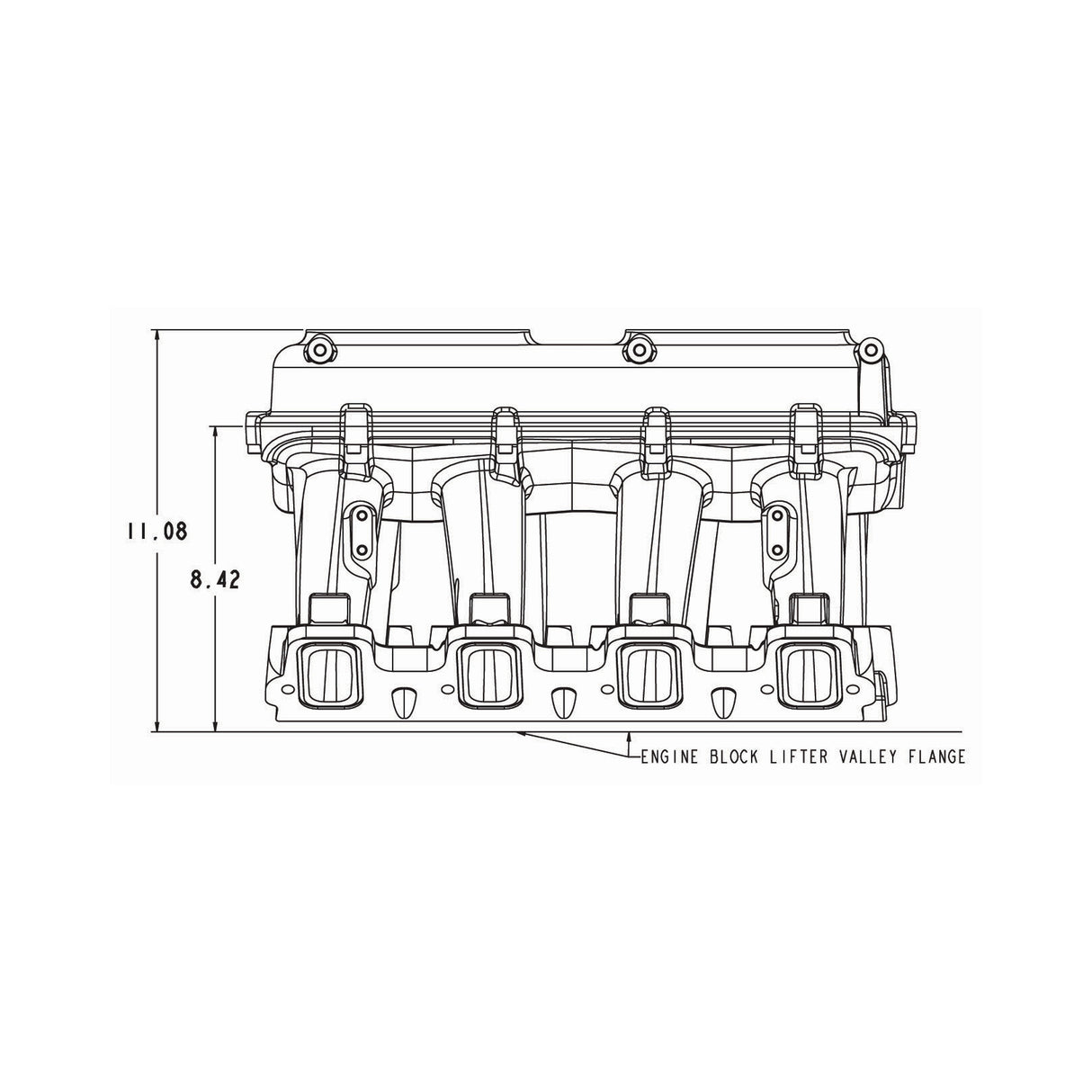

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Part Number: 300-113
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. • Cast aluminum construction. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Features and Benefits
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
• Port Size – 2.49” Height x 1.21” Wide
• Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3500-8000 Brand Holley Carburetor Flange Square/4150 Carburetor Quantity 2 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style 4150 Square Bore Front Maximum Height 11.08 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Hi-Ram Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Natural Product Type Intake Manifold Rear Maximum Height 11.08 Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
