Holley | SKU:
26-509

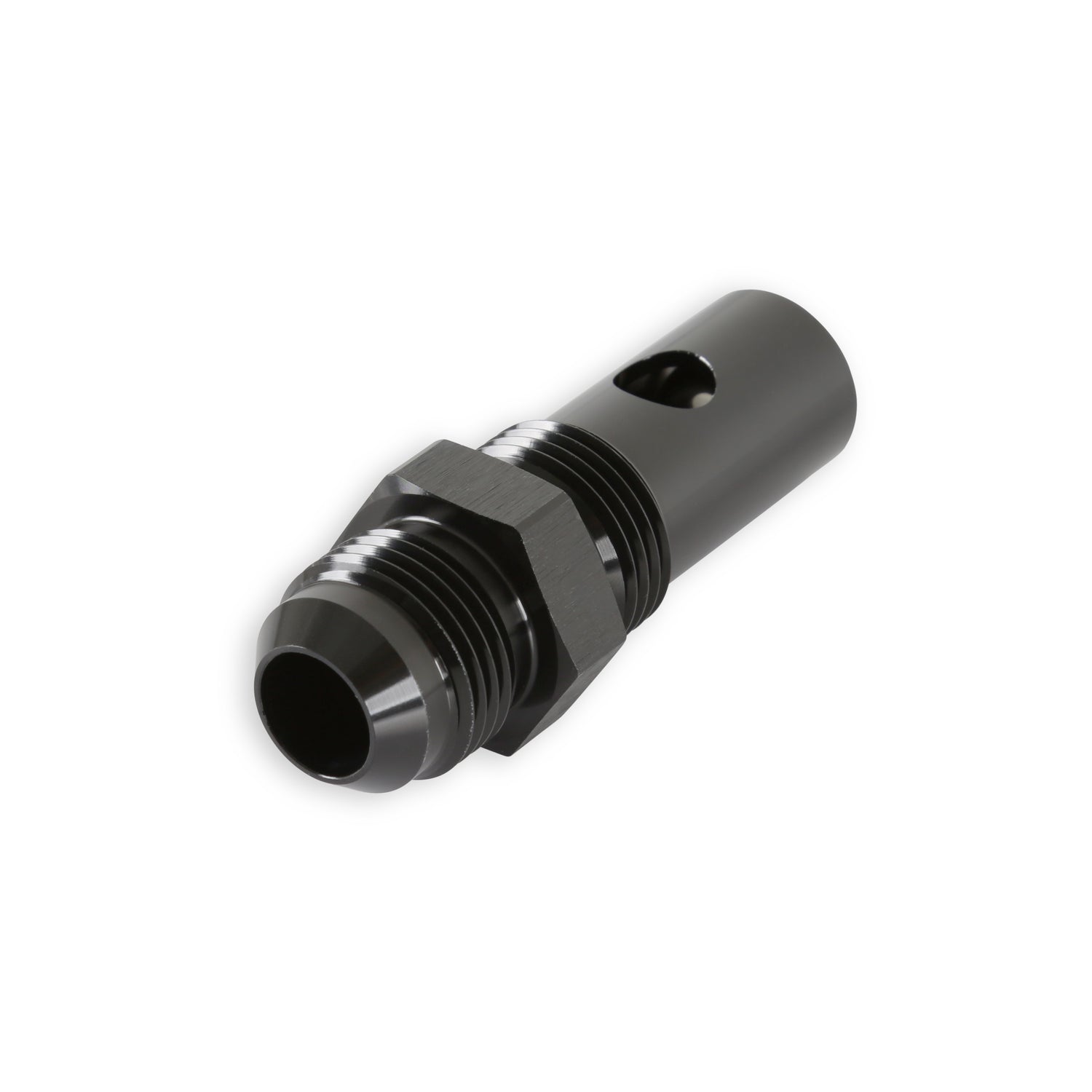

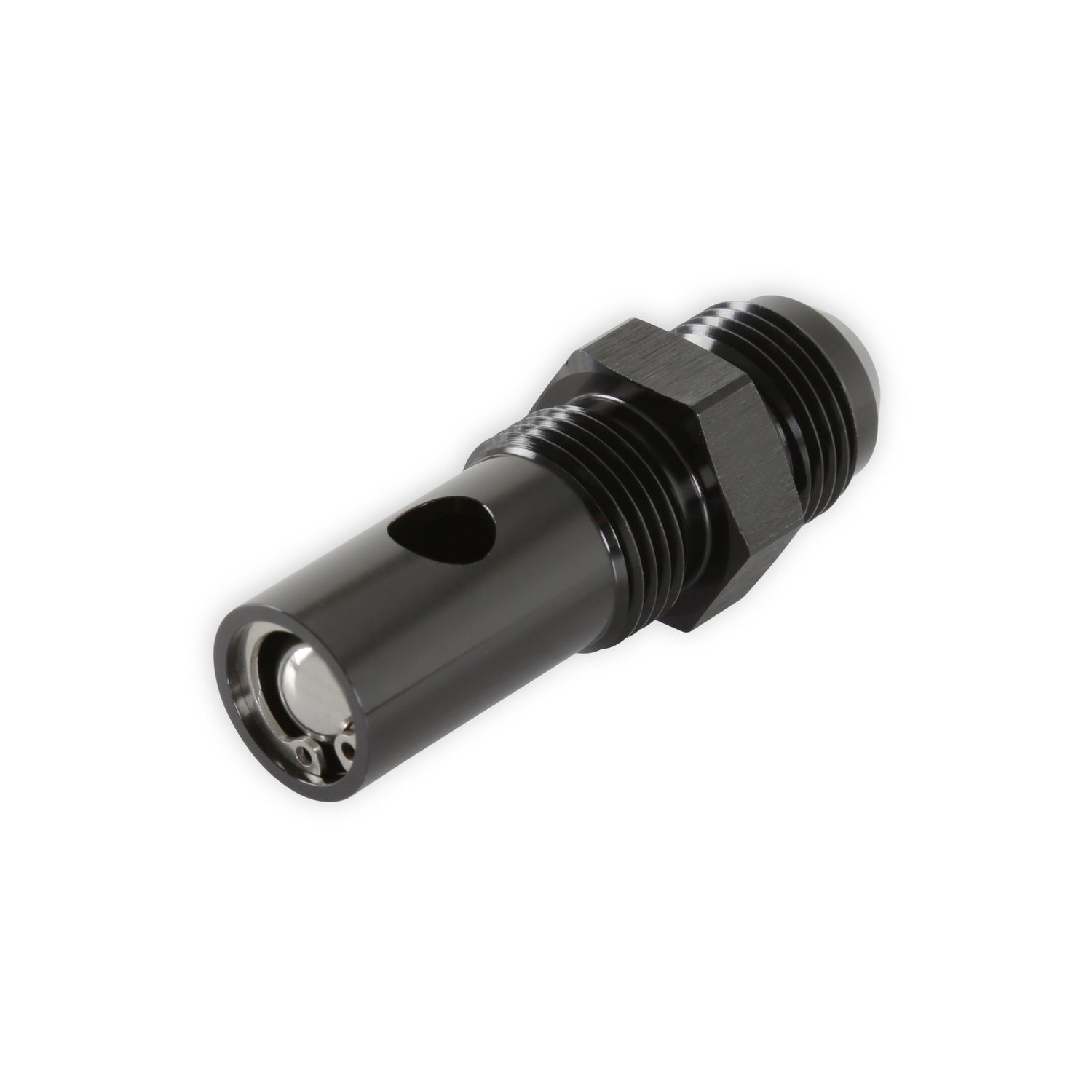

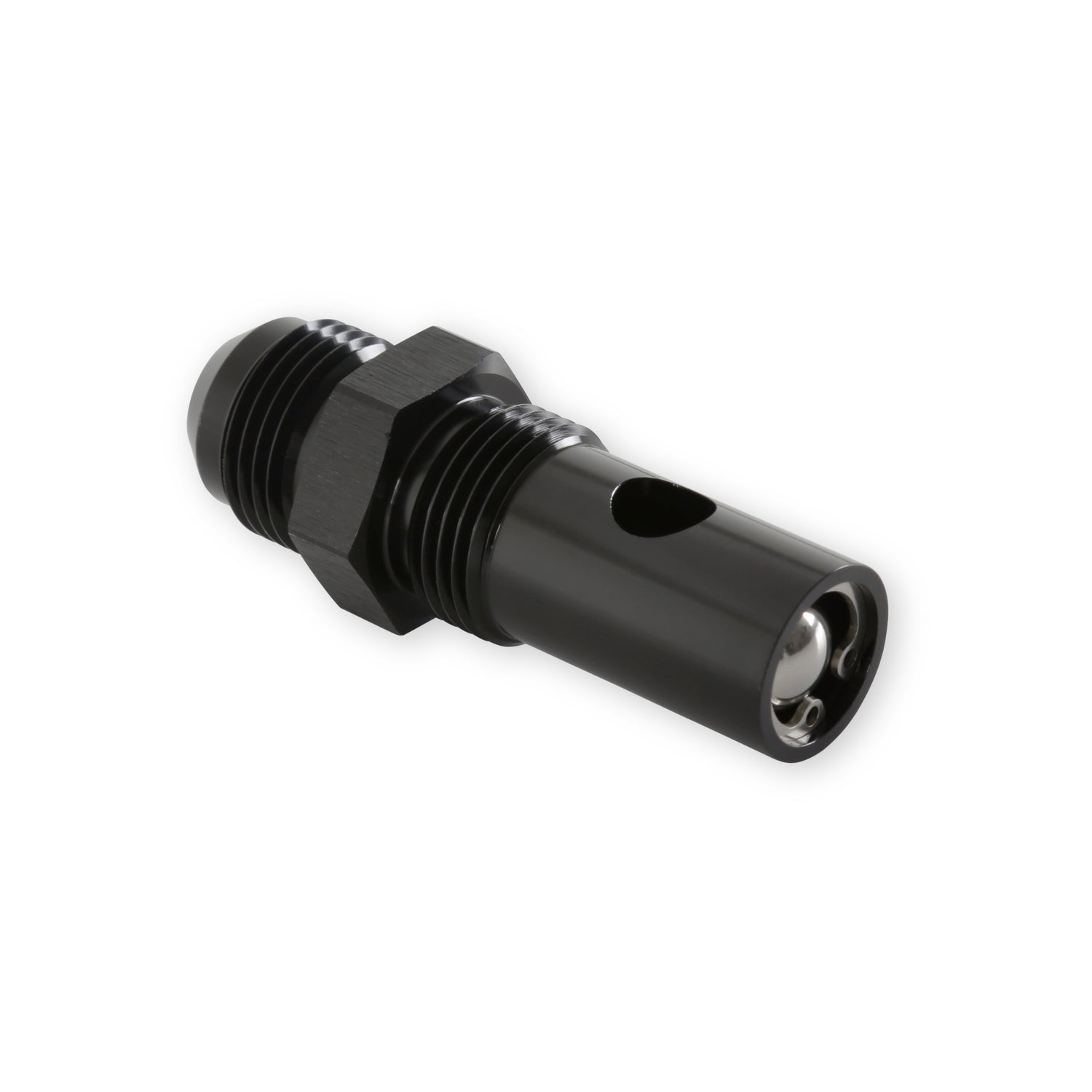

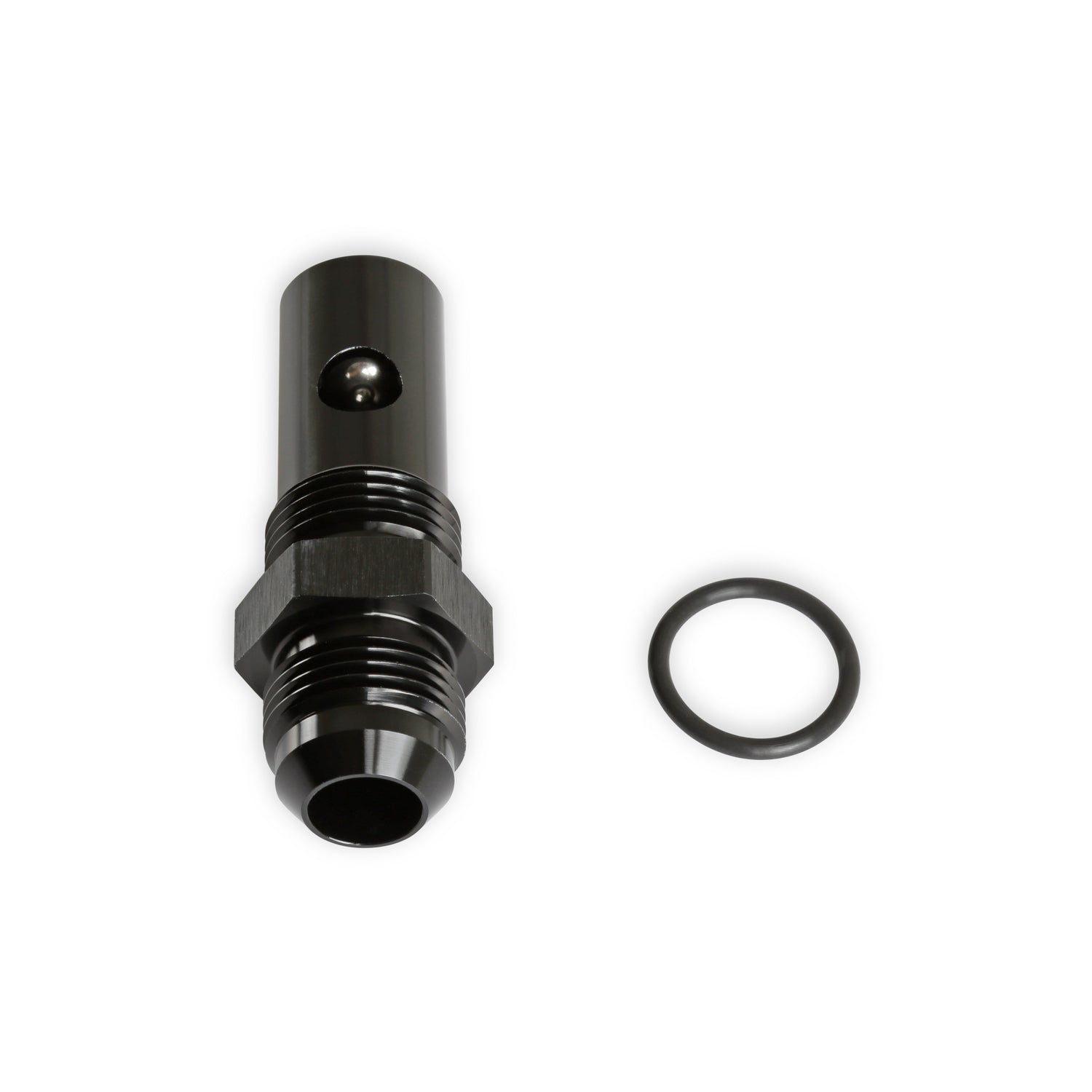

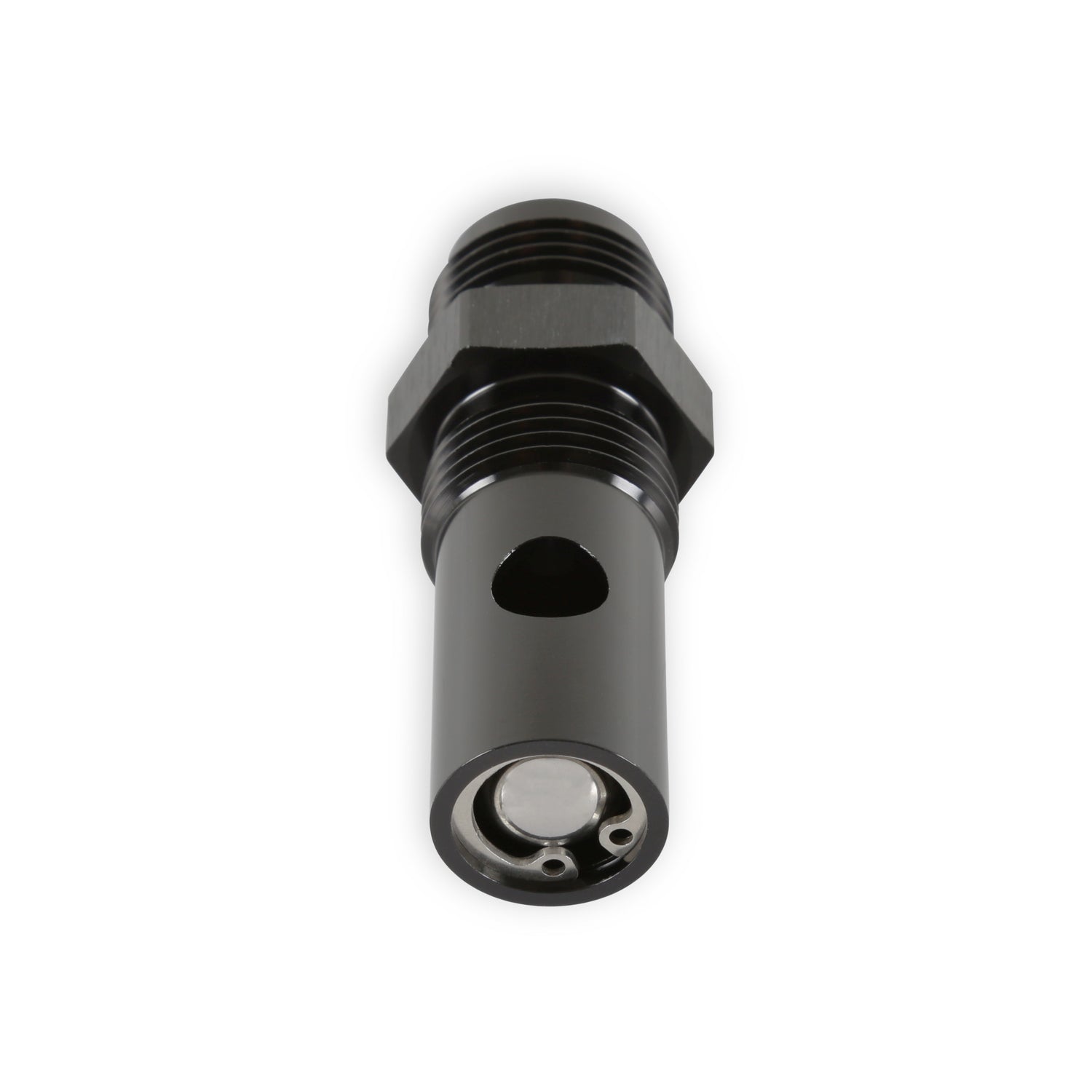

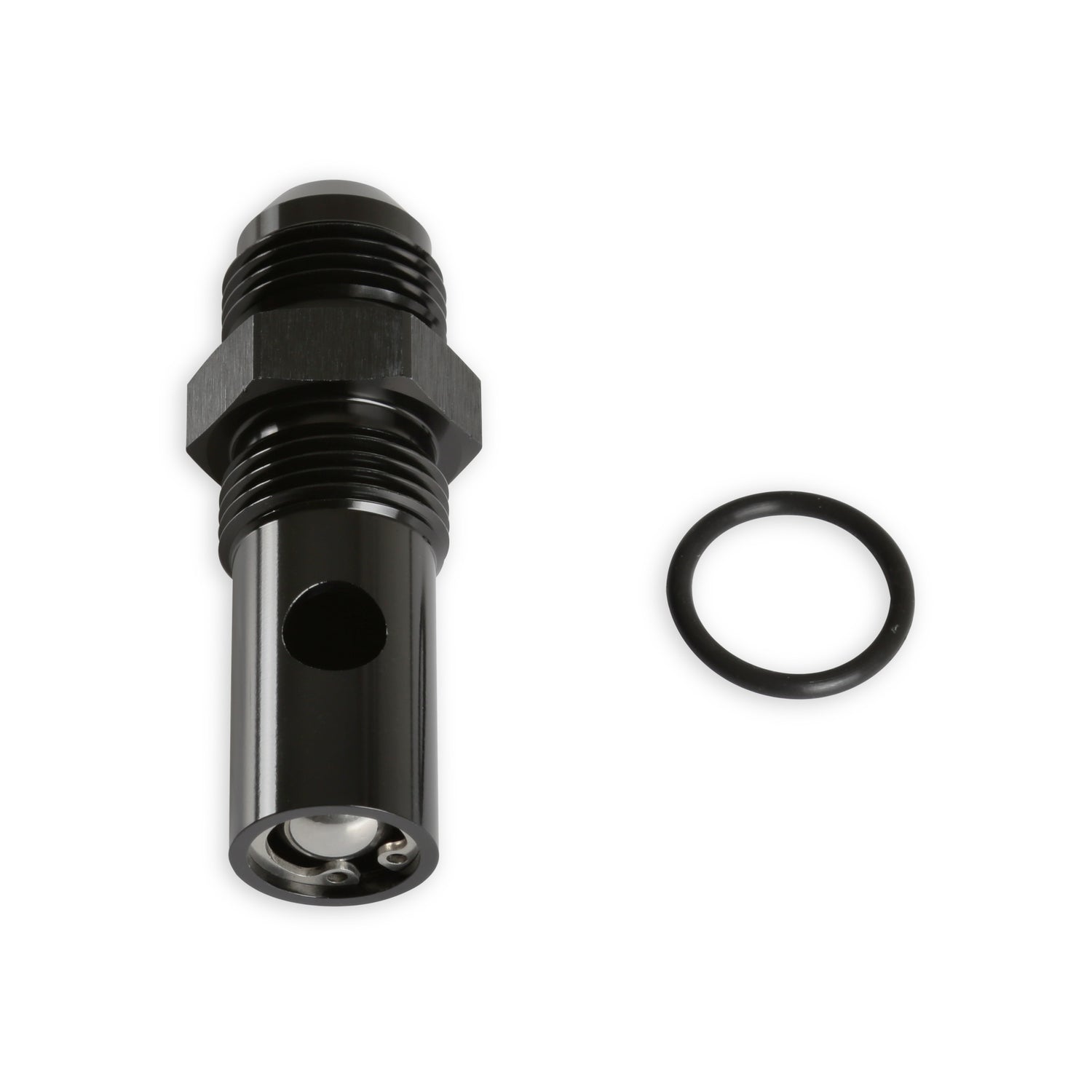

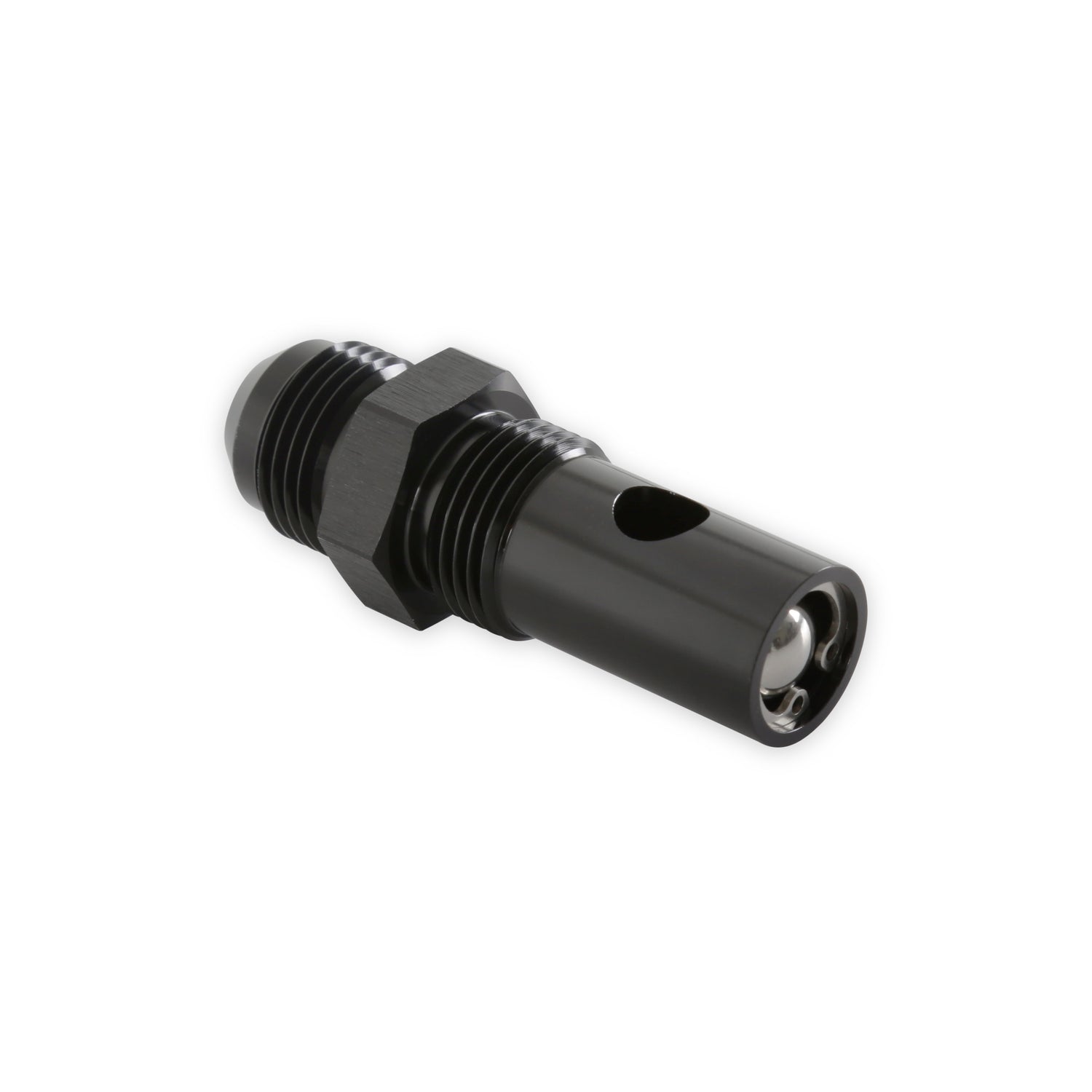

Holley 26-509 Fuel Cell Rollover Valve
10AN ORB ROLLOVER VALVE
Regular price
$78.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 26-509 Fuel Cell Rollover Valve is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
10AN ORB ROLLOVER VALVE
Part Number: 26-509
Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.
Features and Benefits
• Helps minimize and/or prevent fuel from coming out the vent port in case of a rollover
• During normal operating conditions, valve allows fuel cell to breathe out the vent port
• 10AN ORB port to 10AN male
• Low-profile design
• Main body made of 6061-T6 aluminum
• Anodized fitting prevents galling of threads and corrosion protection

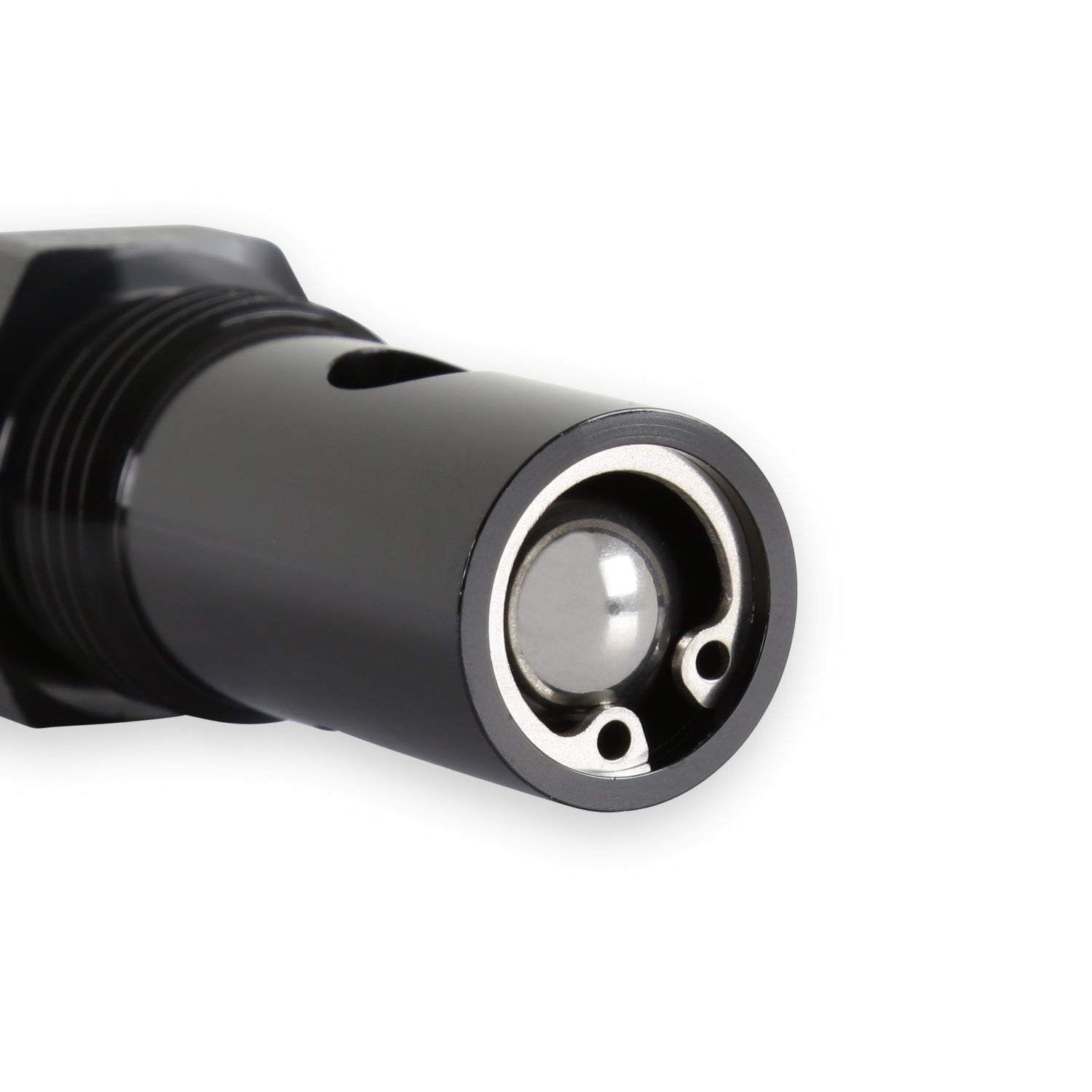

• Stainless steel sphere ball and snap-ring
• Comes apart easily to be cleaned/serviced
• Pump gas and E85 compatible
Part Number: 26-509
Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.
Features and Benefits
• Helps minimize and/or prevent fuel from coming out the vent port in case of a rollover
• During normal operating conditions, valve allows fuel cell to breathe out the vent port
• 10AN ORB port to 10AN male
• Low-profile design
• Main body made of 6061-T6 aluminum
• Anodized fitting prevents galling of threads and corrosion protection
• Stainless steel sphere ball and snap-ring
• Comes apart easily to be cleaned/serviced
• Pump gas and E85 compatible
Specifications
Specifications
-
Specifications
Brand Holley Category Air and Fuel Delivery Color Black Emission Code 5 End 1 Gender Male End 2 Gender Male Hardware Included Yes Inlet Quantity One Material Stainless Steel Mounting Hardware Included Yes Outlet Quantity One part type Fuel Tank Vent Valve Product Type Rollover Valve Sub Category Fuel Storage Universal Or Specific Fit Universal -
