Holley | SKU:
20-166BK

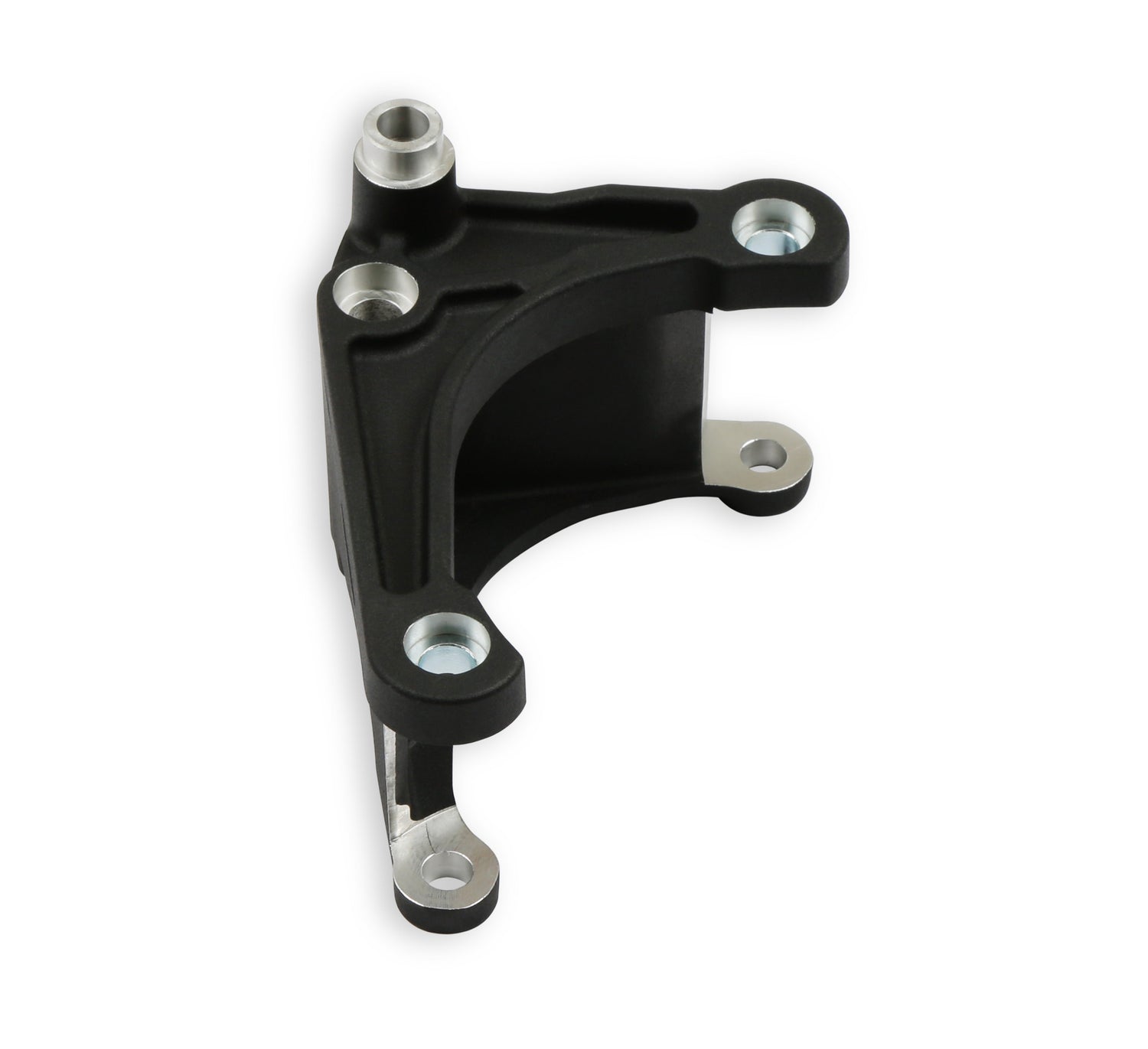

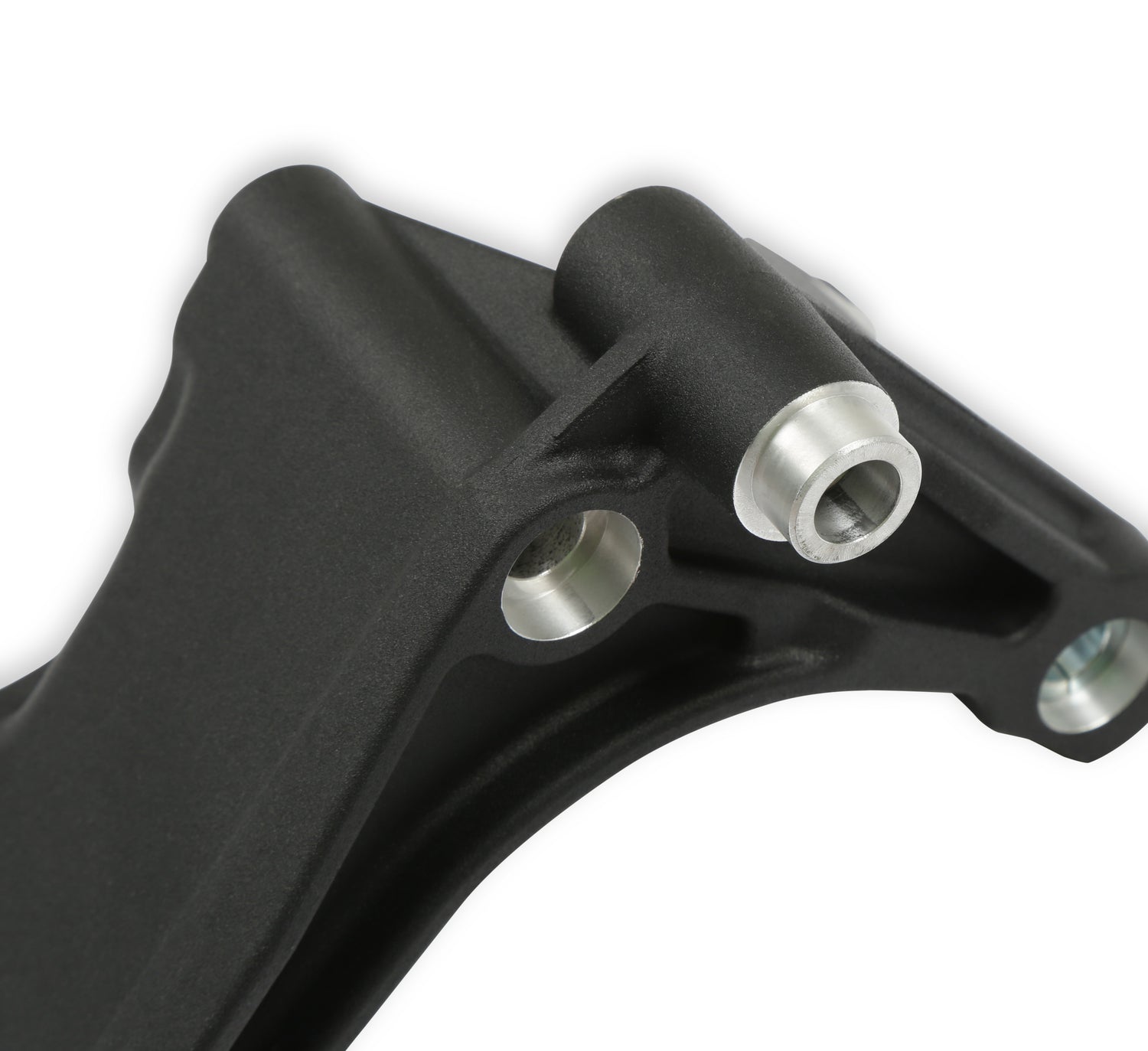

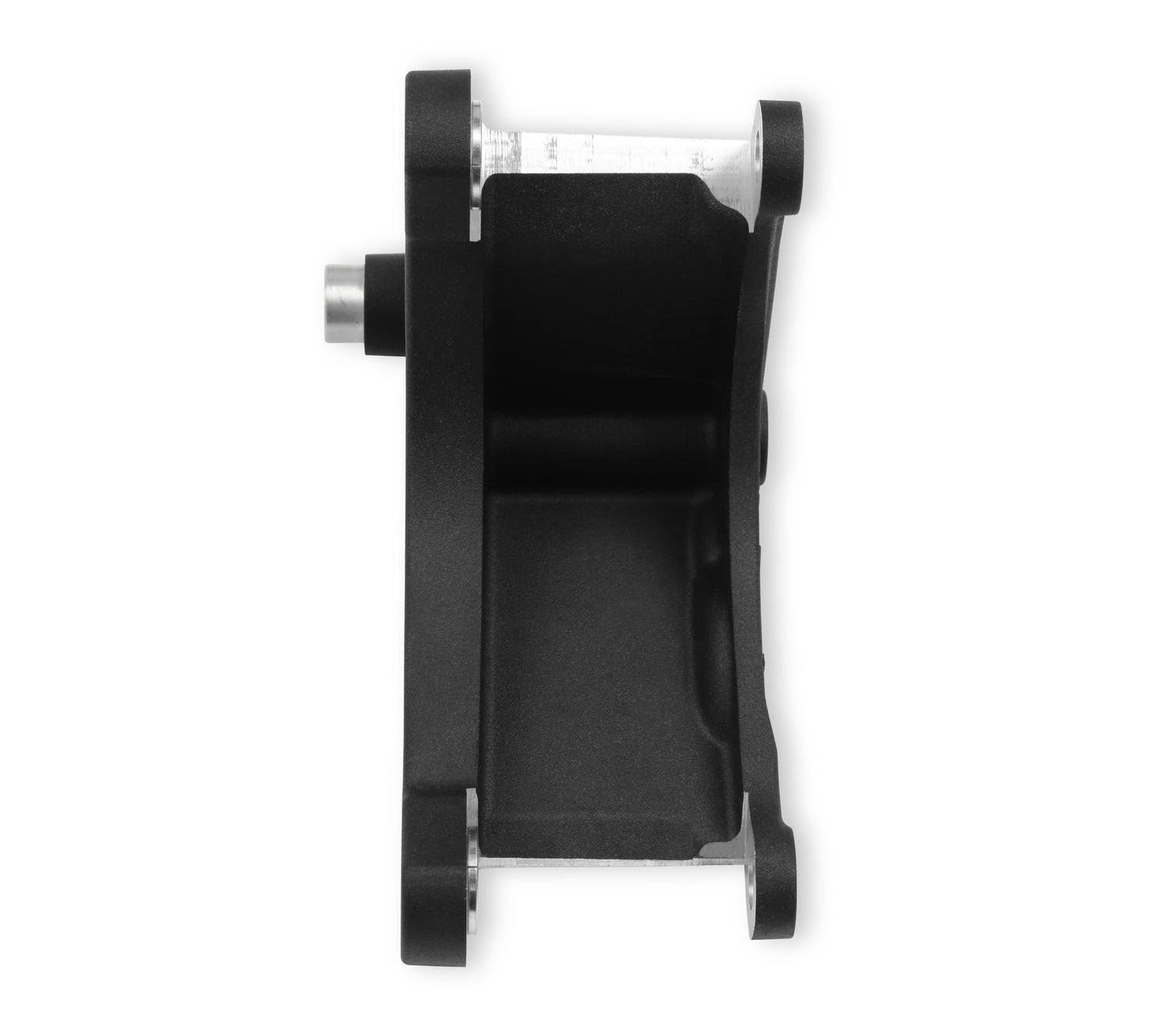

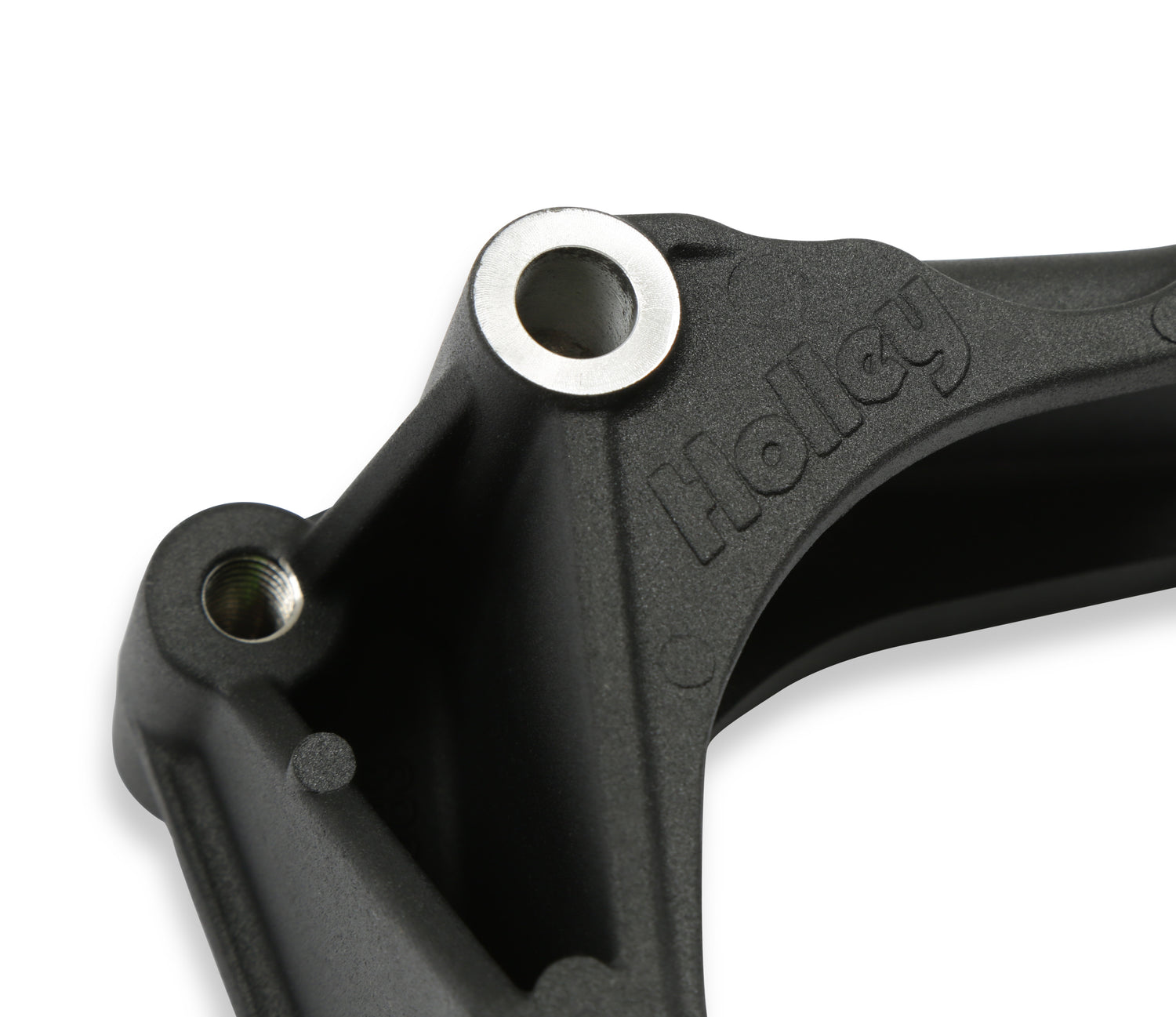

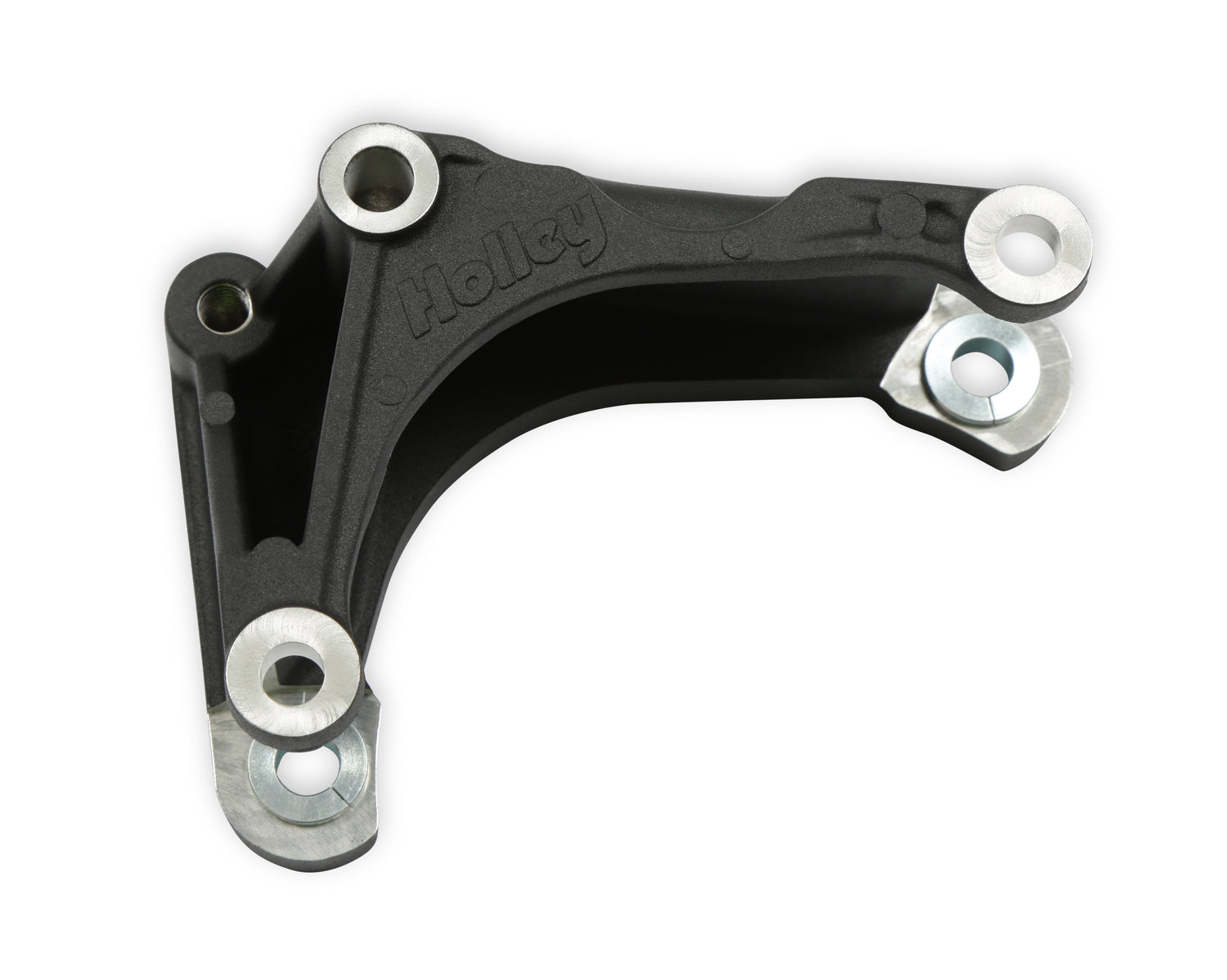

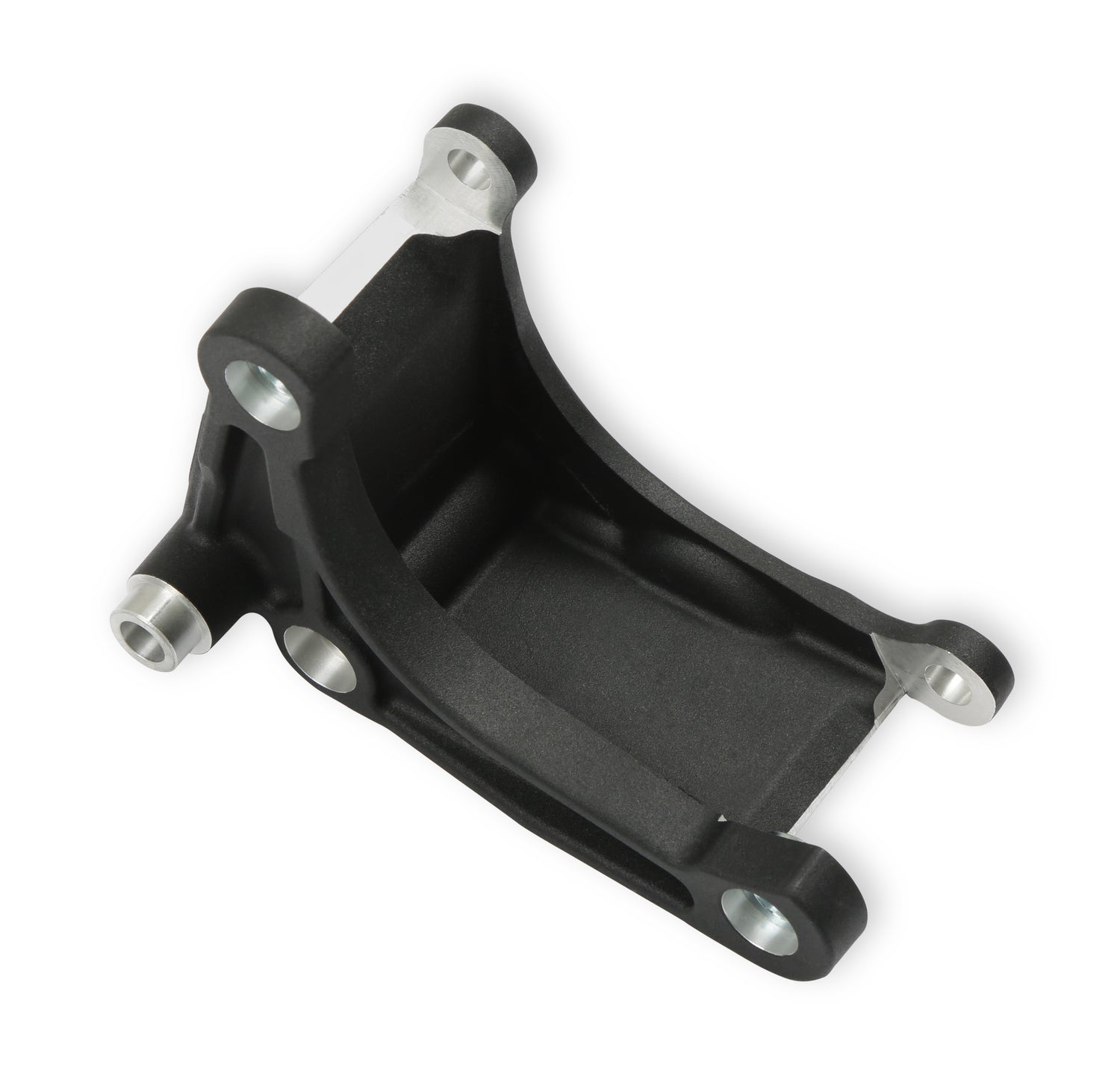

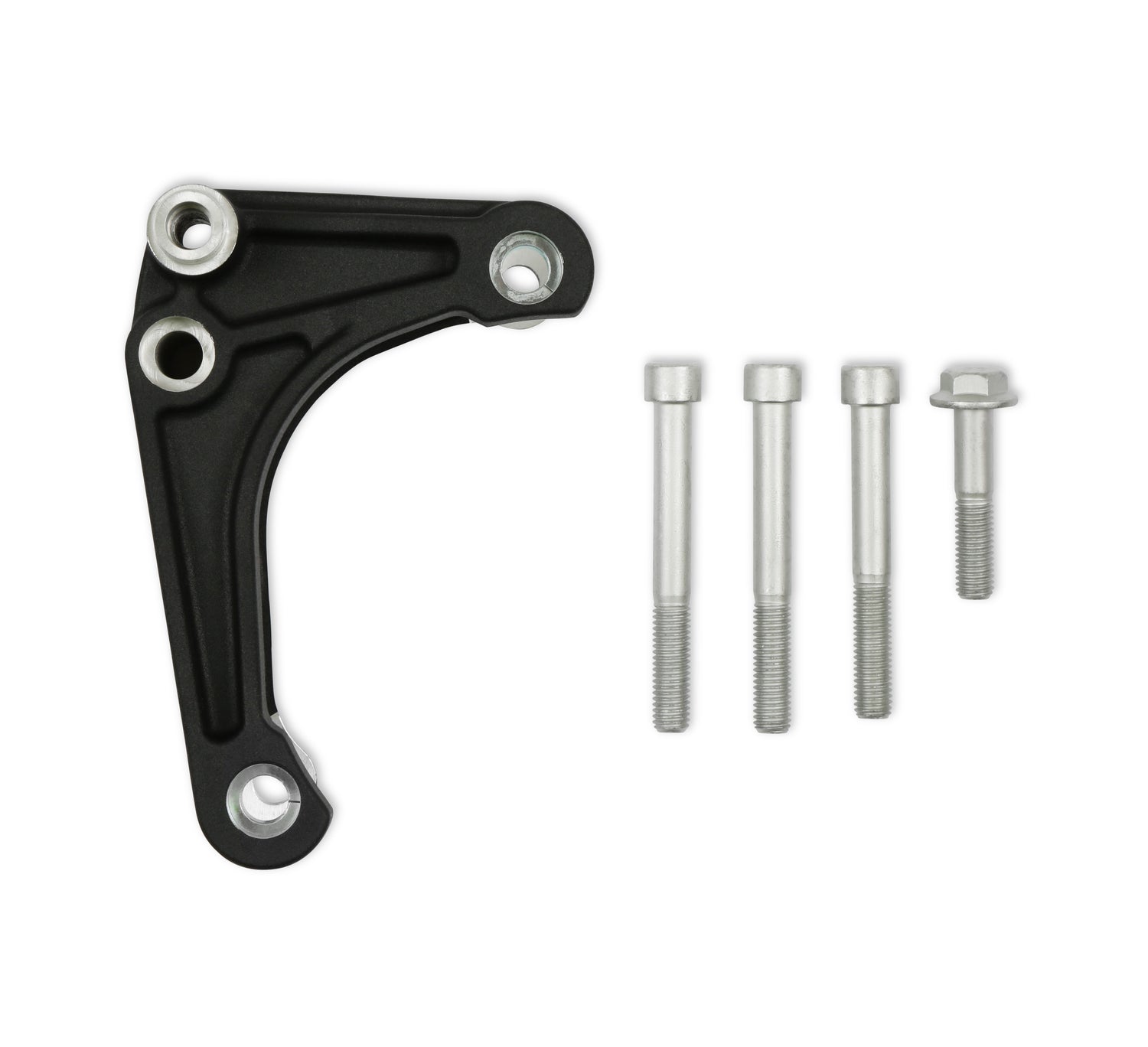

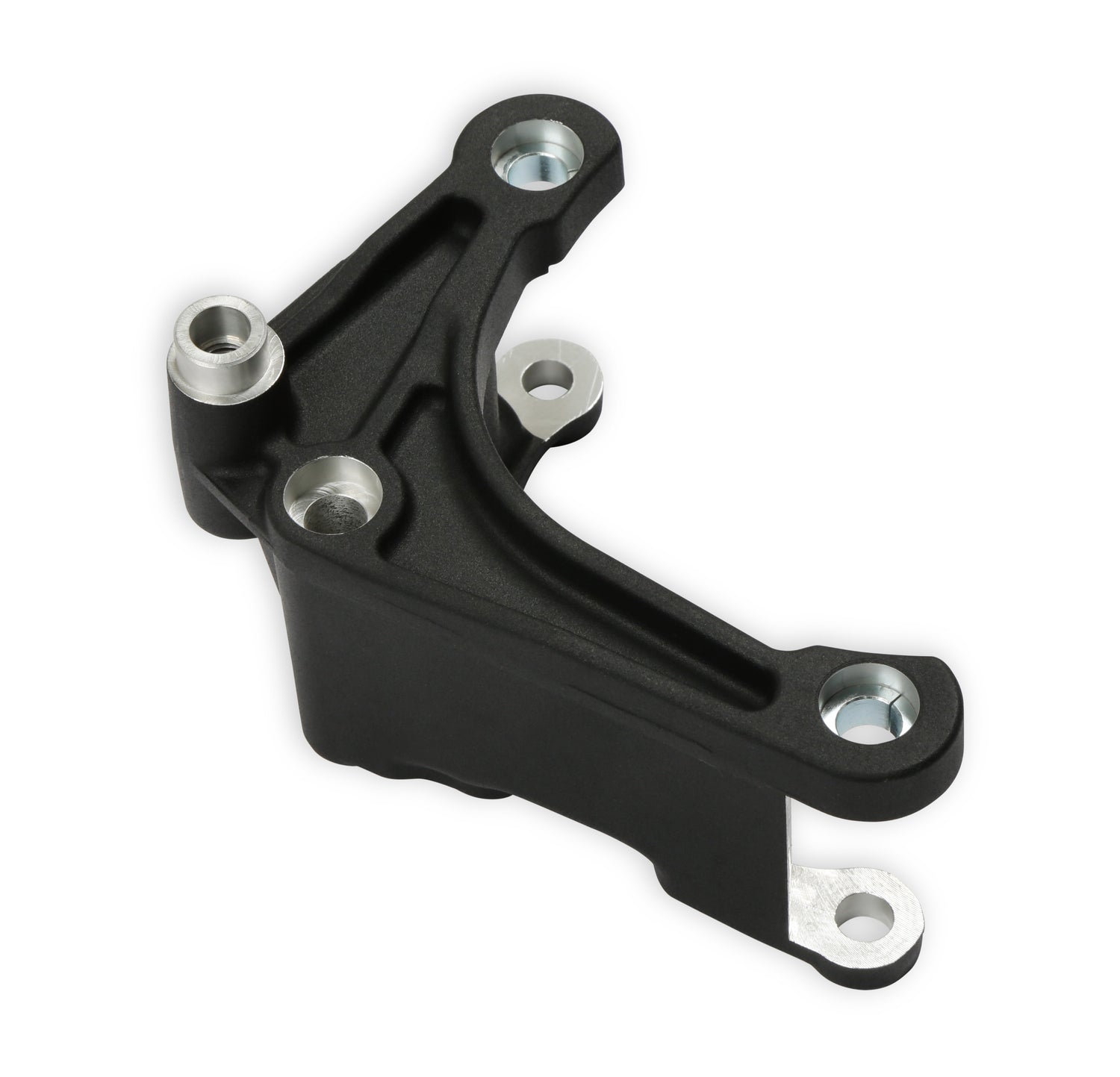

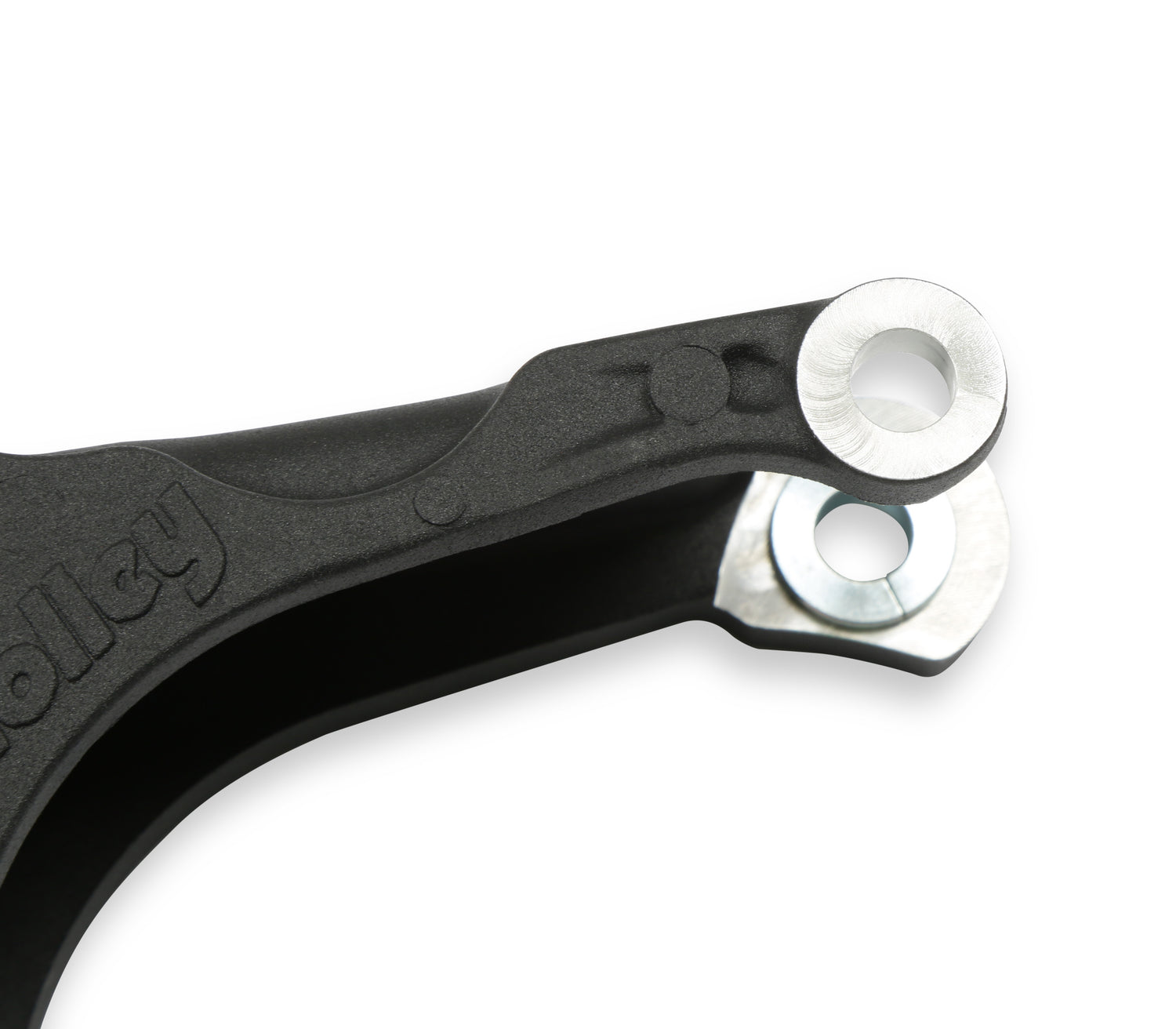

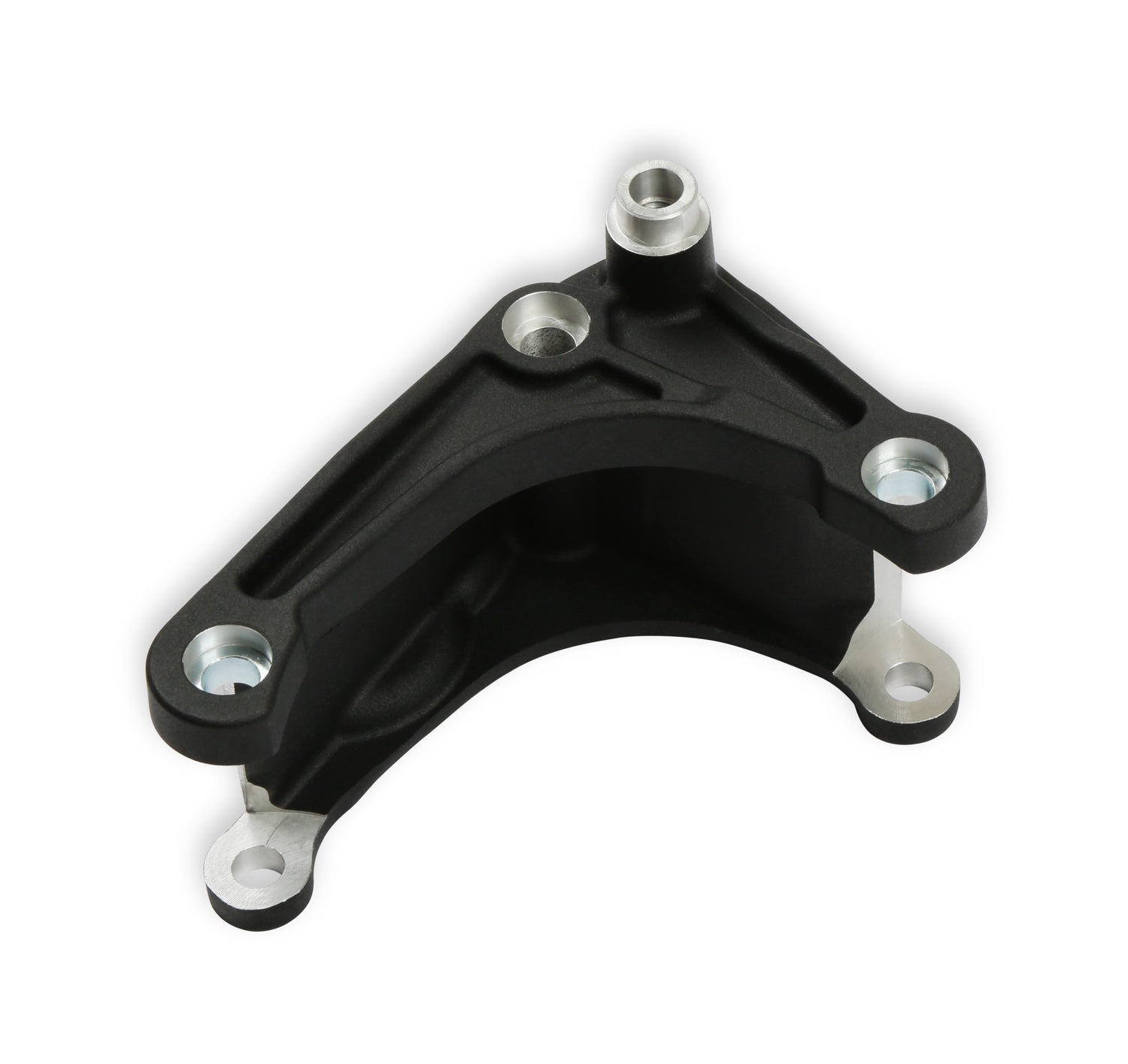

Holley 20-166BK Mid LSA Accessory Drive Bracket Kit - Alternator - Black
Small Block Chevrolet - Gen III/IV - LSA
Regular price
$362.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 20-166BK Mid LSA Accessory Drive Bracket Kit - Alternator - Black is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Small Block Chevrolet - Gen III/IV - LSA
Part Number: 20-166BK
If you're looking to swap an LSA or LS engine into your vehicle but your engine didn't come with an alternator bracket or the factory setup is too wide to fit your project, Holley has the answer. The 20-166 Bracket tucks the Alternator in closer toward the engine when compared to the original LSA accessories, giving more clearance where needed. These brackets look truly at home on the LSA engine, so much so that nobody will realize it didn't come from factory this way.
Features and Benefits
• Compatible with the original LSA damper/pulley and similar aftermarket versions
• Compatible with all Holley Alternators
• Notably more clearance to swap applications than other options
• Compatible with Holley P/N 20-160 compact SD7 A/C kit
• Compatible with LSA and 2010-15 LS Camaro water pumps
• OE pulley ratios for optimal accessory performance, allows for larger SC crank pulley
• Original Equipment look – Available in Natural and Black Finishes
Torque M10 bolt to 36 ft./lbs._x000D_ _x000D_ When wiring the alternator, install the included 197-400 plug into the alternator. Next, connect the yellow wire to switched voltage that is "on" when the key is in the run position. If the vehicle has a "charge indicator light", the yellow wire can be connected to that circuit.
Part Number: 20-166BK
If you're looking to swap an LSA or LS engine into your vehicle but your engine didn't come with an alternator bracket or the factory setup is too wide to fit your project, Holley has the answer. The 20-166 Bracket tucks the Alternator in closer toward the engine when compared to the original LSA accessories, giving more clearance where needed. These brackets look truly at home on the LSA engine, so much so that nobody will realize it didn't come from factory this way.
Features and Benefits
• Compatible with the original LSA damper/pulley and similar aftermarket versions
• Compatible with all Holley Alternators
• Notably more clearance to swap applications than other options
• Compatible with Holley P/N 20-160 compact SD7 A/C kit
• Compatible with LSA and 2010-15 LS Camaro water pumps
• OE pulley ratios for optimal accessory performance, allows for larger SC crank pulley
• Original Equipment look – Available in Natural and Black Finishes
Torque M10 bolt to 36 ft./lbs._x000D_ _x000D_ When wiring the alternator, install the included 197-400 plug into the alternator. Next, connect the yellow wire to switched voltage that is "on" when the key is in the run position. If the vehicle has a "charge indicator light", the yellow wire can be connected to that circuit.
Specifications
Specifications
-
Specifications
Accessory Drive Style Low-Mount Application GM LS Engines Belt Included No Brand Holley Category Belts and Cooling Damper Style Factory Emission Code 5 Engine GM Gen III/IV (LS) Finish Black Material Cast Aluminum part type Accessory Drive Component Mount Set Power Steering Pump Included No Product Type Accessory Bracket Sub Category Accessory Drive Belt System Components Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty
