Holley  |  SKU: 20-142P

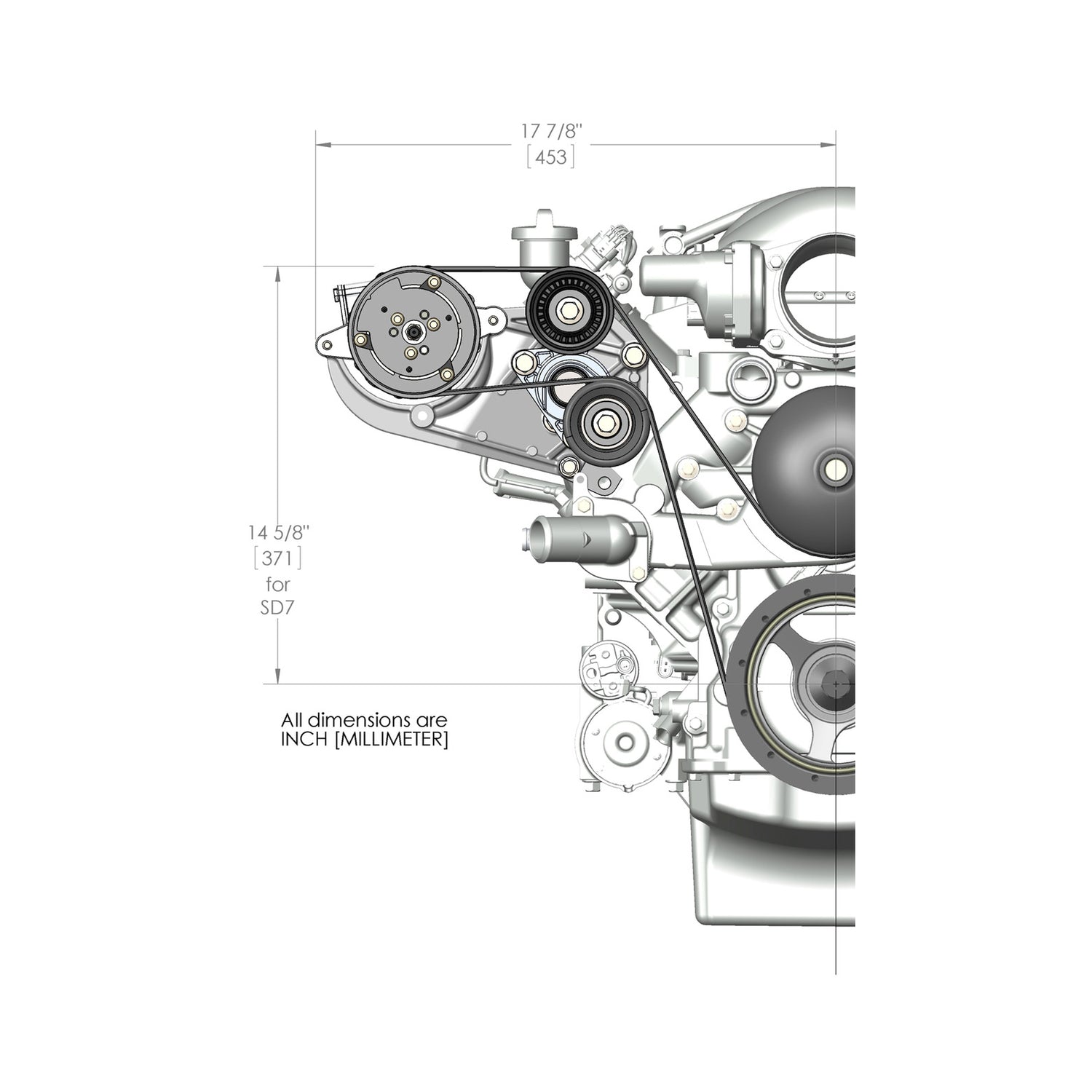

Holley 20-142P LS High-Mount A/C Accessory Drive Kit - Includes SD7 A/C Compressor, Tensioner, & Pulleys- Polished Finish

Passenger's Side A/C Bracket - Includes SD7 A/C Compressor, Tensioner, & Pulleys

Regular price $2,058.00 NZD + GST
Shipping calculated at checkout.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Passenger's Side A/C Bracket - Includes SD7 A/C Compressor, Tensioner, & Pulleys

Part Number: 20-142P

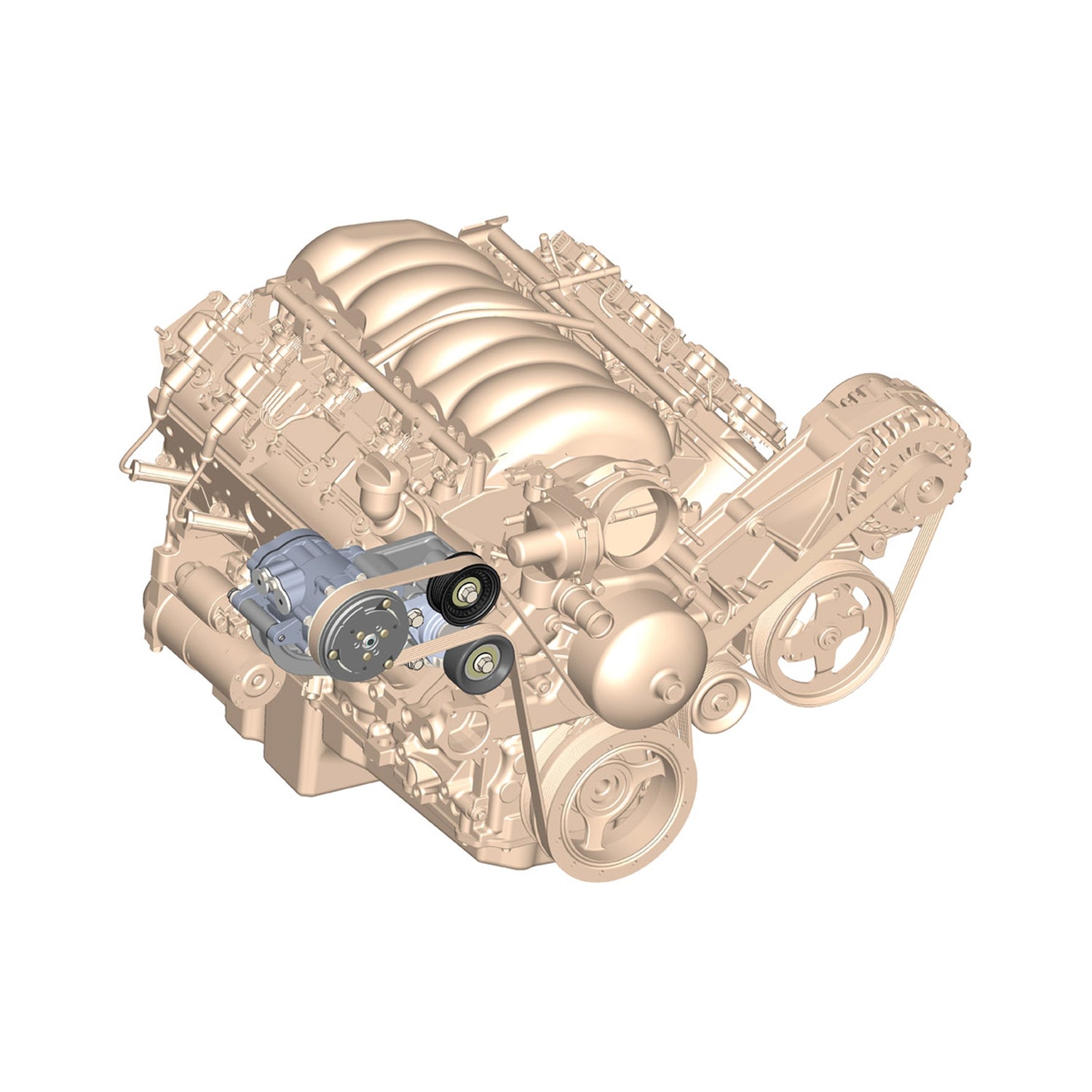

Now available from Holley are complete A/C kits that are polished that have everything needed for the application. Already have the P/S pump and alternator system from the donor truck or car engine? These complete A/C brackets kits move the compressor up high and away from the frame rail (no more notching!). Included are compressor, pulleys, and tensioner that are manufactured by OE part suppliers many of which are on production cars today.

Features and Benefits

• The most cost effective LS bracket solution on the market!
• Universal brackets fit virtually all common LS engines regardless of water pump and harmonic balancer offsets reducing cost and complexity compared to competitive products
• Simple, dedicated installation kits allow easy fitment to Corvette, F-Body or Truck drive offsets
• Accessories, tensioner, and pulleys are manufactured by OEM suppliers many of which are on production vehicles today.
• OEM quality natural finish die castings for clean looks and durability. Can be polished, coated, painted or plated.
• OEM spec flanged head hardware included to match your factory LS engine hardware
• Ideal for crate engines, take out motors and engine builders

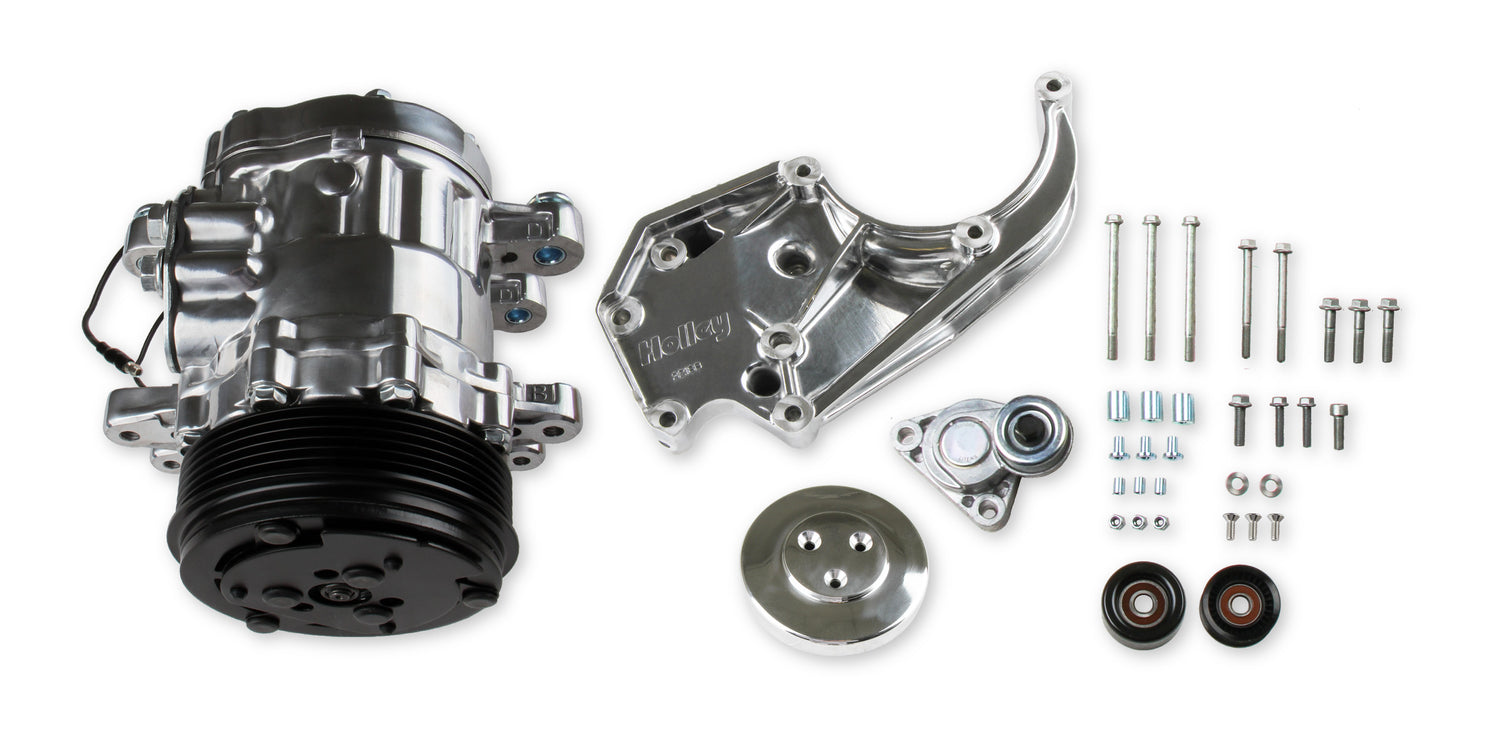

• INCLUDES THE FOLLOWING ITEMS

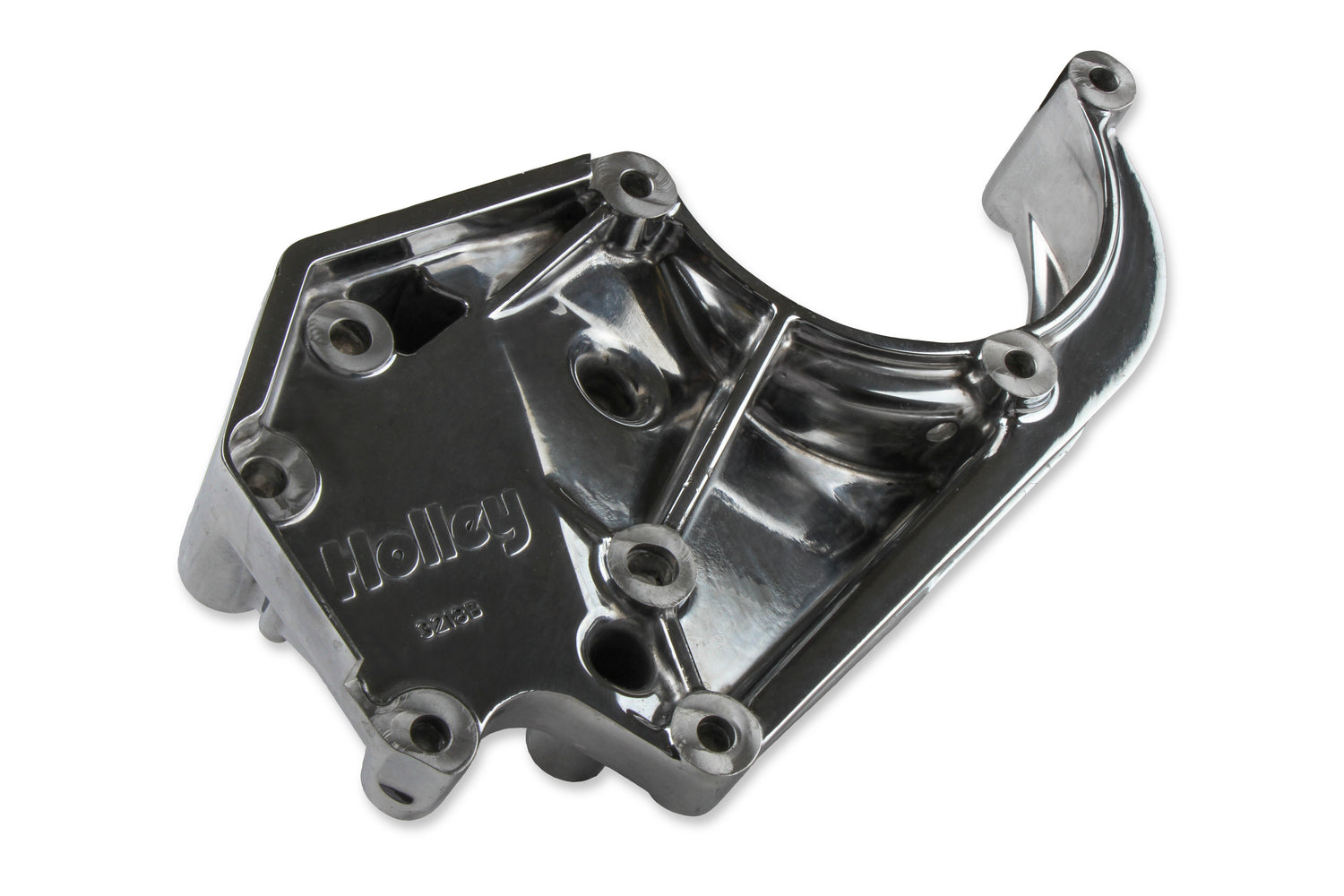

• 20-134 - LS A/C BRACKET KIT PASSENGER SIDE

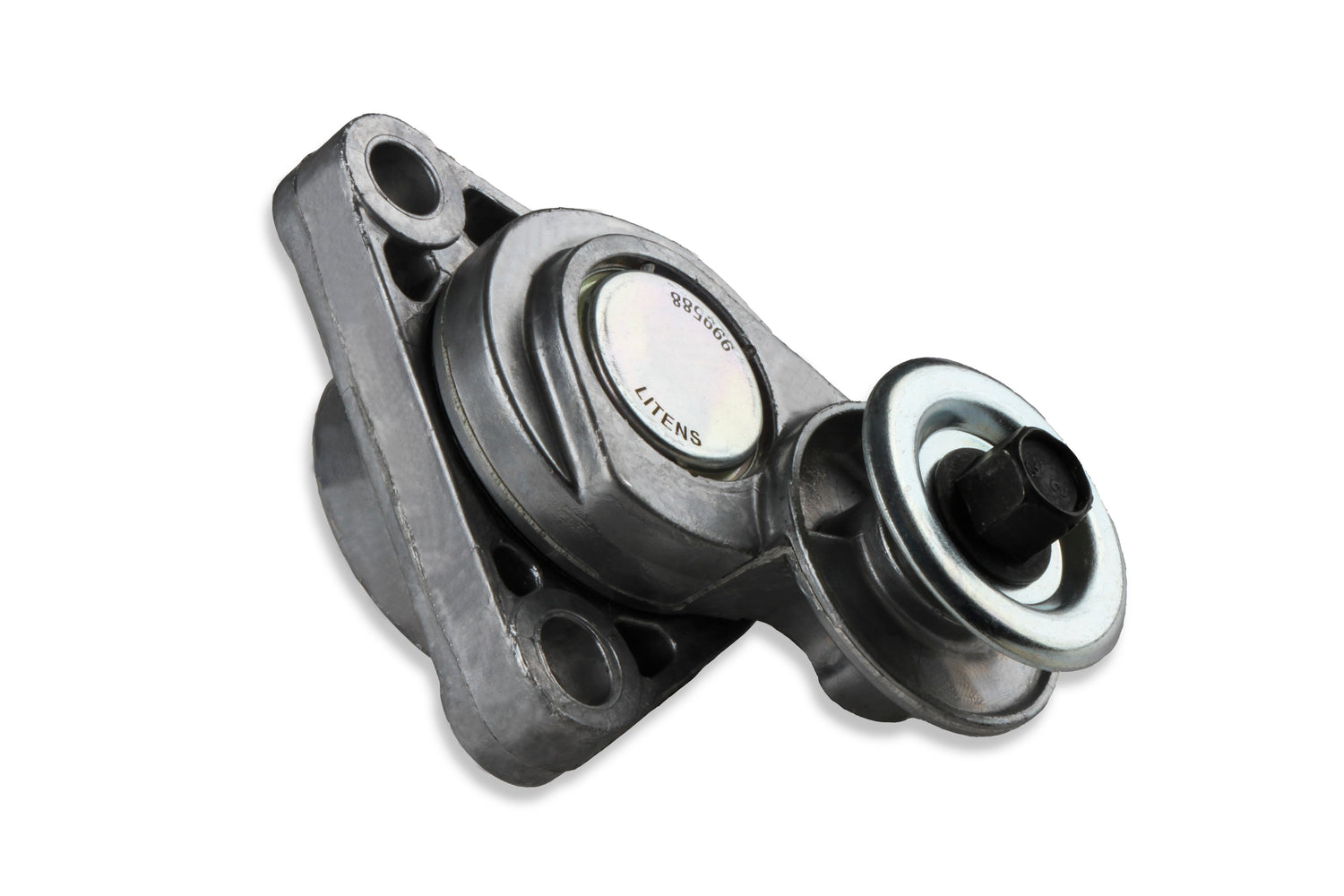

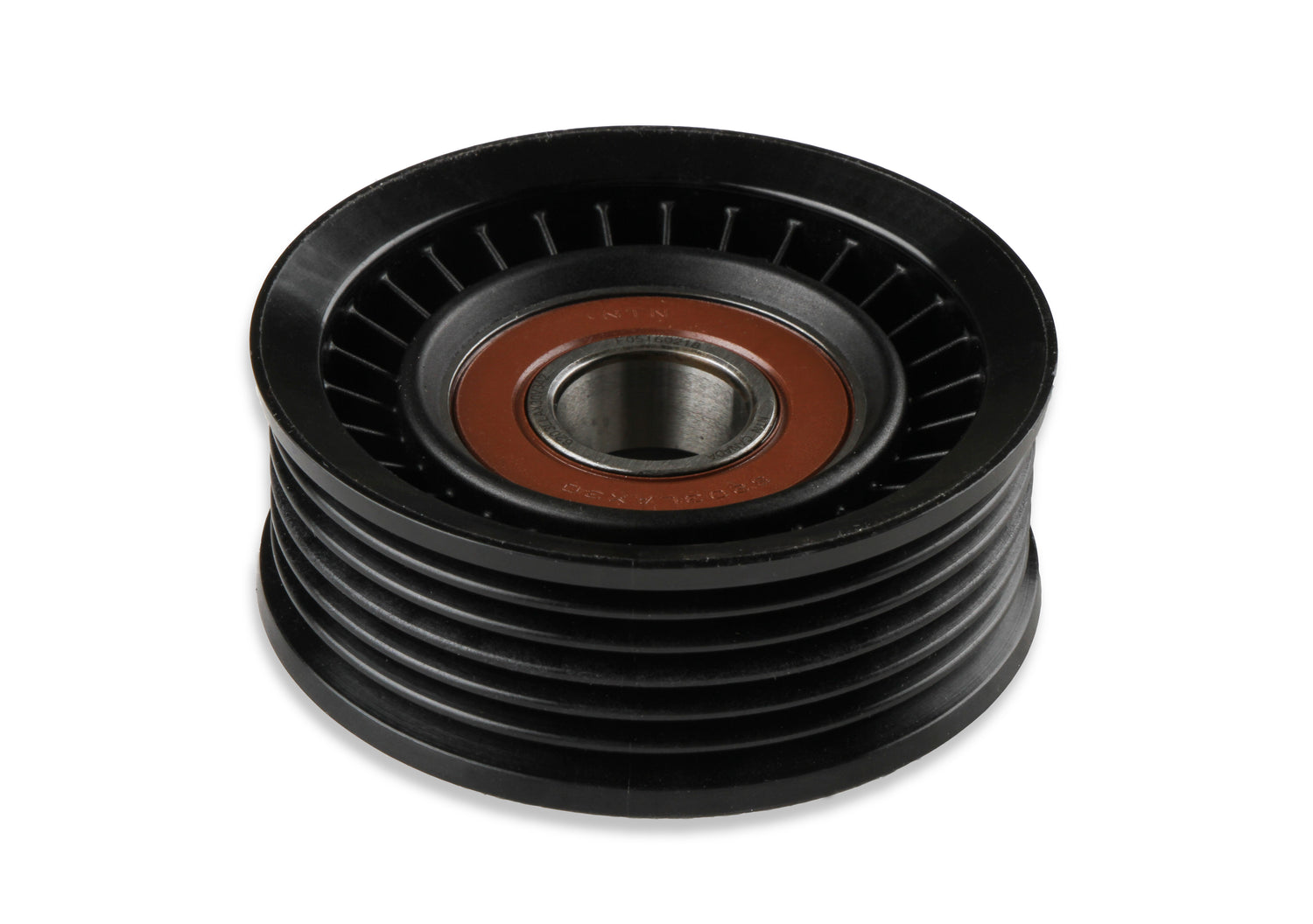

• 97-151 - TENSIONER ASSM W/GROOVED PULLEY

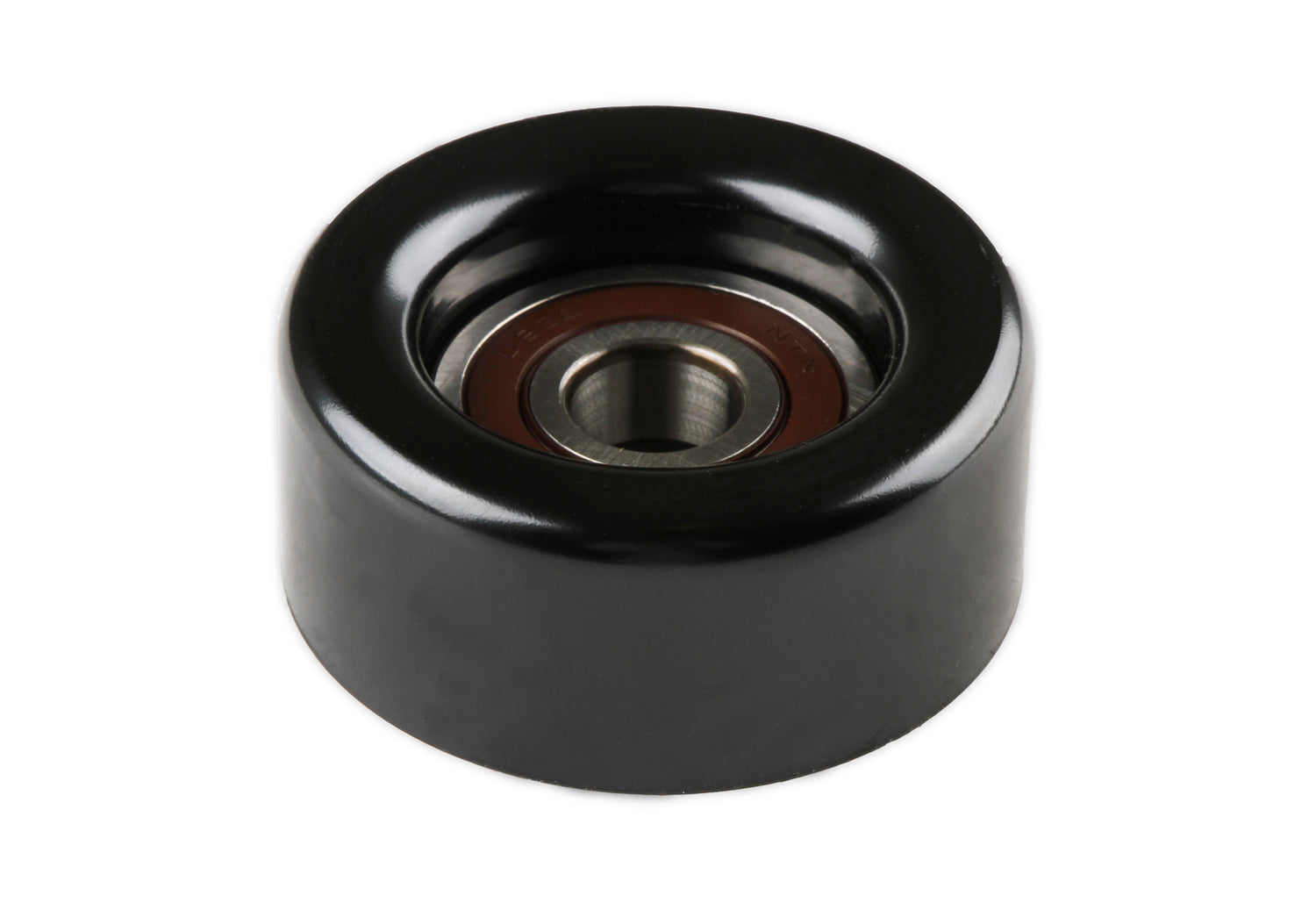

• 97-150 - IDLER PULLEY, SMOOTH, 2.75" DIAMETER

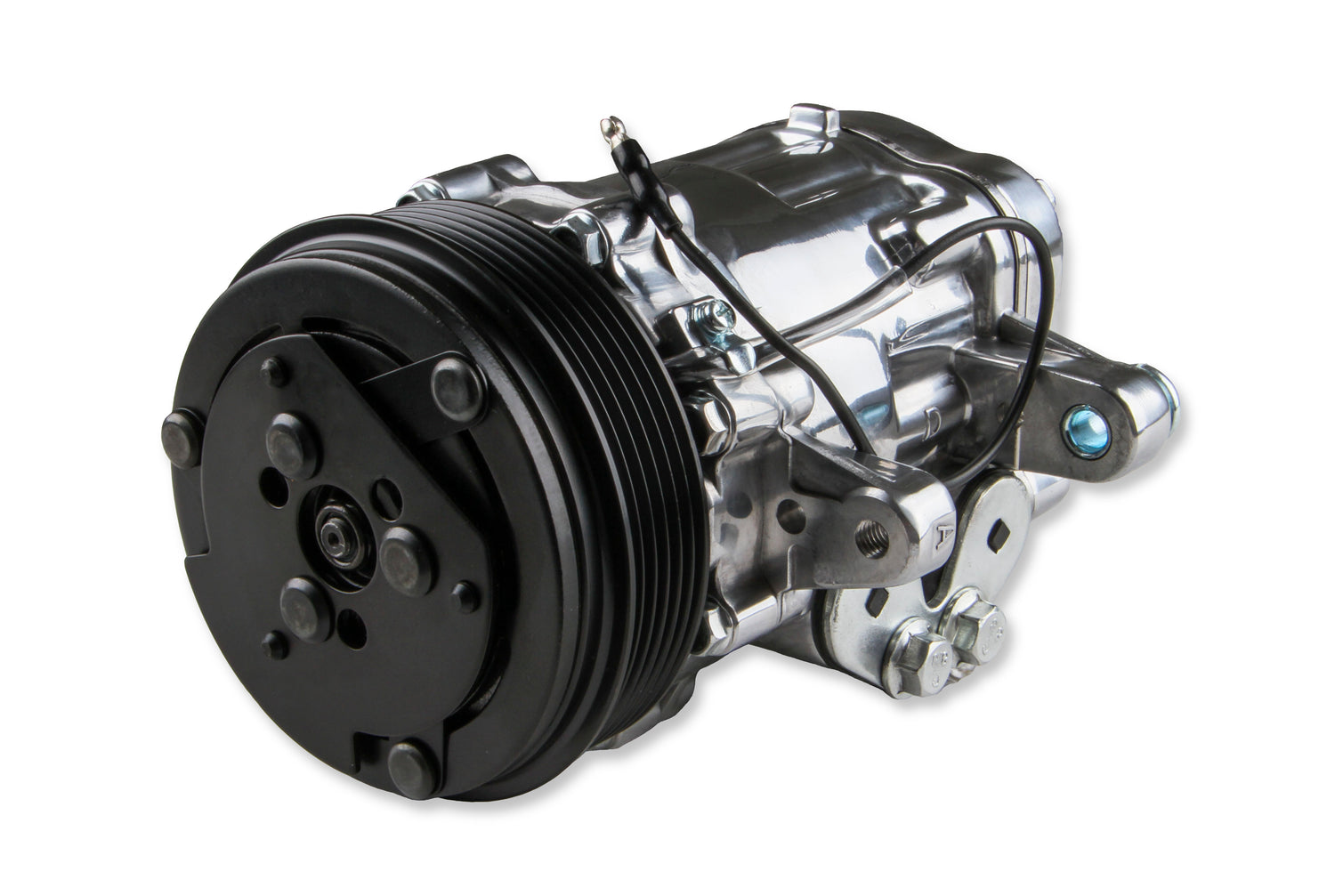

• 199-102 - AC SD7 SANDEN COMPRESSOR, R-134a

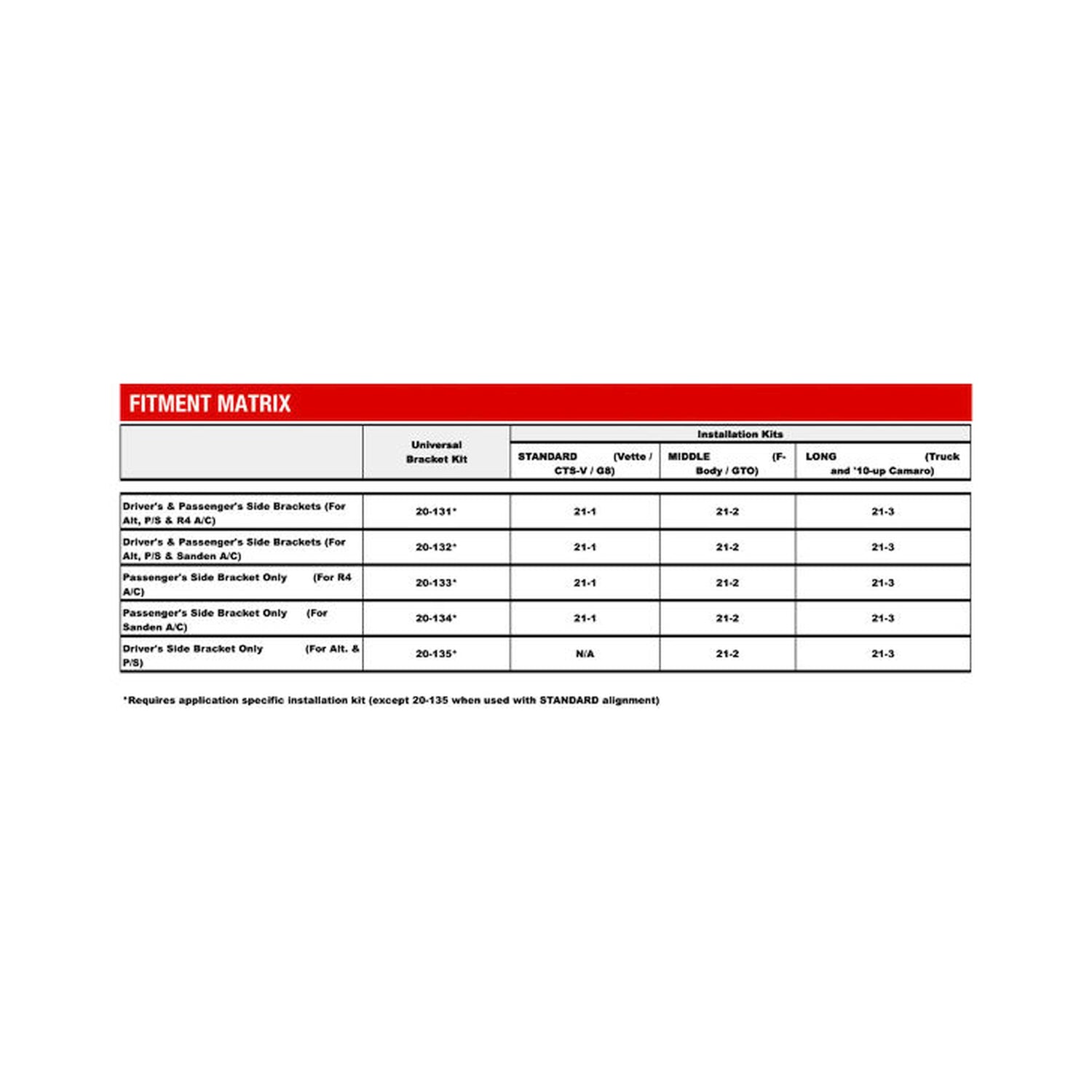

NOTE: This bracket REQUIRES an installation kit for assembly (Part 21-1, 21-2, OR 21-3, see instruction sheet below for the correct installation kit for your application)._x000D_ _x000D_ ***For all LS Engine Swaps-Please refer to your specific body style engine mount kits for additional modification and fitment requirements.

Specifications

  • Specifications
    A/C Compressor IncludedYes
    A/C Compressor TypeSD7
    Accessory Drive StyleHigh-Mount
    Alternator IncludedNo
    ApplicationGM LS
    Belt IncludedNo
    BrandHolley
    CategoryBelts and Cooling
    Choose Your PartA/C Drive Kit
    Damper IncludedNo
    Damper StyleFactory Standard Middle or Long
    Emission Code5
    EngineGM Gen III/IV (LS)
    FinishPolished
    MaterialCast Aluminum
    part typeAccessory Drive Belt Kit
    Power Steering Hardline IncludedNo
    Power Steering Pulley IncludedNo
    Power Steering Pump IncludedNo
    Power Steering Reservoir IncludedNo
    Product TypeAccessory Bracket
    Pulley StyleSerpentine
    Sub CategoryAccessory Drive Belt System Components
    Tensioner IncludedYes
    Thermostat IncludedNo
    WarningCalifornia Proposition 65
    WarrantyManufacturer's Limited 90 Day Warranty
    Water Neck IncludedNo
    Water Pump IncludedNo
    Water Pump Pulley IncludedNo
  • Instructions
