Holley | SKU: 198-100

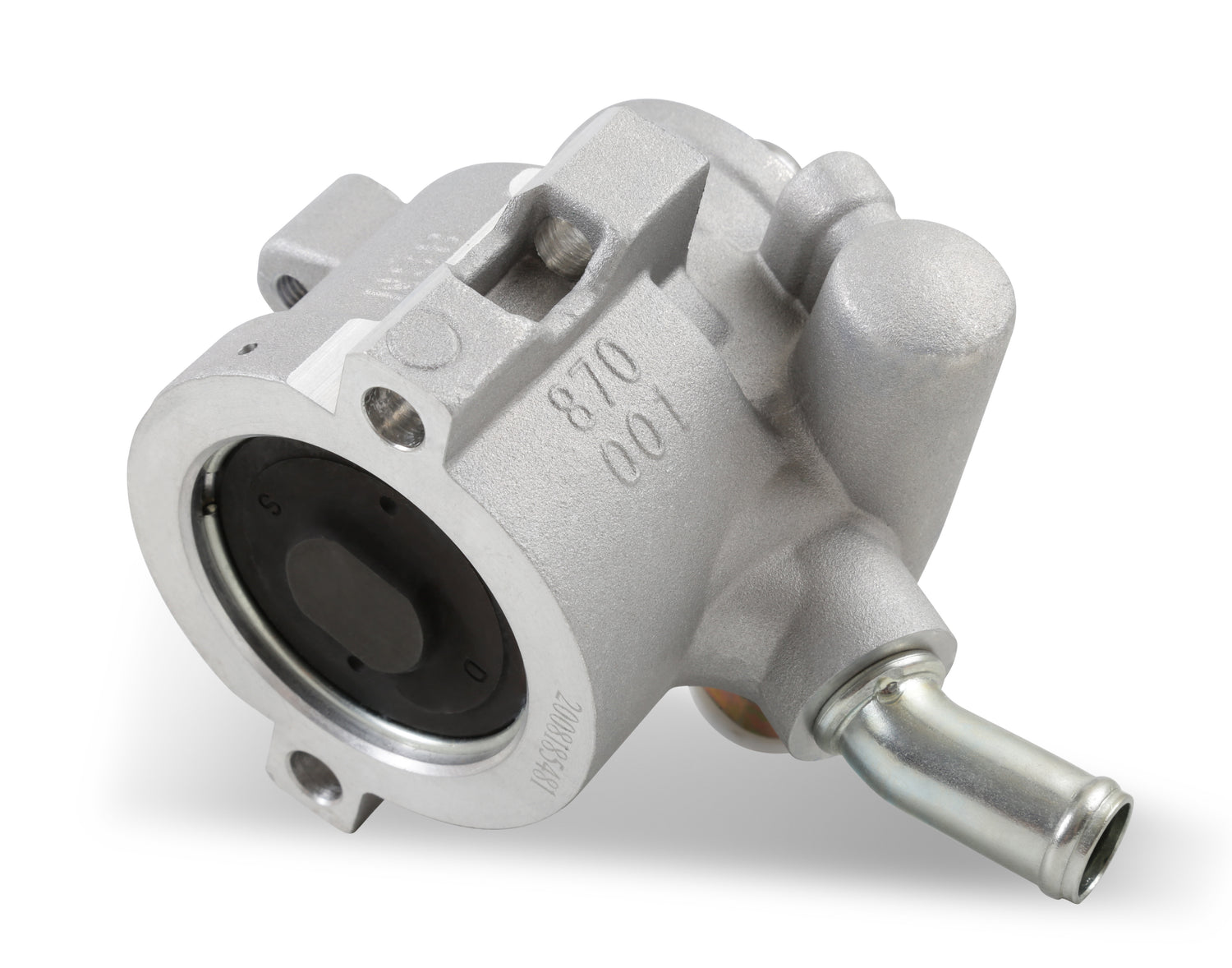

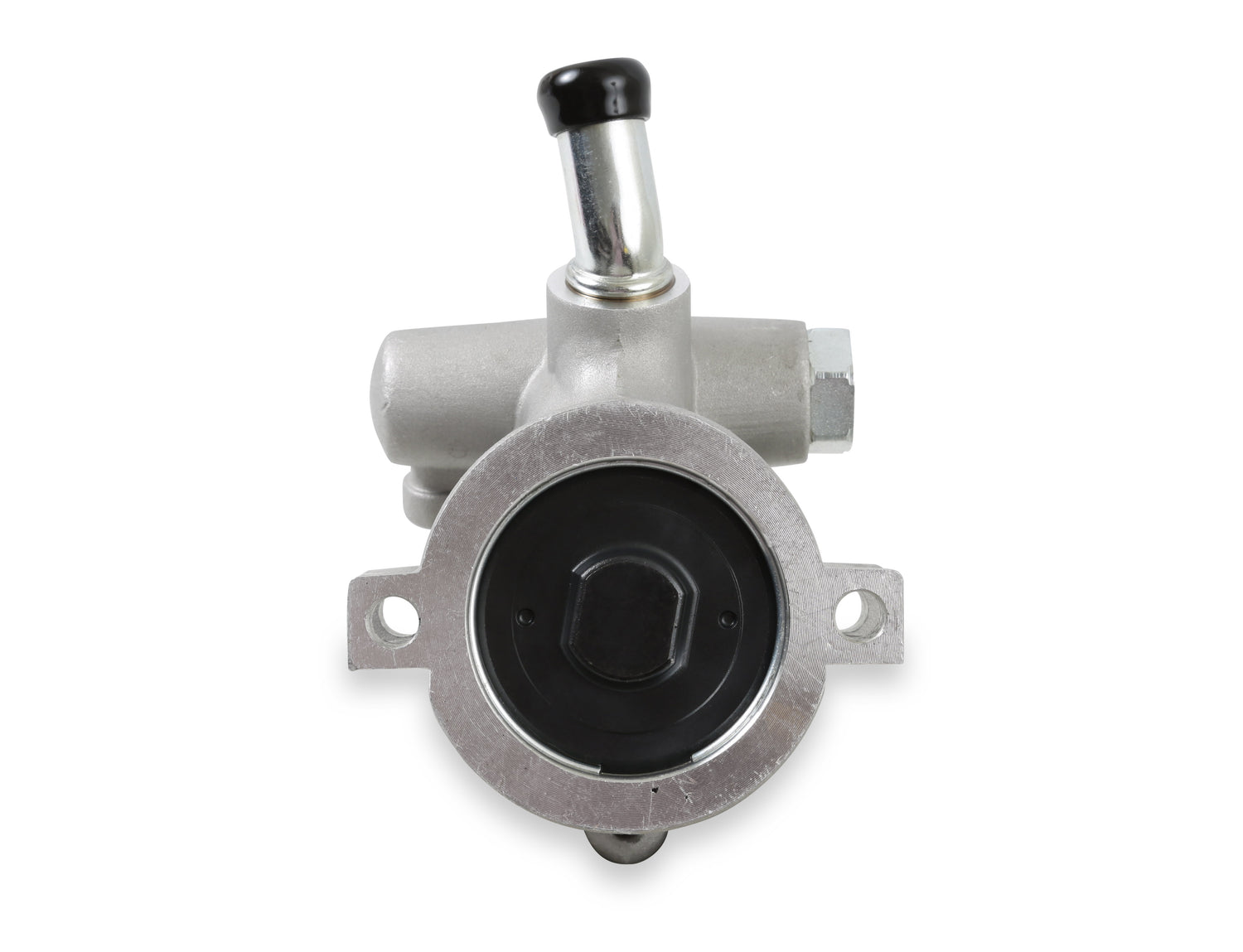

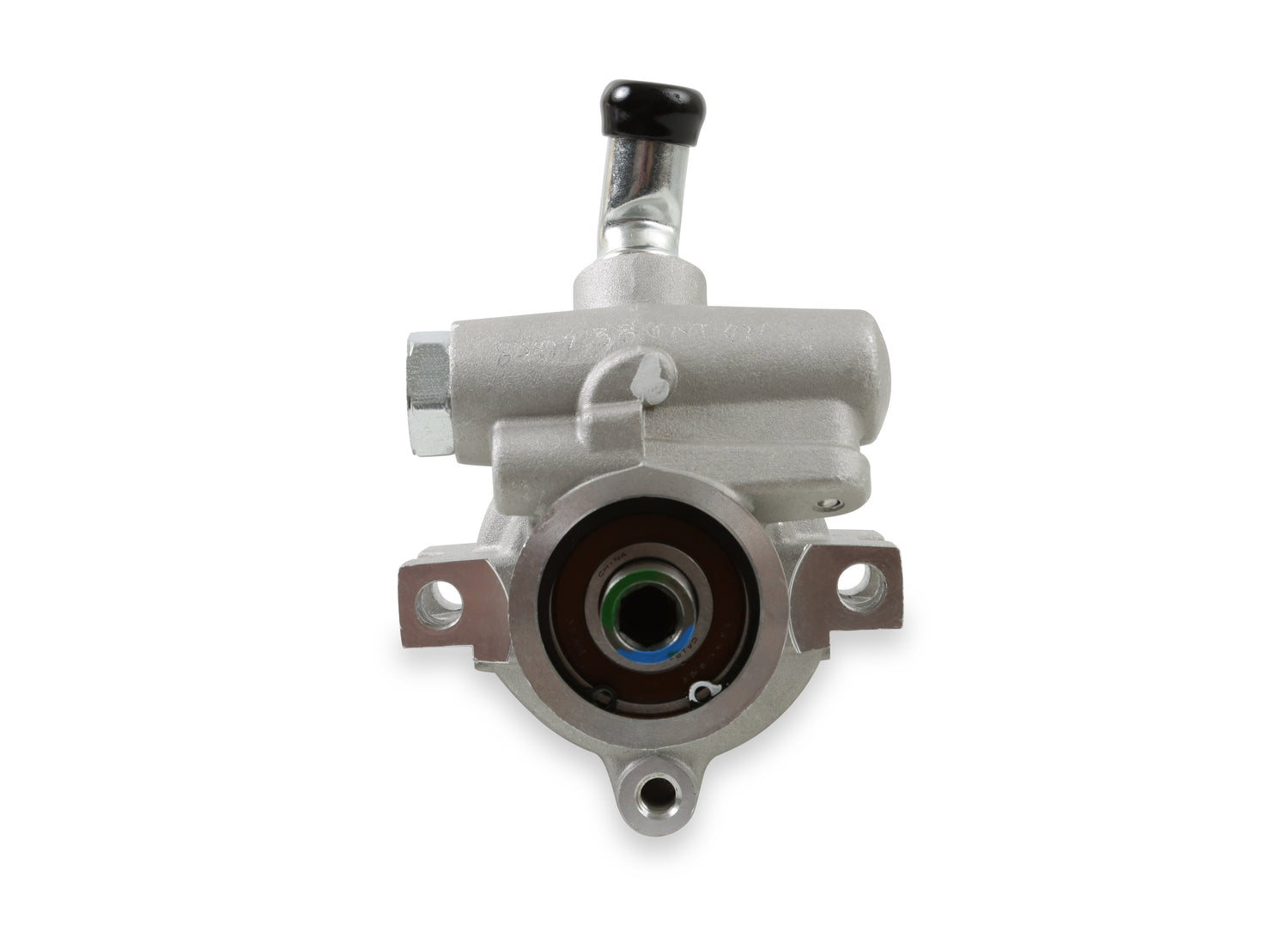

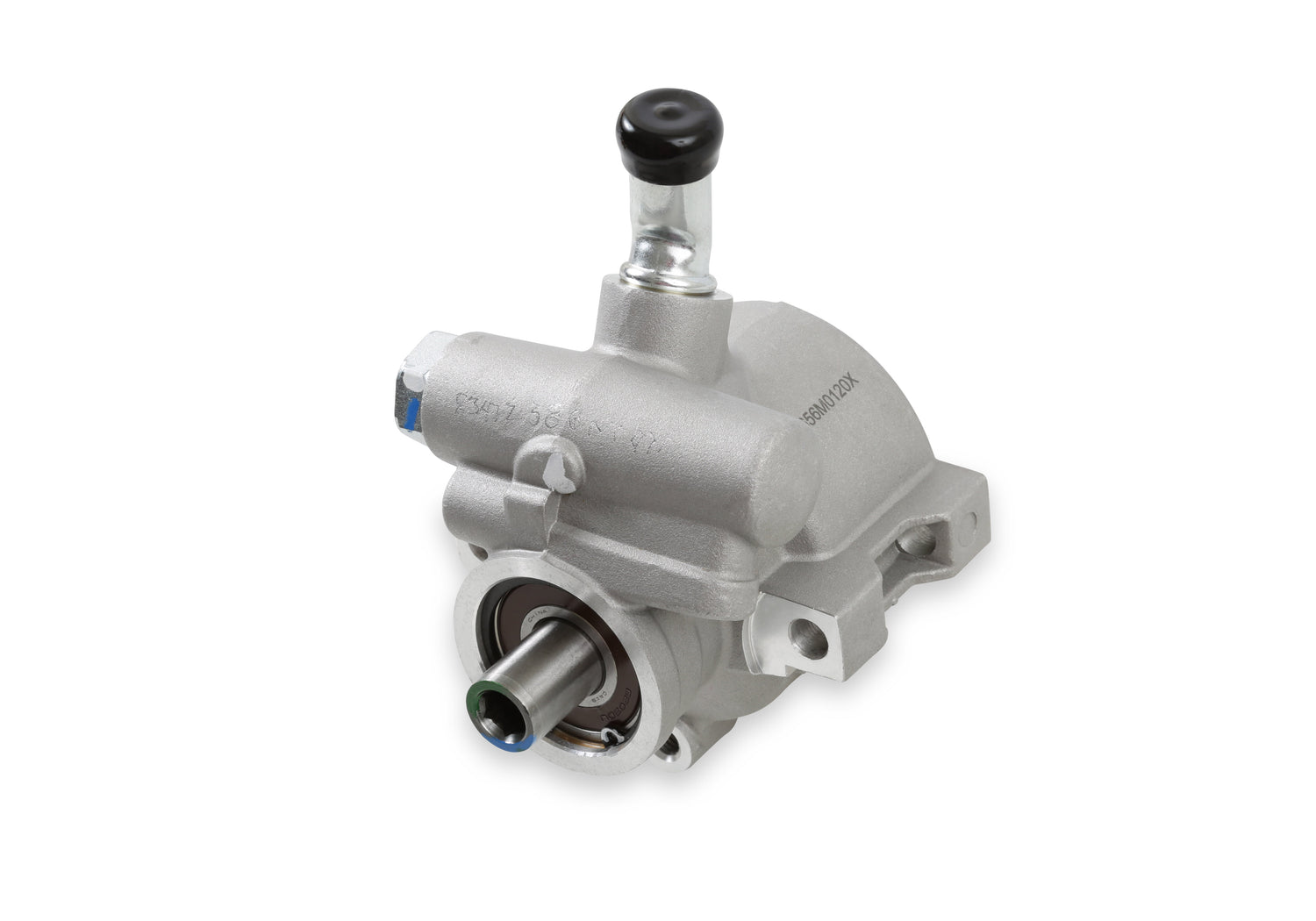

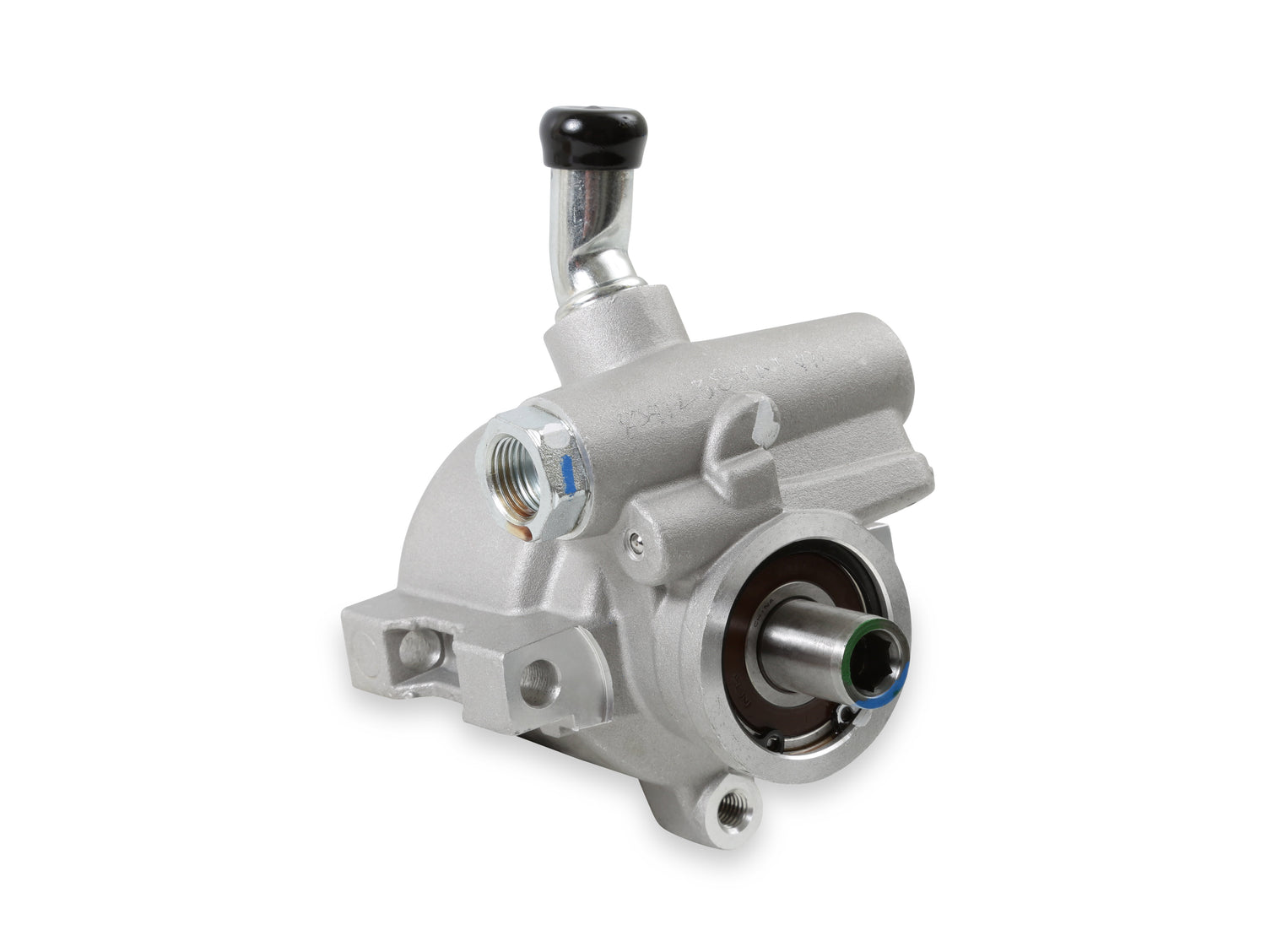

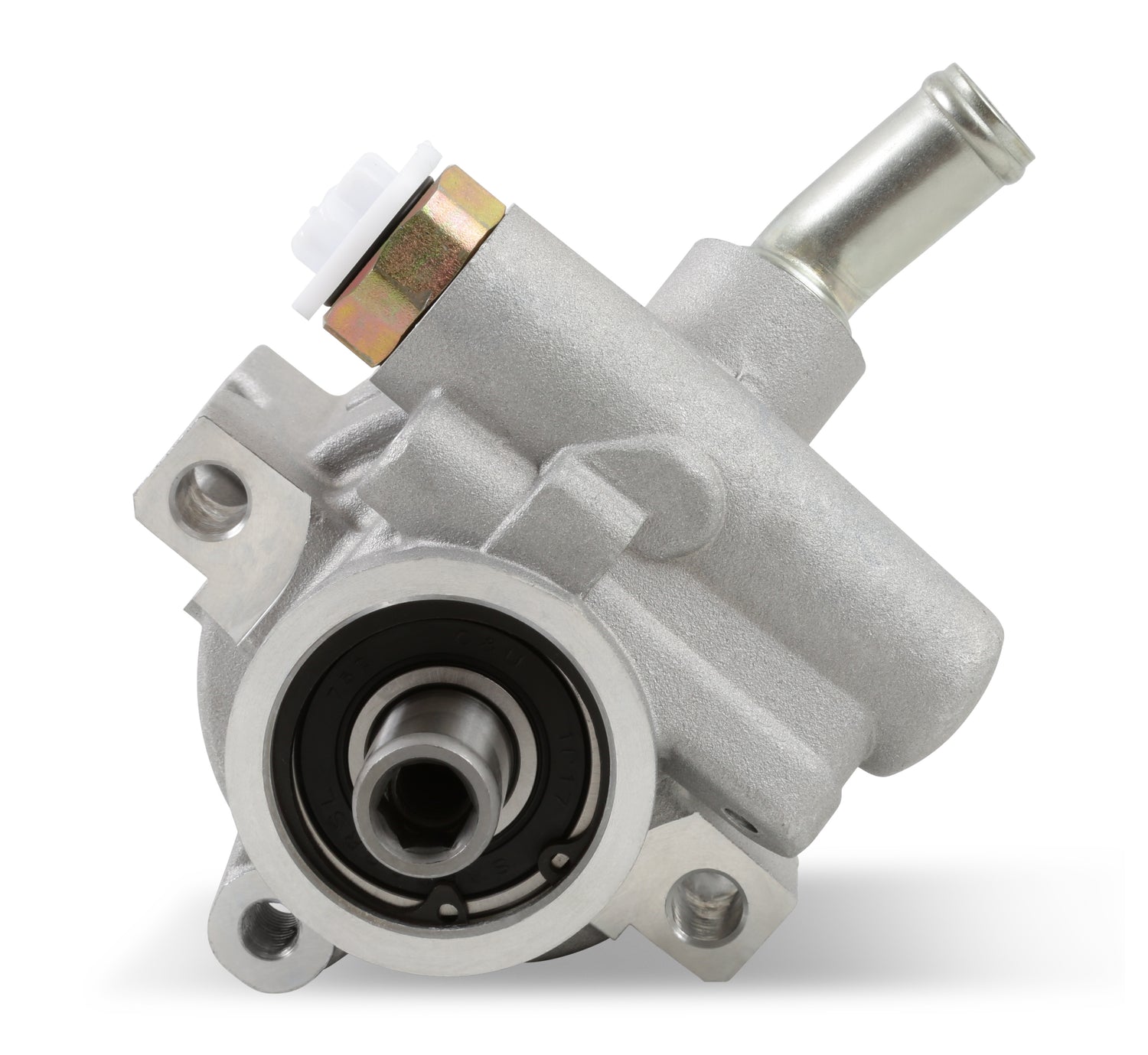

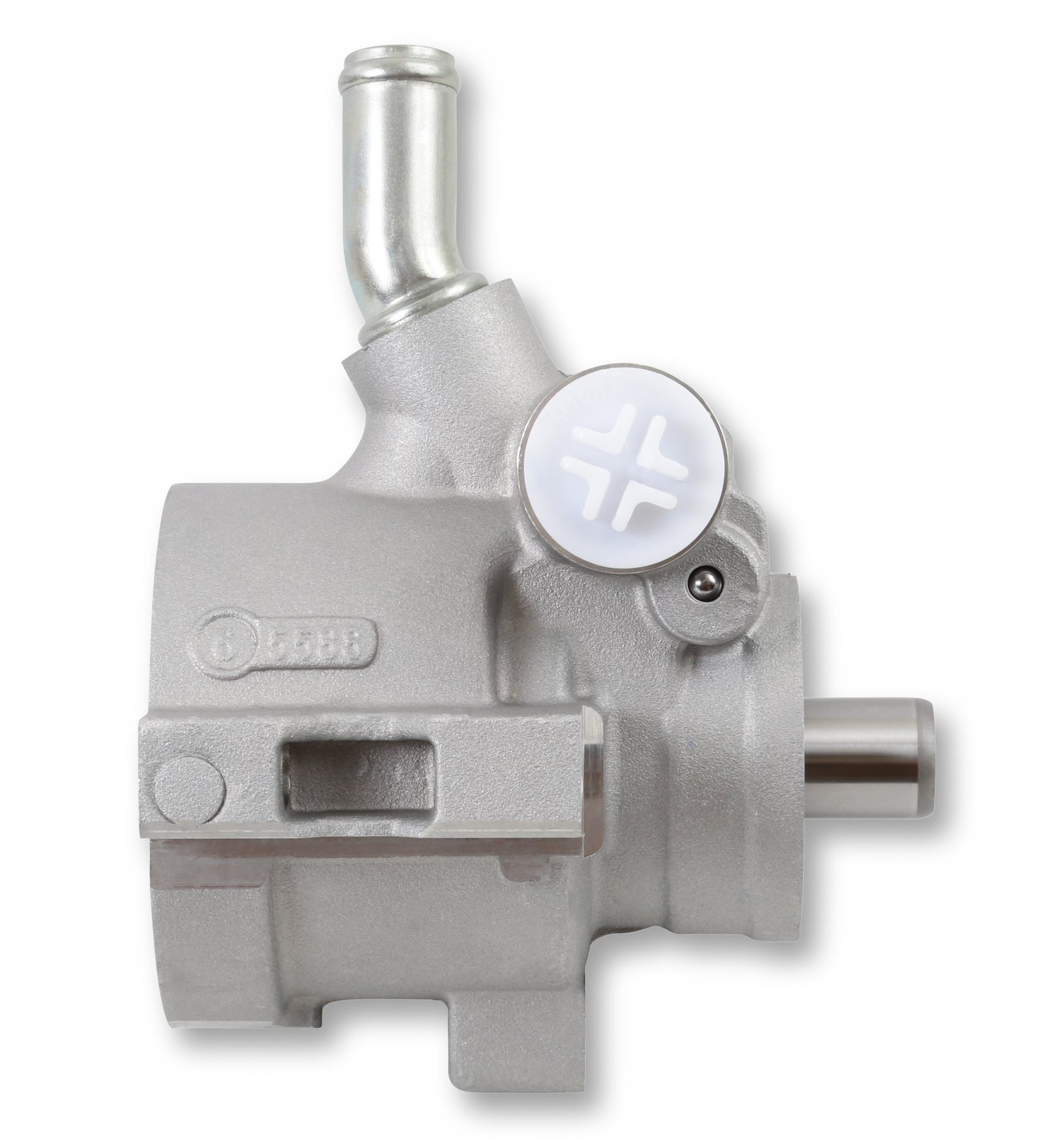

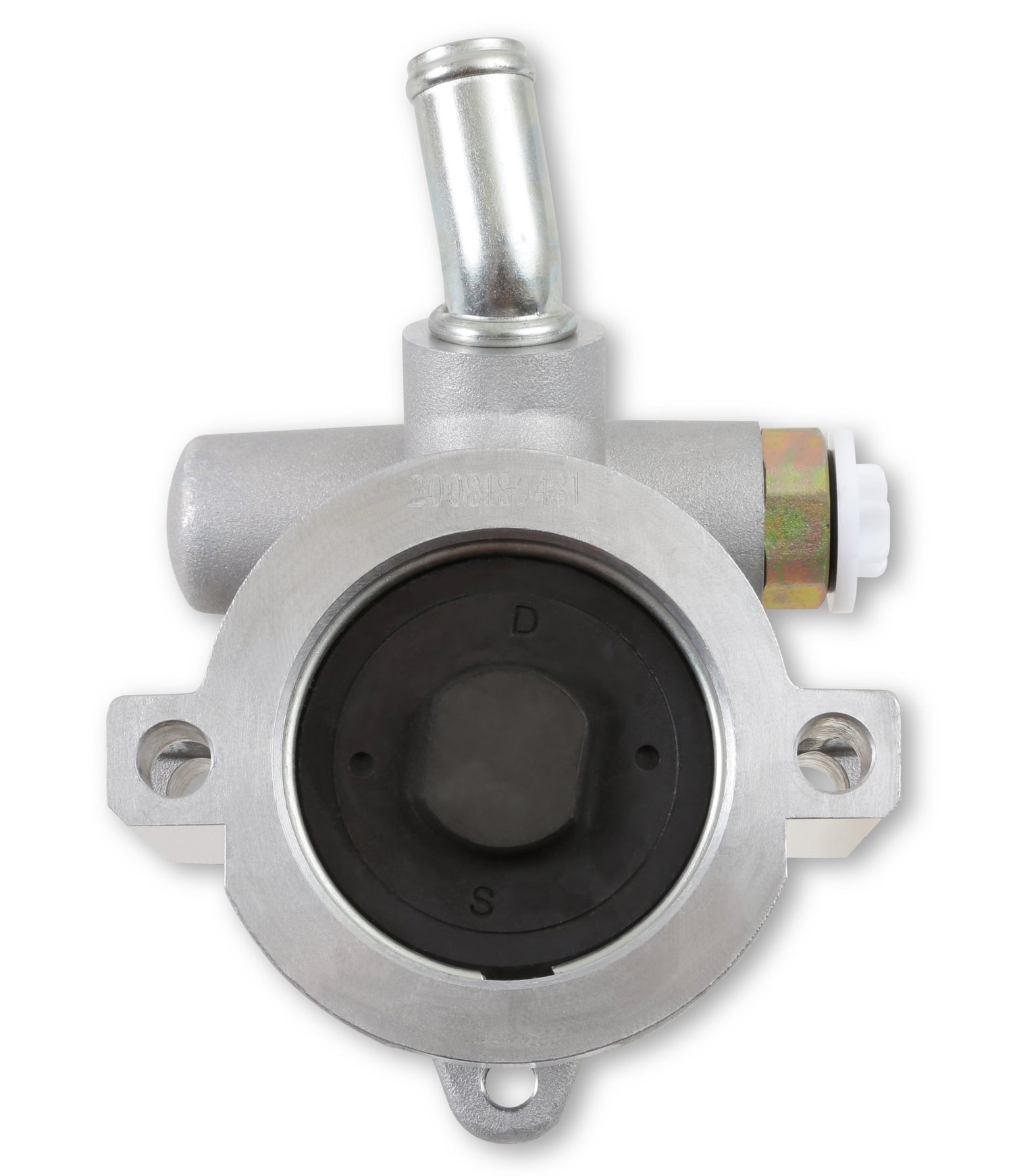

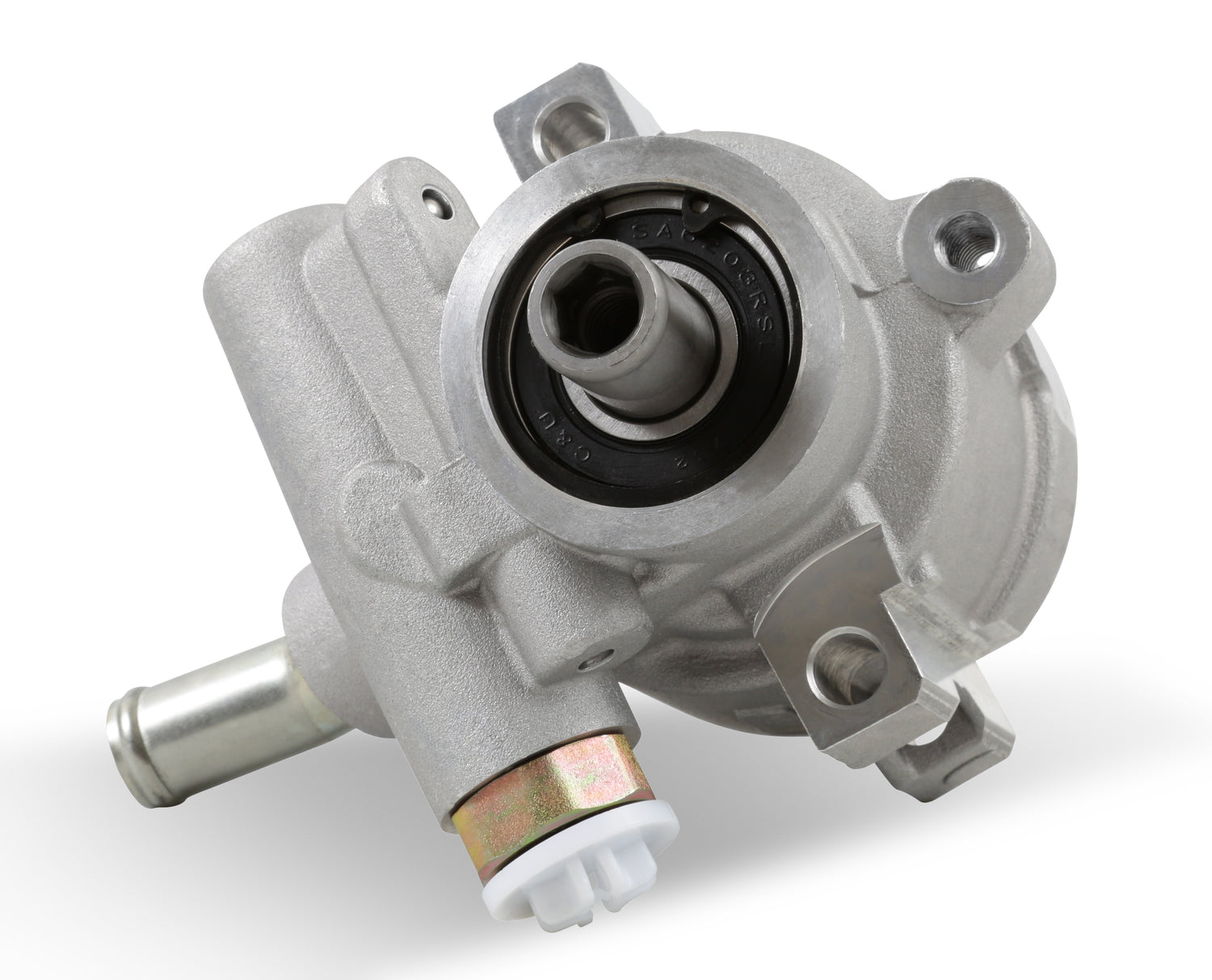

Holley 198-100 Power Steering Pump Assembly, Aluminum Corvette

Name: Holley 198-100 Power Steering Pump Assembly, Aluminum Corvette
Brand: Holley
SKU: 198-100
Price: 888.3 NZD
Availability: InStock

Power Steering Pump Assembly, Aluminum Saginaw (TC) with bearing supported shaft

$888.30 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Power Steering Pump Assembly, Aluminum Saginaw (TC) with bearing supported shaft

Part Number: 198-100

Corvette style aluminum Power Steering Pump for use with all Holley driver's side brackets. Also known as Saginaw TC type pump.

Features and Benefits

• Lightweight aluminum housing
• 0.66” shaft diameter
• Works with Holley reservoir kit P/N 198-200
• Bearing supported shaft
• .88 GPM at 465 RPM Low Flow
• 2.8 GPM at 1500+ RPM. 1350 PSI

0.88 GPM Low Flow/2.8 GPM High Flow_x000D_ 1350 PSI

Specifications

Brand	Holley
Category	Steering
Emission Code	5
Engine	GM Gen III/IV (LS)
Filter Included	No
Finish	Cast
Grade Type	Performance
Housing Material	Aluminum
Inlet Attachment Type	Barb
Inlet Quantity	1
Material	Aluminum
Mounting Hardware Included	No
Outlet Attachment Type	Threaded
Outlet Quantity	1
part type	Power Steering Pump
Product Type	Power Steering Pump
Pulley Attachment Type	Press-On
Pulley Included	No
Remote Reservoir	Yes
Remote Reservoir Included	No
Reservoir Cap Included	No
Reservoir Included	No
Shaft Type	Press-On
Sub Category	Power Steering Hoses, Pumps, and Related Components
Type	Hydraulic
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
