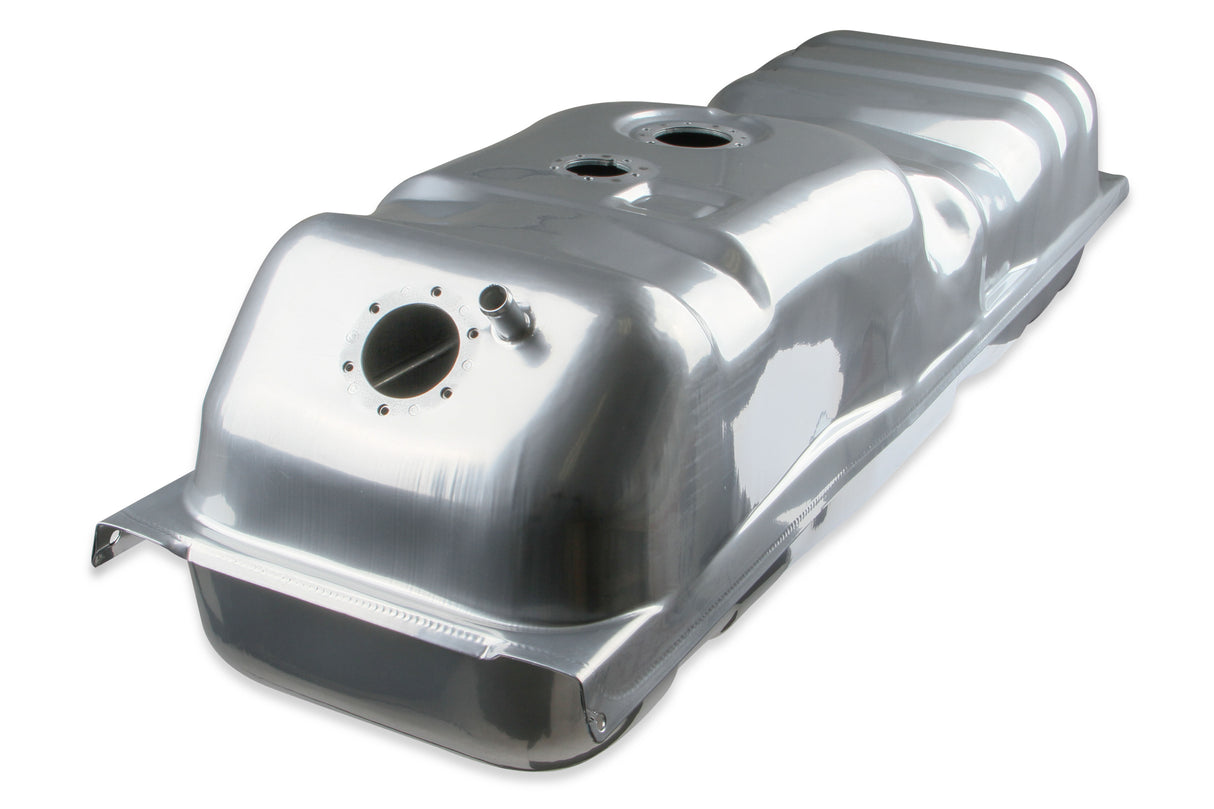

Holley 19-454 Sniper EFI Fuel Tank System 400 LPH

1973-1981 Chevy/GMC Truck 6FT Bed, Coated Steel, EFI, Gas

Part Number: 19-454

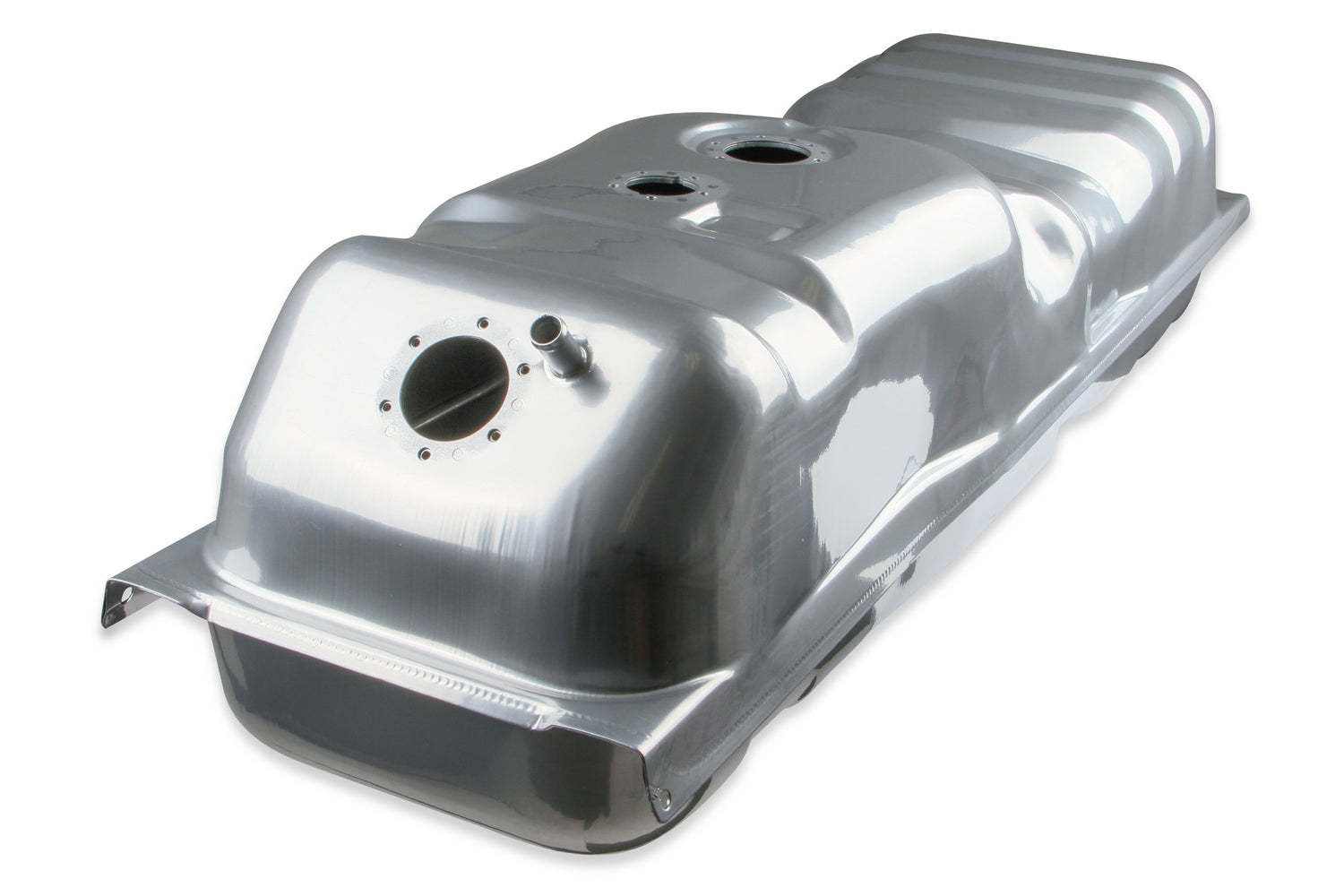

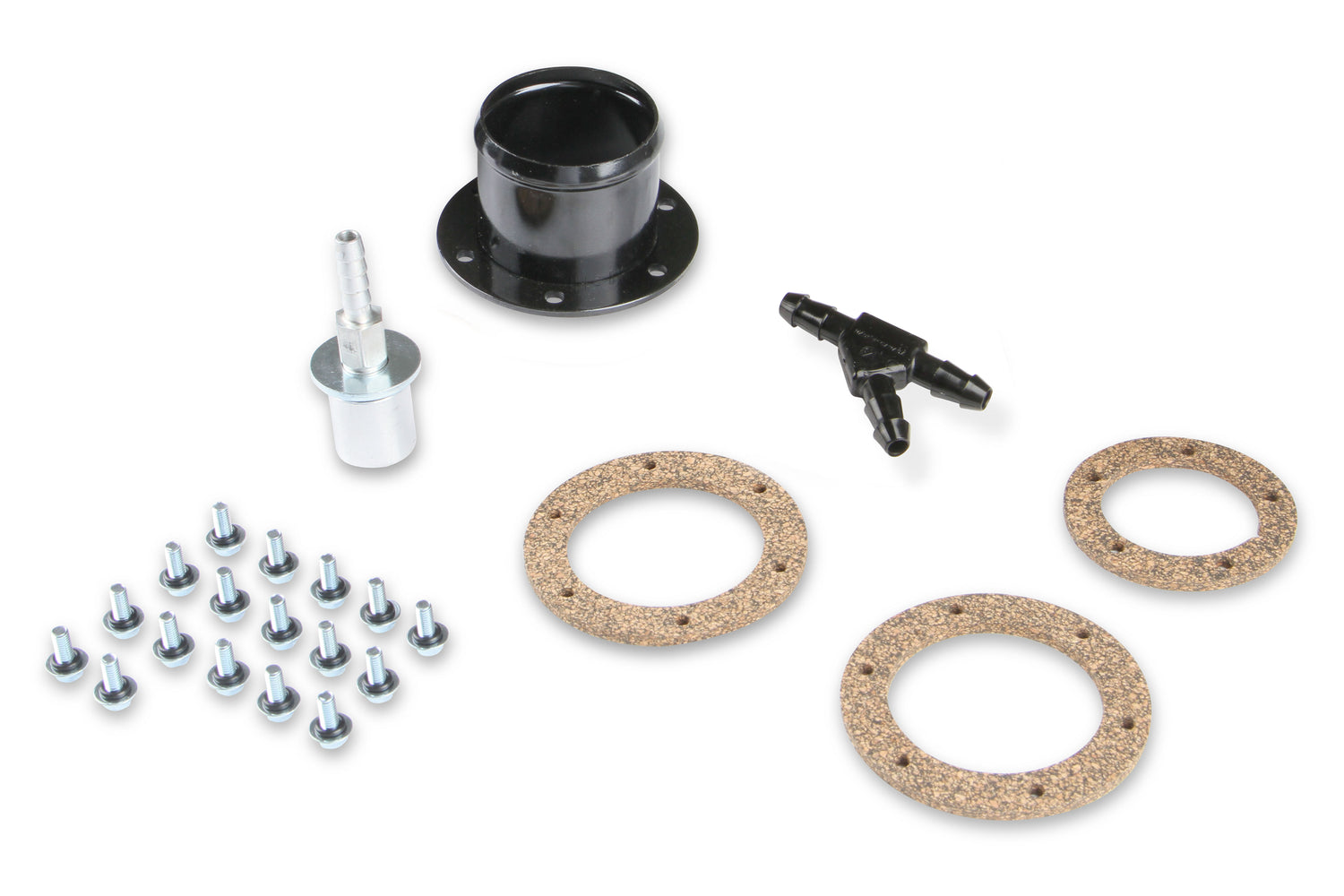

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) •Size is: 42-7/8" x 14-1/8" x 11" ***New Straps included ***Using the GM design, these tanks will fit on either side of the truck. For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.

Features and Benefits

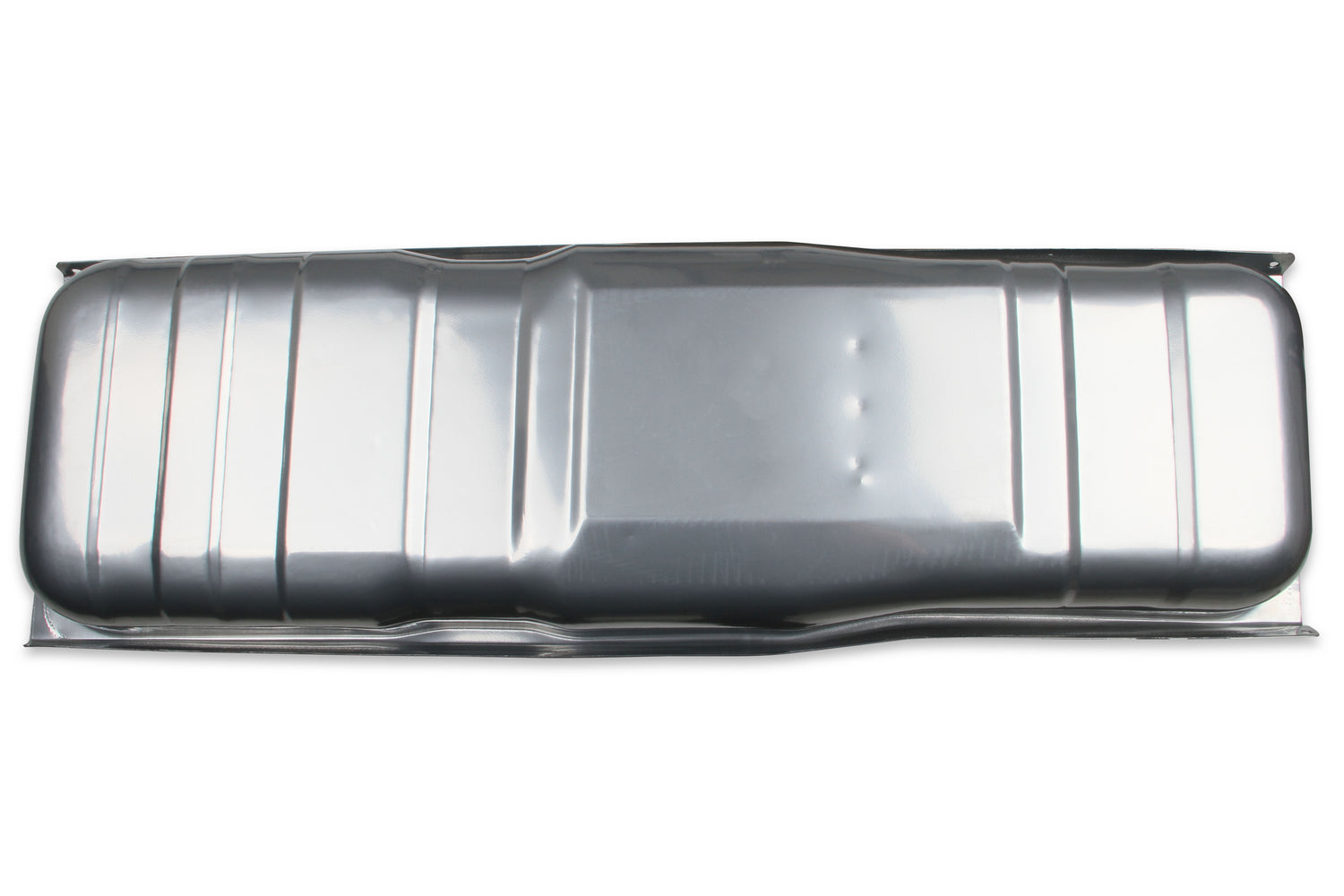

• Tanks are coated galvanized steel then powder coated silver for total corrosion protection

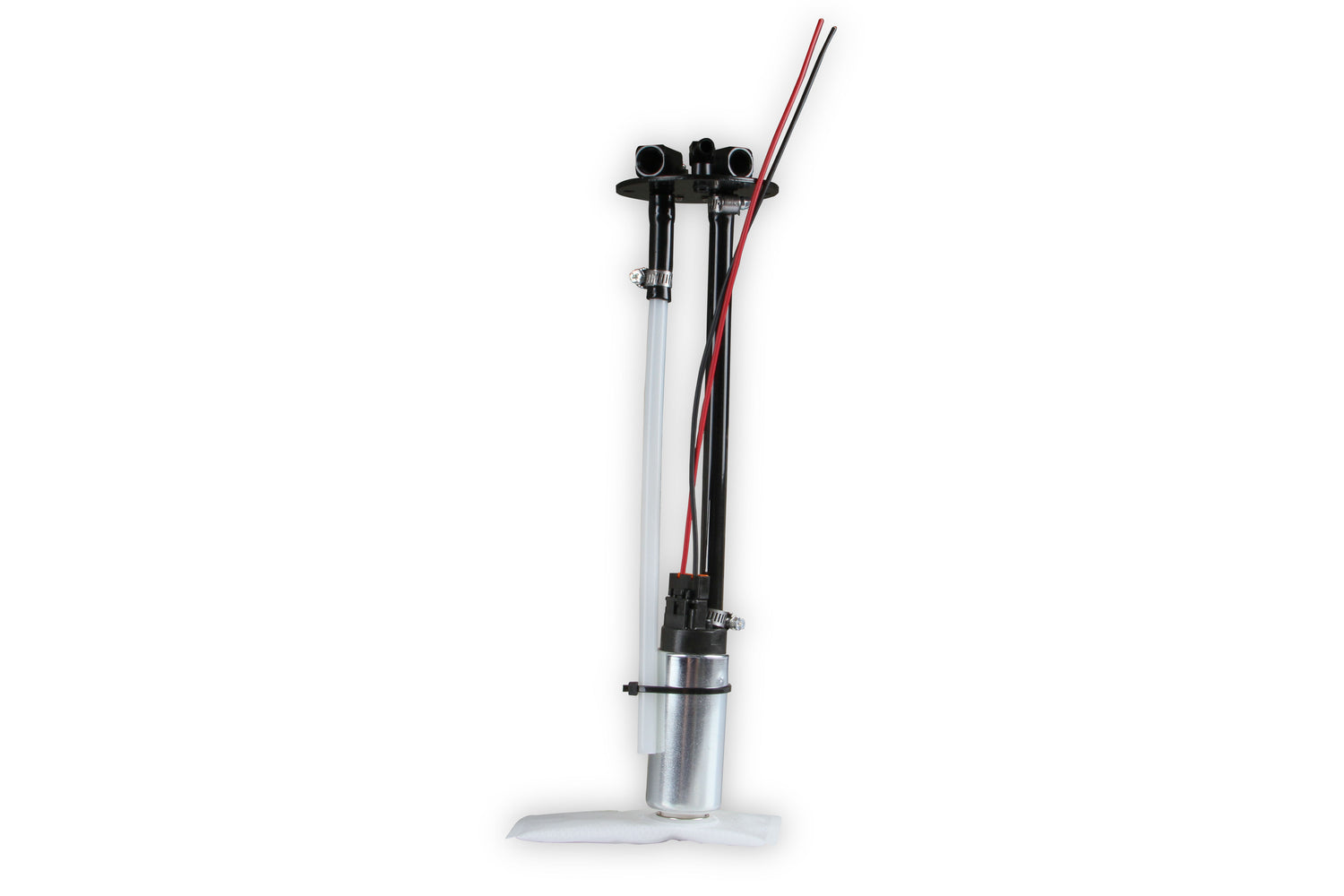

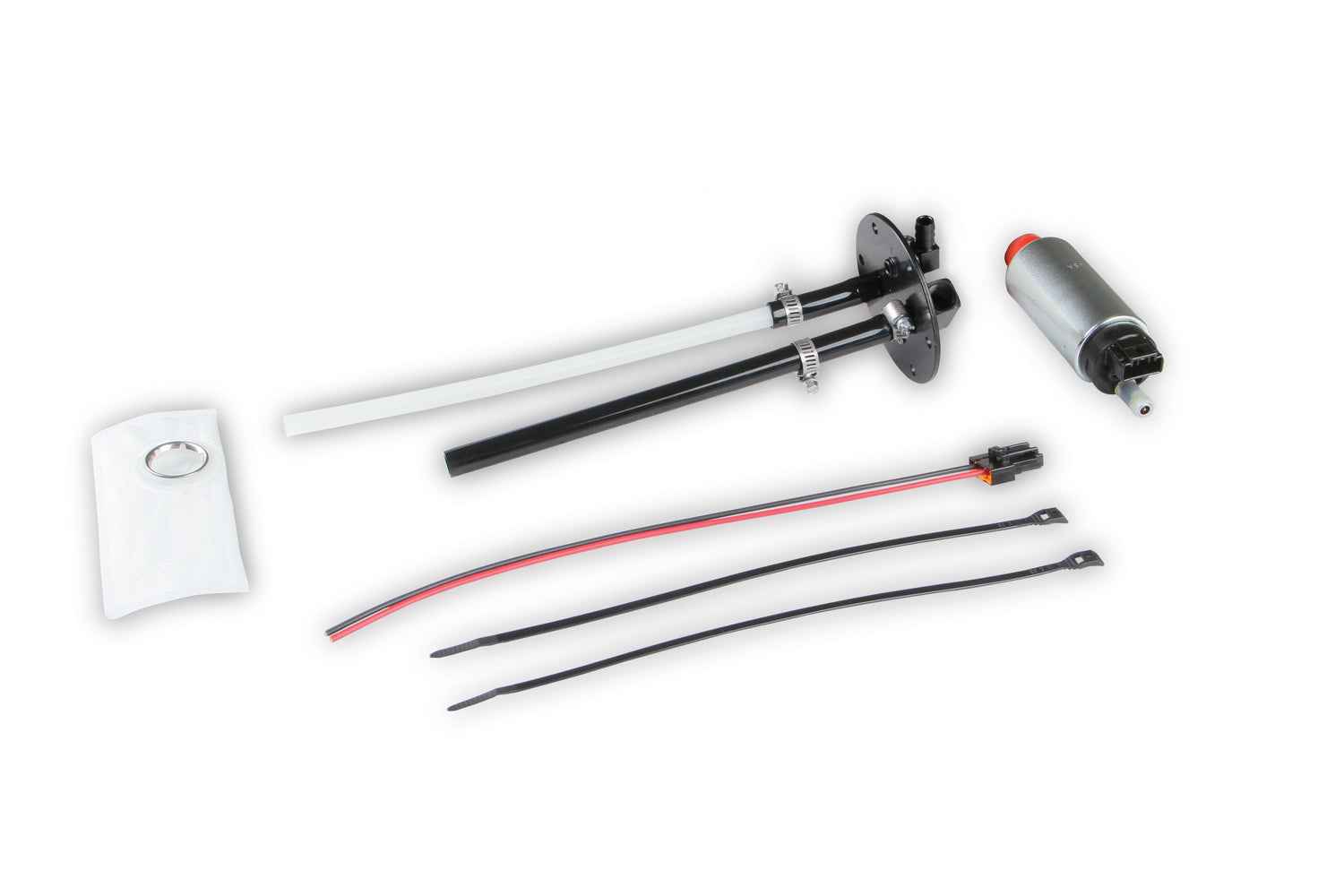

• 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

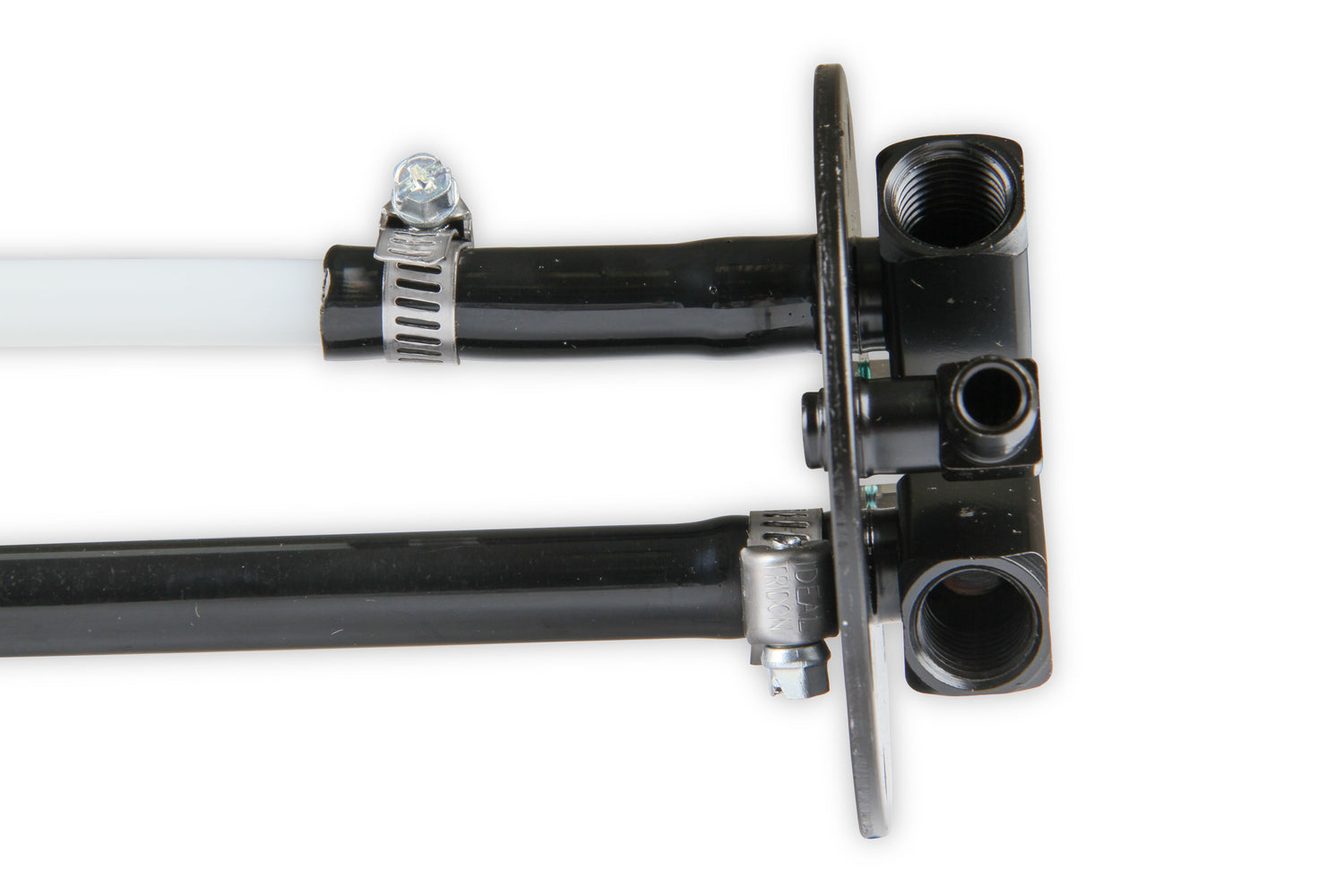

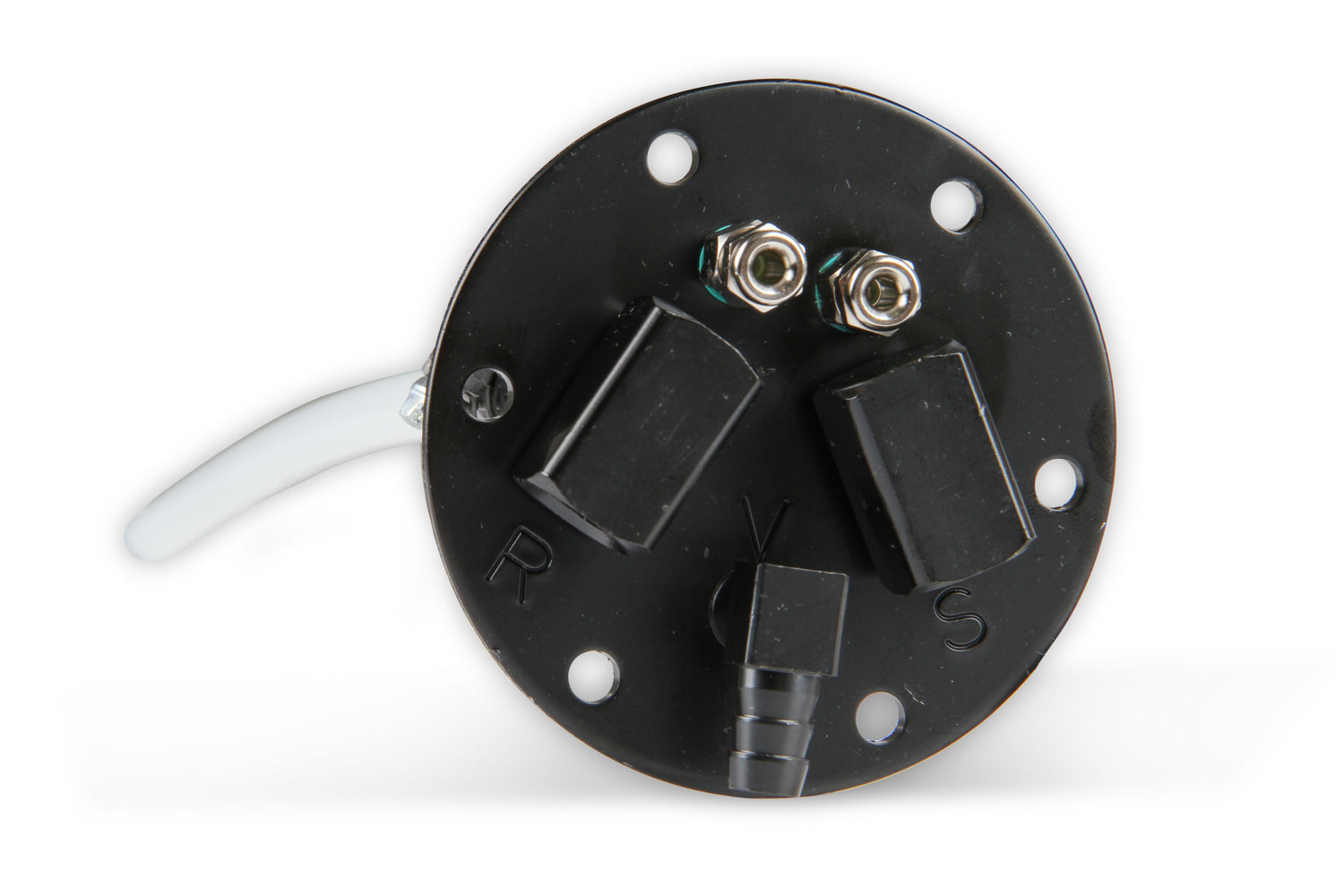

• Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

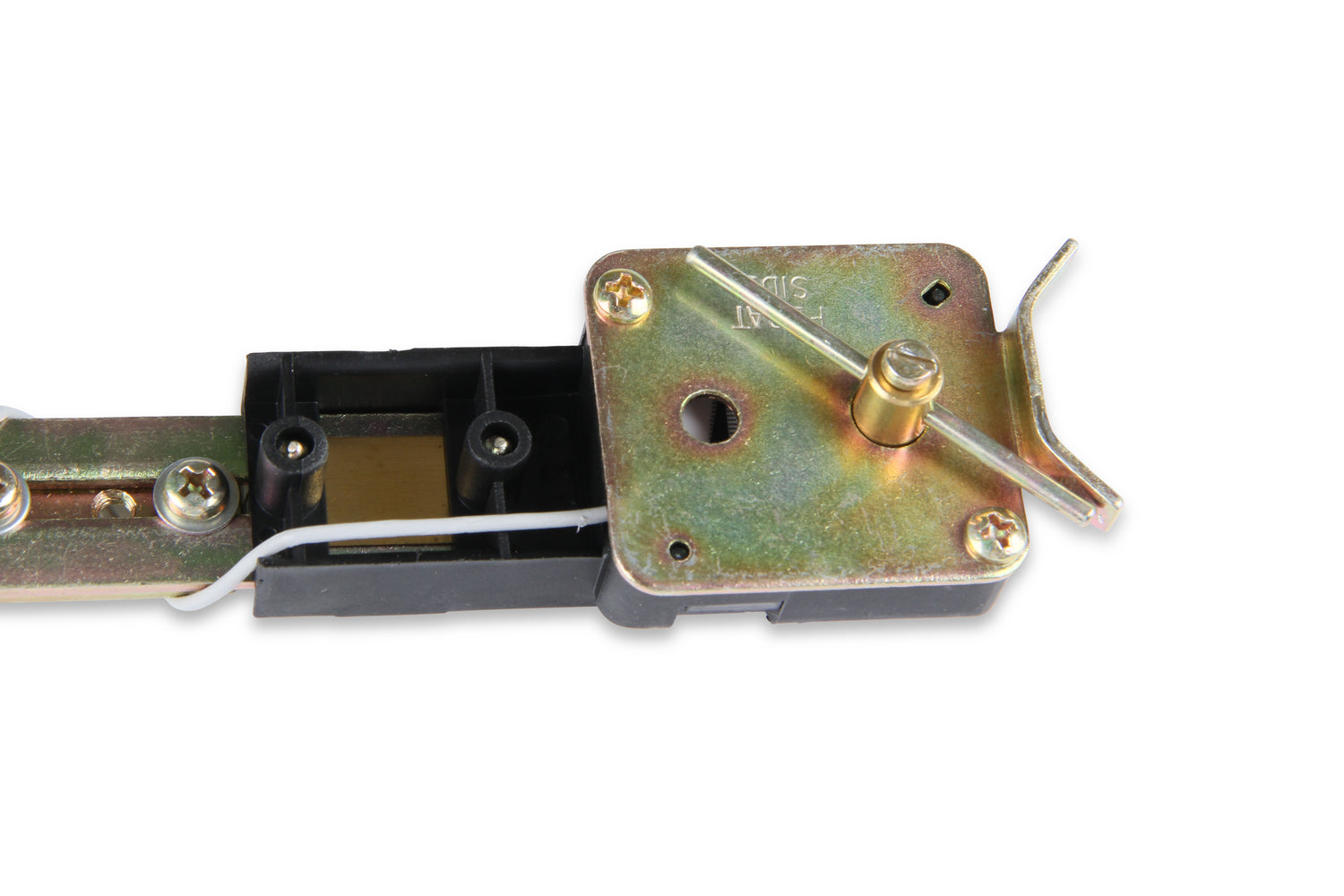

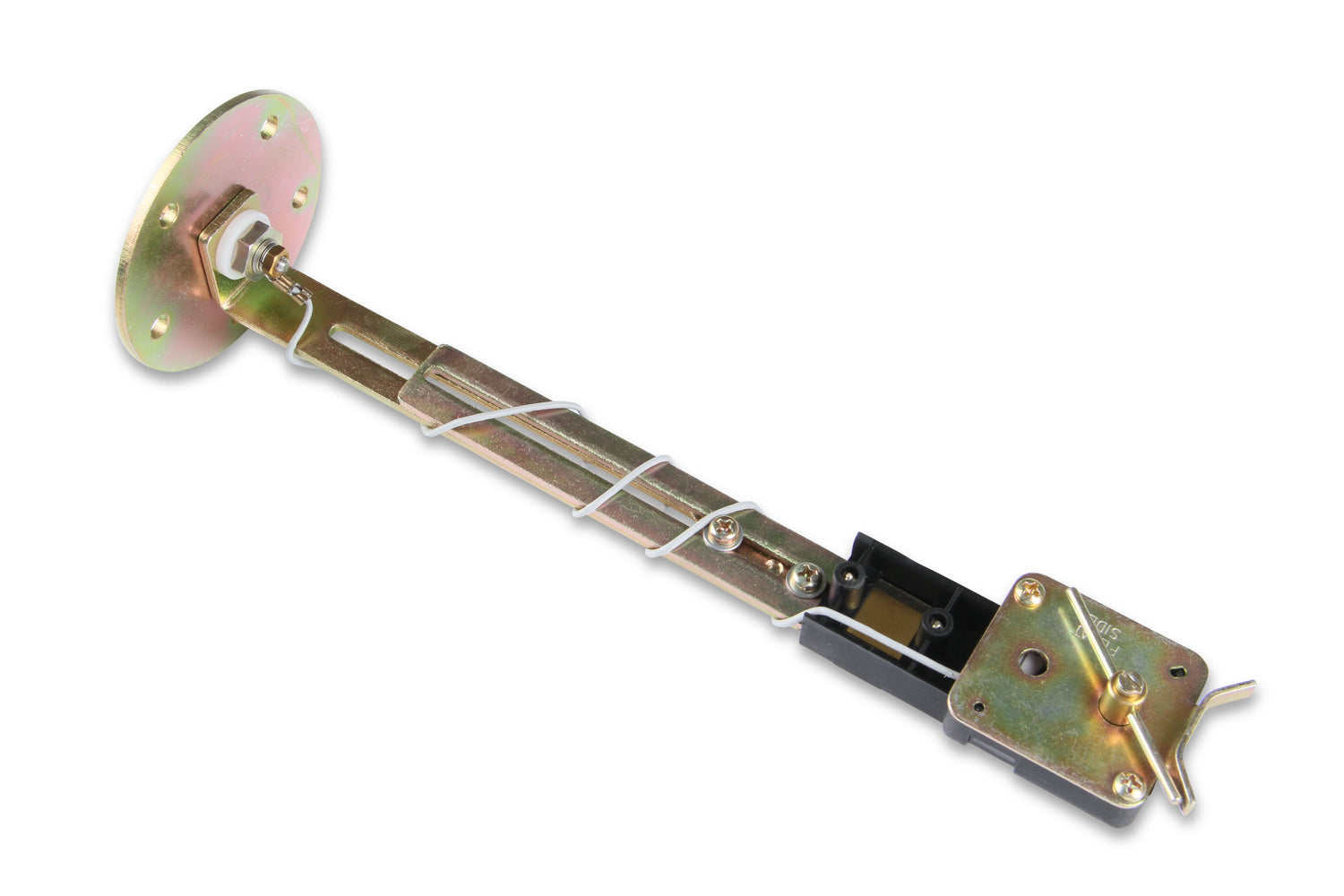

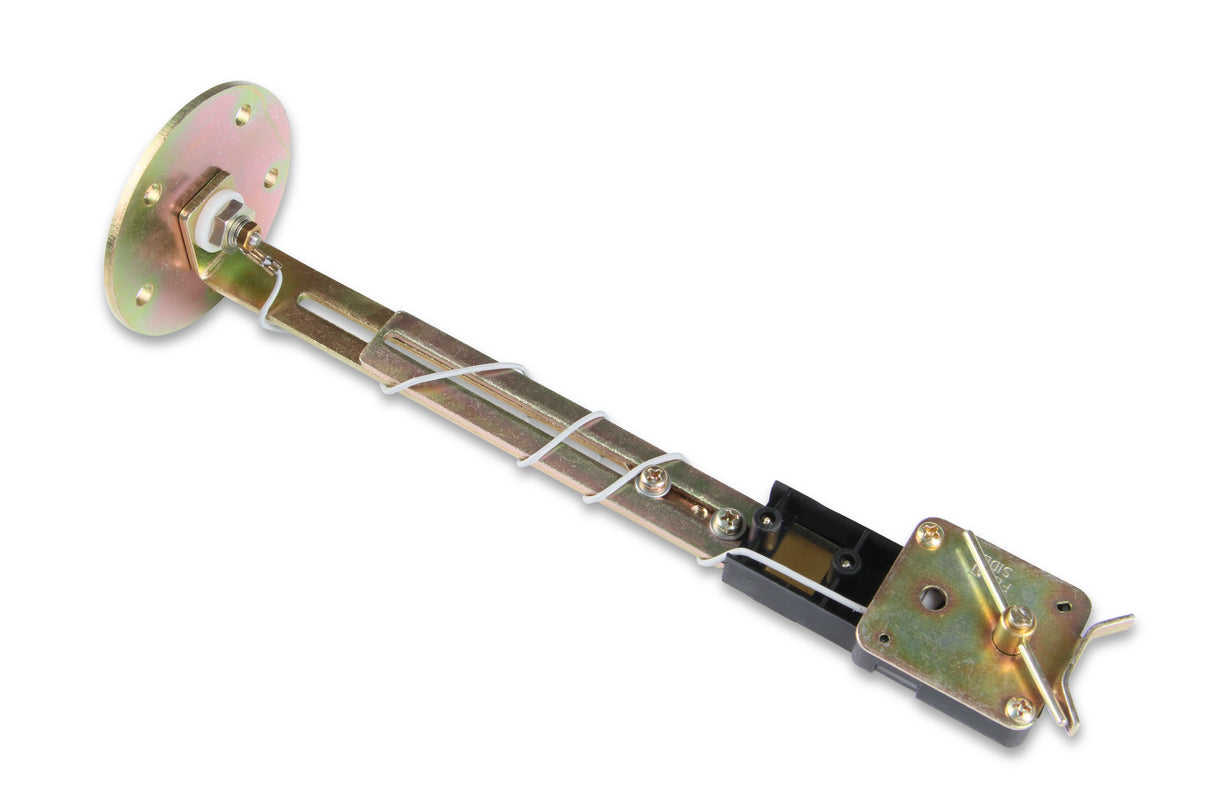

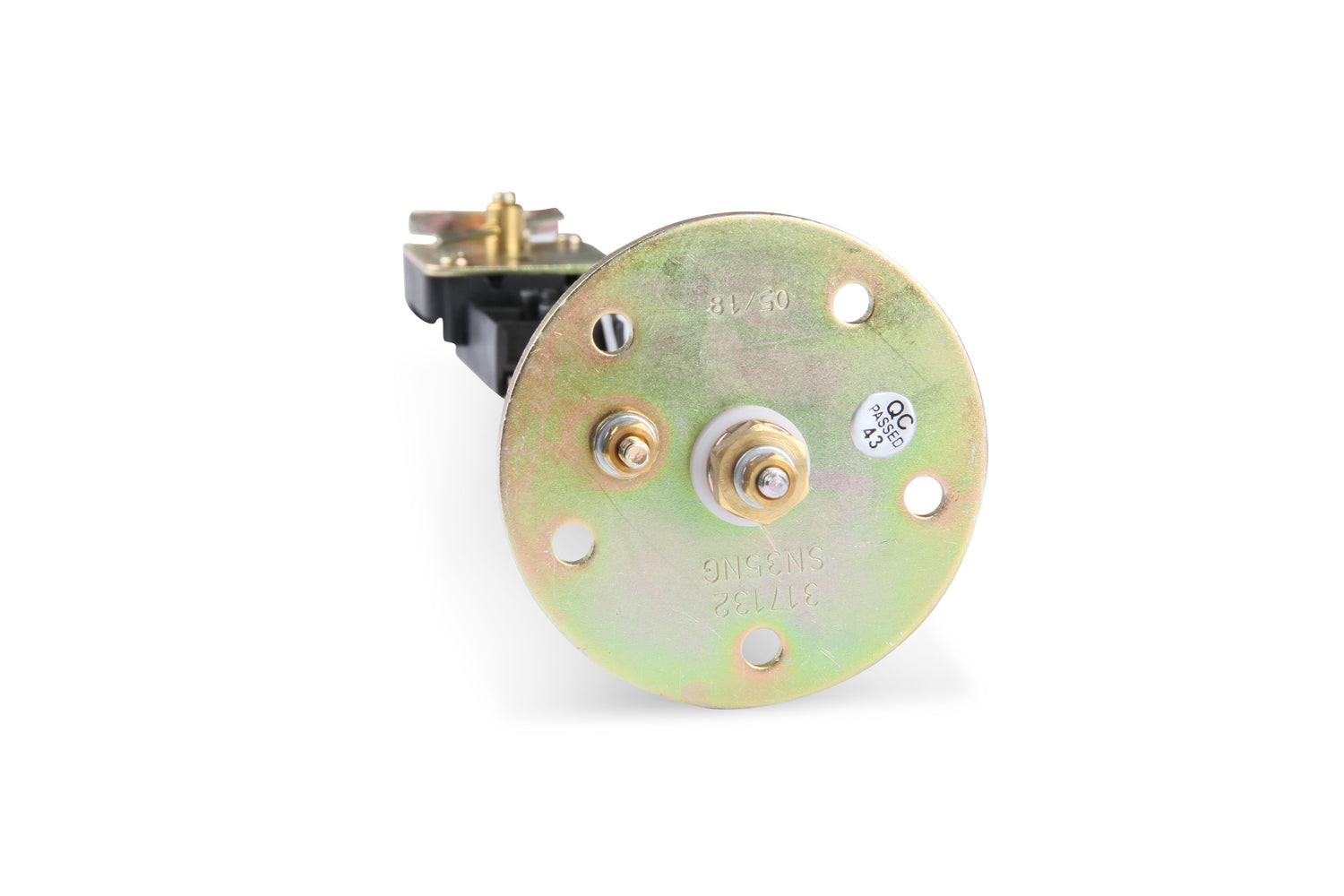

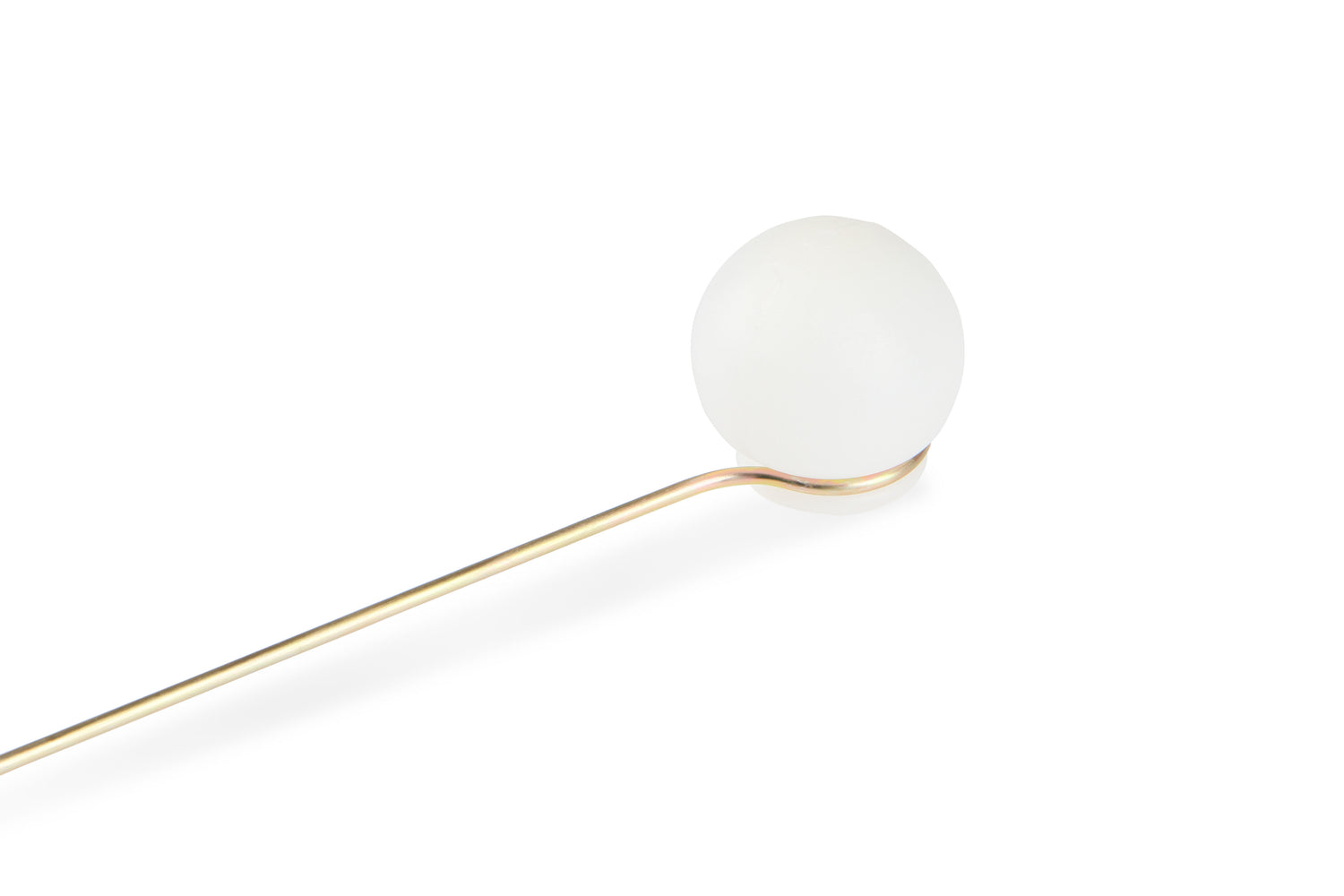

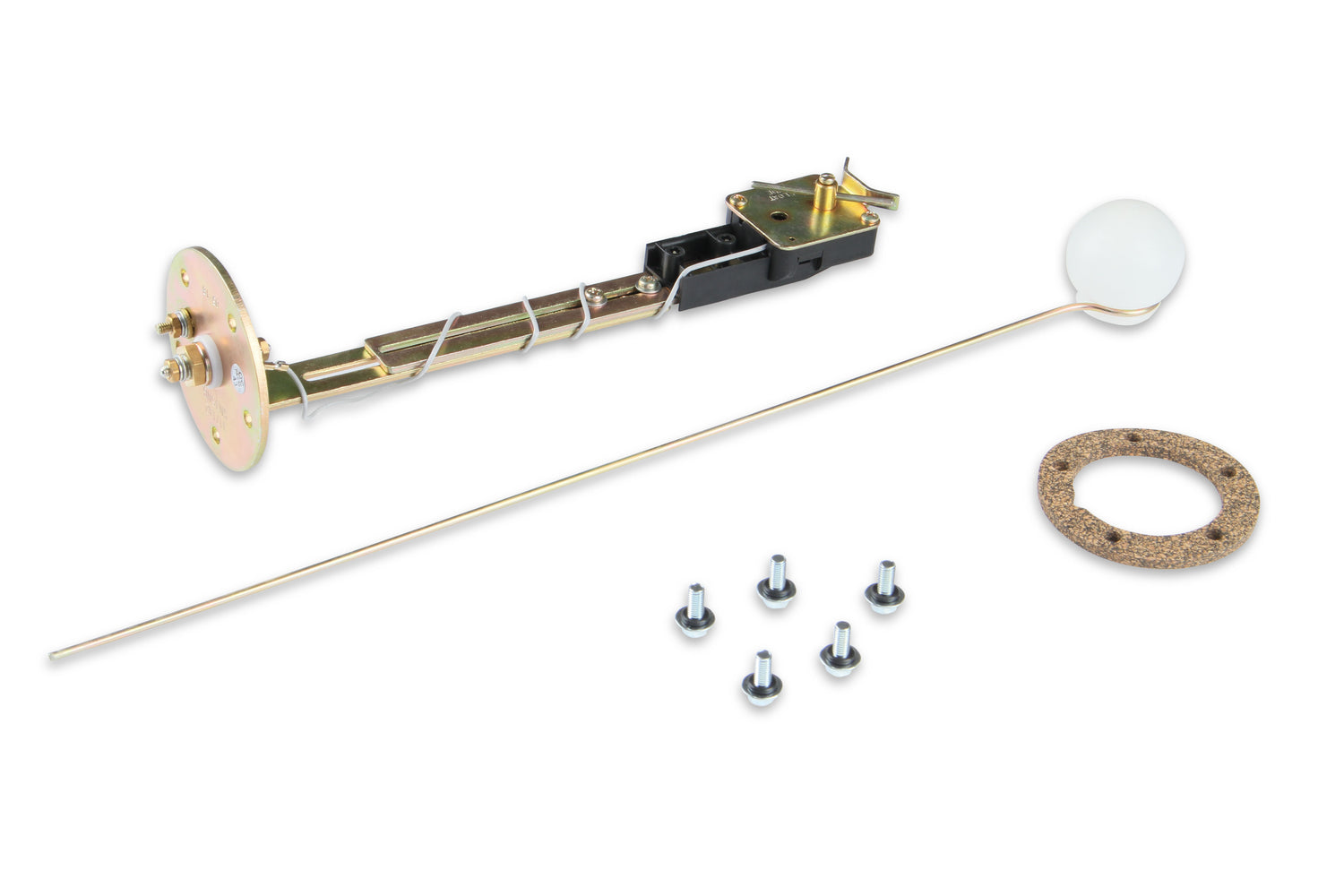

• Fuel level sender included with the correct Ohm range for your factory gauges

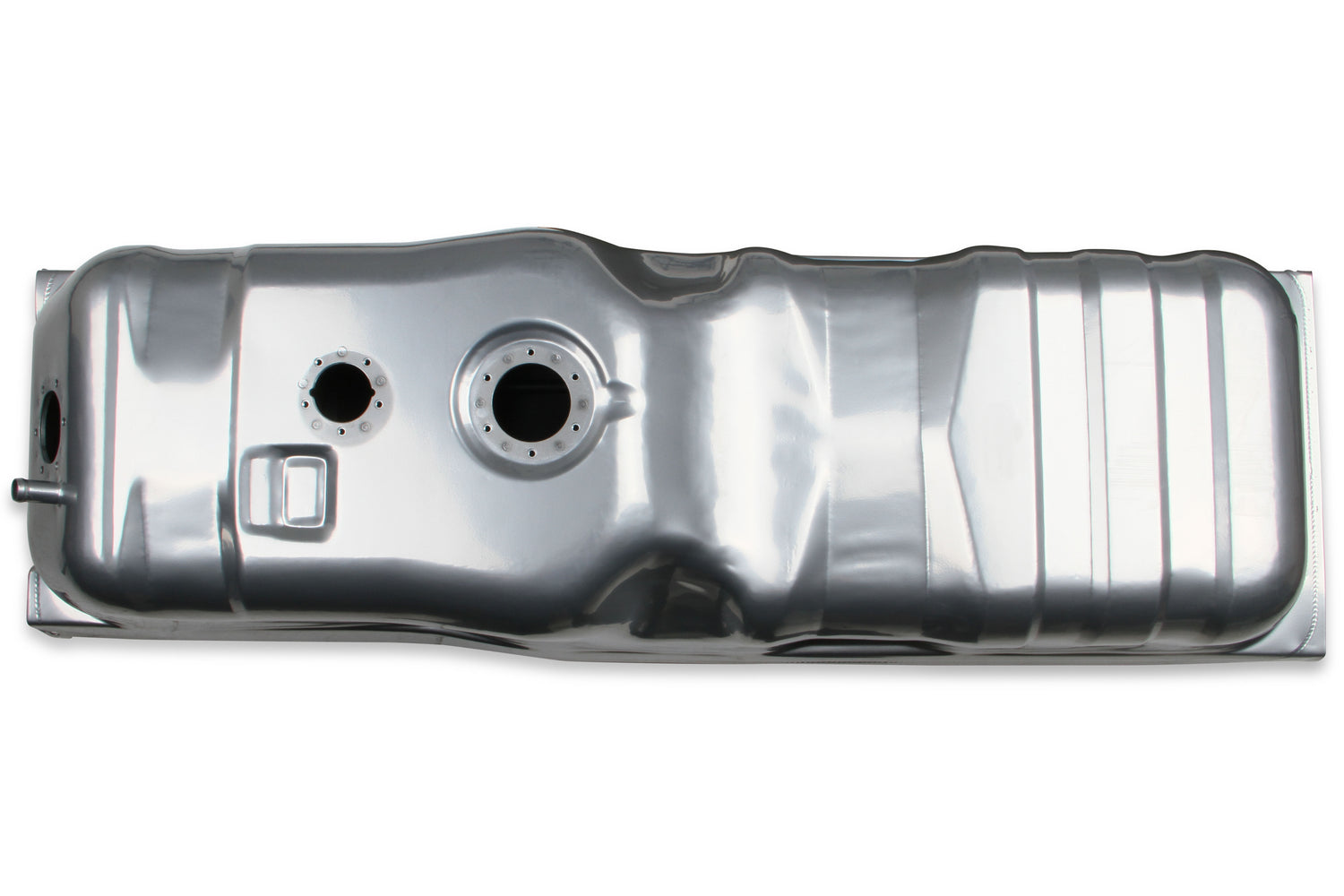

• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
• EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
• Fits and looks like an OE tank when installed
• Complete bolt in solution for your EFI conversion

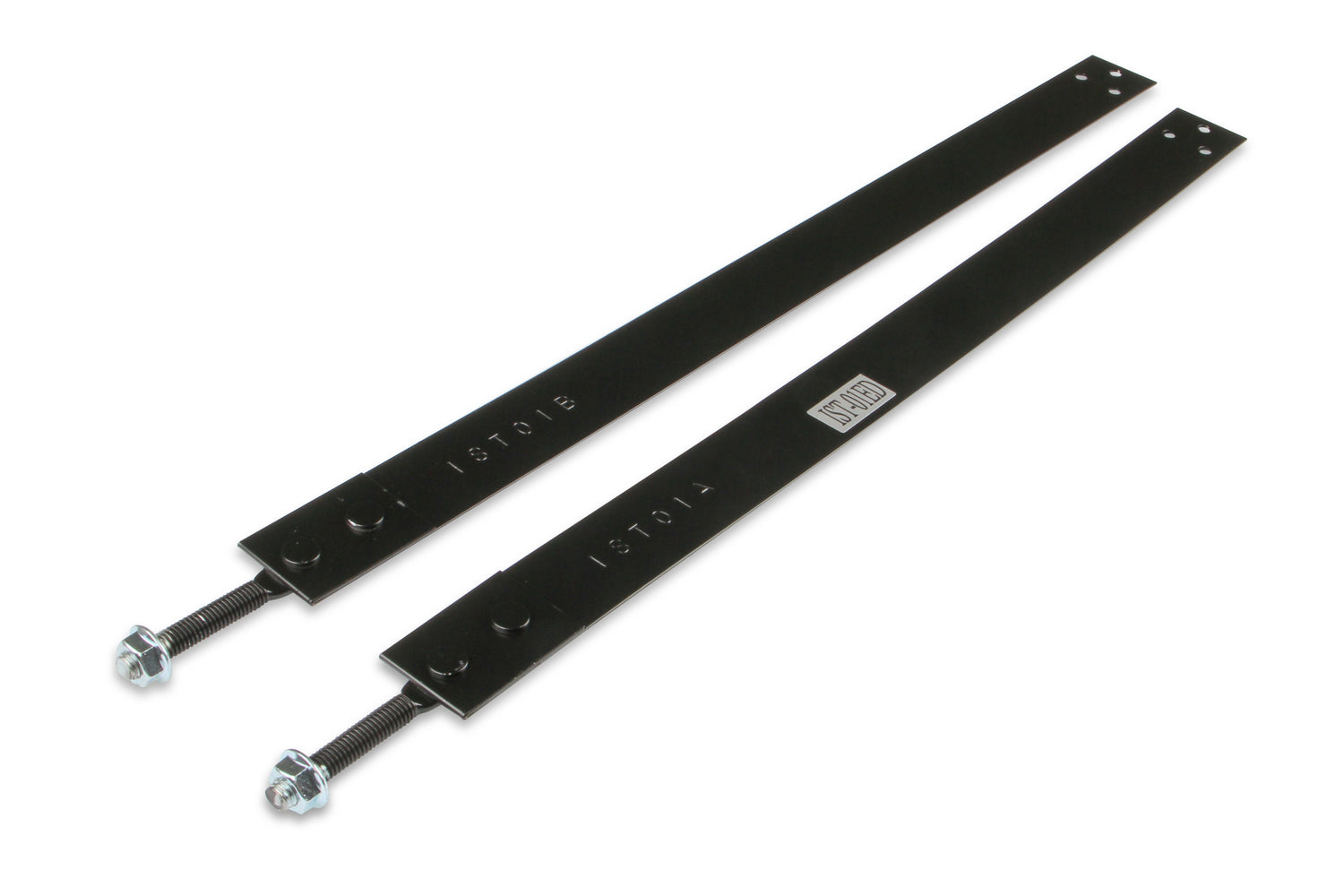

• Includes new tank straps

When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
