Holley Sniper EFI | SKU:
19-392

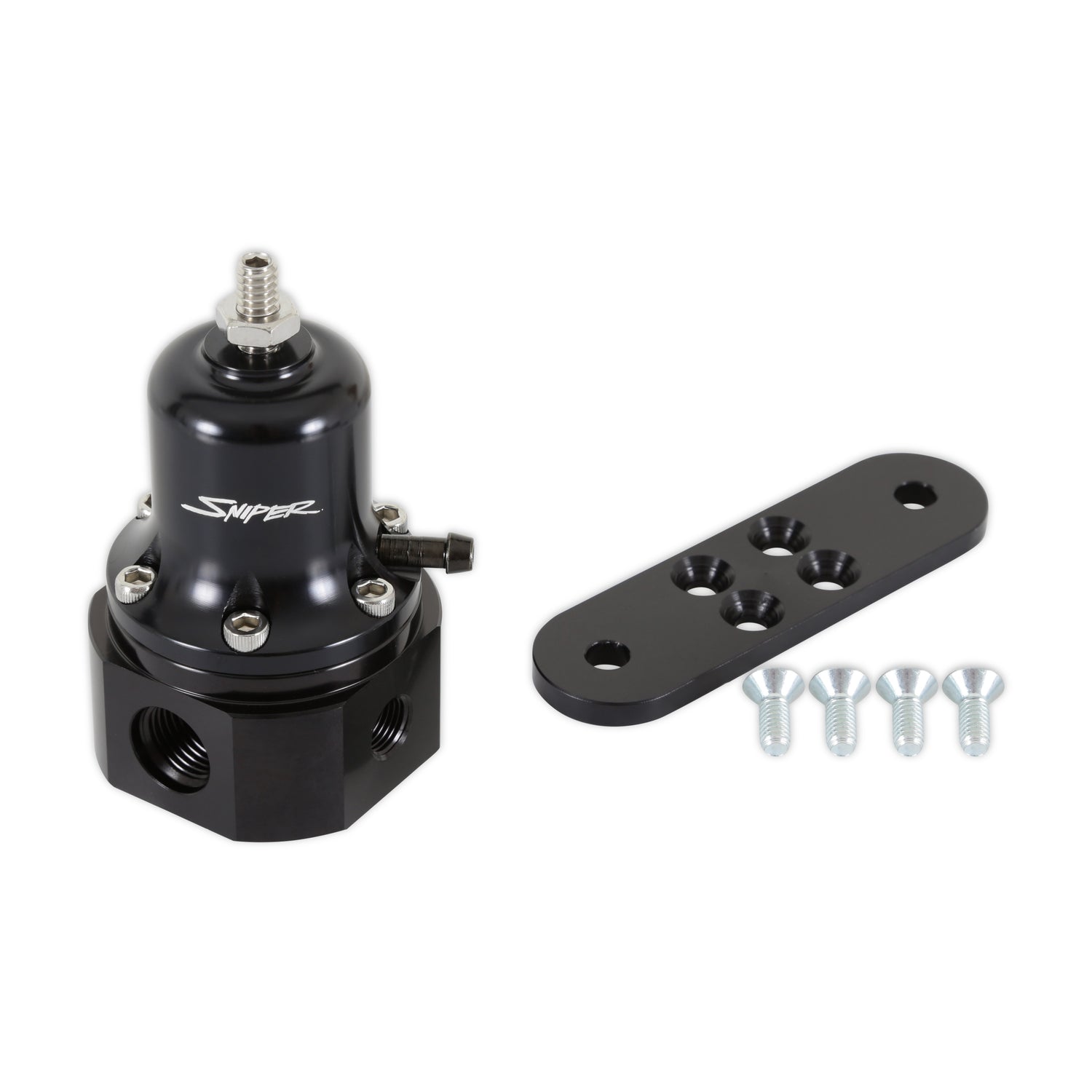

Holley Sniper EFI Sniper EFI Fuel Regulator 6AN - 19-392
Sniper EFI 40-130 psi Fuel Regulator 6AN Boost Reference 1:1
Regular price
$427.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley Sniper EFI Sniper EFI Fuel Regulator 6AN - 19-392
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description

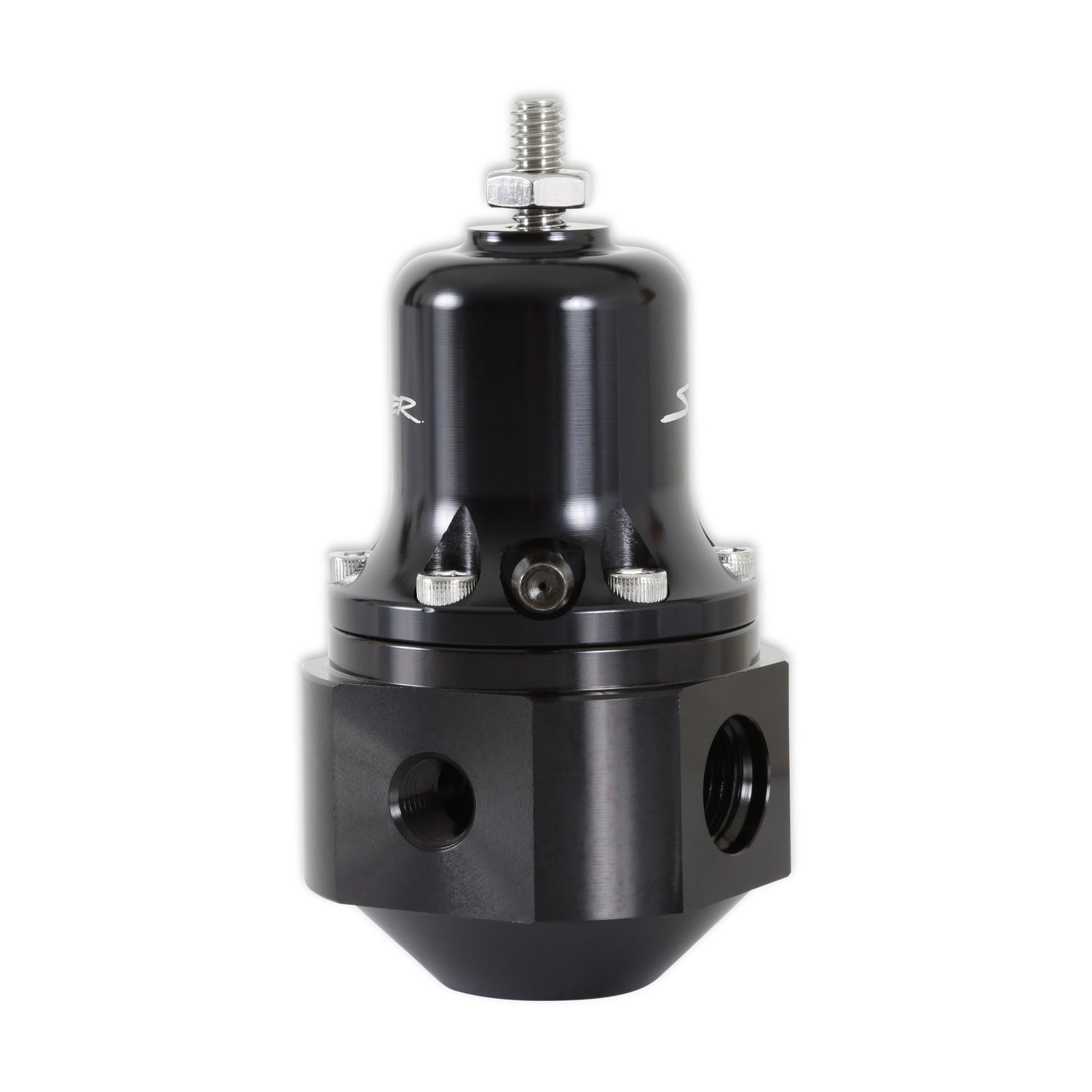

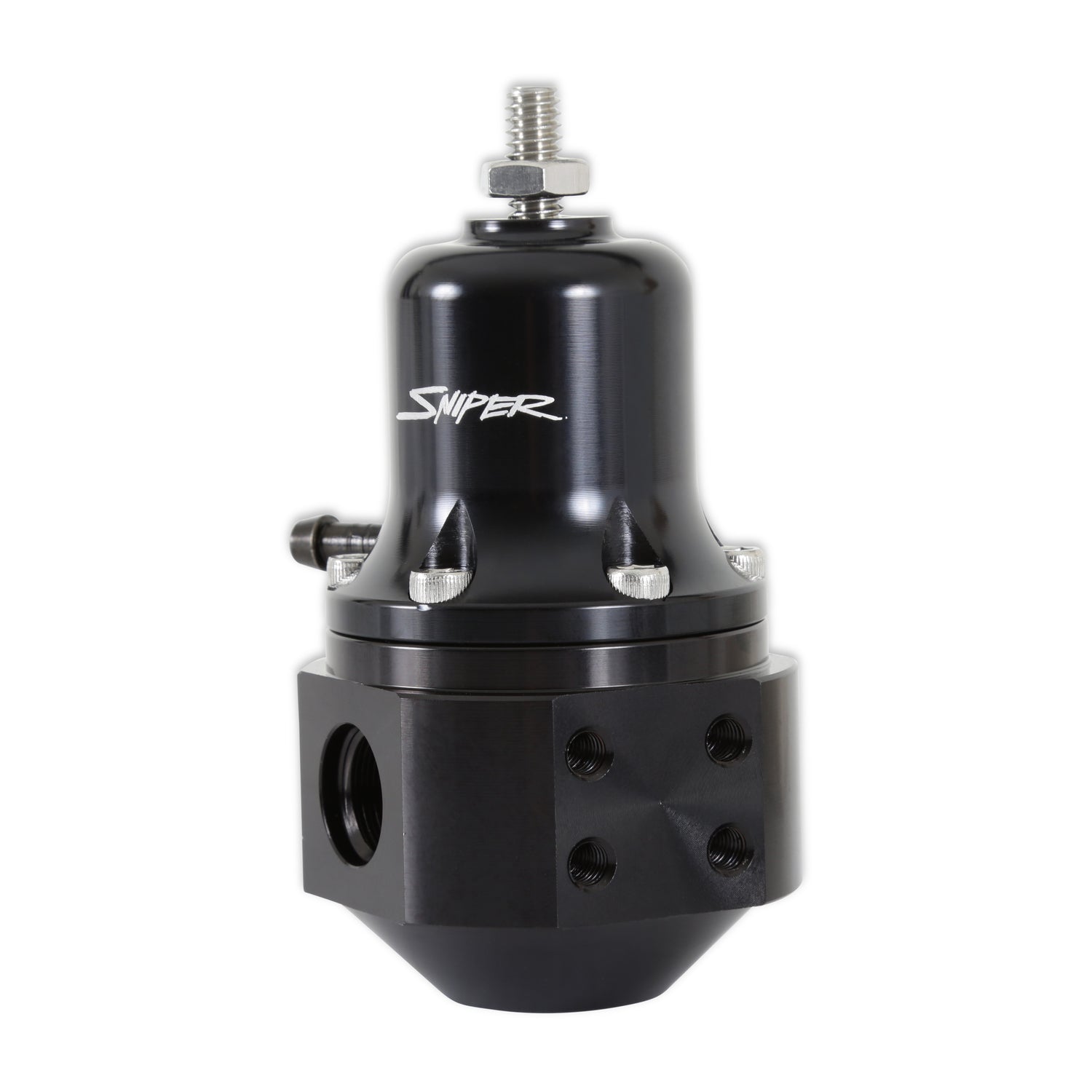

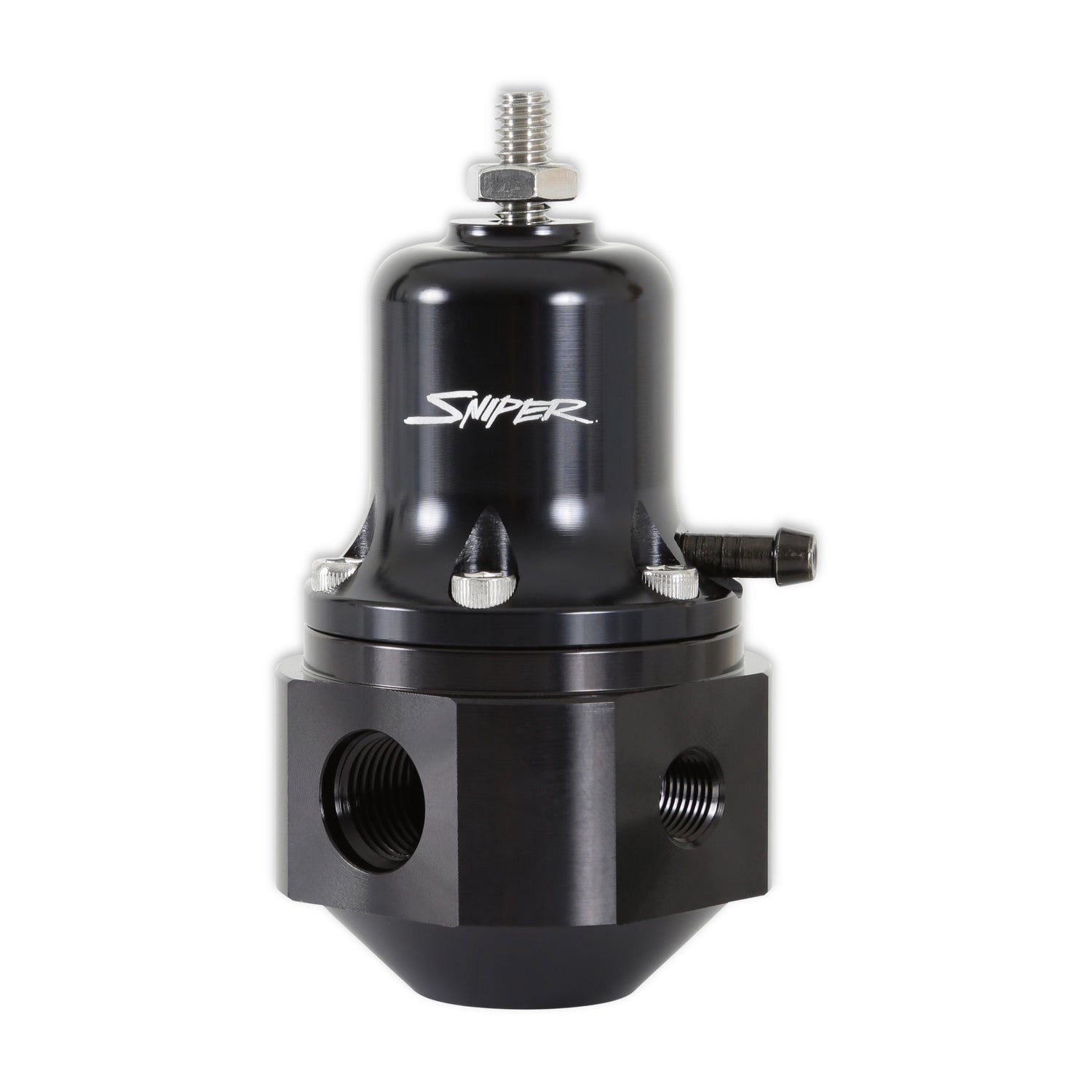

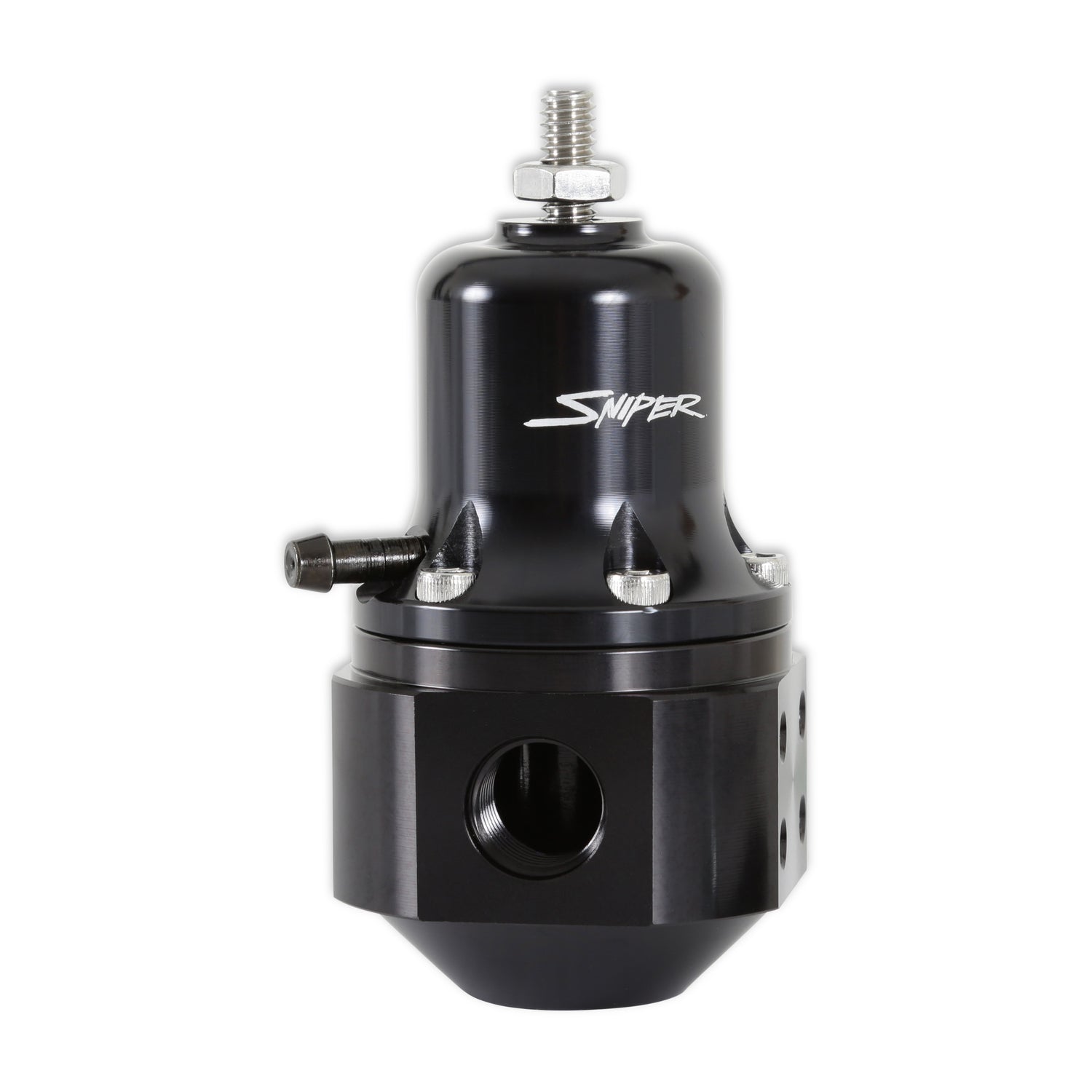

Sniper EFI 40-130 psi Fuel Regulator 6AN Boost Reference 1:1
Part Number: 19-392
Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.
Features and Benefits
• Longer spring for wider range of adjustment (40-130 psi)
• Features an oversized bypass orifice and corrugated diaphragm for superior flow
• Constructed of billet aluminum with a black anodized base and top for good looks
• Offered in -6 and -8 ORB configurations
• Used in systems with a return line back to tank

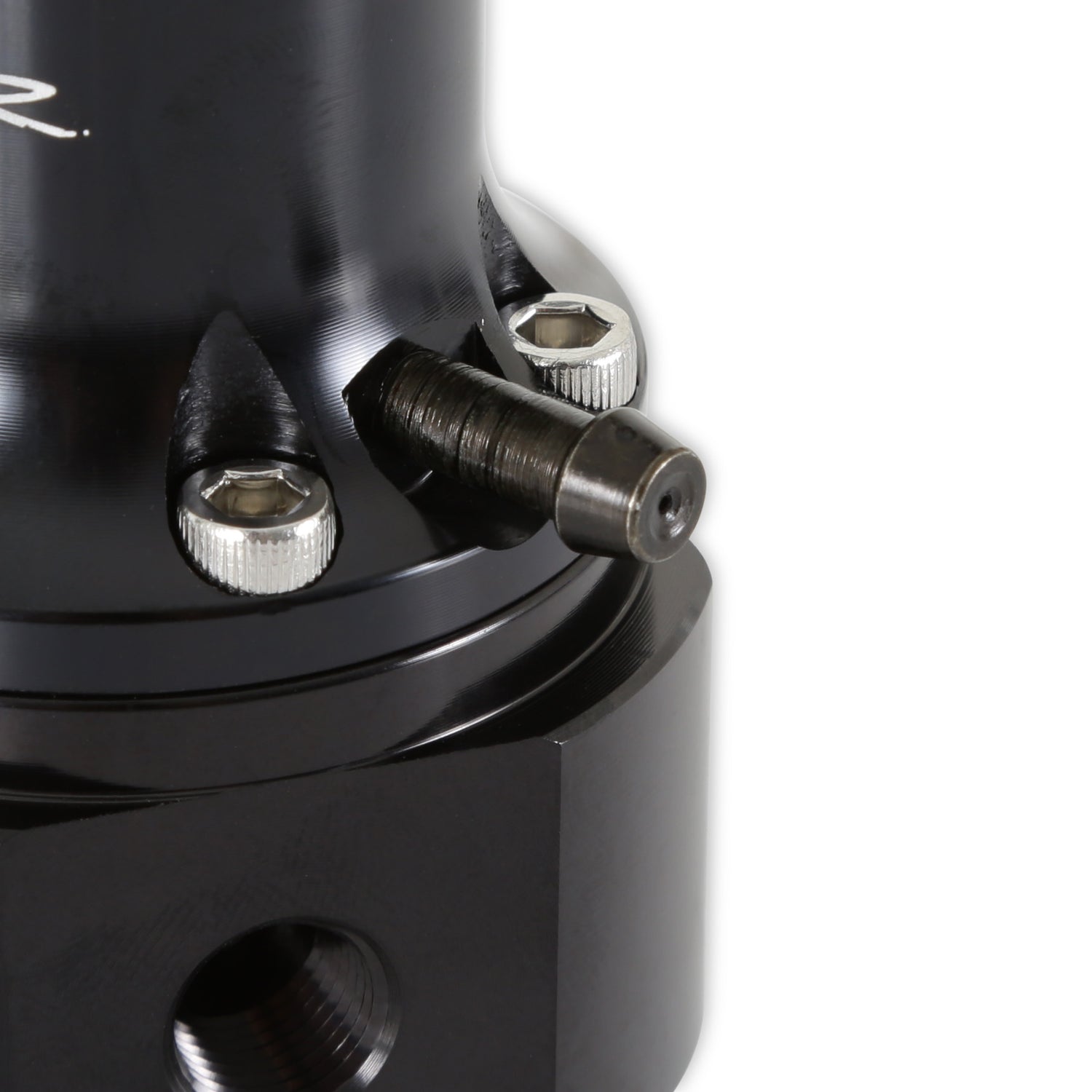

• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Alcohol fuel and race gas compatible

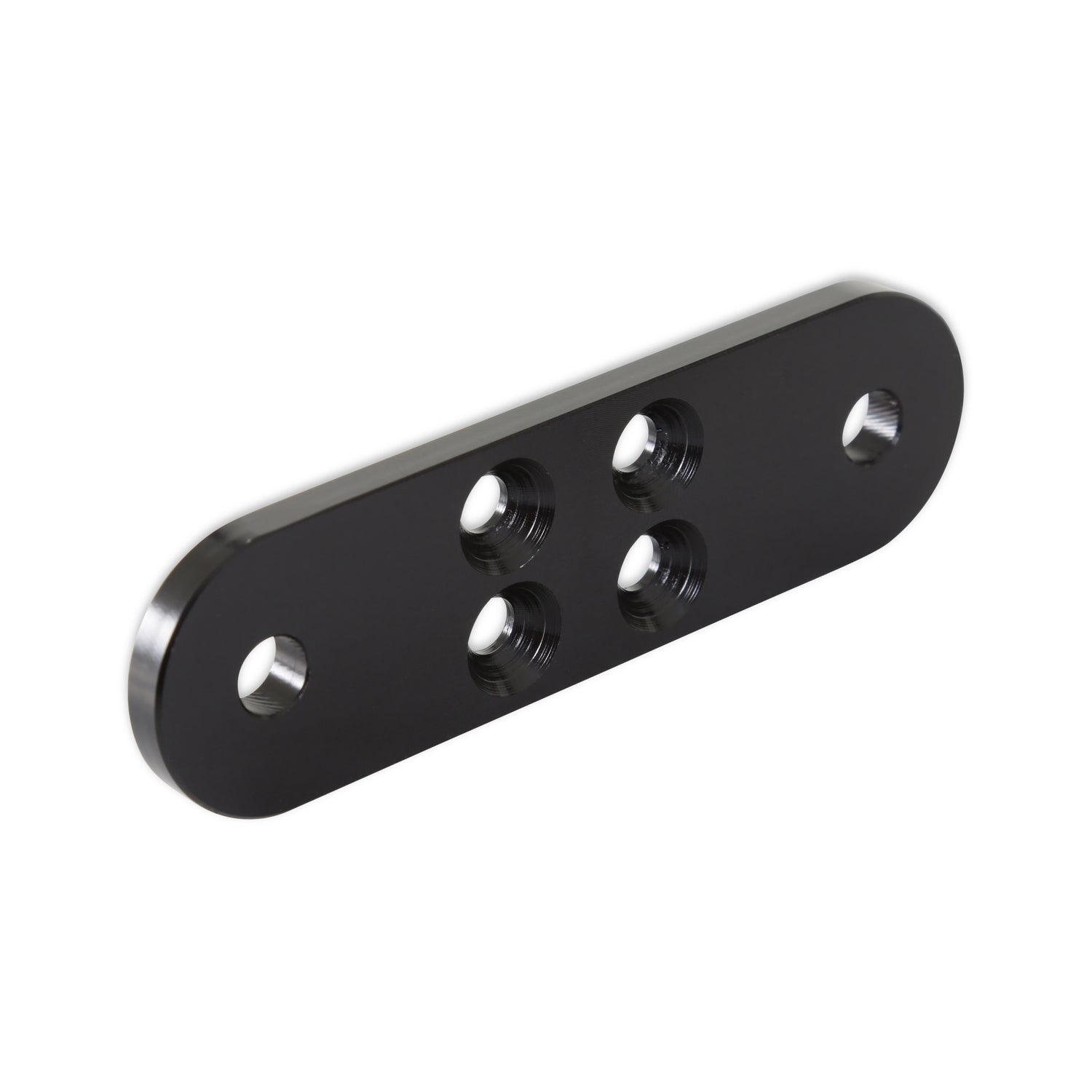

• Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference
Part Number: 19-392
Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.
Features and Benefits
• Longer spring for wider range of adjustment (40-130 psi)
• Features an oversized bypass orifice and corrugated diaphragm for superior flow
• Constructed of billet aluminum with a black anodized base and top for good looks
• Offered in -6 and -8 ORB configurations
• Used in systems with a return line back to tank
• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Alcohol fuel and race gas compatible
• Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Sniper EFI Category Air and Fuel Delivery Emission Code 5 Fuel Type Gasoline/Alcohol Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 9/16-18 IN Inlet Type ORB Maximum Pressure 130 Minimum Pressure 40 Mounting Bracket Included Yes Outlet Gender Female Outlet Port Diameter 9/16-18 IN Outlet Type ORB part type Fuel Pressure Regulator Port Quantity 3 Pressure Rating 40-130 PS Product Type Fuel Pressure Regulator Rebuildable Yes Style Return Style Sub Category Carburetion Vacuum Port Quantity 1 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
