Holley Sniper EFI | SKU:
19-369

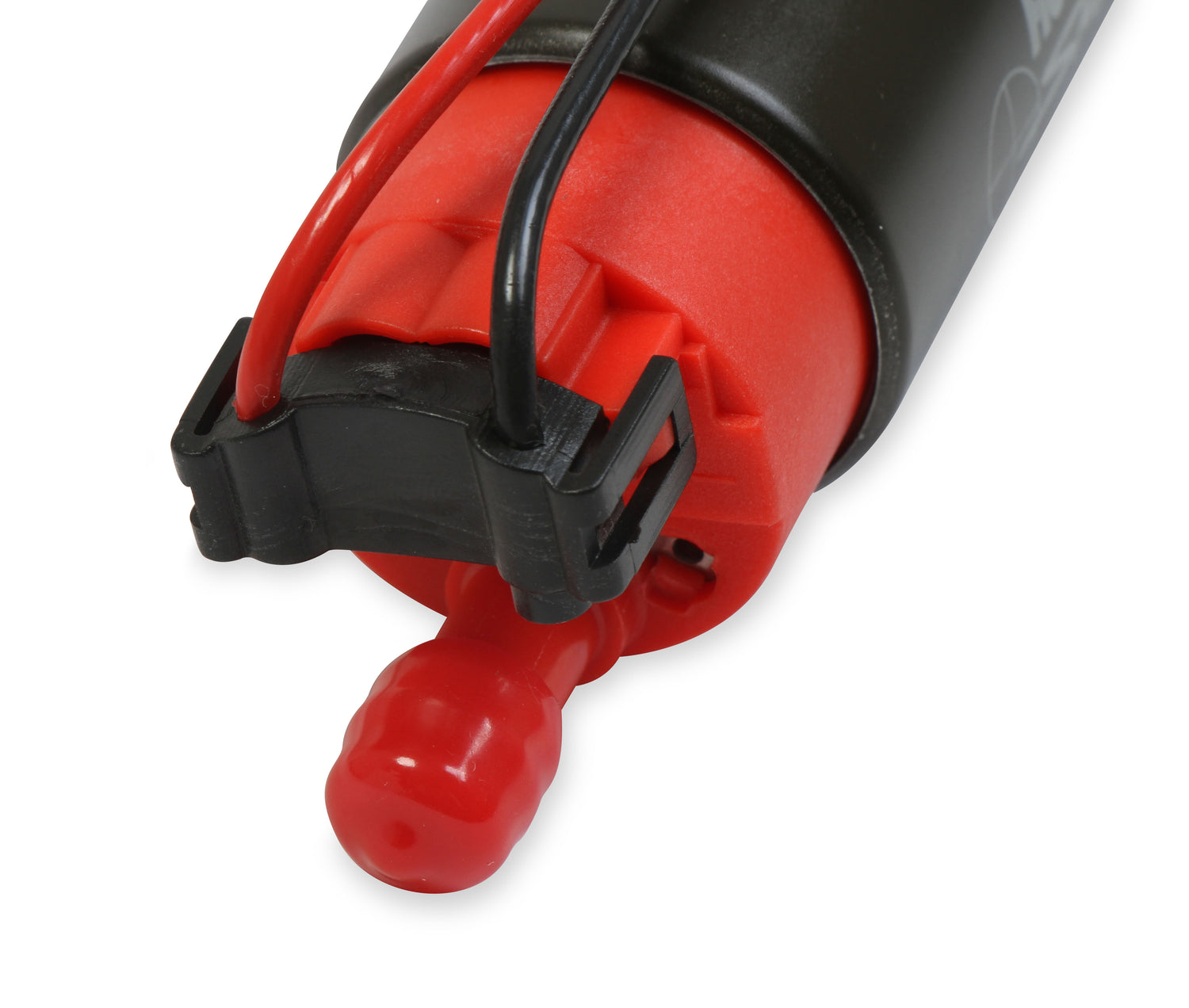

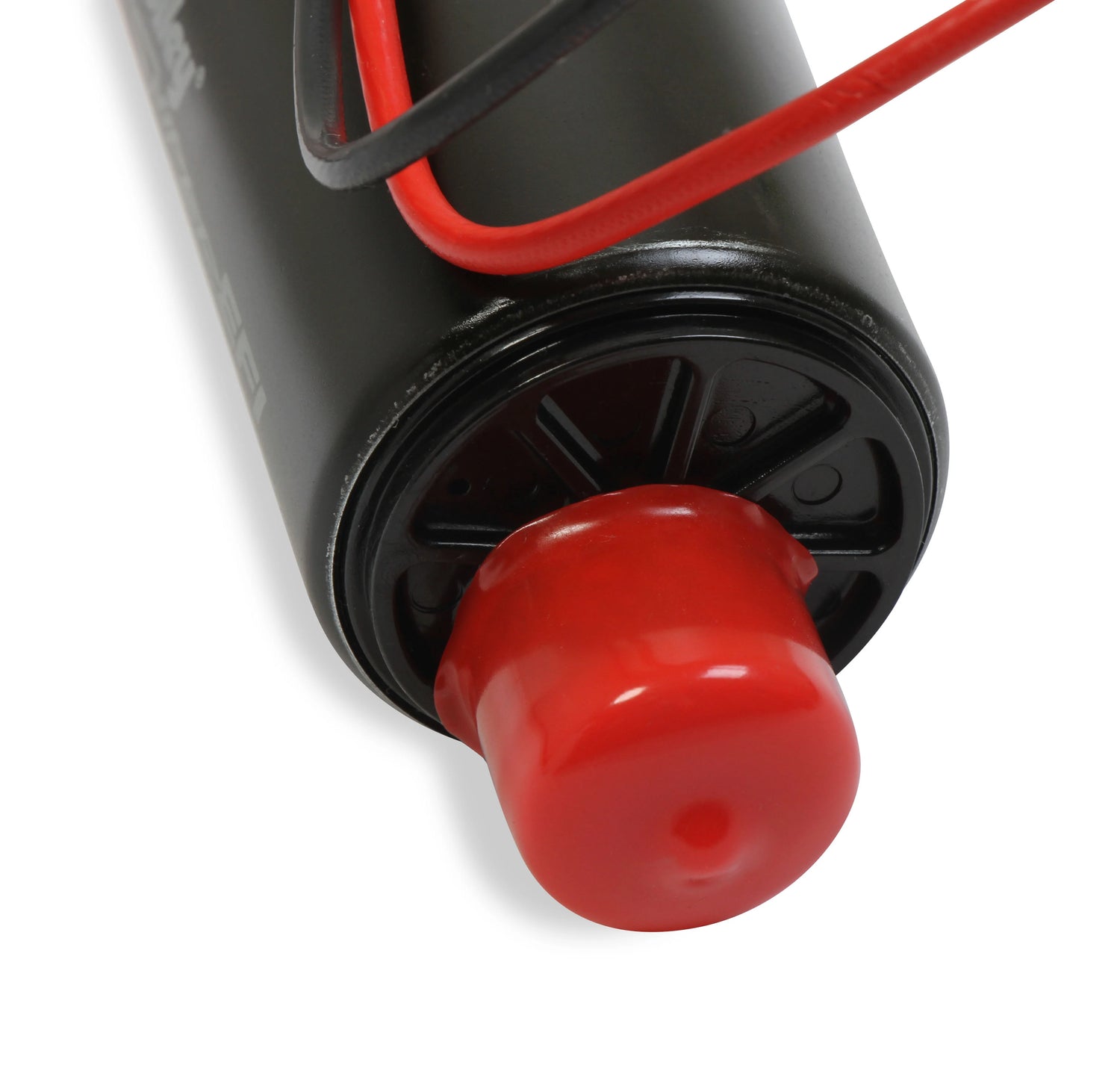

Holley Sniper EFI Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH - 19-369
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Regular price
$365.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley Sniper EFI Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH - 19-369
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Part Number: 19-369

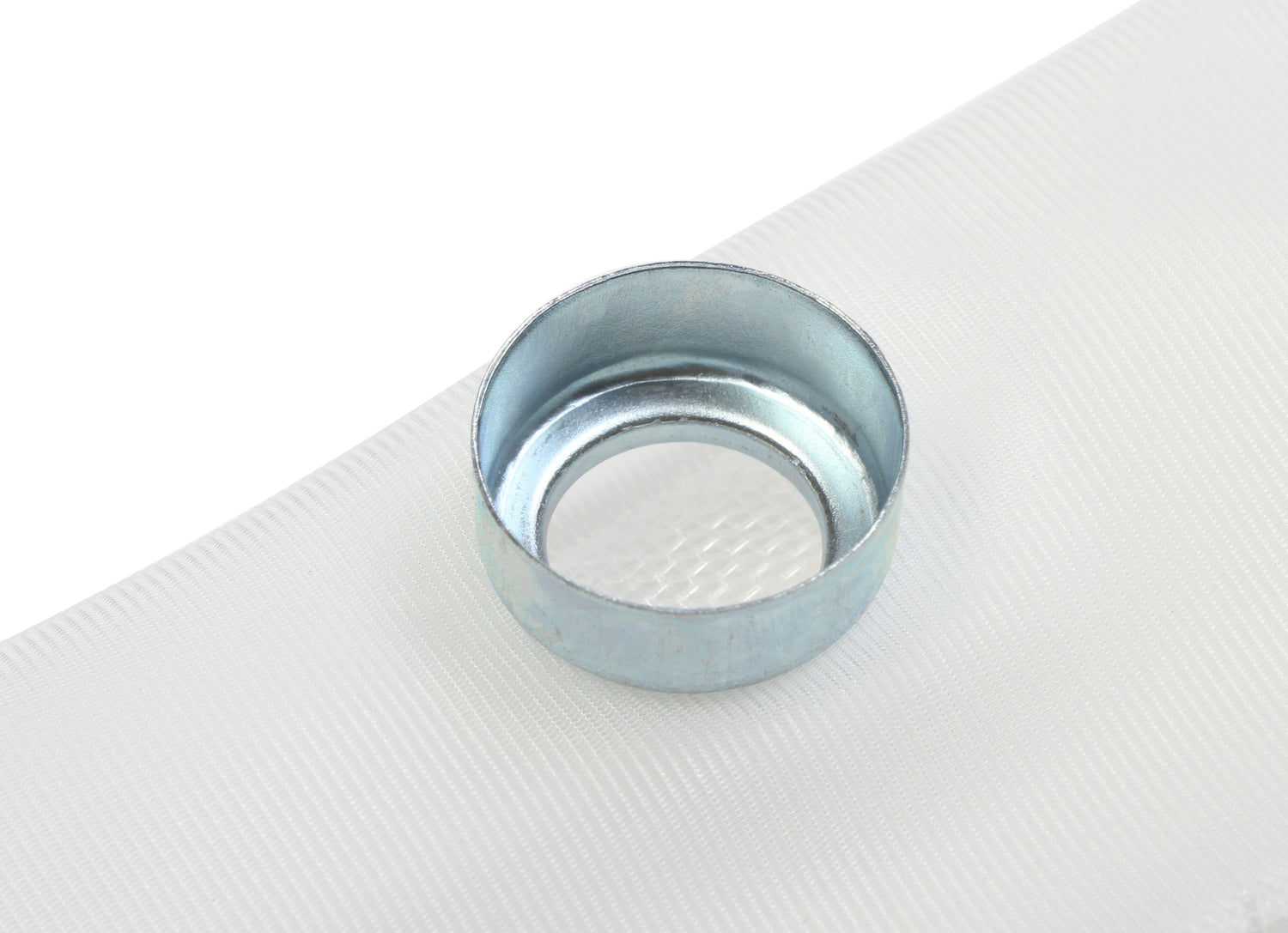

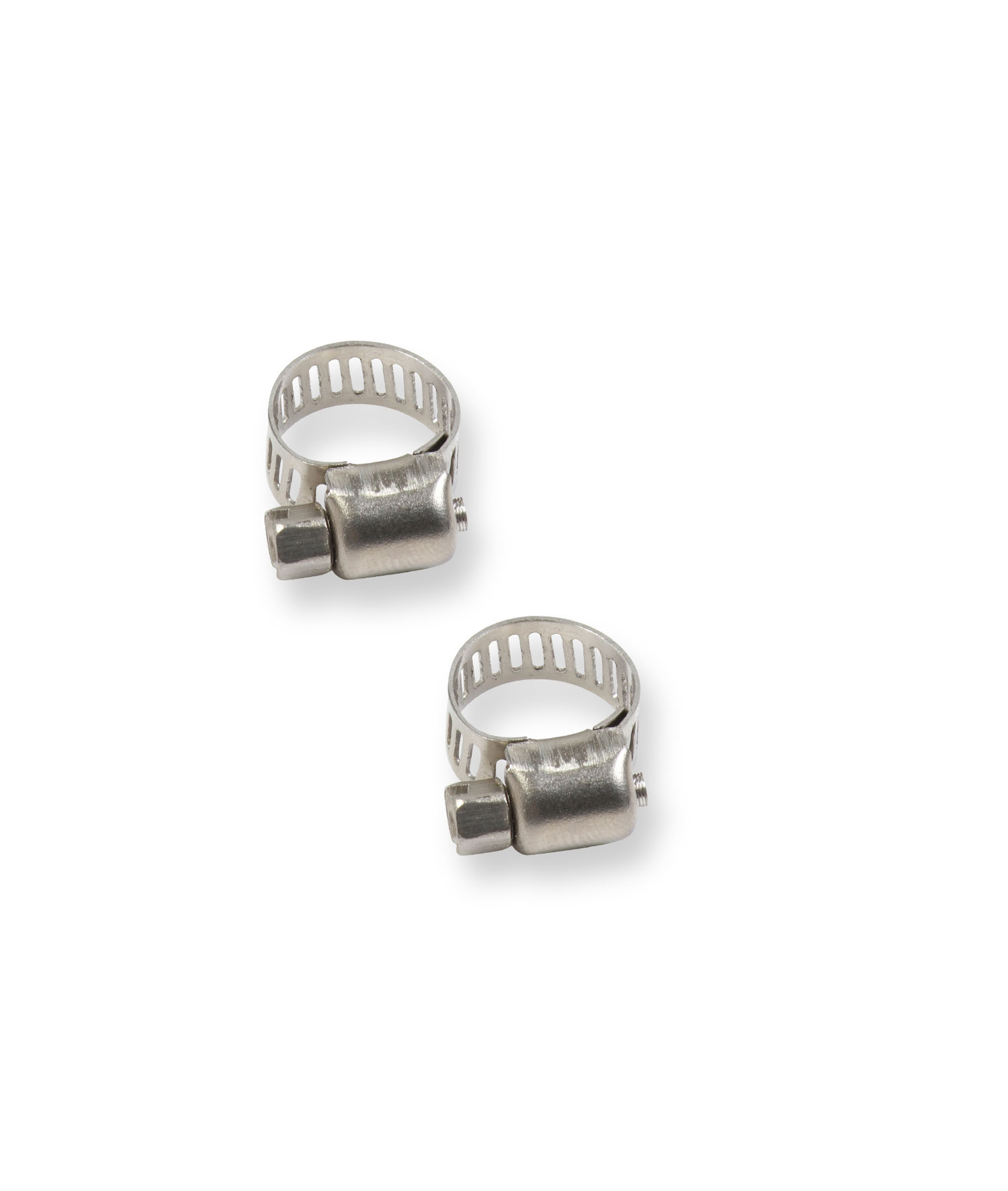

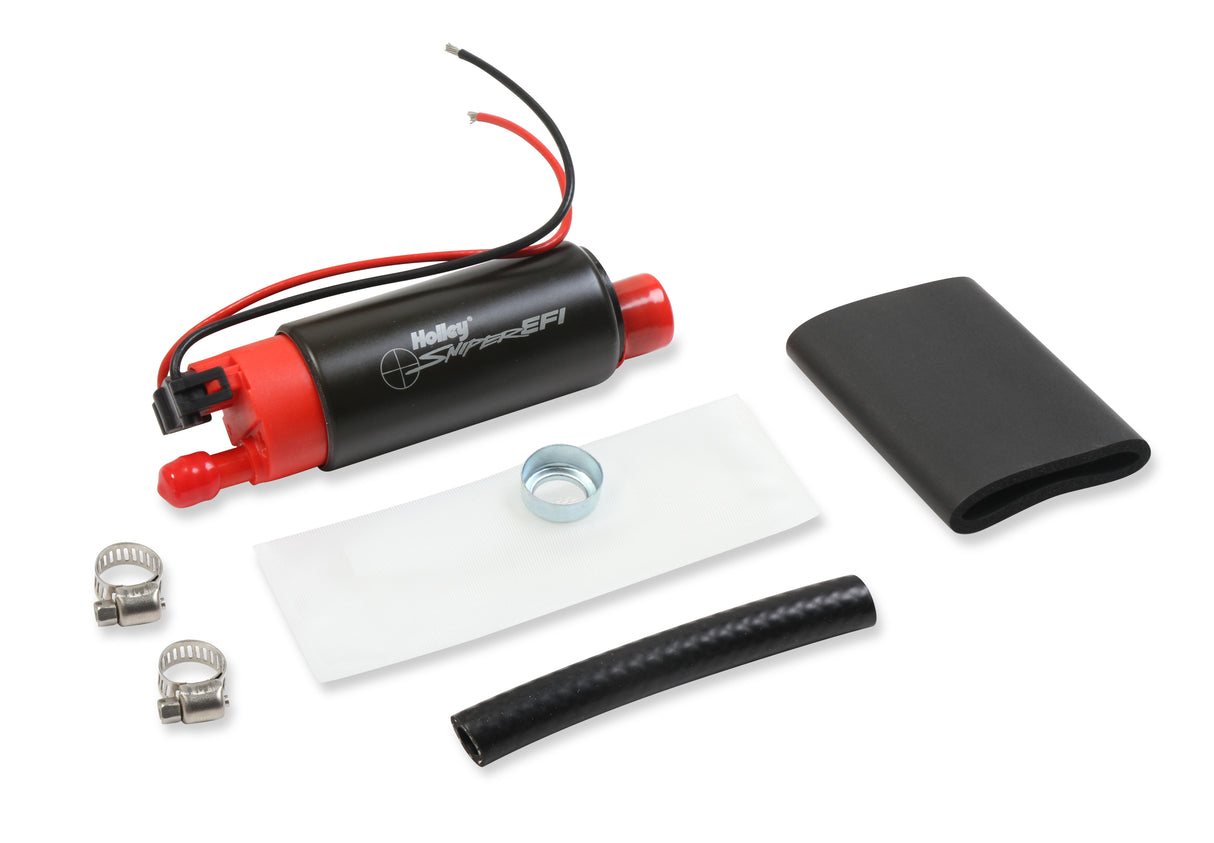

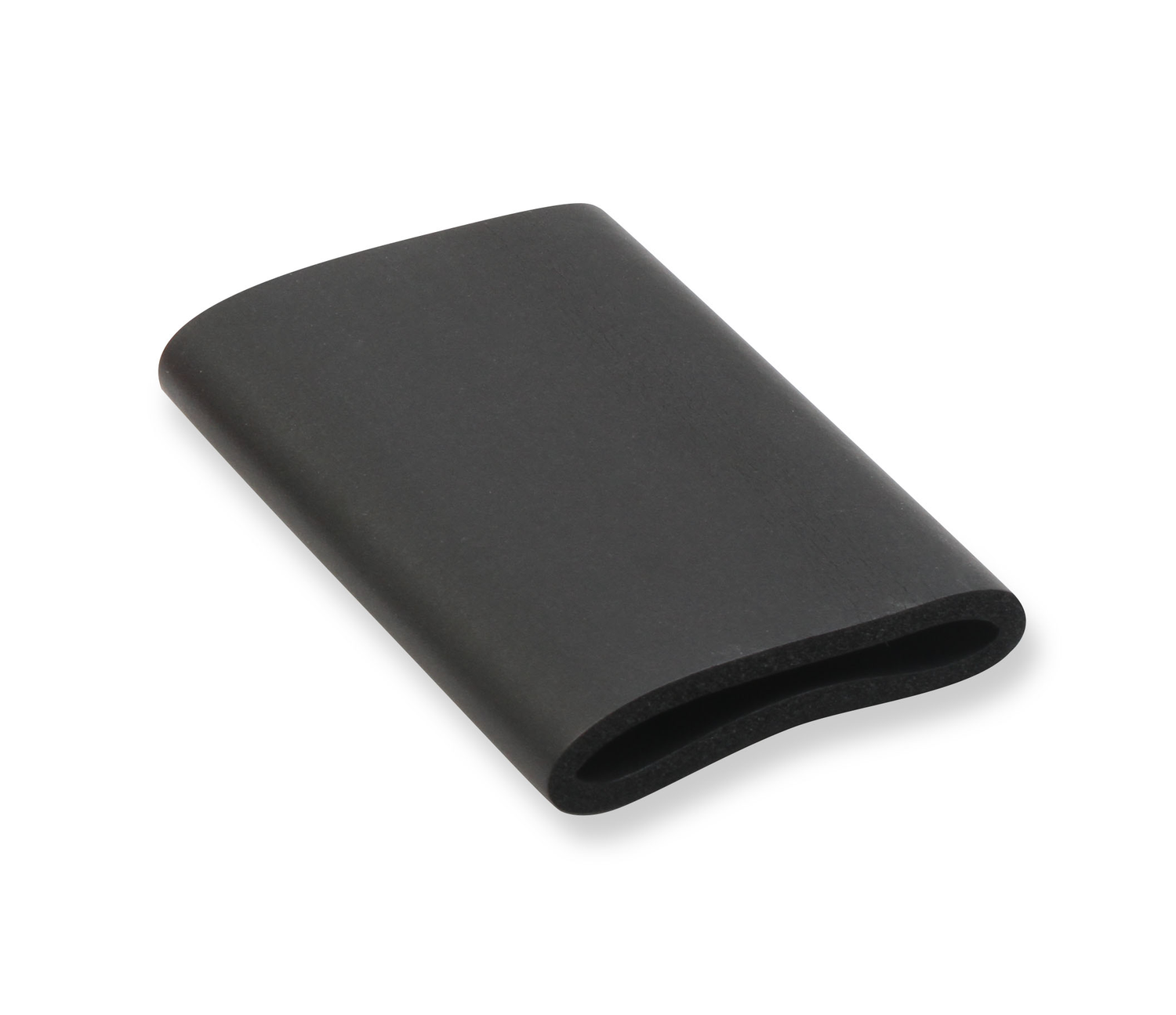

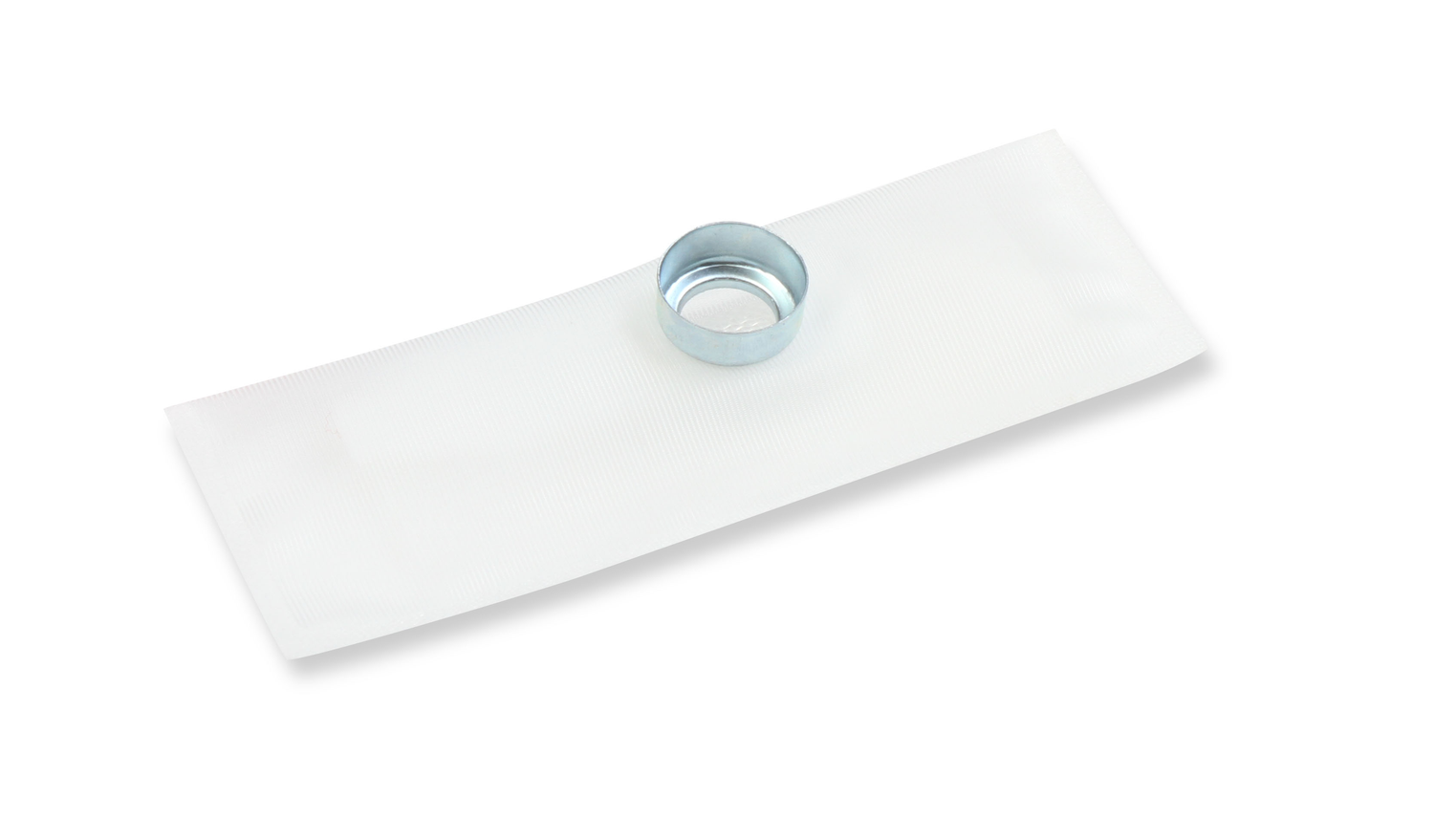

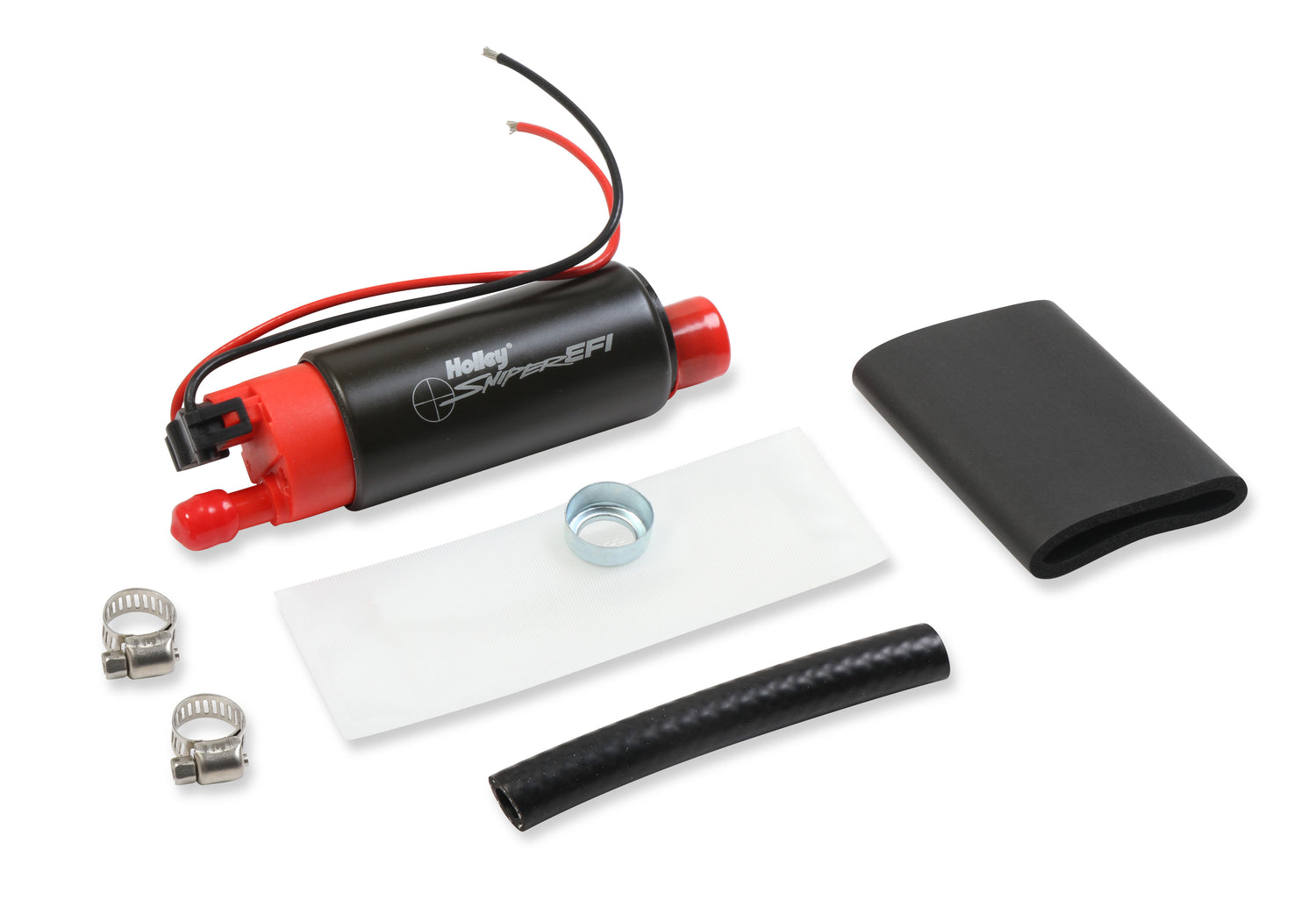

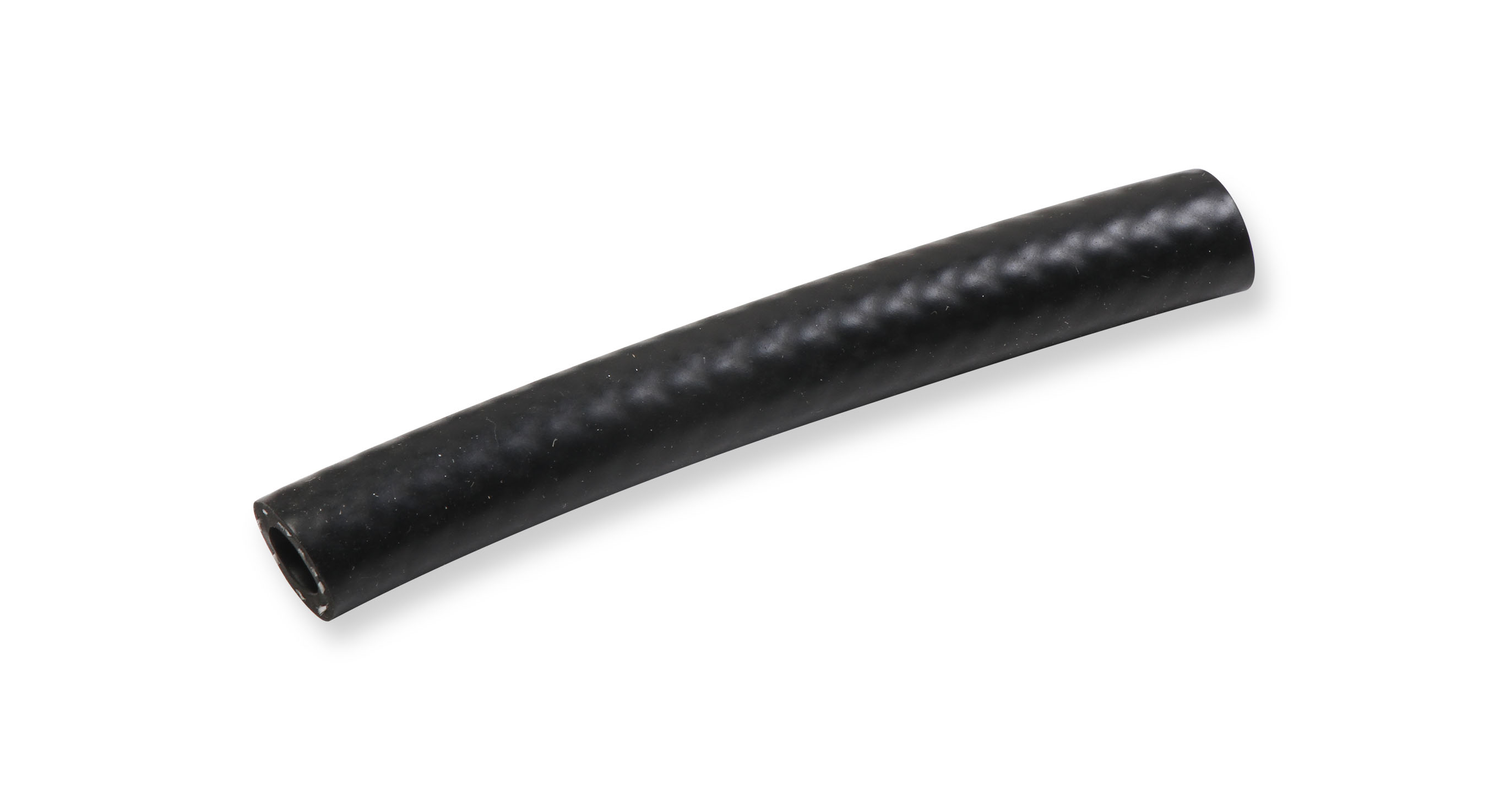

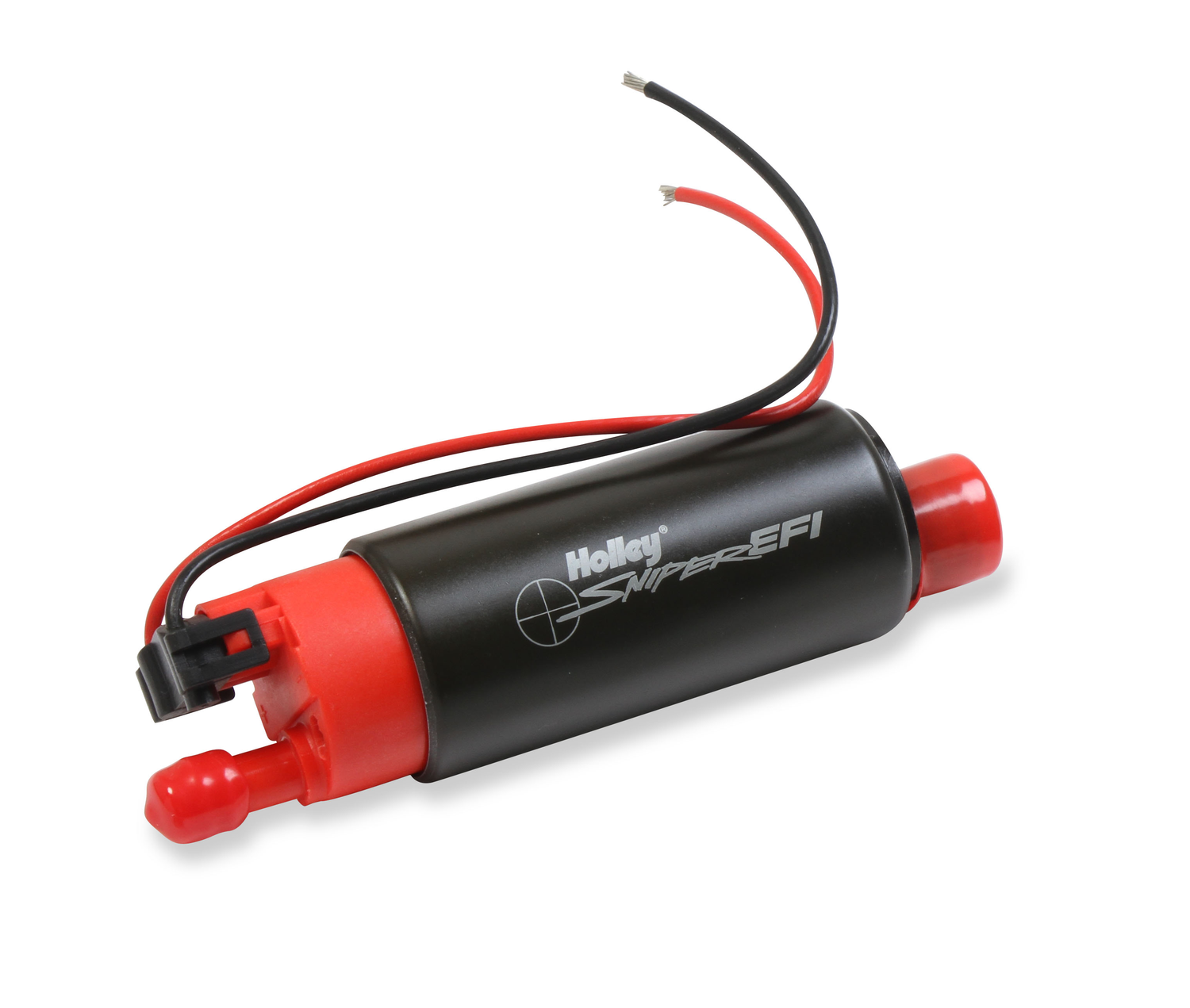

The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Applications:
General Motors
Grand National / Regal 1982-1987
Camaro 5.0L & 5.7L 1985-1992
Corvette 5.0L & 5.7L 1982-1996
GM Cars & Trucks 1985-1992
305 (5.0L) & 350 (5.7L) 87-97
S10, S15, Sonoma, Blazer, Envoy 82-95
Firebird 5.0L & 5.7L 1985-1992
Fiero 2.8L 1985-1986
Cyclone 1991-1992
Typhoon 1992-1993
Saturn SC,SL,SW 1997-2002
Features and Benefits
• 340 LPH E85 Compatible
• Designed for in-tank use only
• Compact enough to fit in existing hanger assemblies without modification
• Complete kit with all drop parts, accessories and installation instructions
• 19mm inlet port OD, offset on pump body
• Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
• Can be used with carbureted or EFI applications
• Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous
This fuel pump supplies more pressure than a factory GM TBI injection is capable of supporting. However, it will fit in the factory pump hanger for the applications listed. It can be used with factory TPI injection, aftermarket EFI conversions, and engine swap conversions such as the GM LS engine.
Pump OD: 1.535"
Pump Length: (including outlet barb): 5.180"
Inlet Port OD: 19mm (offset)
Part Number: 19-369
The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Applications:
General Motors
Grand National / Regal 1982-1987
Camaro 5.0L & 5.7L 1985-1992
Corvette 5.0L & 5.7L 1982-1996
GM Cars & Trucks 1985-1992
305 (5.0L) & 350 (5.7L) 87-97
S10, S15, Sonoma, Blazer, Envoy 82-95
Firebird 5.0L & 5.7L 1985-1992
Fiero 2.8L 1985-1986
Cyclone 1991-1992
Typhoon 1992-1993
Saturn SC,SL,SW 1997-2002
Features and Benefits
• 340 LPH E85 Compatible
• Designed for in-tank use only
• Compact enough to fit in existing hanger assemblies without modification
• Complete kit with all drop parts, accessories and installation instructions
• 19mm inlet port OD, offset on pump body
• Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
• Can be used with carbureted or EFI applications
• Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous
This fuel pump supplies more pressure than a factory GM TBI injection is capable of supporting. However, it will fit in the factory pump hanger for the applications listed. It can be used with factory TPI injection, aftermarket EFI conversions, and engine swap conversions such as the GM LS engine.
Pump OD: 1.535"
Pump Length: (including outlet barb): 5.180"
Inlet Port OD: 19mm (offset)
Specifications
Specifications
-
Specifications
Application Universal Average Flow Rating 340 LPH Brand Holley Sniper EFI Category Air and Fuel Delivery Color Black Emission Code 5 Finish Coated Free Flow GPH 90 Free Flow LPH 340 Fuel Delivery Type Carburetor, Fuel Injection Fuel Sending Unit Included No Fuel System Carbureted, EFI Fuel Type E85, Gasoline Gasket Or Seal Included No Grade Type Performance Inlet Outside Diameter 19 Internal Or External Internal Material Steel Mounting Bracket Included No Mounting Hardware Included Yes Negative Ground Yes Outlet Quantity One part type Electric Fuel Pump Product Type Fuel Pump Pump Body Color Black Regulator Included No Seal And Lock Ring Included No Strainer Included Yes Sub Category Fuel Pumps and Related Components Terminal Quantity 2 Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wiring Harness Included Yes
