Holley Sniper EFI Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH - 19-341

Sniper EFI 340 LPH In-Tank Fuel Pump Retrofit Kit
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)

Part Number: 19-341

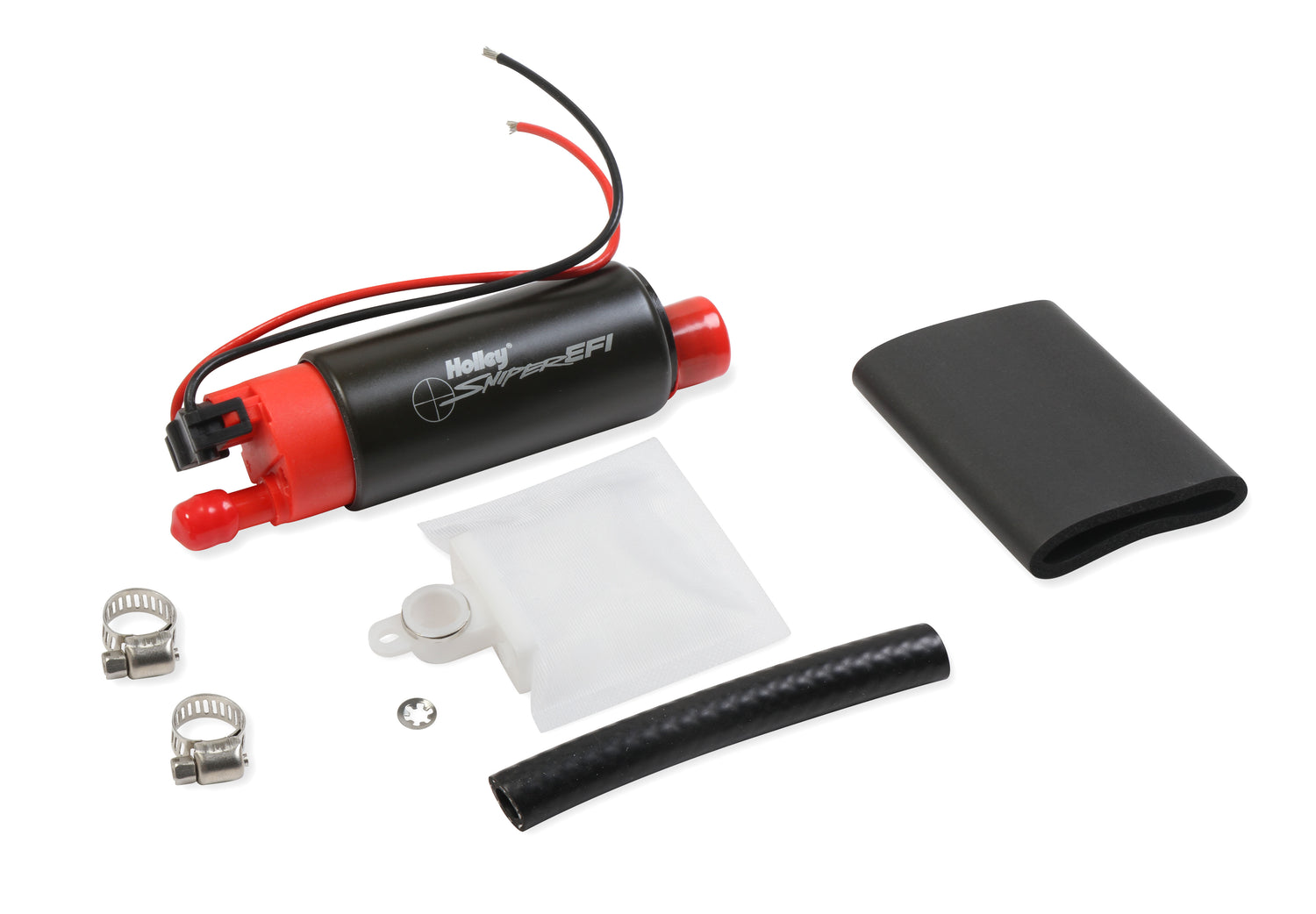

The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Applications:
Acura
NSX 1991-2000
Chrysler/Dodge/Plymouth
Stealth T/T 1991-1997
Eagle Talon1990-1994 AWD
Laser 1990-1994 AWD Turbo
Ford
Probe GT 1988-1992
Honda
Accord 1990-1993
CRX 1989-1991
Prelude 1985-1987
Prelude 1992-1996
Mazda
MX6 1988-1992
Protégé 90-91
RX7 1986-1988
RX7 1989-1992
RX7 1993-1995
323 1986-1991
Mitsubishi
3000GT TT 91-97
Eclipse 90-94 AWD
Nissan
240SX 1989-1994
240SX 1995-1998
NX1600 91-94
NX2000 91-94
Sentra & SE 1991-1994
Maxima 84-94
Maxima 1998
Altima 1993-1995
Subaru
Impreza WRX 98-99
Toyota
MR2 1991-1996
Supra 1984-1992
Supra Turbo 84-92
Supra Turbo 94-98
Celica 1985-1989
Celica 90-93 Turbo AWD
Celica 90-93 ST & GT
Corolla 1985-1992

Features and Benefits

• 340 LPH @ 60 PSI at 13.5 Volts / 16.9 amp Draw
• E85 Compatible
• Designed for in-tank use only
• Compact enough to fit in existing hanger assemblies without modification
• Complete kit with all drop parts, accessories and installation instructions

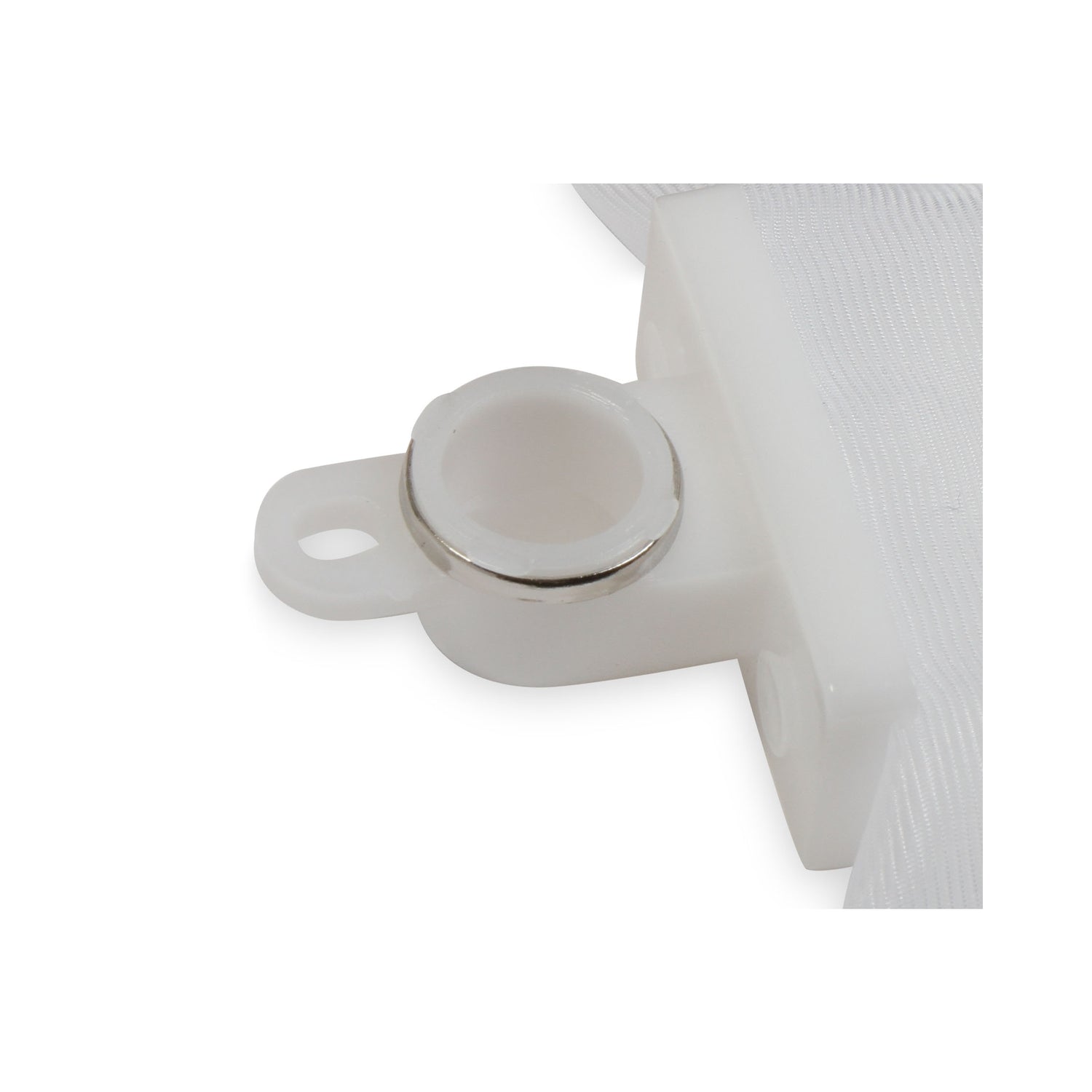

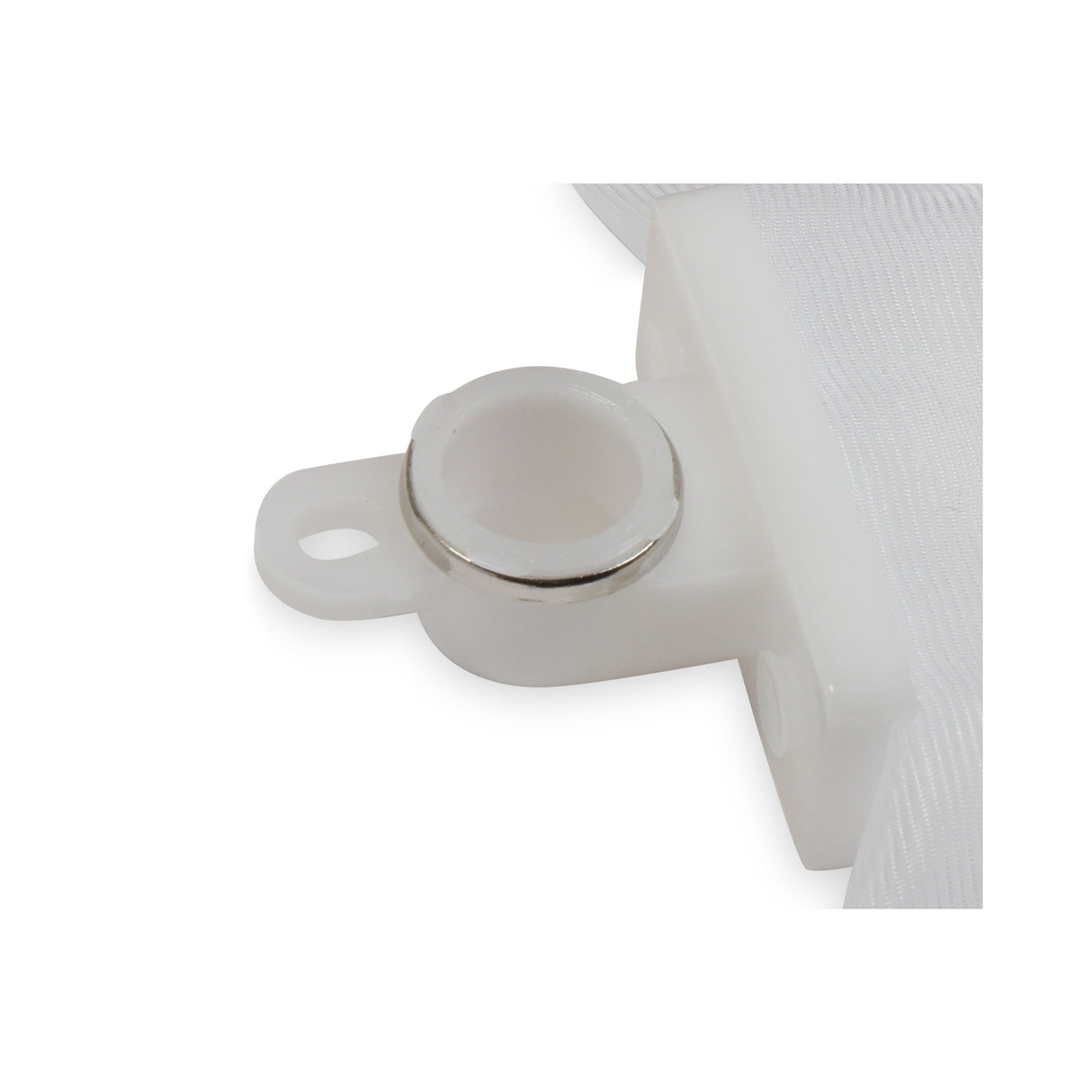

• Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
• 11mm pump inlet filter is upgradeable with any of Holley's patent-pending HydraMat!
• Can be used with carbureted or EFI applications (carbureted applications will require a regulator)
• Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous

Pump Outer Diameter: 1.535"
Pump Length (Including barbs): 5.180"
Inlet Barb OD: 11mm
Carbureted applications will require use of fuel pressure regulator (sold separately)
