Holley Sniper EFI | SKU:
19-168

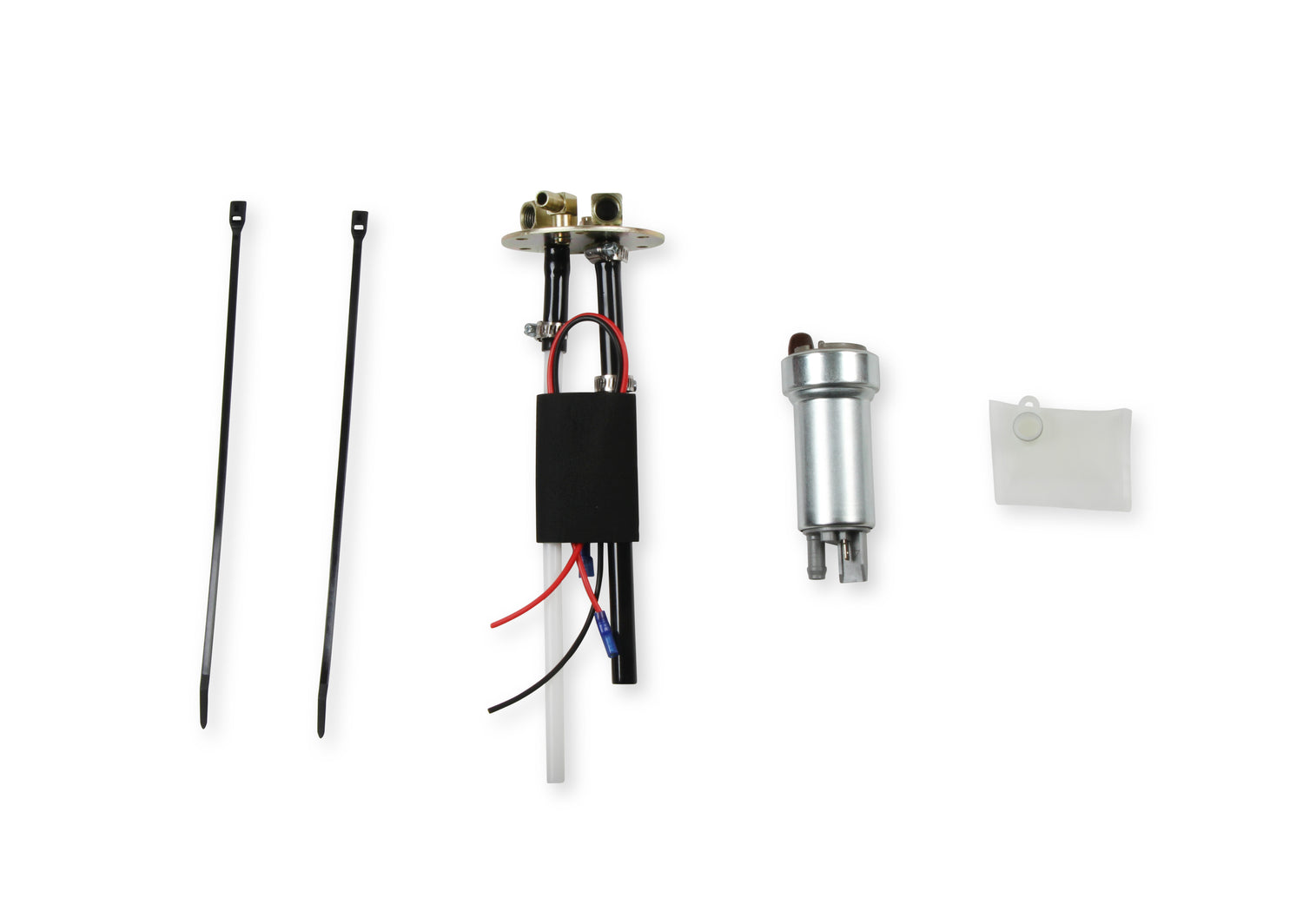

Holley 19-168 Fuel Pump Assembly - 400 LPH
Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY
Regular price
$933.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 19-168 Fuel Pump Assembly - 400 LPH is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description

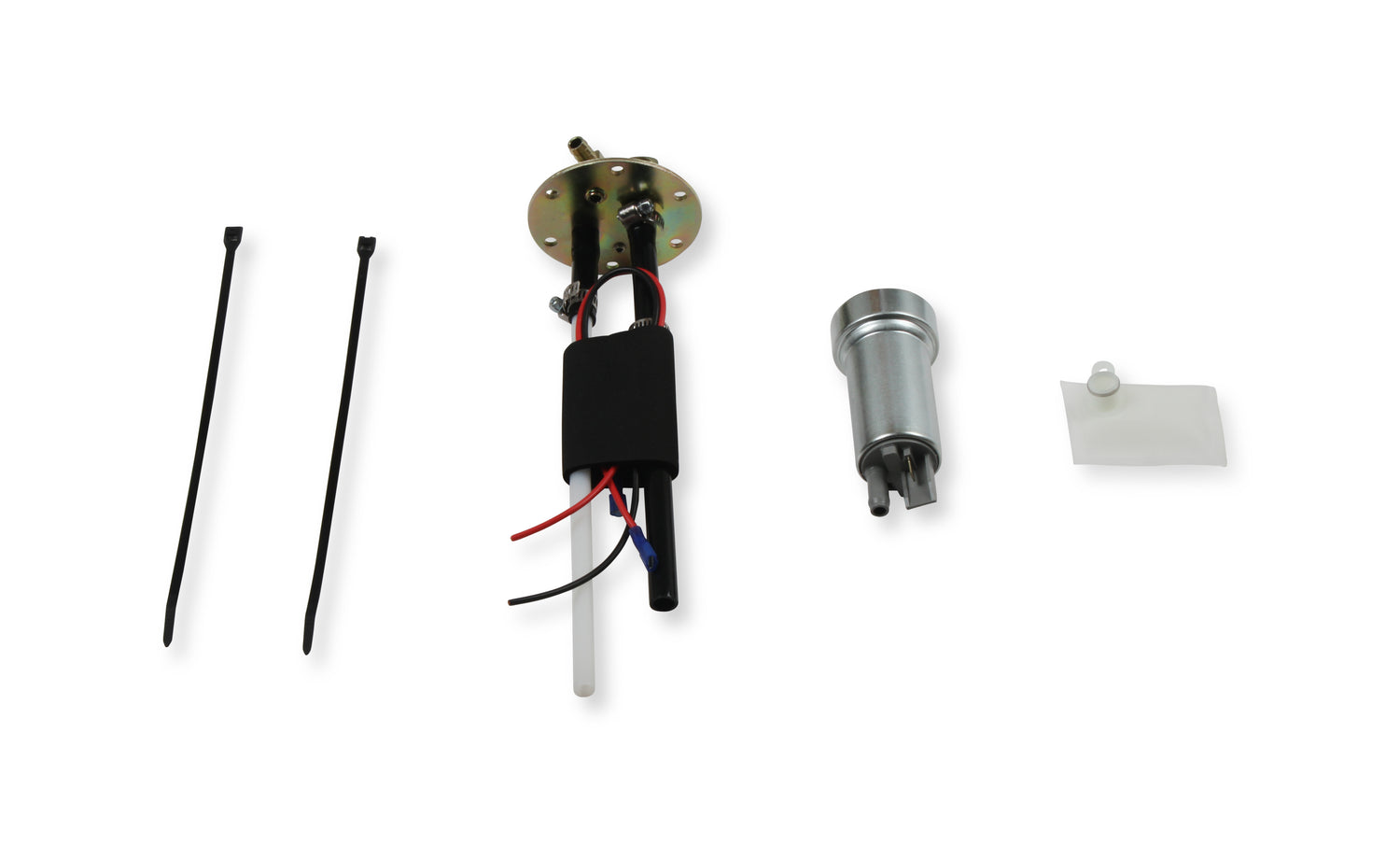

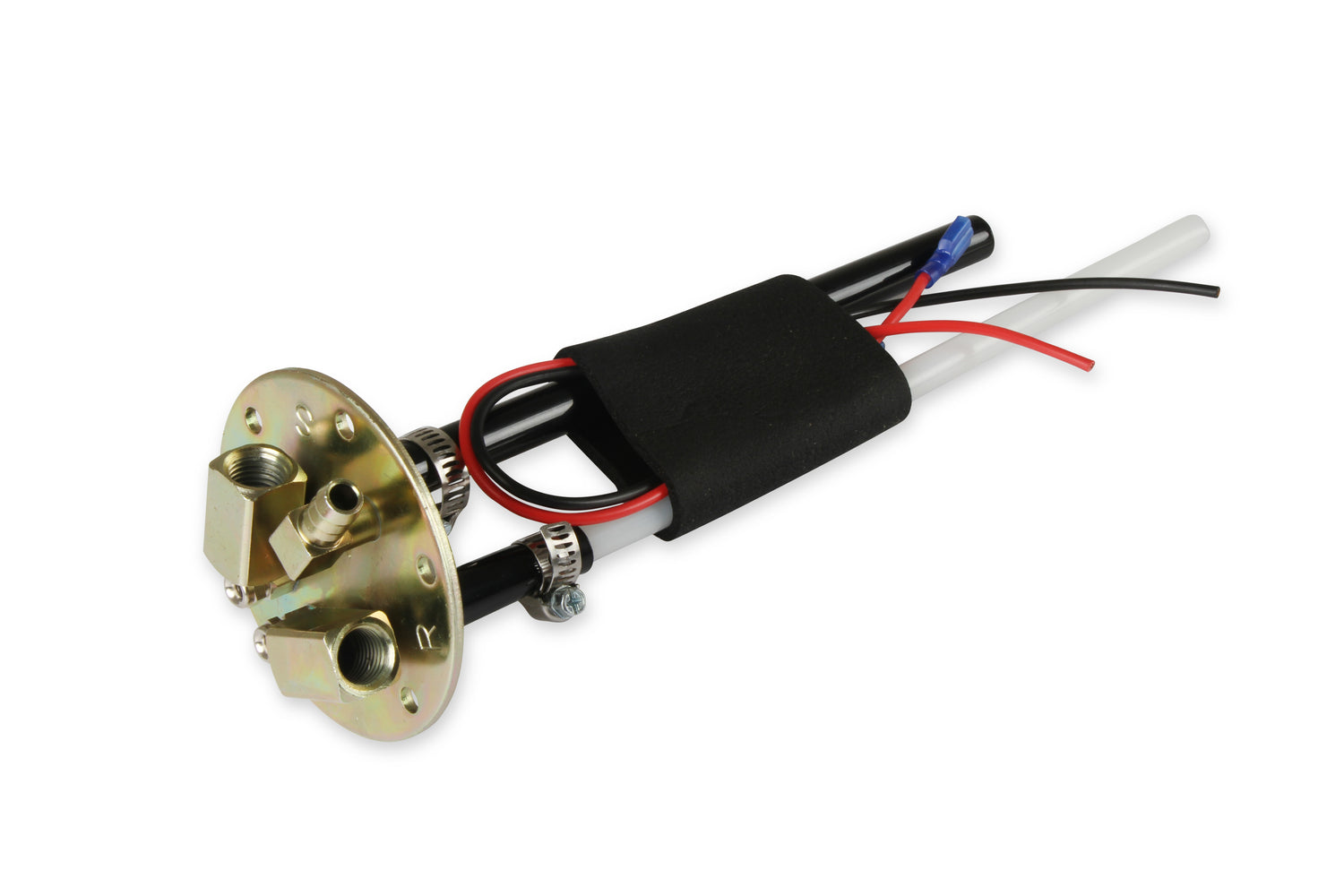

Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY
Part Number: 19-168

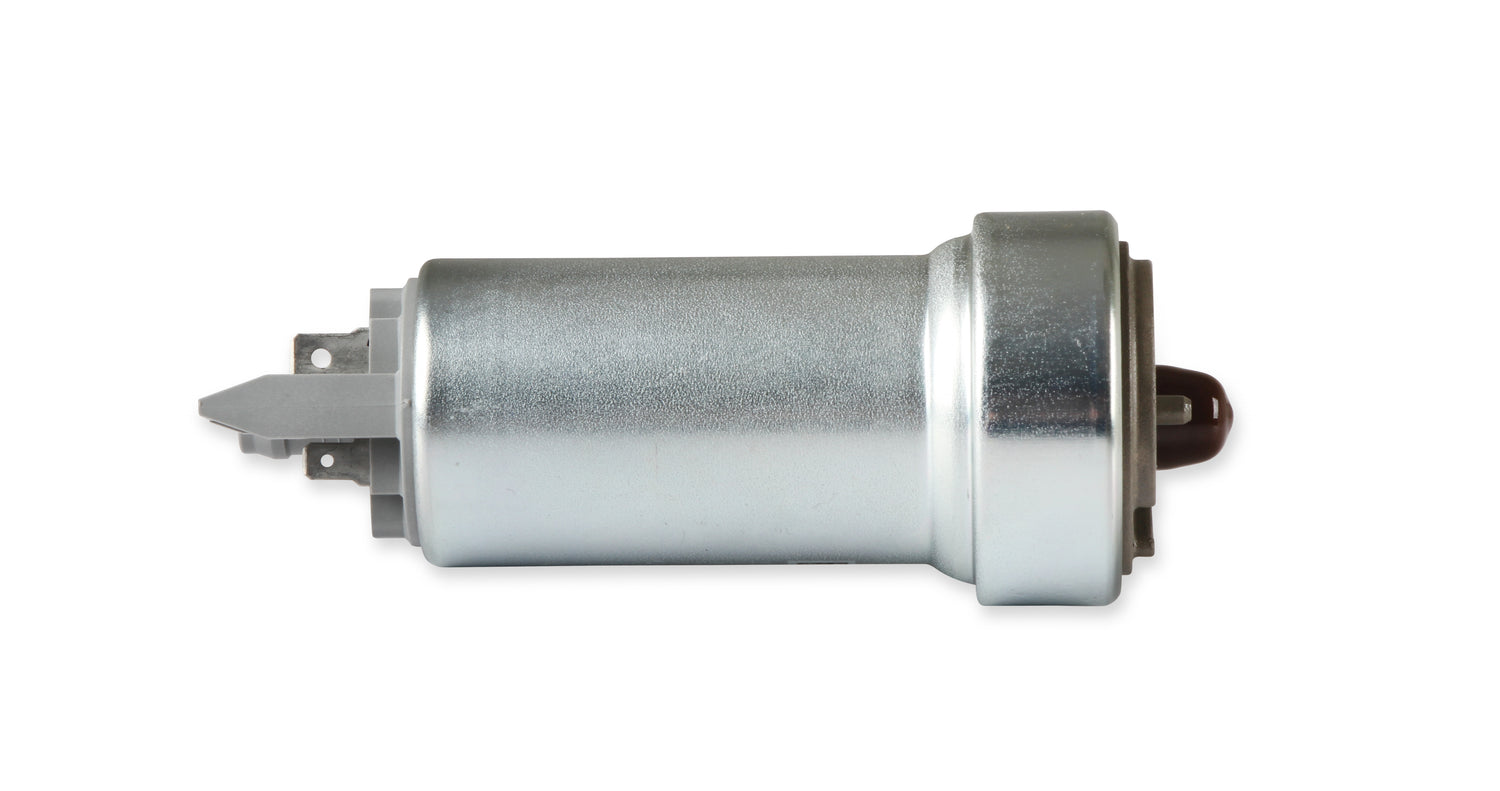

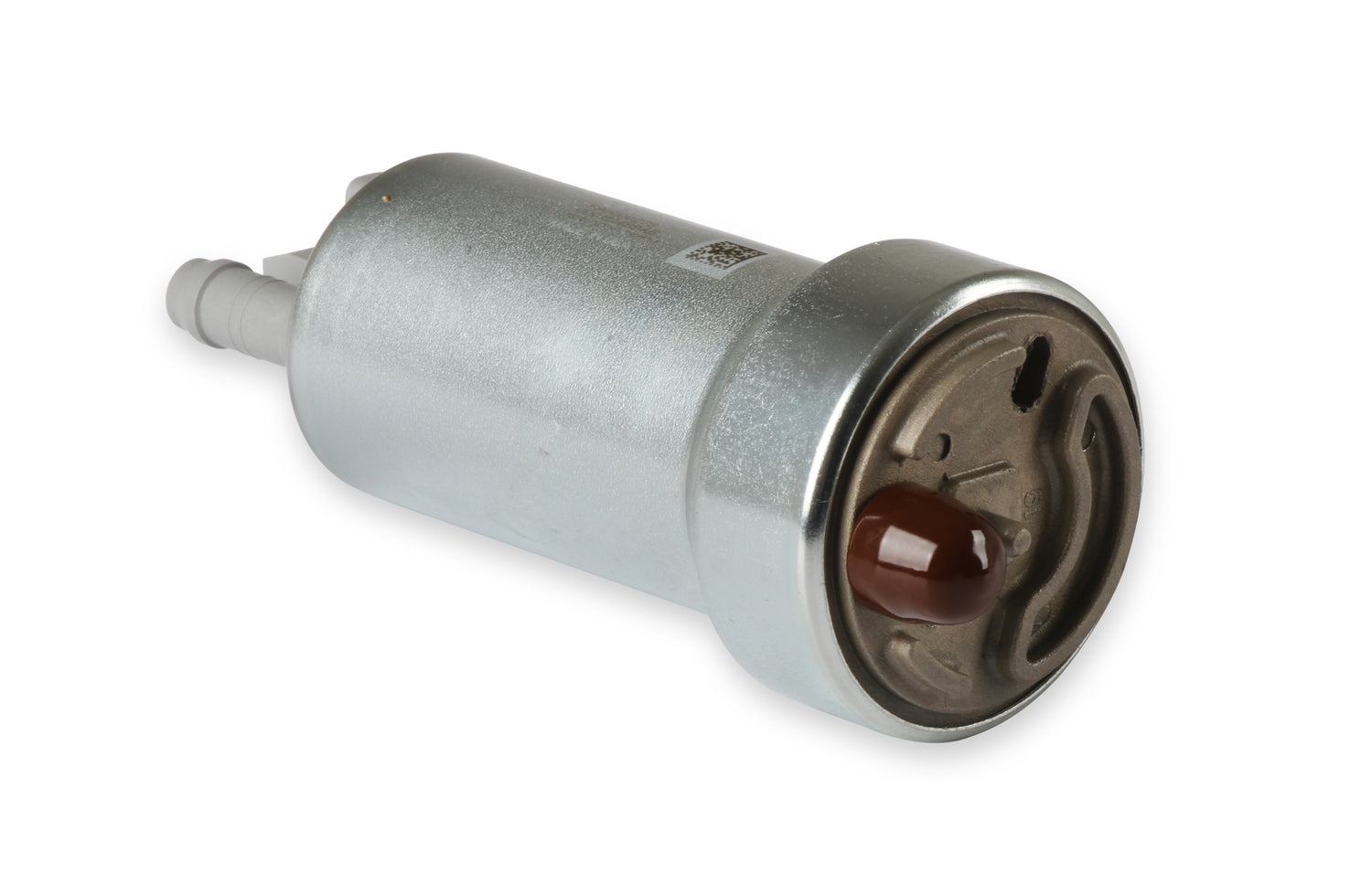

400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
Features and Benefits

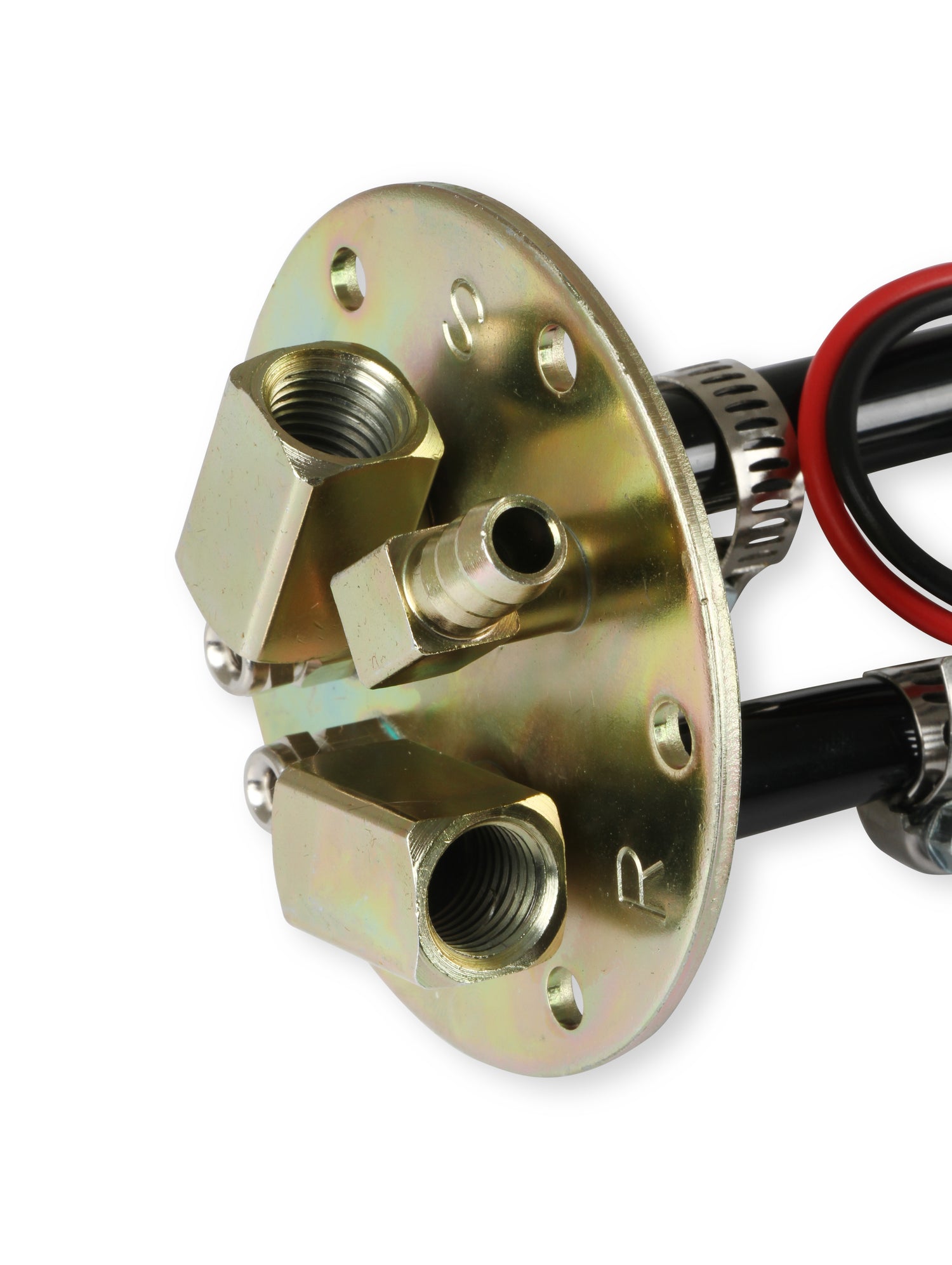

• 1/4" NPT Supply and Return Line
• In-Tank Wire Harness
• Made in USA
• Heavy 10 gauge no-warp mounting plate
• Barbed Vent Fittings
• Up to 100 PSI
• New Mounting Screws and gasket available separately
New Mounting Screws and gasket available separately. _x000D_ *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted. _x000D_ *19-169 kit for all other EFI fuel tanks_x000D_ Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
Part Number: 19-168
400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
Features and Benefits
• 1/4" NPT Supply and Return Line
• In-Tank Wire Harness
• Made in USA
• Heavy 10 gauge no-warp mounting plate
• Barbed Vent Fittings
• Up to 100 PSI
• New Mounting Screws and gasket available separately
New Mounting Screws and gasket available separately. _x000D_ *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted. _x000D_ *19-169 kit for all other EFI fuel tanks_x000D_ Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
Specifications
Specifications
-
Specifications
Brand Holley Sniper EFI Category Air and Fuel Delivery Color Gold Connector Quantity N/A Emission Code 5 Finish Gold Iridited Fuel Sending Unit Included No Fuel Tank Pressure Sensor Included No Fuel Type Gasoline Gasket Or Seal Included No Material Steel part type Fuel Pump Module Assembly Product Type Fuel Pump Regulator Included No Strainer Included Yes Sub Category Fuel Pumps and Related Components Terminal Quantity N/A Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
