Holley 19-165 GPA Series Fuel Pump Assembly - 255 LPH

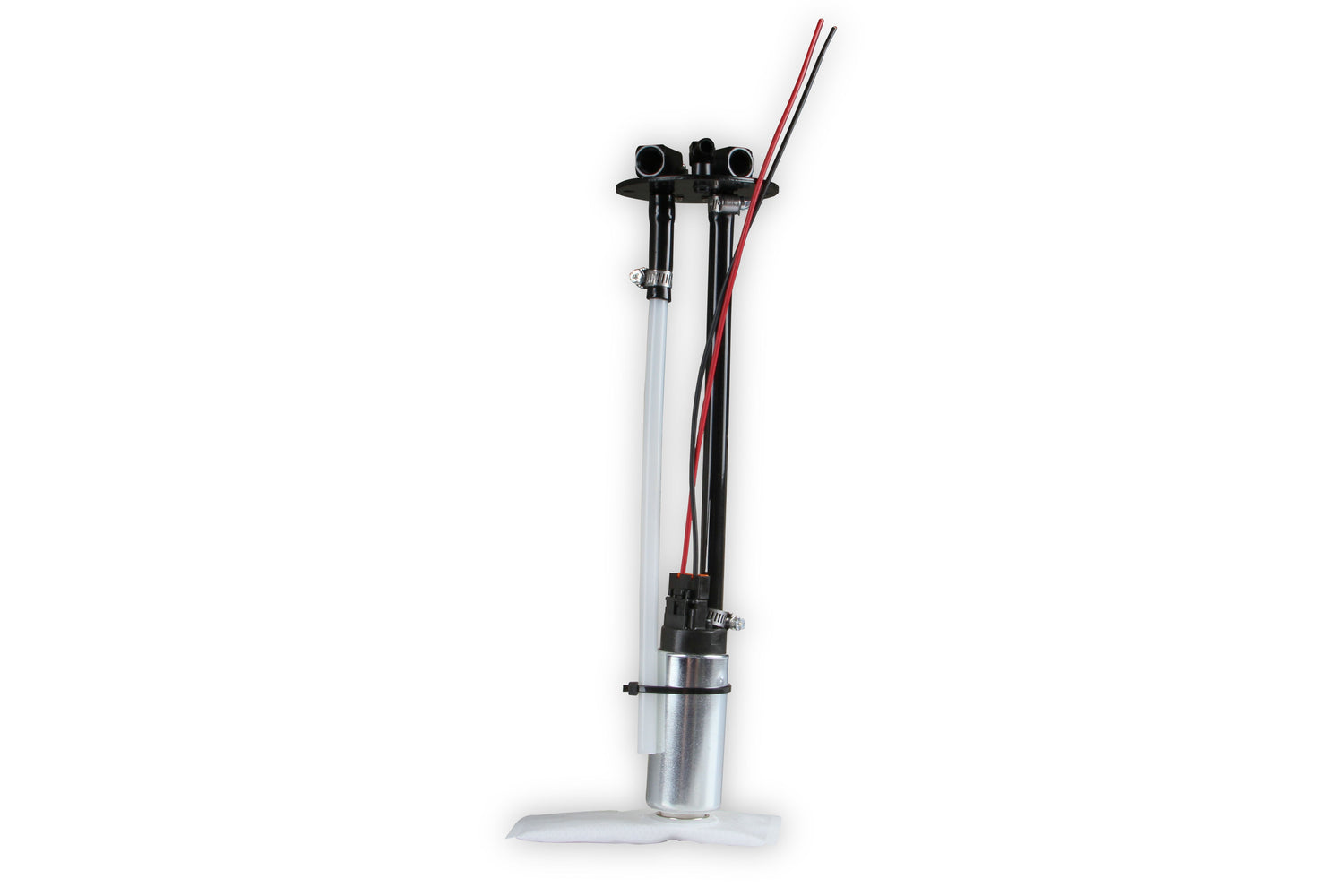

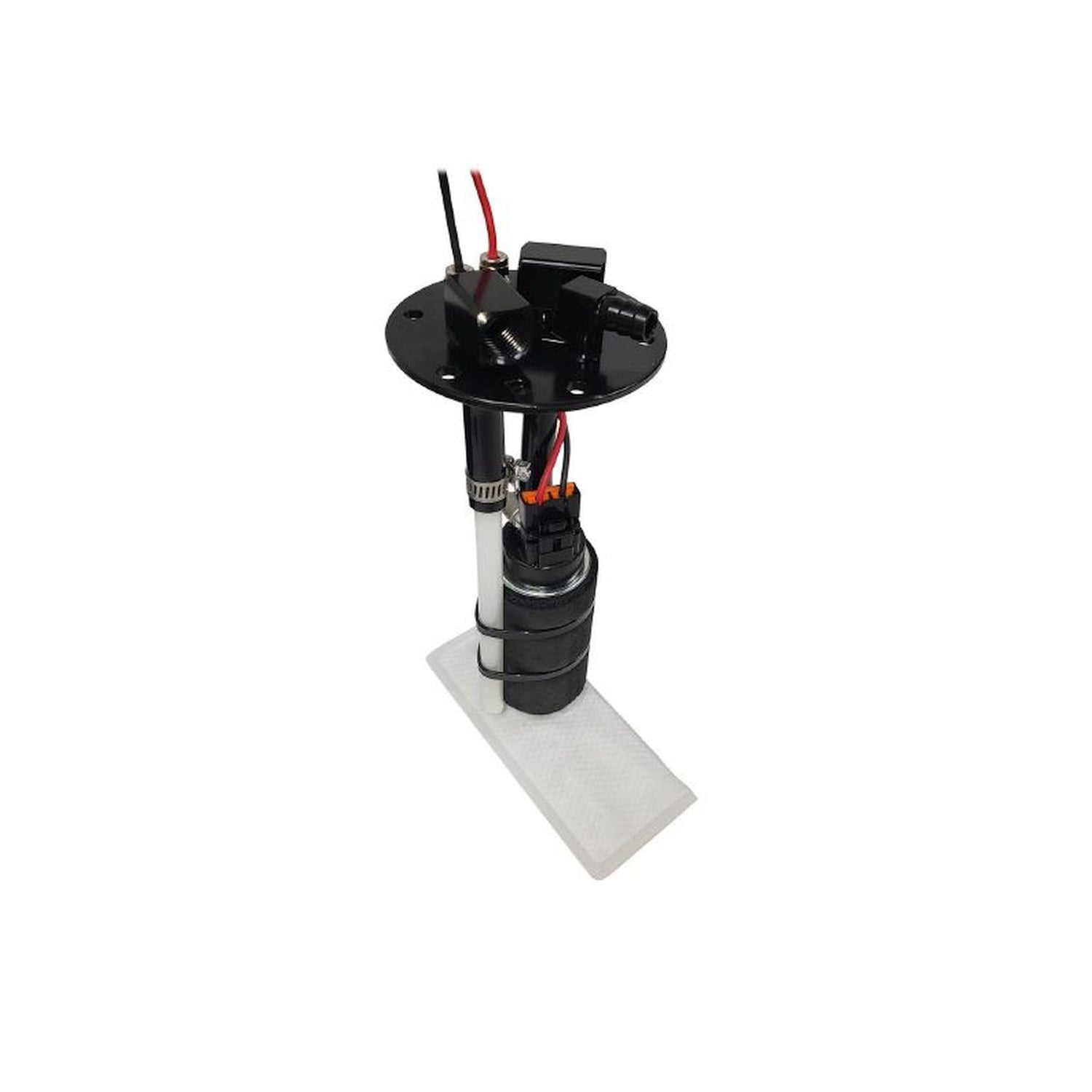

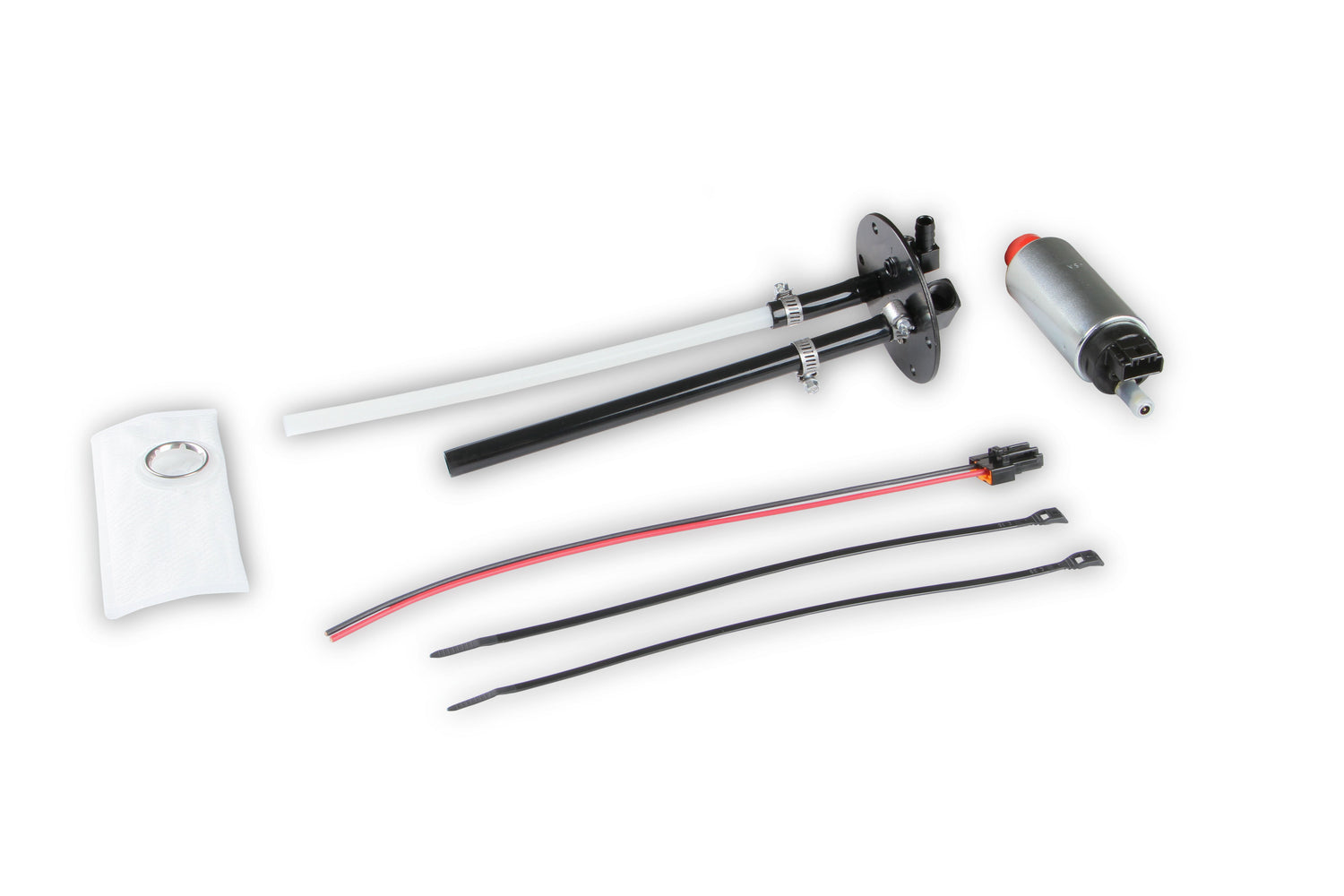

Replacement 255 LPH FUEL PUMP AND HANGER ASSEMBLY

Part Number: 19-165

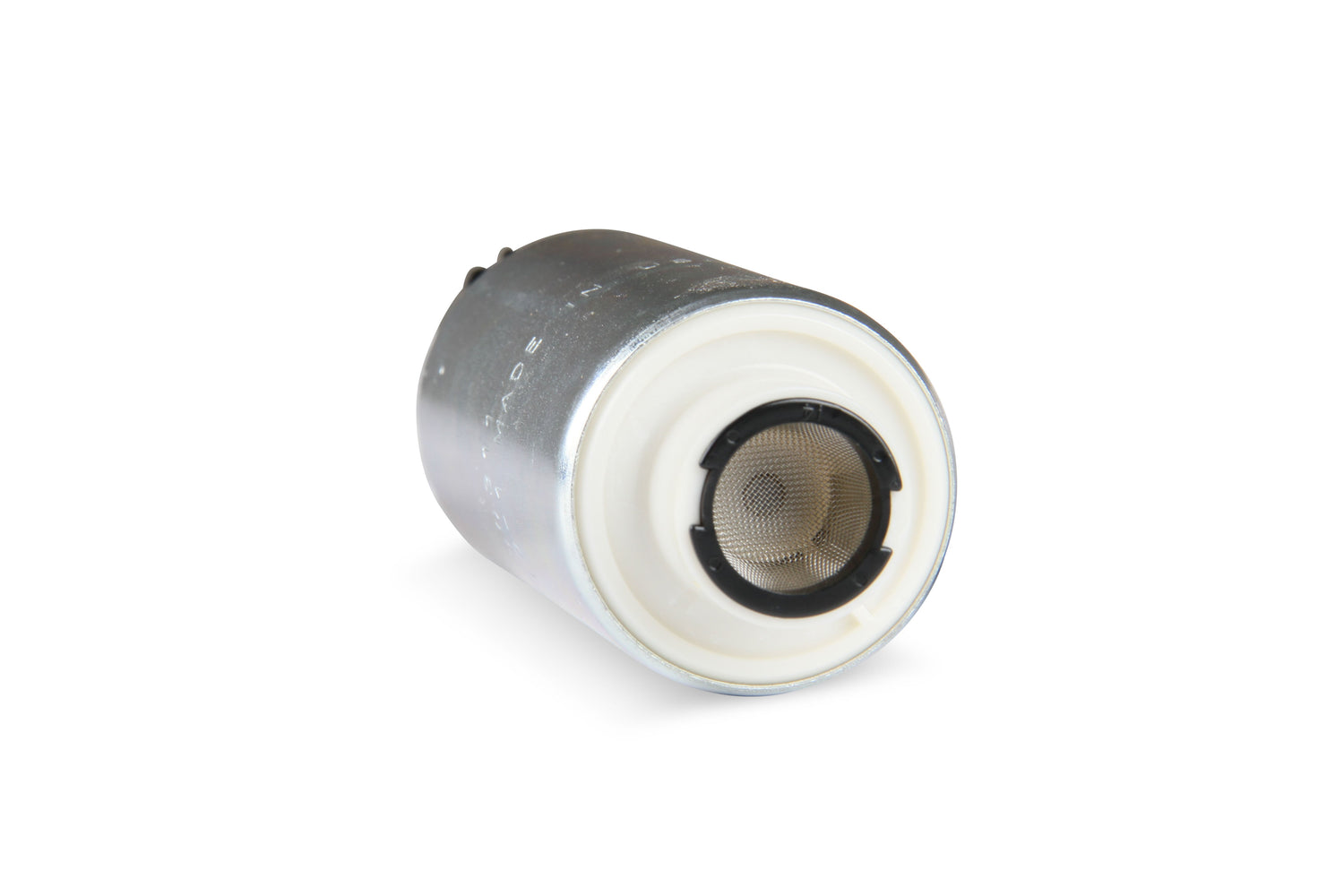

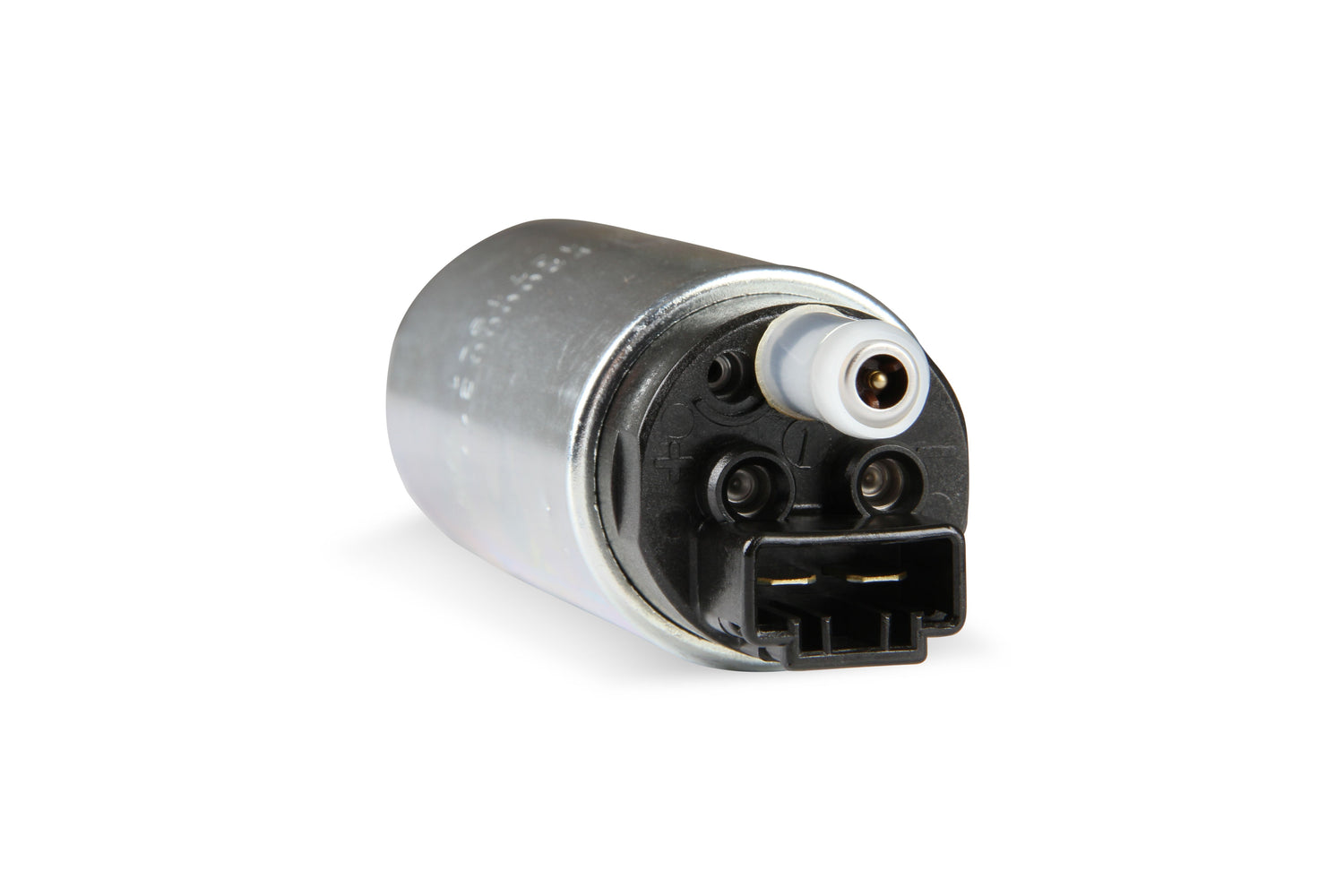

255 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line.

Features and Benefits

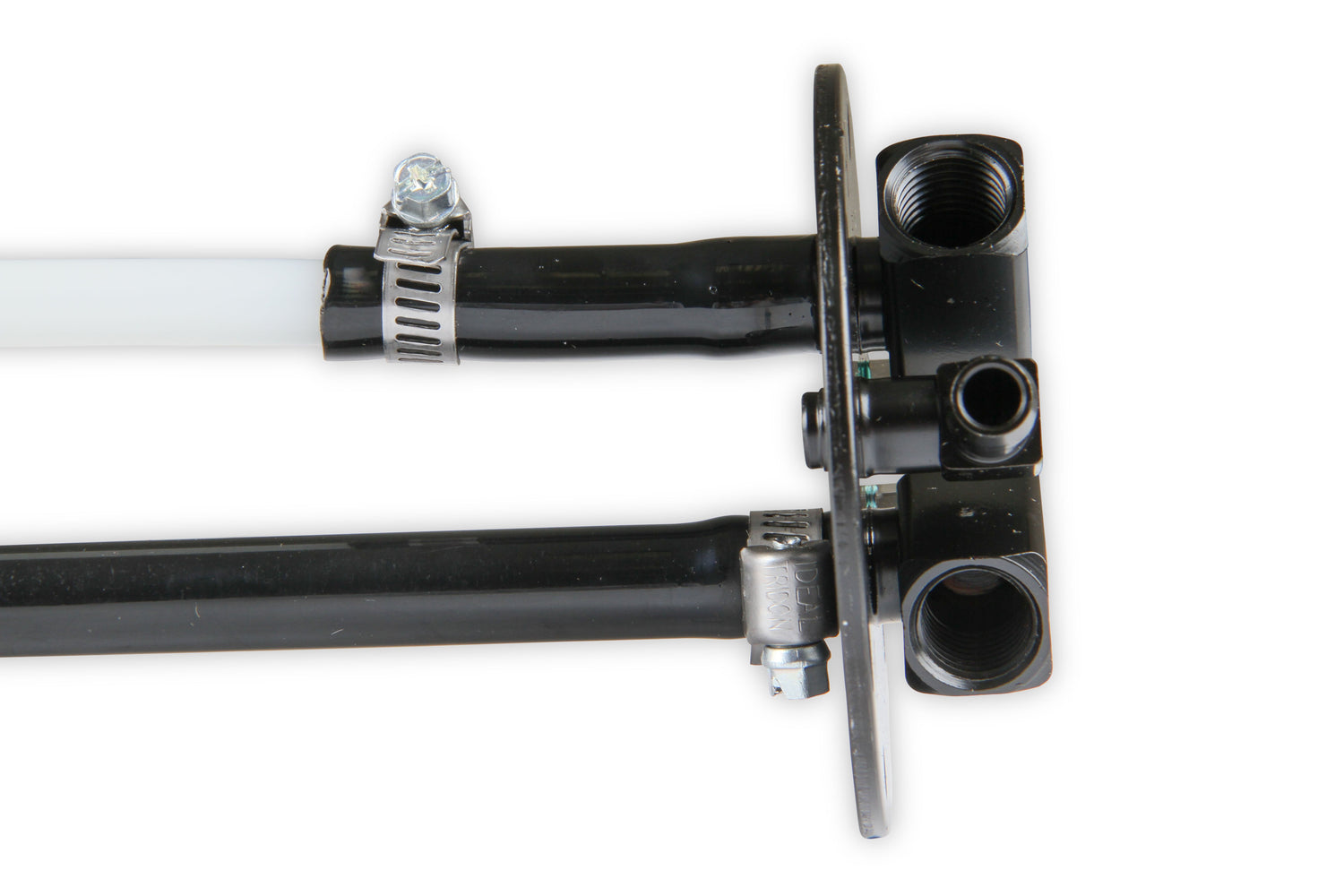

• 1/4" NPT Supply and Return Line
• In-Tank Wire Harness
• Made in USA

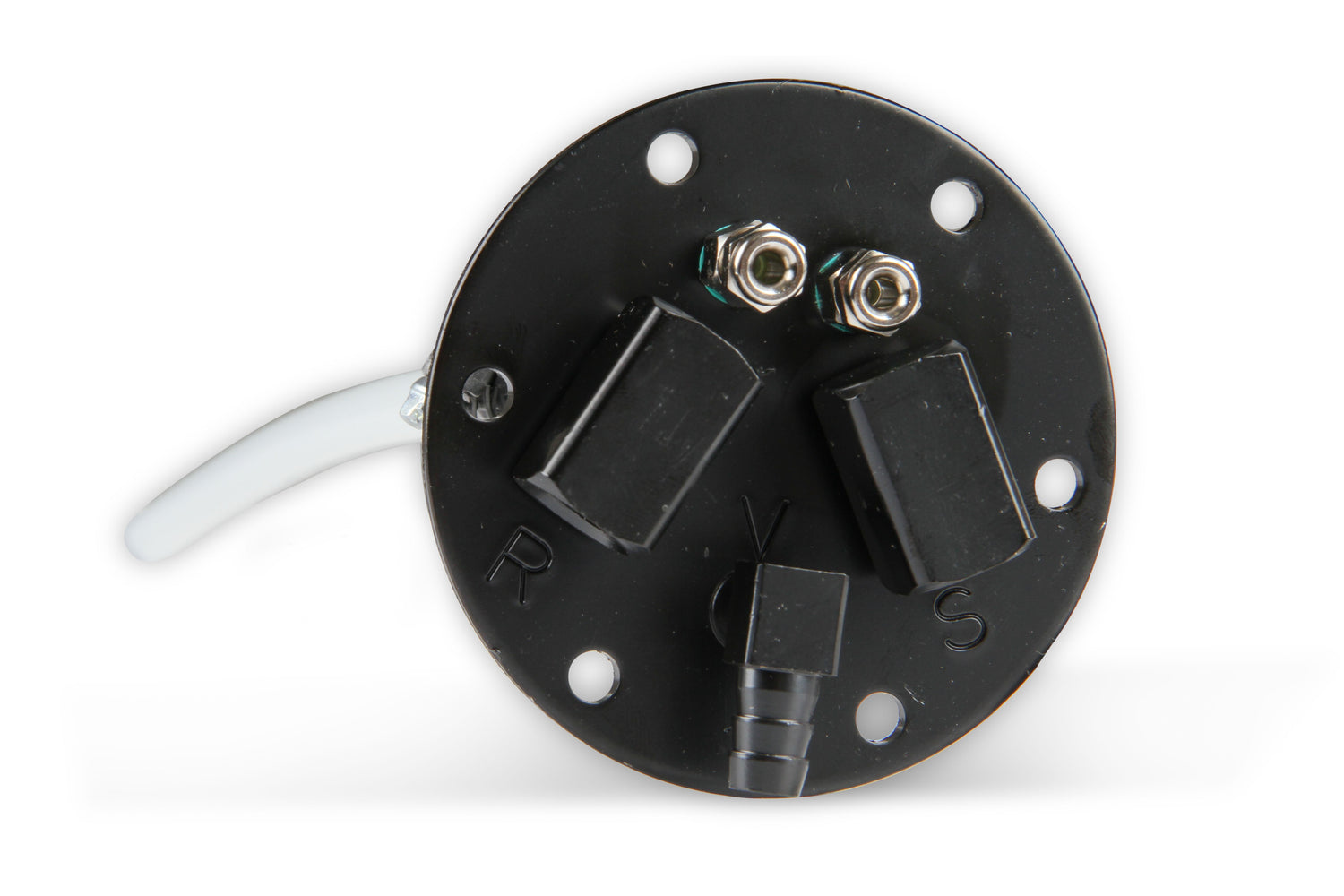

• Heavy 10 gauge no-warp mounting plate
• Barbed Vent Fittings
• Up to 100 PSI

For a better seal use Permatex Indian_x000D_ Head Gasket Shellac Compound or_x000D_ Aviation Form-A-Gasket sealant on the_x000D_ gasket and screws._x000D_ _x000D_ Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
