Holley | SKU:
12-990

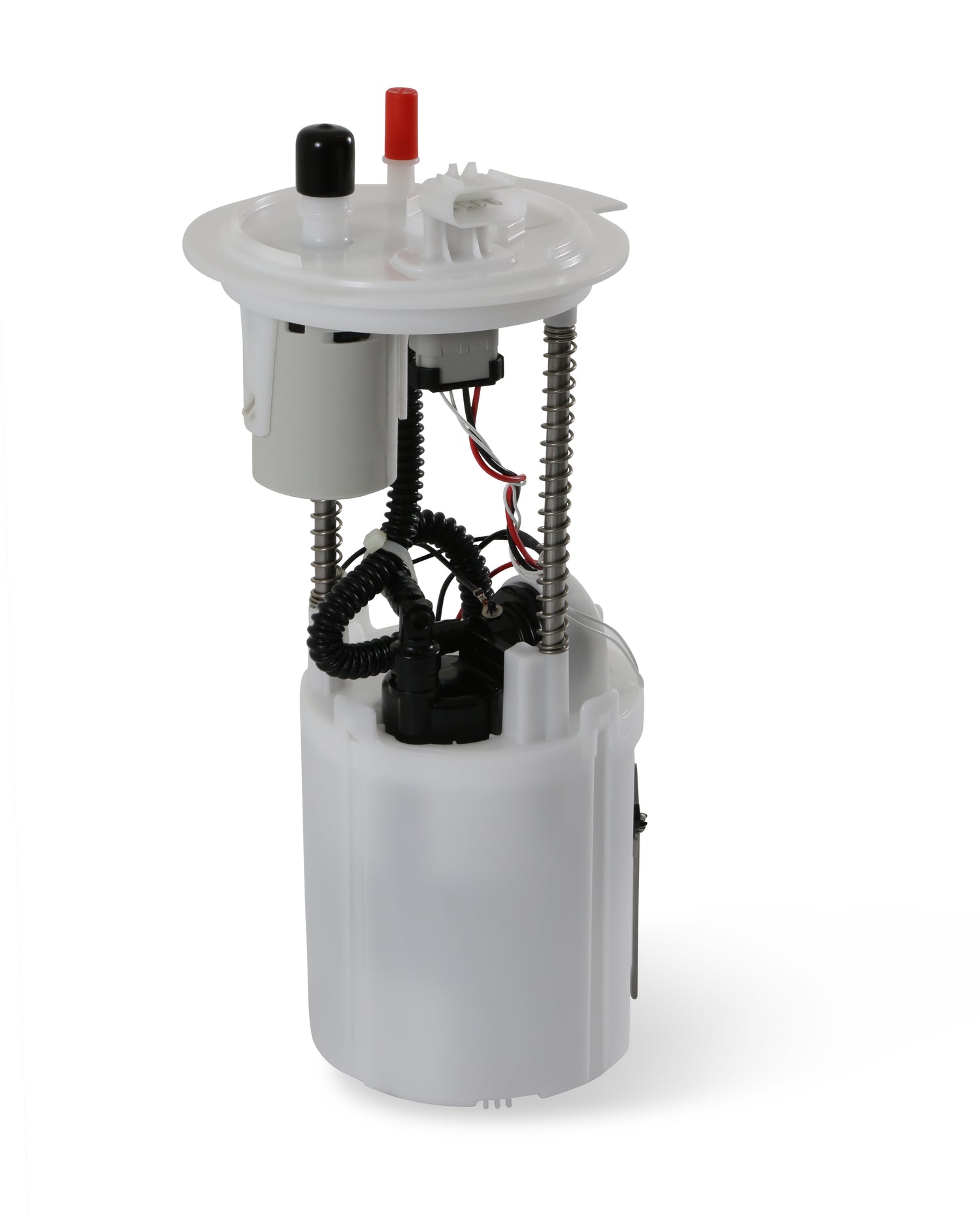

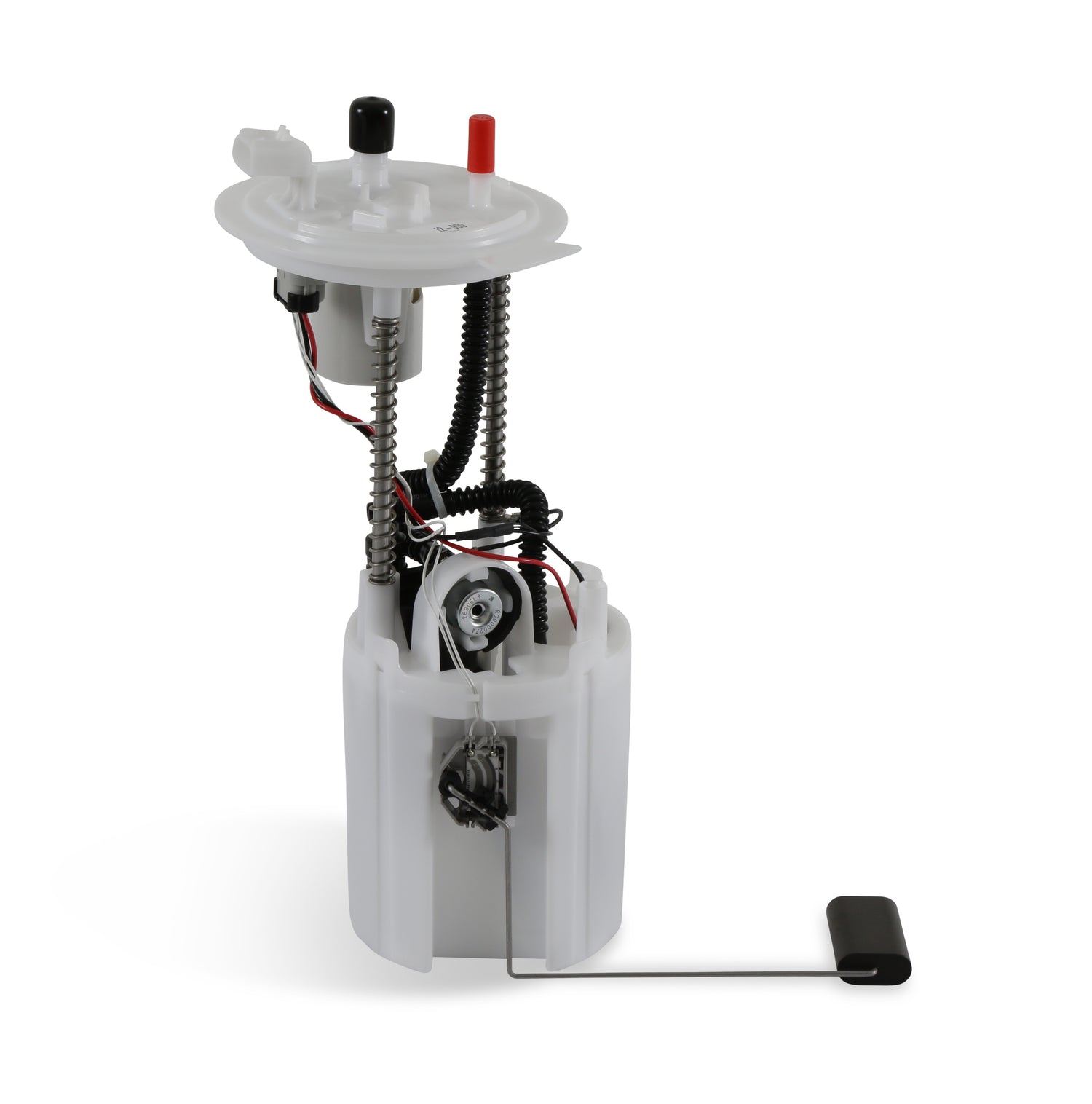

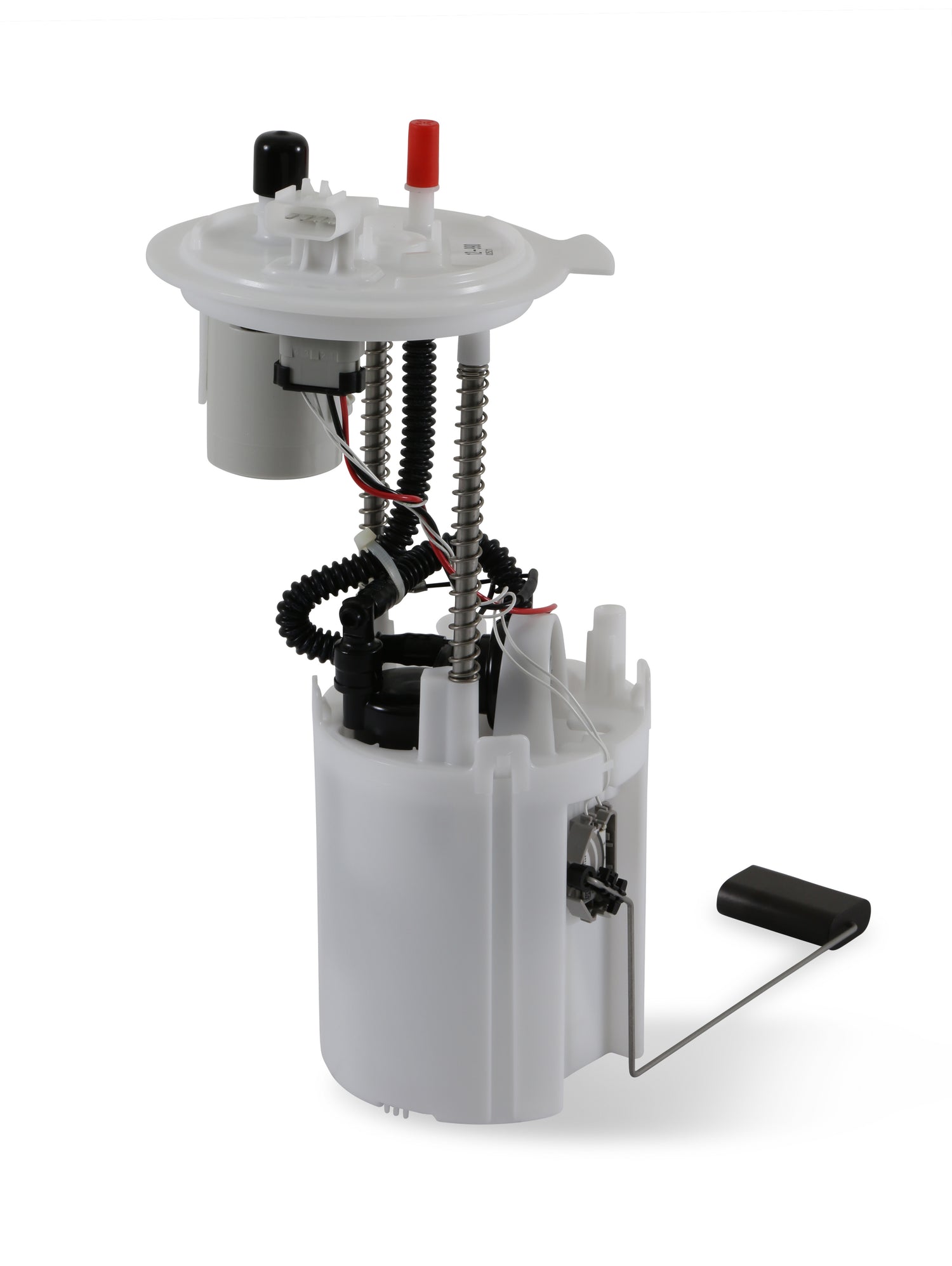

Holley 12-990 255 LPH Drop-In Fuel Module Assembly
255 LPH Drop-In Fuel Module assembly for 09-14 F-150, 3.7/4.6/5.0/5.4/6.2 Flex Fuel 145" and 157" wheelbase. For extended range tanks.
Regular price
$941.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-990 255 LPH Drop-In Fuel Module Assembly is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
255 LPH Drop-In Fuel Module assembly for 09-14 F-150, 3.7/4.6/5.0/5.4/6.2 Flex Fuel 145" and 157" wheelbase. For extended range tanks.
Part Number: 12-990
Holley now offers offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 550+ horsepower.
Features and Benefits
• Complete drop-in fuel module assembly
• Integrated fuel storage and filtration technology
• Built in, pre-calibrated fuel level sensors
• Plug and play wiring harnesses
• Capable of supporting 550+ hp right out of the box
• Designed for return line and pulse width modulation (PWM)
TU295HP
Part Number: 12-990
Holley now offers offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 550+ horsepower.
Features and Benefits
• Complete drop-in fuel module assembly
• Integrated fuel storage and filtration technology
• Built in, pre-calibrated fuel level sensors
• Plug and play wiring harnesses
• Capable of supporting 550+ hp right out of the box
• Designed for return line and pulse width modulation (PWM)
TU295HP
Specifications
Specifications
-
Specifications
Application 3.7/4.6/5.0/5.4 Flex Fuel Application 09-14 F-150 Average Flow Rating 255 Brand Holley Category Air and Fuel Delivery Emission Code 5 Free Flow GPH 50 Free Flow LPH 255 Fuel Filter Included Yes Fuel Sending Unit Included Yes Fuel System EFI Fuel Tank Pressure Sensor Included No Fuel Type Gasoline / Ethanol / Methanol / E85 Gasket Or Seal Included Yes Gasket Or Seal Material Rubber Grade Type Performance Height Standard Housing Material Plastic In Tank or External In Tank Inlet Type Barb Internal Or External Strainer External Lock Ring Included No Mounting Hardware Included No Negative Ground Yes Outlet Type Barb part type Fuel Pump Module Assembly Product Type Fuel Pump Module Pump Type Electric Regulator Included No Resistance Ohms Empty 16 Resistance Ohms Full 158 Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Specific Voltage 12 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
