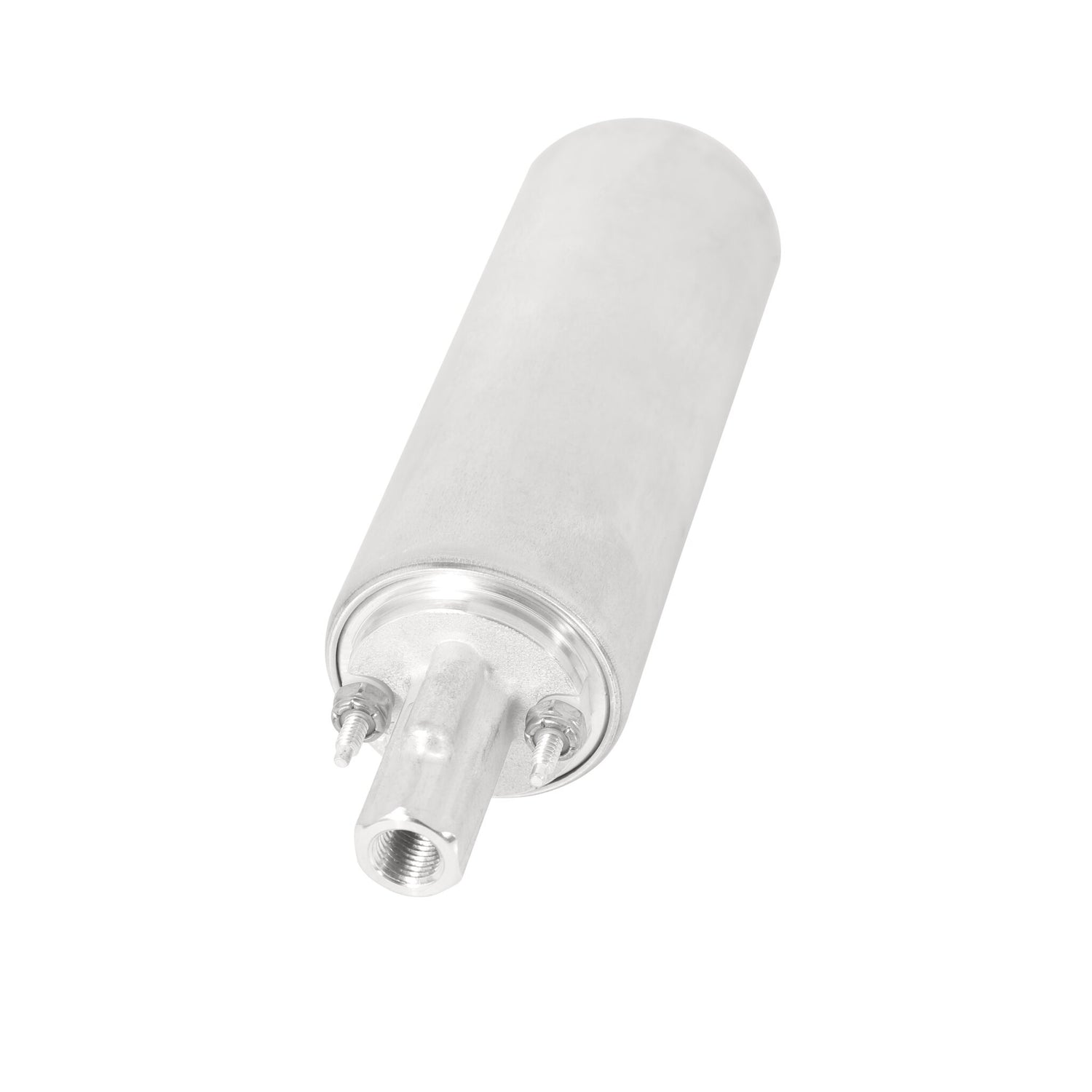

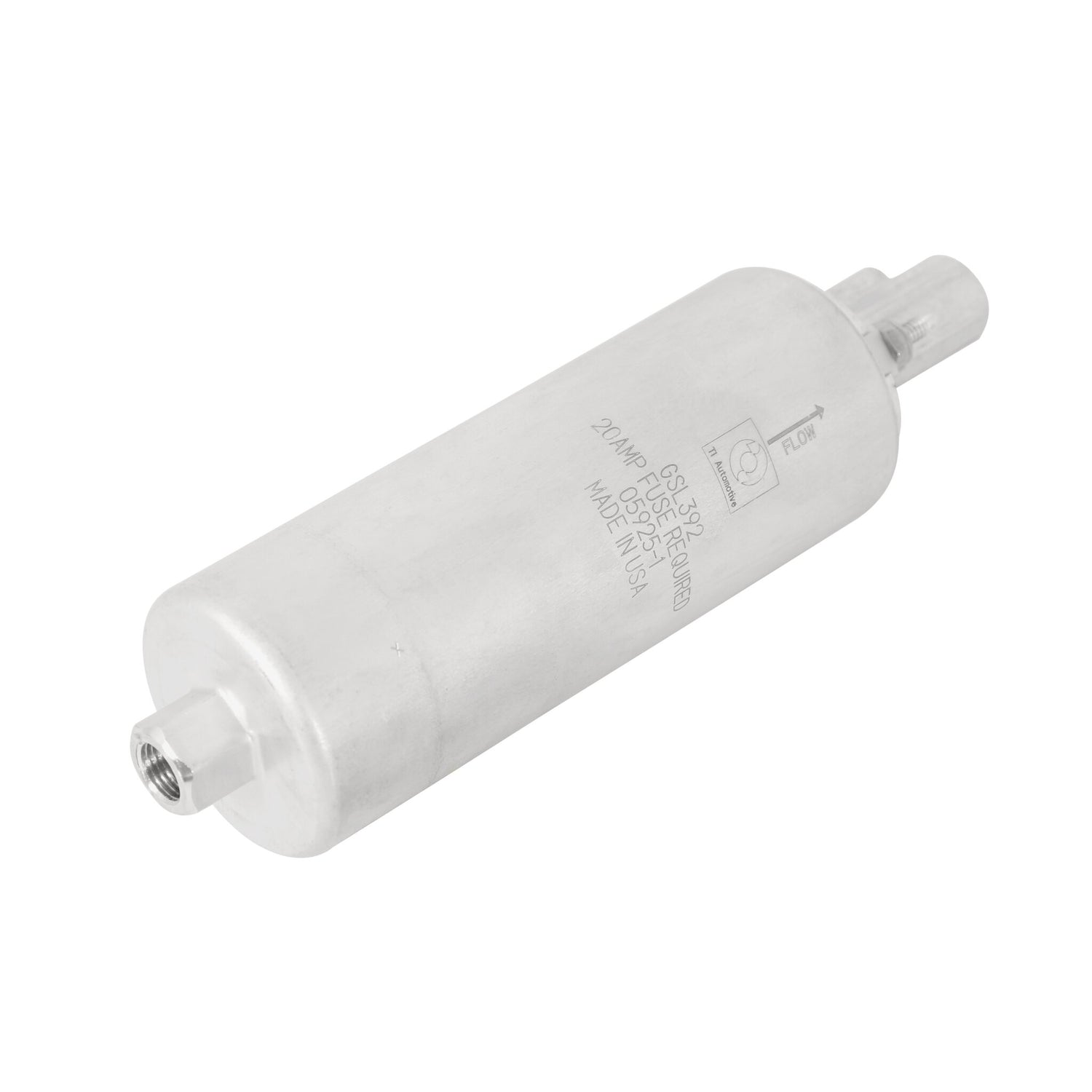

Holley 12-920 80 GPH In-line Universal Electric Fuel Pump

Street/Strip EFI Applications Compatible with Gasoline only

Part Number: 12-920

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.

Features and Benefits

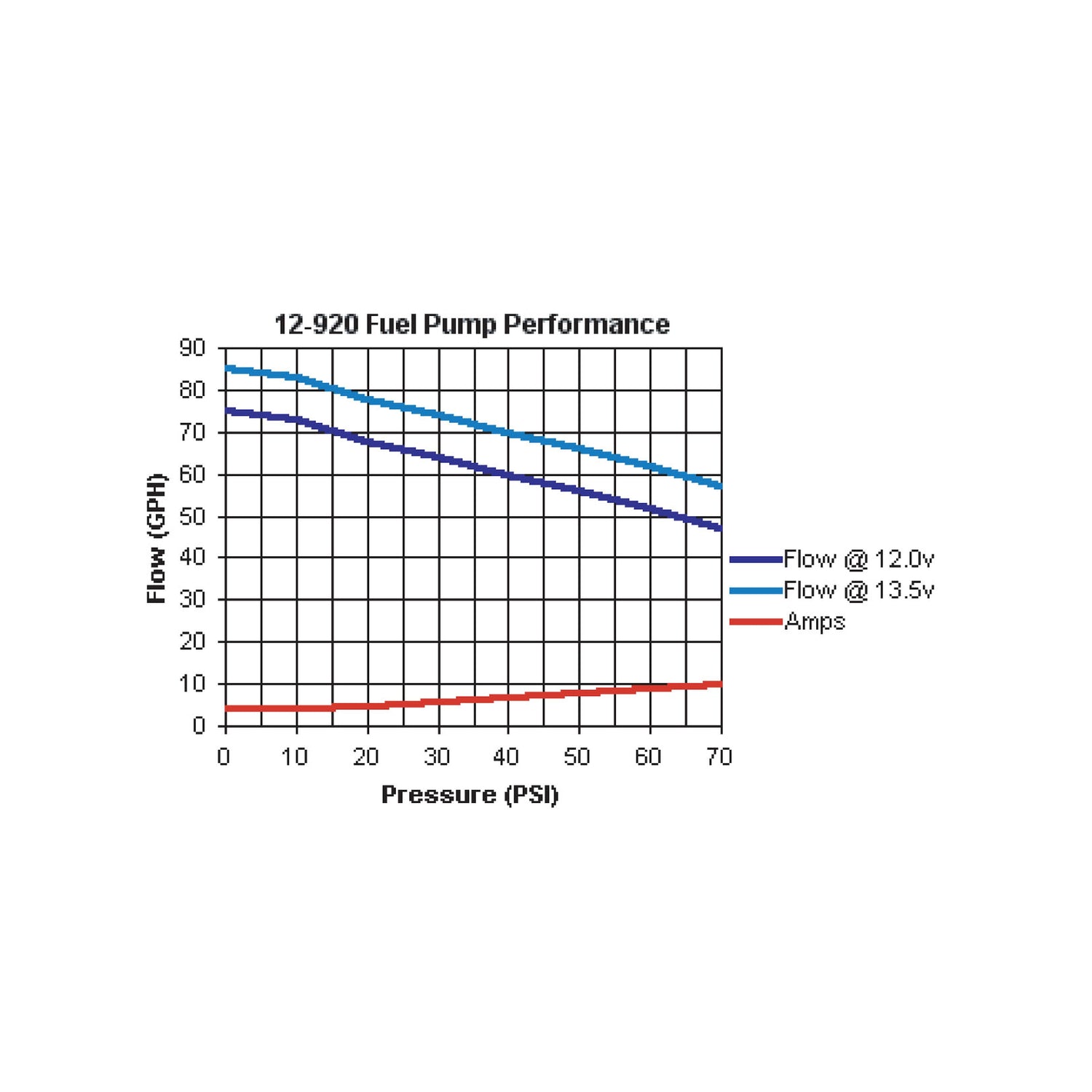

• Draws 5 amps at 15 psi
• Will feed up to 800 horsepower throttle body EFI units
• Will feed up to 700 horsepower multipoint units
• Will feed up to 600 horsepower forced induction multipoint units
• OE proven design
• Lightweight and compact

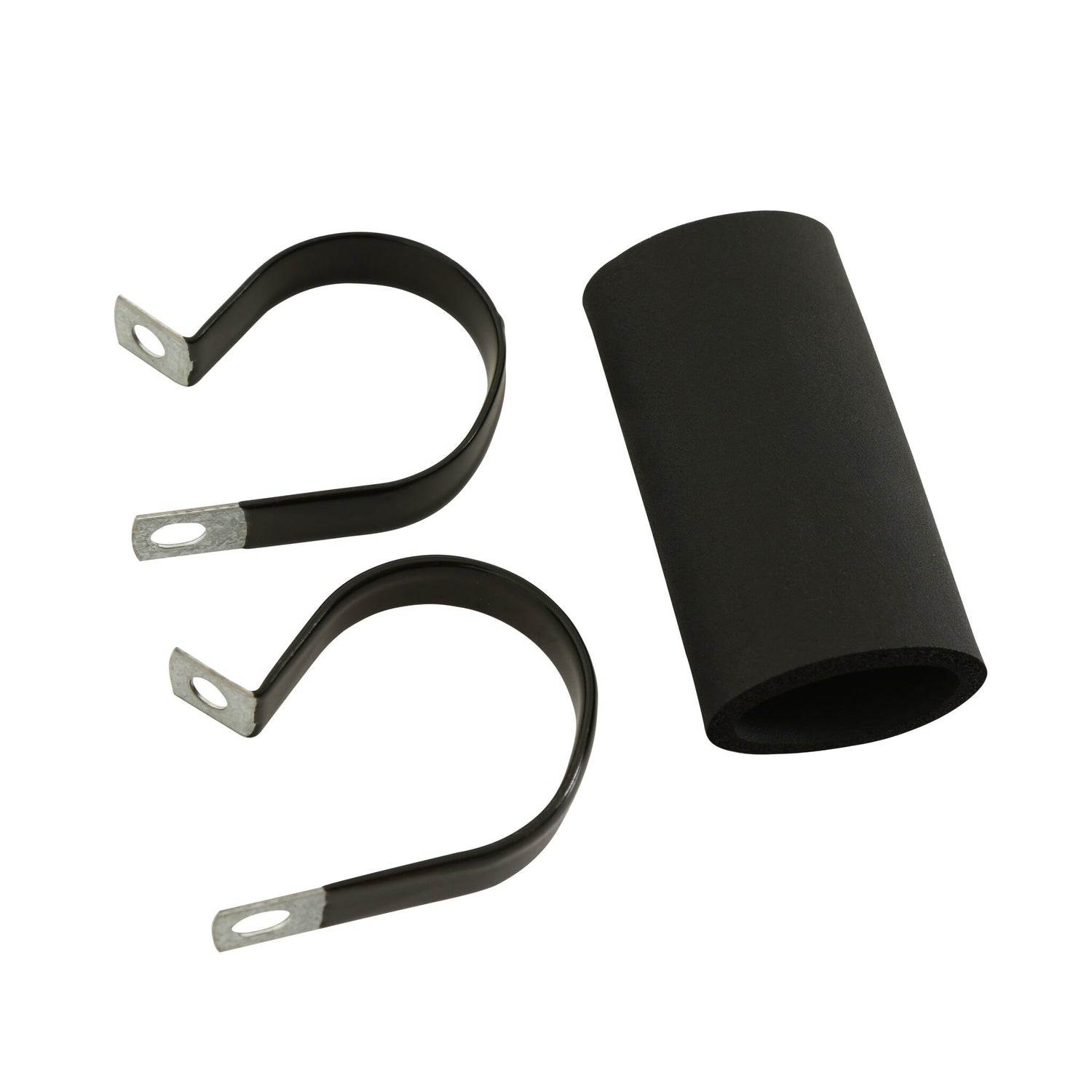

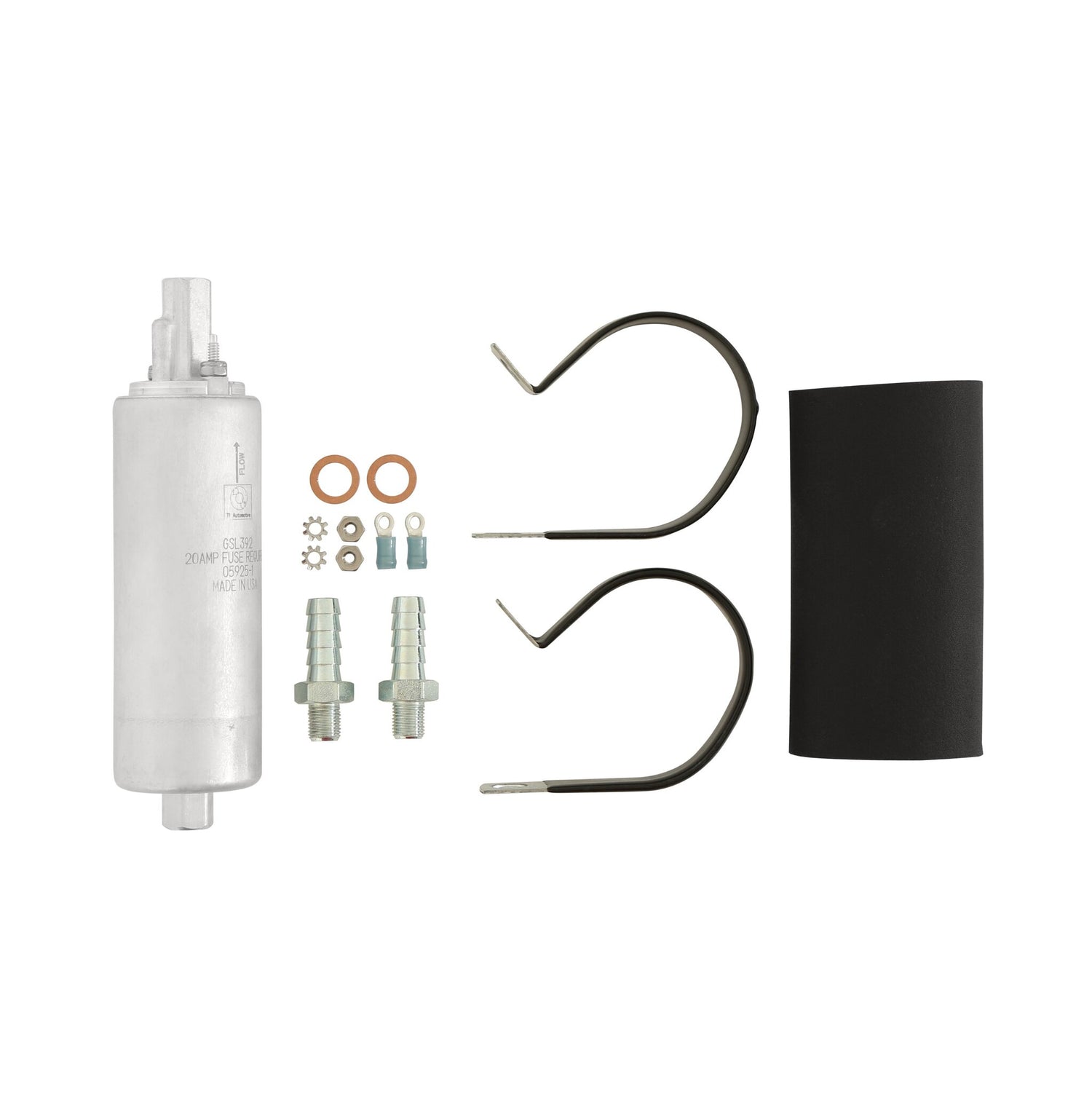

• Rubber isolator, mounting clamps and electrical hardware included

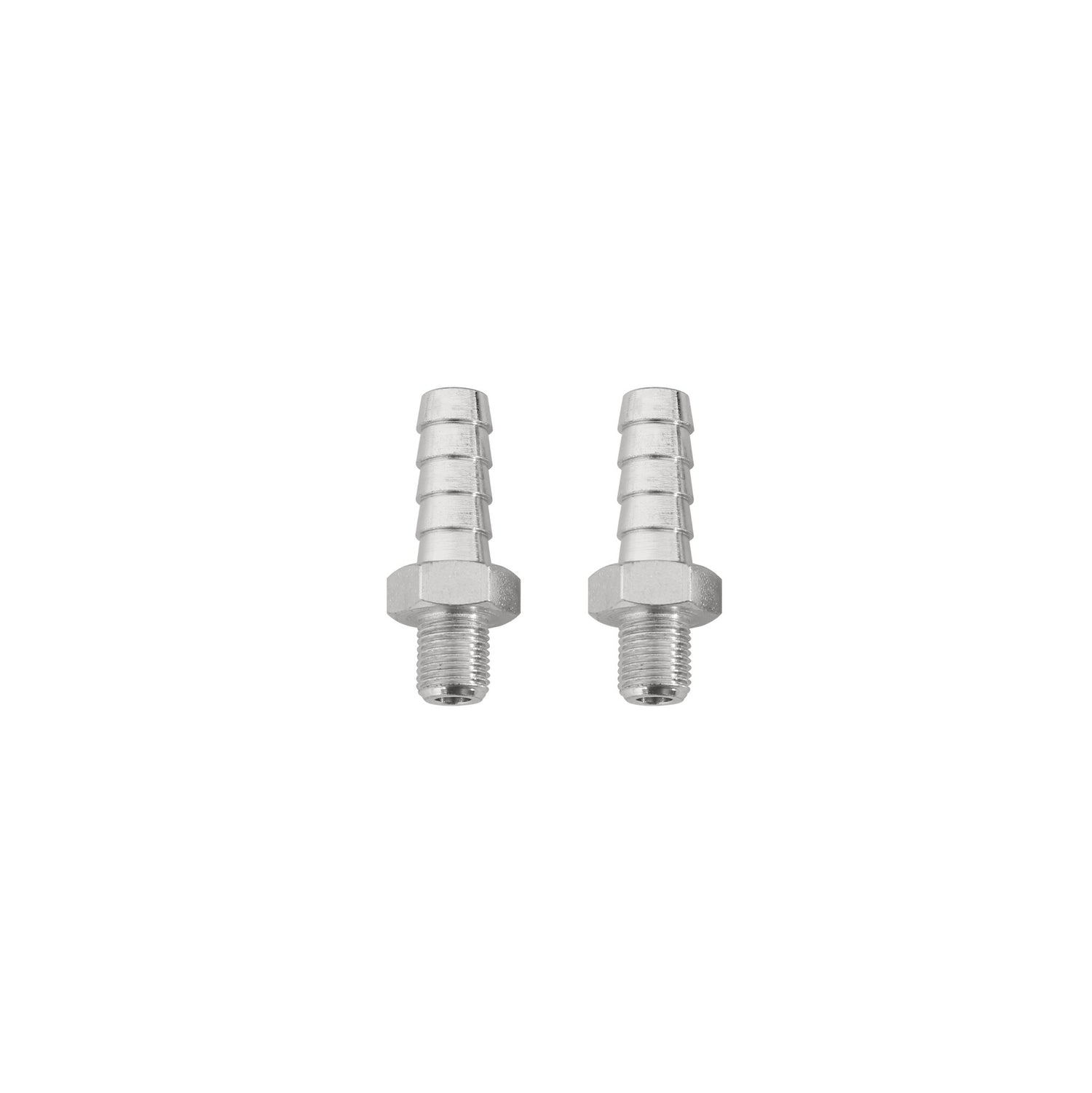

• 3/8" barbed fittings included
• Not designed for use on aircraft of any type.

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180
