Holley 12-882KIT EFI Bypass Fuel Pressure Regulator Kit

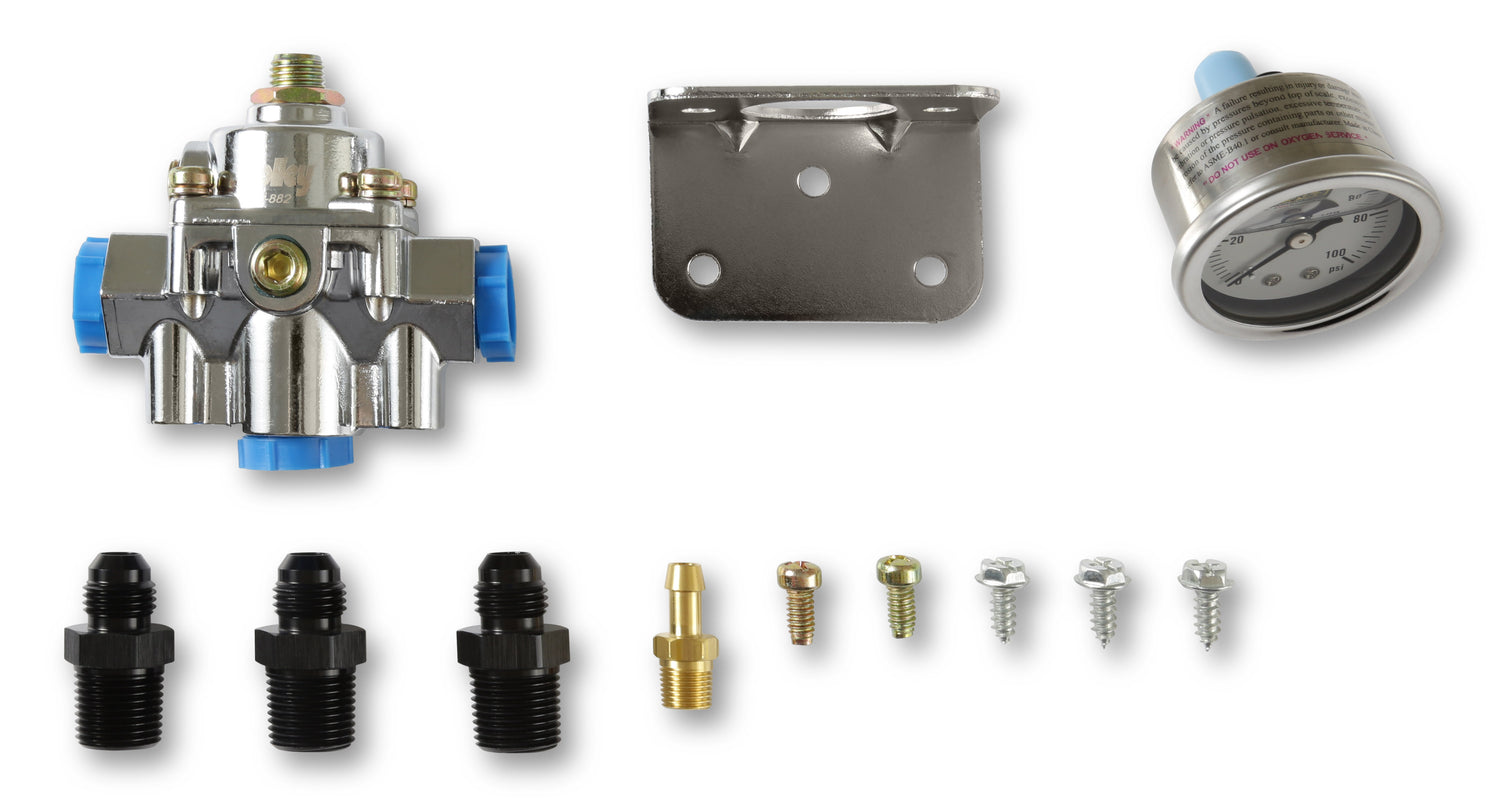

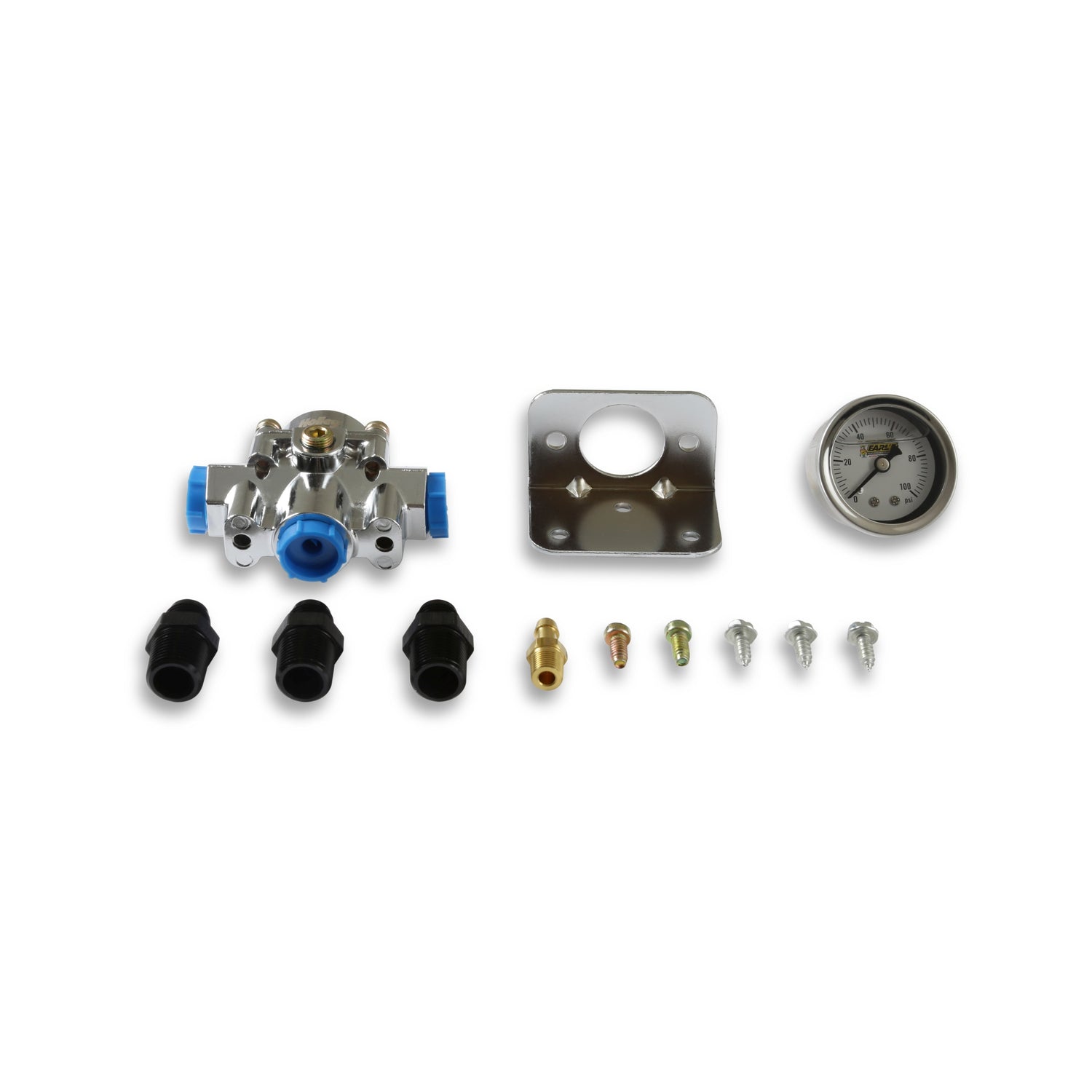

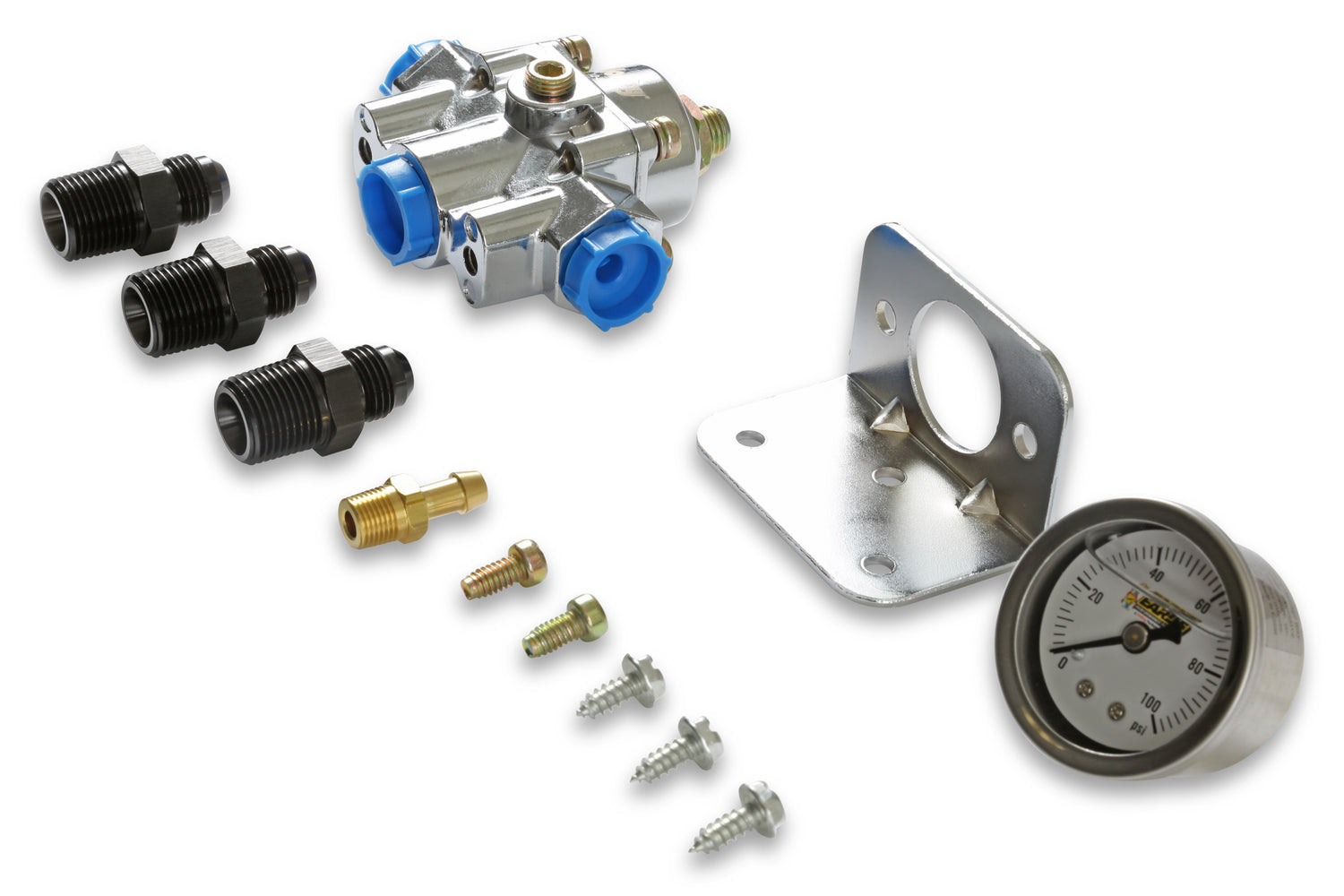

Included gauge and fittings

Part Number: 12-882KIT

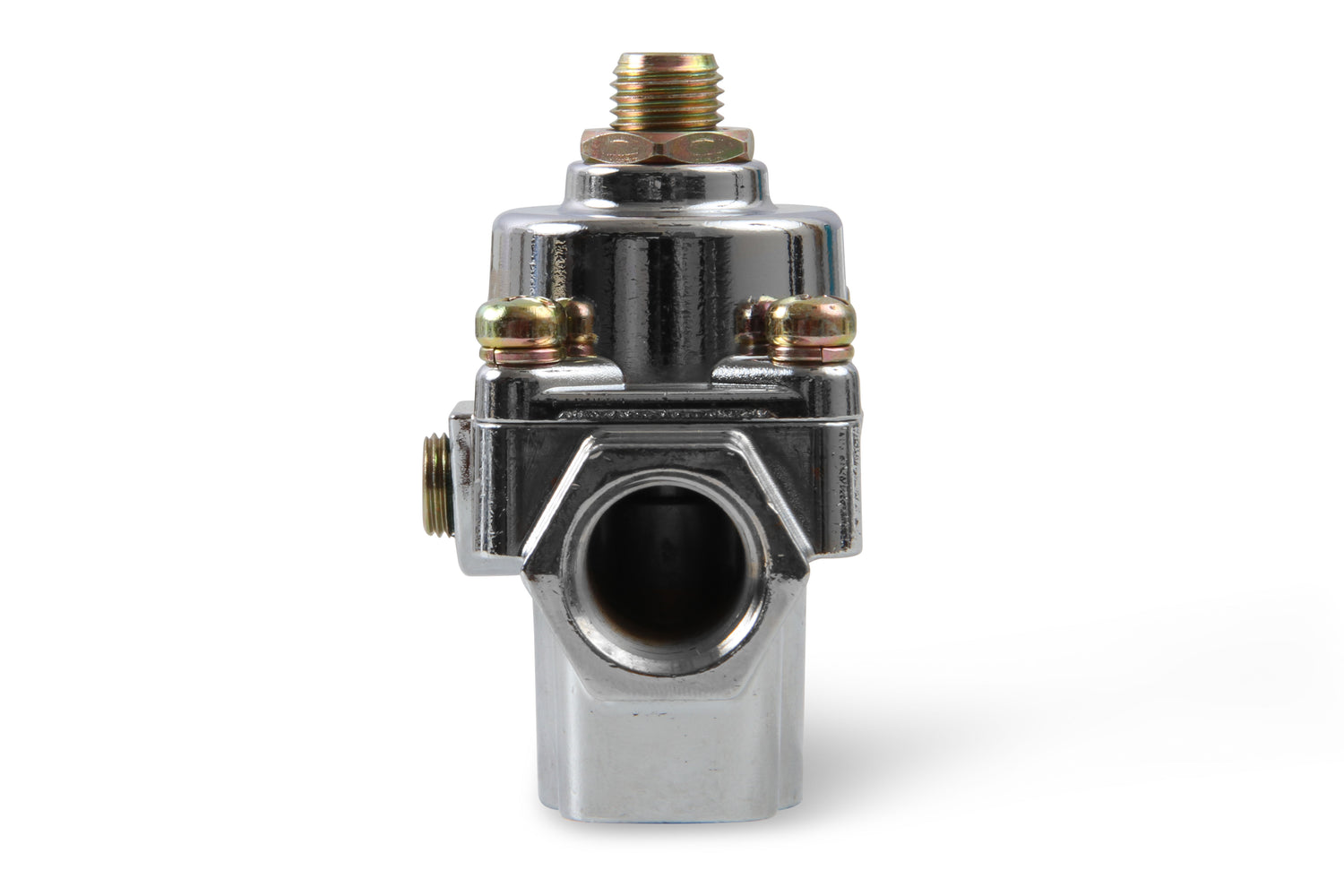

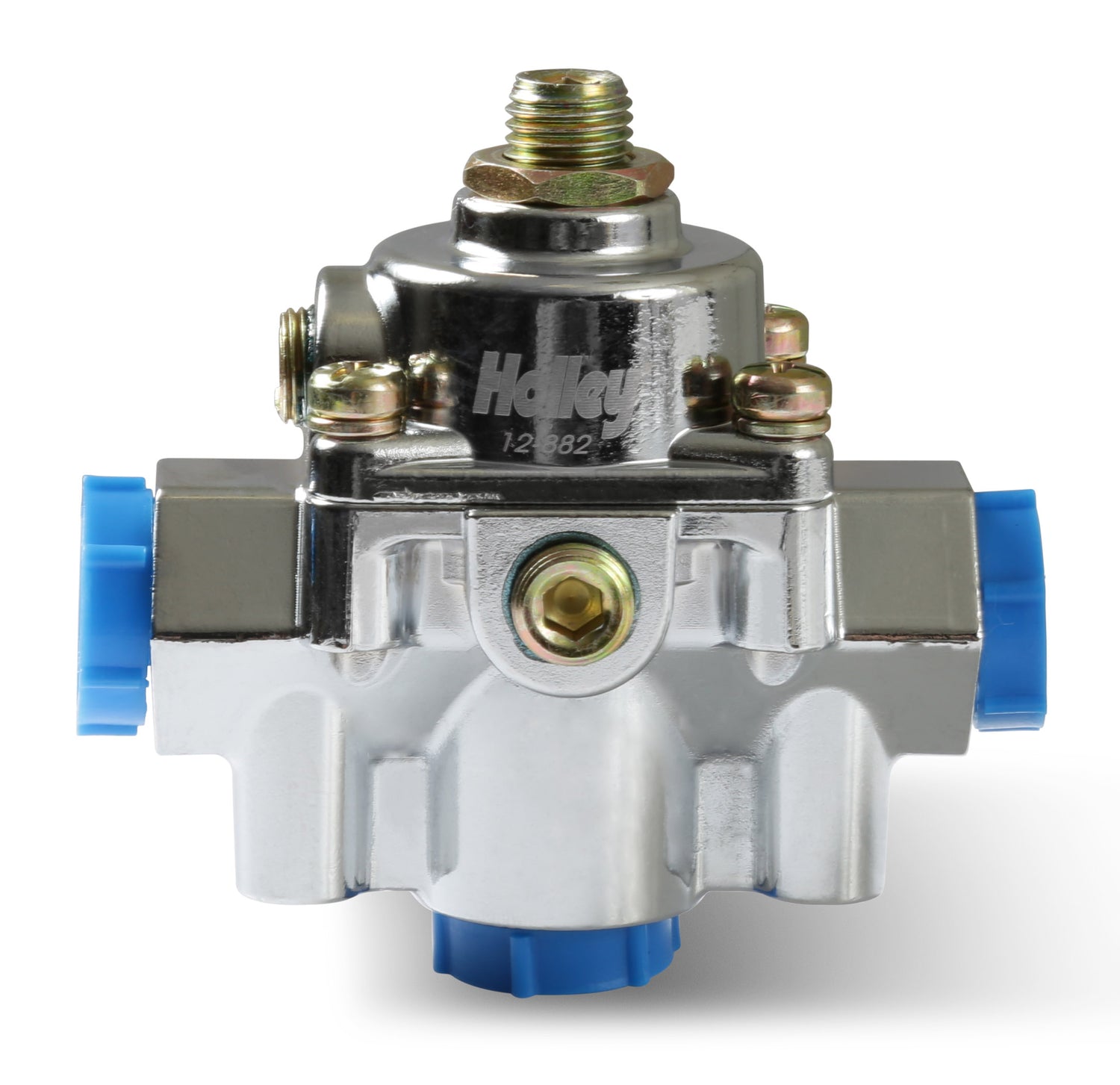

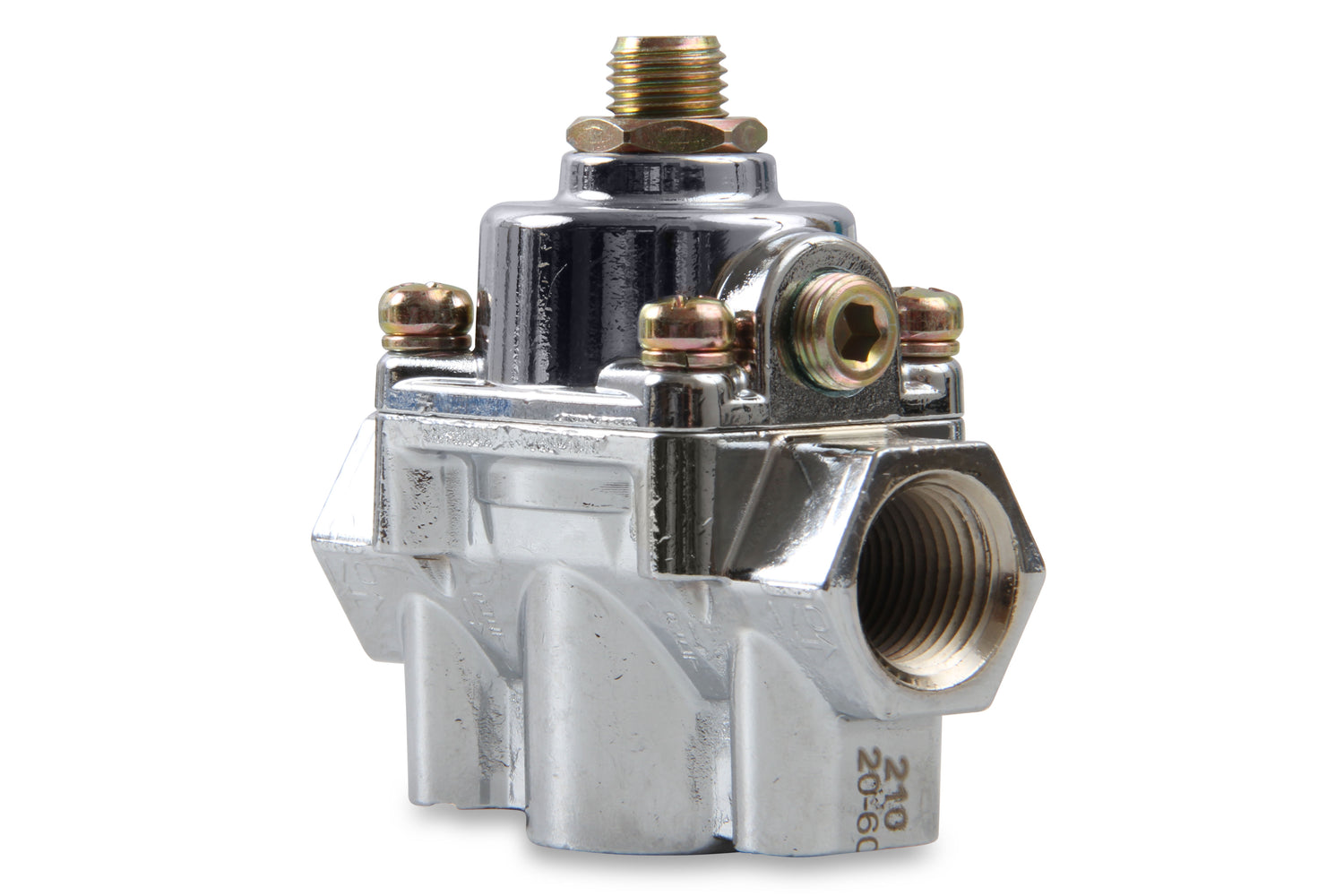

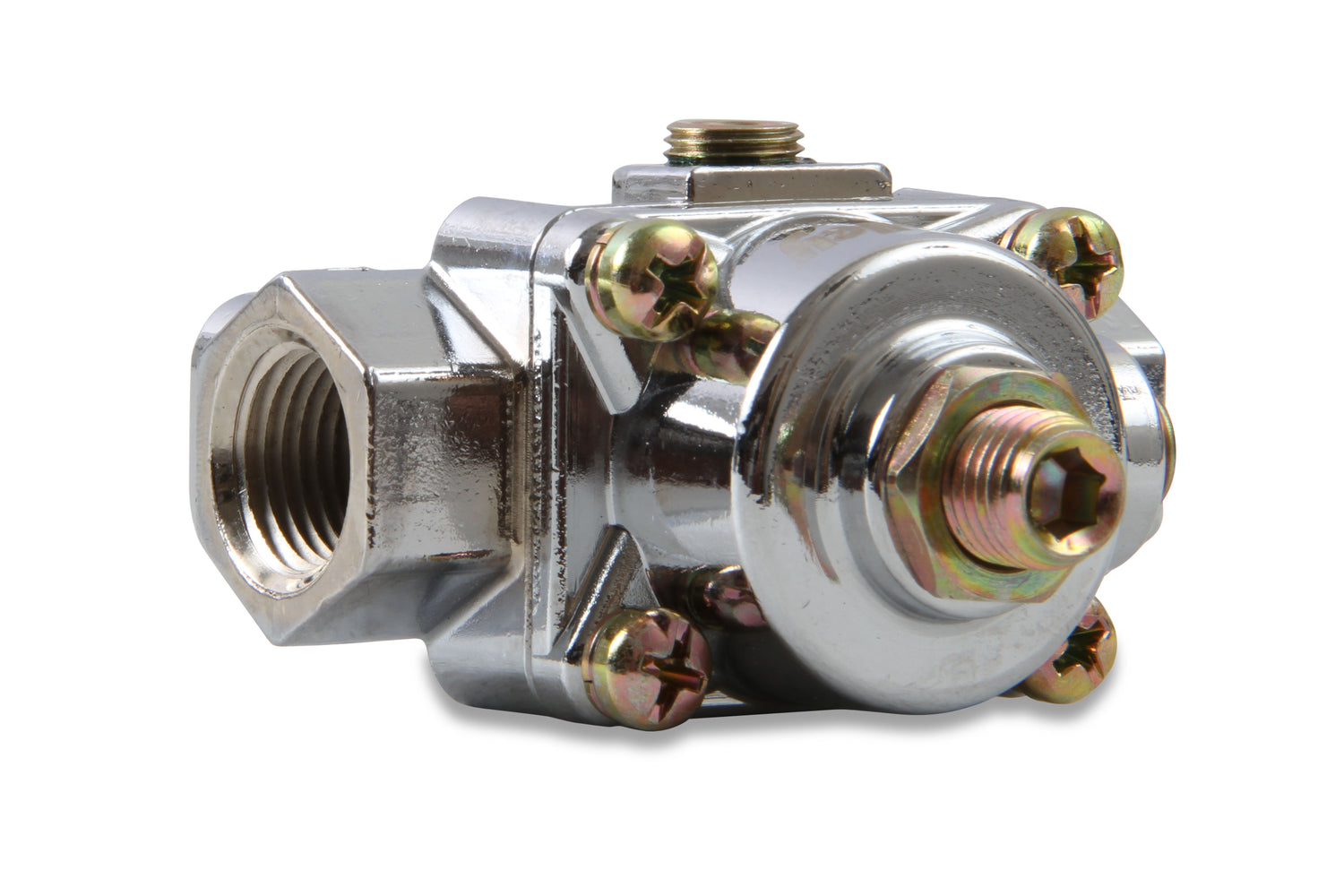

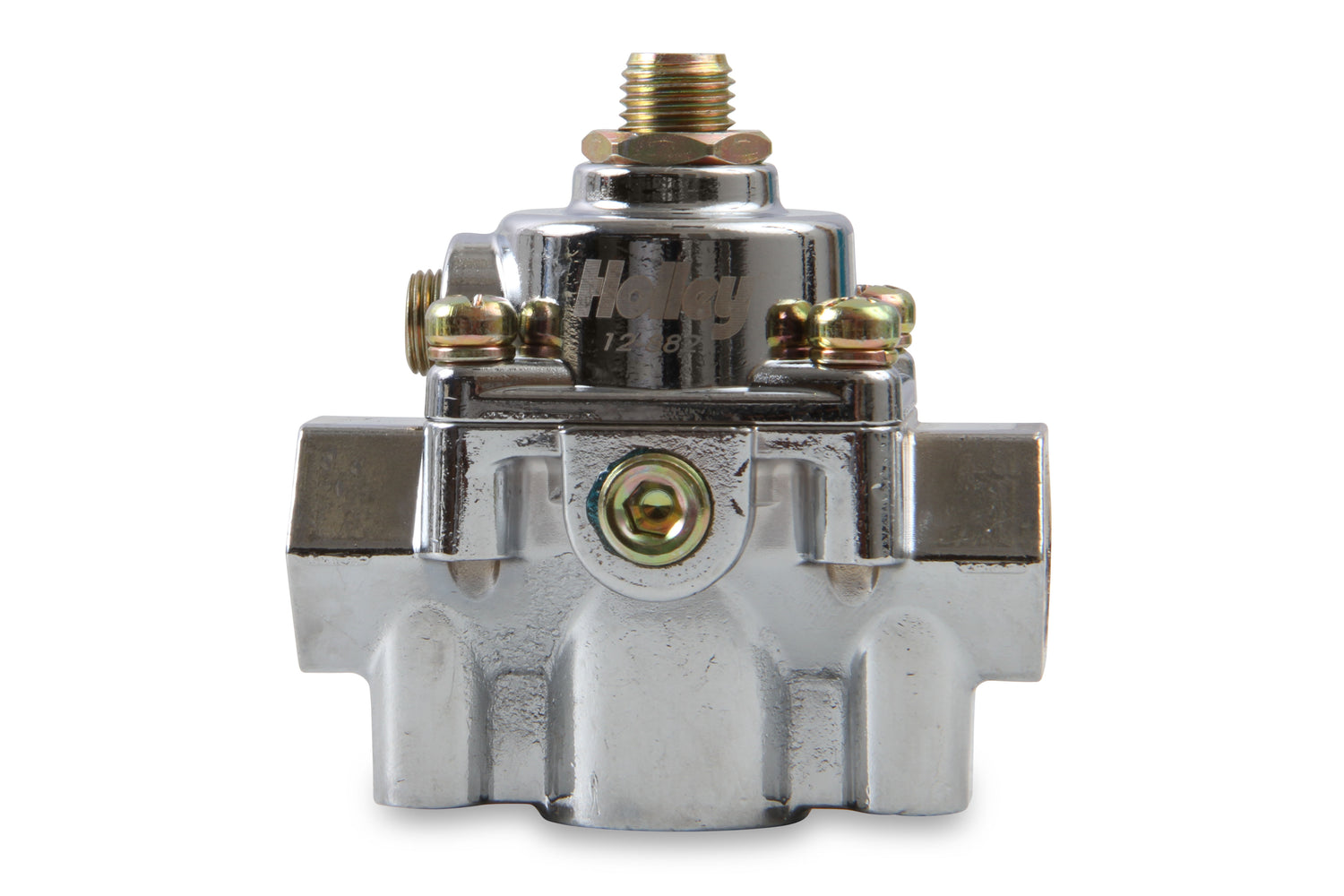

Holley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8" NPT inlet/outlet ports, 3/8" NPT return port, 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, (3) Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit.

Features and Benefits

• Die cast aluminum construction with chrome finish
• Adjustable from 15-60 PSI for precise fuel pressure adjustments
• 60 PSI preset pressure
• Used in return style systems with a line back to the fuel tank
• 3/8” NPT inlet, outlet, and return ports

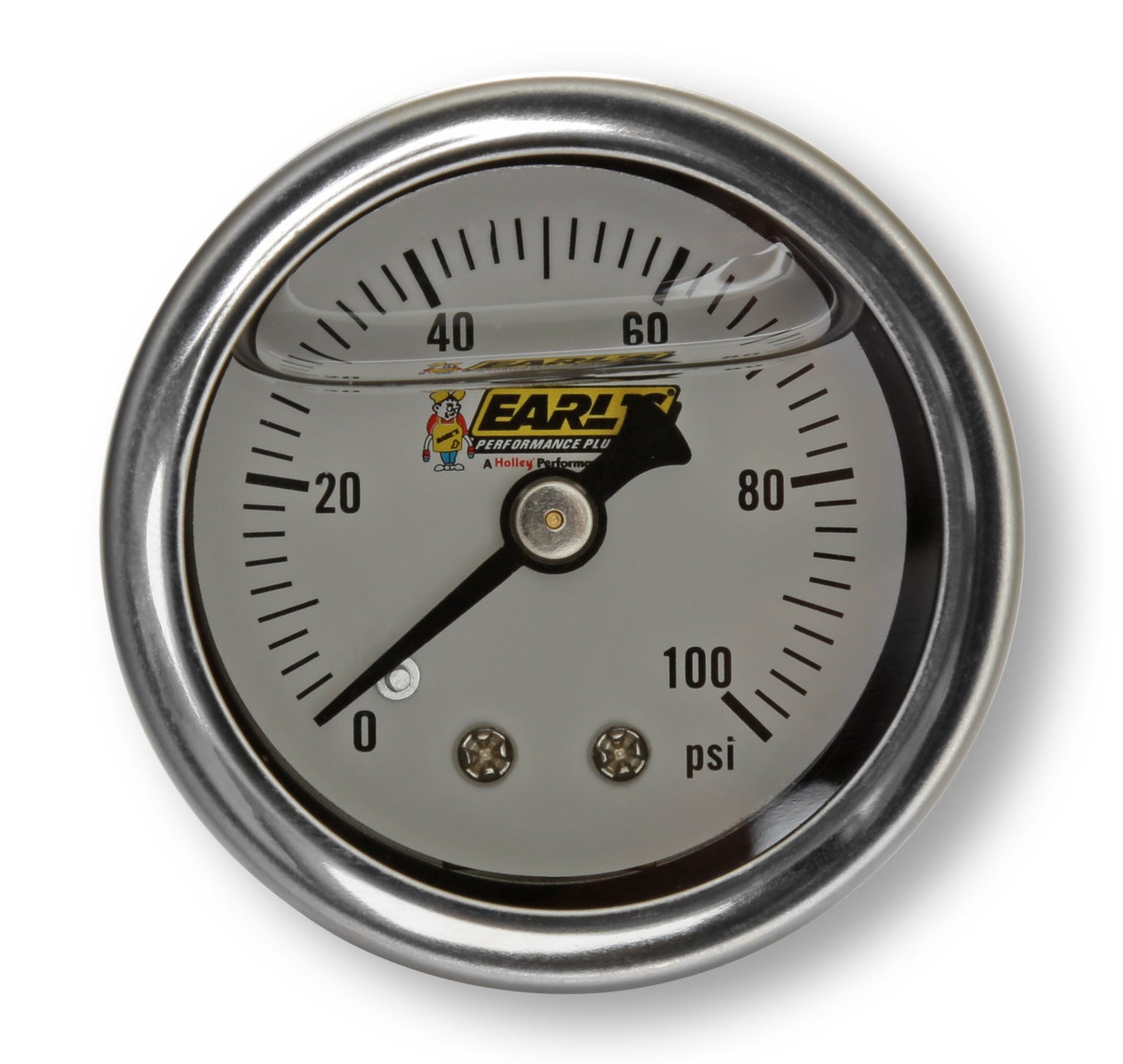

• 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL)
• 1/8" NPT boost reference (1:1) and barbed fitting

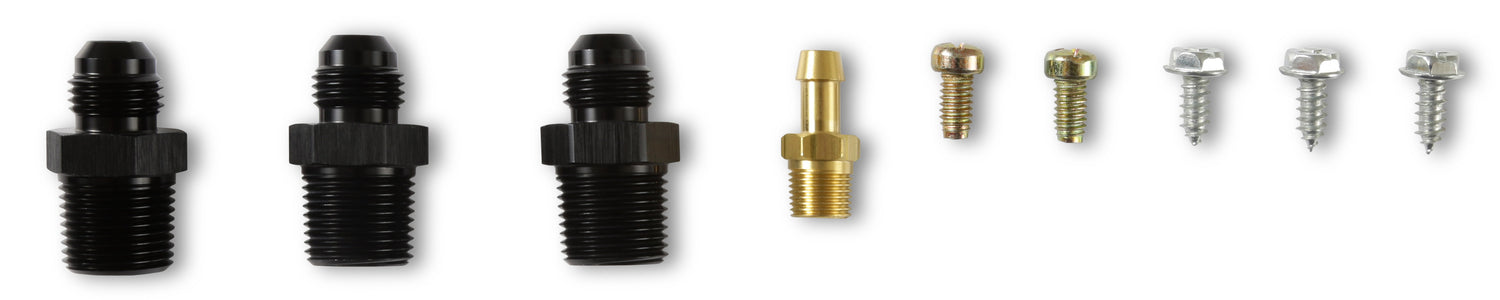

• Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)
• Included mounting bracket

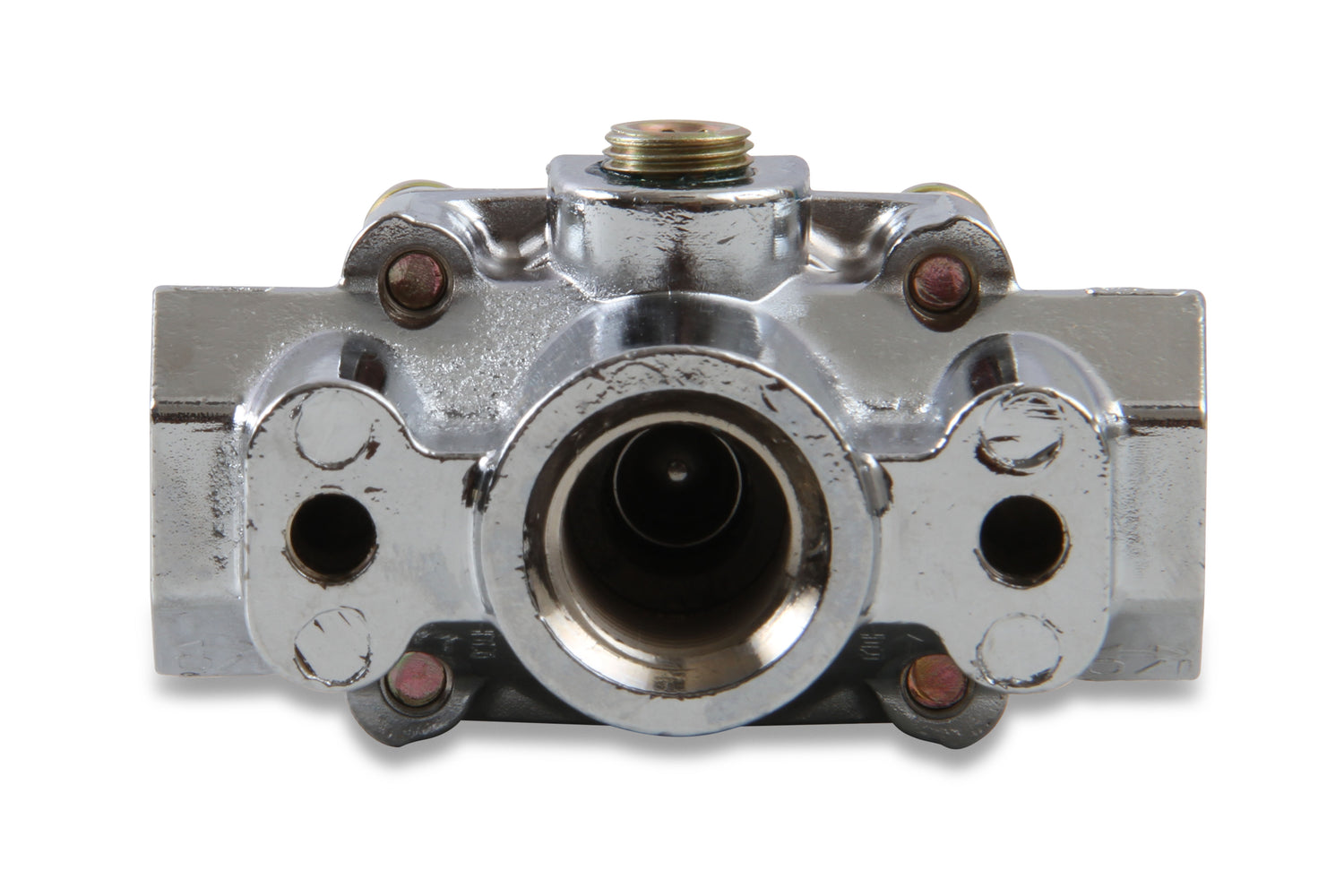

The mounting holes in the regulator are not threaded, the screws included are self-tapping for use in installation. If the pump is a high-pressure model, a pressure regulator must be installed in the line between the pump and the carburetor. An optional boost reference fitting is included with the regulator if needed for your application.
