Holley EFI | SKU:
12-848KIT
Holley 12-848KIT EFI Billet Bypass Fuel Pressure Regulator Kit
Included gauge and fittings
Regular price
$724.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-848KIT EFI Billet Bypass Fuel Pressure Regulator Kit
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Included gauge and fittings
Part Number: 12-848KIT

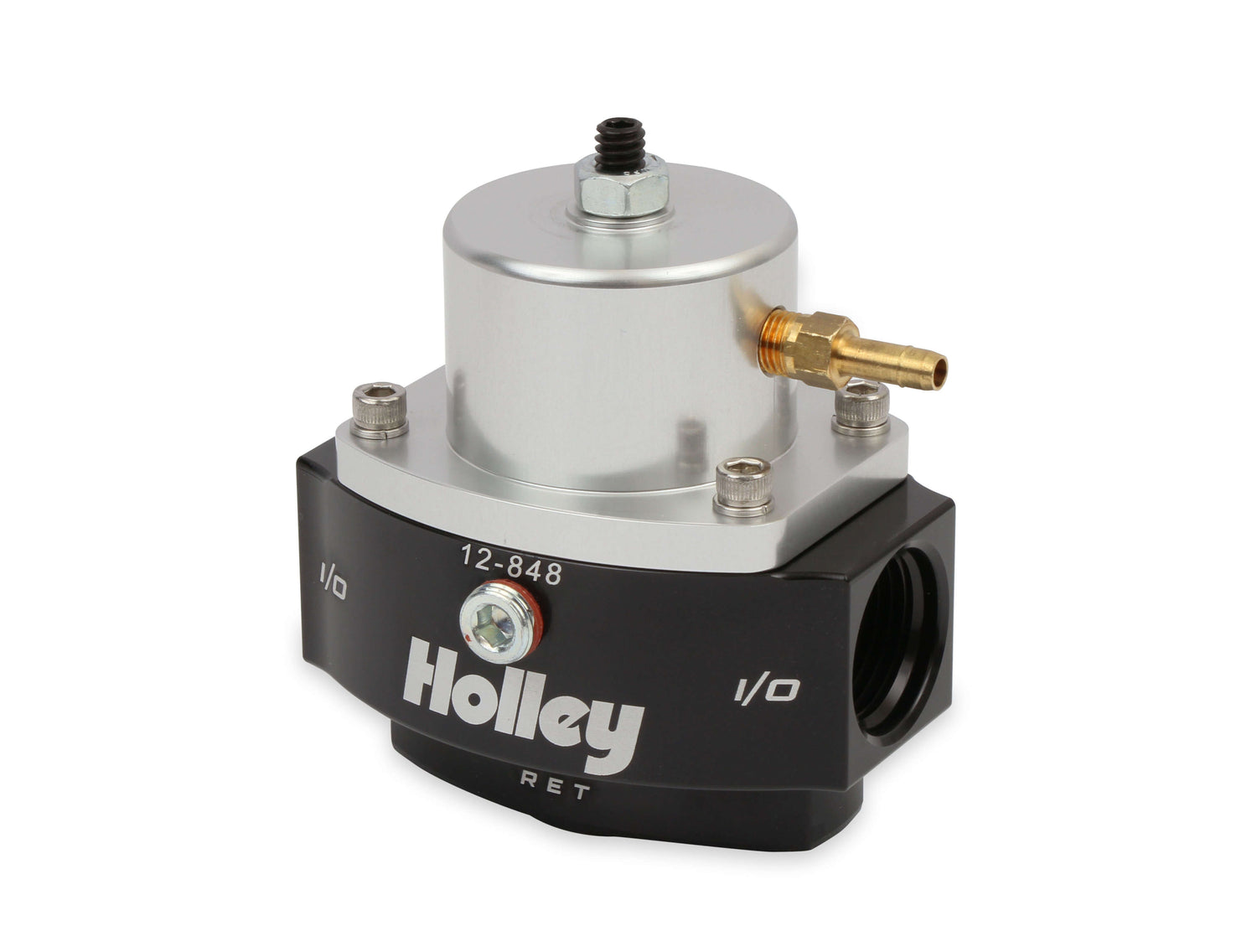

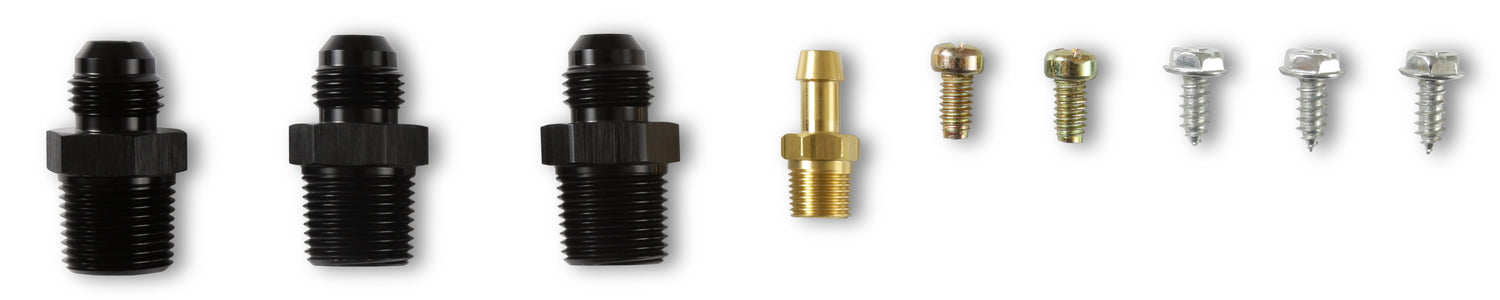

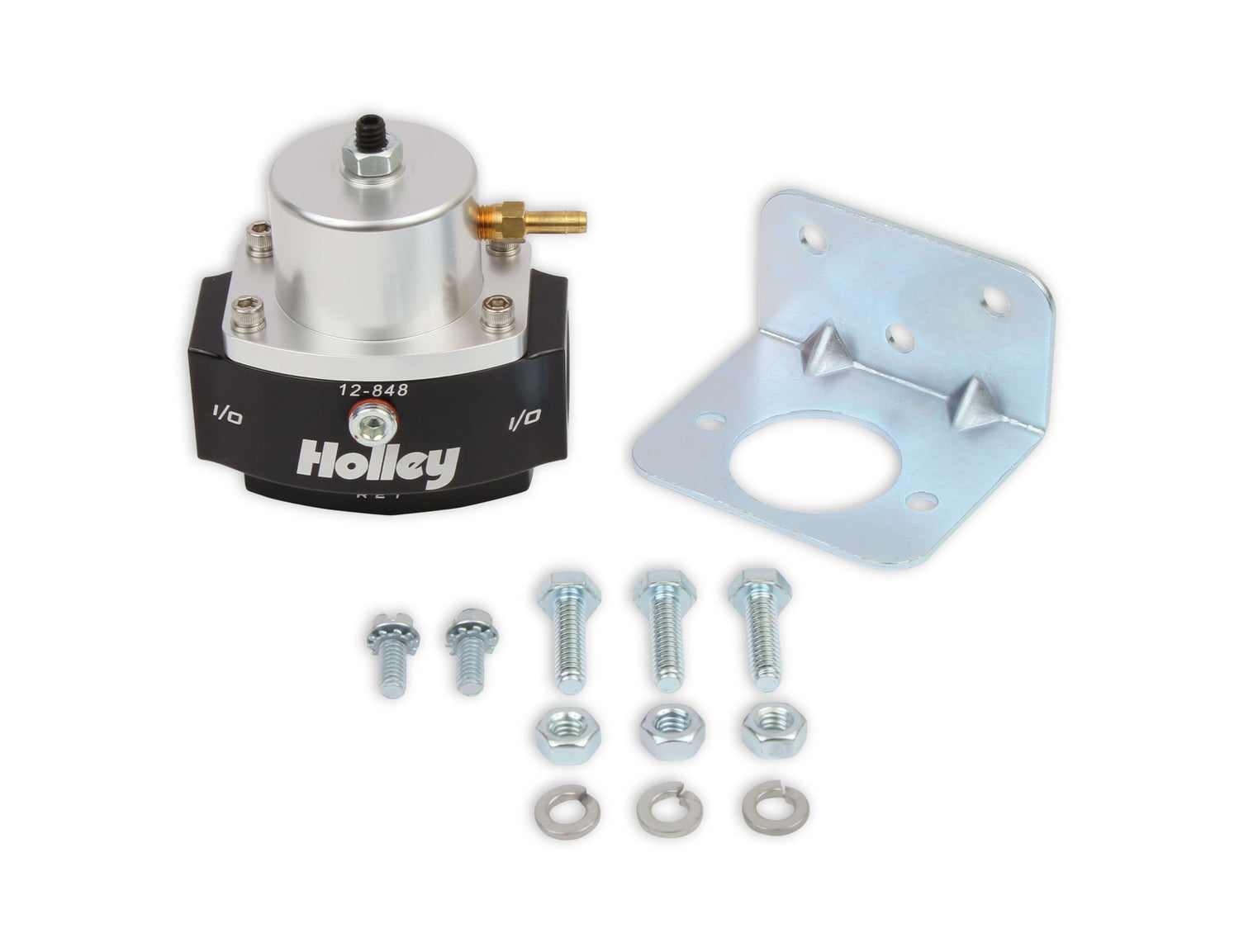

Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-60 PSI for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 10 AN O-ring inlet, outlet, and 8 AN O-ring return port

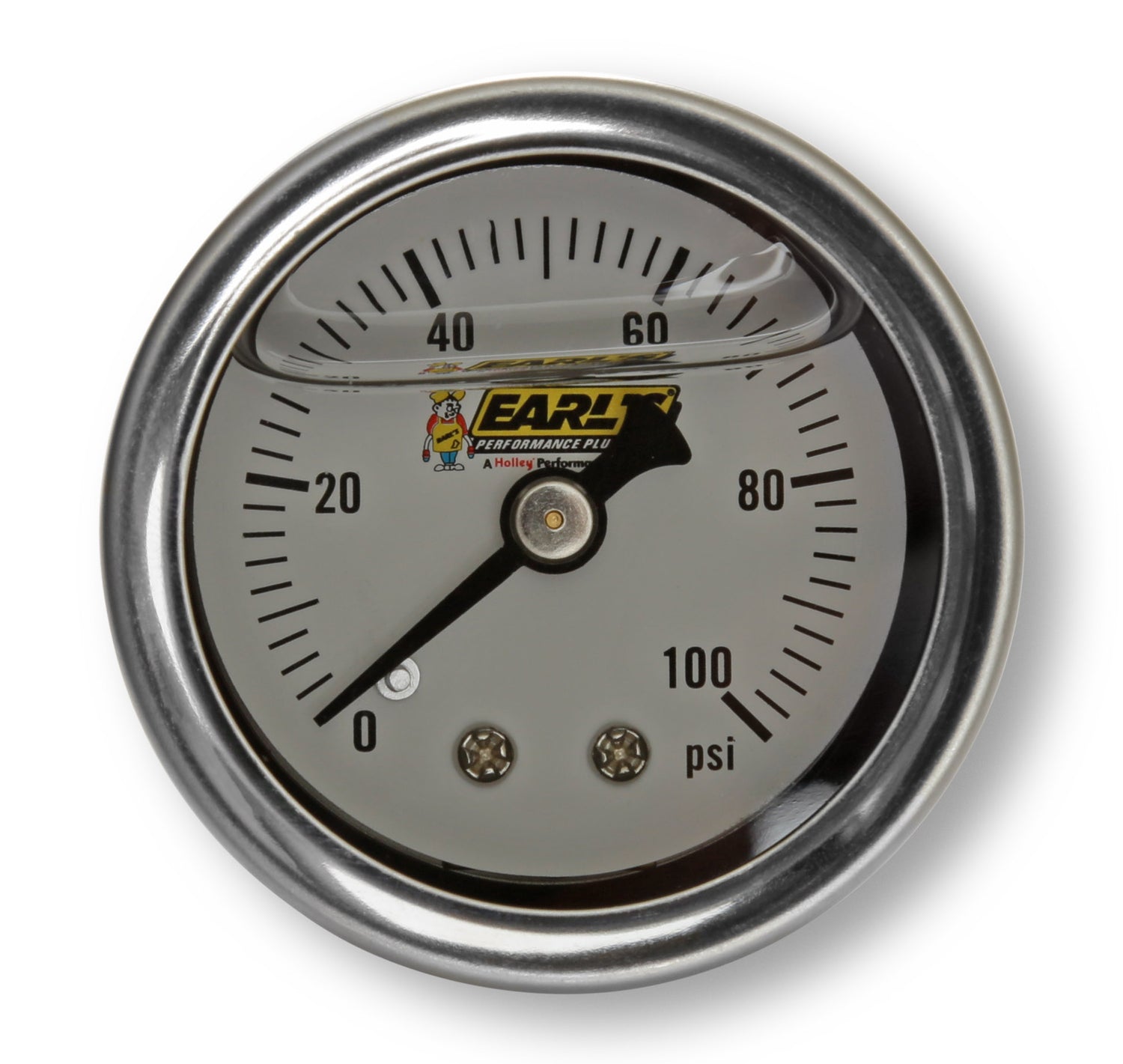

• 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL)
• 1/8" NPT boost reference (1:1) and barbed fitting
• Included mounting bracket
Part Number: 12-848KIT
Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-60 PSI for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 10 AN O-ring inlet, outlet, and 8 AN O-ring return port
• 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL)
• 1/8" NPT boost reference (1:1) and barbed fitting
• Included mounting bracket
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley EFI Category Air and Fuel Delivery Color Black Emission Code 5 Fuel Pressure Range 15-60 Fuel System EFI Fuel Type Gasoline Gauge Port Yes Grade Type Performance Inlet Port Diameter -10AN Inlet Quantity One Inlet Size 10 AN O-ring Inlet Type ORB Material Aluminium Maximum Pressure Reading 60 Mounting Hardware Included Yes Mounting Type Bolt On Outlet Port Diameter -10AN Outlet Quantity Two Outlet Size 10 AN O-ring Outlet Type ORB part type Fuel Injection Pressure Regulator Port Quantity 5 Pressure Range 15-60 PSI Product Type Fuel Pressure Regulator Return Size 8 AN O-Ring Style Bypass Sub Category Fuel Injection System and Related Components Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty
