Holley | SKU:
12-848

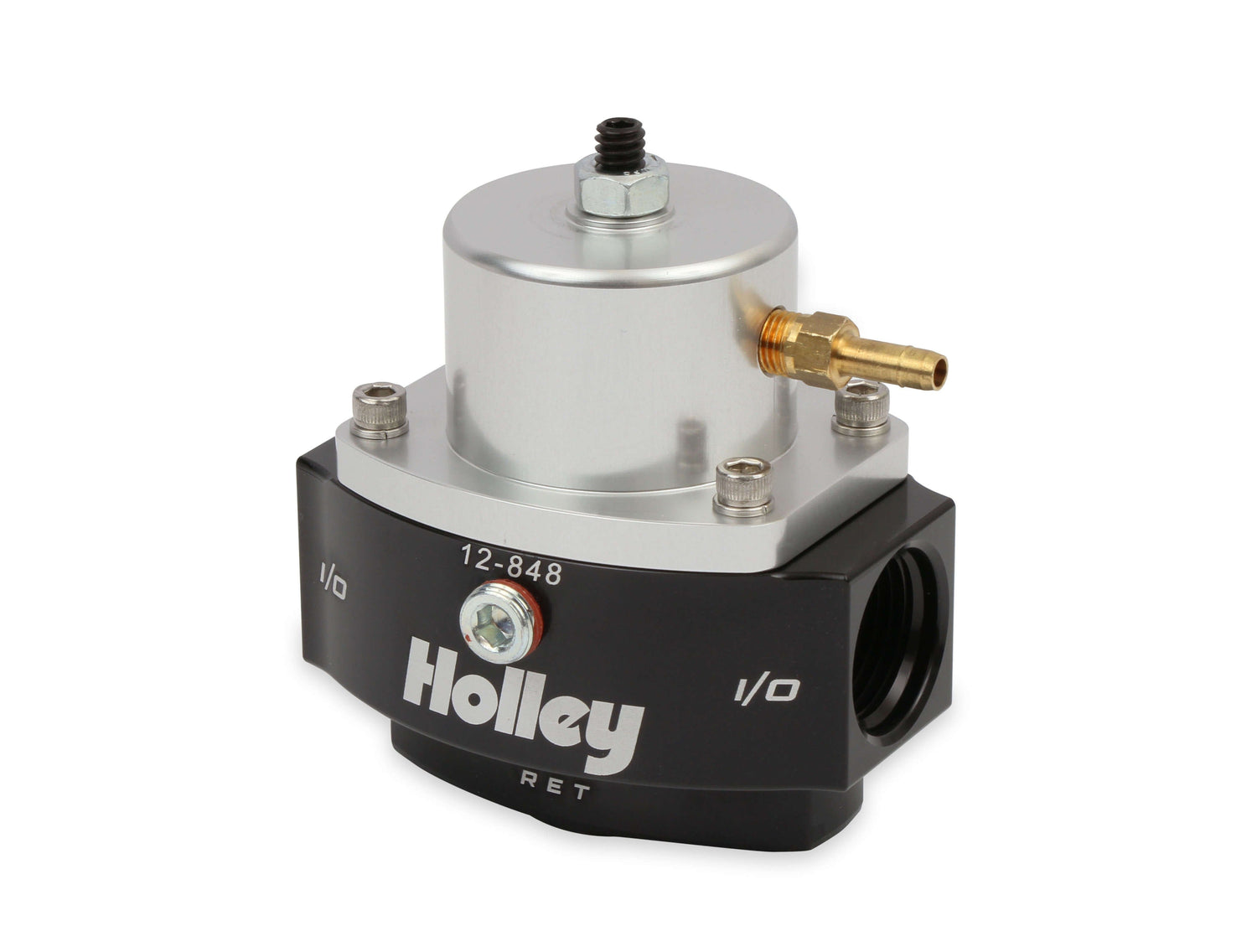

Holley 12-848 Dominator Billet EFI By Pass Fuel Pressure Regulator

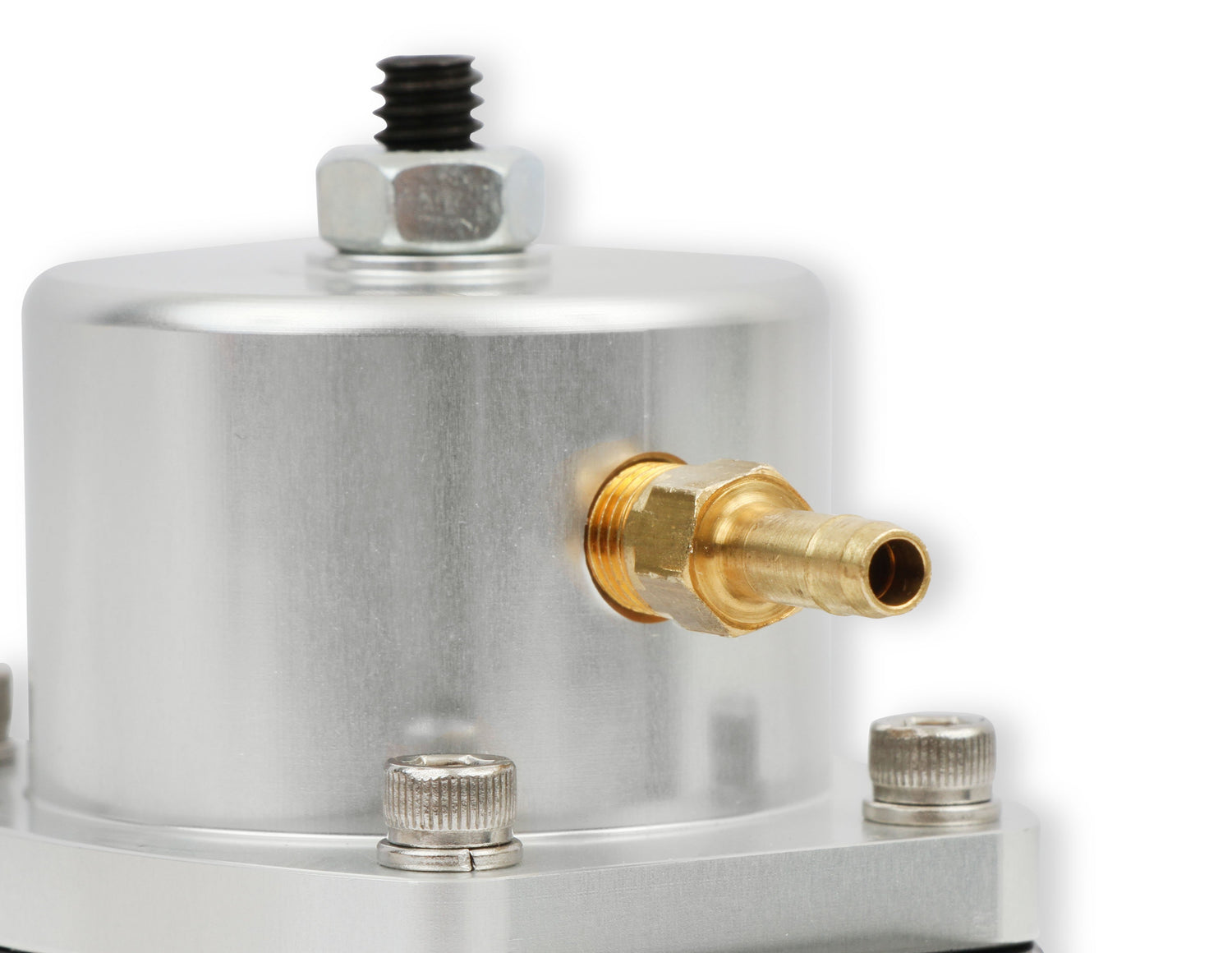

Hot Street/Race EFI Applications Two Port Adjustable from 15 to 65 PSI Boost reference - 1:1
Regular price
$532.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-848 Dominator Billet EFI By Pass Fuel Pressure Regulator is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Hot Street/Race EFI Applications Two Port Adjustable from 15 to 65 PSI Boost reference - 1:1
Part Number: 12-848

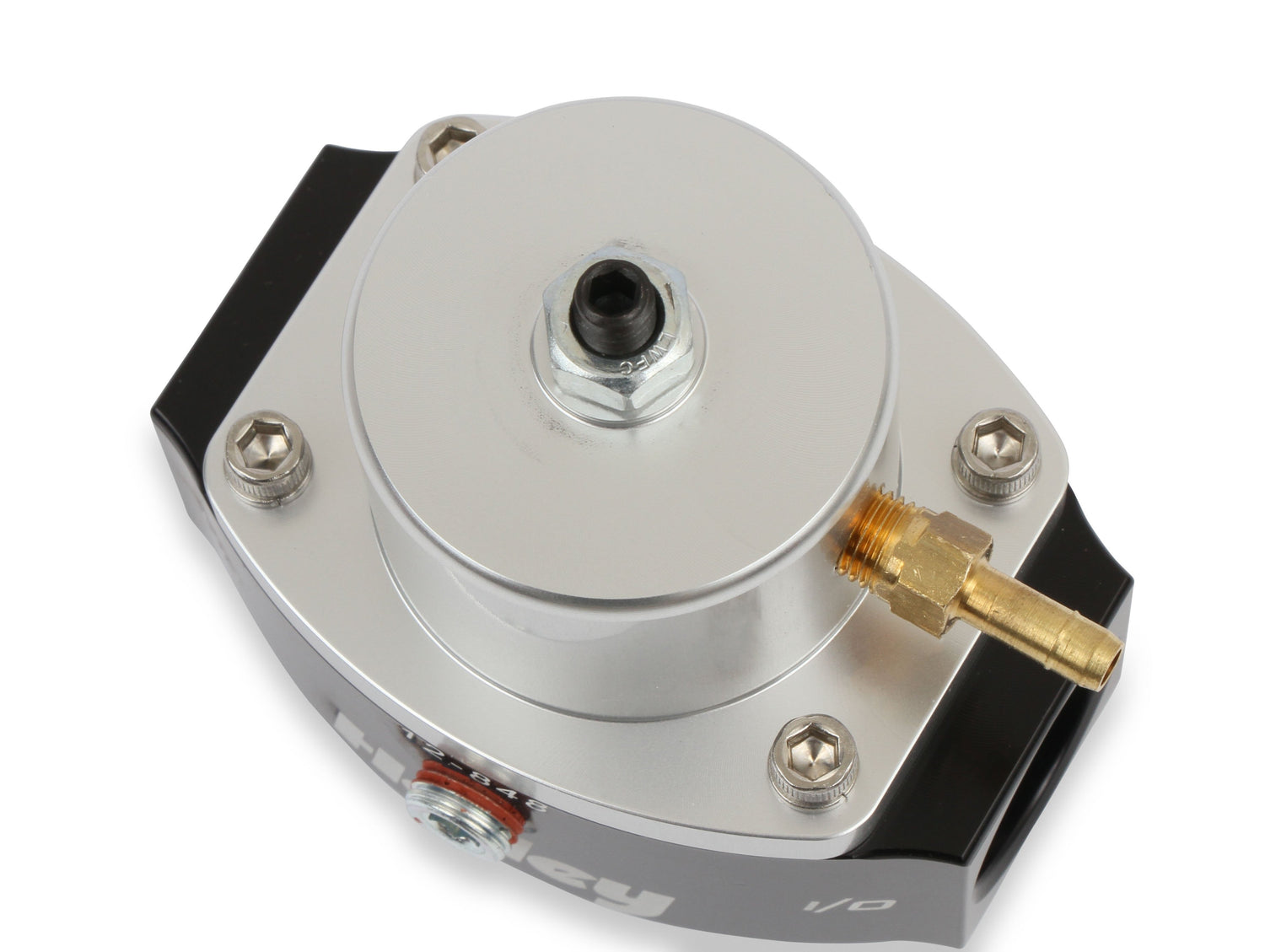

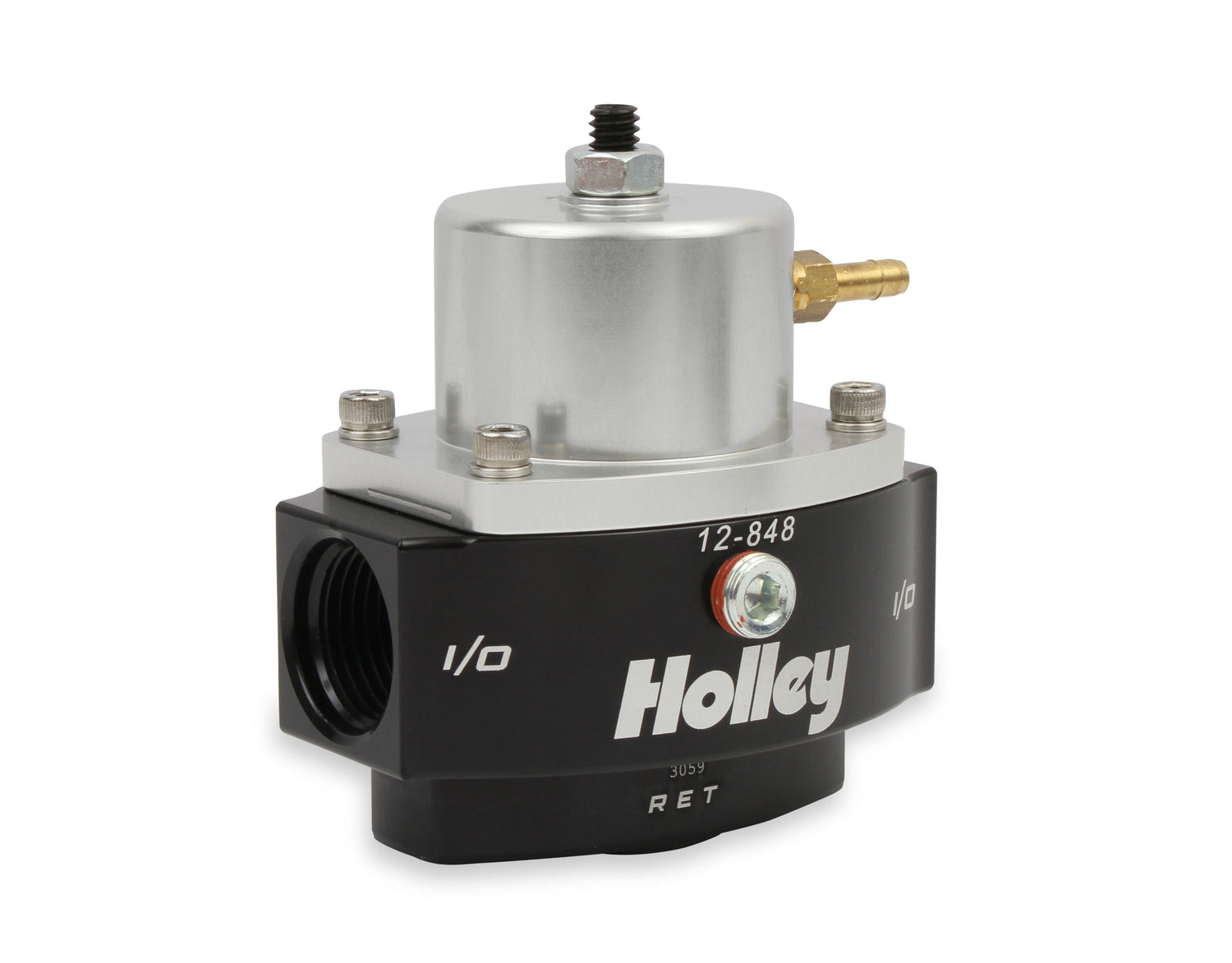

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-848 fuel pressure regulator features(1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.
Features and Benefits
• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems with a return line back to tank
• Use with electric pumps only

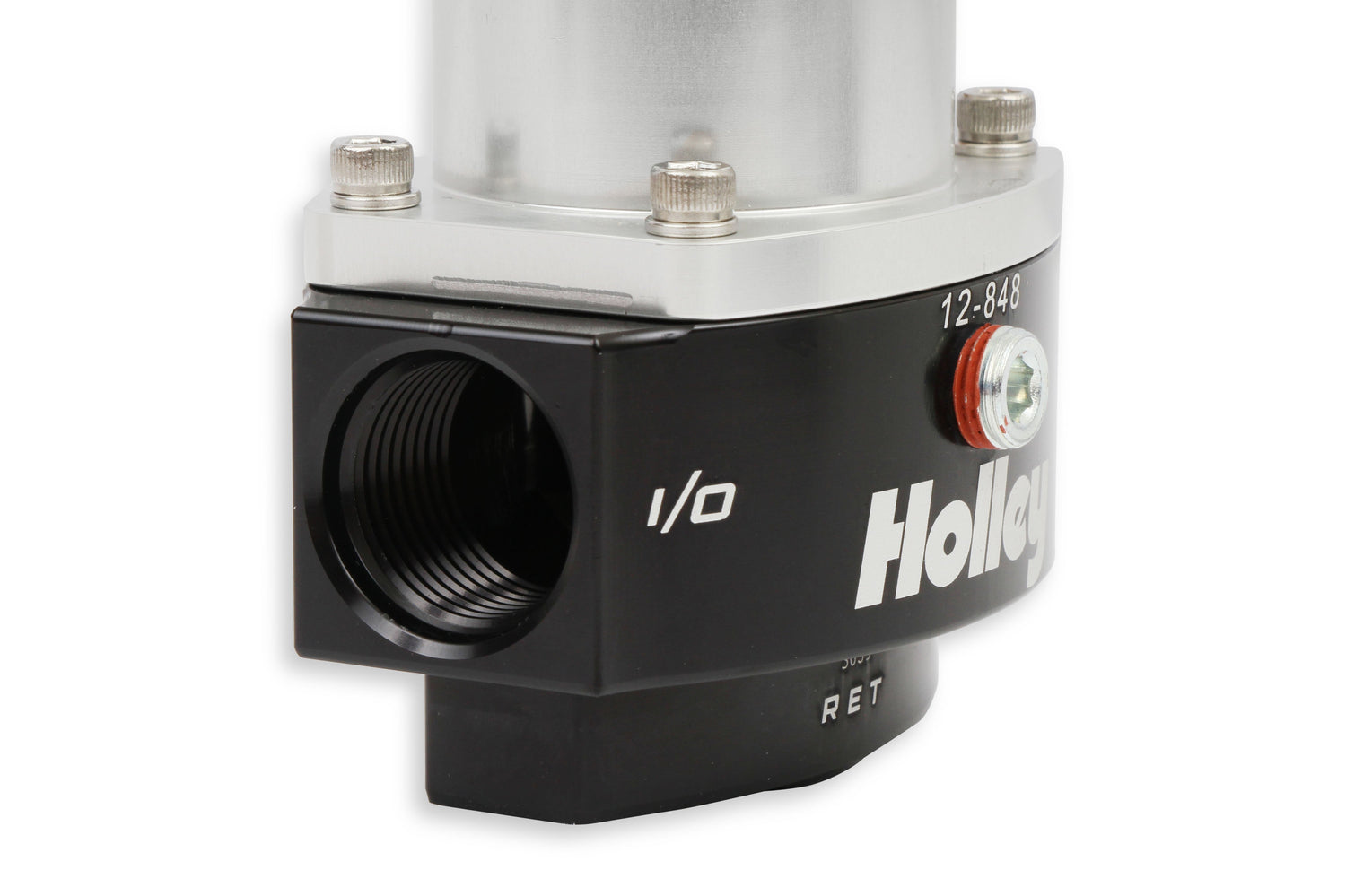

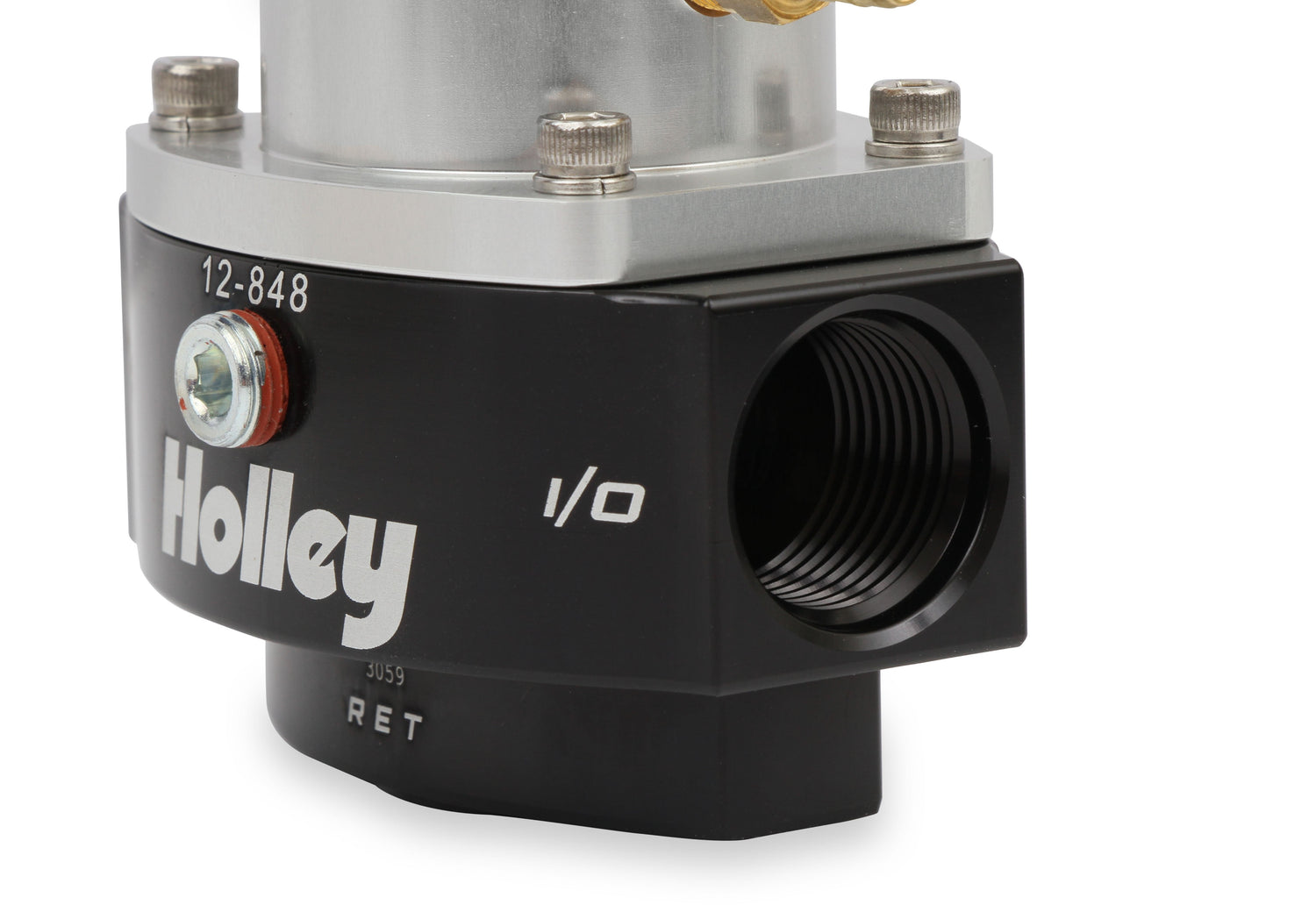

• (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return

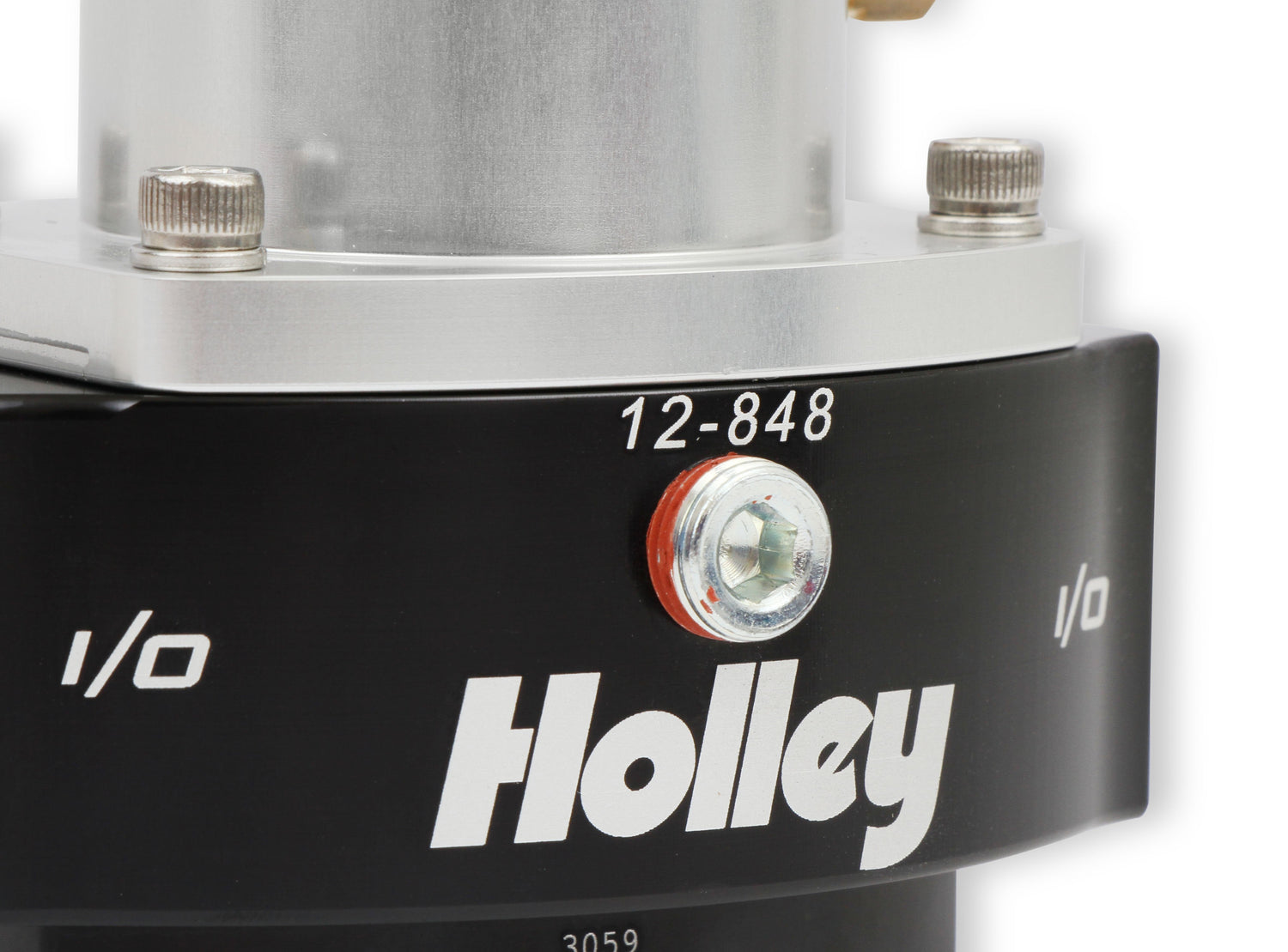

• 1/8" NPT gauge port
• Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed

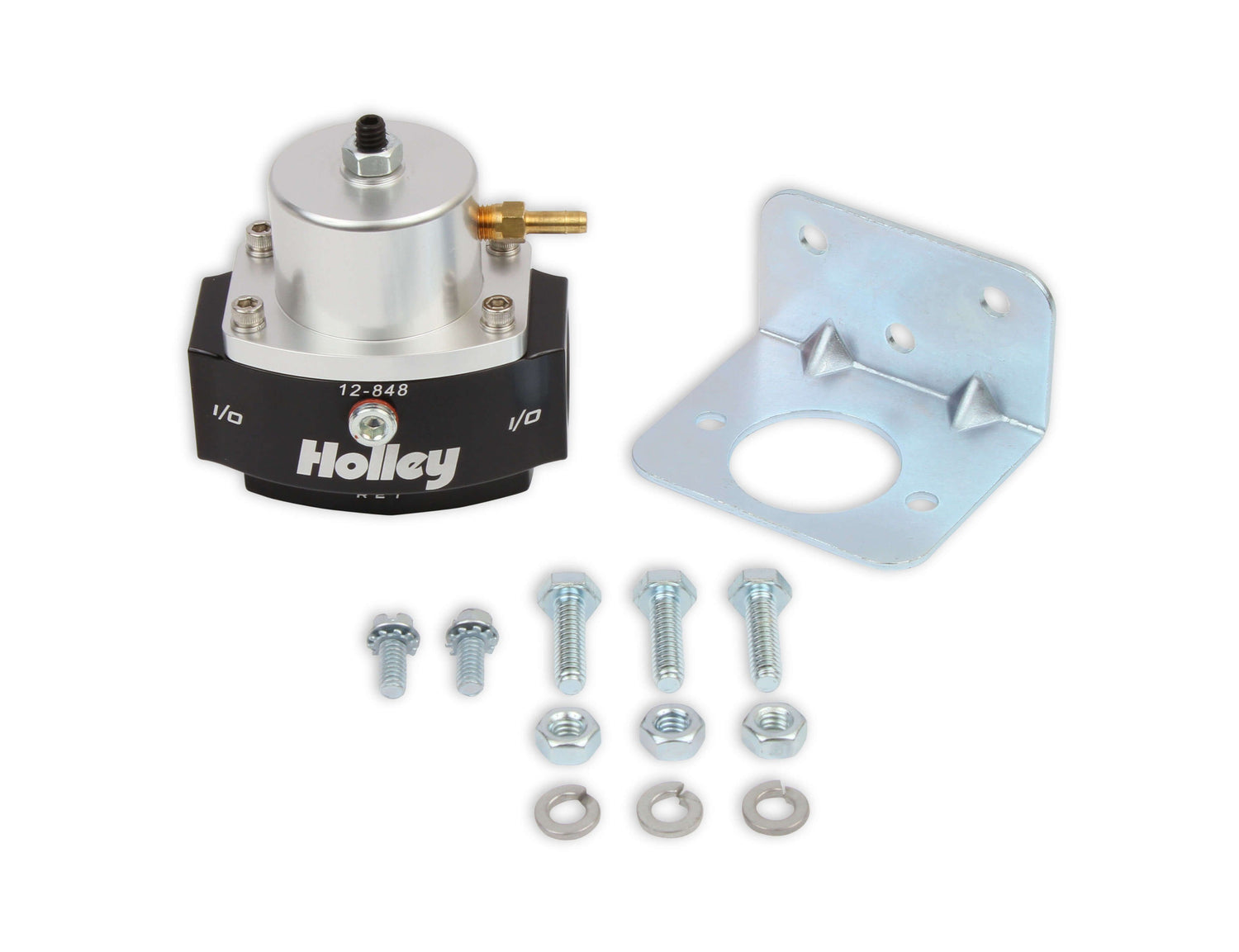

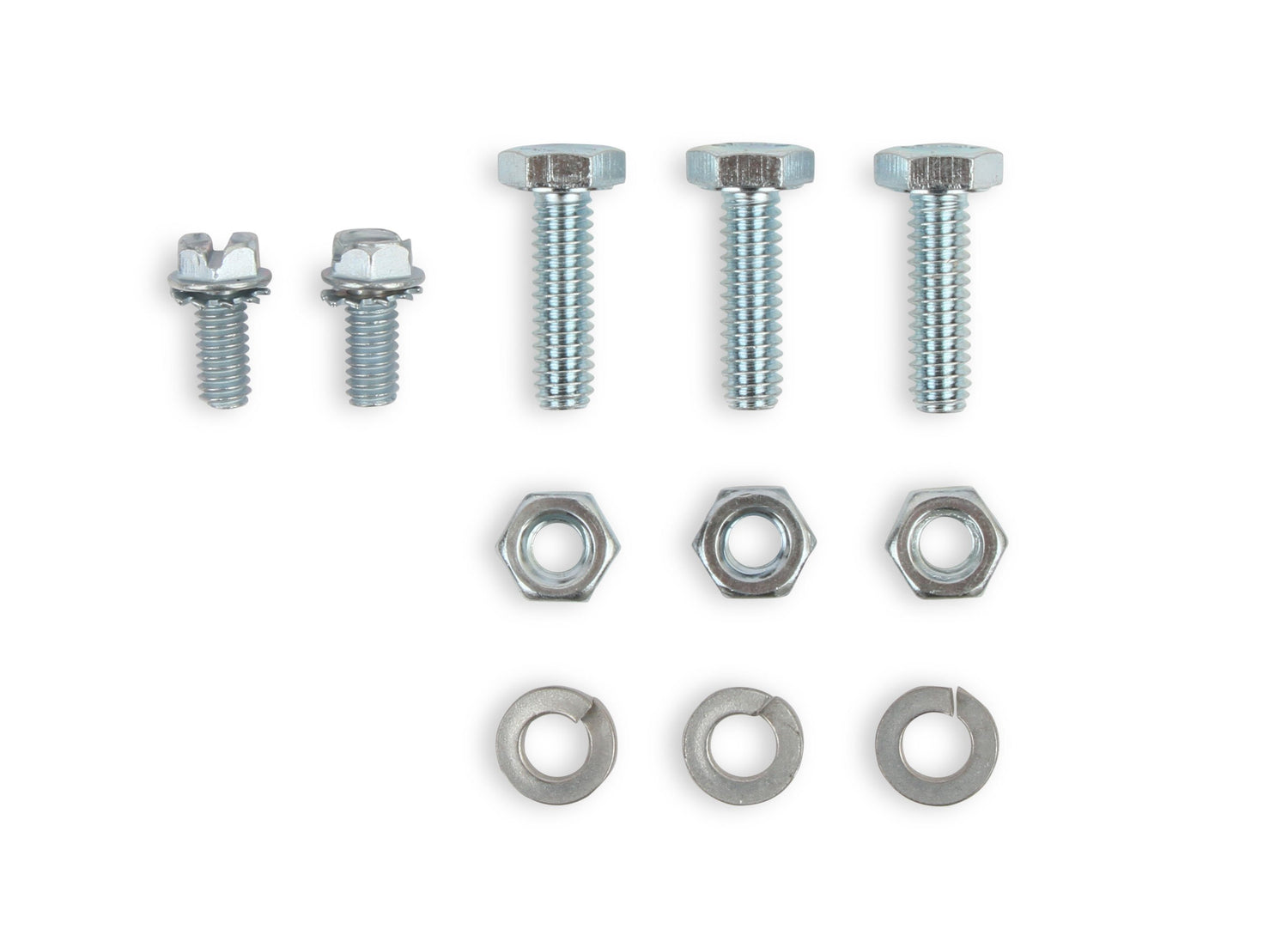

• Mounting bracket included
Part Number: 12-848
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-848 fuel pressure regulator features(1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.
Features and Benefits
• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems with a return line back to tank
• Use with electric pumps only
• (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return
• 1/8" NPT gauge port
• Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed
• Mounting bracket included
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Black Anodized Emission Code 5 Fuel System EFI Fuel Type Diesel Fuel Type Gasoline Gauge Included No Gauge Port Yes Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter -10AN Inlet Port Quantity 1 Inlet Quantity 1 Inlet Size 10 AN O-ring Inlet Type 10 AN ORB Material Aluminum Maximum Pressure 60 PSI Minimum Pressure 15 PSI Mounting Bracket Included Yes Mounting Hardware Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter -10AN Outlet Port Quantity 1 Outlet Quantity 1 Outlet Size 10 AN O-ring Outlet Type 10 AN ORB part type Fuel Pressure Regulator Port Quantity 3 Pressure Range 15-65 PSI Pressure Rating 15-60 PS Product Type Fuel Pressure Regulator Rebuildable Yes Return Size 8 AN O-Ring Style Bypass Vacuum Port Quantity 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
