Holley EFI | SKU:
12-846KIT
Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-846KIT
15-65 PSI - Fittings and Gauge Included
Regular price
$721.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-846KIT
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
15-65 PSI - Fittings and Gauge Included
Part Number: 12-846KIT

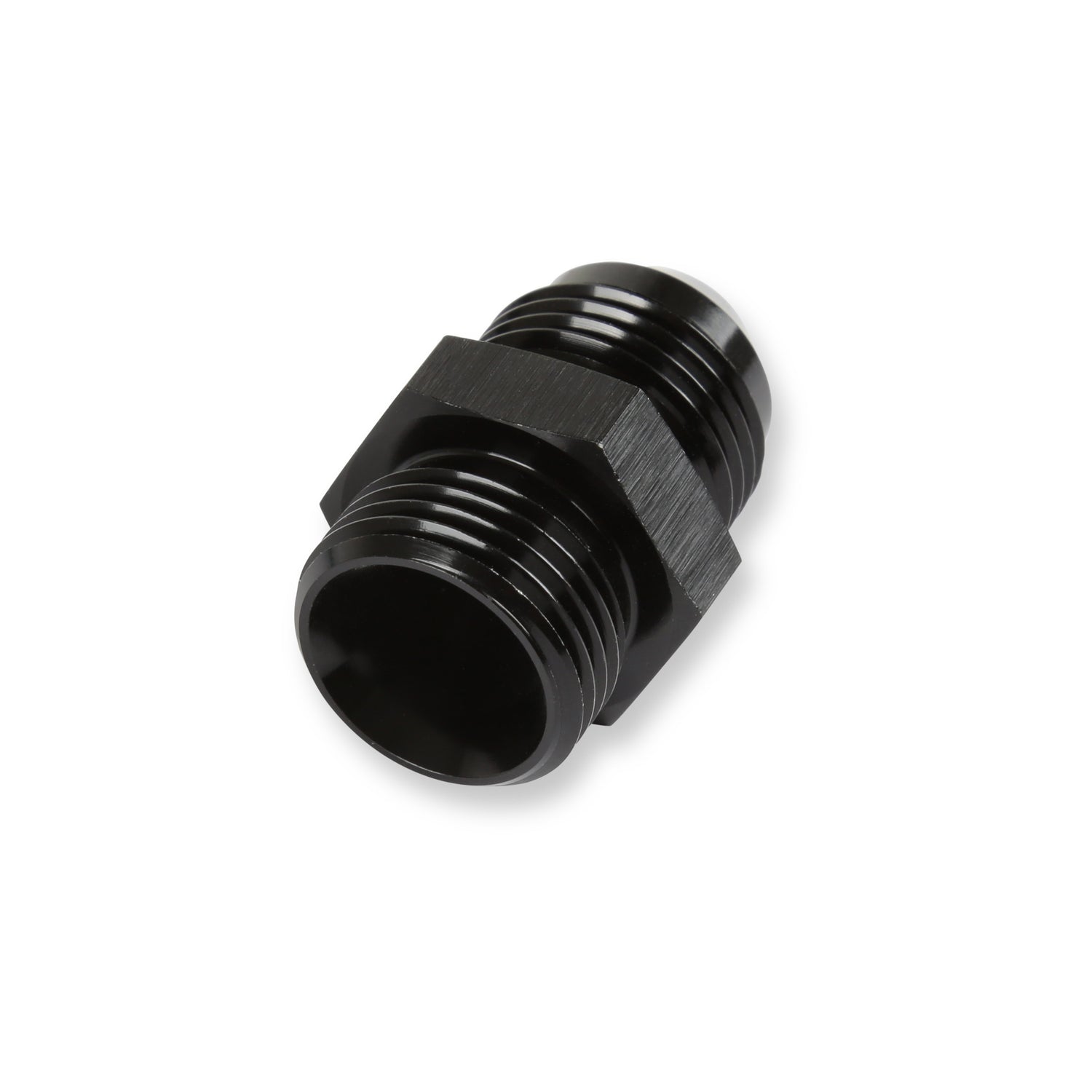

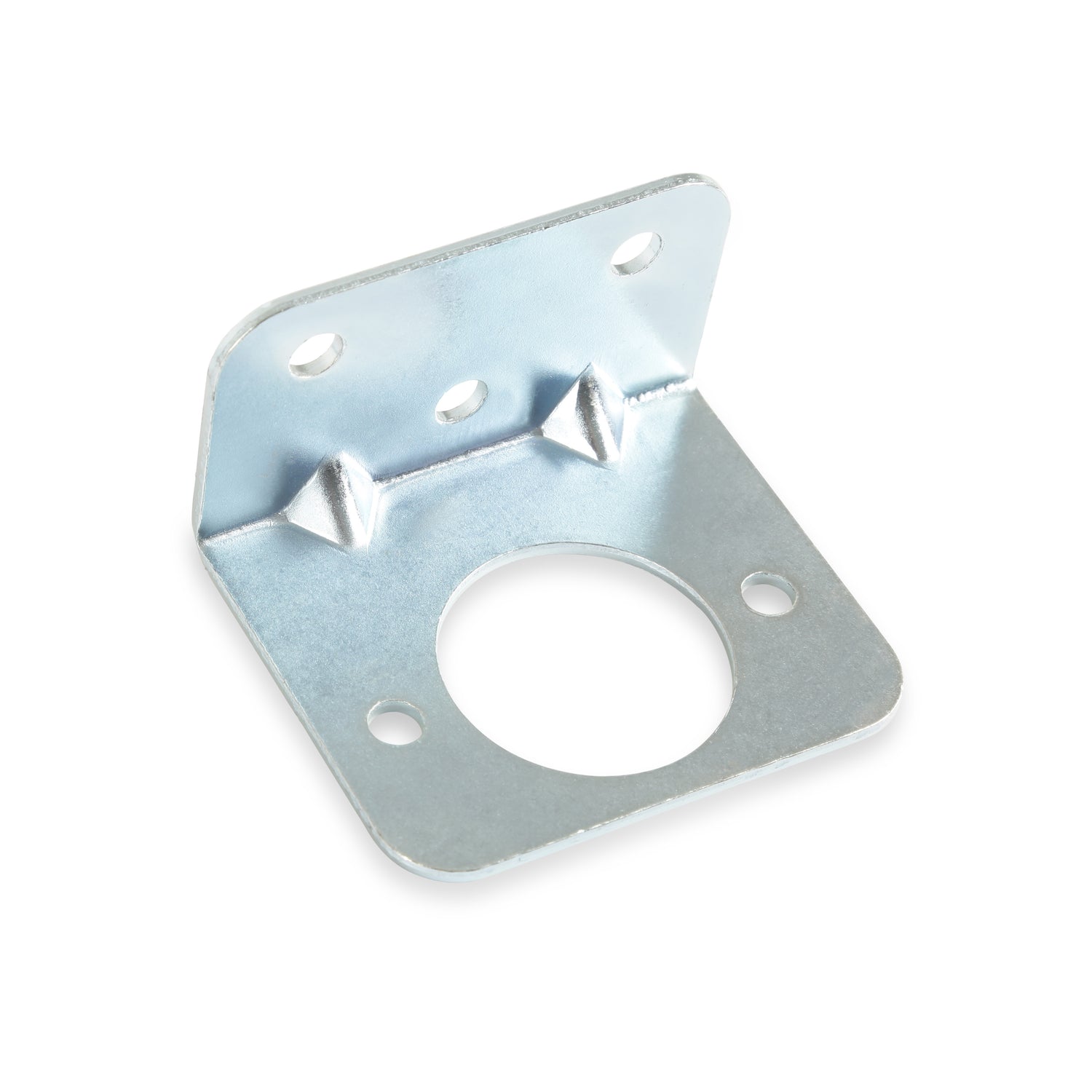

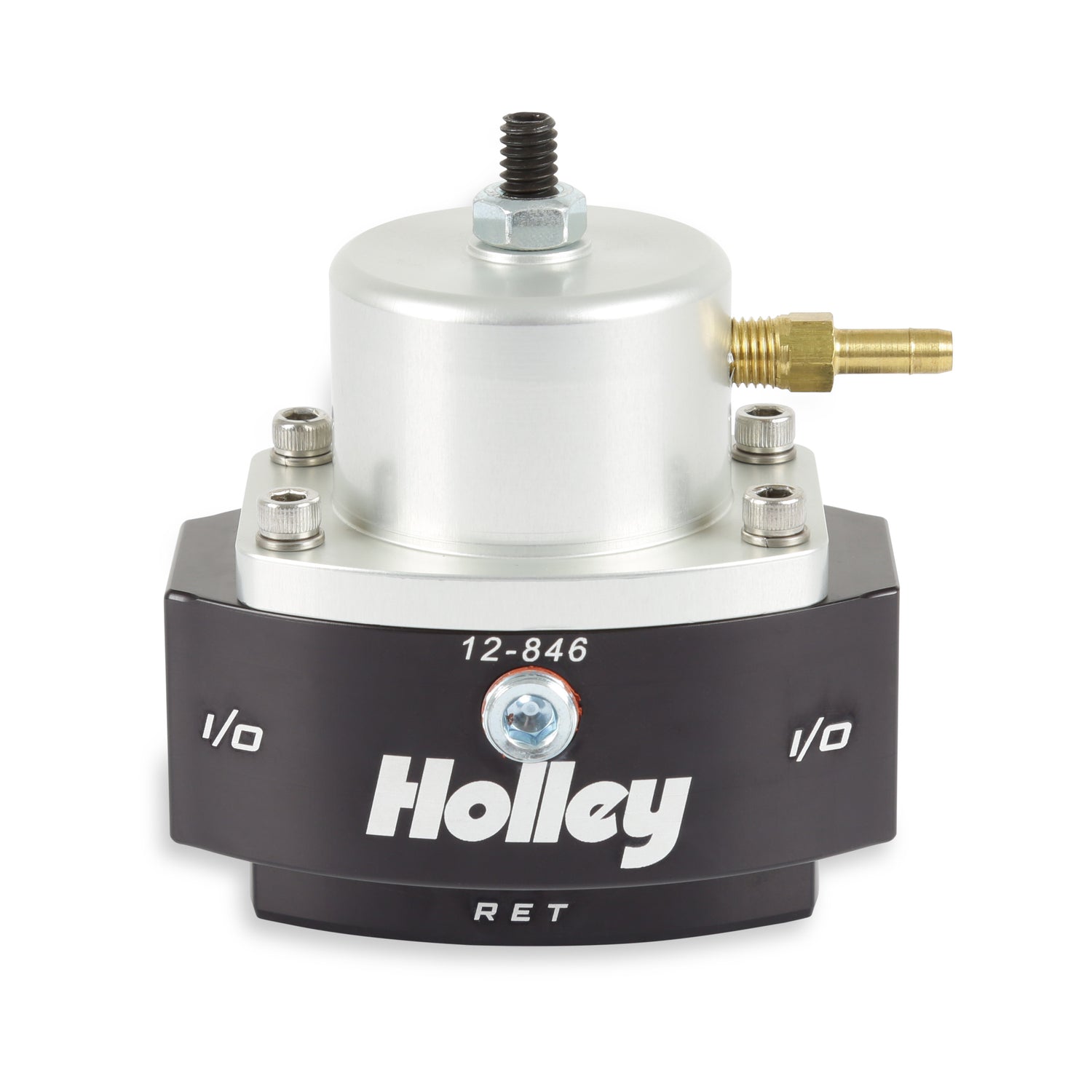

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port

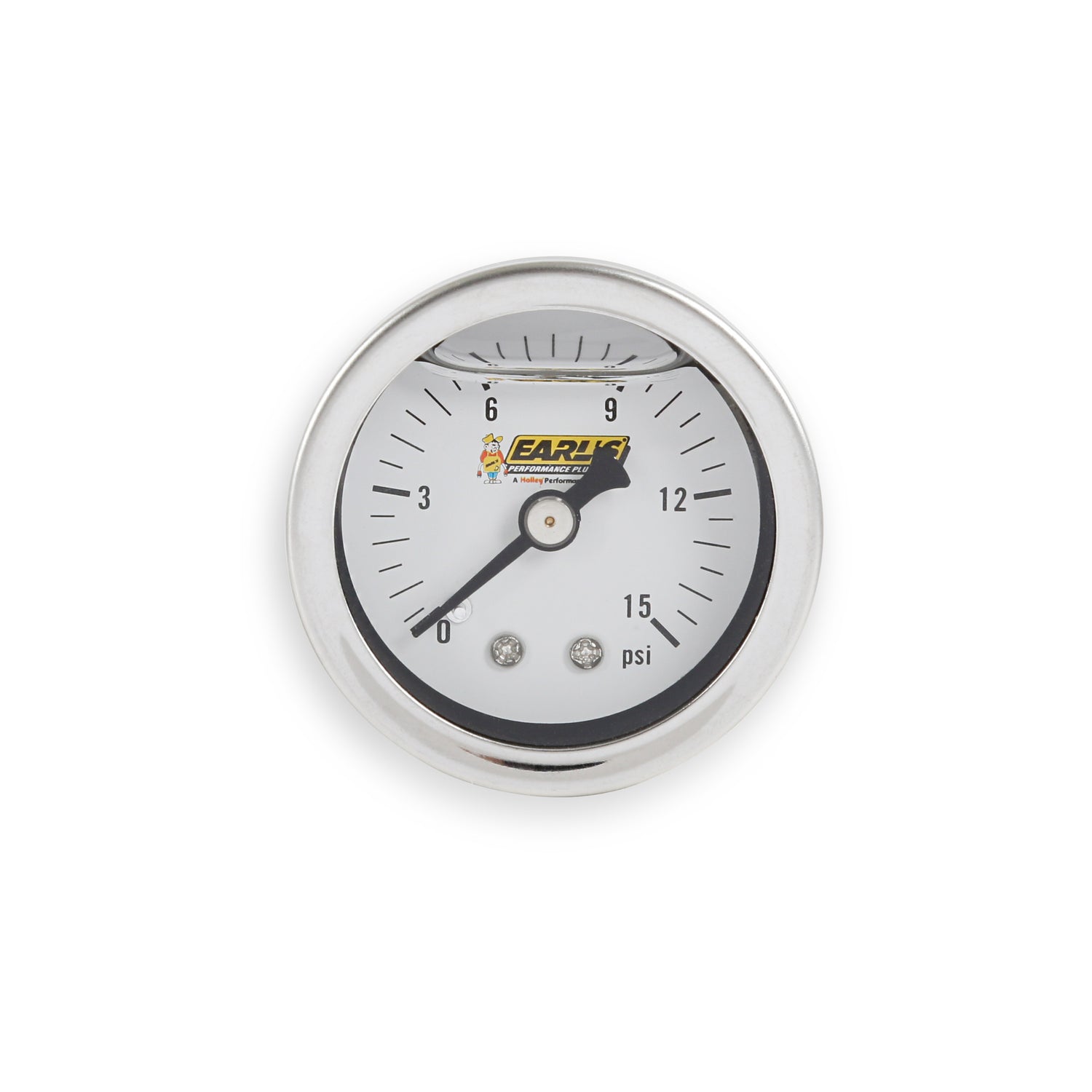

• 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting
• Mounting Bracket Included
Part Number: 12-846KIT
Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port
• 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting
• Mounting Bracket Included
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley EFI Category Air and Fuel Delivery Color Black Emission Code 5 Fuel Pressure Range 15-65 PSI Fuel System EFI Fuel System Type EFI Fuel Type Gasoline Gauge Port Yes Grade Type Performance Inlet Port Diameter 8 ORB Inlet Quantity 1 Inlet Size 8 ORB Inlet Type ORB Material Aluminium Mounting Hardware Included Yes Mounting Type Bolt On Outlet Port Diameter 8 ORB Outlet Quantity 2 Outlet Size 8 ORB Outlet Type ORB part type Fuel Injection Pressure Regulator Port Quantity 4 Pressure Range 15-65 PSI Product Type Fuel Pressure Regulator Return Size 6 ORB Style Bypass Sub Category Fuel Injection System and Related Components Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty
