Holley | SKU:
12-842

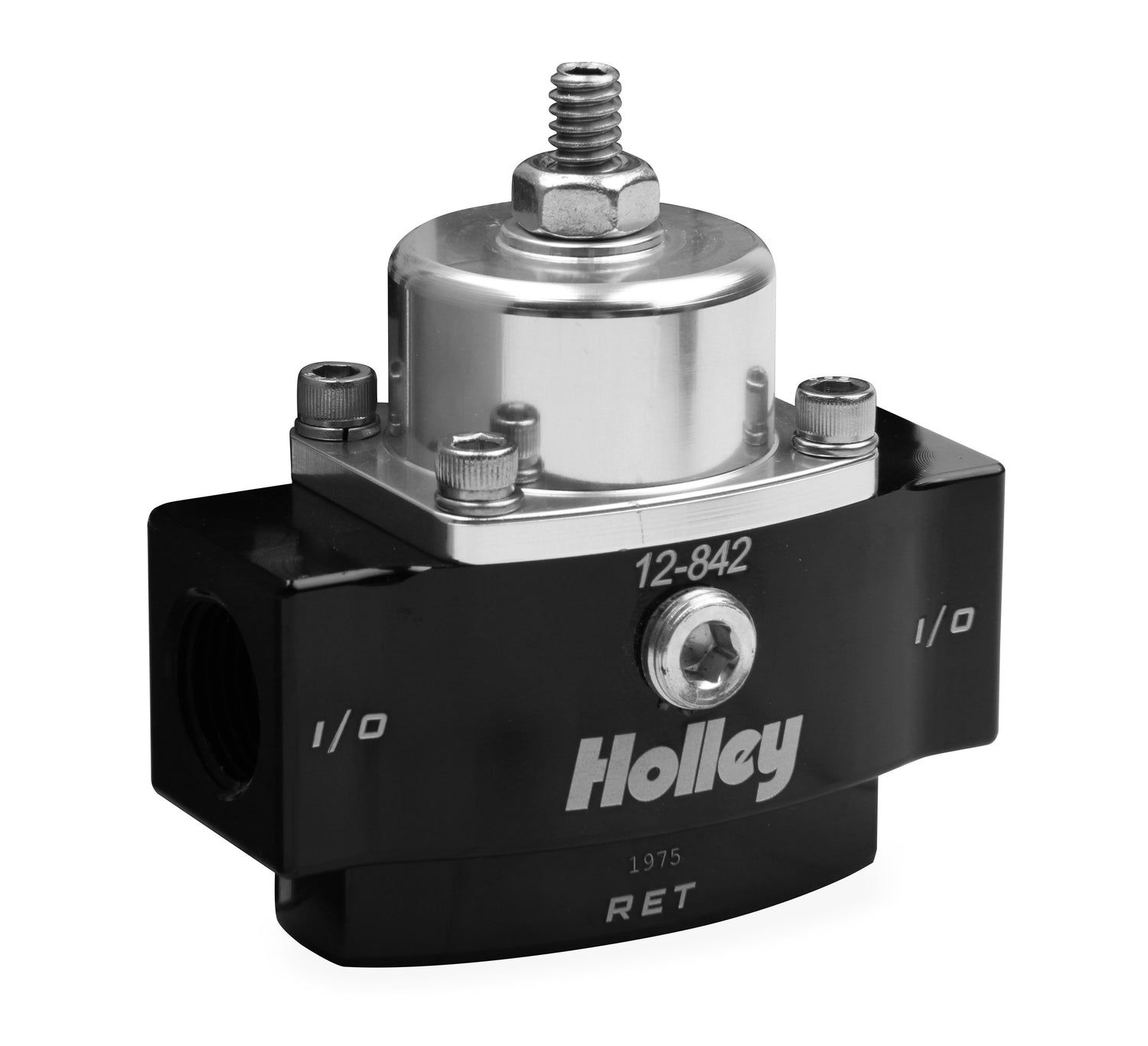

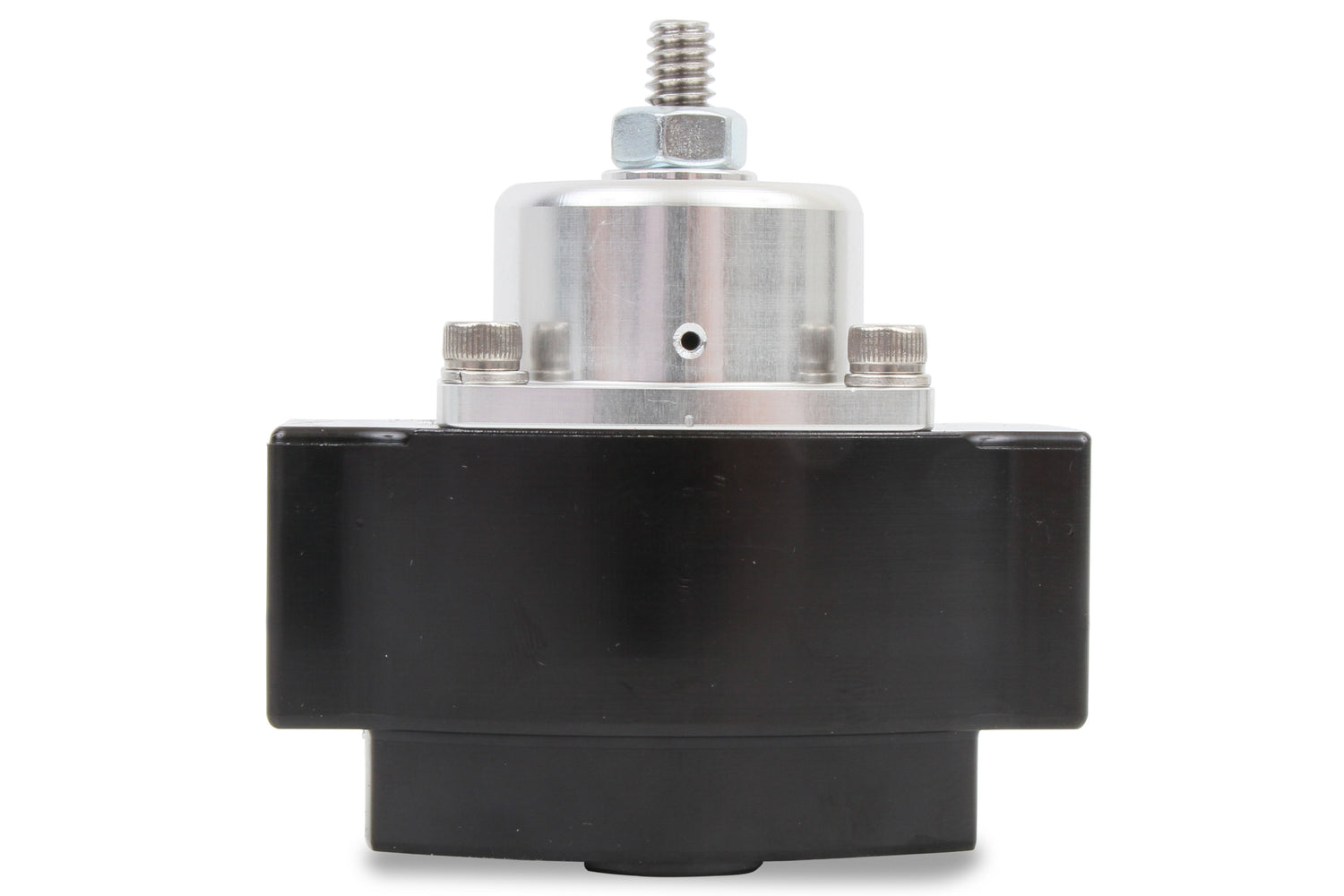

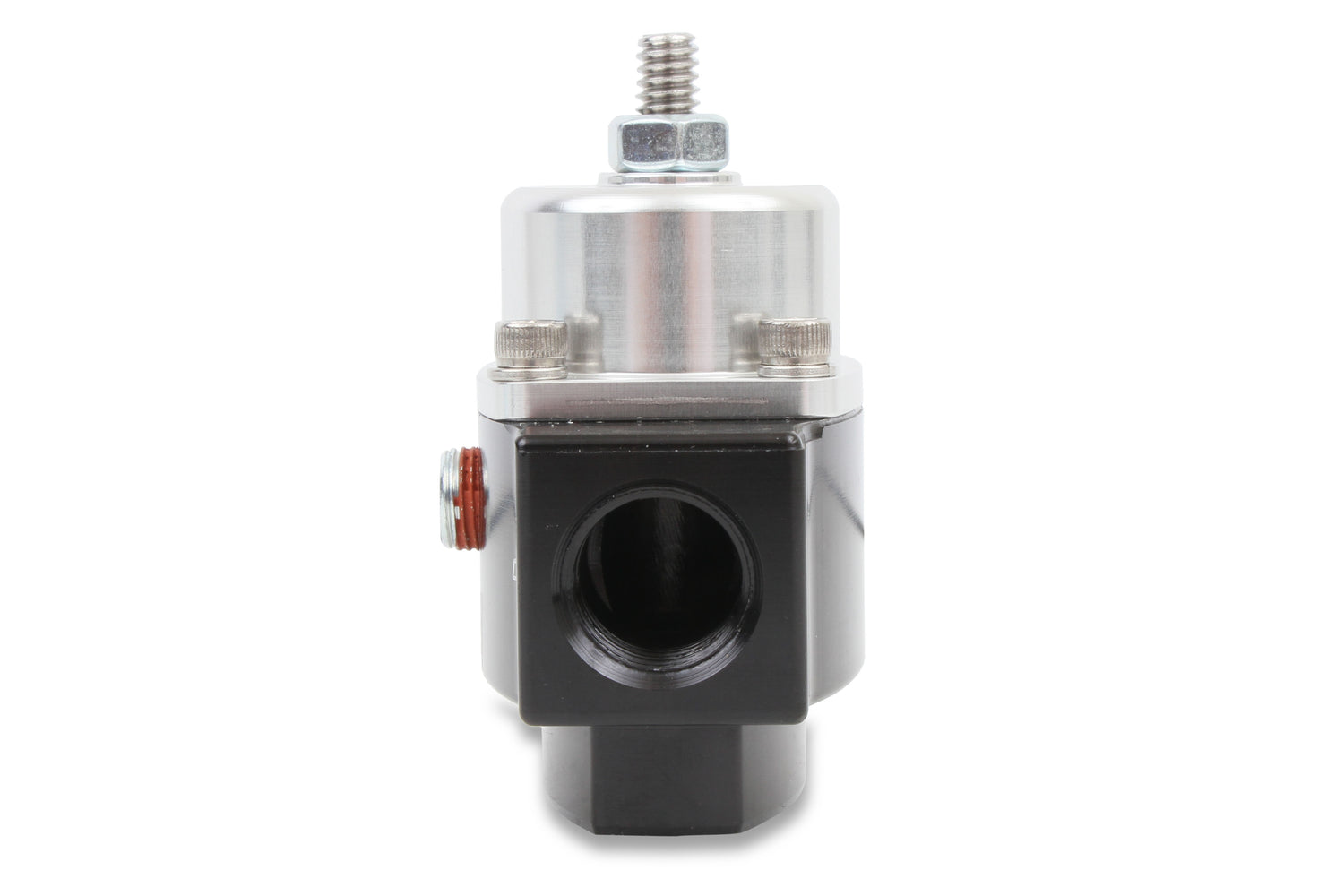

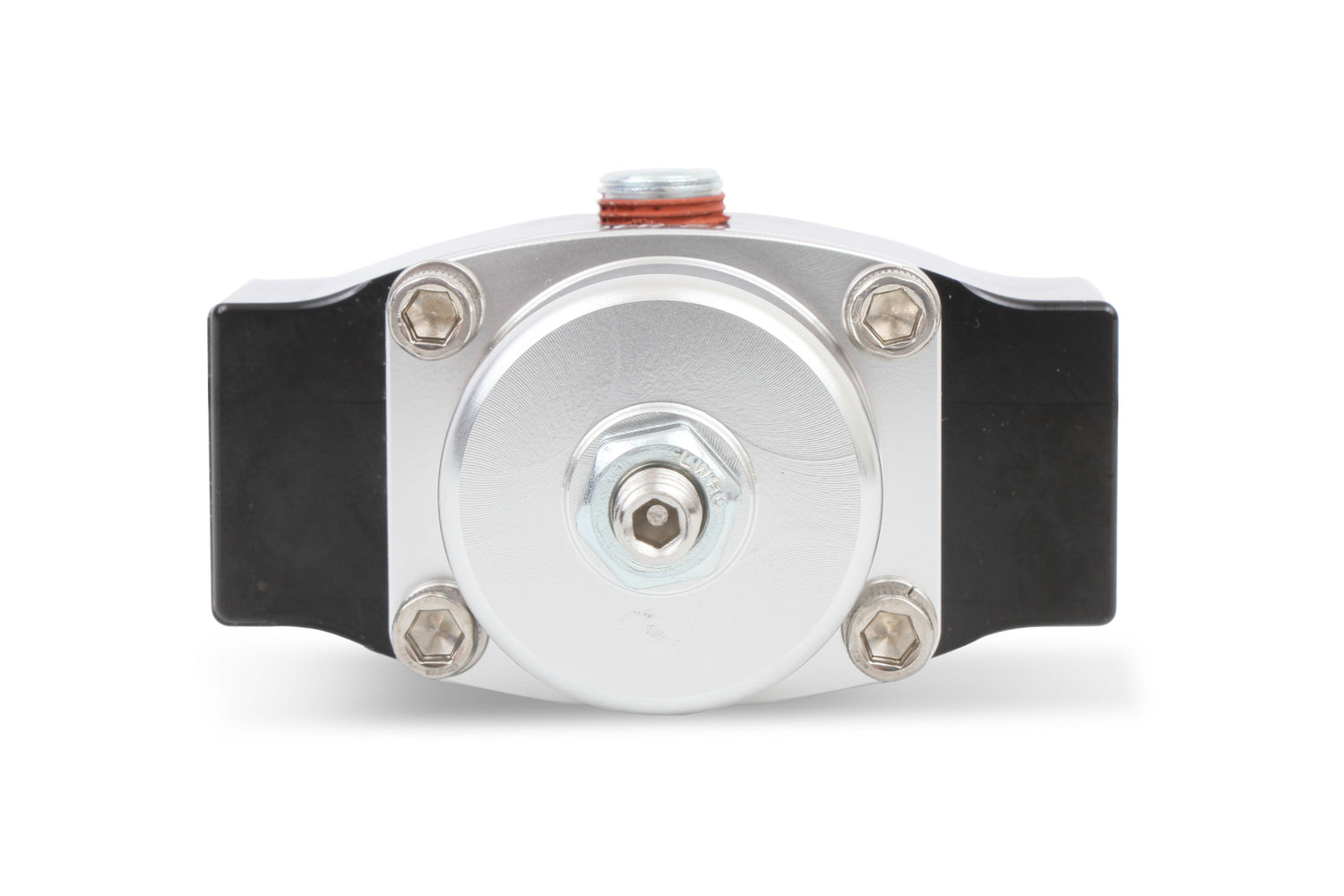

Holley 12-842 HP Billet Carbureted By Pass w/ Idle Bleed Fuel Pressure Regulator
Street/Strip Carbureted Applications _x000D_Two Port_x000D_Adjustable from 4.5 to 9 PSI with Idle bleed
Regular price
$370.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-842 HP Billet Carbureted By Pass w/ Idle Bleed Fuel Pressure Regulator is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Street/Strip Carbureted Applications _x000D_
Two Port_x000D_
Adjustable from 4.5 to 9 PSI with Idle bleed
Part Number: 12-842
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-842 fuel pressure regulator features 3/8" NPT in/out ports and a 3/8 NPT return port.
Features and Benefits
• Adjustable from 4.5-9 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Utilizes a idle bleed for precise control of idle pressure
• Used in systems with a return line back to tank

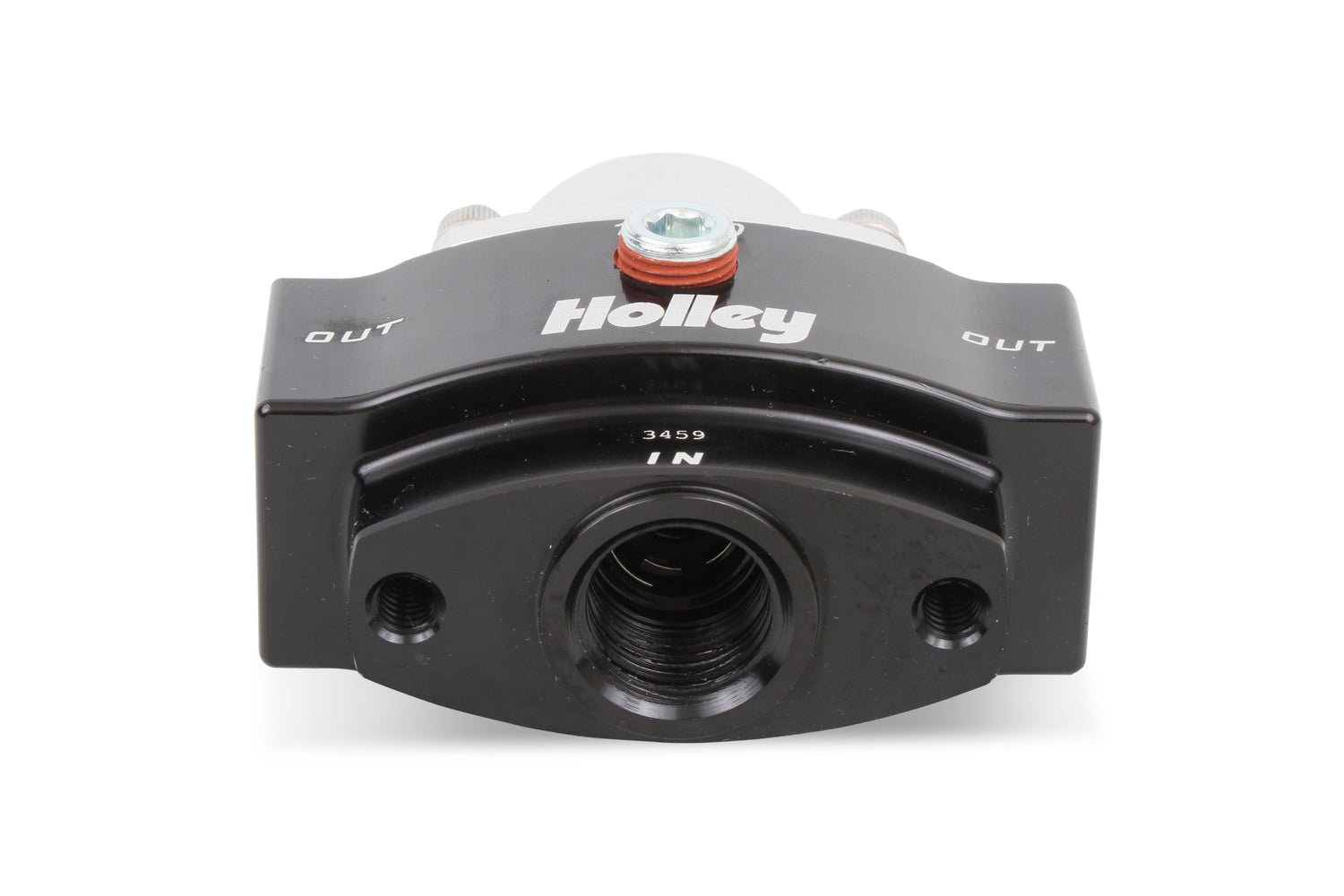

• One 3/8" NPT inlet, one 3/8" NPT outlet and one 3/8" NPT return (or bypass)
• 1/8" NPT gauge port
• Comparable and interchangeable with popular Holley® 12-803BP regulator

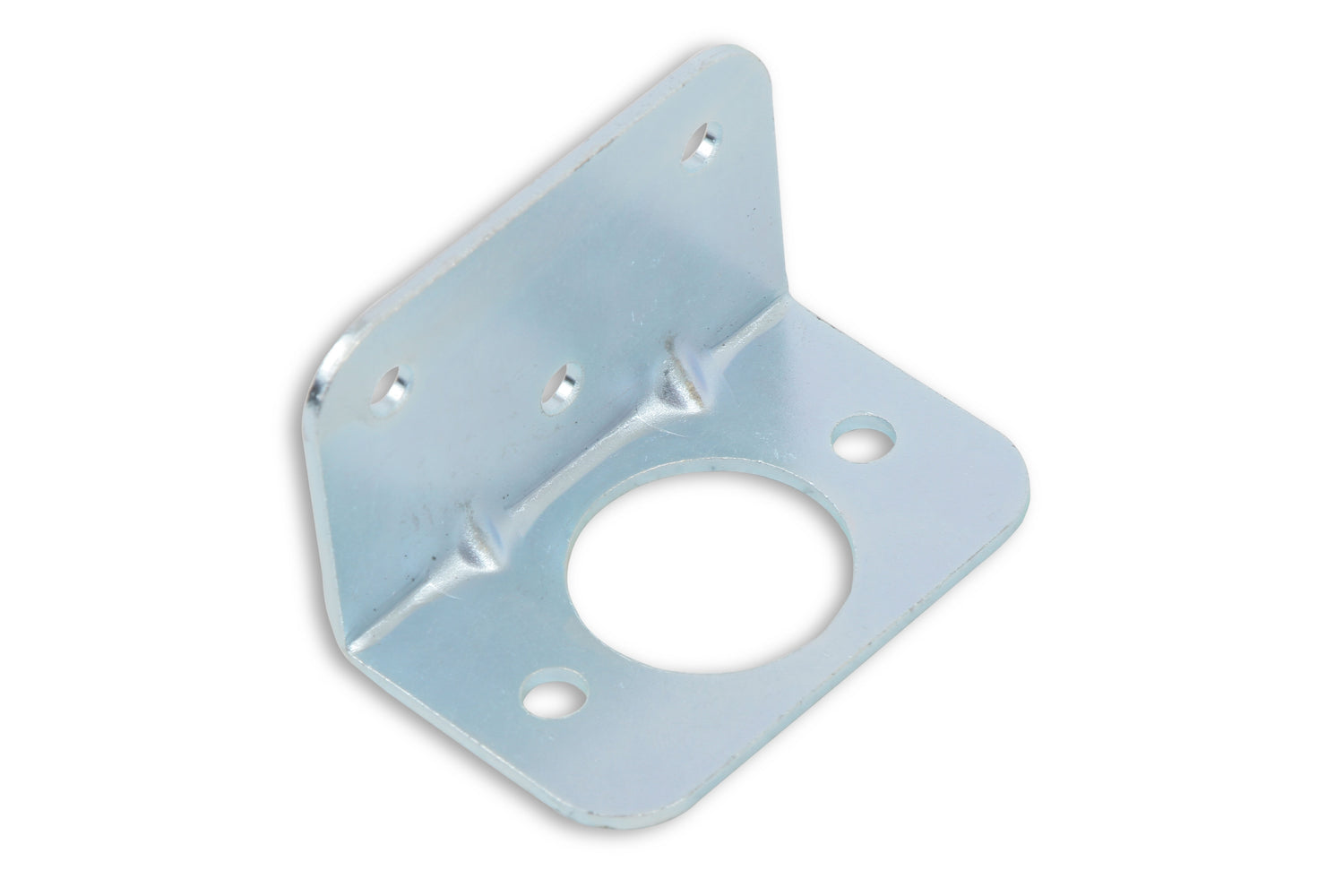

• Mounting bracket included
Part Number: 12-842
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-842 fuel pressure regulator features 3/8" NPT in/out ports and a 3/8 NPT return port.
Features and Benefits
• Adjustable from 4.5-9 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Utilizes a idle bleed for precise control of idle pressure
• Used in systems with a return line back to tank
• One 3/8" NPT inlet, one 3/8" NPT outlet and one 3/8" NPT return (or bypass)
• 1/8" NPT gauge port
• Comparable and interchangeable with popular Holley® 12-803BP regulator
• Mounting bracket included
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Black Anodized Emission Code 5 Fuel System Carbureted Fuel Type Gasoline/Alcohol Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 3/8 Inlet Port Quantity 1 Inlet Size 3/8 inch NPT Inlet Type NPT Material Aluminum Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 3/8 Outlet Port Quantity 2 Outlet Size 3/8 inch NPT Outlet Type NPT part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 4.5-9 PSI Product Type Fuel Pressure Regulator Rebuildable Yes Return Size 3/8 inch NPT Style Bypass Sub Category Carburetion Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
