Holley | SKU: 12-840KIT

Holley 12-840KIT Billet Bypass Fuel Pressure Regulator Kit

Name: Holley 12-840KIT Billet Bypass Fuel Pressure Regulator Kit
Brand: Holley
SKU: 12-840KIT
Price: 665.2 NZD
Availability: InStock

4.5-9 Psi - Fittings and Gauge Included

$665.20 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

4.5-9 Psi - Fittings and Gauge Included

Part Number: 12-840KIT

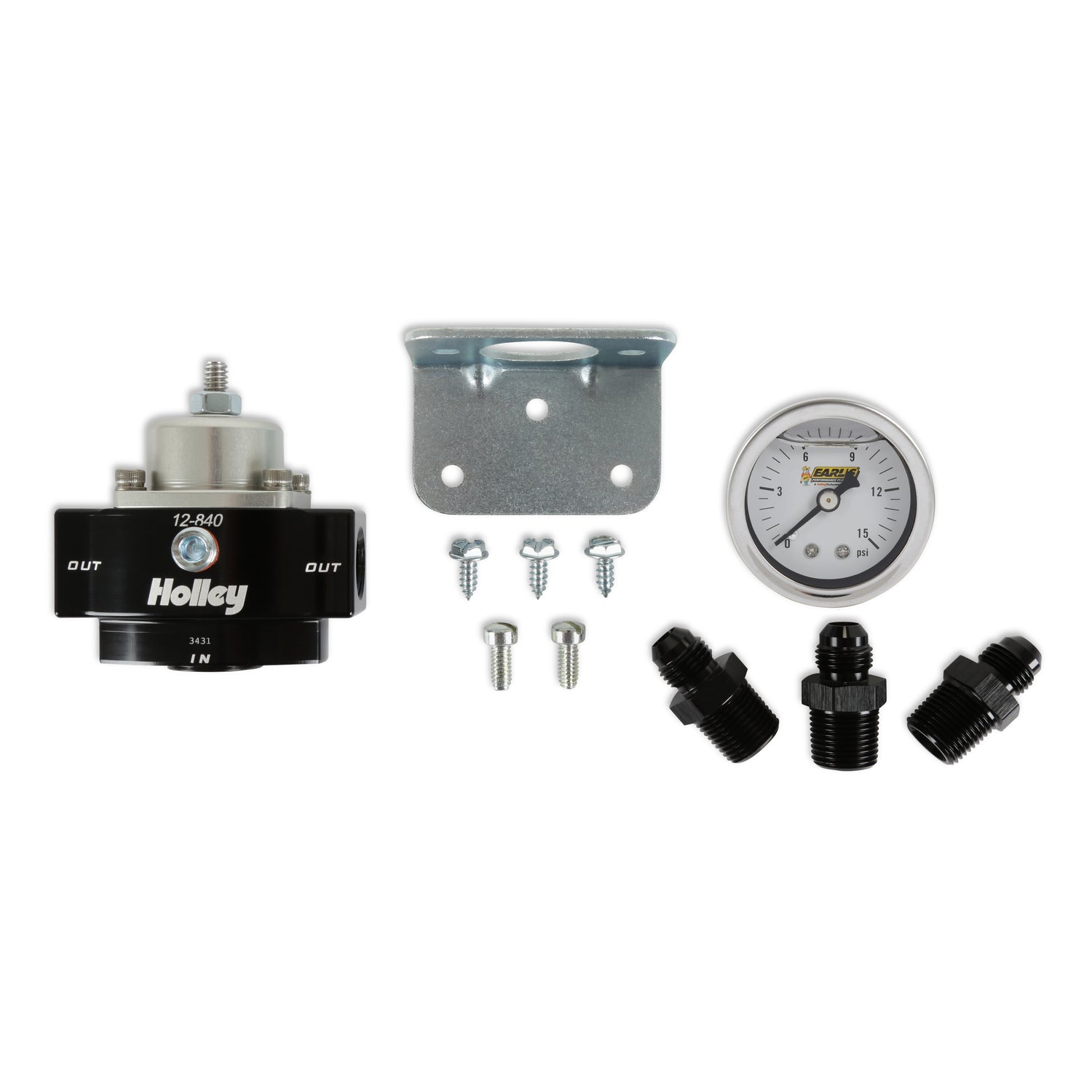

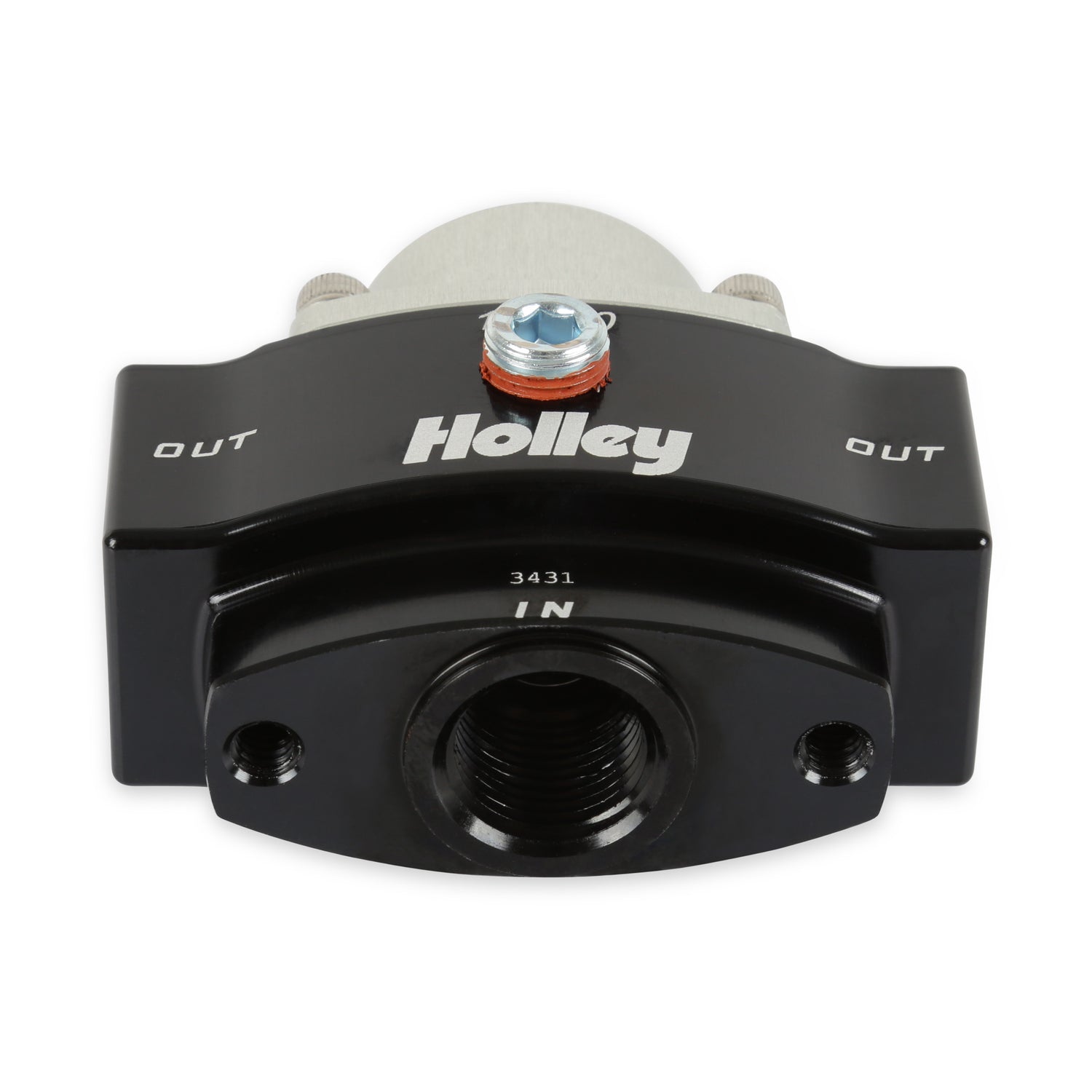

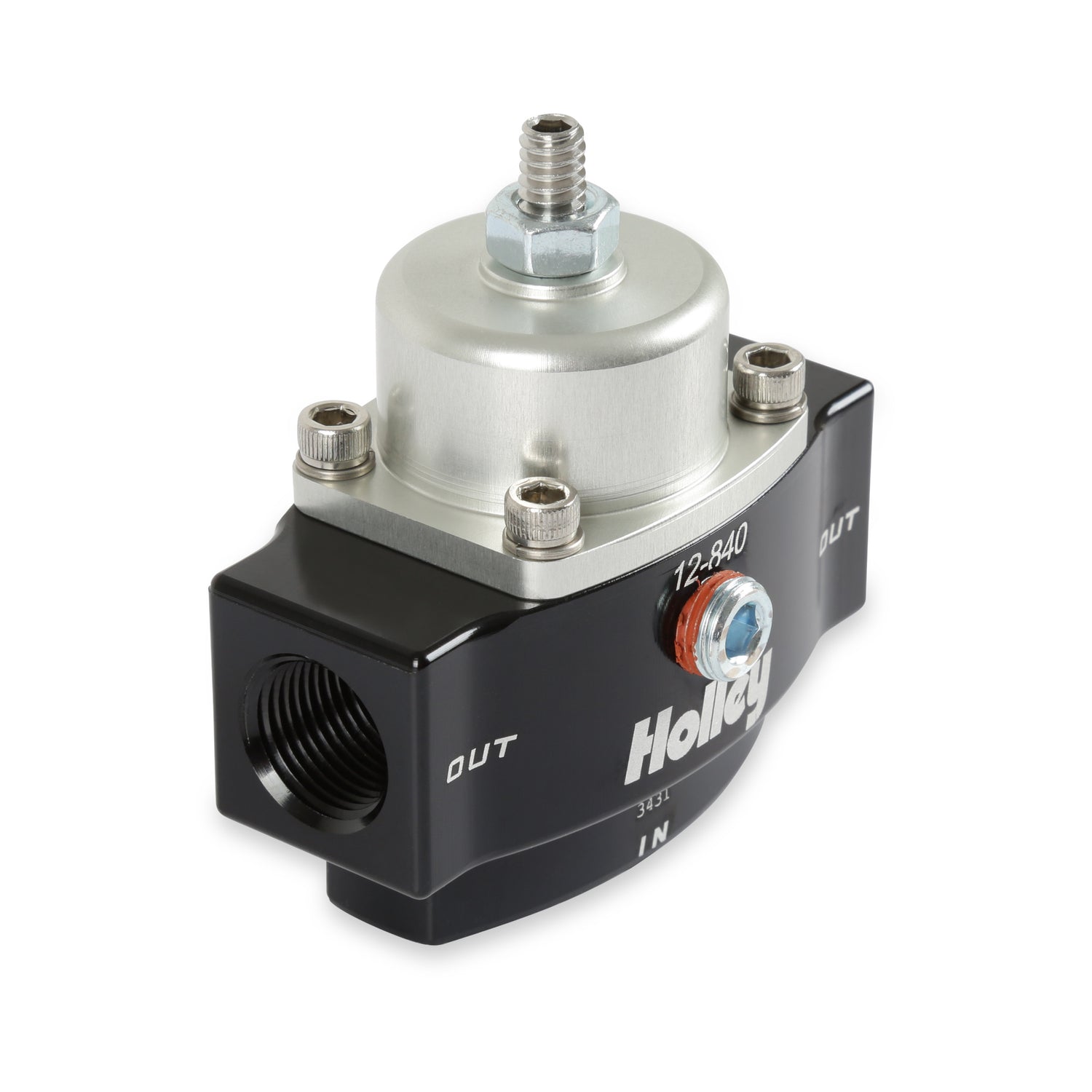

Holley Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-840 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 1/8" NPT gauge port. In addition, 3 Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features and Benefits

• Adjustable from 4.5-9 psi for precise fuel pressure adjustments
• 3/8” NPT Inlet, Outlet Ports

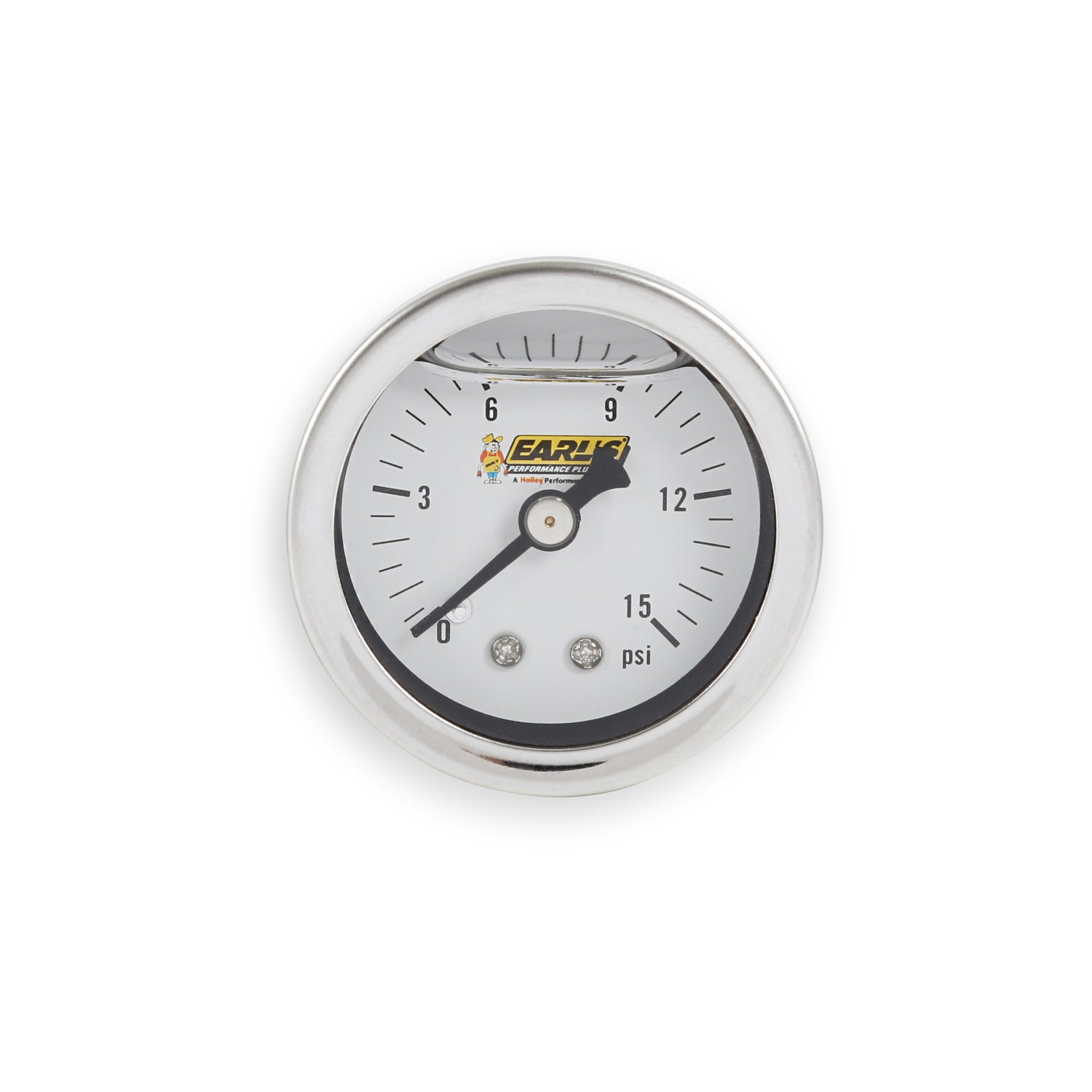

• 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
• Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)
• Mounting Bracket Included

Specifications

Adjustable	Yes
Brand	Holley
Category	Air and Fuel Delivery
Color	Black
Emission Code	5
Fuel System	Carbureted
Fuel Type	Gasoline
Gauge Port	Yes
Grade Type	Performance
Inlet Port Diameter	3/8
Inlet Quantity	1
Inlet Size	3/8 inch NPT
Inlet Type	NPT
Material	Aluminium
Maximum Pressure Reading	15
Mounting Hardware Included	Yes
Mounting Type	Inline
Outlet Port Diameter	3/8
Outlet Quantity	2
Outlet Size	3/8 inch NPT
Outlet Type	NPT
part type	Fuel Pressure Regulator
Port Quantity	3
Pressure Range	15-60 PSI
Product Type	Fuel Pressure Regulator
Style	Non-Return
Sub Category	Carburetion
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
