Holley | SKU:
12-840
Holley HP Billet Carbureted Fuel Pressure Regulator - 12-840
Street/Strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI
Sold out
Regular price
$313.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley HP Billet Carbureted Fuel Pressure Regulator - 12-840
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
Street/Strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI
Part Number: 12-840
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-840 fuel pressure regulator features 3/8" NPT in/out ports.
Features and Benefits
• Adjustable from 4.5-9 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems where a return line is not needed
• Use with electric or mechanical pumps
• One 3/8" NPT inlet and two 3/8" NPT outlets
• 1/8" NPT gauge port
• Comparable and interchangeable with popular Holley® 12-803 regulator

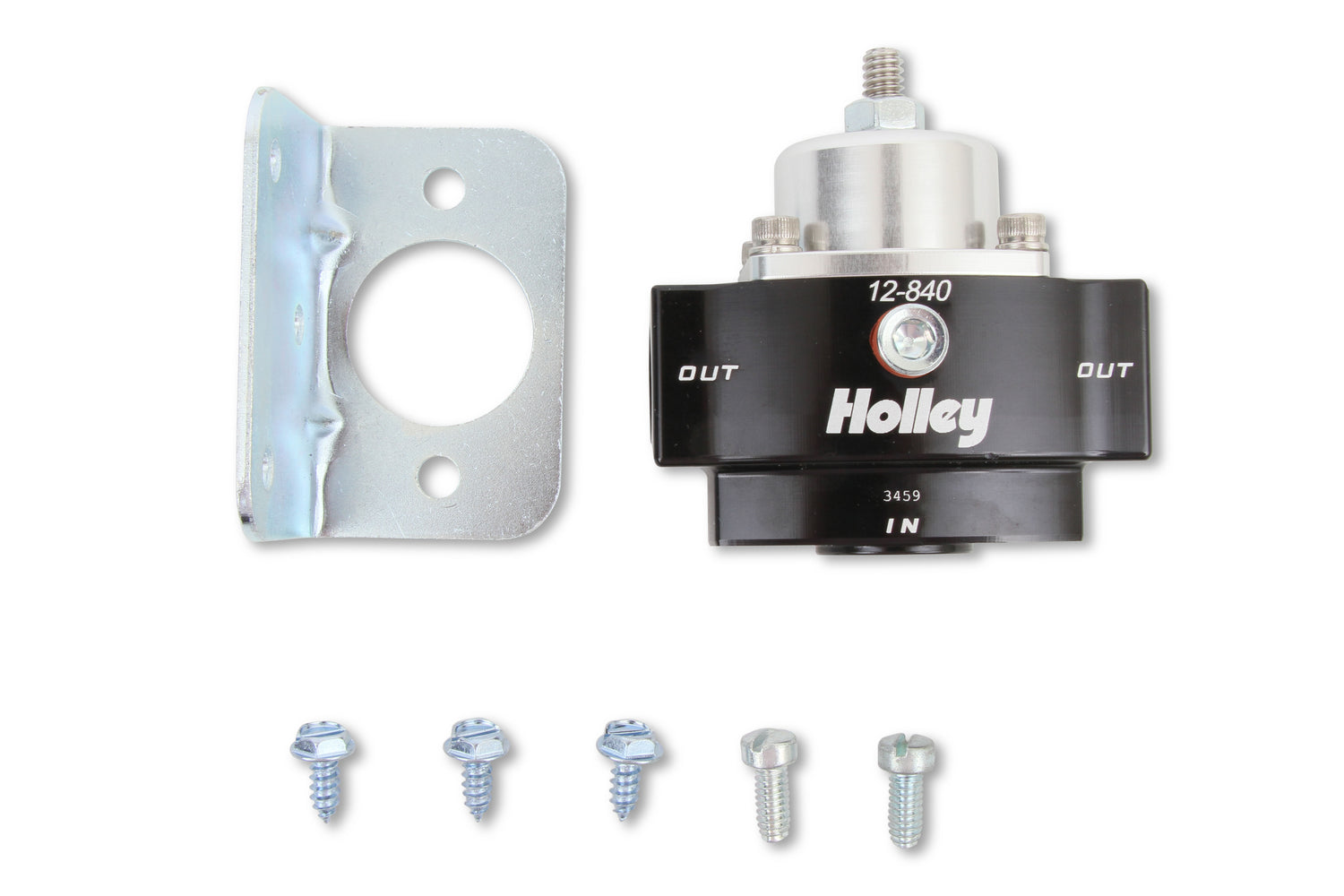

• Mounting bracket included
Regulator is compatible with Diesel #1 and Diesel #2.
Part Number: 12-840
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-840 fuel pressure regulator features 3/8" NPT in/out ports.
Features and Benefits
• Adjustable from 4.5-9 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems where a return line is not needed
• Use with electric or mechanical pumps
• One 3/8" NPT inlet and two 3/8" NPT outlets
• 1/8" NPT gauge port
• Comparable and interchangeable with popular Holley® 12-803 regulator
• Mounting bracket included
Regulator is compatible with Diesel #1 and Diesel #2.
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Black Anodized Emission Code 5 Fuel System Carbureted Fuel Type Gasoline Fuel Type Diesel Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 3/8 Inlet Port Quantity 1 Inlet Size 3/8 inch NPT Inlet Type NPT Material Aluminum Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 3/8 Outlet Port Quantity 2 Outlet Size 3/8 inch NPT Outlet Type NPT part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 4.5-9 PSI Product Type Fuel Pressure Regulator Rebuildable Yes Style Non-Return Sub Category Carburetion Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
