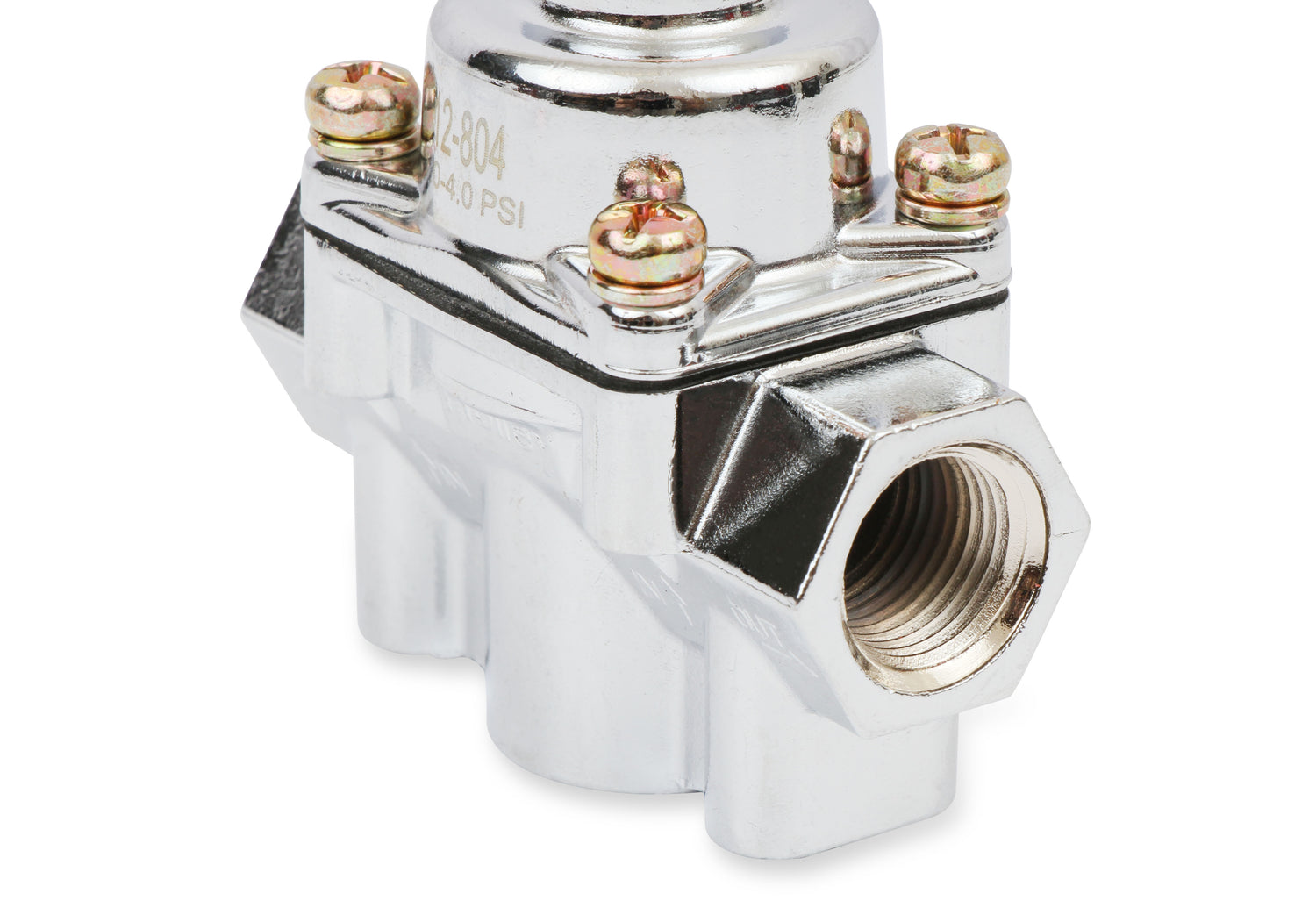

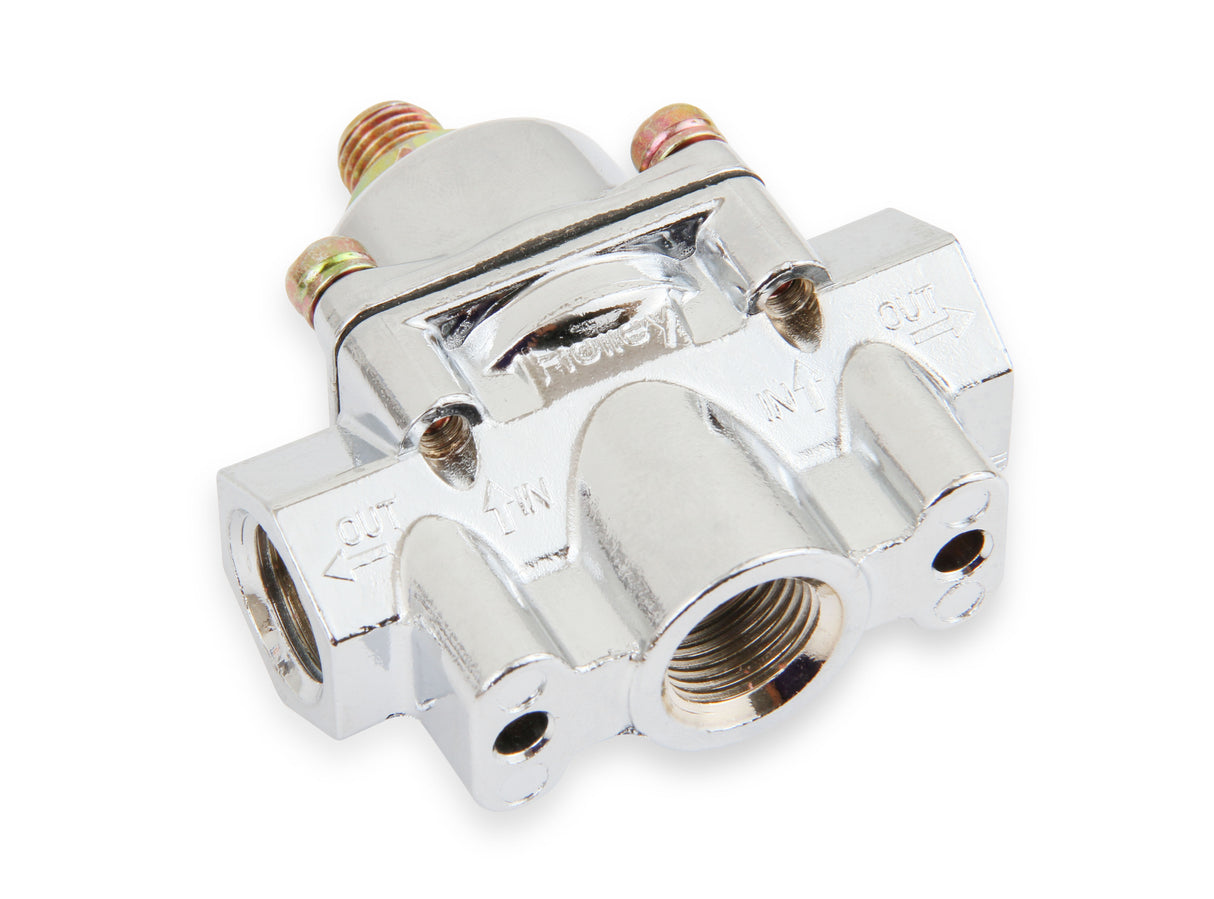

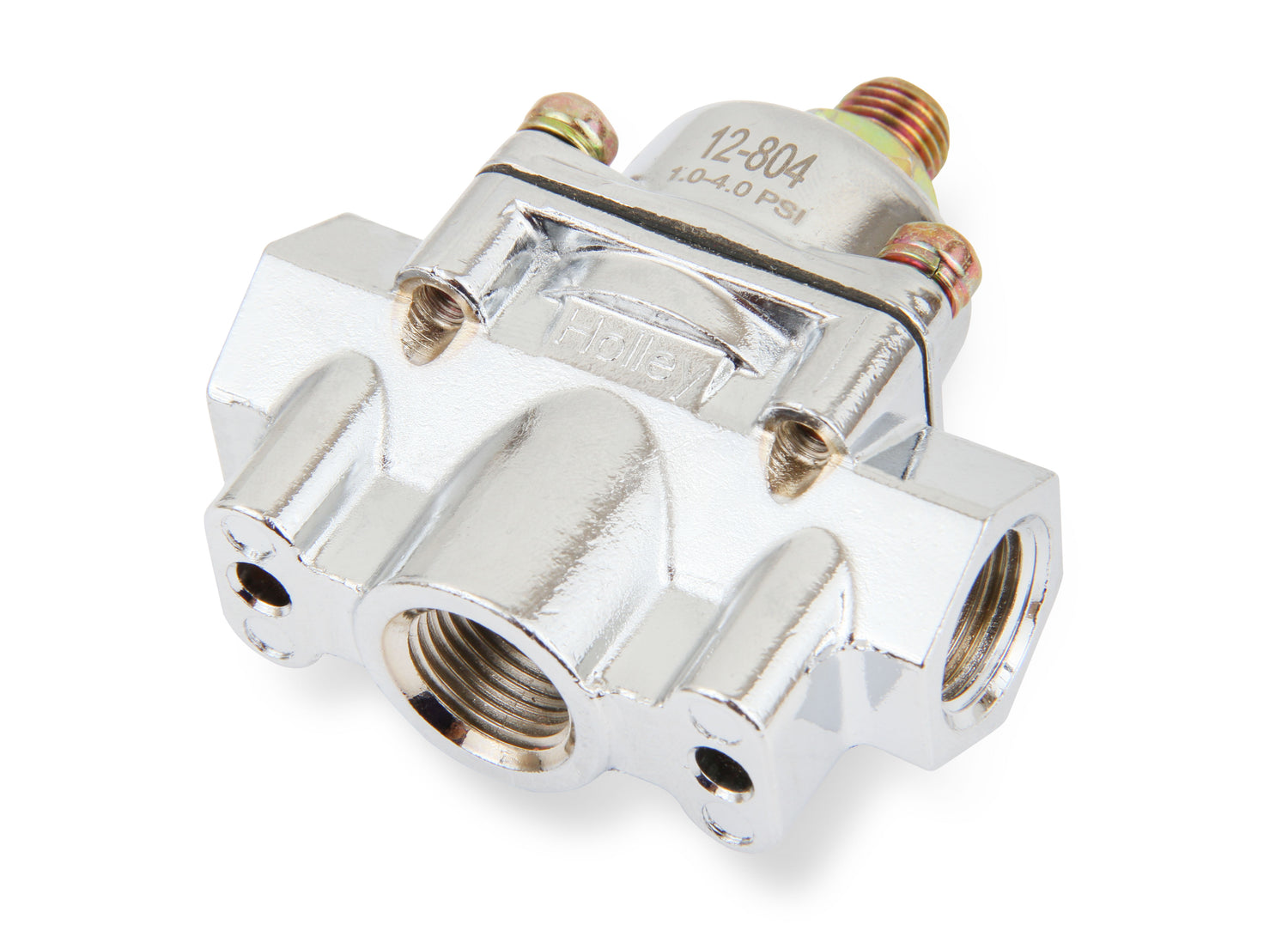

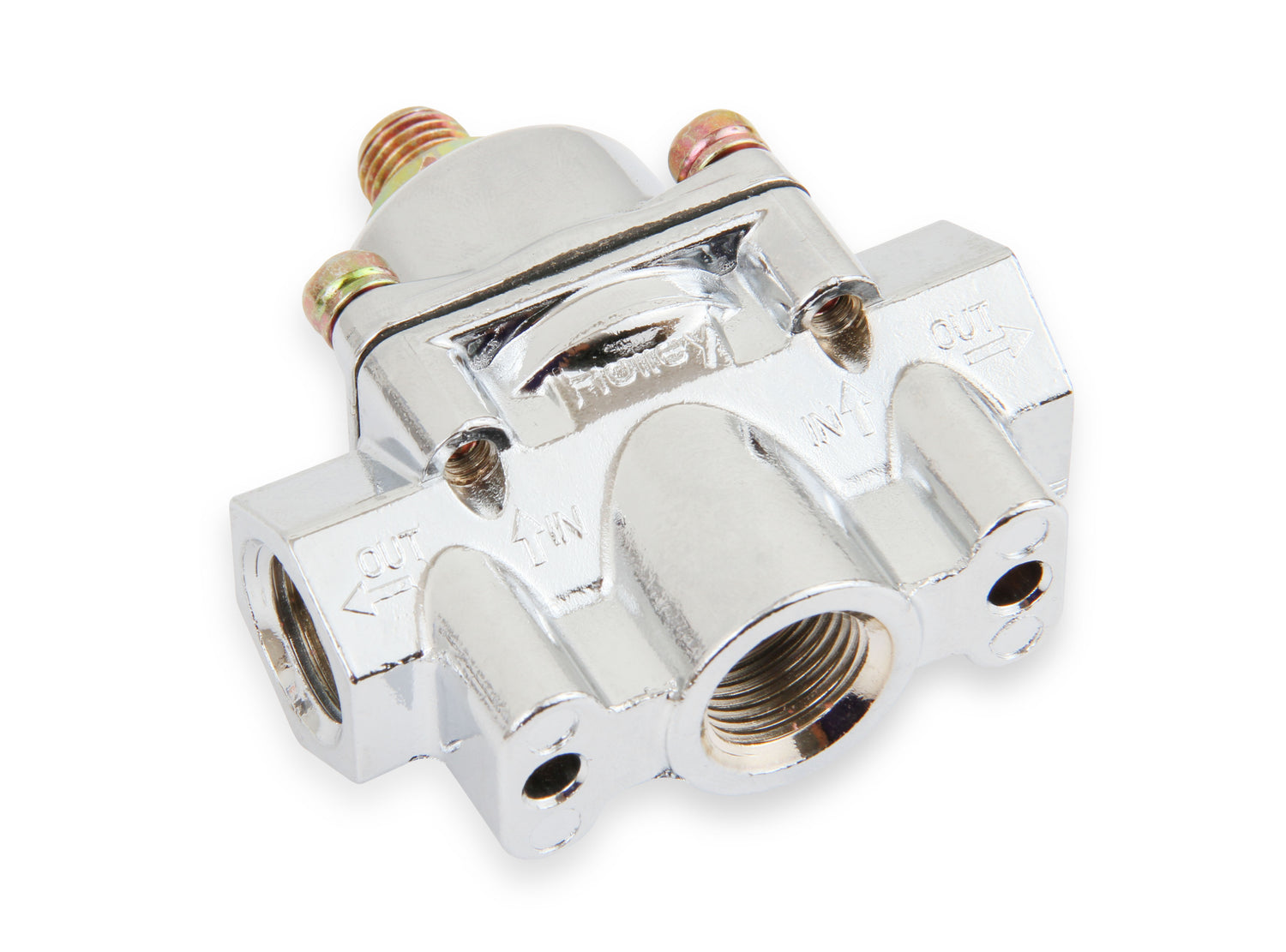

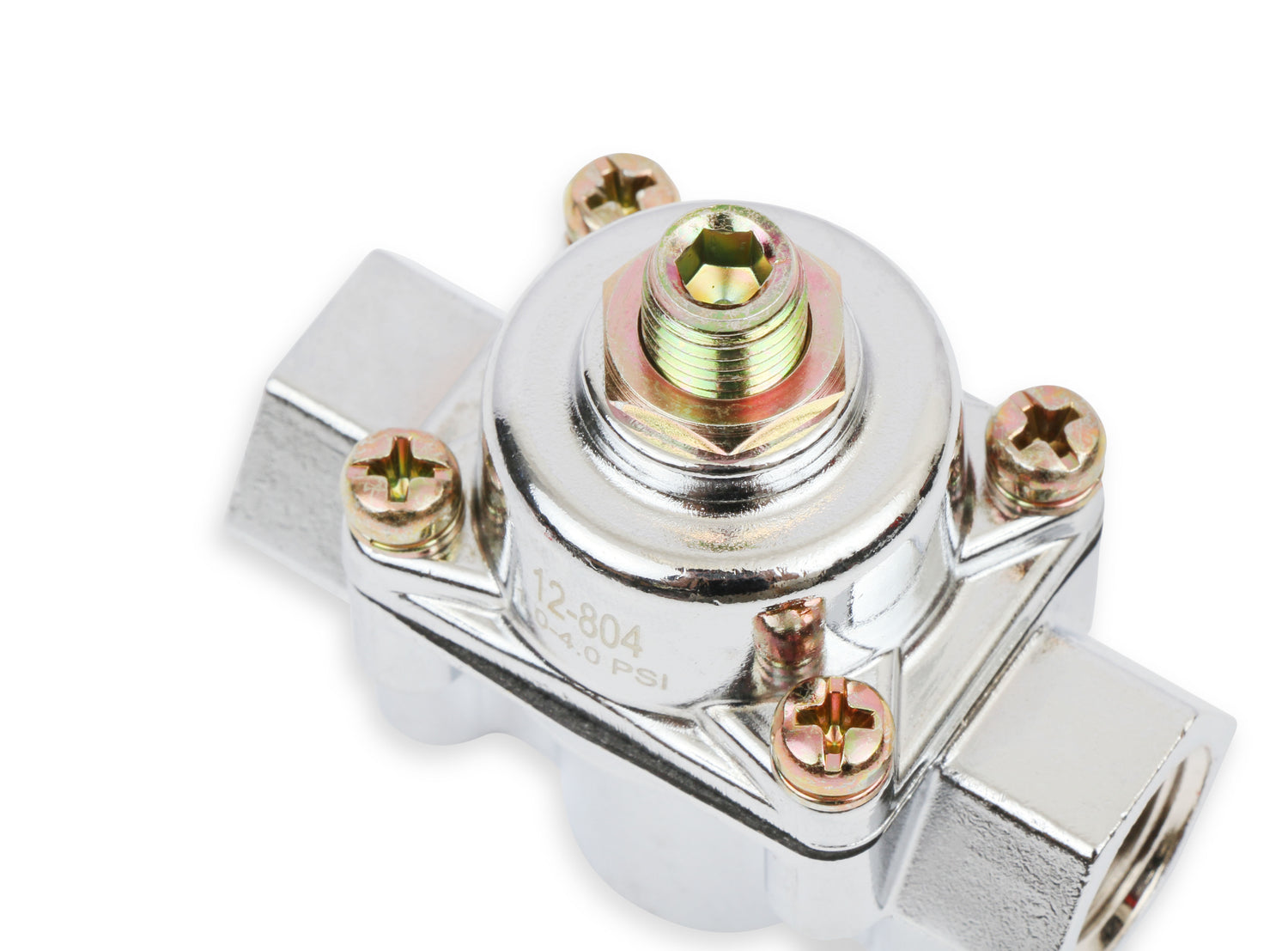

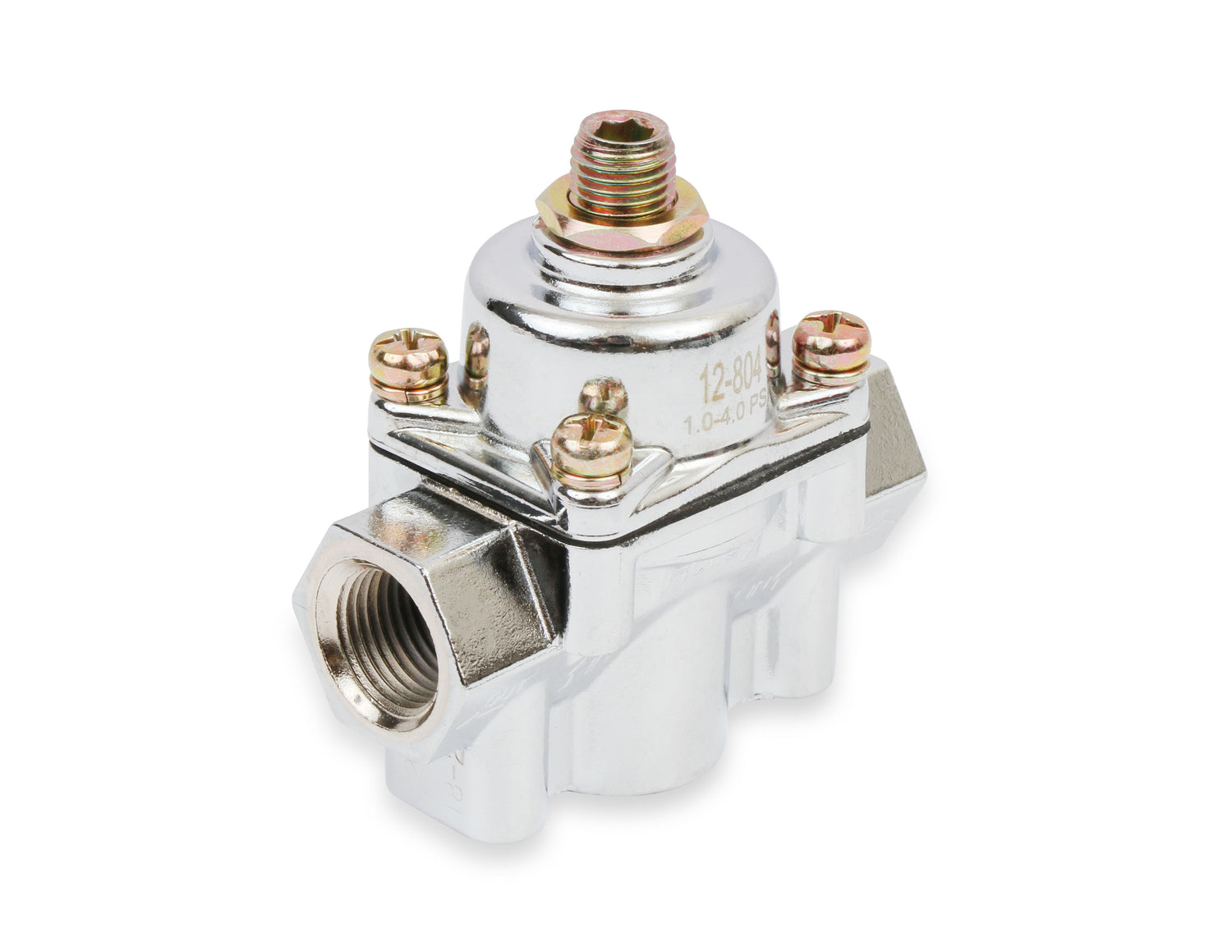

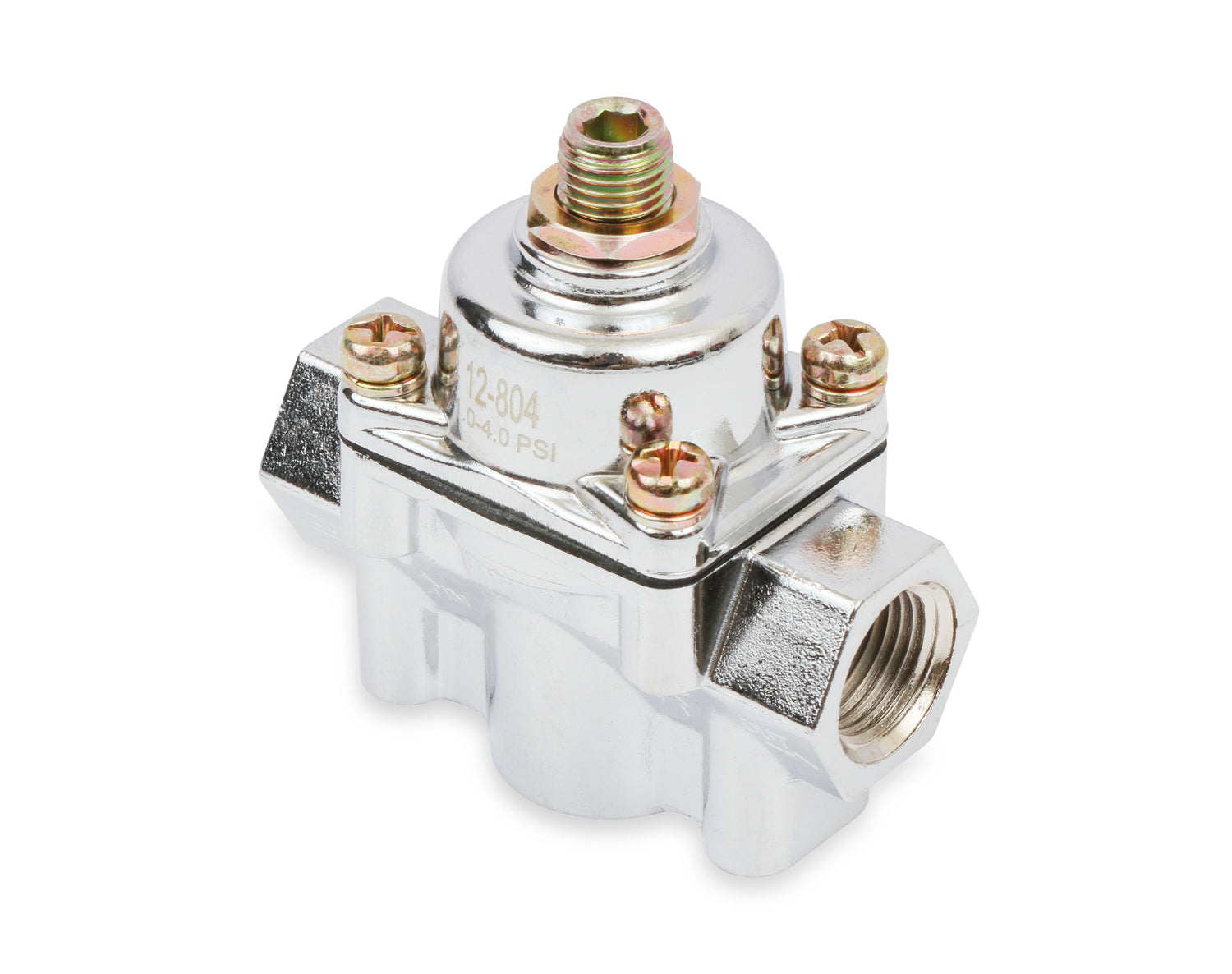

Holley 12-804 Chrome Carbureted Fuel Pressure Regulator
Street/Strip Carbureted Applications Two Port Adjustable from 1 to 4 PSI
Holley 12-804 Chrome Carbureted Fuel Pressure Regulator is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 12-804
Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator. The Holley 12-804 fuel pressure regulator features 3/8" NPT in/out ports. ***The inlet pressure limitation is 7 psi.
Features and Benefits
• Adjustable fuel regulation from 1 to 4 psi
• .220" (7/32") restriction
• 3/8" NPT ports ( 1 in, 2 out)
• Chrome finish

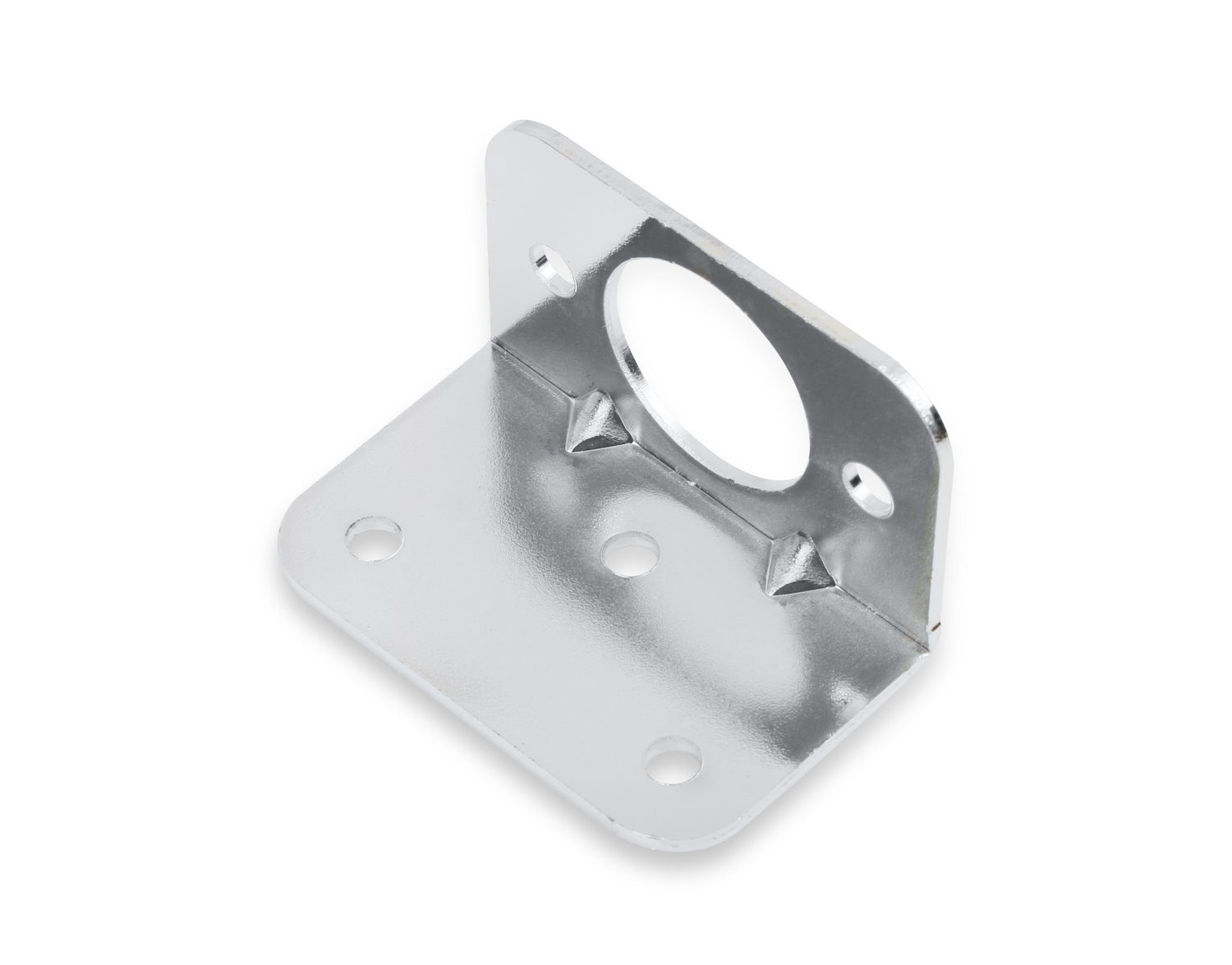

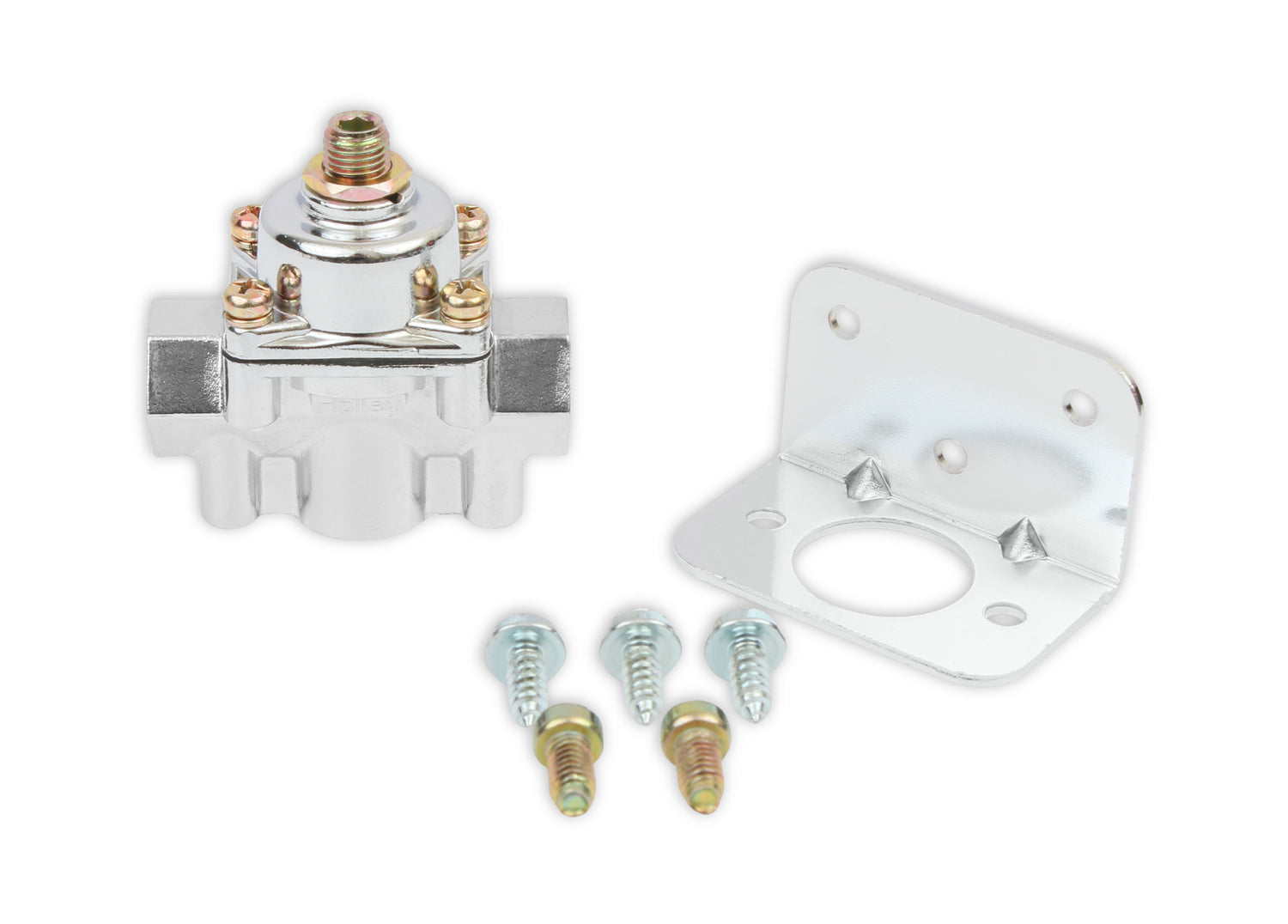

• Mounting bracket included
• Pre-set at 2.8 PSI
Pre-set at 2.8 PSI ***The inlet pressure limitation is 7 psi.
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Shiny Emission Code 5 Fuel System Gasoline Fuel Type Gasoline Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 3/8 Inlet Port Quantity 1 Inlet Size 3/8 inch NPT Inlet Type NPT Material Aluminum Maximum Pressure 4 Minimum Pressure 1 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 3/8 Outlet Port Quantity 2 Outlet Size 3/8 inch NPT Outlet Type NPT part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 1-4 PSI Product Type Fuel Pressure Regulator Rebuildable Yes Style Non-Return Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
